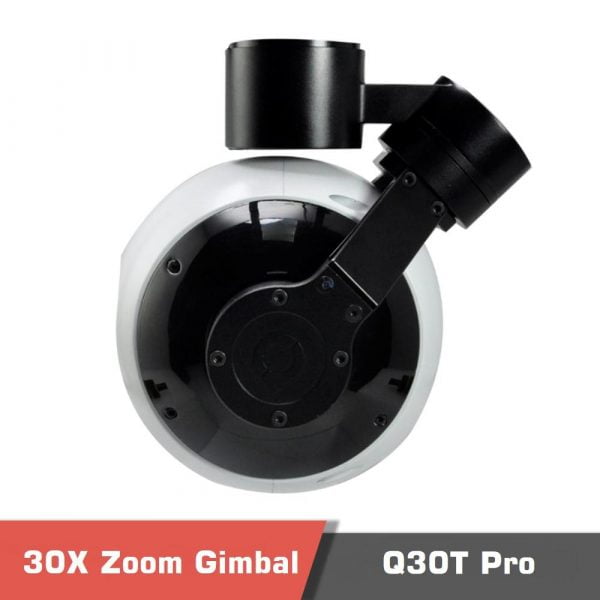

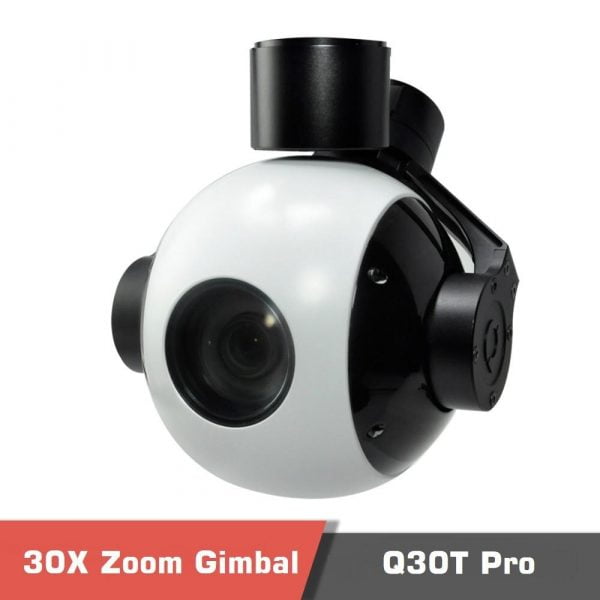

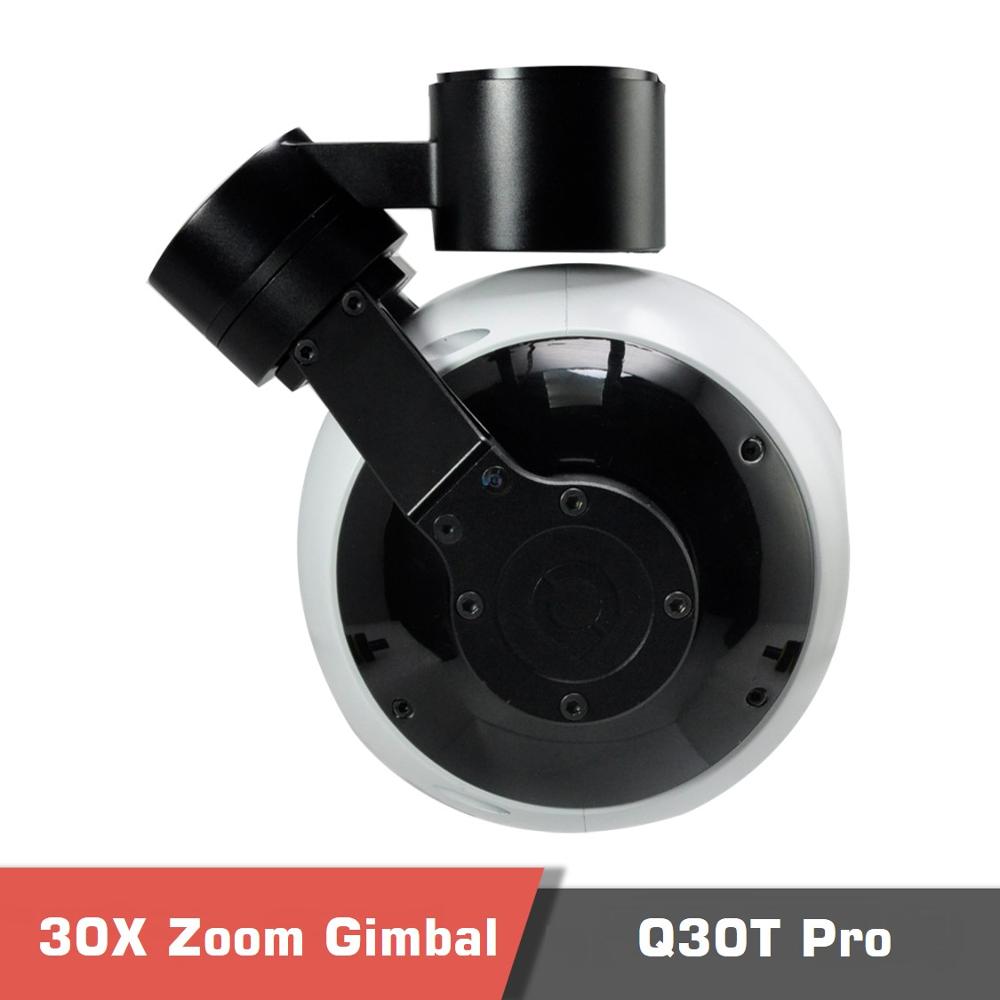

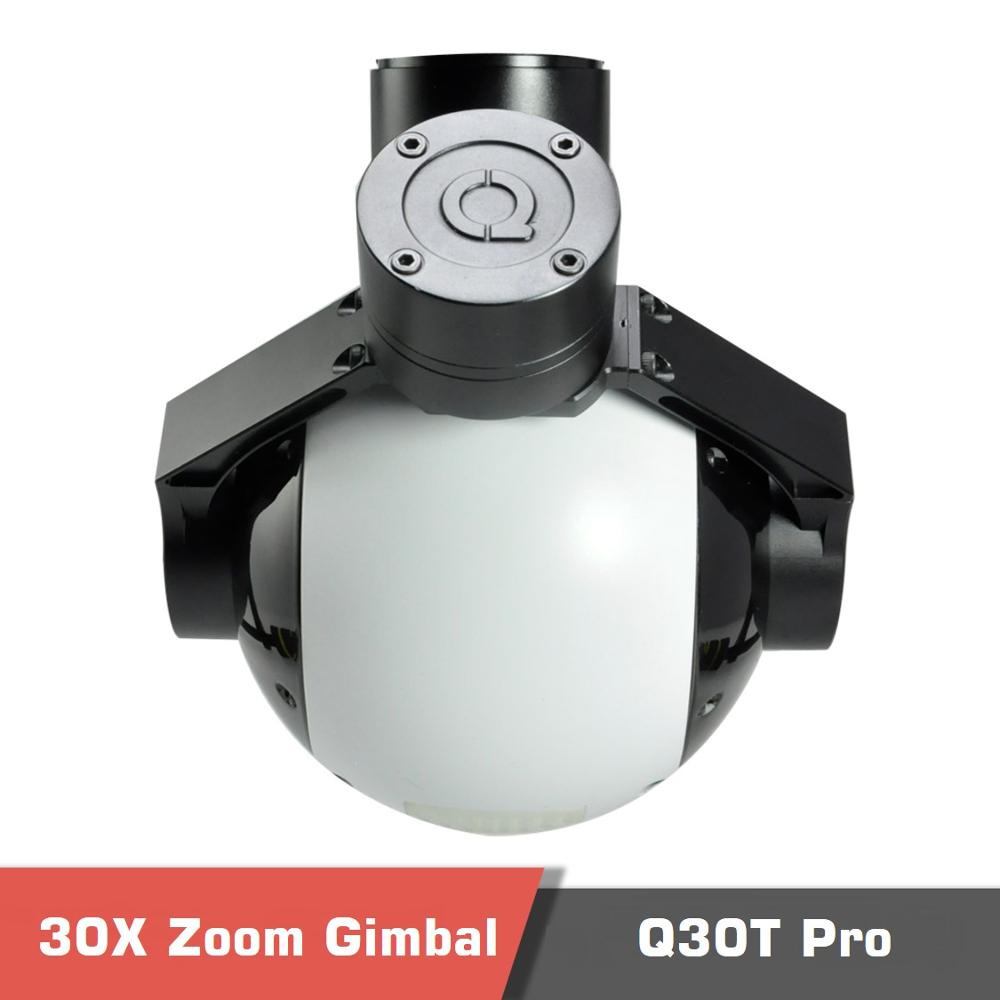

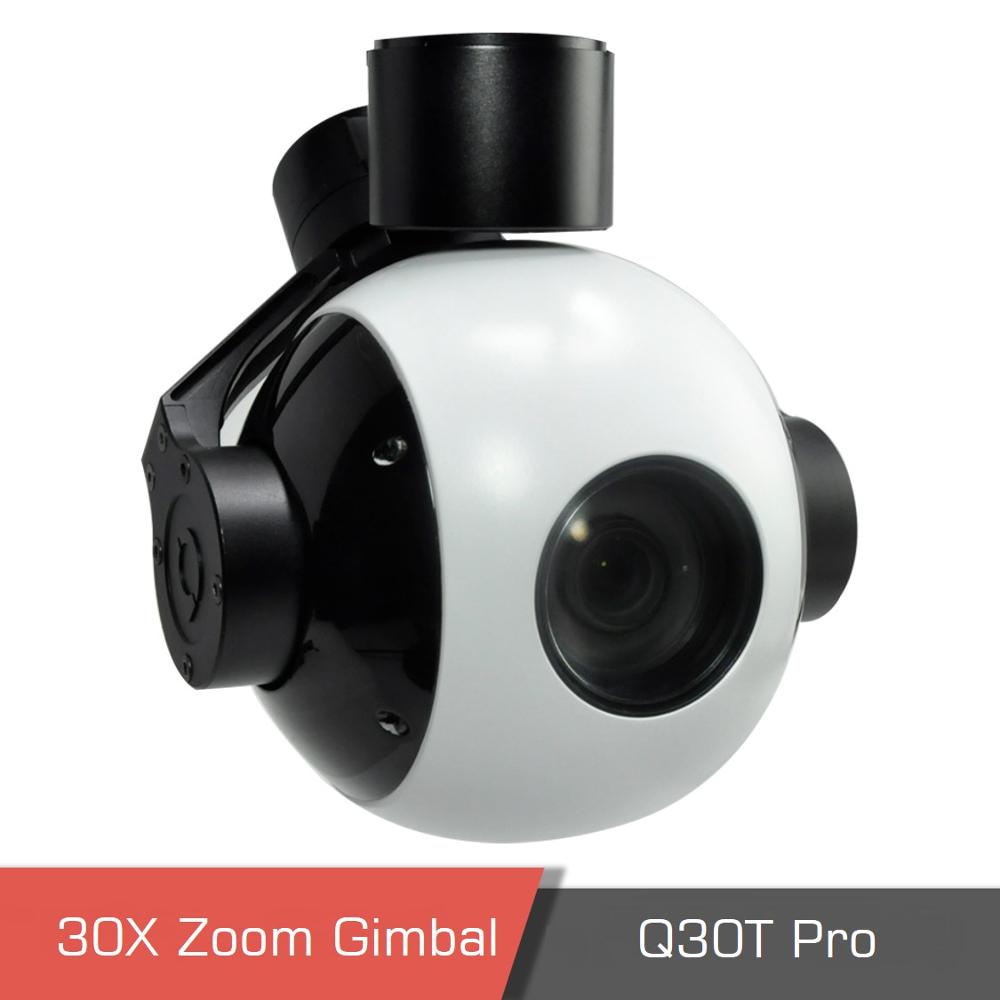

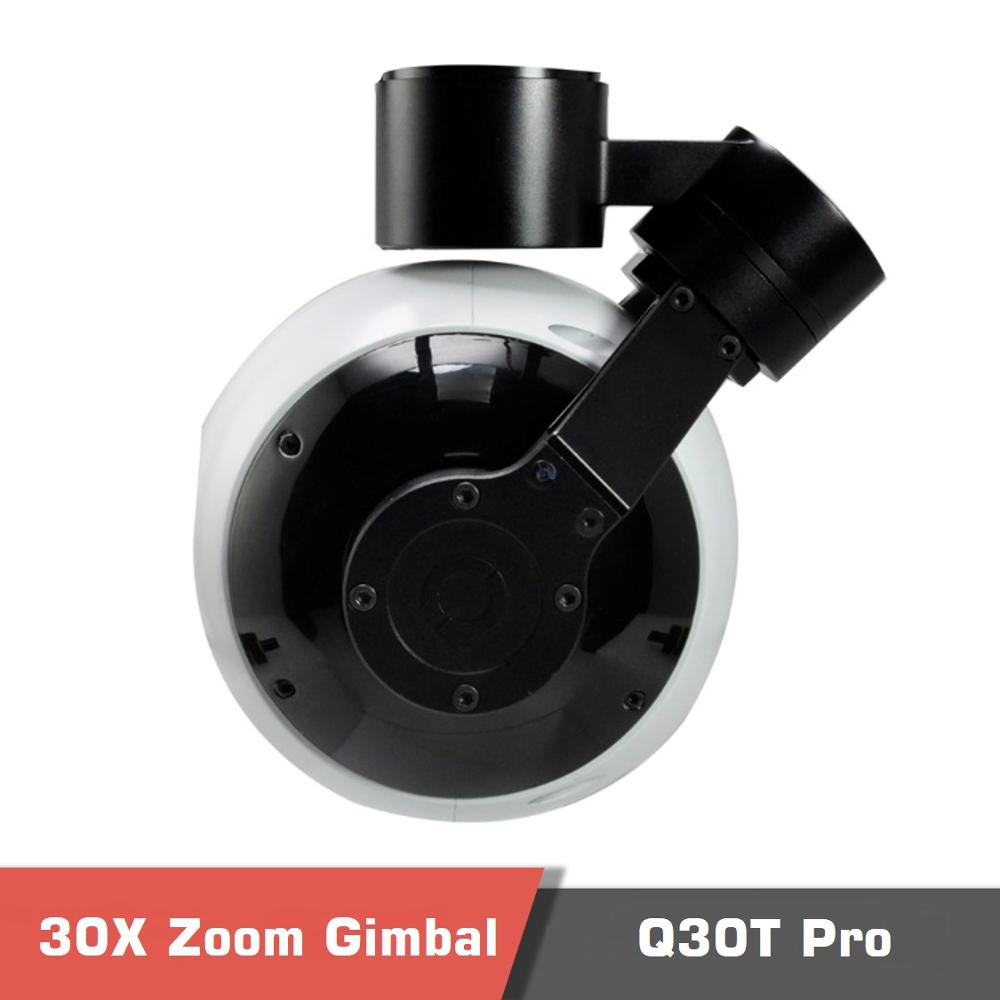

Gimbal Camera Zoom 30x Q30T Pro with Auto Tracker

5667.48 $6122.48 $

PayPal
Visa
Master

Description

Q30T pro features a 30x optical zoom lens. Itโ€™s powered by SONY 1/2.8โ€ โ€œExmor Rโ€ CMOS module, FHD 1080p video, fast auto-focus speed, designed for UAV aerial photography. A lightweight design combined with 3-axis gimbal makes the gimbal motors ultra-reactive. FOC solution can greatly compensate the vibration of UAV. Yaw axis could realize 360ยฐ continuous rotation with default SDI output. At the same time, Q30T pro can achieve target tracking. The image is stable even at 30 times optical zoom. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

U9853bfb417504f9090868df1cdc3a92fZ - , aerial photography - MotioNew - 13U4346177f5931443b9d829f20d8ff2d41X - , aerial photography - MotioNew - 14
Ue03e6c9dc29a4cd8b7745807c44d89975 - , aerial photography - MotioNew - 15U81d86457e4e346a98a0a2a4b513e7798b - , aerial photography - MotioNew - 16U7856b3c8a79648be8daa403b25f12c4cw - , aerial photography - MotioNew - 17
U38a9b70ee0b34335a1cefc4605964444M - , aerial photography - MotioNew - 18
U62bc62efc82b4456a3b2d46c33393b41w - , aerial photography - MotioNew - 19
U1be5b8bbc0534e24bed8123430b3d14ct - , aerial photography - MotioNew - 20
U705762695fd24b3dbf1d8e232824288eI - , aerial photography - MotioNew - 21U145712c88cde4d1fb80be2a6adecdd9fk - , aerial photography - MotioNew - 22





SPECIFICATONS

  • Weight:ย 876g
  • Dimension:ย 121.5*126.4*189mm (Viewport Version)
  • Working voltage:ย 12V ~ 16V
  • Imager Sensor:ย SONY 1/2.8″ “Exmor R” CMOS
  • Total pixel:ย 2.13MP
  • Optical zoom:ย 30x, F=4.3~129mm
  • Video Output:ย micro HDMI(HD output 1080P 60fps) / Analog
  • Pitch/Tilt:ย  45ยฐ~-90ยฐ
  • Roll:ย ยฑ39ยฐ
  • Yaw/Pan:ย ยฑ300ยฐ/ยฑ360ยฐ*N(IP/SDI output version)
  • Hardwae Parameter
  • Working voltage 12V
  • Input voltage 4S ~ 6S
  • Output voltage 5V (connect with PWM)
  • Dynamic current 500mA @ 12V
  • Idle current 400mA @ 12V
  • Power consumption โ‰ค 6W
  • Working environment temp. -20โ„ƒ ~ +60โ„ƒ
  • Output SDI / IP / micro HDMI(FHD output 1080P 60fps)
  • Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
  • Control method PWM / TTL / S.BUS/TCP(IP output version)Camera spec
  • Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
  • Picture quality Full HD 1080 (1920*1080)
  • Effective pixel 2.13MP
  • Lens optical zoom 30x, F=4.3~129mm
  • Digital zoom 12x (360x with optical zoom)
  • Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
  • Horizontal viewing angle 1080p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end)
  • 720p mode: 63.7ยฐ(wide end) ~ 2.3ยฐ(tele end)
  • SD: 47.8ยฐ(wide end) ~ 1.7ยฐ(tele end)
  • Sync system Internal
  • S/N ratio more than 50dB
  • Min illumination Color [email protected]
  • Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
  • Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
  • Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
  • White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
  • Shutter speed 1/1s to 1/10,000s, 22 steps
  • Backlight compensation Yes
  • Aperture control 16 steps
  • Defog Yes
  • OSD Yes

Gimbal spec

  • Pitch/Tilt +45ยฐ~-90ยฐ
  • Roll ยฑ39ยฐ
  • Yaw/Pan ยฑ300ยฐ/ยฑ360ยฐ*N(IP/SDI output version)
  • Vibration angle Pitch/Roll: ยฑ0.02ยฐ, Yaw๏ผšยฑ0.03ยฐ
  • One-key to center โˆš

Features

Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ยฑ48 ~ ยฑ192 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel

Packing Information
N.W. 876g
Product meas. 121.5*126.4*181.5mm/121.5*126.4*189mm (Skyport Version)
Accessories 1pc gimbal camera device / plastic box
G.W. 3058g
Package meas. 360*300*250mm
