U7DER / U7DE Gimbal Camera with Micro Prime Lens and Dual EO/IR (Hawkeye series)

Inquiry

This product is currently out of stock and unavailable.

Description

U7DER / U7DE Gimbal Camera with Micro Prime Lens and Dual EO/IR

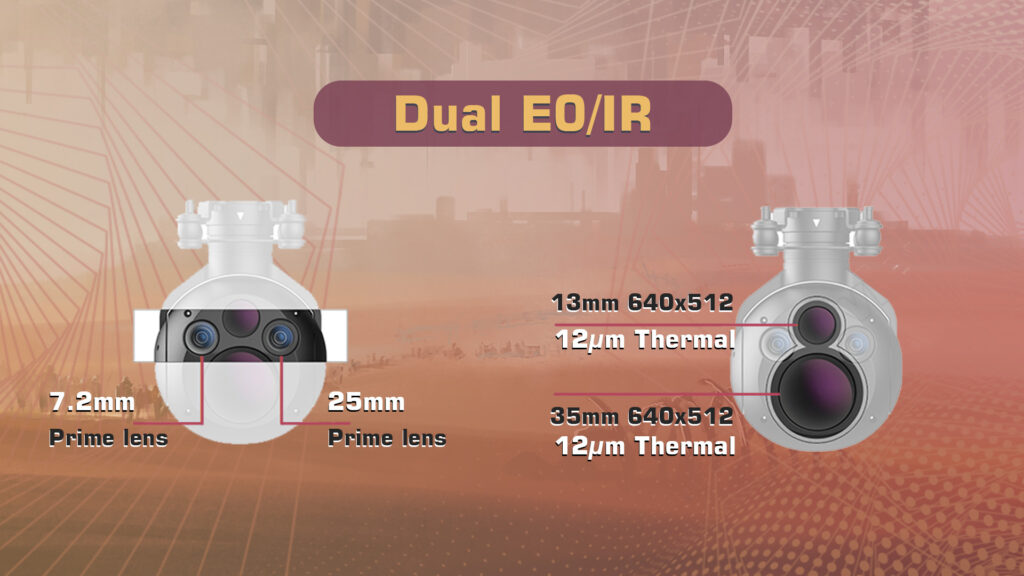

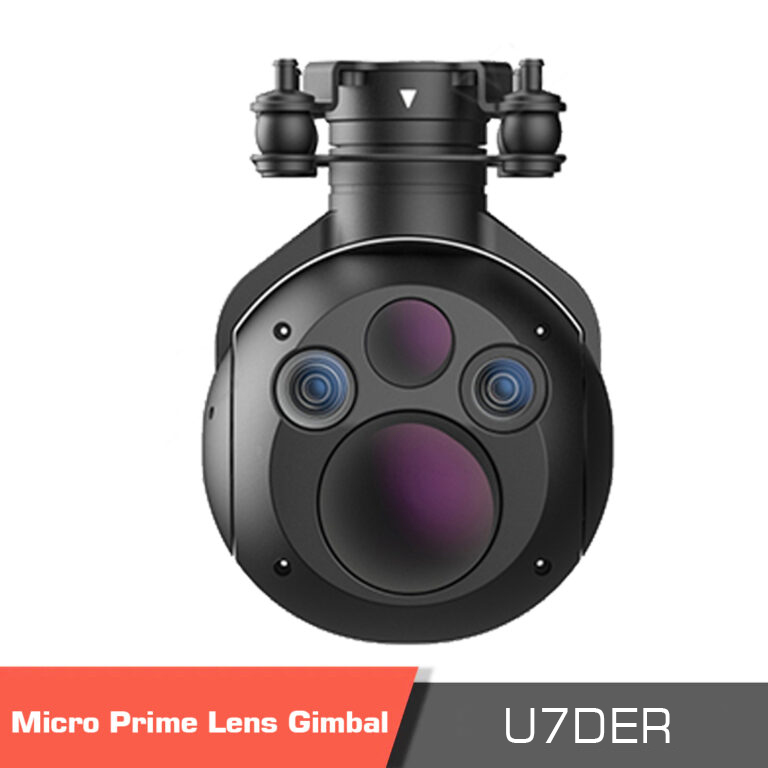

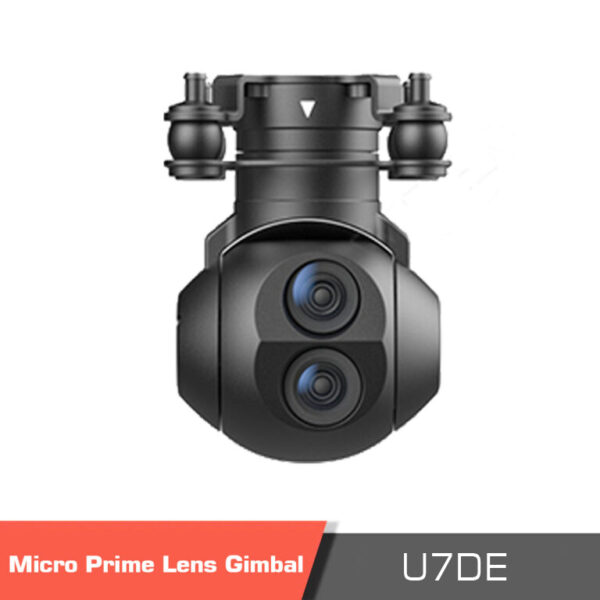

U7DER / U7DE Gimbal Camera are two gimbals with Dual Electro-optical sensors (dual EO sensors) integrated with AI object identification and tracking module, which can perform automatic car and human recognition and tracking. U7DER has dual IR sensors as well as dual EO sensors. The thermal and visible images can be transmitted simultaneously in a picture in picture format (PIP format).

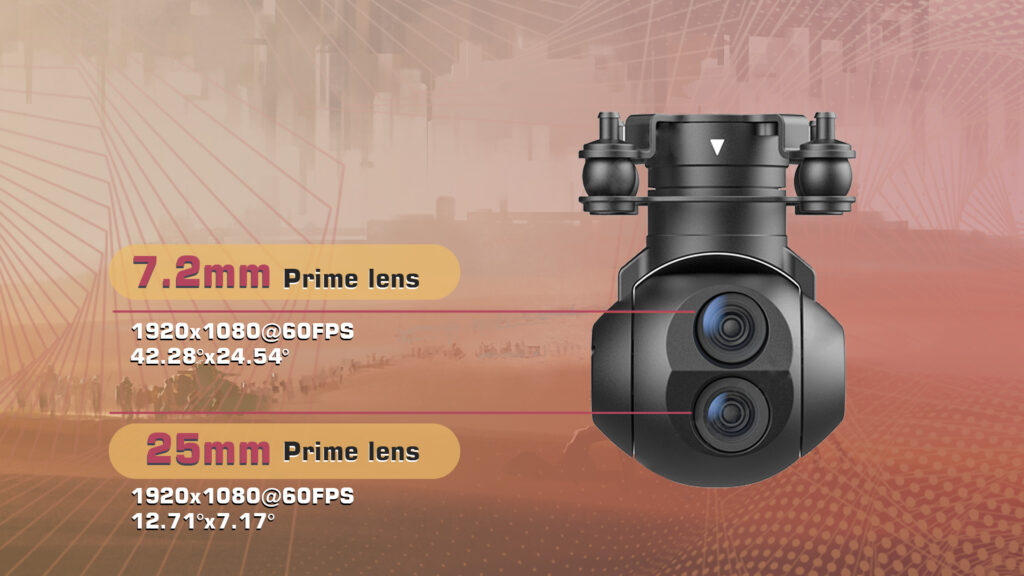

Two 7.2mm and 25mm lenses are provided for EO sensors. They can output videos with full HD resolution 1920×1080@60fps. The thermal sensors are 640×512 and are equipped with 13mm and 35mm lenses. The system supports up to 4x digital zoom.

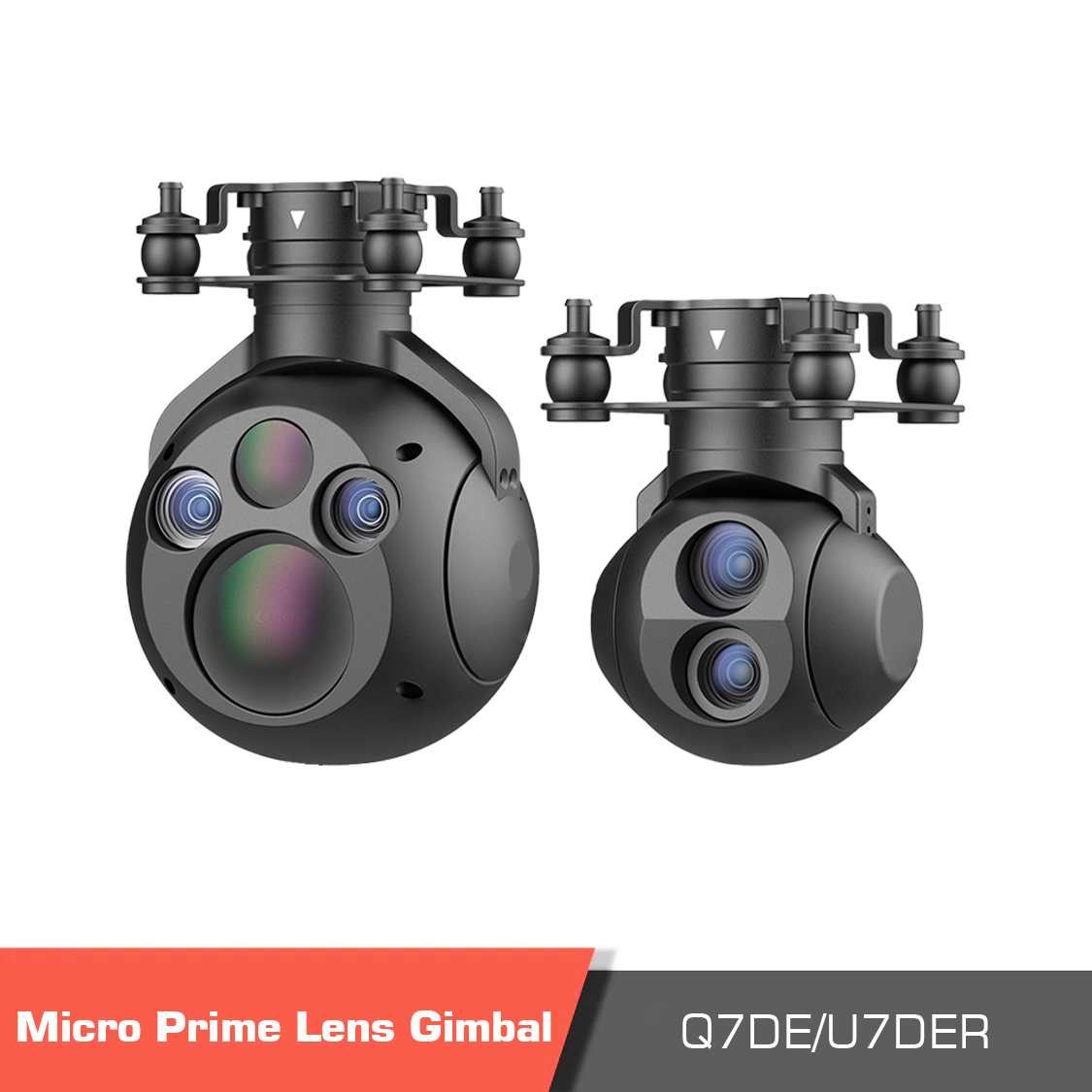

Both models are lightweight and have a compact structure with a small volume. U7DE and U7DER weigh only 230g and 525g respectively. High-precision aluminum alloy CNC processing gives the gimbals a sophisticated look, increases protection against incidents, and creates a good shield for anti-interference protection and heat dissipation.

Both gimbals have embedded artificial intelligence algorithms onboard to detect various human and car subjects. More than 10 subjects can be detected at the same time. It is possible to customize AI detection algorithm based on the characteristics of the intended subject.

Q7red. 1 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 6 Q7red. 2 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 7 Q7red. 3 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 8 Q7red. 4 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 9 Q7red. 5 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 10 Q7red. 6 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 11 Q7red. 7 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 12 Q7red. 8 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 13 Q7red. 9 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 14 Q7red. 10 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 15 Q7red. 11 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 16 Q7red. 12 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 17 Q7red. 13 1 - q7der / q7de gimbal camera, micro prime lens, gimbal camera, q7de gimbal, q7de gimbal camera, ai object identification, dual ir sensors, pip format, dual electro-optical sensors, dual eo sensors, dual eo, dual ir, picture in picture, hawkeye series, dual eo/ir object tracking, gimbal camera for surveillance, q7der gimbal, lightweight gimbal camera, realize car and human, automatic recognition, super lightweight gimbal camera, drone camera, brushless gimbal, camera stabilizer gimbal, dual sensor, micro gimbal, micro dual sensor, drone tracking, surveillance gimbal, surveillance camera, large area reconnaissance, industrial use, industrial applications, zoom camera, optical zoom camera, gimbal zoom camera, zoom gimbal, q7der gimbal camera - motionew - 18

Additional information

Weight 1 kg
Dimensions 13 × 17 × 16 cm
version

Q7DE, Q7DER

Specifications

U7DER Specification

Hardware Parameter
Working voltage 12V(3S)
Output voltage 5V (connect with PWM)
Dynamic current 900~1500mA @ 12V
Idle current 900mA @ 12V
Working environment temp. -20℃~+60℃
Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 25fps)
Control method TTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -60°~120°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
EO Camera 1 Spec
Resolution 1920*1080 @60fps
Focus Length 7.2mm
Angle of View 42.28°*24.54°
EO Camera 2 Spec
Resolution 1920*1080 @60fps
Focus Length 25mm
Angle of View 12.71°*7.17°
IR Thermal Imager Spec
Angle of View 1 32°*25.8°
Angle of View 2 12.5°*10°
Working mode Uncooled VOx long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Thermal prime lens
Color palette White hot, pseudo color
Digital zoom 1x ~ 4x
Sync correct time Yes
EO Camera Object Tracking
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
EO / IR Camera Object Tracking
Product meas. 95.9*86.7*135.6mm
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / High quality plastic box with foam cushion
N.W. 540g
Package meas. 167*158*120mm



U7DE Specification

Hardware Parameter
Working voltage 12V(3S)
Output voltage 5V (connect with PWM)
Dynamic current 600~1000mA @ 12V
Idle current 600mA @ 12V
Working environment temp. -20℃~+60℃
Output IP rtsp (1080p 30fps)
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080)
Video storage format MP4  (1080P 25fps)
Control method TTL / S.BUS/ TCP
Gimbal Spec
Angle scope of structure design Pitch/Tilt: -60°~120°,    Yaw/Pan: ±360°*N
Angle scope of software design Pitch/Tilt: -45°~90°,   Yaw/Pan: ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
EO Camera 1 Spec
Resolution 1920*1080 @60fps
Focus Length 7.2mm
Angle of View 42.28°*24.54°
EO Camera 2 Spec
Resolution 1920*1080 @60fps
Focus Length 25mm
Angle of View 12.71°*7.17°
EO Camera Object Tracking
Update rate of deviation pixel 60Hz
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames
Packing Information
Product meas. 67.6*61.6*99.3mm
Accessories 1pc gimbal camera device, screws, USB to TTL cable  / High quality plastic box with foam cushion
N.W. 285g
Package meas. 167*158*120mm

Product contents

1x gimbal camera device (U7DE or U7DER)

4x damping ball

1x 32G micro SD card

4x copper cylinder

8x M3 screw

2x M2 screw

1x j30-15TL
