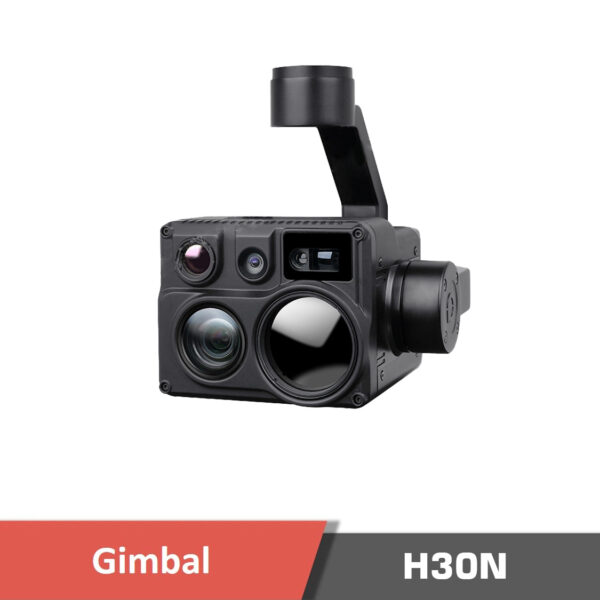

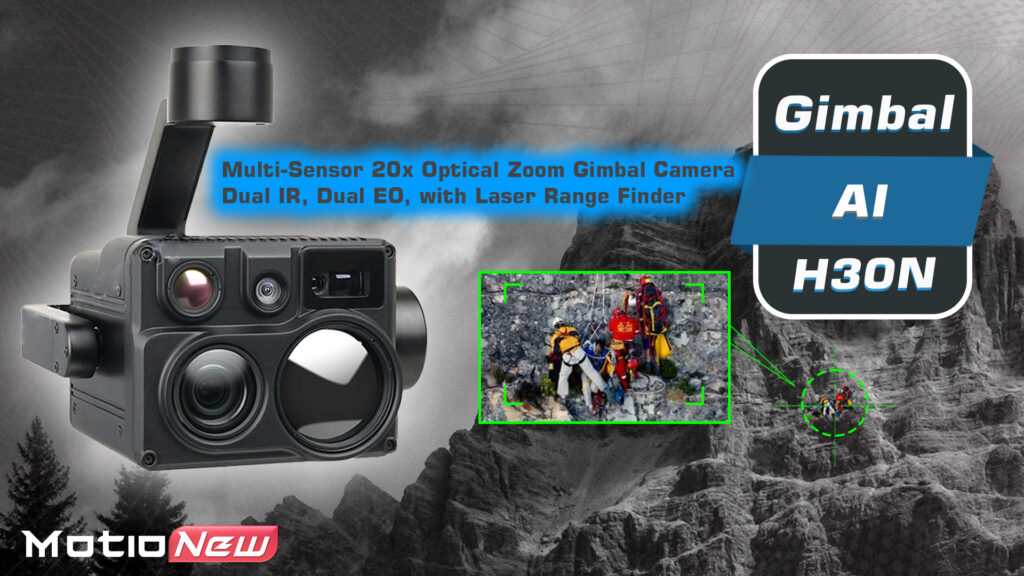

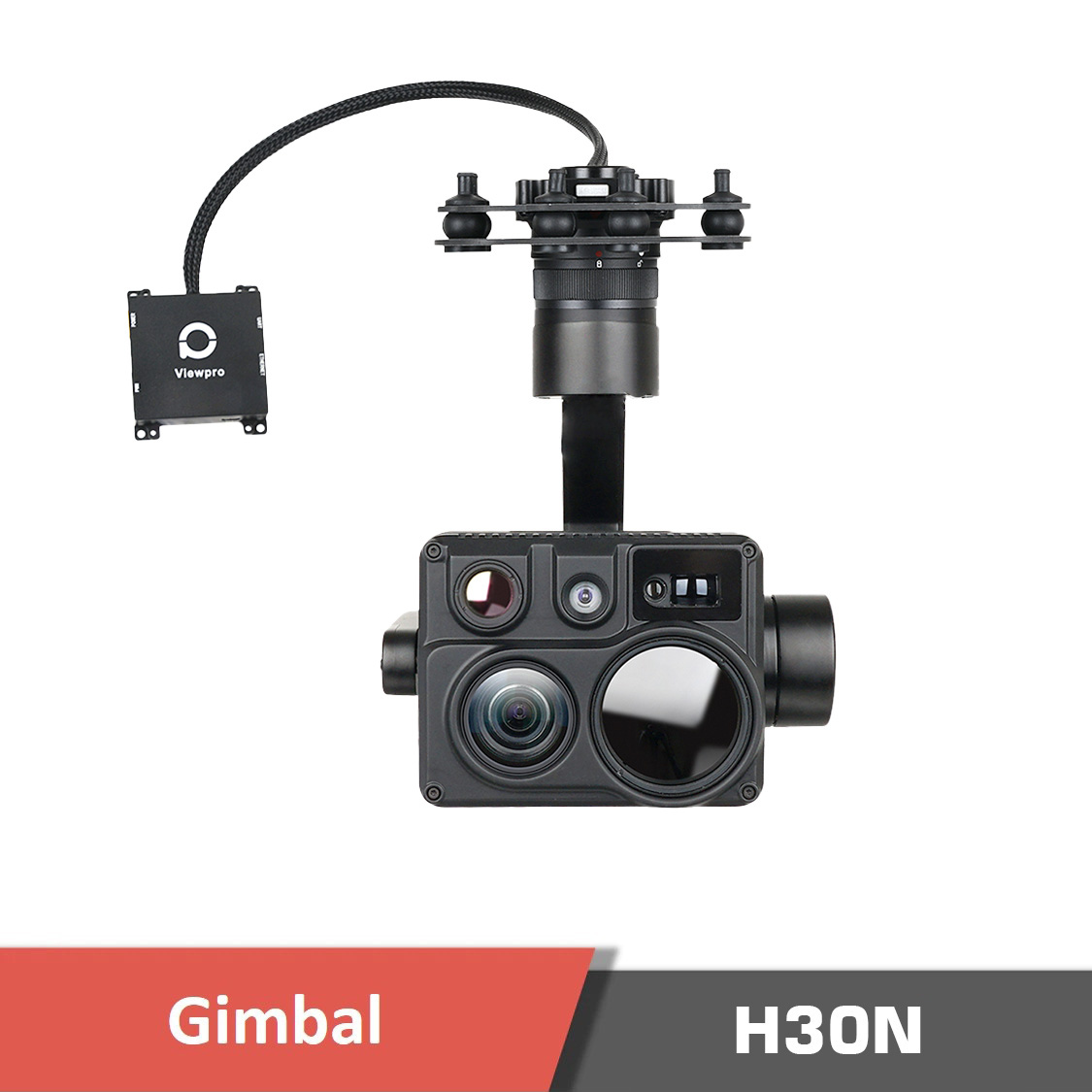

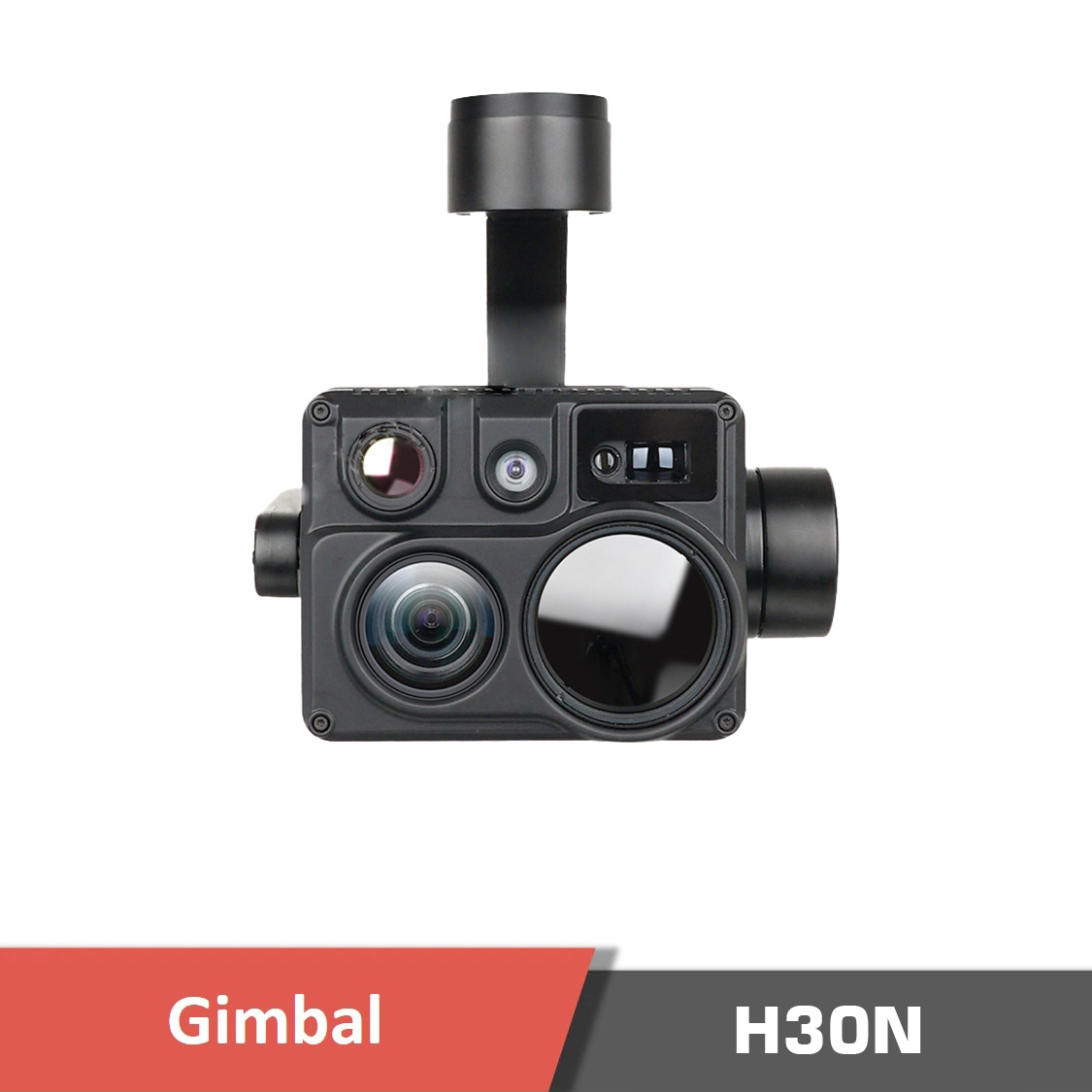

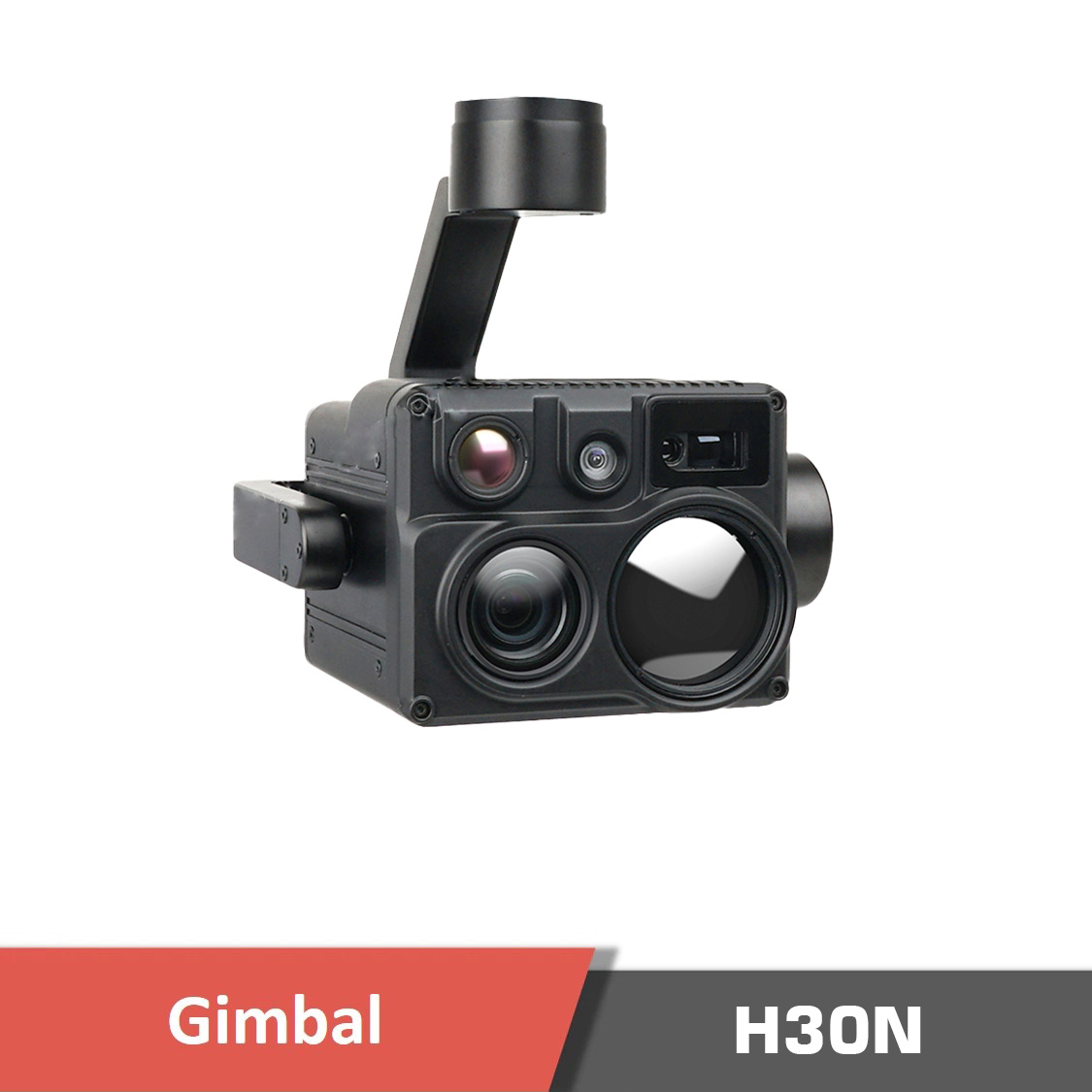

H30N gimbal camera, Dual IR and Dual EO with Laser Rangefinder and AI tracker

20599.00 $20899.00 $

PayPal
Visa
Master

Description

Overview of H30N gimbal camera

Introducing H30N Gimbal Camera, the pinnacle of surveillance technology – the EO/IR Camera System, a comprehensive solution that redefines the landscape of imaging and surveillance capabilities. Designed to exceed expectations in any environment, this system thrives in temperatures ranging from -20℃ to +60℃, ensuring unparalleled performance in diverse climatic conditions.

H30N Gimbal Camera General Specifications

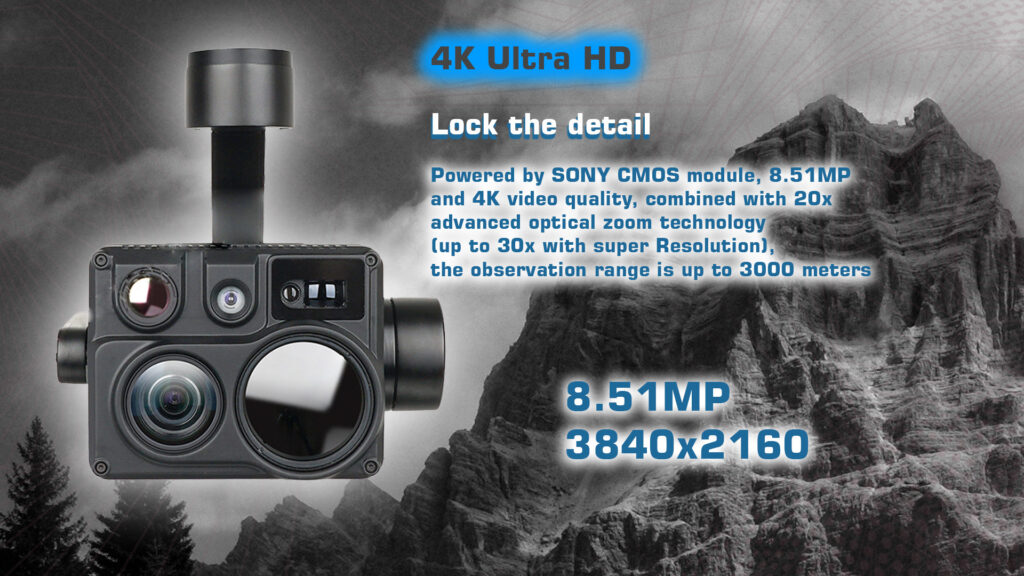

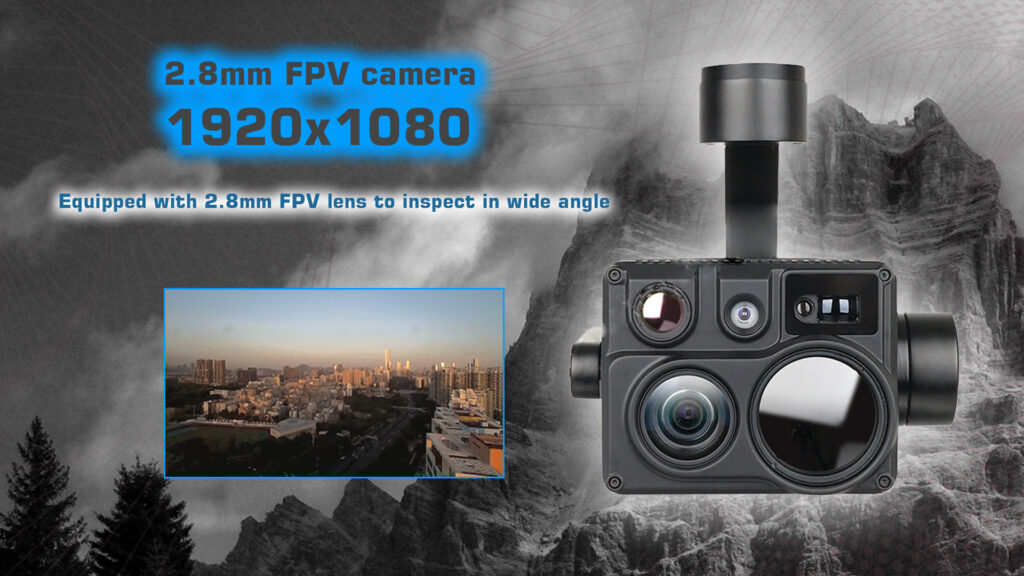

At its core, this advanced system stands out for its dual EO and IR camera configurations, offering unparalleled versatility and functionality. With not just one, but two EO cameras, this system ensures exceptional imaging quality and flexibility. The first EO camera features a SONY 1/2.5″ “Exmor R” CMOS sensor with a total pixel count of 8.51MP, along with an impressive 20x optical zoom that extends up to 30x with Super Resolution capabilities. The second EO camera, with a focus length of 2.8mm and a resolution of 1920×1080, provides additional depth and precision to your surveillance needs.

EO/IR Camera System

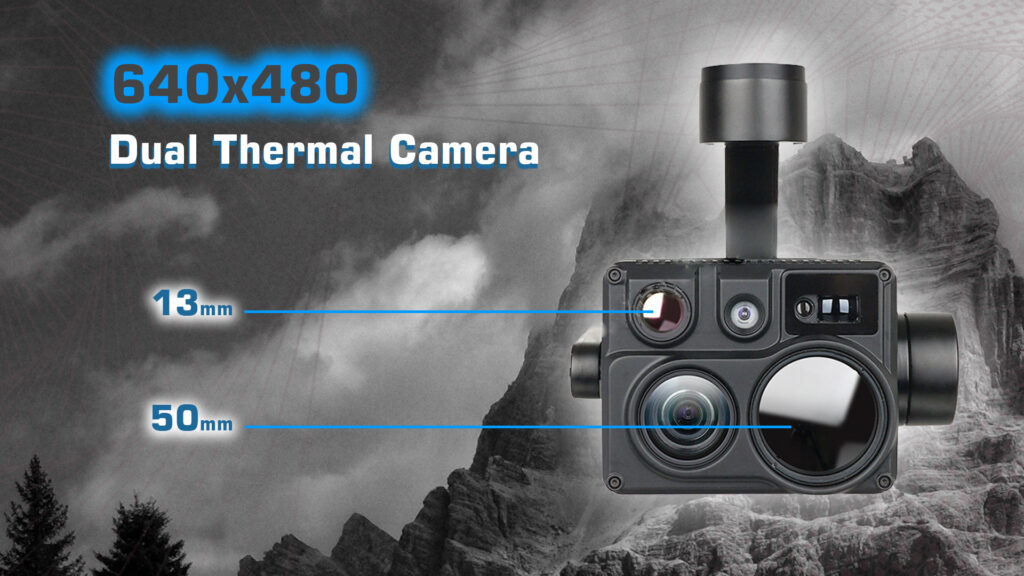

But that’s not all – the EO camera ensemble is complemented by two IR thermal imagers, each with unique specifications catering to different surveillance requirements. The first IR thermal imager comes with a 50mm lens and boasts a detector pixel count of 640×480, offering uncooled long-wave thermal imaging. Meanwhile, the second IR thermal imager, equipped with a 13mm lens and the same detector pixel count, offers a different perspective and application for thermal imaging needs.

IR Laser Rangefinder

Beyond the impressive camera setup, this system offers an array of features that ensure superior performance and functionality. The Camera gimbal drone system’s specifications allow for extensive mechanical and controllable ranges, enabling a wide scope of view and precise control over the surveillance area.

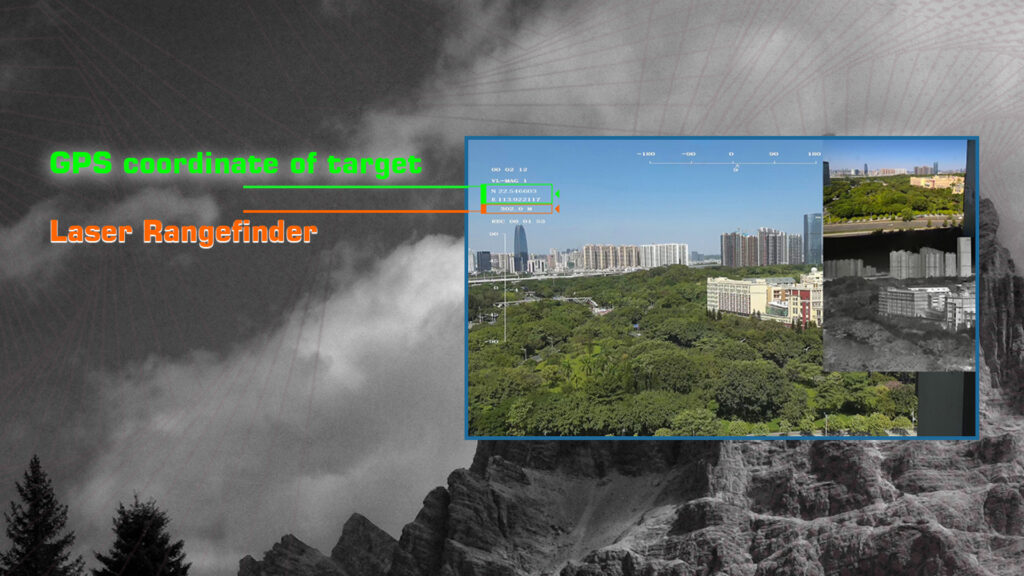

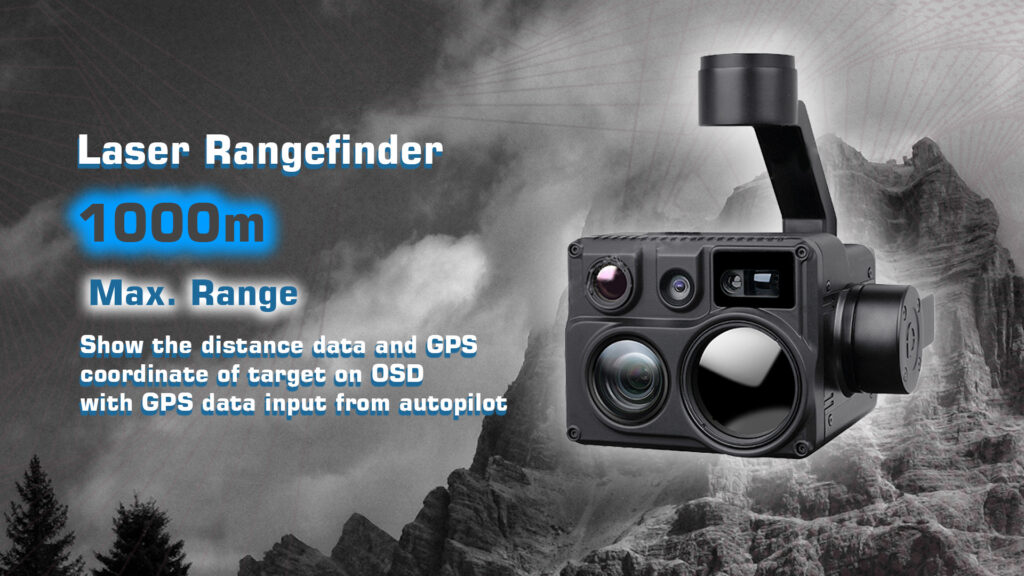

The system’s IR Laser Rangefinder, with a range spanning from 5 to 1000 meters, ensures accurate distance measurement and location resolution (Latitude and longitude of target), bolstering its surveillance capabilities.

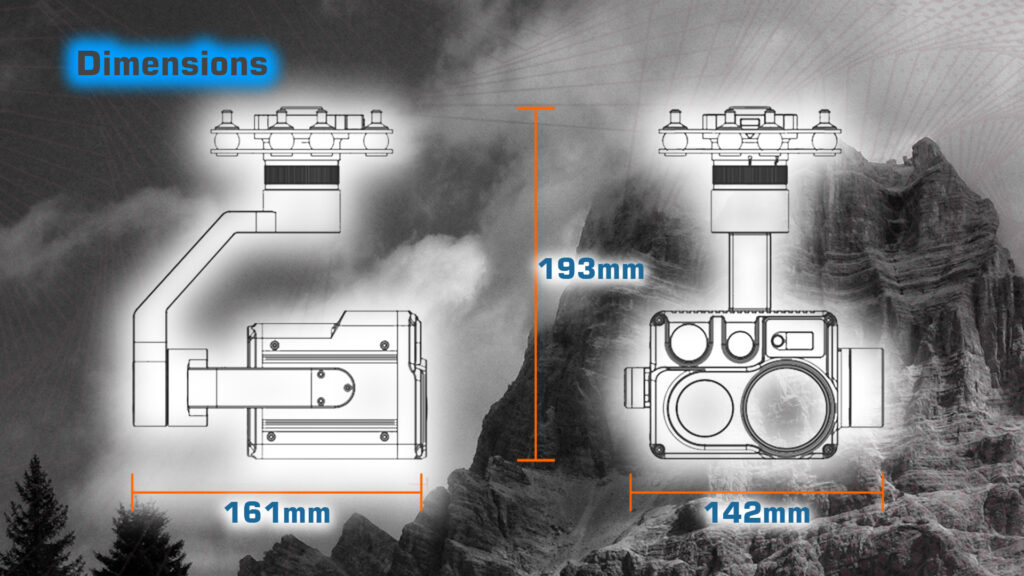

Weight and Dimensions of H30N Gimbal Camera

Compact, durable, and weighing 1339g, this system measures 161.1×142.5×193.5mm (Quickport Version), making it a robust yet portable solution for diverse surveillance applications. Whether it’s for security, research, or specialized imaging needs, this EO/IR Camera System is the ultimate choice for those seeking cutting-edge surveillance technology.

H30n gimbal camera Specifications of h30n gimbal camera H30n gimbal camera 4k ultra hd specifications H30n gimbal fpv camera H30n gimbal dual thermal camera H30n gimbal camera laser rangefinder H30n gimbal camera gps coordinate of target Communication interfaces of h30n gimbal camera H30n gimbal camera fov angle display Http protocol of h30n gimbal camera H30n gimbal dimension H30n gimbal package

For a comprehensive reading of related products, please visit the Motionew website.



Additional information

Weight 1 kg
Dimensions 20 × 16 × 15 cm
version

Standard, Quick release

Specifications

Hardware Parameter
Working voltage 16V
Input voltage 4S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 800~2500mA @ 16V
Working environment temperature -20℃ ~ +60℃
Output micro HDMI (1080P25/30fps) / IP (RTSP/UDP 4K/1080p 30fps )
Local-storage SD card (Up to 512G, class 10, FAT32  format)
Photo storage format JPG (4K:3840*2160)
Video storage format MP4 (1080P/4K 25fps)

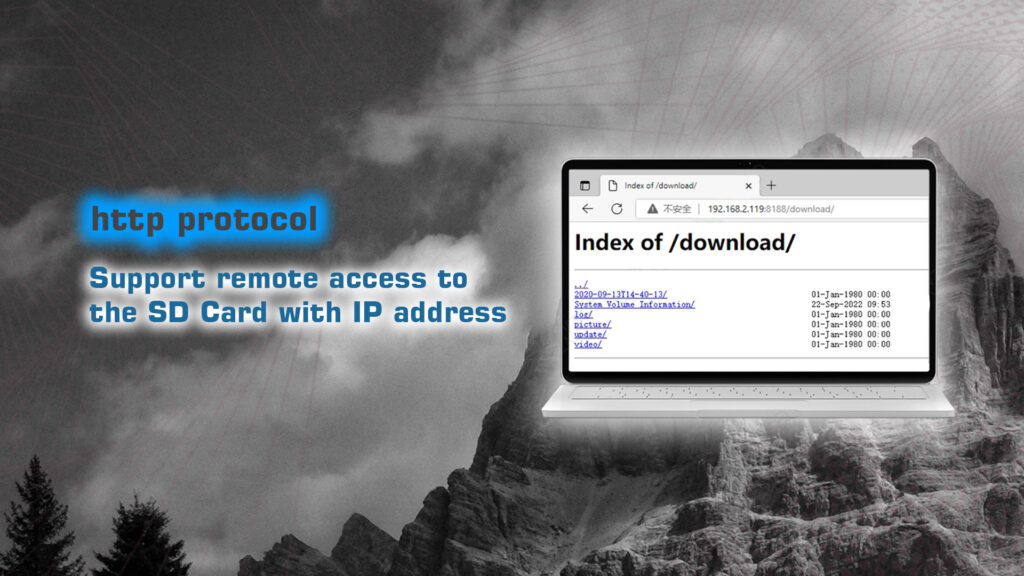

Card  reading online HTTP read picture

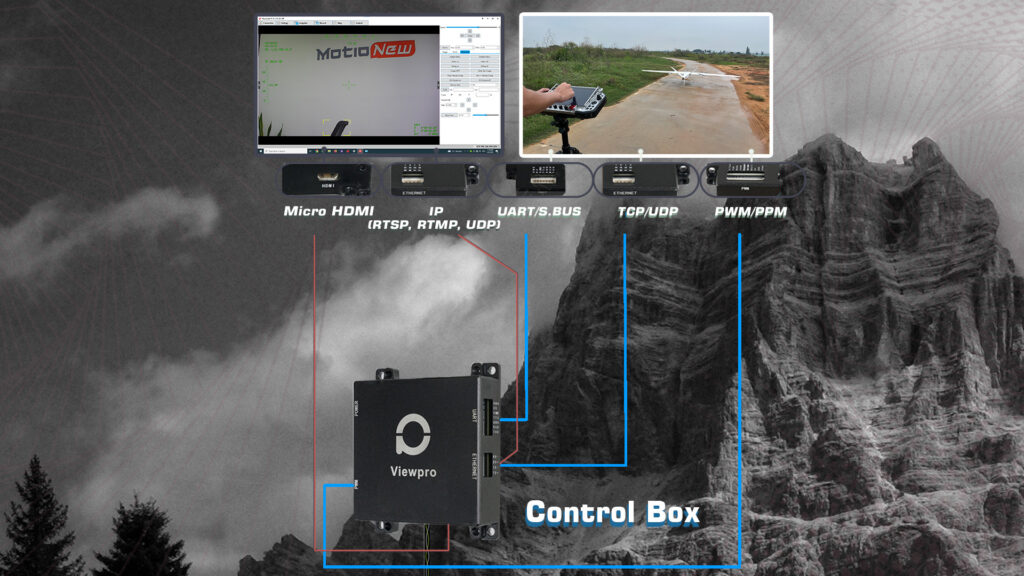

Control method PWM  / SBUS / TTL / TCP/UDP (IP output version)
Geotagging Support, display time, and GPS coordinate in picture exif
Gimbal Spec
Mechanical Range Pitch/Tilt: ±120°,  Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°~120°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center Yes
EO Camera Spec I
Image Sensor SONY 1/2.5″ “Exmor R” CMOS
Total pixel 8.51MP
Optical zoom 20x, F2.0 to F3.8,f = 4.4 mm (Wide), 88.4 mm (Tele), up to 30x with Super Resolution
Digital zoom 12x (240x with optical zoom)
Min. working distance 80 mm (Wide end), 800 mm (Tele end)
Angle of view ( H ) 70.2° (Wide end) ~ 4.1° (Tele end)
Sync system Internal/External
S/N ratio 50dB
Recommended illumination 100 to 100000 lux
Min illumination 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off )
0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On)
0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off)
0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on)
Backlight compensation On/Off
Gain Auto
White balance Auto/Manual
Electronic shutter speed 1/1 to 1/10000 sec. (22 steps)
Noise reduction On/Off (level 5 to 1/ Off, 6 steps)
Defog mode On/Off (Low, Mid, High)
Focus Auto/Manual/One-time automatic focus
Focus speed 2s
Lens initialization Built-in
User presetting bit 20 sets
Image rotation 180°, Horizontal/Vertical mirror image
OSD Yes
EO Camera Spec II
Focus Length 2.8mm
Resolution 1920*1080
IR Thermal Imager Spec I
Focus Length 50mm
FOV Horizontal: 12.4, Vertical: 9.3, Diagonal: 15.5
Detective Distance (Man: 1.8×0.5m) 1471 meters
Recognize Distance (Man: 1.8×0.5m) 368 meters
Verified Distance (Man: 1.8×0.5m) 184 meters
Detective Distance (Car: 4.2×1.8m) 4510 meters
Recognize Distance (Car: 4.2×1.8m) 1127 meters
Verified Distance (Car: 4.2×1.8m) 564 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel pitch 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto-adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~120℃ (For thermometry version only)
IR Thermal Imager Spec II
Focus Length 13mm
FOV Horizontal: 45.4, Vertical: 34.8, Diagonal: 55.2
Detective Distance (Man: 1.8×0.5m) 382 meters
Recognize Distance (Man: 1.8×0.5m) 96 meters
Verified Distance (Man: 1.8×0.5m) 48 meters
Detective Distance (Car: 4.2×1.8m) 1173 meters
Recognize Distance (Car: 4.2×1.8m) 293 meters
Verified Distance (Car: 4.2×1.8m) 147 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel pitch 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto-adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
IR / EO Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel 5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel
IR Laser Rangefinder
Range 5~1000 meters
Resolution 1m: <400±1        2m: >400±0.4%
Light Beam 905nm pulse laser
Divergent Angle 12 mrad
Laser pulse frequency 0.1–1Hz
Location Resolving Latitude and longitude of target
Ranefinder Target distance measuring
Packing Information
N.W. 1339g (Quickport Version)
Product meas. 161.1*142.5*186.8mm / 161.1*142.5*193.5mm(Viewport Version)
G.W. 2749g

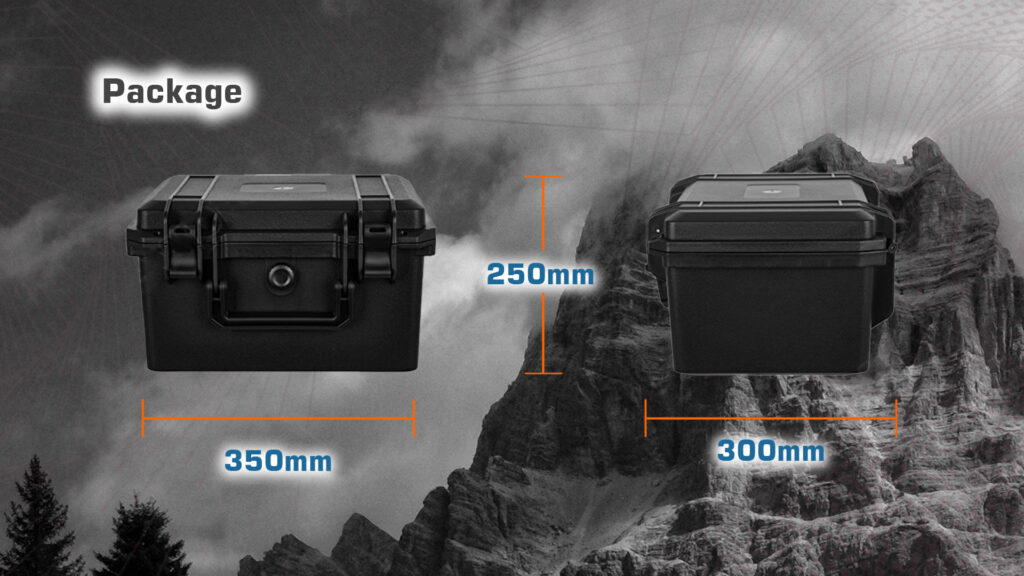

Package meas. 300*250*200mm

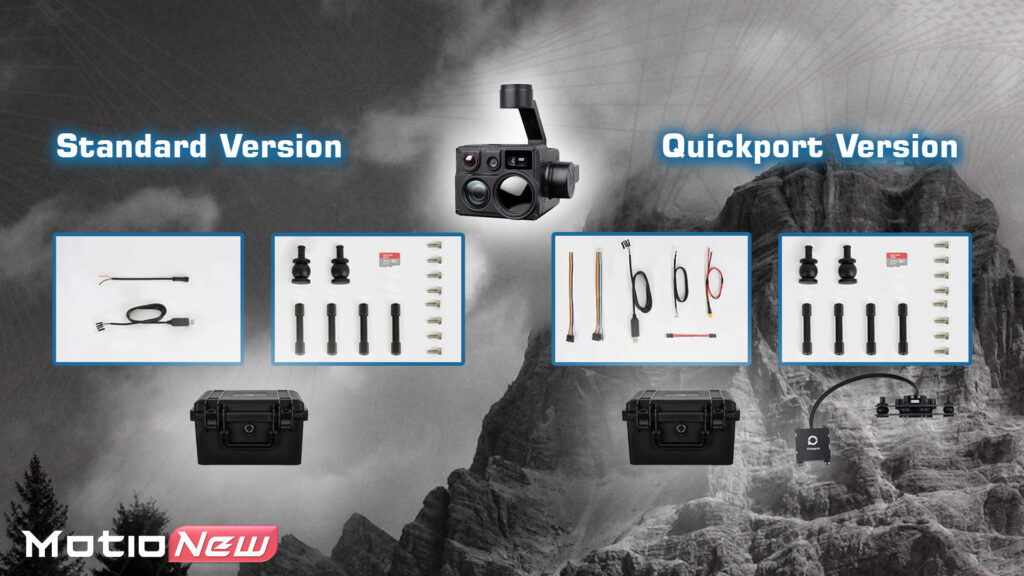

Product contents

1x H30N gimbal camera, screws, copper cylinders, damping balls, 1x USB to TTL cable / High-quality plastic box with foam cushion
