97.00 $ Payment Methods:

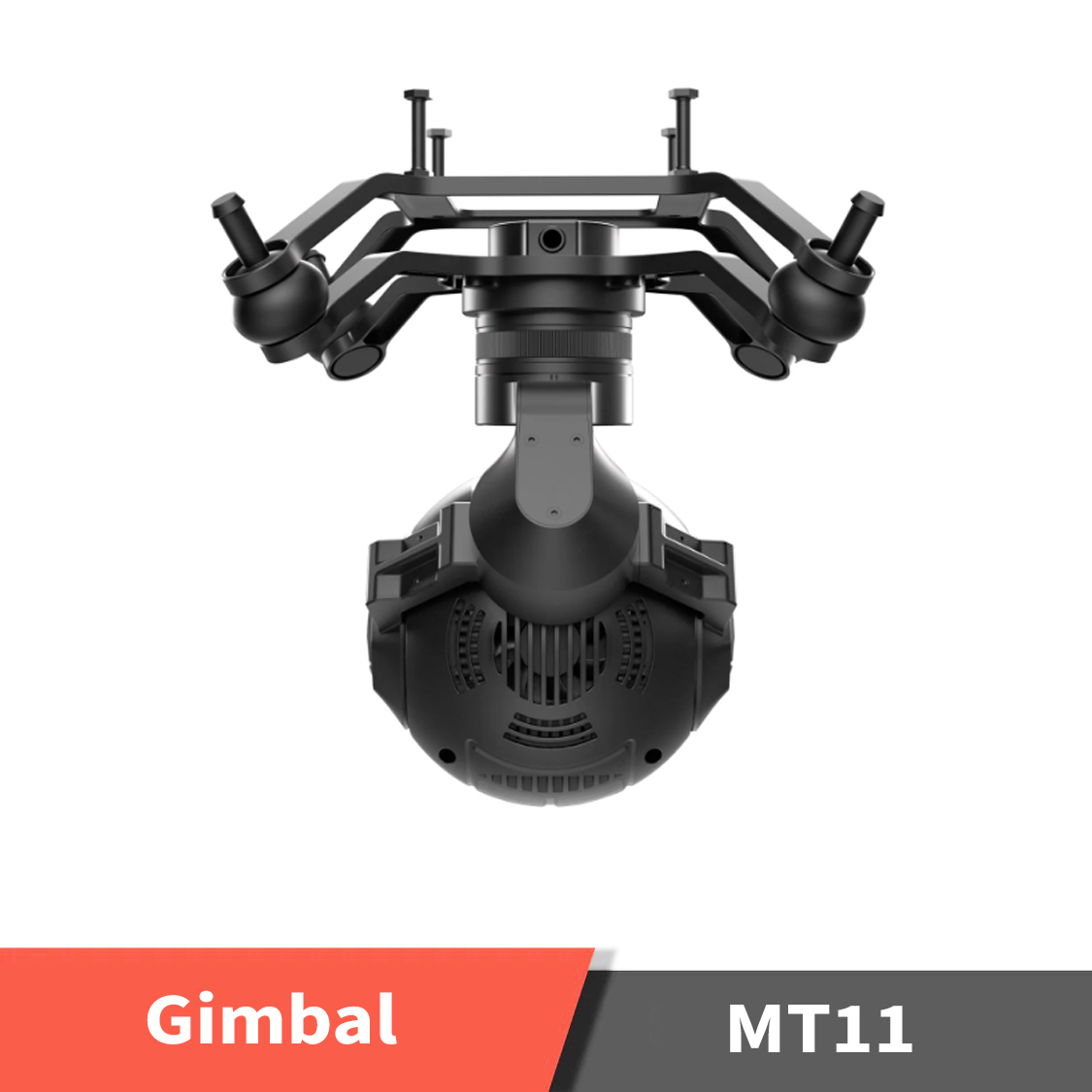

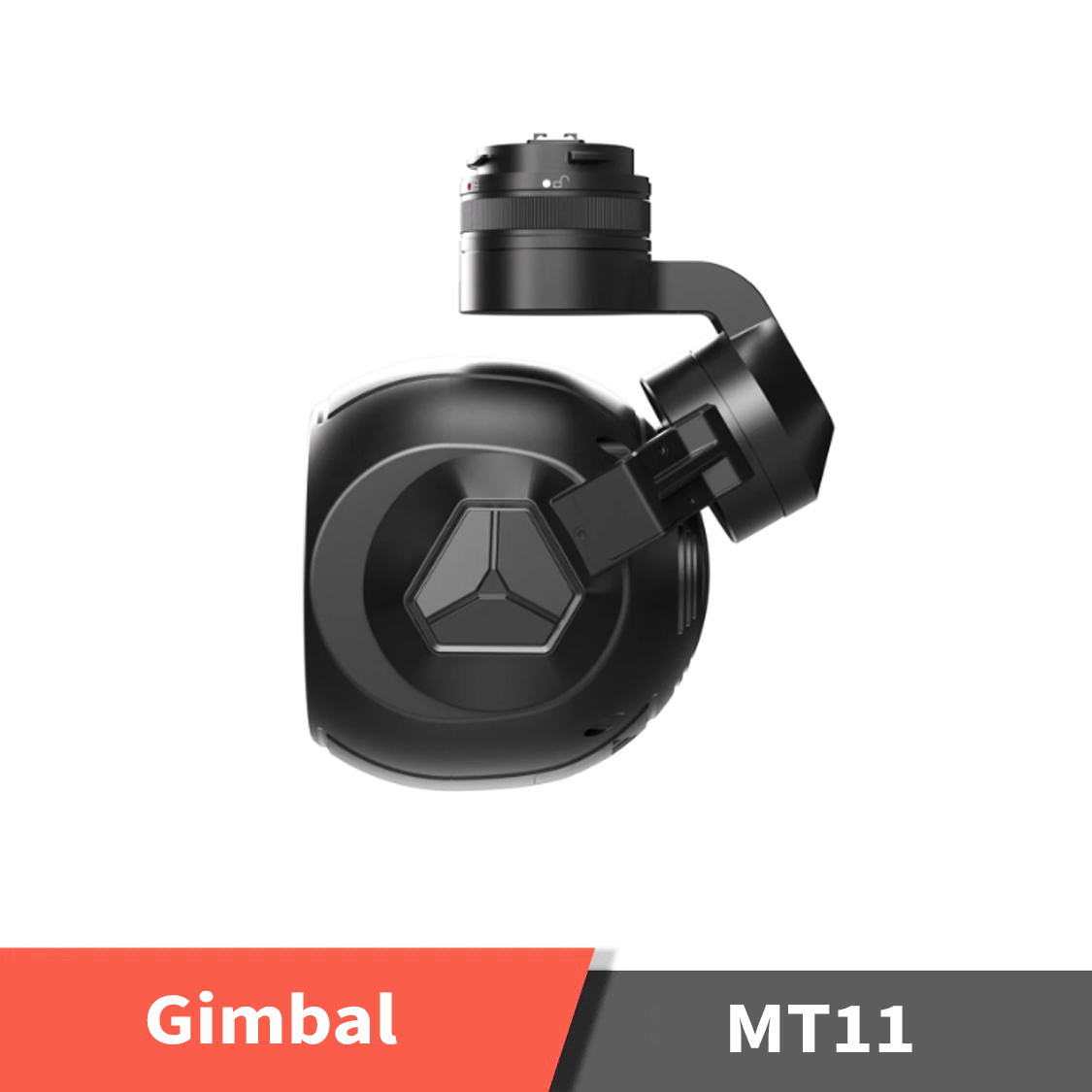

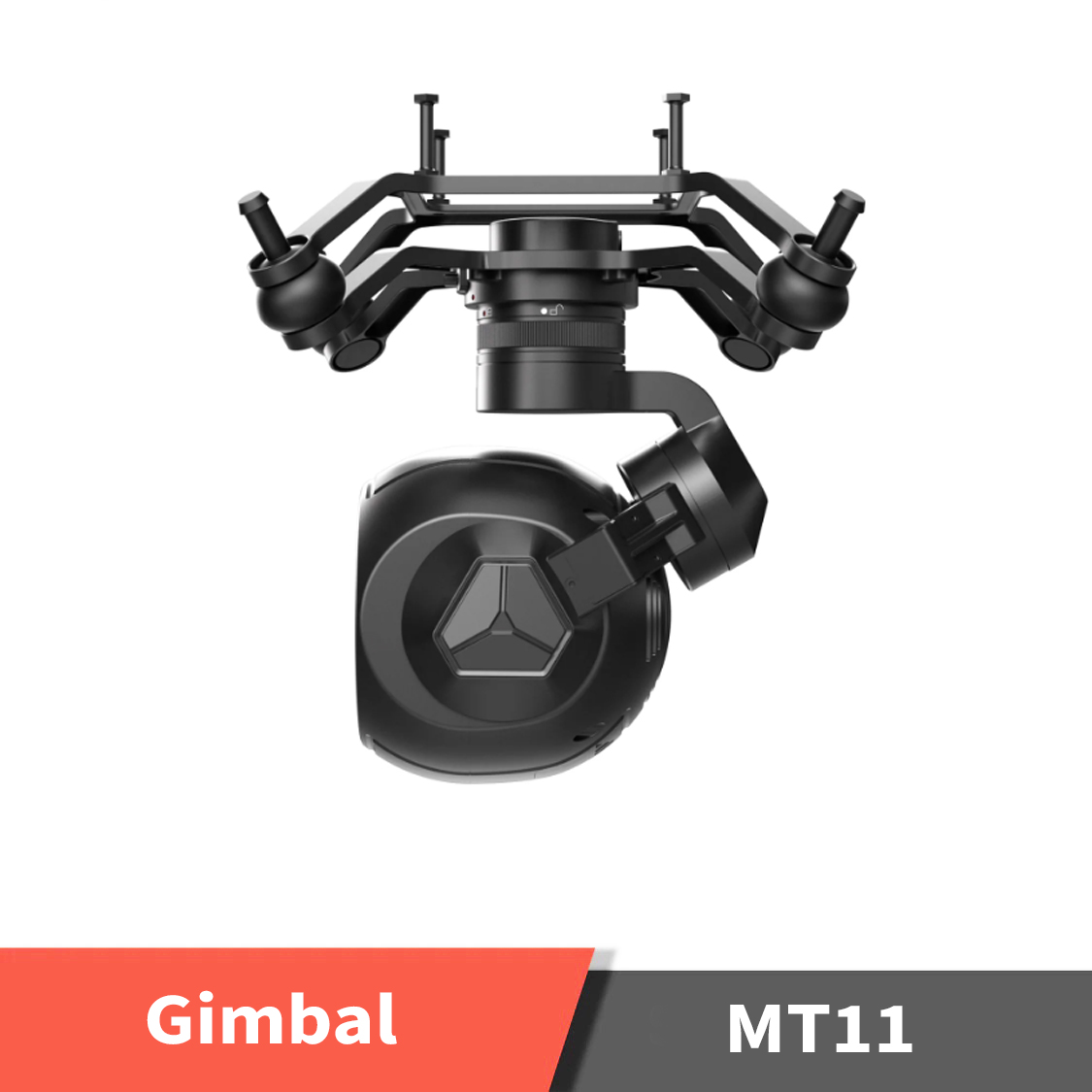

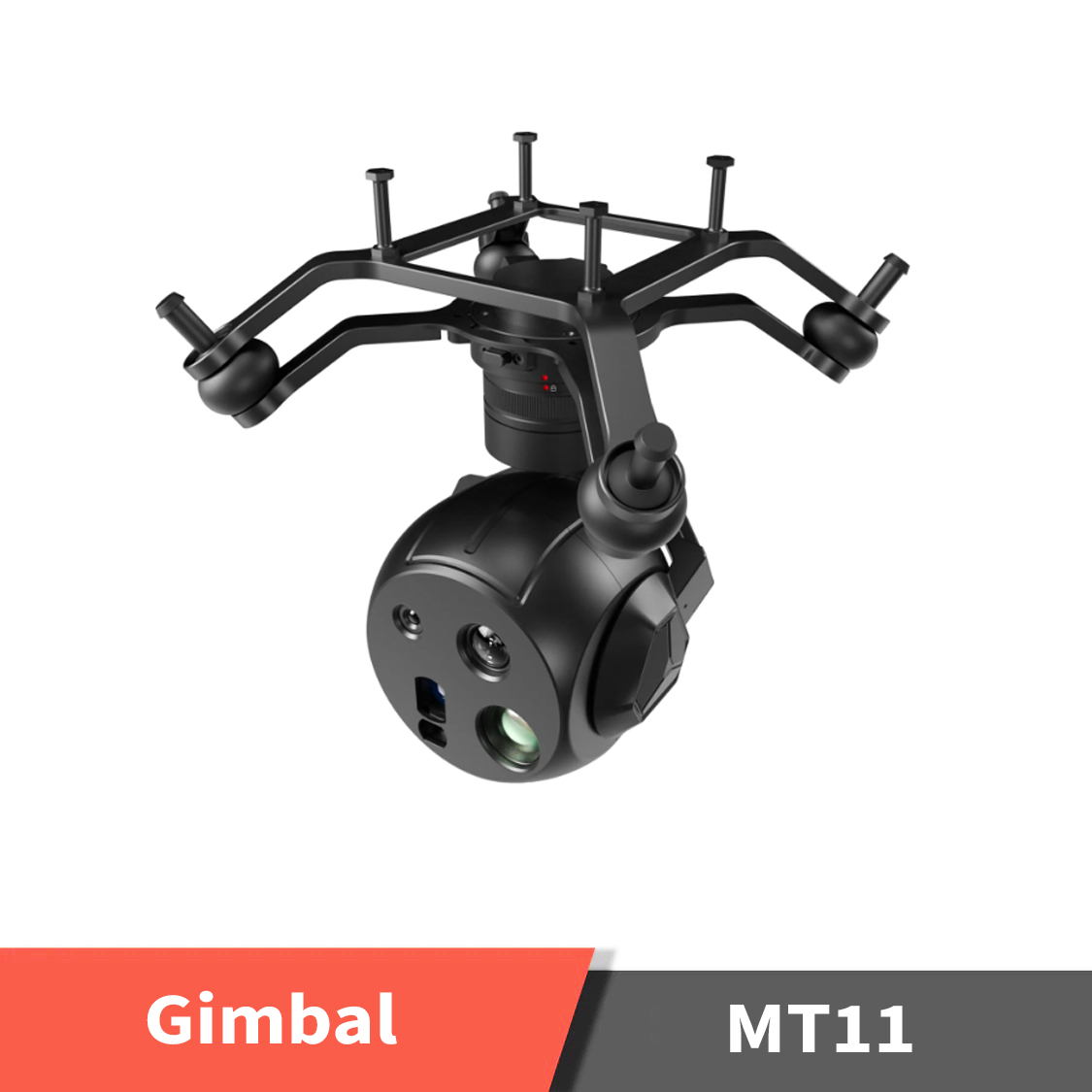

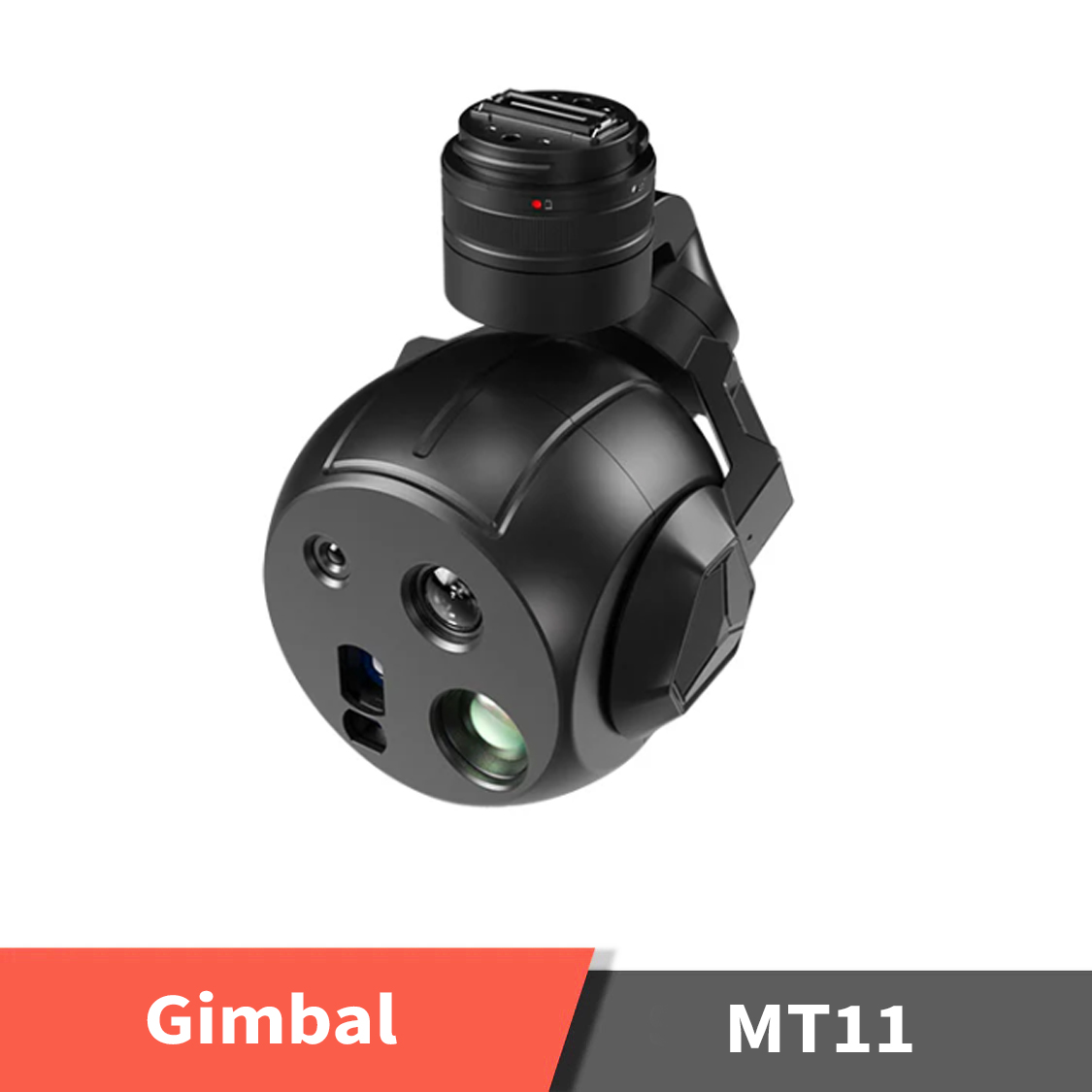

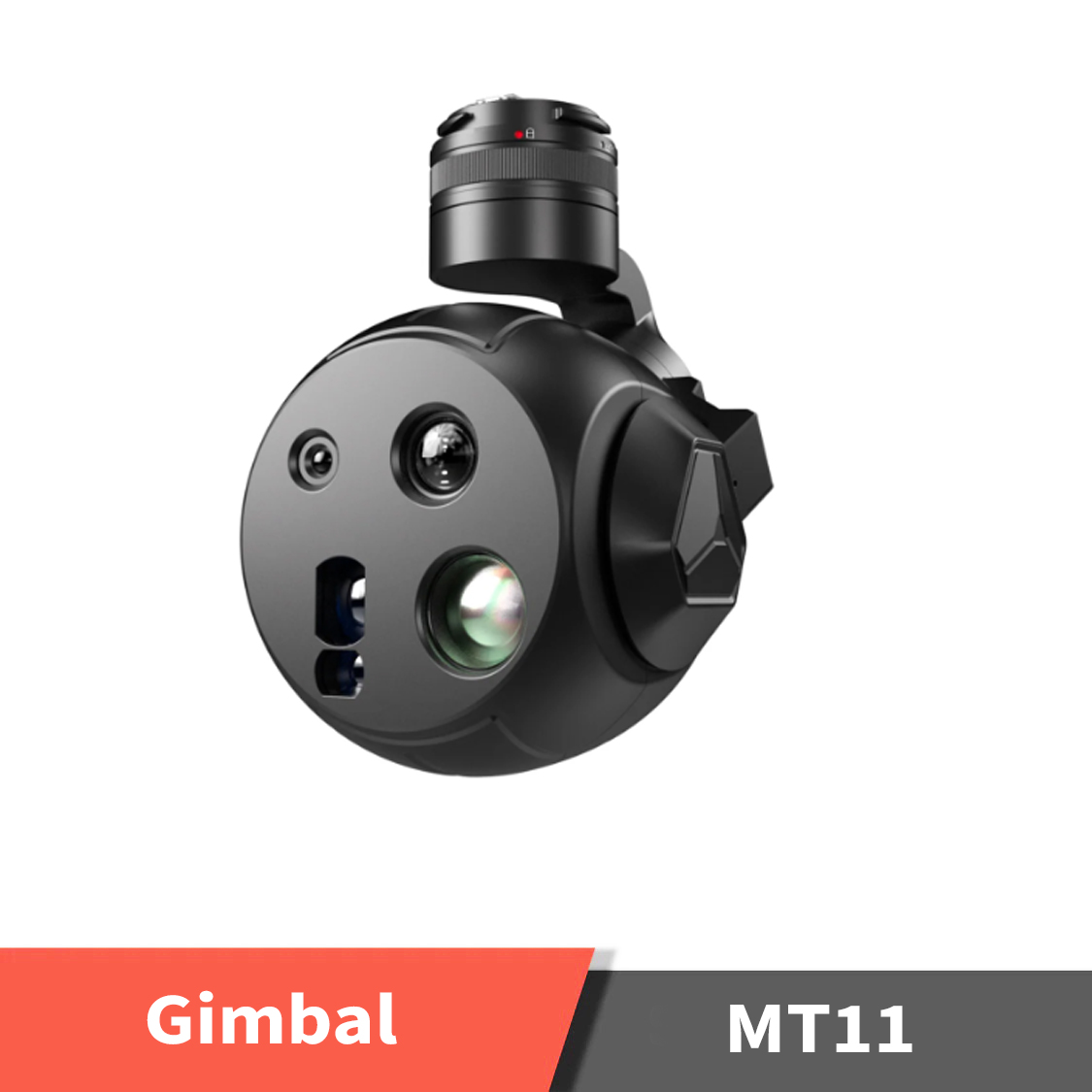

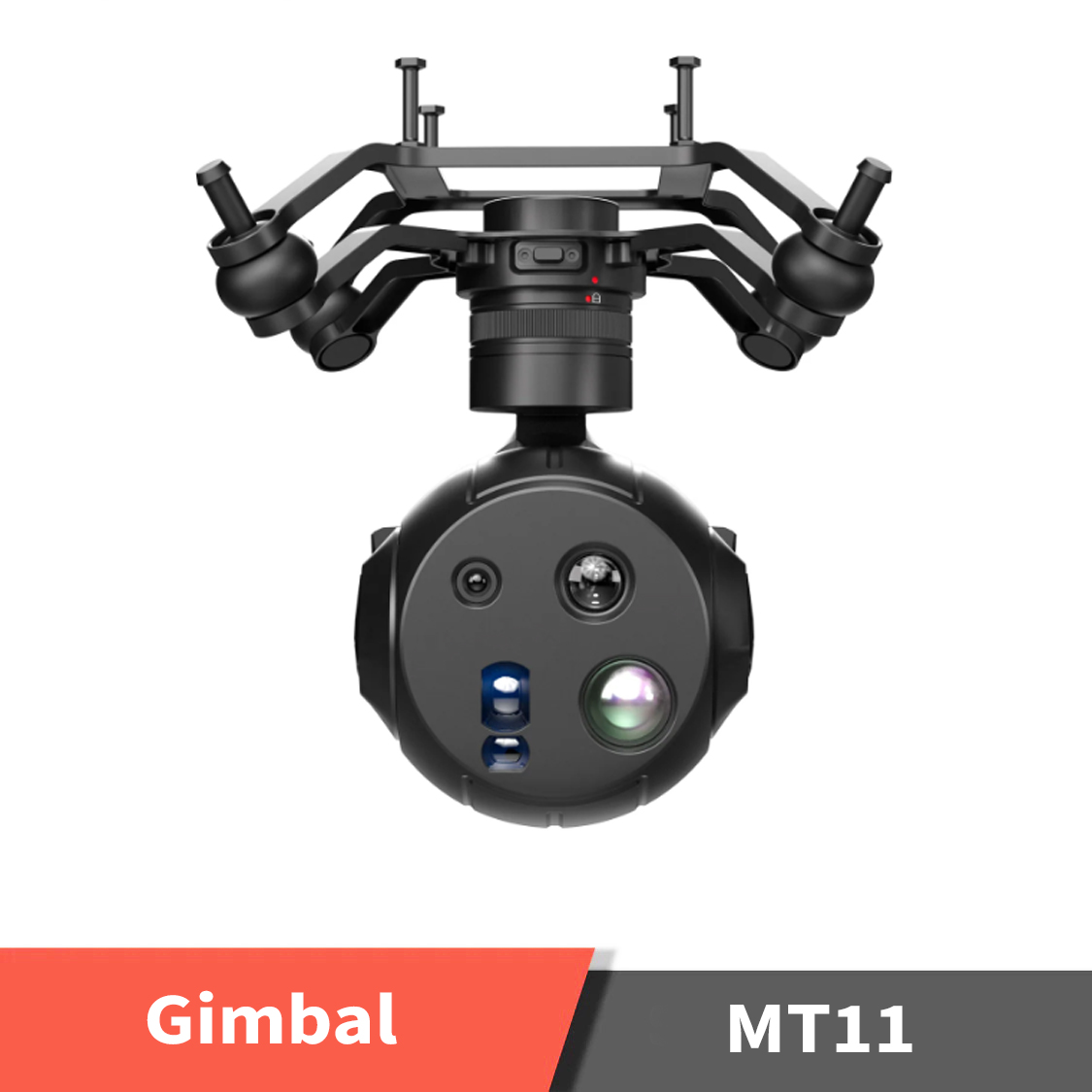

Gimbal – UniPod MT11 Mini 4-Sensor Optical AI – Built-in 10T Computing Power Al Module IP54 405g

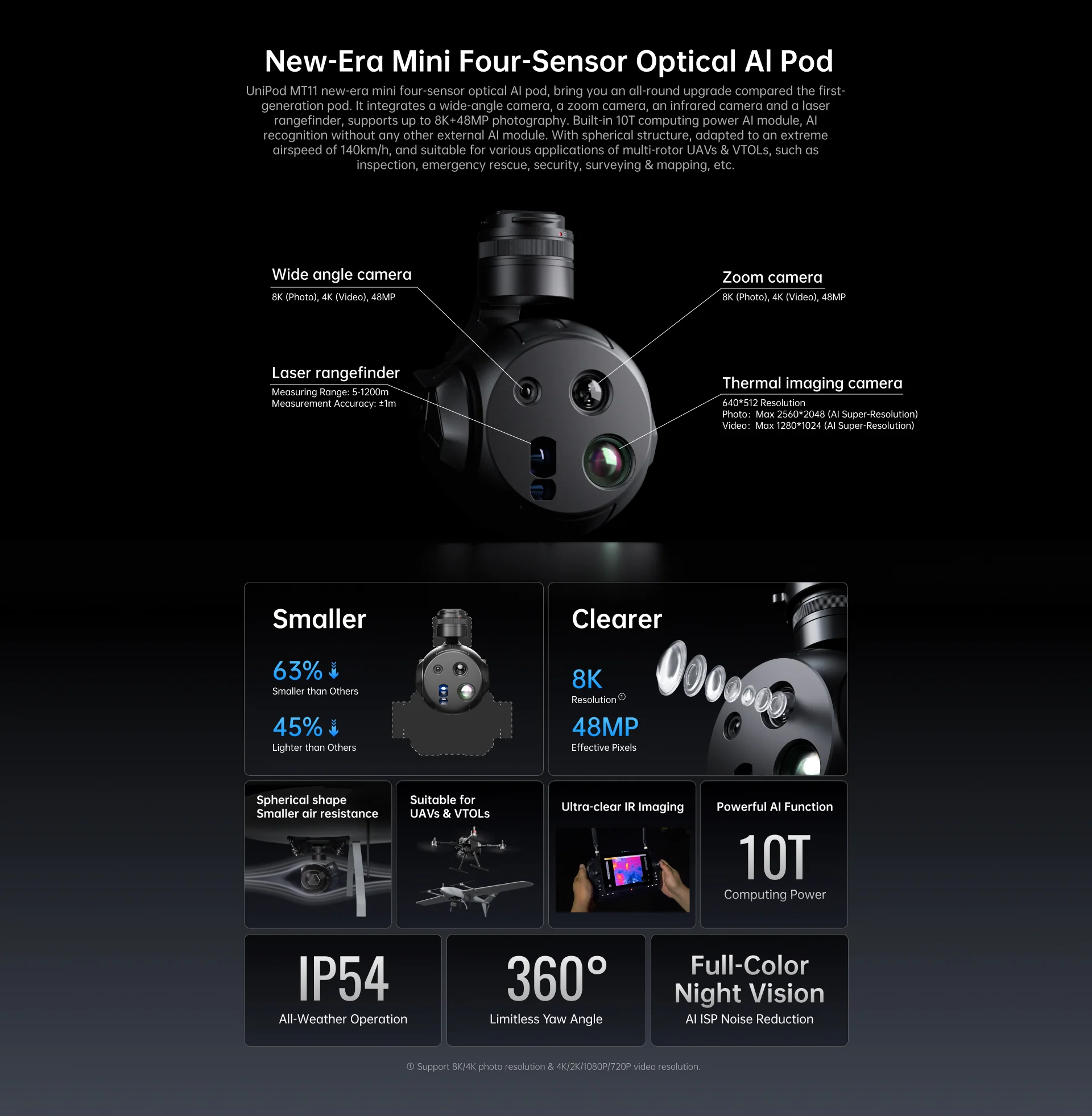

Key Features
-
High-Resolution Imaging: Equipped with four advanced sensors, including a primary 48 MP sensor, the UniPod MT11 delivers stunning detail and clarity. Combined with 8K video capability, it captures rich, immersive footage with excellent sharpness — perfect for high-definition content, aerial cinematography, or precision mapping.
-
Powerful AI Compute: Behind its sleek design lies formidable processing power. The UniPod MT11 boasts a built-in AI module with “10T computing power” (10 TOPS or similar), enabling real-time image processing, object detection, tracking, stabilization, and more. This allows the device to process complex tasks on the fly, reducing the need for extensive post-production.
-
Durable & Portable: With an aluminum (Al) module casing, the UniPod MT11 balances durability with lightweight design. At just 405 grams, it’s portable enough for fieldwork, drone mounting, or transport without imposing heavy weight. It also features IP54 rating—protected against dust ingress and water splashes—making it suitable for a variety of outdoor conditions.
-
Compact Optical Design: The four-sensor configuration broadens the optical possibilities: you can expect better dynamic range, more accurate color reproduction, and enhanced low-light performance. The multiple sensors work in unison to produce superior imagery, mitigating the limitations that single-sensor setups often suffer.
Benefits & Use Cases
-
Professional Videography & Cinematography: For filmmakers necessitating ultra-high resolution and multi-sensor capabilities, the UniPod MT11 offers tools to create cinematic footage, establish smoother transitions between light and shadow, and maintain fidelity at large scales.
-
Aerial Mapping & Surveying: The combination of high resolution, ruggedness, and AI assisted image correction makes this pod ideal for mapping terrains, inspecting infrastructure, or conducting environmental surveys. The 8K output ensures geometric precision, while the built-in AI helps correct distortions and align scenes in real time.
-
Content Creation & Social Media: As content platforms push toward ever higher resolutions and immersive visuals, creators can use the UniPod MT11 to capture standout footage that impresses on video, photo, or VR platforms. Crisp stills, smooth video, and intelligent tracking make it a powerhouse for influencers, travelers, and storytellers.
-
Research & Field Work: Scientists, wildlife observers, and technical researchers can make use of its rugged build and imaging precision. Whether documenting ecological changes, capturing fast-moving subjects, or collecting data in challenging environments, the UniPod offers reliability and fidelity.
Extras & Considerations
-
Power & Heat Management: With high computing power and 8K sensors, thermal performance and battery life are important. Users should ensure adequate cooling (if applicable) or plan for downtime in intensive use scenarios.
-

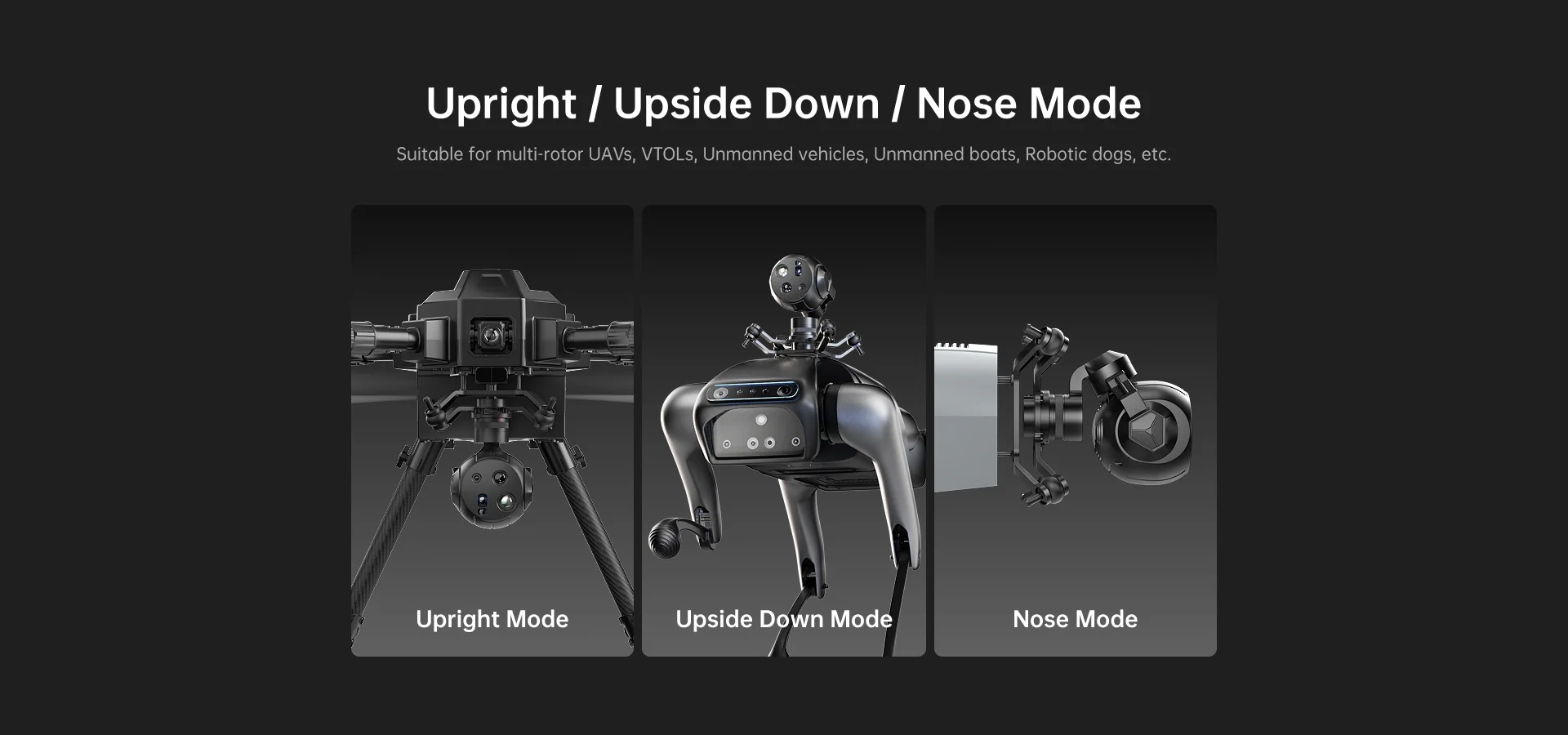

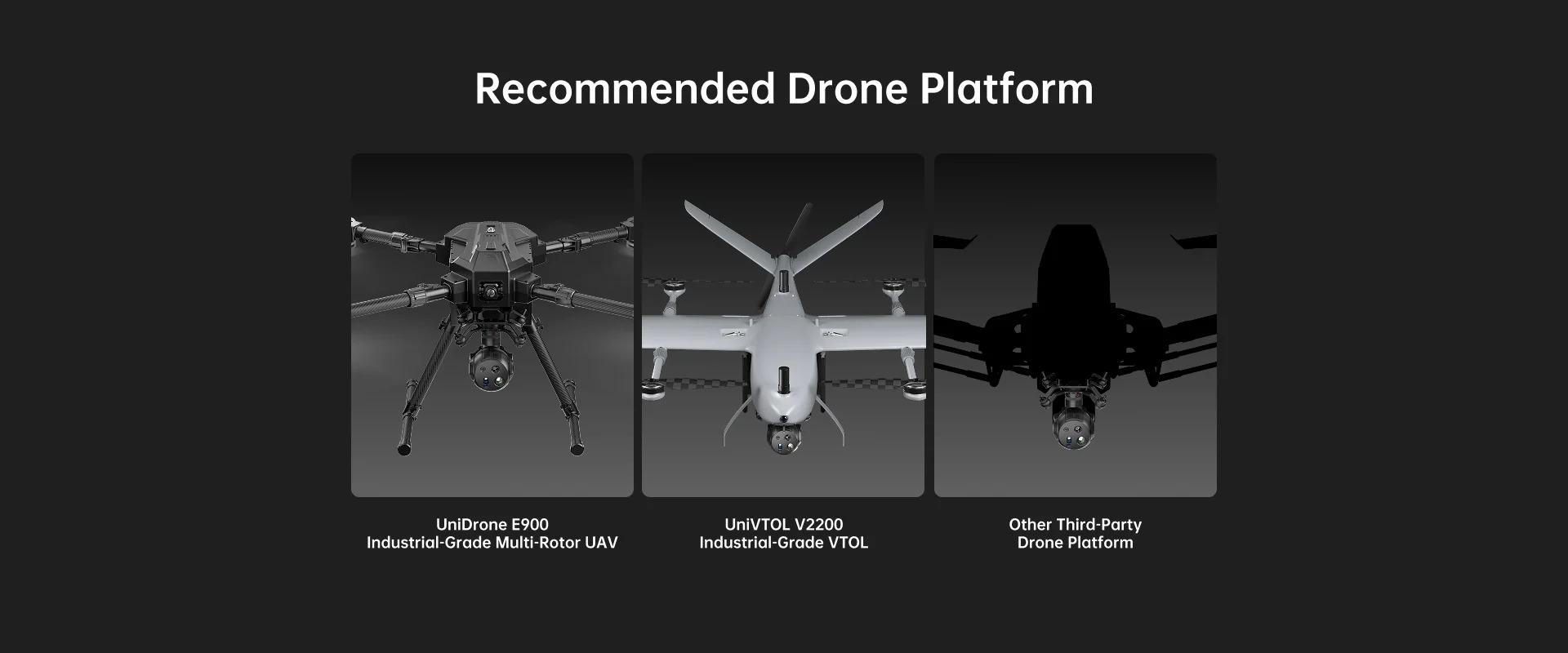

Integration & Mounting: Lightweight and durable, the pod can be mounted on drones, tripods, robotic arms, or handheld rigs. Its build suggests versatility in mounting options.
-
Cost vs. Value: The UniPod MT11 sits at a premium tier of imaging pods. For users who require its full feature set—8K resolution, multiple sensors, real-time AI processing, rugged housing—the investment is justified. For more casual use, simpler gear might suffice, but few would match its specification package in such a compact form.

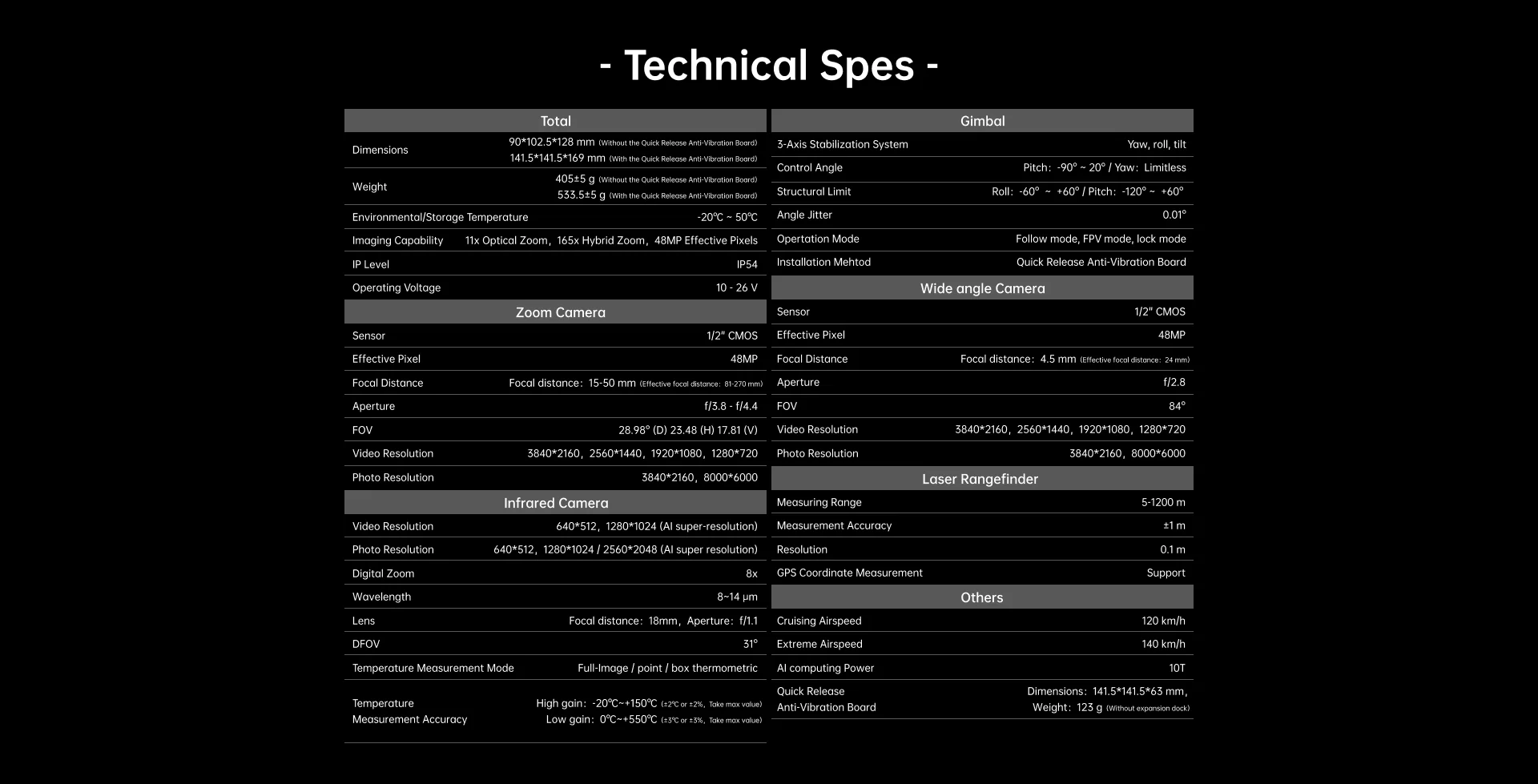

Specifications
| Category | Details |
|---|---|
| Total | |
| Dimensions | 90×102.5×128 mm (without Quick Release Anti-Vibration Board) 141.5×141.5×169 mm (with Quick Release Anti-Vibration Board) |
| Weight | 405±5 g (without board) 533±5 g (with board) |
| Environmental/Storage Temp | -20℃ ~ 50℃ |
| Imaging Capability | 11× Optical Zoom, 165× Hybrid Zoom, 48 MP Effective Pixels |
| IP Level | IP54 |
| Operating Voltage | 10 ~ 26 V |
| Gimbal | |
| 3-Axis Stabilization | Yaw, Roll, Tilt |
| Control Angle | Pitch: -90° ~ 20° Yaw: limitless |
| Structural Limit | Roll: -60° ~ +60° Pitch: -120° ~ +60° |
| Angle Jitter | 0.01° |
| Operation Modes | Follow Mode, FPV Mode, Lock Mode |

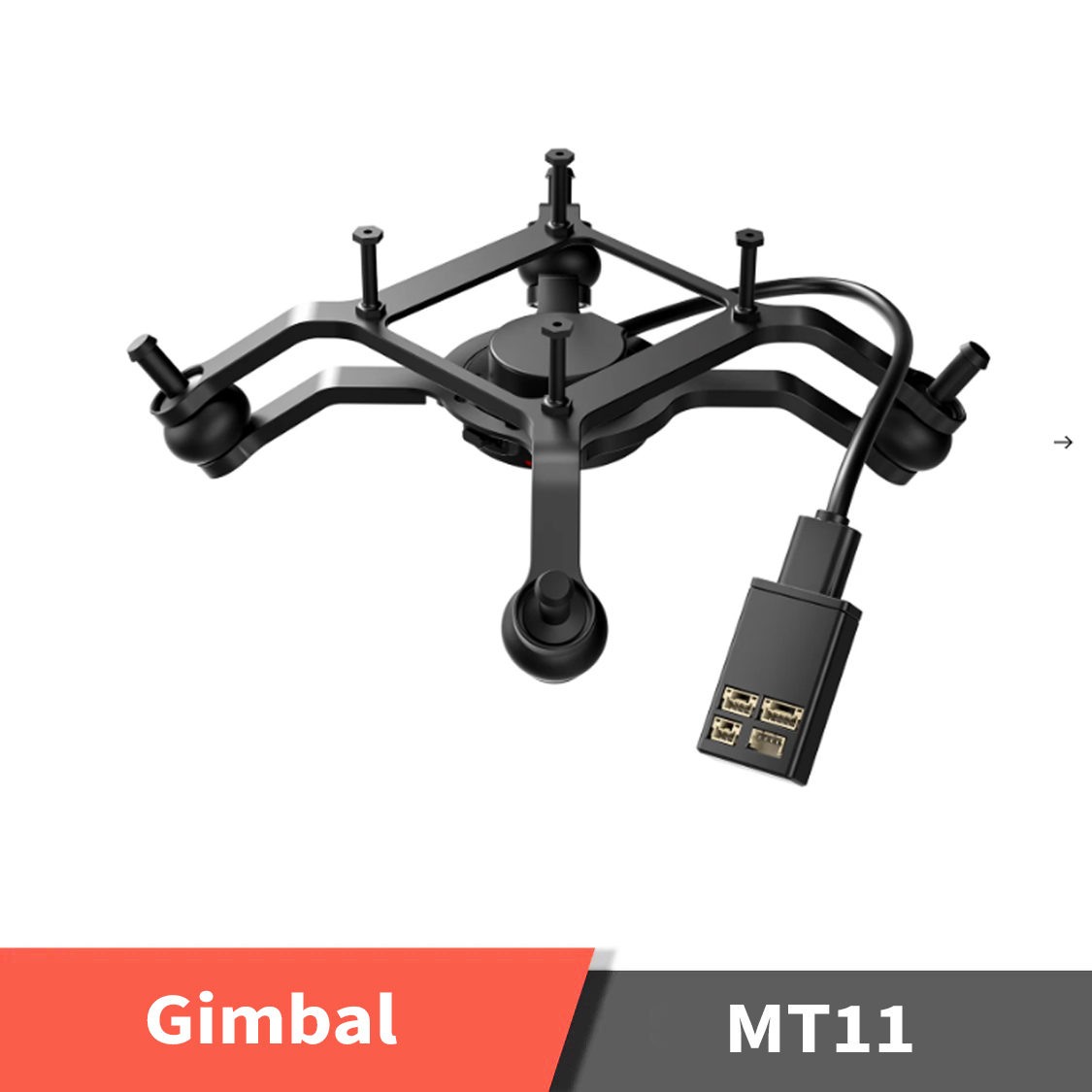

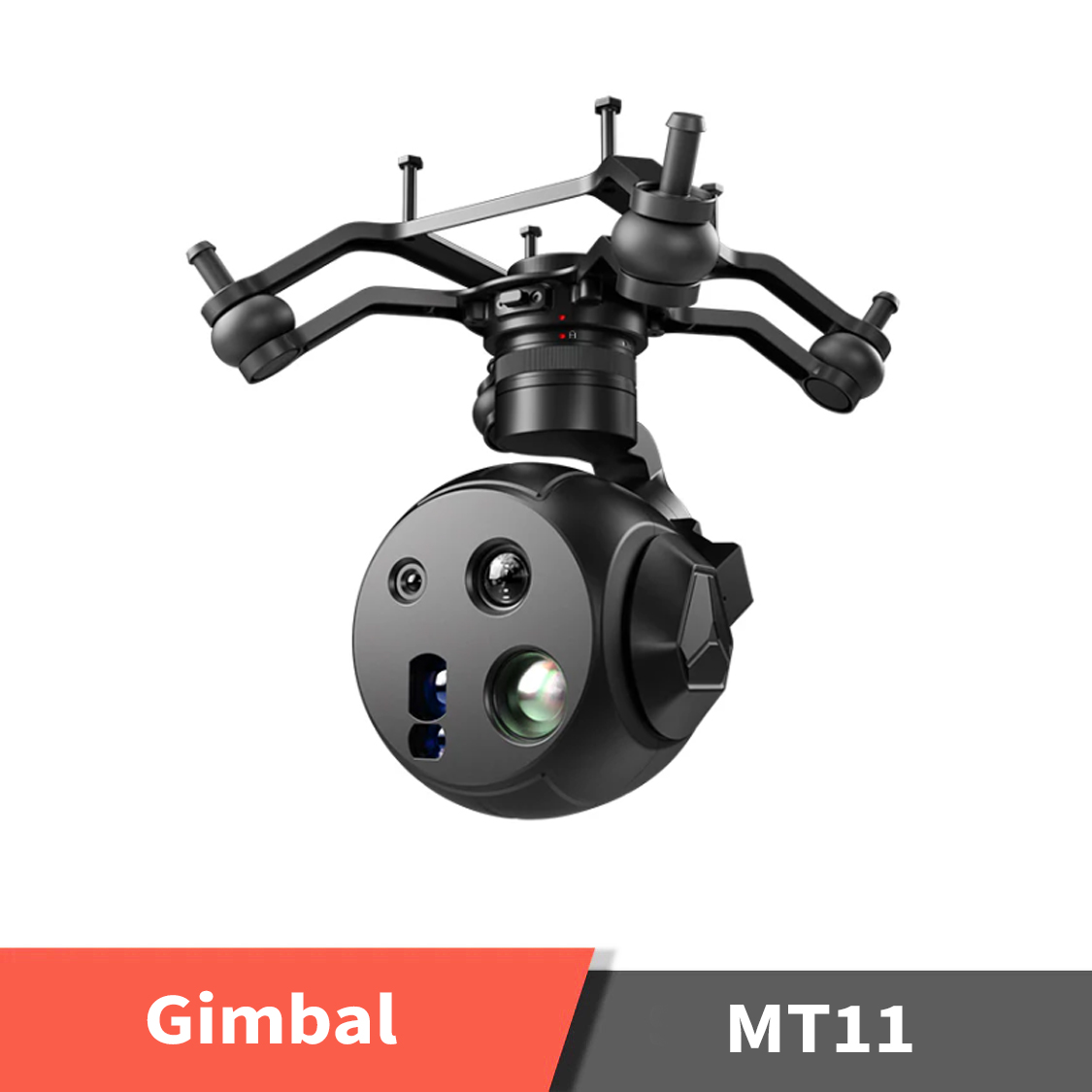

| Installation | Quick Release Anti-Vibration Board |
| Zoom Camera | |
| Sensor | 1/2″ CMOS |
| Effective Pixels | 48 MP |
| Focal Distance | 15–50 mm (effective focal distance: 81–270 mm) |
| Aperture | f/3.8 ~ f/4.4 |
| FOV | 28.98° (D), 23.48° (H), 17.81° (V) |
| Video Resolution | 3840×2160, 2560×1440, 1920×1080, 1280×720 |
| Photo Resolution | 3840×2160, 8000×6000 |
| Wide-Angle Camera | |
| Sensor | 1/2″ CMOS |
| Effective Pixels | 48 MP |
| Focal Distance | 4.5 mm (effective 24 mm) |
| Aperture | f/2.8 |
| FOV | 84° |
| Video Resolution | 3840×2160, 2560×1440, 1920×1080, 1280×720 |
| Photo Resolution | 3840×2160, 8000×6000 |

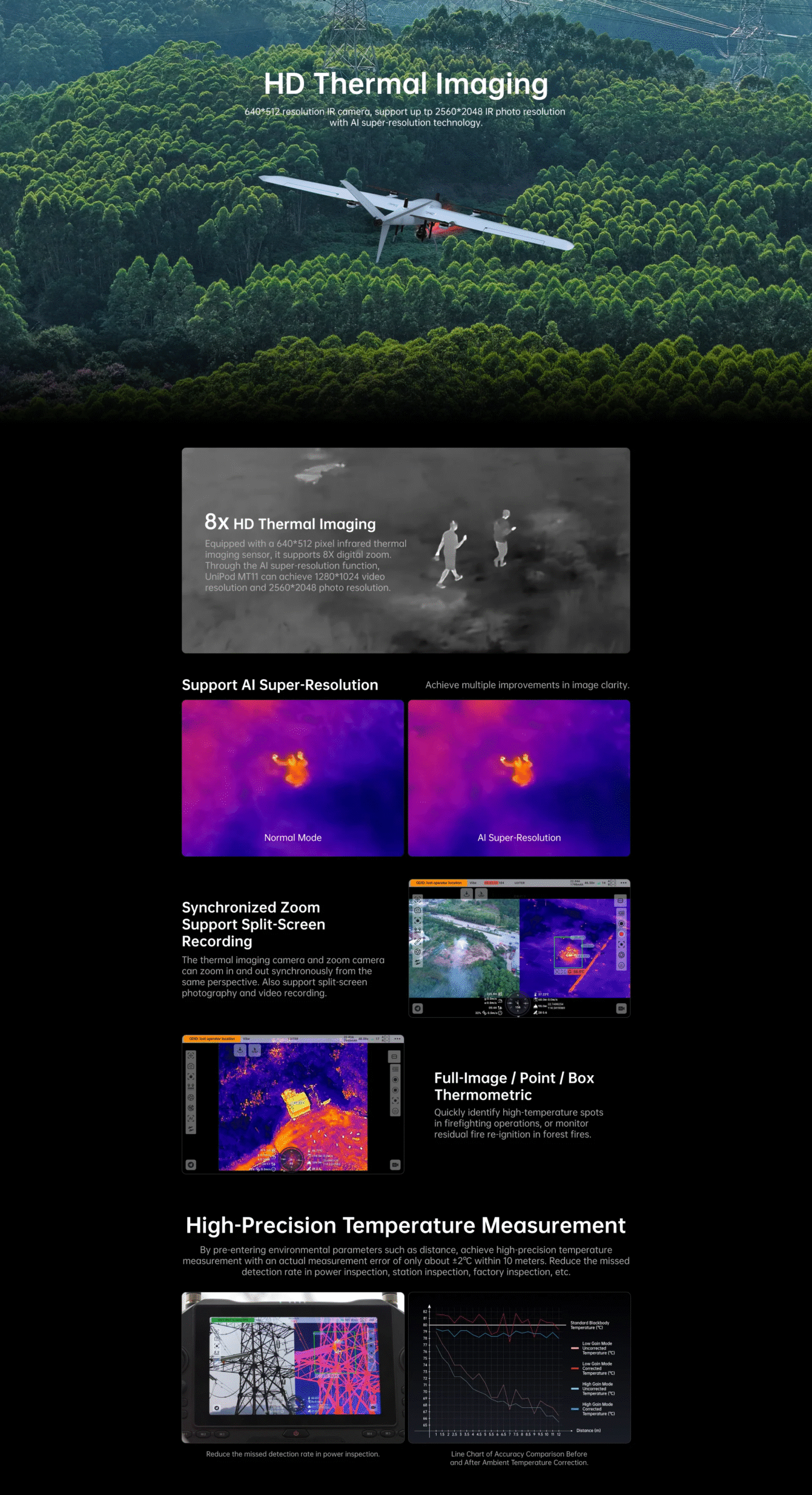

| Infrared Camera | |
| Video Resolution | 640×512, 1280×1024 (AI super-resolution) |
| Photo Resolution | 640×512, 1280×1024, 2560×2048 (AI super-resolution) |
| Digital Zoom | 8× |
| Wavelength | 8–14 μm |
| Lens | 18 mm, f/1.1 |
| DFOV | 31° |
| Temp. Measurement Mode | Full-image / Point / Box Thermometric |
| Temp. Measurement Accuracy | High gain: -20℃ ~ 150℃ (±2℃ or ±2%) Low gain: 90℃ ~ 650℃ (±3℃ or ±3%) |
| Laser Rangefinder | |
| Measuring Range | 5 – 1200 m |
| Measurement Accuracy | ±1 m |
| Resolution | 0.1 m |
| GPS Coordinate Measurement | Supported |
| Others | |
| Cruising Airspeed | 120 km/h |
| Extreme Airspeed | 140 km/h |
| AI Computing Power | 10T |
| Quick Release | Anti-Vibration Board |
| Dock Dimensions | 141.5×141.5×63 mm |
| Dock Weight | 123 g (without expansion dock) |
Product contents
Documents
You must be logged in to post a review.
| Gimbal Control Method |
Ethernet ,SBUS ,UART |
|---|---|
| Number of Sensors |
4 Sensors |
| EO Sensor resolution |
8000×6000 |
| AI Object Tracking |
Yes |
| Gimbal Video Output |
Ethernet ,HDMI |
| Gimbal Weight |
533g |
