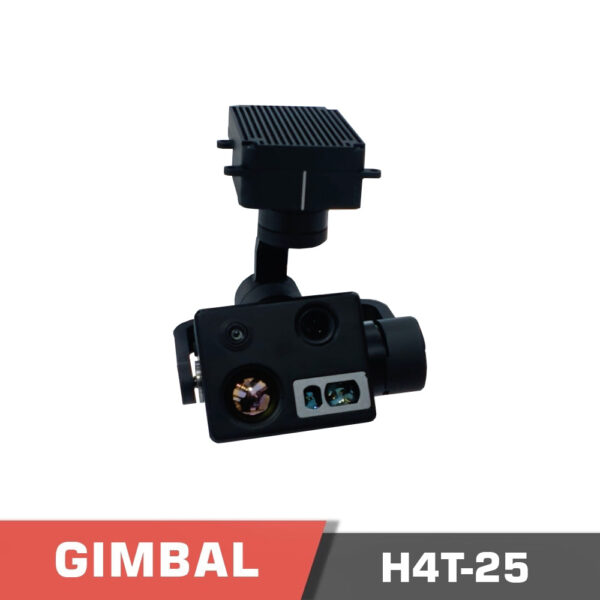

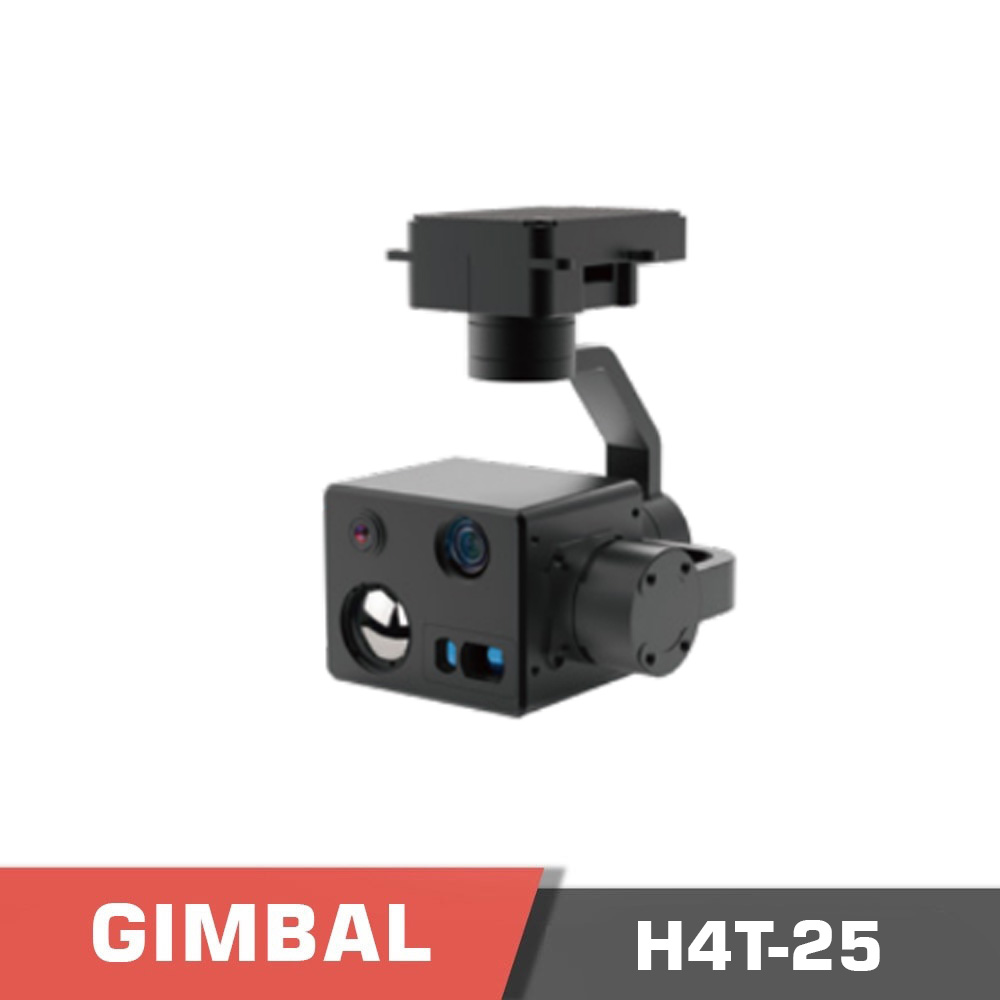

Gimbal Camera | Model H4T-25 | 10x EO + IR + LRF + AI Object Tracking – All in One Compact Payload

Looking for a single gimbal camera that combines zoom, thermal, laser rangefinder, and AI-powered tracking? The H4T-25 redefines what’s possible for professional drone operations — delivering multi-sensor precision in a lightweight 420g form factor.

The H4T-25 is built to tackle the most demanding aerial applications. Whether you’re conducting powerline inspections, monitoring public safety, or executing SAR missions, its quad-sensor array ensures complete situational awareness:

• Wide EO Camera: 48MP, 84° DFOV for broad-area imaging

• Zoom Camera: 10x optical, 160x hybrid zoom for detailed inspection

• Thermal Imaging: 640×512 resolution, 25mm lens, 12μm pixel pitch, 30Hz refresh rate

• Laser Rangefinder: Measure targets from 5 to 1500 meters

• AI Target Recognition: Automatically detect and track people or vehicles

  Feature	Specification
  Wide Camera	1/2″ CMOS sensor, 48MP, 84° DFOV
  Zoom Camera	10x optical zoom, 160x hybrid zoom, 48MP
  IR Thermal Imager	640×512, 25mm lens, 12μm pixel pitch, 30Hz
  Laser Rangefinder	5–1500 meters
  AI Function	Human/Vehicle AI detection and tracking
  Object Tracking	Supported (✓)
  Video Output	IP (digital stream)
  Control Method	UART / TCP / UDP
  Storage	SD card up to 256GB
  Operating Voltage	4S–6S (14.8V–25.2V)
  Weight	420g
  Dimensions	120.5×97.5×124.9mm

Why choose four separate payloads when you can fly one?

• All-in-One Intelligence: Combines EO, IR, LRF, and AI into a single system

• Ultra-Lightweight: Just 420g – ideal for longer missions

• Precision Measurements: Get exact distances using laser and thermal overlay

• Real-Time Target Tracking: AI algorithms lock onto targets automatically

• Flexible Storage & Output: Supports IP video stream and SD card recording up to 256GB

Elevate your UAV missions with the power of multi-sensor intelligence.
Buy Now or Contact Our Engineers for Integration Support

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – Gimbal Camera Model H4T-25 (Quad-Sensor Compact Payload)

1. What are the key technical features of the H4T-25 gimbal camera?
The H4T-25 integrates four sensors: a wide 48MP EO camera (84° DFOV), a 10x optical/160x hybrid zoom EO camera, a 640×512 thermal imager (25mm lens, 30Hz), and a laser rangefinder (5–1500m). It also includes AI-powered human and vehicle recognition.

2. How does the gimbal support stability and integration with UAV platforms?
It weighs only 420g and operates on 4S–6S (14.8V–25.2V). Control is available via UART, TCP, or UDP, with digital IP video output. The compact size makes it suitable for multirotors and fixed-wing drones with limited payload capacity.

3. What advanced functions are supported by the H4T-25?
The system supports AI-based detection, automatic object tracking, and simultaneous EO/IR imaging. Its laser rangefinder provides precise distance measurement for security, SAR, and inspection missions.

4. What payment methods are supported for this product?
MotioNew accepts major credit cards, PayPal, and international bank transfers.

5. Can OEM customization be requested for UAV manufacturers?
Yes. OEM and integration services are available to adapt the H4T-25 for specific drone platforms and industry applications.

6. What documentation and support come with the H4T-25?
The product package includes specifications, wiring diagrams, and user manuals. MotioNew’s engineering team provides after-sales technical support for setup and integration.
