Gimbal Camera | Model A20KT-35 | 4K EO Dual Sensors with 20x Zoom | 35mm Themral with 30HZ refresh rate

Payment Methods:

Payment methods - gimbal camera model a20kt-35 - motionew - 5
Description

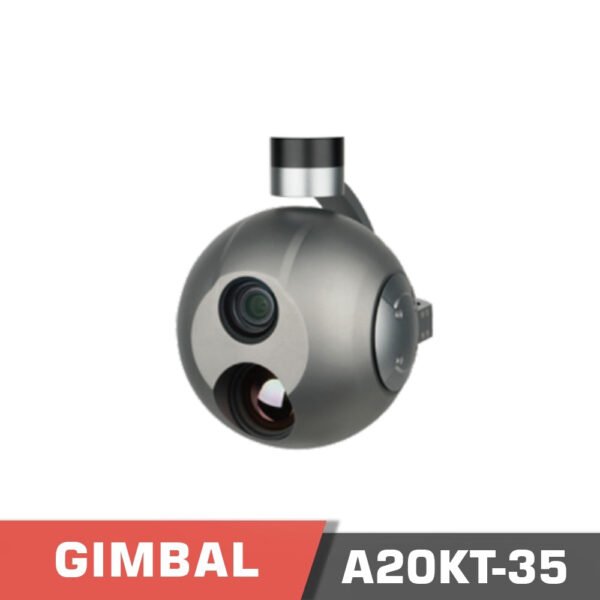

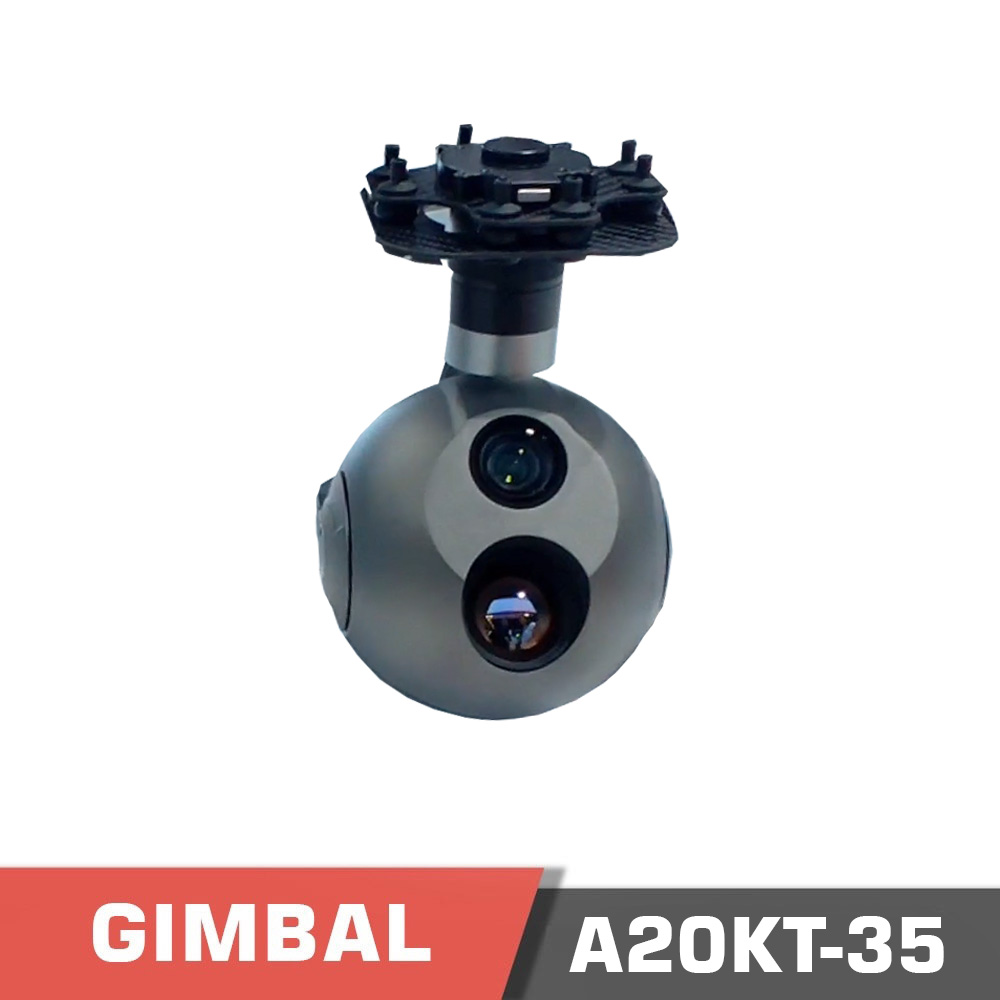

A20KT-35 Gimbal Camera

4K EO Dual Sensors with 20x Zoom and AI Object Tracking

The A20KT-35 is the latest-generation dual-sensor AI gimbal camera built for mission-critical UAV operations. Equipped with a 4K 8.51MP optical camera and an upgraded 35mm thermal imager, it delivers powerful object tracking, vehicle/person recognition, and thermal surveillance — even in low-visibility environments.

Optimized for law enforcement, border patrol, critical infrastructure inspection, and UAV-mounted reconnaissance, this system combines advanced zoom optics with intelligent onboard processing and multiple control protocols.


 Key Specifications

Feature Specification
EO Sensor 1/2.5″ “Exmor R” CMOS
Optical Zoom 20x optical zoom, f=4.4–88.4mm
Resolution 8.51MP, 4K output supported
IR Thermal Imager 640 × 512, 35mm lens, 12μm pixel, 30Hz refresh rate
AI Function Human/Vehicle AI Detection & Tracking
Object Tracking Supported (✓)
Working Voltage 4S–6S (14.8V–22.2V DC)
Output 1080p micro HDMI / IP (4K streaming)
Control Interfaces PWM / UART / S.BUS / TCP / UDP
Local Storage SD card up to 256GB (4K recording supported)
Net Weight 1036g
Dimensions 130 × 161 × 201.8 mm

Highlights

  • Next-Level Thermal Clarity: Long-range 35mm thermal lens delivers unmatched detail for IR tracking

  • Smart AI Target Recognition: Automatically identifies and locks onto humans or vehicles

  • Fully Integrated Control: Compatible with major UAV flight systems and data links

  • Local + Streaming Output: Enables mission recording while simultaneously streaming over IP/HDMI

  • Rugged, Reliable Build: Ideal for harsh environments with demanding mission durations


Use Cases

  • UAV surveillance and perimeter monitoring

  • Tactical reconnaissance with infrared visibility

  • Border control and anti-smuggling operations

  • Long-range aerial patrols or nighttime search missions

  • Utility infrastructure & pipeline heat mapping



Gimbal camera model a20kt-35

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Specifications

Feature Specification
EO Sensor 1/2.5″ “Exmor R” CMOS
Optical Zoom 20x optical zoom, f=4.4–88.4mm
Resolution 8.51MP, 4K output supported
IR Thermal Imager 640 × 512, 35mm lens, 12μm pixel, 30Hz refresh rate
AI Function Human/Vehicle AI Detection & Tracking
Object Tracking Supported (✓)
Working Voltage 4S–6S (14.8V–22.2V DC)
Output 1080p micro HDMI / IP (4K streaming)
Control Interfaces PWM / UART / S.BUS / TCP / UDP
Local Storage SD card up to 256GB (4K recording supported)
Net Weight 1036g
Dimensions 130 × 161 × 201.8 mm



Product contents

Product contents

Please contact us for more information.

Documents

Documents

click here to download A20KT-35. Manual

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Gimbal Camera | Model A20KT-35 | 4K EO Dual Sensors with 20x Zoom | 35mm Themral with 30HZ refresh rate”

Specification:

Gimbal Control Method

Ethernet

,

PWM

,

SBUS

,

UART

Number of Sensors

2 Sensors

EO Sensor resolution

3840×2160 (4k UHD)

Thermal Sensor Lens

35mm

Thermal Sensor resolution

640×512

AI Object Tracking

Yes

Gimbal Video Output

Ethernet

,

HDMI

Gimbal Weight

1036g

Gimbal Dimensions

130×161×201.8mm

EO Sensor Lens

20x Zoom
