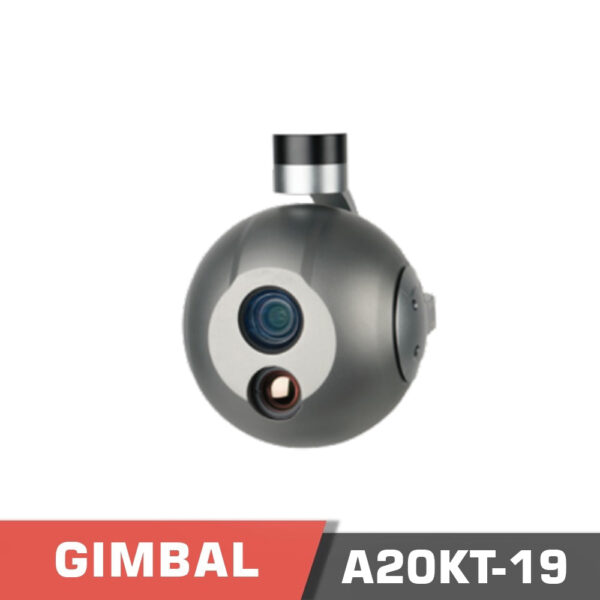

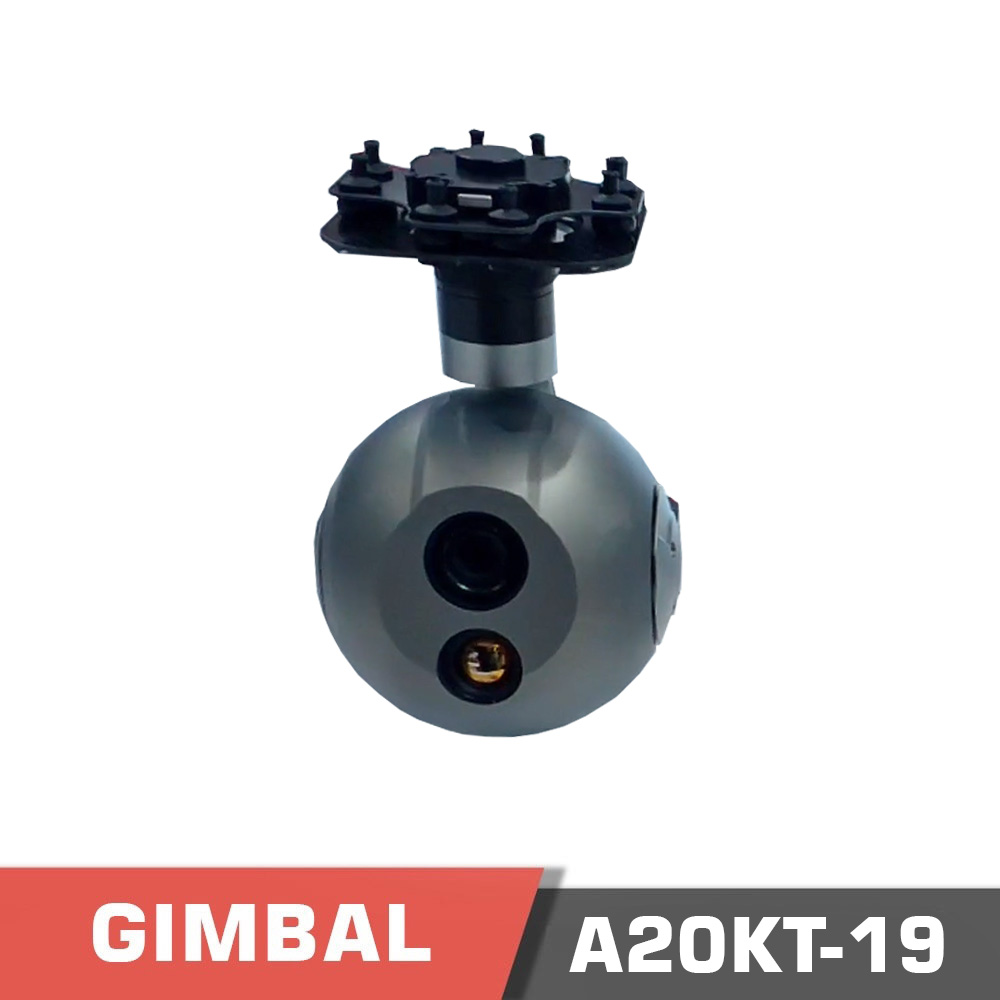

A20KT-19 Gimbal Camera
4K 20x Zoom EO + Thermal Imaging with AI Object Tracking
The A20KT-19 is a powerful dual-sensor gimbal camera designed for professional UAV applications that demand long-range zoom, high-resolution imaging, and intelligent tracking. Featuring an 8.51MP 1/2.5” CMOS sensor with 20x optical zoom, integrated thermal imaging, and onboard AI object detection, this payload delivers exceptional situational awareness for public safety, search & rescue, and critical inspections.
Key Specifications
| Feature | Specification |
|---|---|
| EO Sensor | 1/2.5″ “Exmor R” CMOS |
| Lens | 20x Optical Zoom (4.4–88.4mm focal length) |
| Resolution | 8.51MP (4K output supported) |
| IR Thermal Imager | 640 × 512 resolution, 19mm lens, 12μm, 30Hz frame rate |
| AI Function | Human/Vehicle AI Detection and Tracking |
| Object Tracking | Supported (✓) |
| Working Voltage | 4S–6S (14.8V–22.2V DC) |
| Output | 1080p micro HDMI / IP (4K supported) |
| Control Interfaces | PWM / UART / S.BUS / TCP / UDP |
| Local Storage | Up to 256GB SD Card (4K recording) |
| Net Weight | 989g |
| Dimensions | 130 × 161 × 201.8 mm |
Advanced Features
-
Ultra-High Zoom Capability: 20x optical zoom with ultra-clear 4K output
-
AI-Based Tracking: Real-time detection of people and vehicles using onboard AI
-
Thermal Imaging with 30Hz Refresh: High frame-rate IR for real-time awareness
-
Multi-Interface Support: Compatible with various autopilot and GCS protocols
-
Local Recording & IP Output: Simultaneous HDMI/IP streaming and onboard recording
Applications
-
Tactical surveillance and law enforcement
-
Traffic monitoring and vehicle tracking
-
Infrastructure and energy grid inspections
-
Emergency response and night-time search & rescue
-
UAV integration for hybrid mapping and real-time command systems
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Feature | Specification |
|---|---|
| EO Wide-Angle Camera | 3.2mm lens, 83° × 53° FOV |
| EO Telephoto Camera | 16mm lens, 20° × 11° FOV |
| Resolution | 3840 × 2160 (Ultra HD 4K) |
| IR Thermal Imager | 640 × 512 resolution, 18mm focal length, 12μm |
| Object Tracking | Supported (✓) |
| Working Voltage | 12–16V DC |
| Output | IP (network stream) |
| Control Interface | UART / TCP |
| Net Weight | 210g |
| Dimensions | 68.1 × 96.7 × 112.9 mm |
Product contents
Product contents
Please contact us for more information.
Documents
Documents
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Gimbal Control Method |
Ethernet ,PWM ,SBUS ,UART |
|---|---|
| Number of Sensors |
2 Sensors |
| EO Sensor resolution |
3840×2160 (4k UHD) |
| Thermal Sensor Lens |
19mm |
| Thermal Sensor resolution |
640×512 |
| AI Object Tracking |
Yes |
| Gimbal Video Output |
Ethernet ,HDMI |
| Gimbal Weight |
989g |
| Gimbal Dimensions |
130×161×201.8mm |
| EO Sensor Lens |
20x Zoom |
