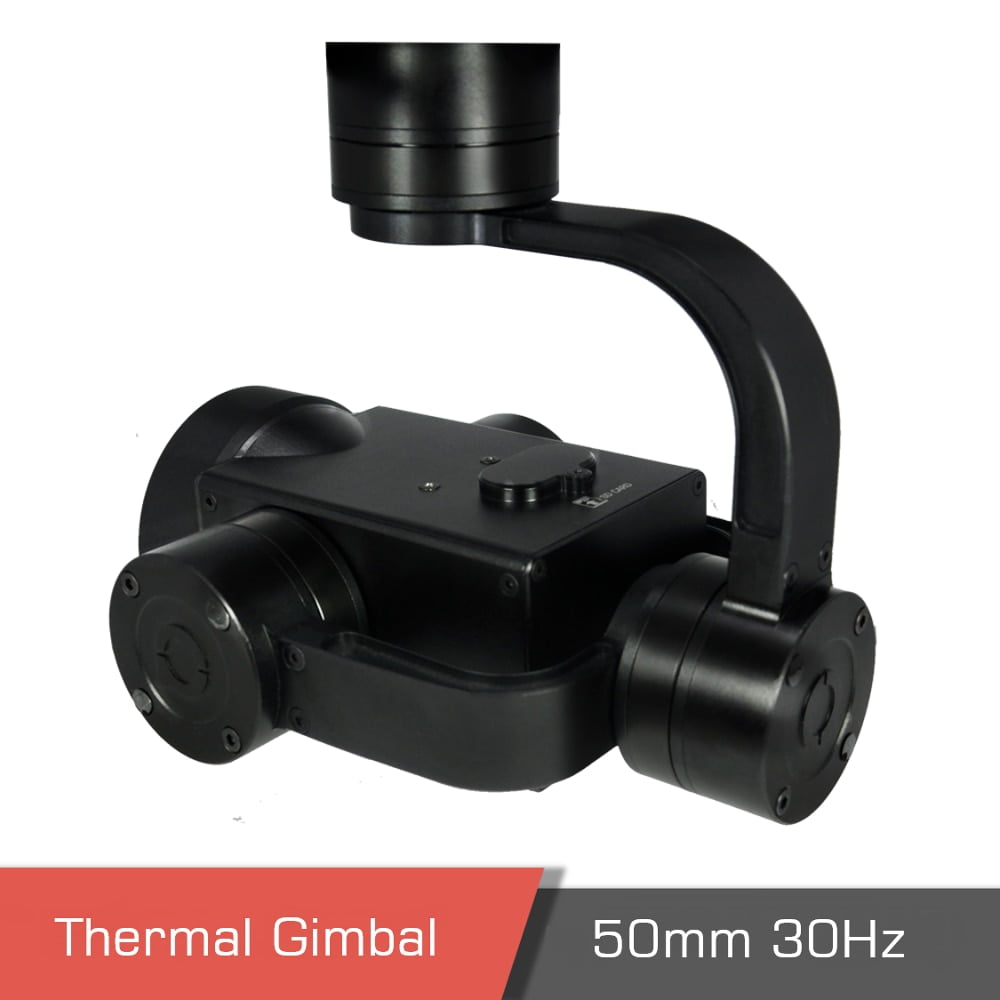

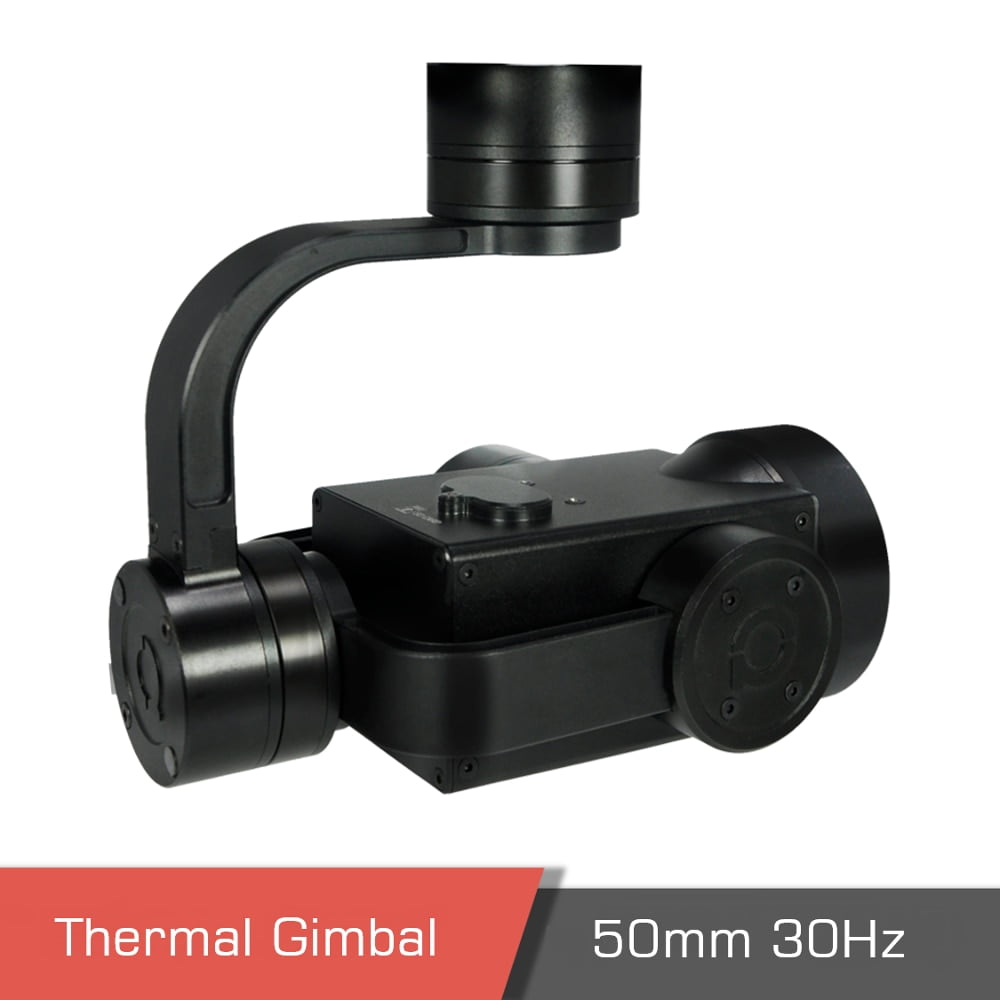

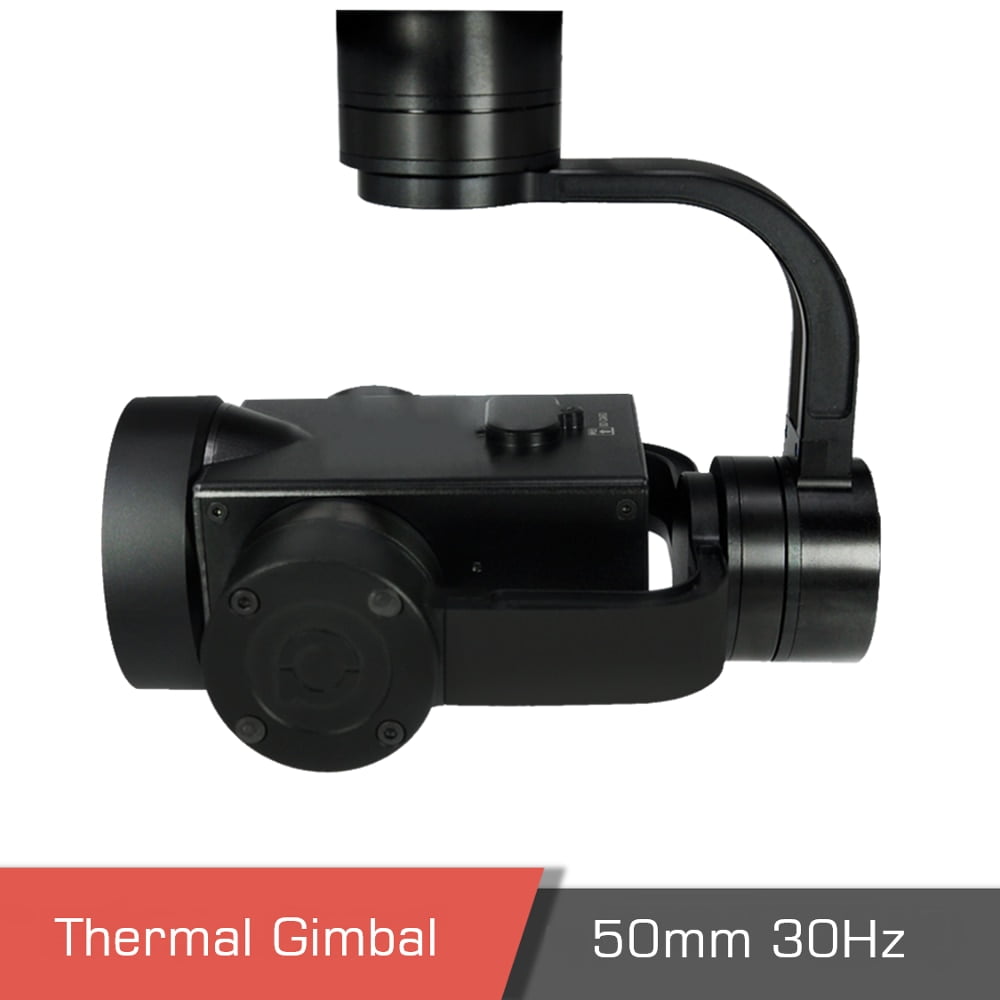

Single Sensor Thermal Camera Gimbal ZIR 50/ Night Vision

15699.00 $

Out of stock

Description

Overview of Gimbal ZIR 50

The thermal imaging camera lens size of ZIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. ZIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. Z- IR50 supports PWM control, S.BUS contral and serial command control, suitable for close range remote control or remote data command control.

The speed of ZIR50T gimbal is adjustable, LOW speed mode is used for large zoom   range, the control will be more accurate; Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.

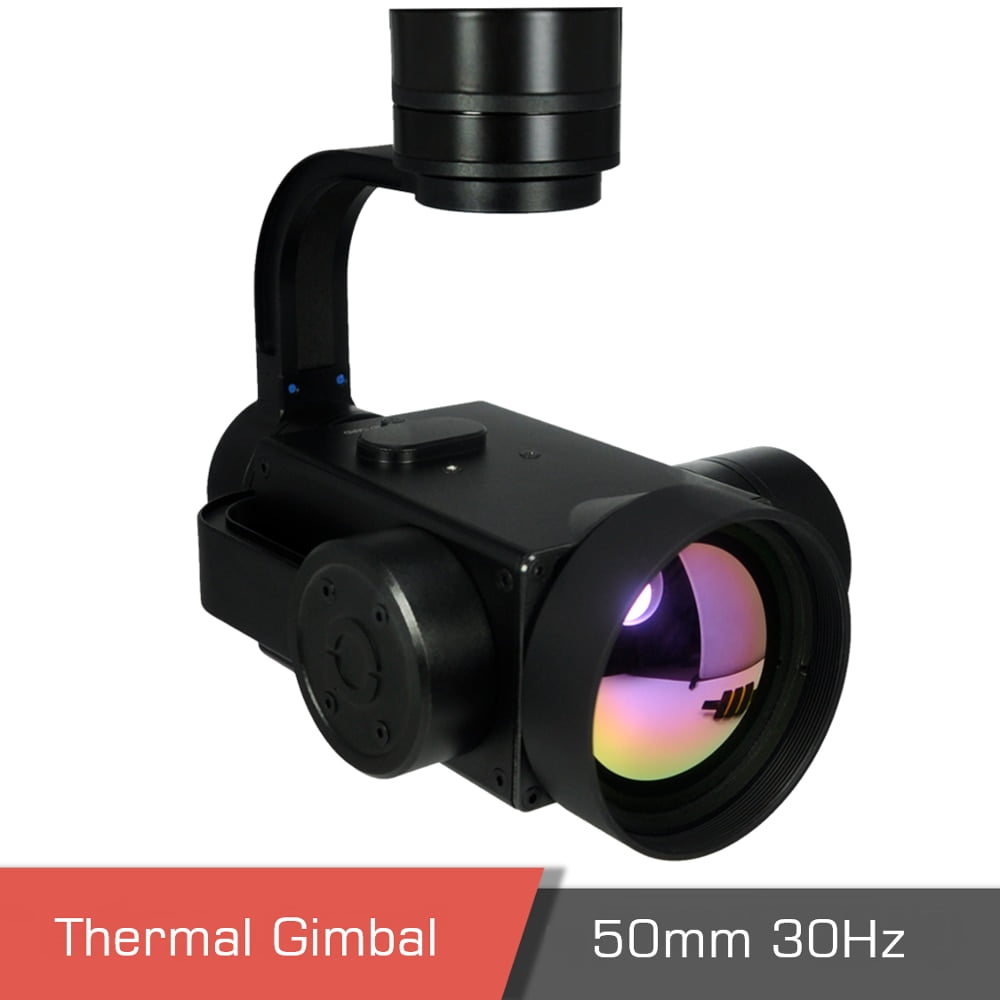

Powerful 50mm Thermal Imager



Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 50mm lens thermal image sensor, ZIR50T can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

Zir50t 6 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 5

Multi Output Methods Optional



ZIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

Zir50t - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 6



Multi Control Methods



Default PWM and Serial port TTL control, SBUS is optional, IP output version also

support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Zir50t 2 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 7

Control box signal interfaces:

Zir50t 5 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 8

Compatible with Viewport



ZIR50T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



Zir50t 1 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 9





Application of this thermal camera



Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.



Zir50t 4 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 10







Dimention



Zir50t 7 - gimbal zir 50,thermal camera,1080 camera,single sensor,night vision - motionew - 11



Additional information

Weight 0.650 kg
Dimensions 9 × 12 × 13 cm

Specifications

Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 3.85W
Working environment temp. -20℃ ~ +50℃
Output micro HDMI(HD output 1080P 60fps) / IP
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS / TCP



Gimbal Spec
Pitch/Tilt ±90°
Roll ±85°
Yaw/Pan ±170°/360°*N(IP/SDI output version)
Vibration angle Pitch/Roll: ±0.01°, Yaw:±0.01°
One-key to center



Thermal Imager Spec
Lens size 50mm
Horizontal FOV 12.4°
Vertical FOV  9.3°
Diagonal FOV 15.5°
Detective Distance (Man: 1.8×0.5m) 1471 meters
Recognize Distance (Man: 1.8×0.5m) 368 meters
Verified Distance (Man: 1.8×0.5m) 184 meters
Detective Distance (Car: 4.2×1.8m) 4510 meters
Recognize Distance (Car: 4.2×1.8m) 1127 meters
Verified Distance (Car: 4.2×1.8m) 564 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480
Pixel size 17μm
Focusing method Athermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 2x, 4x
Sync correct time Yes
Thermometry type Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional)



Thermal Oject Tracking
Update rate of deviation pixel 25Hz
Output delay of deviation pixel <3ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed ±48 ~ ±192 pixel/frame
Object memory time 100 frames (4s)





Packing Information
N.W. 650g
Product meas. 80*114*123mm

Product contents

Product contents

Documents

Please contact us for more information.
