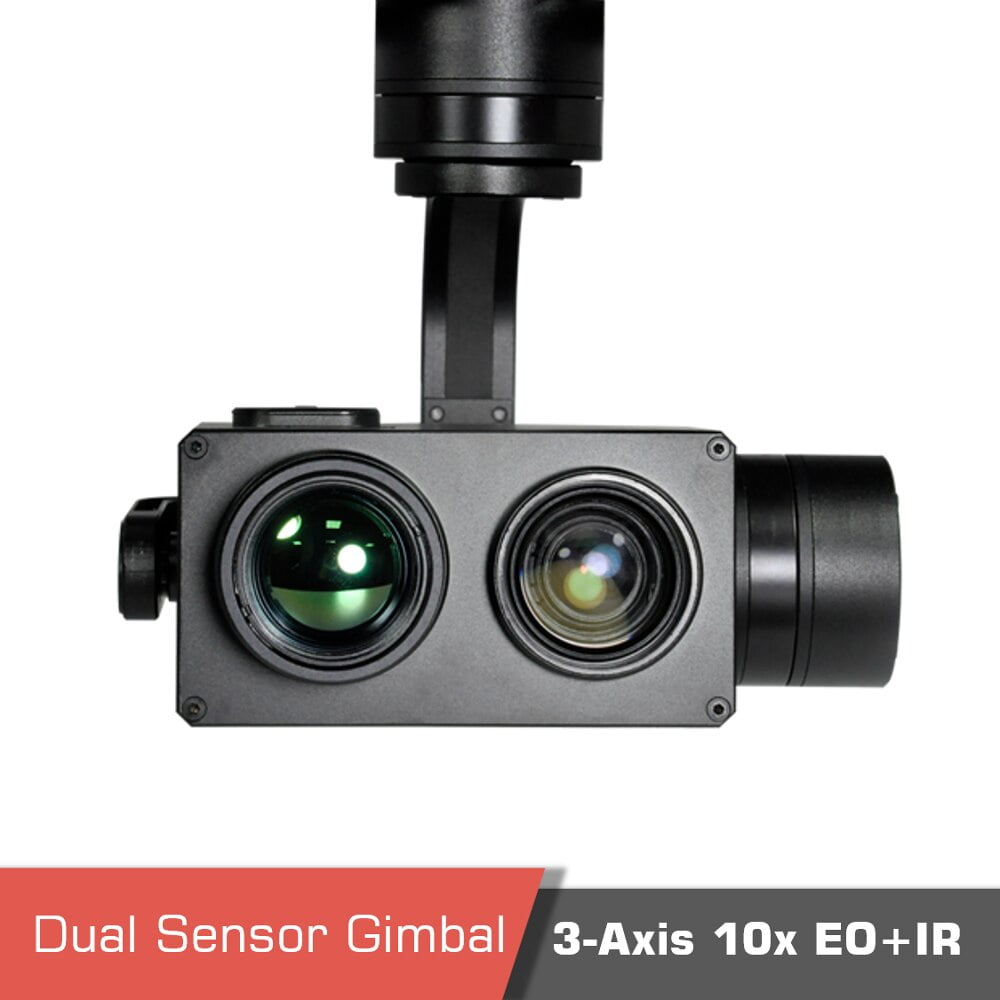

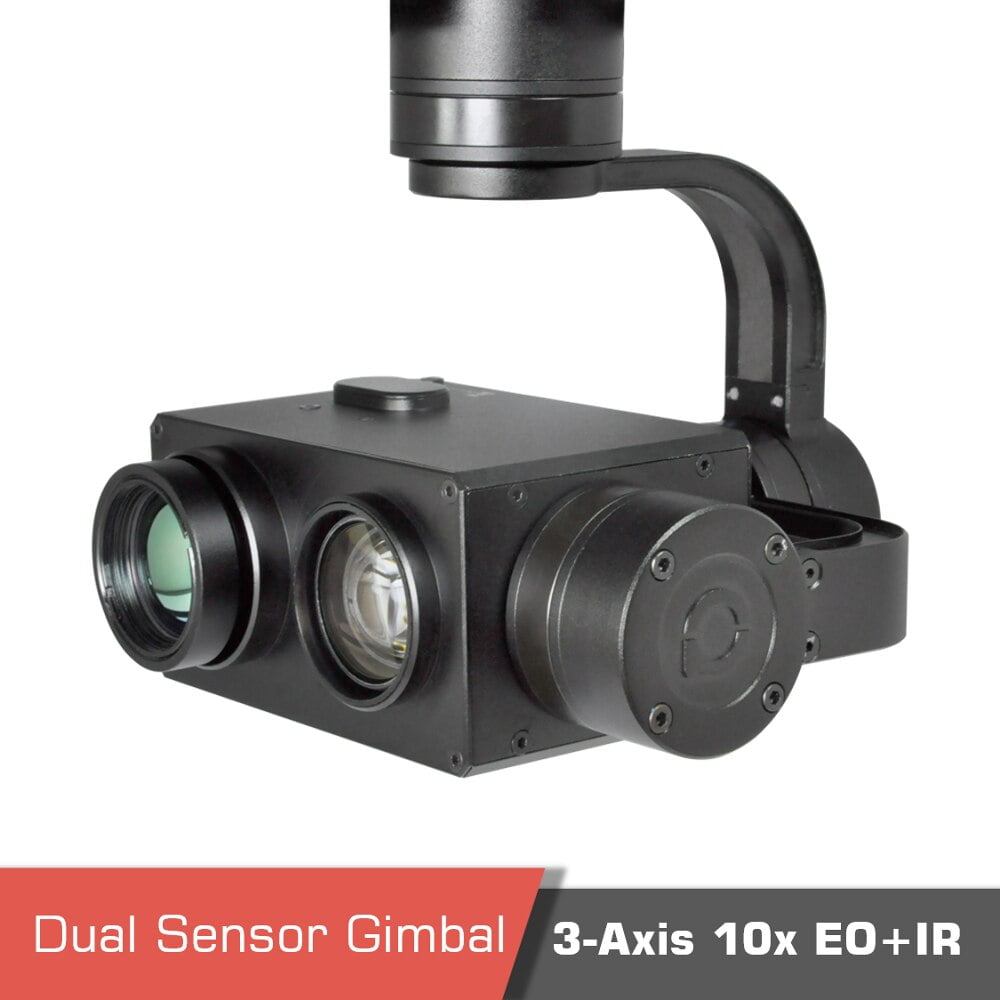

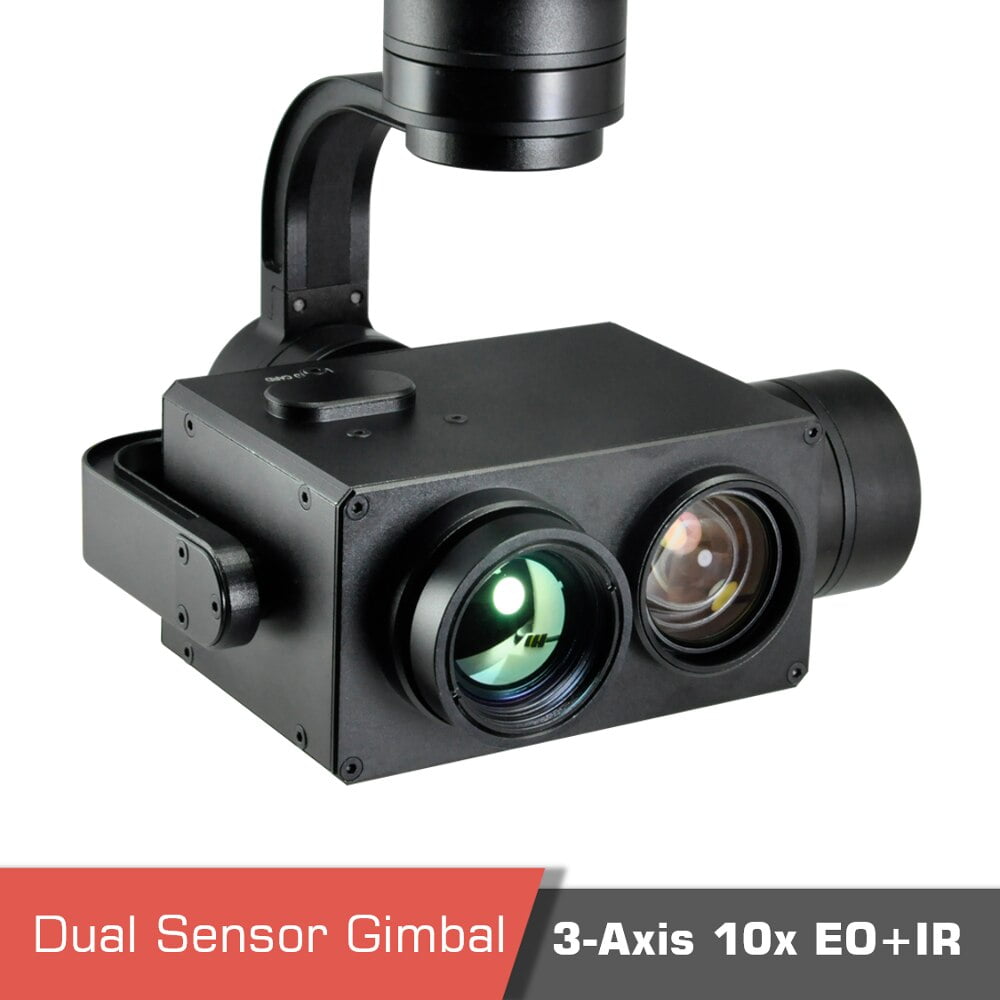

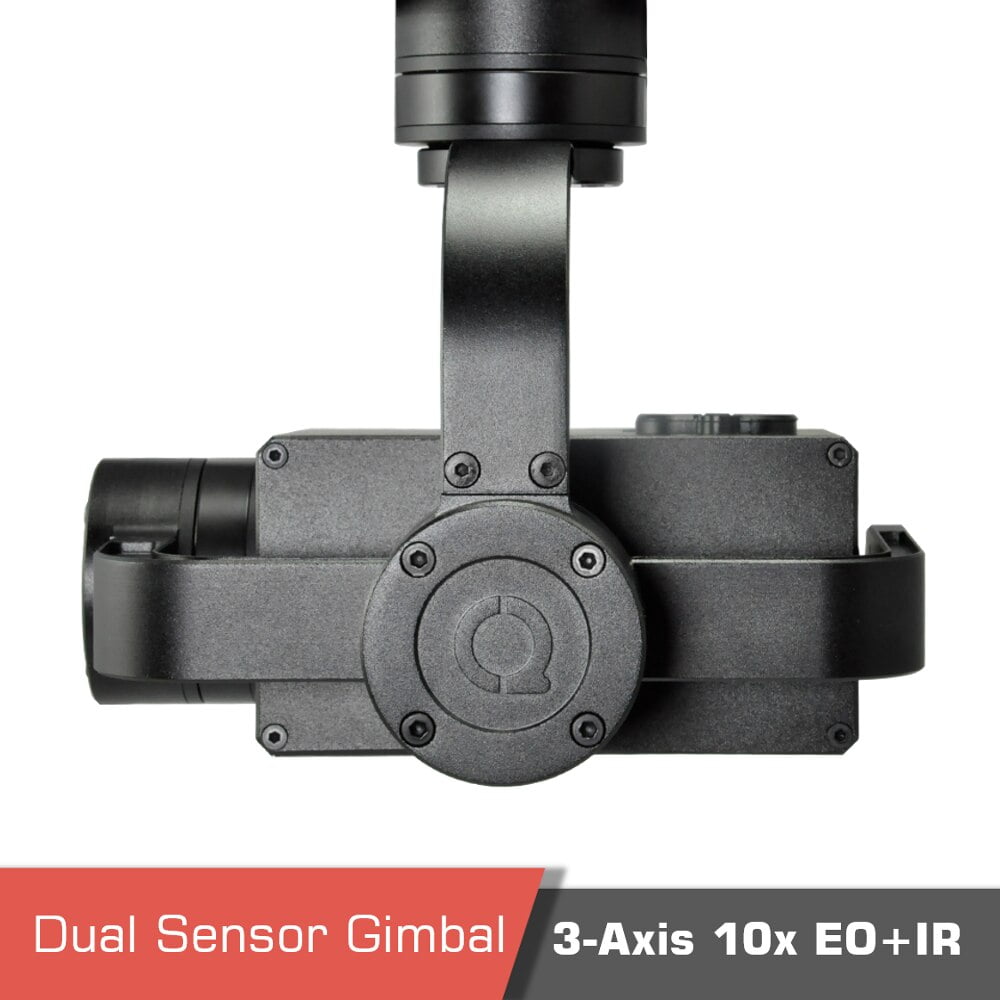

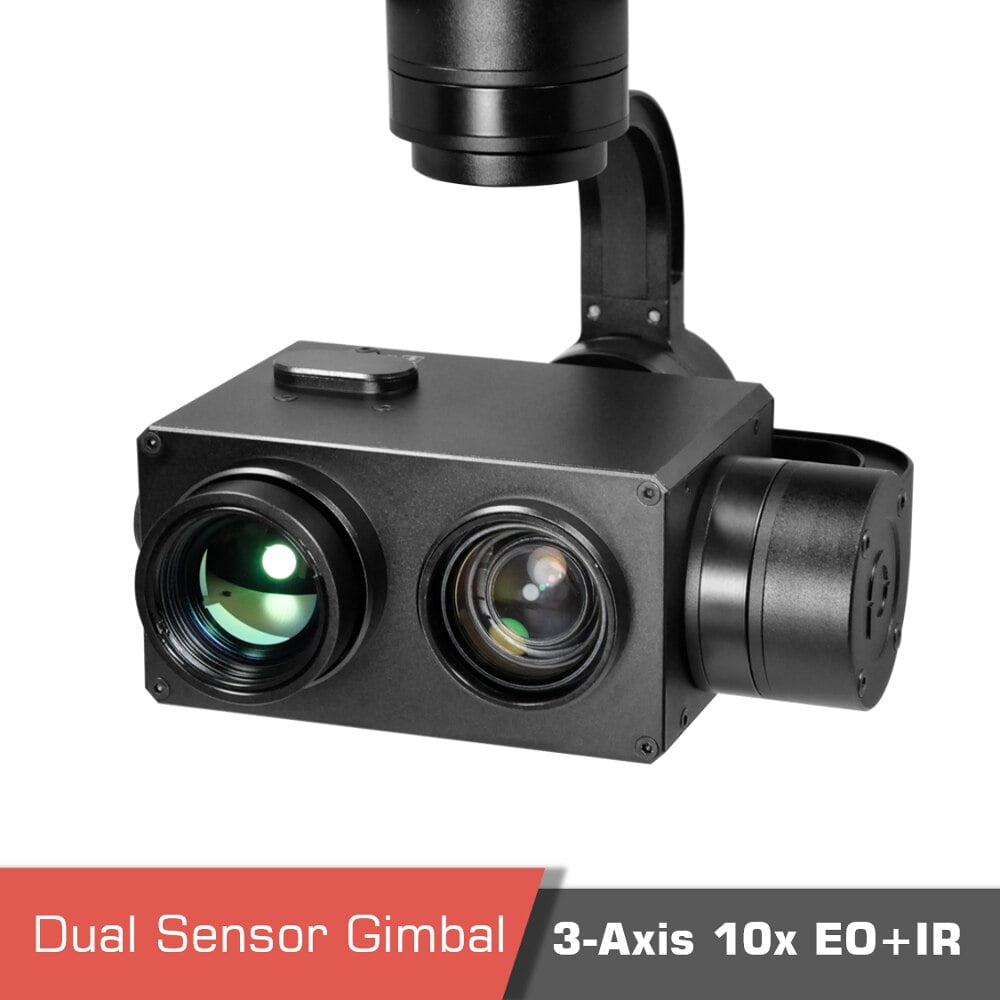

Gimbal Z10TIR Dual Sensor Thermal Camera

12983.31 $

Out of stock

Description

Overview of Gimbal Z10TIR

Stabilizing the Z10TIR is a highly optimized 3-axis camera gimbal with pinpoint-precise motor rotation with a control accuracy of ±0.02° powered by a dedicated processor. Rather than rely on electrical slip rings – as is common with many gimbals – the Z10TIR uses a unique mechanically limited design and concealed wires to ensure more stable data transmission and greater durability. Vibration is eliminated using four damping balls and a lightweight damping board, creating a seamlessly smooth video. 360°rotation remains possible through gimbal rotation. Stable, smooth footage images can be captured even when flying at high speed flight.



10x Zoom Camera

Powered by 1/3″ CMOS module, with color [email protected]. 2.48mega effective pixel and 1080p FHD image quality, combined with powerful optical zoom technology, and fast auto-focus speed, designed for UAV aerial photography.

Z10tir2 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 5



 Powerful 25mm Thermal Imager

Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 25mm lens thermal image sensor, Z10TIR can record and transmit thermal image and visible images at the same time. There are two different thermal resolutions for optional: 640*480 as standard version and 384*288 resolution as low configuration. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

Z10tir8 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 6

Visible Light and Thermal Imager Dual Sensors Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame,object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4dB, the mean square root values of pulse noise in the object position < 0.5 pixel, which greatly improve the accuracy and tracking effect.

Z10tir3 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 7



 Multi Output Methods Optional

Z10TIR supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.



Z10tir4 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 8

Multi Control Methods of this Thermal Gimbal Camera

Defualt PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Z10tir5 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 9

Control box signal interfaces:

Z10tir7 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 10

Compatible with Viewport

Z10TIR is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

Z10tir6 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 11

Application of this Dual Sensor

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

Z10tir1 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 12

Dimension of Gimbal Z10TIR



Z10tir9 - gimbal z10tir,dual sensor,thermal gimbal camera,thermal camera - motionew - 13

Additional information

Weight 0.750 kg
Dimensions 14 × 14 × 15 cm

Specifications



Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 3S ~ 4S
Output voltage 5V (connect with PWM)
Dynamic current 800~1000mA @ 12V
Idle current 800mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(FHD output 1080P 30fps) / IP(1080P/720p 25/30fps)
Local-storage TF card (Up to 128G, class 10, FAT32 or ex FAT format)
Photo storage format JPG(1920*1080/1280*720)
Video storage format MP4 (1080P/720P 25fps/30fps)
Control method PWM  / TTL / S.BUS/ TCP(IP output version)
Gimbal Spec
Mechanical Range Pitch/Tilt: -125°~120°, Roll: ±60°, Yaw/Pan: ±300° / ±360°*N (IP output version)
Controllable Range Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center



RGB Camera Spec
Imager Sensor 1/3″ Panasonic CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.48MP
Lens optical zoom 10x, F=5.1mm~51mm
Field of View (D, H, V) D: 68°(Wide end) ~ 6.7° (Tele end)
H: 54°(wide end) ~ 4.9°(tele end)
V: 31°(wide end) ~ 4.0°(tele end)
Sync system Progressive scanning
Sync. System Internal Internal
S/N ratio more than 50dB
Min illumination Color : 0.5 lux , BW : 0.1lux

Color DSS : 0.125 lux , BW DSS : 0.025 lux

Gain Control (AGC) Off / On
White balance Auto / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30(25) ~ 1/30,000 sec
Focus Auto / One Push / Manual
Iris 0 ~ 20 steps
Exposure  Mode / AGC / Shut Speed / Iris / DSS / Flicker less / Brightness / WDR/BLC / D&N
Defog Yes
OSD Yes





RGB Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <5ms
Minimum object contrast 5%
SNR 4
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object position < 0.5 pixel





IR Thermal imager spec
Lens size 25mm
Horizontal FOV 24.6°
Vertical FOV 18.5°
Diagonal FOV 30.4°
Detective Distance (Man: 1.8×0.5m) 735 meters
Recognize Distance (Man: 1.8×0.5m) 184 meters
Verified Distance (Man: 1.8×0.5m) 92 meters
Detective Distance (Car: 4.2×1.8m) 2255 meters
Recognize Distance (Car: 4.2×1.8m) 564 meters
Verified Distance (Car: 4.2×1.8m) 282 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*480 (standard version)
For optional 384*288 (low configuration)
Pixel size 17μm
Focusing method A thermal prime lens
Emissivity correction 0.01~1
NETD ≤50mK (@25℃)
MRTD ≤650mK (@characteristic frequency)
Image enhancement Auto adjust image brightness and contrast ratio
Color palette White, iron red, pseudo color
Auto Non-uniform correction Yes (no shutter)
Digital zoom 1x ~ 4x
Sync correct time Yes
Thermometry type Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional)
Temperature warning 0℃~120℃ (For thermometry version only)



IR Thermal Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <5ms
Minimum object size 32*32 pixel
Maximum object size 128*128 pixel
Tracking speed 32 pixel/frame
Object memory time 100 frames (4s)



Packing Information
N.W. 800g
Product meas. 132.6*131.4*149.2mm/132.6*131.4*155.6mm(Viewport version)
Accessories 1pc gimbal camera device, screws,  copper cylinders, damping balls, damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion







Product contents

Product contents

Documents

Please contact us for more information.
