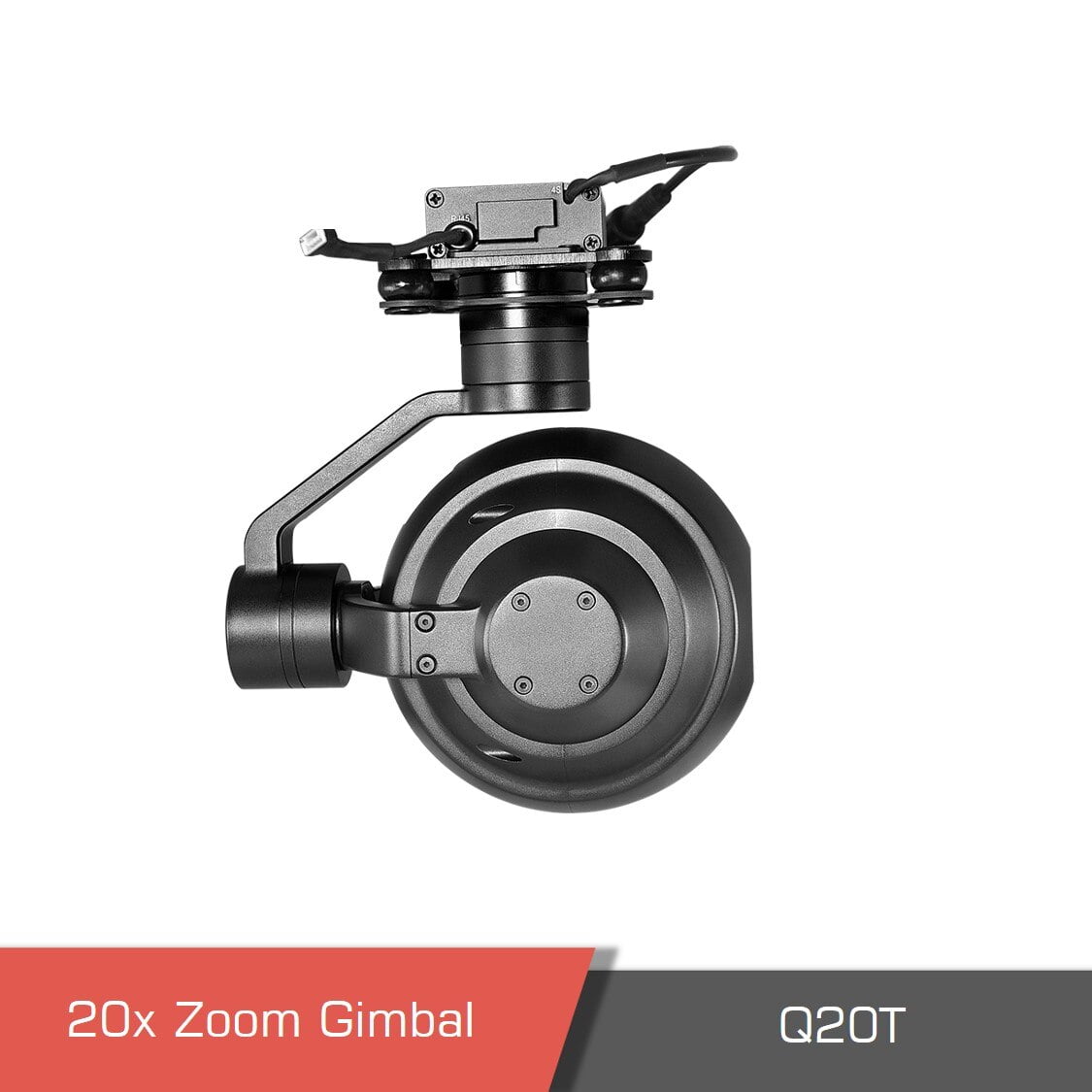

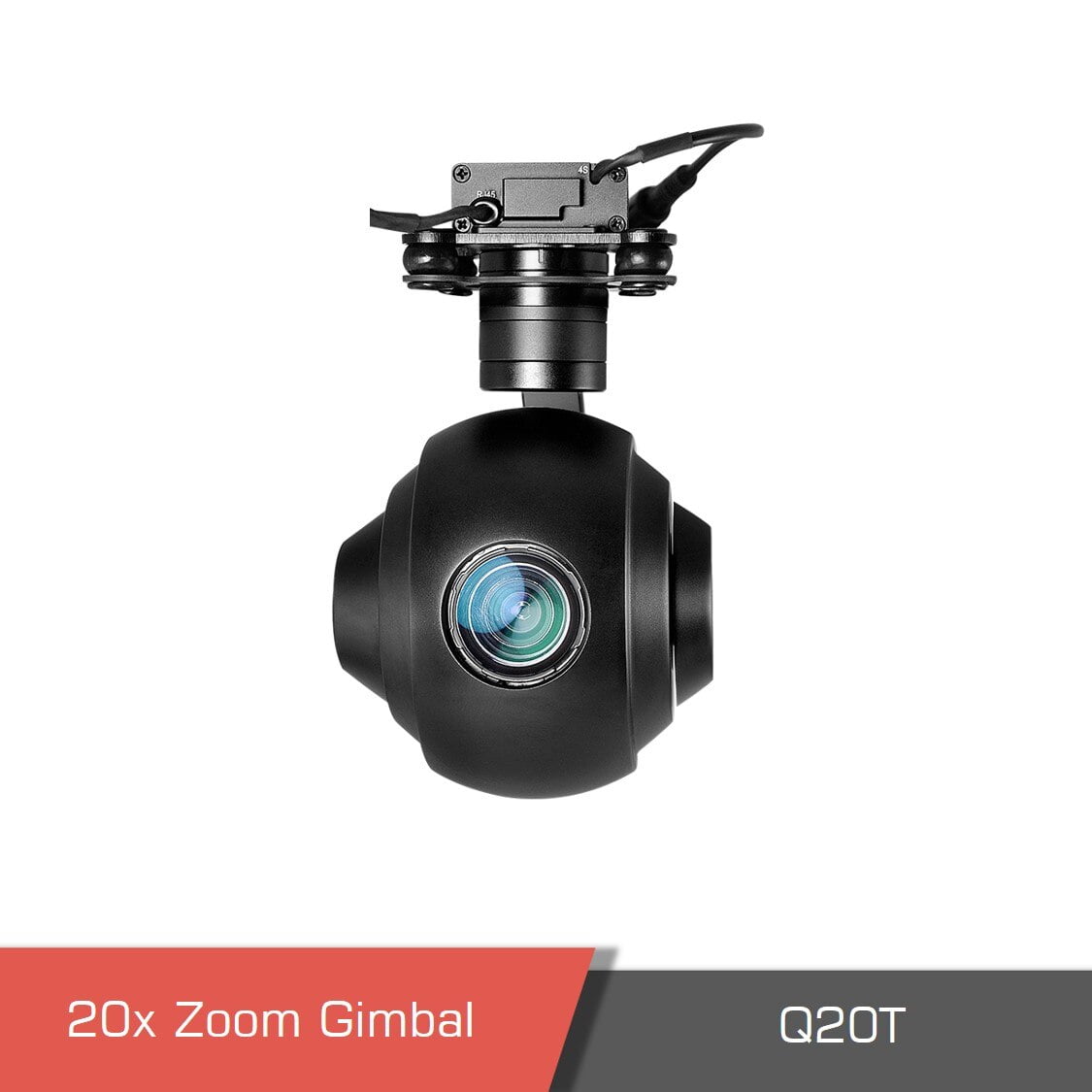

Q20T Gimbal Camera
7999.00 $
Description
Q20T Gimbal Camera Overview
Q20T features 20x optical zoom 4K EO and auto tracking function. It is a 3-axis gimbal camera for UAV, Aluminum alloy hosing is ideal since it is light weight, meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD. Connected to GPS module it has geo tagging function. Combining with high-precise stabilization system and automatic thermal compensation algorithm, the gimbal can fulfill high level stabilization requirements without thermal drifting.
SONY 20x Time Optical Zoom 4K Camera
Powered by SONY 1/2.5″ “Exmor R” CMOS module, with 0.01 [email protected] min illumination, 8.51 mega effective pixel and 1080p FHD image quality, combined with 20x advanced optical zoom technology, the observation range is up to 2000 meters, which can meet the application requirements of various domains.
Built-in Auto-tracking Function
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.
Multi Output Methods Optional
Q20T Gimbal Camera support both HDMI output, Ethernet/IP output. HDMI and output are 1080p, Ethernet output defualt as 720p and record is 1080p. IP output will support 360degree endless.
Applications
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties
Dimension of Q20T Gimbal Camera
Additional information
| Weight | 0.805 kg |
|---|---|
| Dimensions | 26 × 18 × 28 cm |
Specifications
| Hardware Parameters | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900mA @ 12V |
| Idle current | 800mA @ 12V |
| Working environment temperature | -20℃ ~ +60℃ |
| Output | micro HDMI1080P60/IP (4K 2160P/1080p25 30 optional) |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) (4K/1080p optional) |
| Control method | PWM / TTL / S.BUS |
| Gimbal specifications | |
| Mechanical Range | Pitch/Tilt: -125°～125°, Roll: ±70°,Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Camera specifications | |
| Imager Sensor | SONY 1/2.5″ “Exmor R” CMOS |
| Total pixel | 8.51MP |
| Signal system | 4K: 2160P/29.97,2160P/25 |
| FHD: 1080P/59.94,1080P/50,1080i/59.94,1080i/50,720P/59.94,720P/50 | |
| Lens optical zoom | 20x, F2.0 to F3.8 |
| Digital zoom | 12x (240x with optical zoom) |
| Min.working distance | 80 mm (Wide end), 800 mm (Tele end) |
| Angle of view ( H ) | 70.2°(Wide end) ~ 4.1°(Tele end) |
| Sync system | Internal/External |
| S/N ratio | 50dB |
| Photo storage format | JPG (4K:3840*2160/1080P:1920*1080) |
| Video storage format | MP4 (2160P 25fps/30fps or 1080P 25/30fps) |
| Min illumination | 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off)
0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On) 0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off) 0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto |
| White balance | Auto/Manual |
| Electronic Shutter speed | 1/1 to 1/10000 sec. (22 steps) |
| Noise reduction | On/Off (level 5 to 1/ Off, 6 steps) |
| Defog mode | On/Off (Low, Mid, High) |
| Focus | Auto/Manual/One-time automatic focus |
| Focus speed | 2s |
| Lens initialization | Built-in |
| User presetting bit | 20 sets |
| Image rotation | 180°, Horizontal/Vertical mirror image |
| OSD | Yes |
| Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 ~ ±192 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| Net Weight | 627g / 805g (Viewport version) |
| Product meas. | 105*140.6*150.3mm |
| Accessories | 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion |
| Gross Weight | 2266g |
| Package measurement | 260*180*280mm |
Product contents
Product contents
Documents
Please contact us for more information.
