Gimbal Camera U30T pro

6500.00 $

Available on backorder

Description

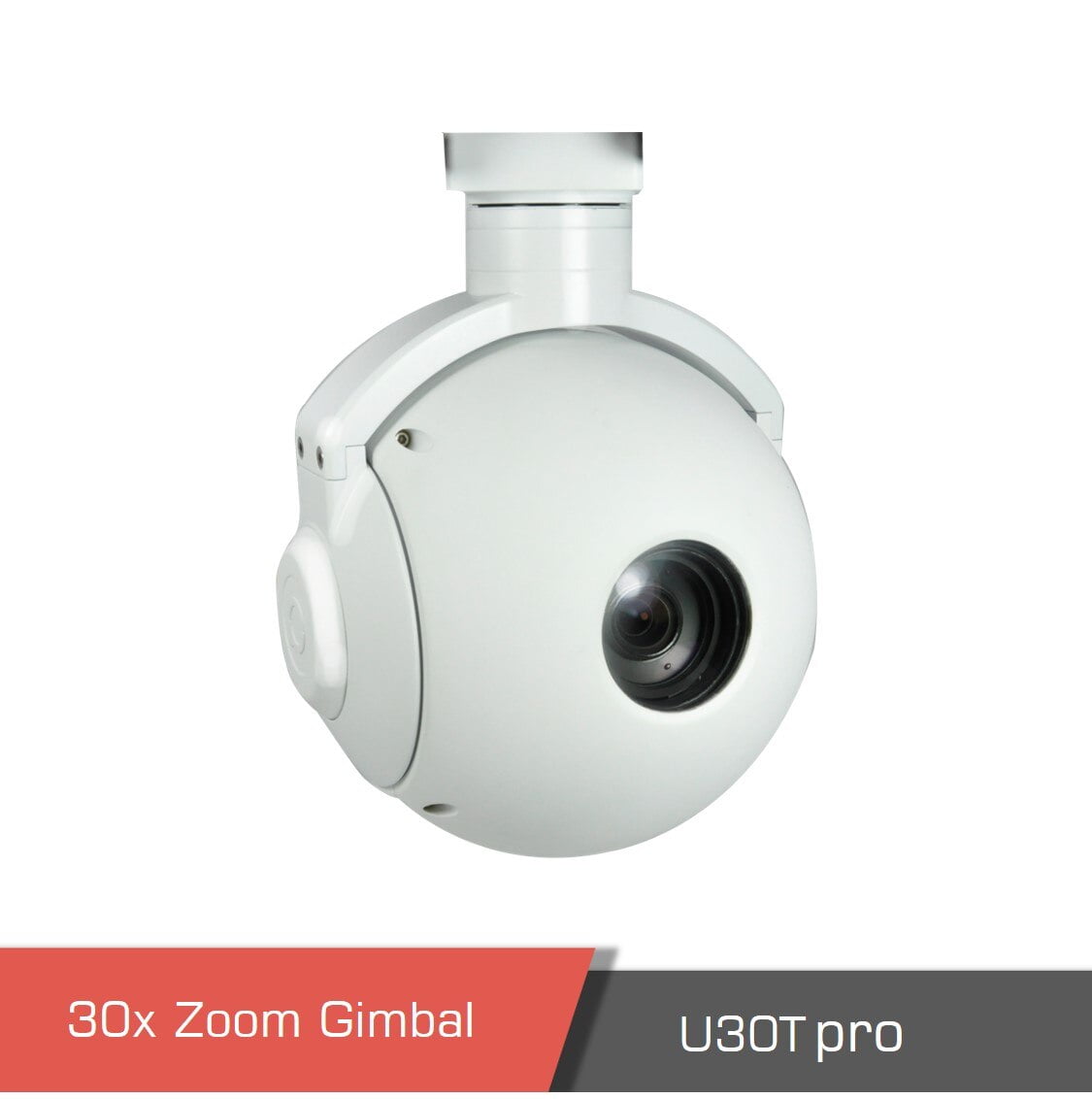

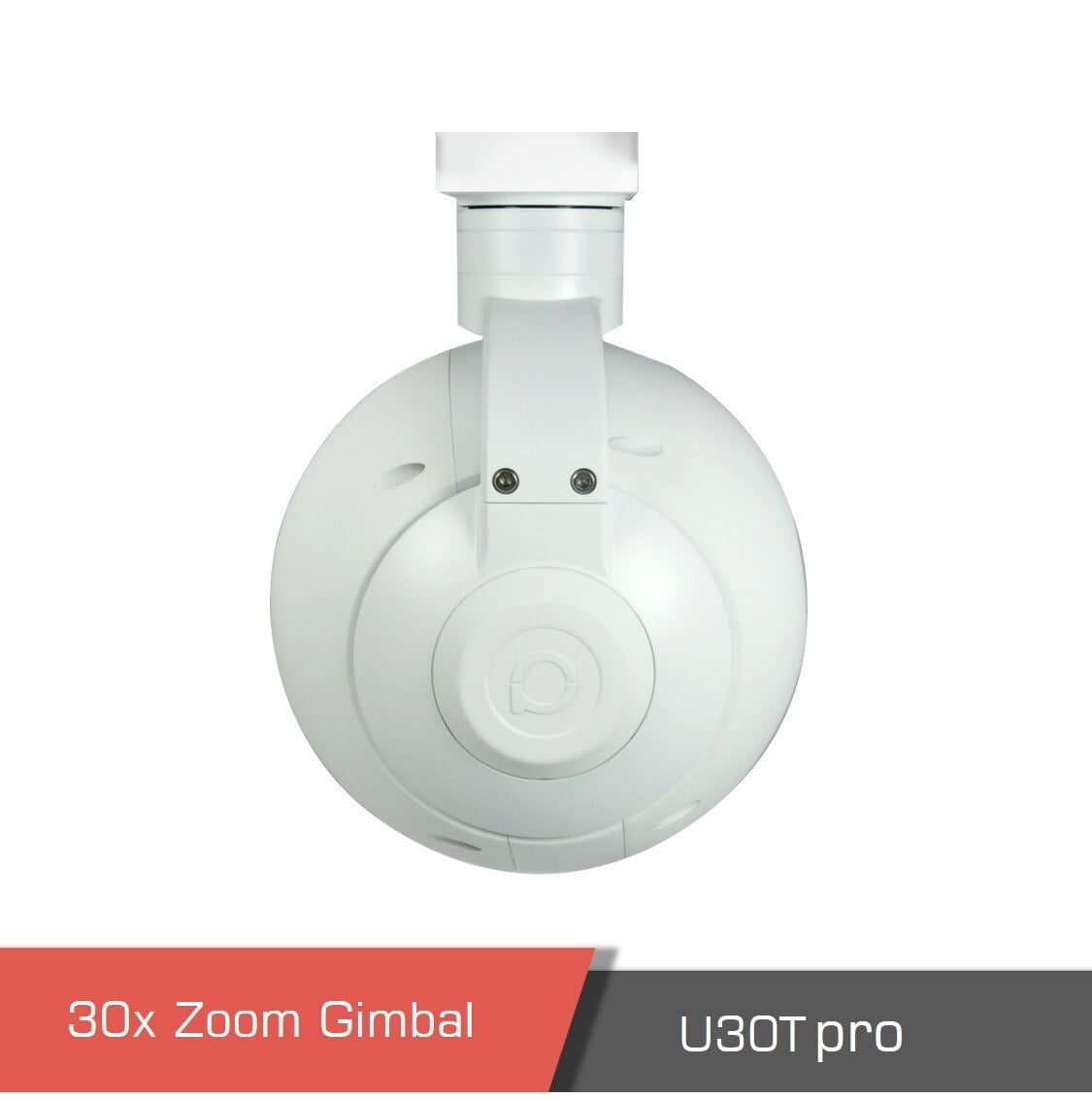

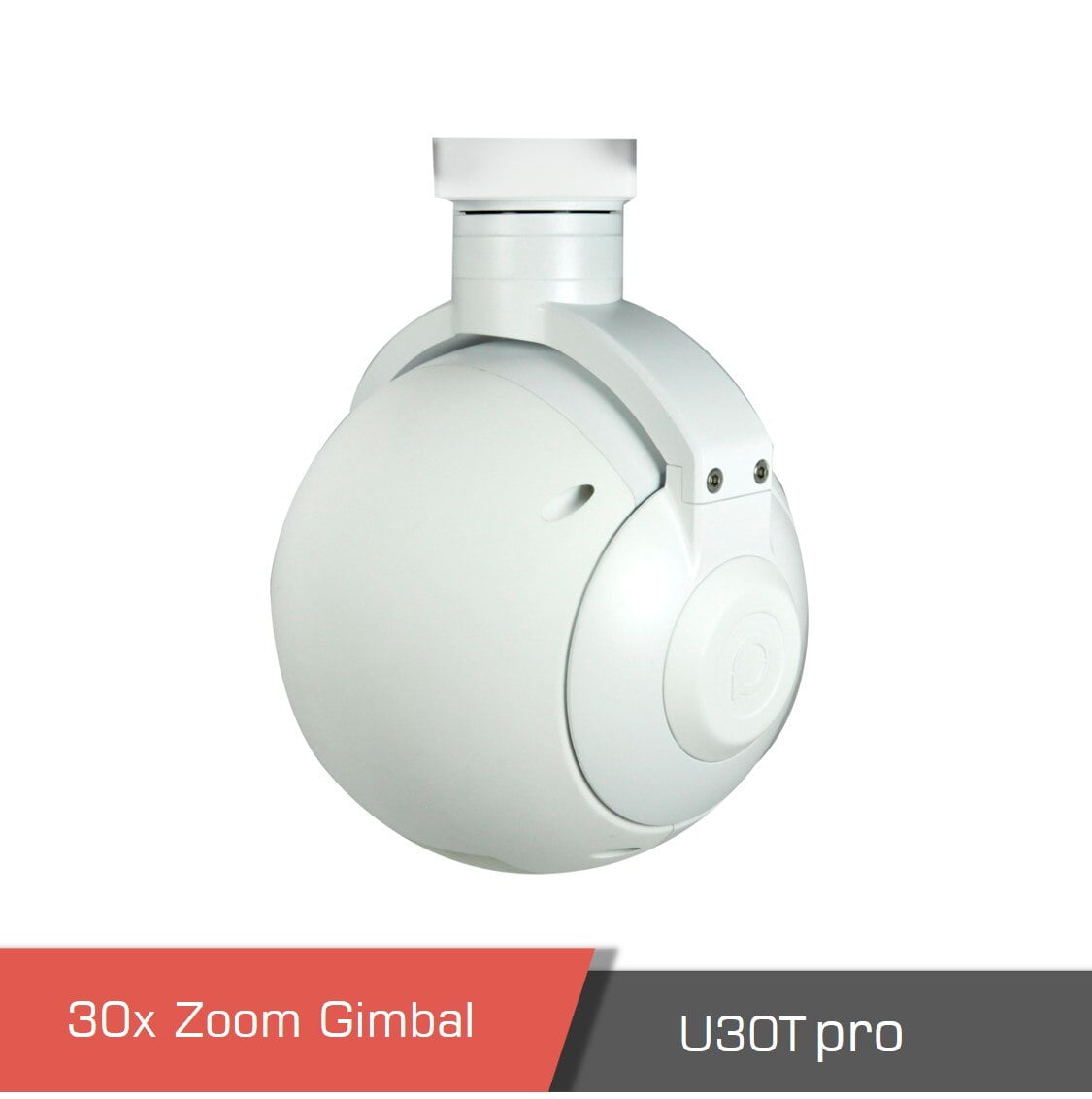

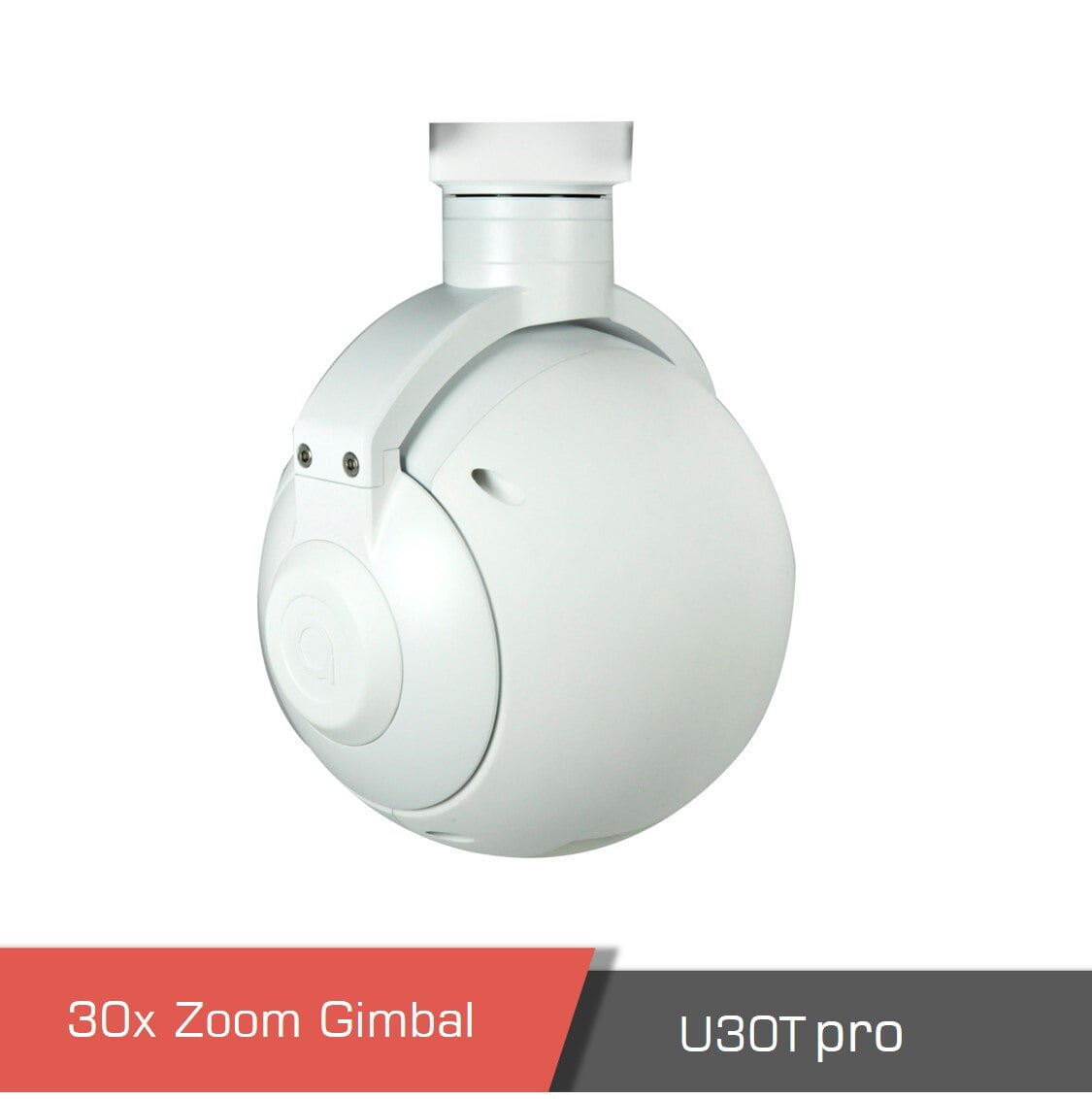

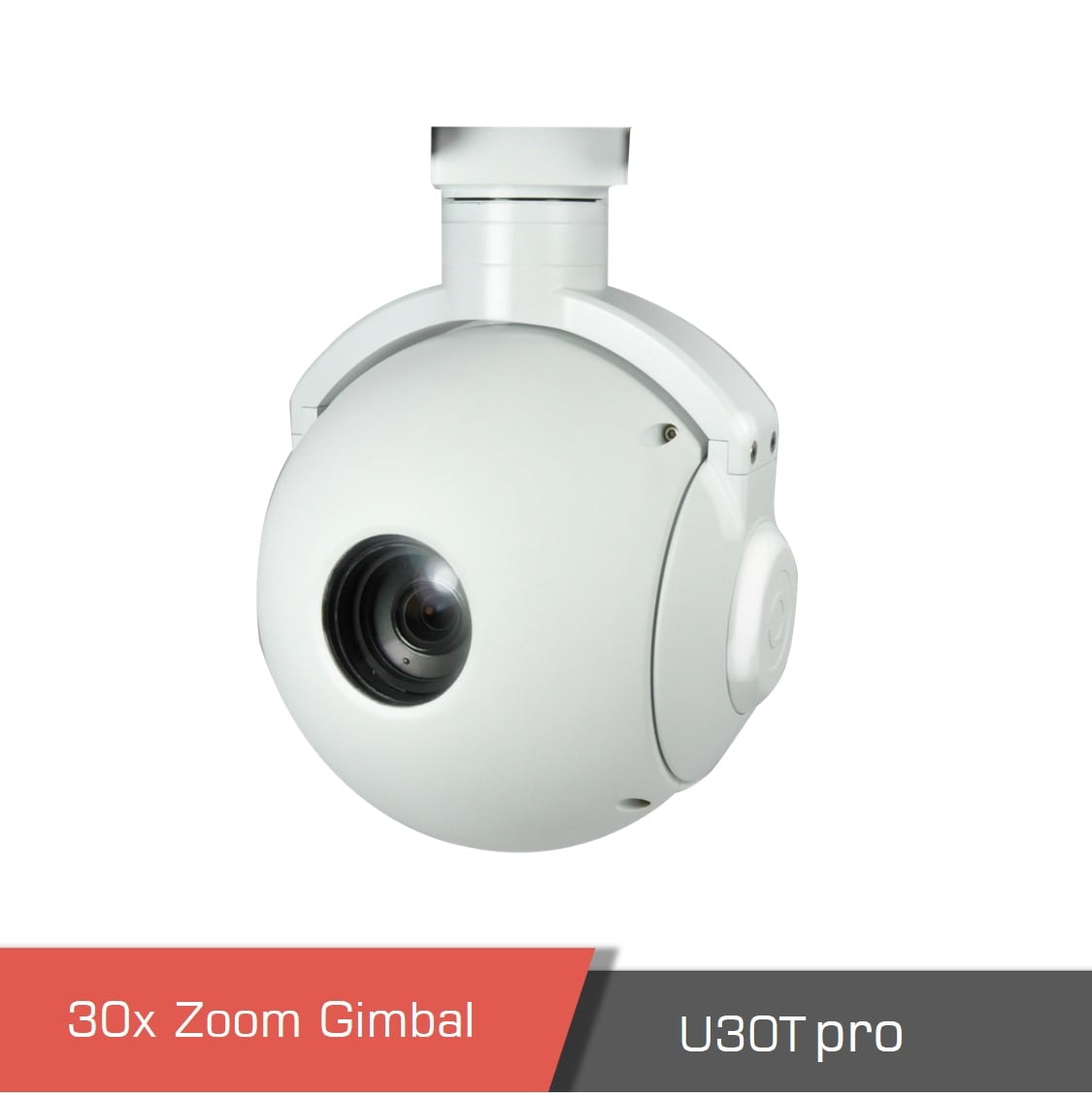

U30T pro Gimbal Camera Overview

U30T pro is a 2-axis design but 3-axis function gimbal camera with 30x optical zoom. It’s powered by SONY 1/2.8″ “Exmor R” CMOS module, 2.13 million effective pixels, fast auto-focus speed, 1080p HD image quality. U30T pro can achieve target tracking. It easy to control pitch, yaw, zoom, tracking function through PWM, S.BUS or TTL.

SONY 30x Zoom Starlight Camera

Powered by SONY 1/2.8 Exmor R CMOS module, with [email protected] starlight level min illumination, Q30T can still clearly display image features in utter poor light environment. 2.13 mega effective pixel and 1080p HD image quality, combined with 30x advanced optical zoom technology, the observation range is up to 500 meters, which can meet the application requirements of various domains.

U1891a55d4a1441d2a7554bb7f49642d3u - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 5

Single Sensor Visible Light Camera Object Tracking

Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, achieve stable track of the target. Support custom characters of user OSD, adaptive gate, cross cursor, trace information display. The tracking speed is up to 32pixel/frame, object size range is from 16*16 pixel to 160*160 pixel, with the minimal signal-to-noise ratio (SNR) 4db, the mean square root values of pulse noise in the object position <0.5 pixel, which greatly improve the accuracy and tracking effect.



U8ed58bded294418f9c3b843908be8b72n - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 6



Multi Output Methods Optional

U30T pro support both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan.

U60947ded86614cfcb3fb3036d2401202r - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 7

Multi Control Methods



Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

Ubb6f93eb224945e391720abae84e5d9aj - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 8 U47d10a35606b4b9eb34809bfa80778f5p - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 9



Compatible with Viewport

U30T pro is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.



Ue73c414355bb4c50b0faa4204f3f7ed06 - u30t pro, gimbal camera, uav camera, camera u30t pro - motionew - 10



Additional information

Weight 1.110 kg
Dimensions 15 × 14 × 21 cm

Specifications



Hardware Parameter
Working voltage 12V ~ 16V
Input voltage 4S
Output voltage 5V (connect with PWM)
Dynamic current 500mA @ 12V
Idle current 400mA @ 12V
Power consumption ≤ 6W
Working environment temp. -20℃ ~ +60℃
Output  SDI / IP / micro HDMI(FHD output 1080P 60fps)
Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method PWM  / TTL / S.BUS



Gimbal Spec
Pitch/Tilt +60° ~ -120°
Roll ±90°
Yaw/Pan ±360°*N
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center





Camera Spec
Imager Sensor SONY 1/2.8″ “Exmor R” CMOS
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Lens optical zoom 30x, F=4.3~129mm
Digital zoom 12x (360x with optical zoom)
Min object distance 10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle 1080p mode: 63.7°(wide end) ~ 2.3°(tele end)
720p mode: 63.7°(wide end) ~ 2.3°(tele end)
SD: 47.8°(wide end) ~ 1.7°(tele end)
Sync system Internal
S/N ratio more than 50dB
Min illumination Color [email protected]
Exposure control Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE
Gain Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps)
Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps)
White balance Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual
Shutter speed 1/1s to 1/10,000s, 22 steps
Backlight compensation Yes
Aperture control 16 steps
Defog Yes
OSD Yes









Camera Object Tracking
Update rate of deviation pixel 50Hz
Output delay of deviation pixel <10ms
Minimum object contrast 5%
SNR 4
Minimum object size 16*16 pixel
Maximum object size 160*160 pixel
Tracking speed ±32 pixel/frame
Object memory time 100 frames (4s)
The mean square root values of pulse noise in the object
position
< 0.5 pixel





Packing Information
Net Weight 1110g
Product measurement 146*140*207.9mm





Product contents

Product contents

Documents

Please contact us for more information.
