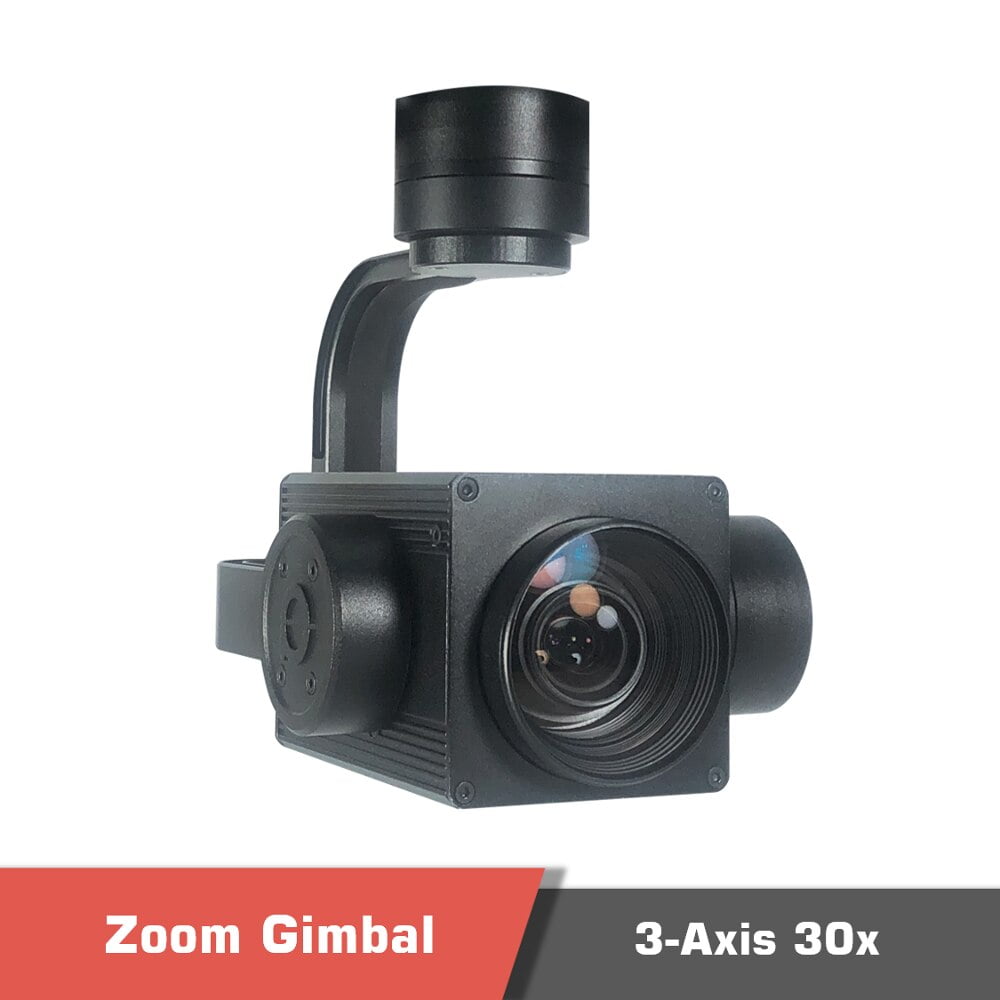

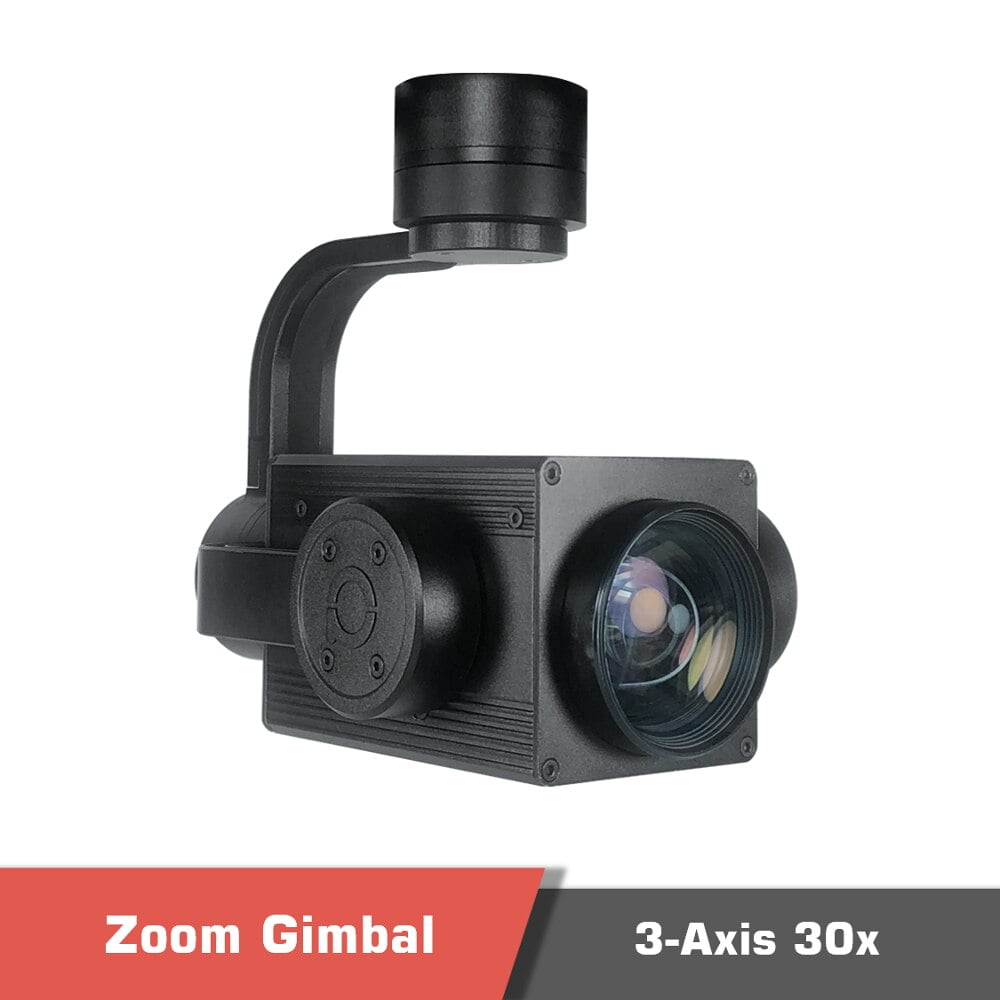

Camera Gimbal Z30F For Drone

Description

Professional 3-axis High-precise FOC Program

It has an optical zoom of 30x and its gimbal and camera feature on the gimbal Z30F gimbal camera. In terms of sensor size, the type SONY 1/3inch CMOS sensor supports approx. With 4 million effective pixels, it is a great camera. The drone has been pre-set with all the parameters perfectly functioning and the gimbal camera has been mounted on the UAV, then you can start flying the UAV. We use a FOC solution (use a digital encoder for every motor, and a PID algorithm for controlling the motors), which can greatly compensate for the vibration of the UAV, which we can control in three directions: YAW, ROLL, and PITCH. In spite of the ten optical zoom times, the image remains very stable. Z30F has been widely used in various fields like public security, electric power, fire, zoom aerial photography, and other industries in the application of drones.



30X Zoom Camera (Self Stabilized Camera)



Powered by 1/3 SENSOR CMOS module, with [email protected] min illumination and 105dB wide dynamic range, in the presence of backlit or strong light, the view of the over bright and over dark regions can still be captured at the same time.The camera has 4 Mega effective pixesl, supports 30x optical autofocus, and possess HD 1080p video,fast auto-focus speed ,small size,designed for UAV aerial photography.





Applications of this payload camera

Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
