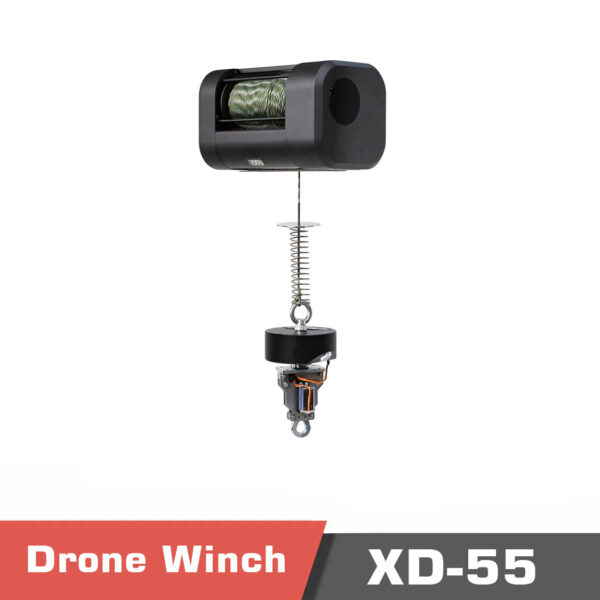

XD-55 50kg payload winch

XD-55 Winch System for Drones – 55kg Payload | 30m Rope | Smart Auto Release Optional

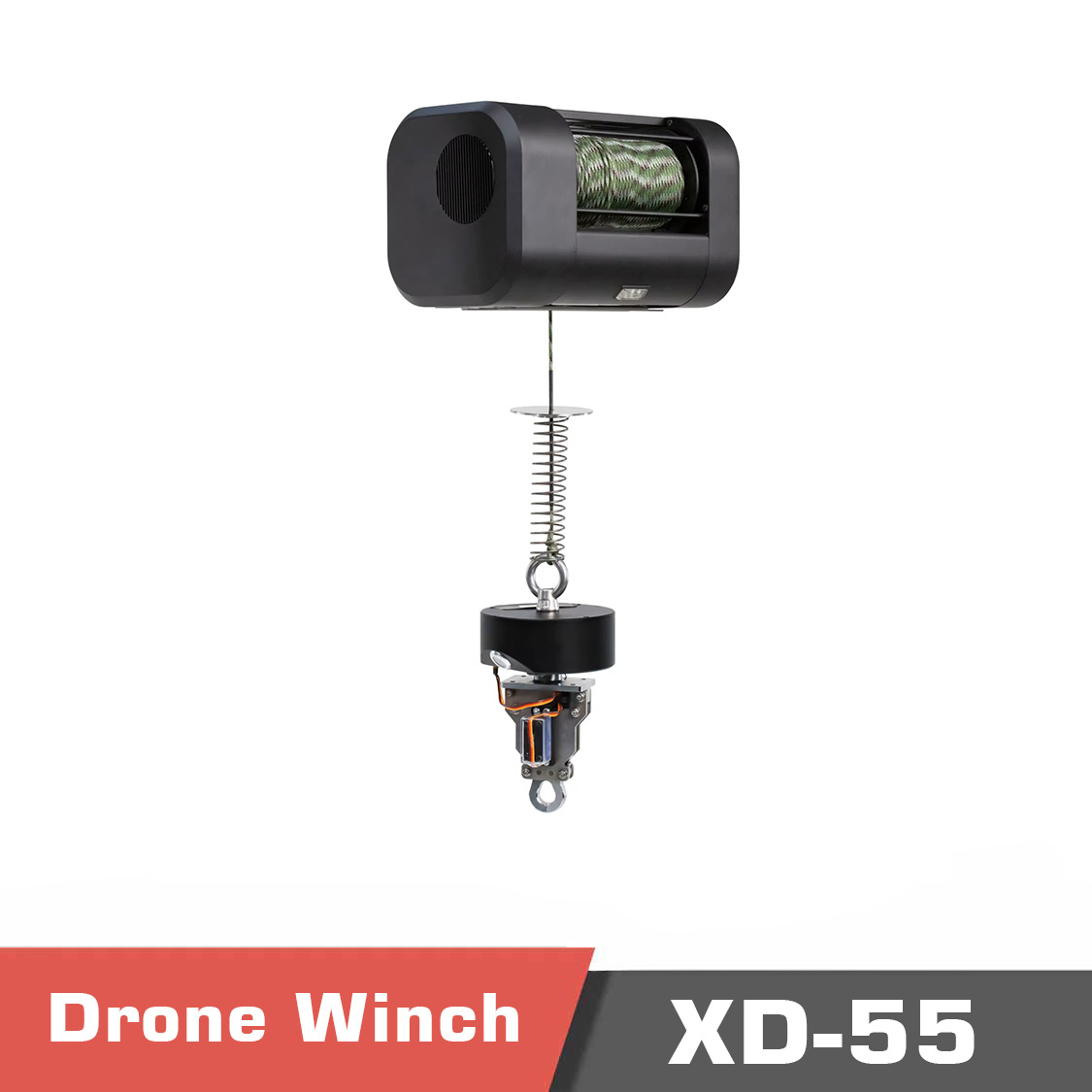

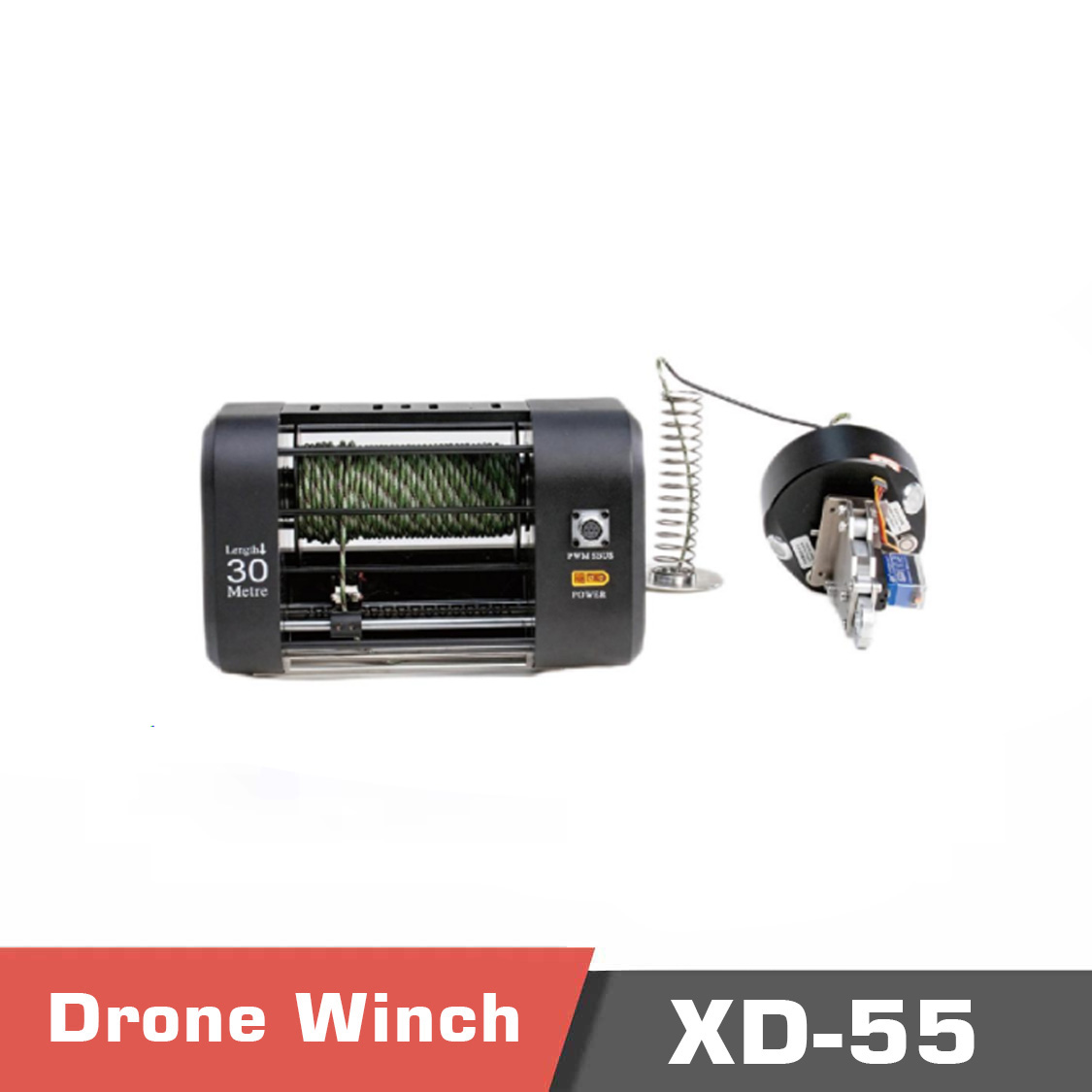

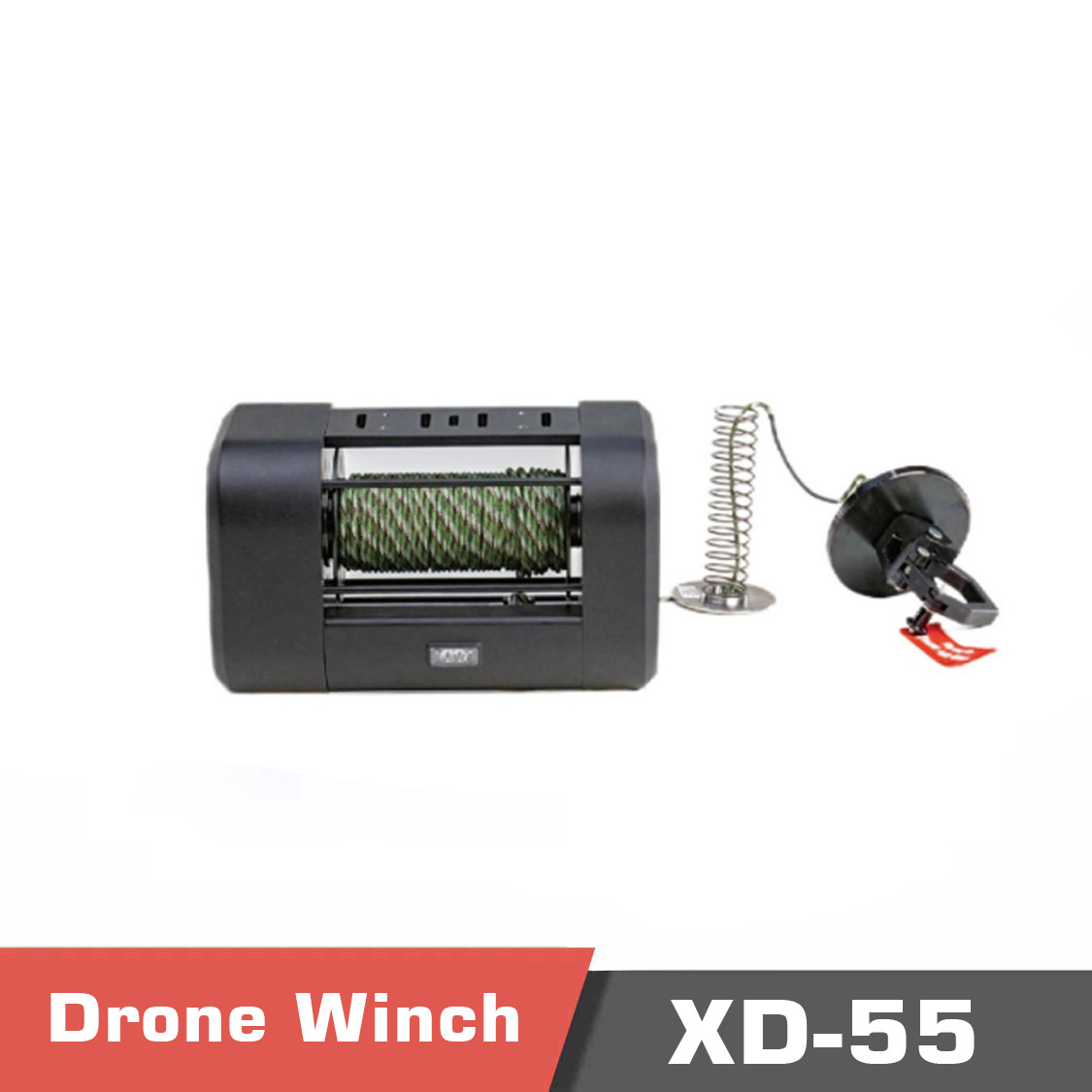

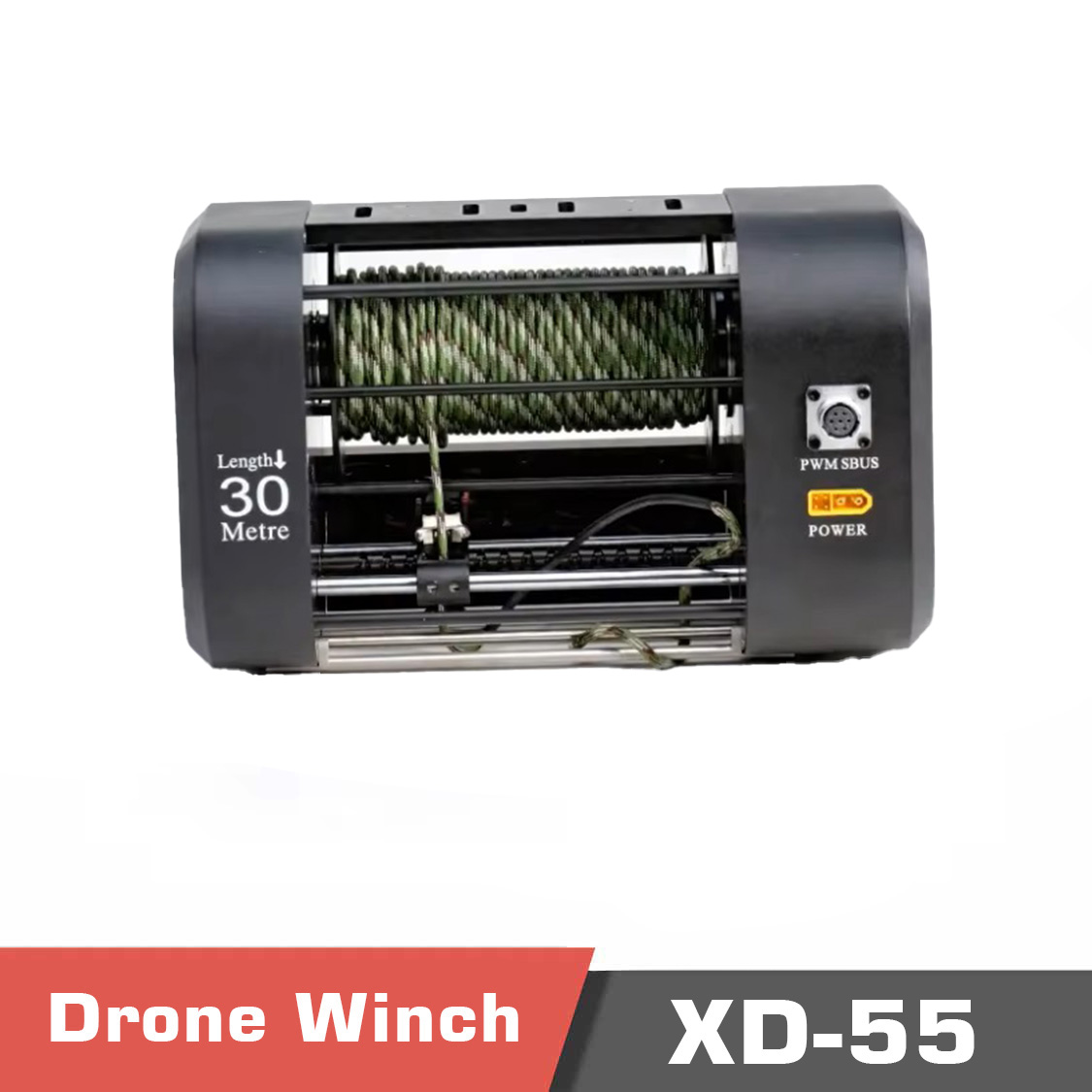

The XD-55 Winch is a mid-capacity, intelligent drone winch system designed for logistics drones, search and rescue operations, and aerial cargo delivery. With a maximum load capacity of 55kg, a 30-meter rope length, and support for an optional Smart Auto Release Device, it delivers enhanced control, safety, and integration for precision aerial drops and retrievals.

Designed with lightweight construction and advanced control options, the XD-55 fits seamlessly into multirotor and VTOL UAVs used in challenging environments and mission-critical operations.

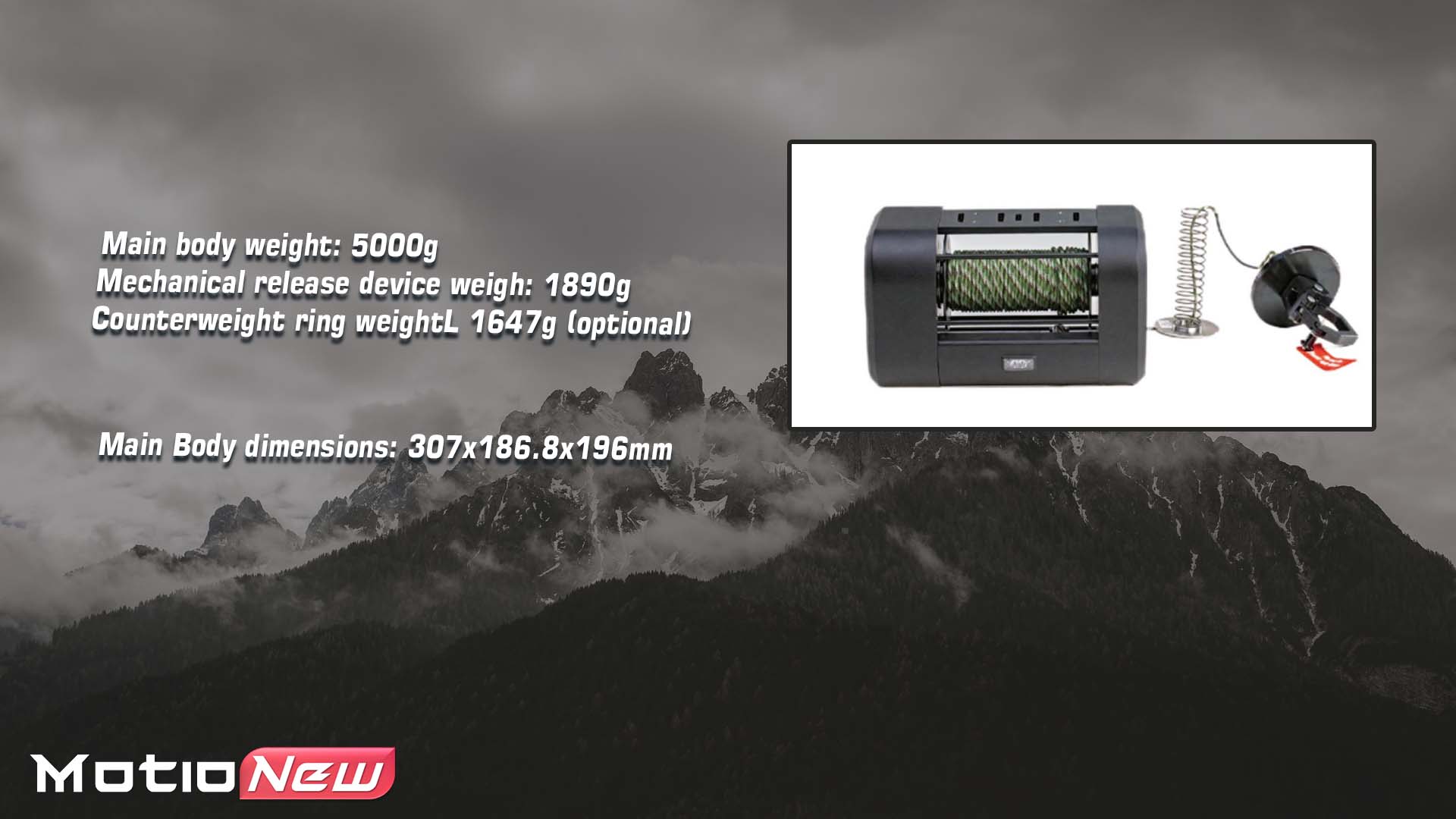

📦 Basic Specifications

• Main Body Dimensions: 307 × 186.8 × 196 mm

• Main Body Weight: 5.0 kg

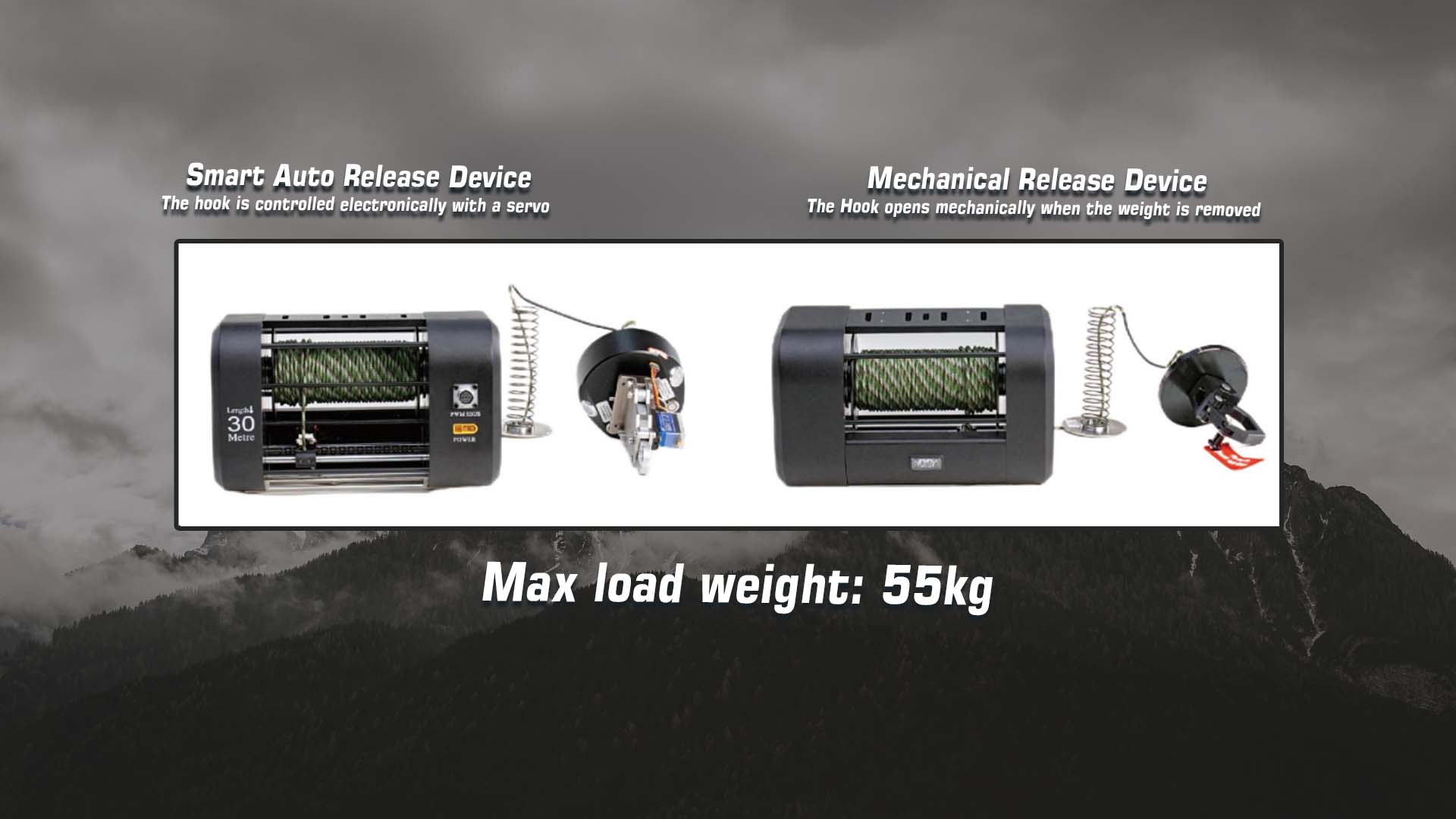

• Mechanical Release Device: 1890 g

• Smart Auto Release Device (Optional): 1647 g

• Rope Length: 30 m

🚀 Performance Parameters

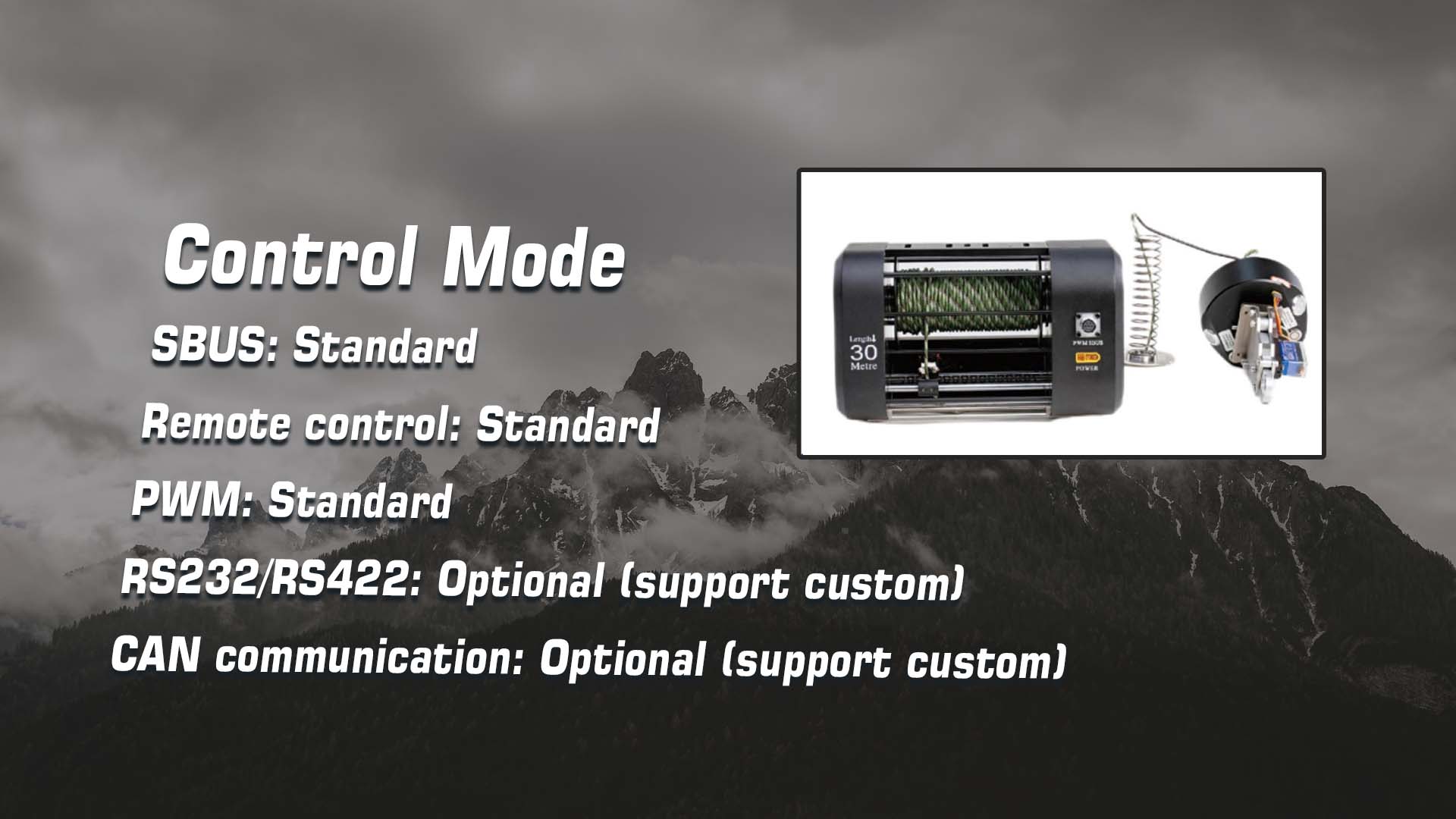

🎮 Control Interface

• SBUS / PWM / Remote Control: Standard

• RS232 / RS422: Optional (Custom)

• CAN Communication: Optional (Custom)

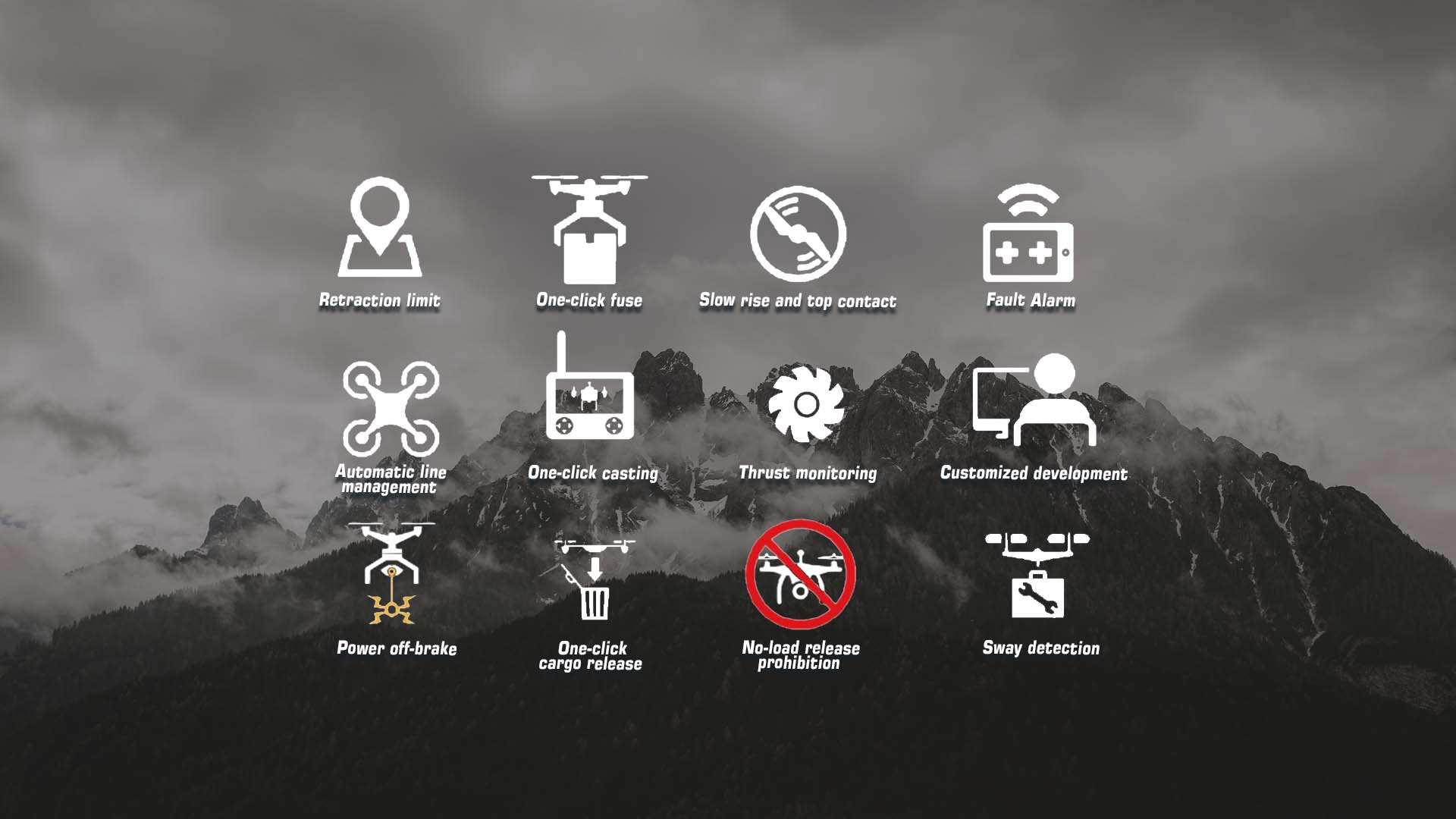

🧠 Smart Features (with Auto Release Option)

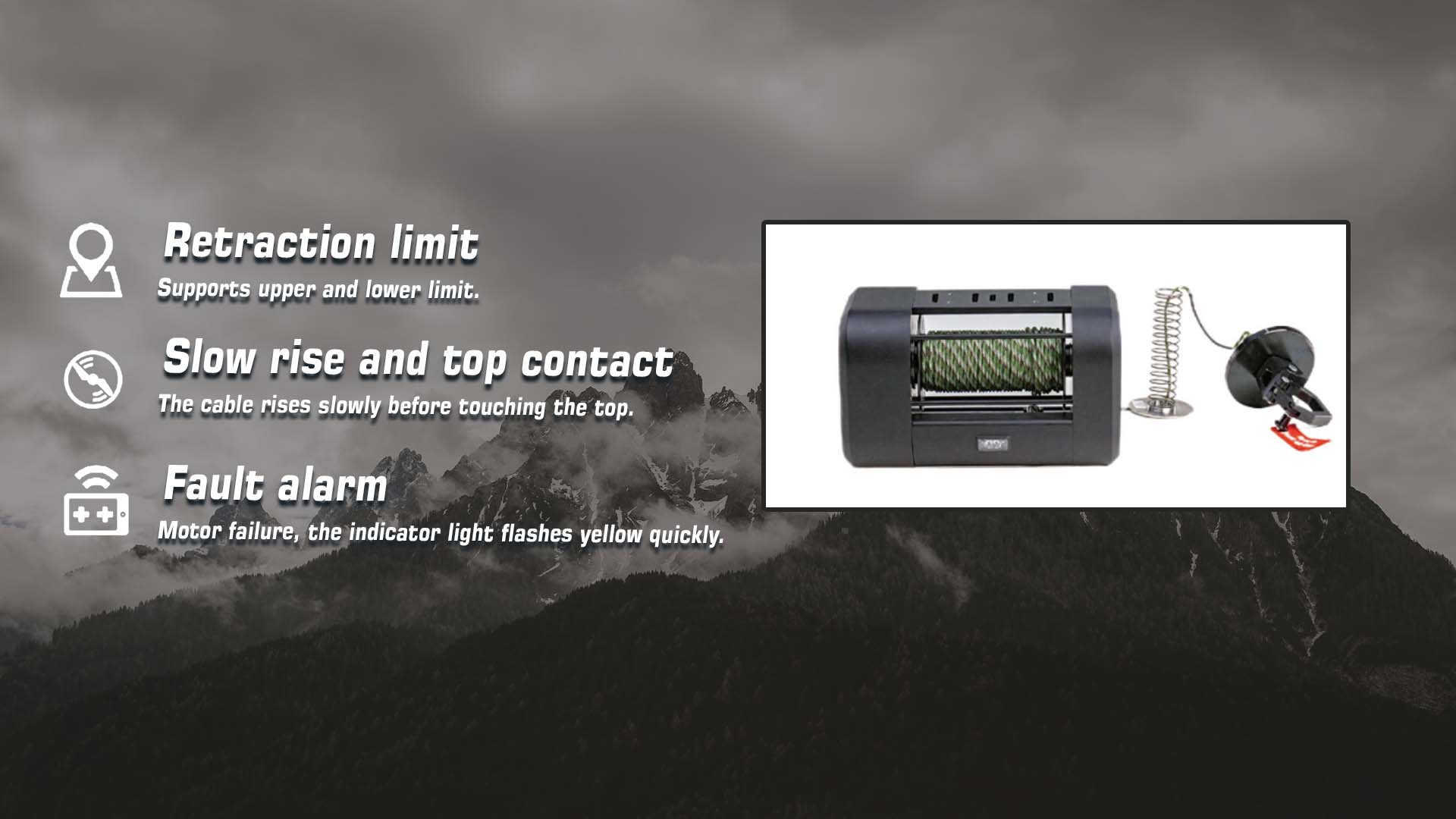

• 🔄 Retract Limit Control: Detects upper/lower rope boundaries

• 📊 Thrust Monitoring: Real-time load tension feedback

• 🔧 One-Click Fuse: Emergency rope release

• 📦 One-Click Cargo Drop / Casting: Precision load deployment

• 🔄 Automatic Line Management: Auto-alignment of cable on reel

• 🚨 Fault Alarm: Visual alert on motor failure

• ⏫ Slow Rise Function: Prevents high-speed cable collisions

• 🛑 Power-Off Brake: Cable lock during power loss

• 🌐 Sway Detection: Monitors swing angle and cable speed

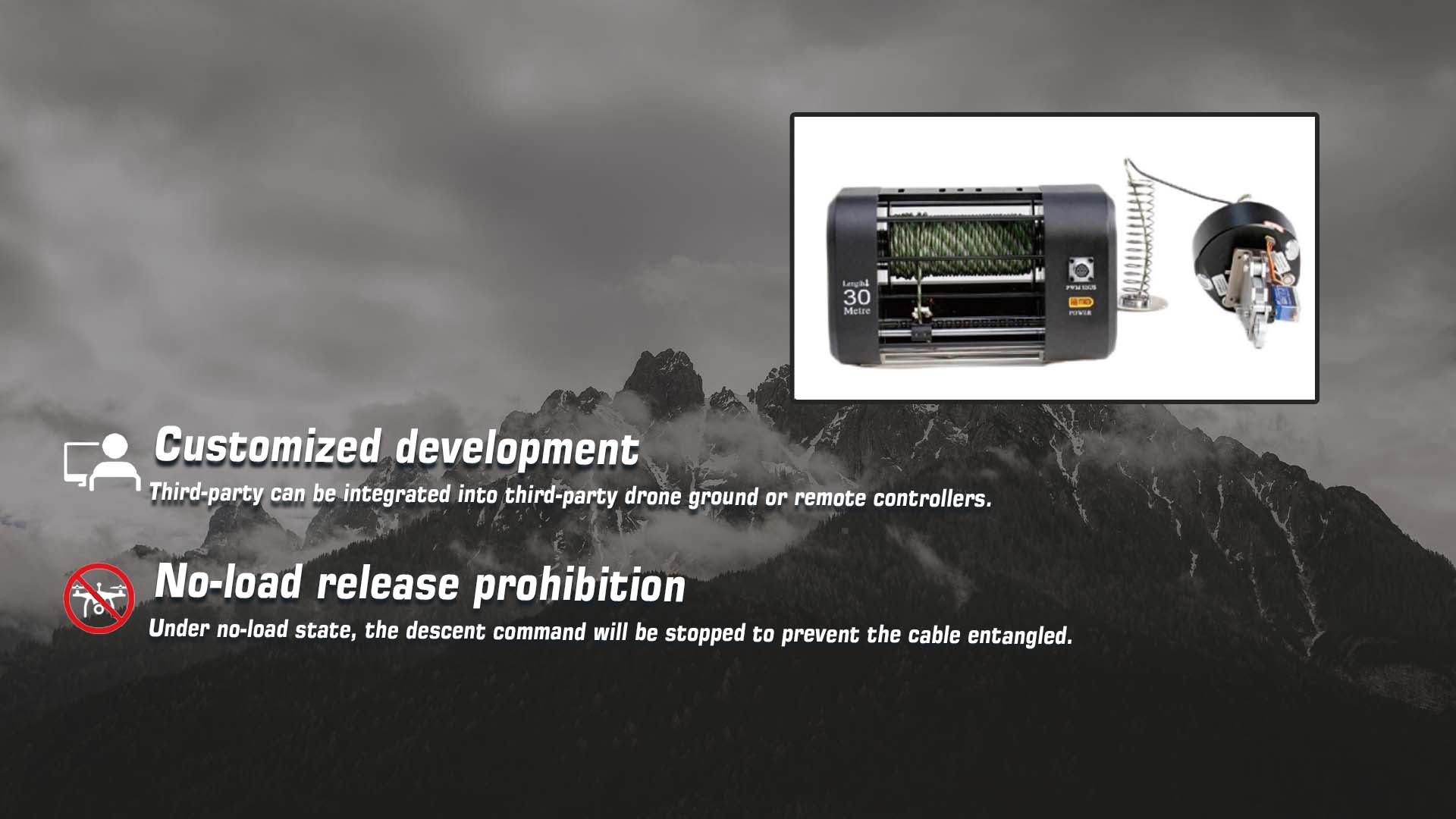

• 🔗 Custom Integration: API-ready for third-party flight systems

• 🚫 No-Load Release Lock: Prevents empty line descent

🚁 Best For

• Aerial supply drops in disaster zones

• Medium-payload UAV cargo missions

• Precision sensor or payload lowering

• Emergency response or environmental monitoring

• Medium-class logistics drones and VTOL aircraft

The XD-55 delivers smooth, secure, and automated lifting/dropping functionality for professional UAV missions. Its modular control options, advanced safety, and Smart Release capability make it a powerful tool for real-world aerial logistics and deployment.

For a comprehensive reading of related products, please visit the Motionew website.

Simple FAQ (XD-55 Winch – Engineers & B2B Buyers)

1. What is the XD-55 UAV Payload Winch used for?

The XD-55 is a heavy-duty drone winch system built for high-payload aerial delivery operations such as disaster relief, logistics, construction site drops, and agriculture transport, where precise and safe payload deployment is critical.

2. What are the technical capabilities of the XD-55?

It supports payloads up to 50 kg, features a powerful servo-driven cable mechanism, and allows for smooth and controlled descent. The winch is engineered for stable performance, energy efficiency, and supports PWM or serial control for integration with most flight controllers.

3. Which UAV platforms are suitable for the XD-55?

The XD-55 is compatible with industrial-grade multirotor and hybrid UAV platforms that can lift heavy payloads, provide adequate power supply, and support automated drop functionality.

Business & Operational FAQs

4. Is the XD-55 available for OEM or volume purchasing?

Yes. Motionew offers OEM partnerships and bulk pricing for commercial drone manufacturers, logistic service providers, and government project integrators.

5. What documentation and technical support are included?

The package includes a user manual, detailed wiring diagrams, and access to remote engineering support from Motionew to ensure proper installation and operation.

6. What B2B payment and invoicing options are available?

Motionew supports international wire transfers, provides formal invoices, and offers flexible B2B payment terms for verified commercial clients.
