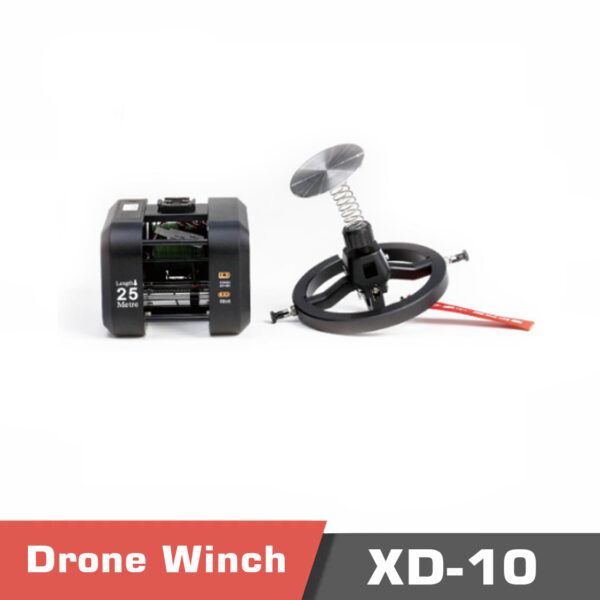

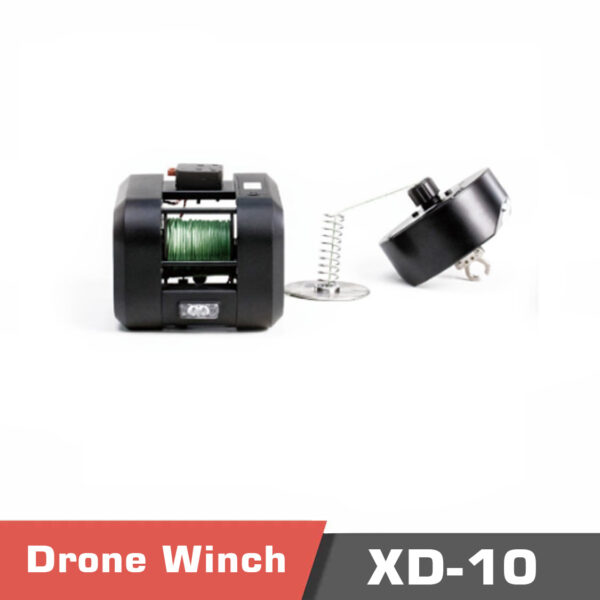

XD-10 10kg payload winch

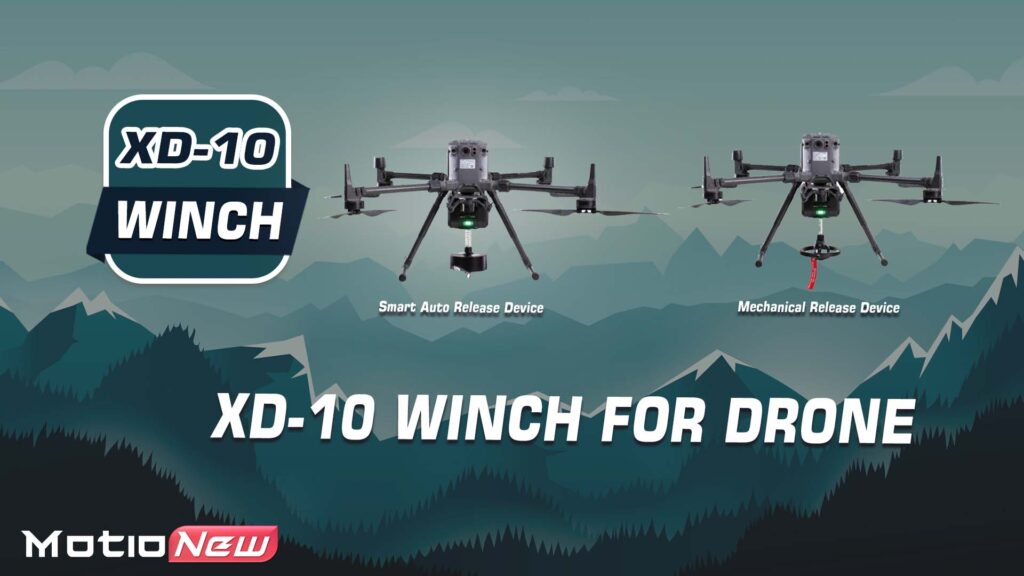

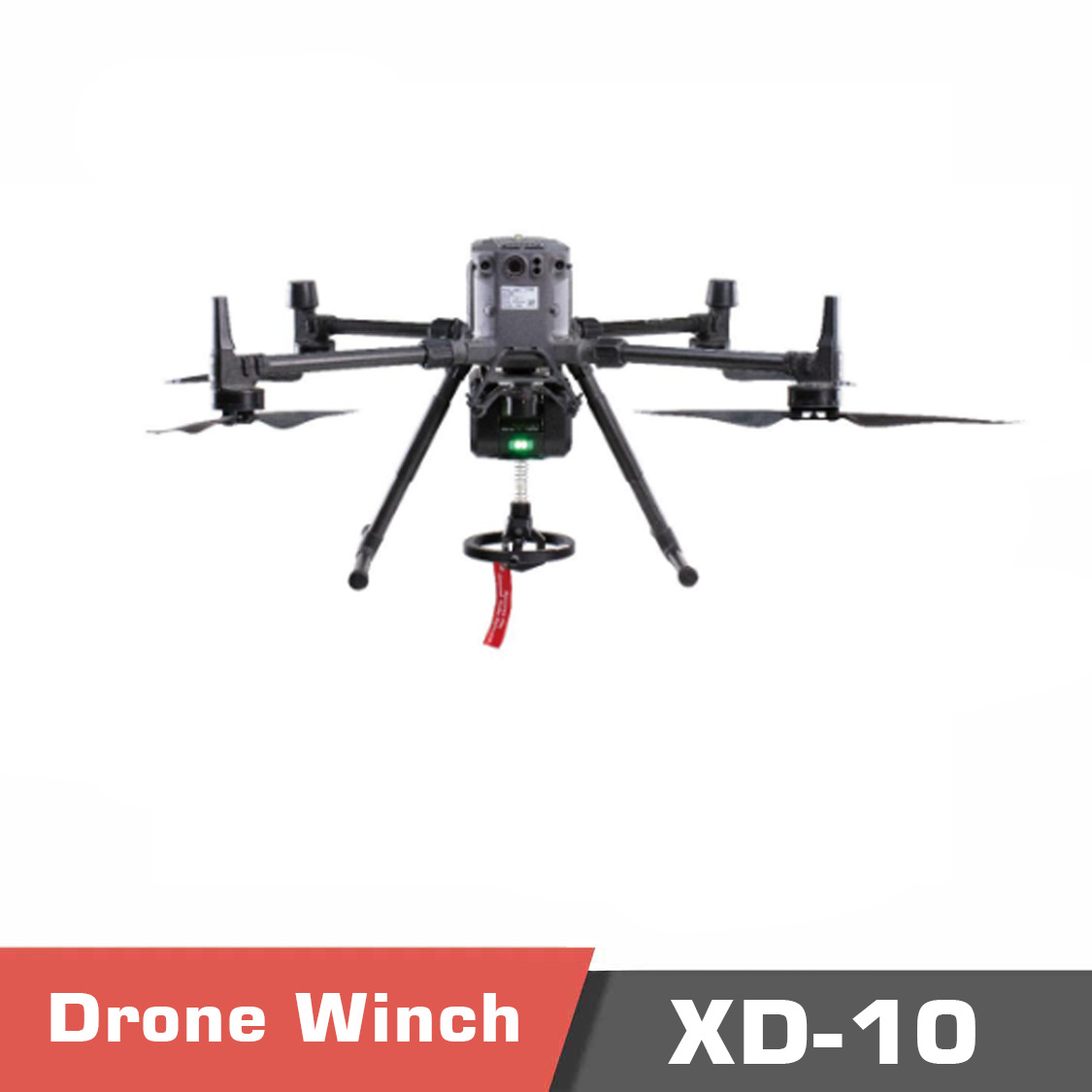

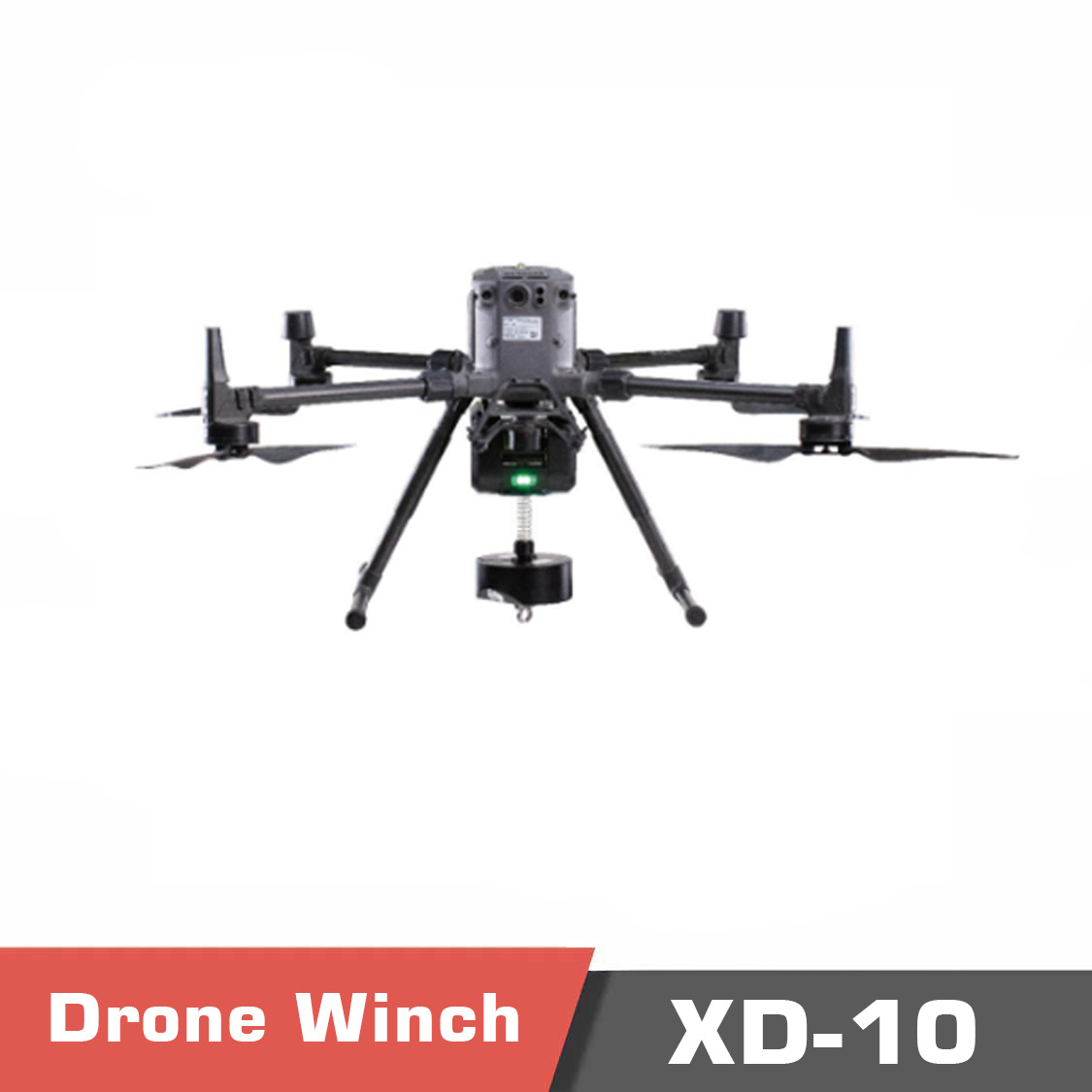

XD-10 Winch System for Drones โ€“ 10kg Payload | 25m Cable | Ultra-Lightweight Design

The XD-10 Winch is a compact and ultra-light drone winch system engineered for precision delivery, aerial deployment, and vertical retrieval tasks. With a 10kg max payload, 25-meter rope length, and support for Smart Auto Release, it is optimized for light-duty drones requiring safe, efficient, and automated lifting operations.

Its small form factor and full feature set make it ideal for mapping payload drops, sample retrievals, sensor deployment, and light logistics missions.


๐Ÿ“ฆ Basic Specifications

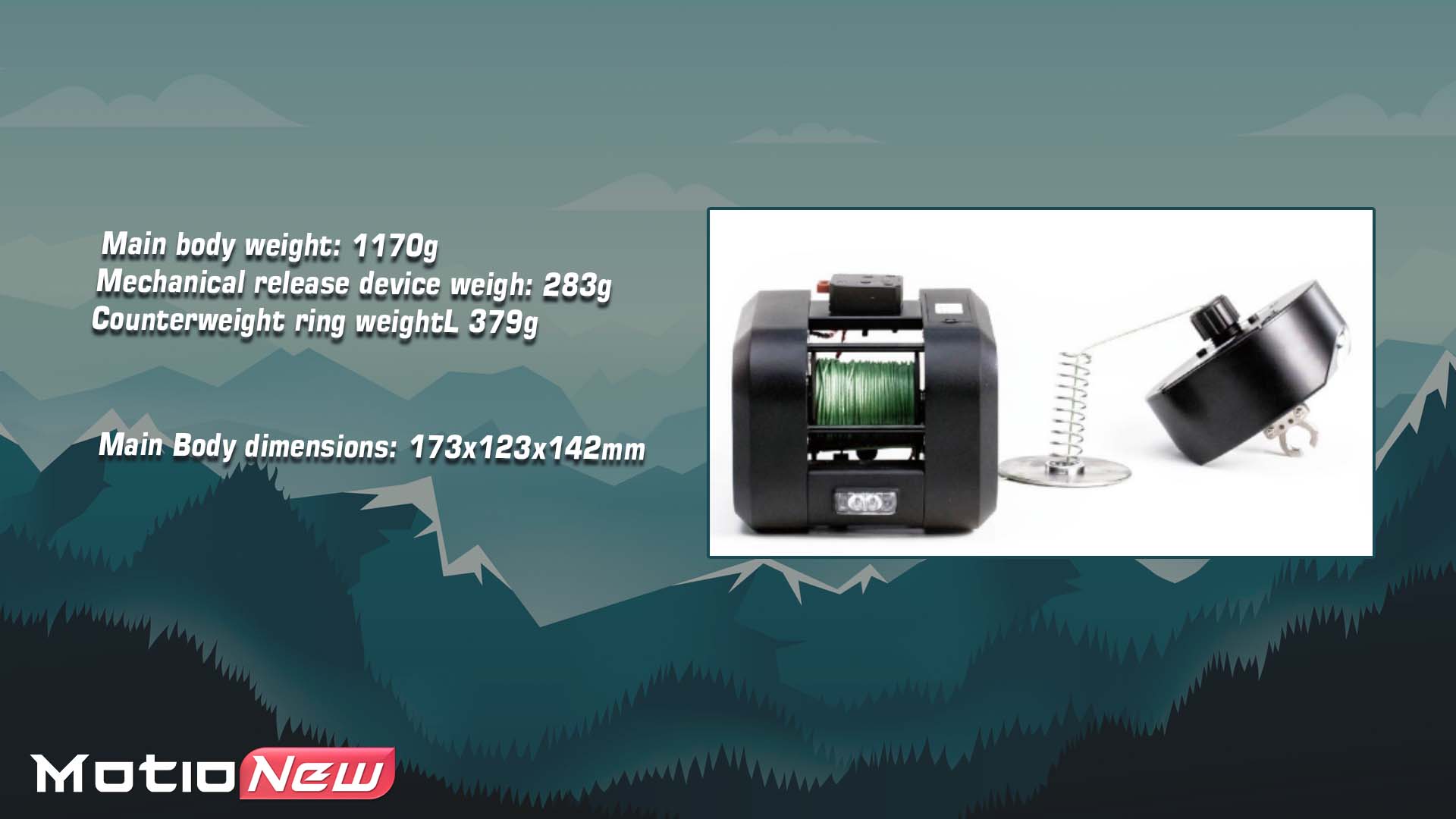

  • Main Body Dimensions: 173 ร— 123 ร— 142 mm

  • Main Body Weight: 1170 g

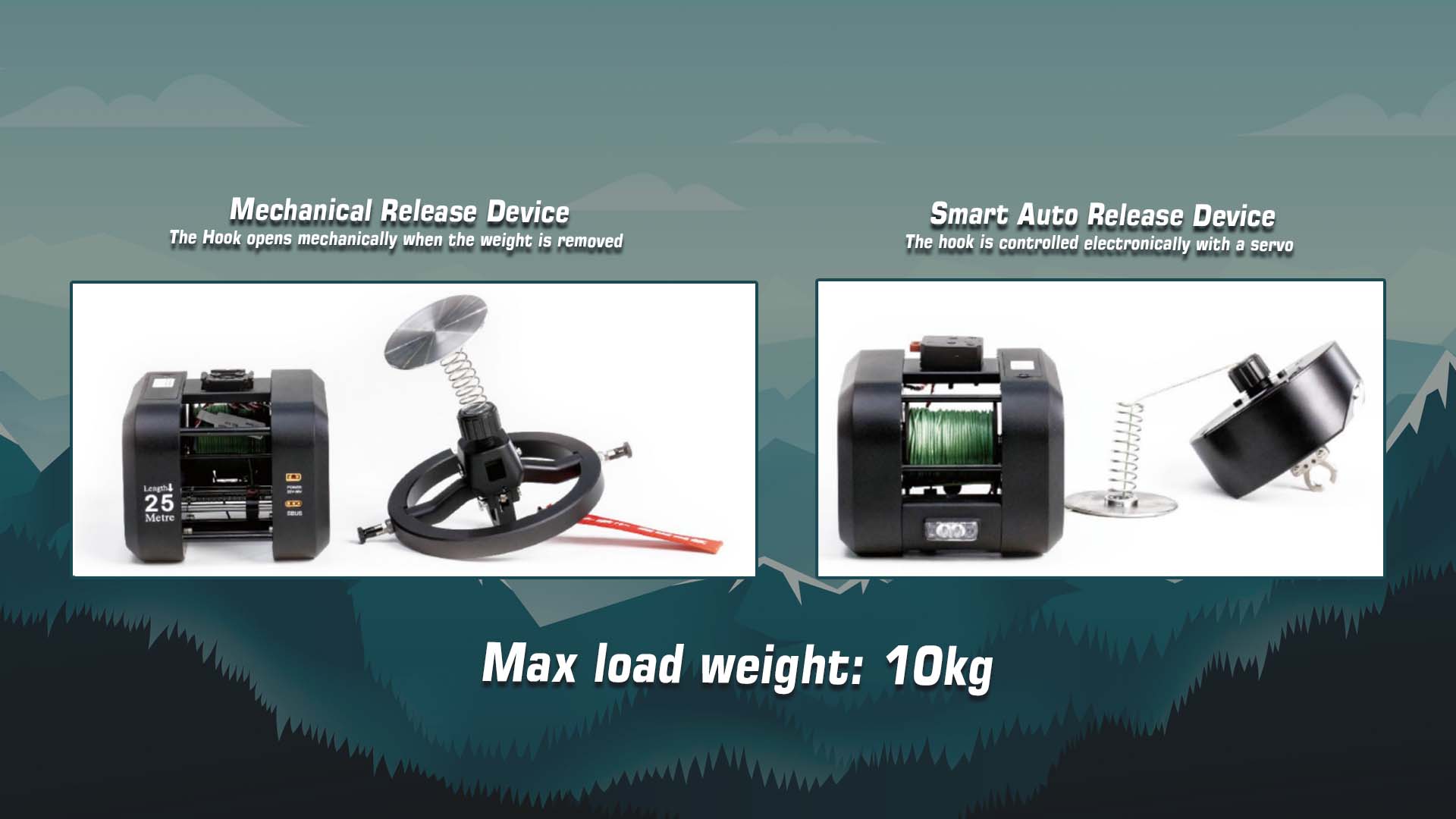

  • Mechanical Release Weight: 283 g

  • Counterweight Ring Weight: 379 g

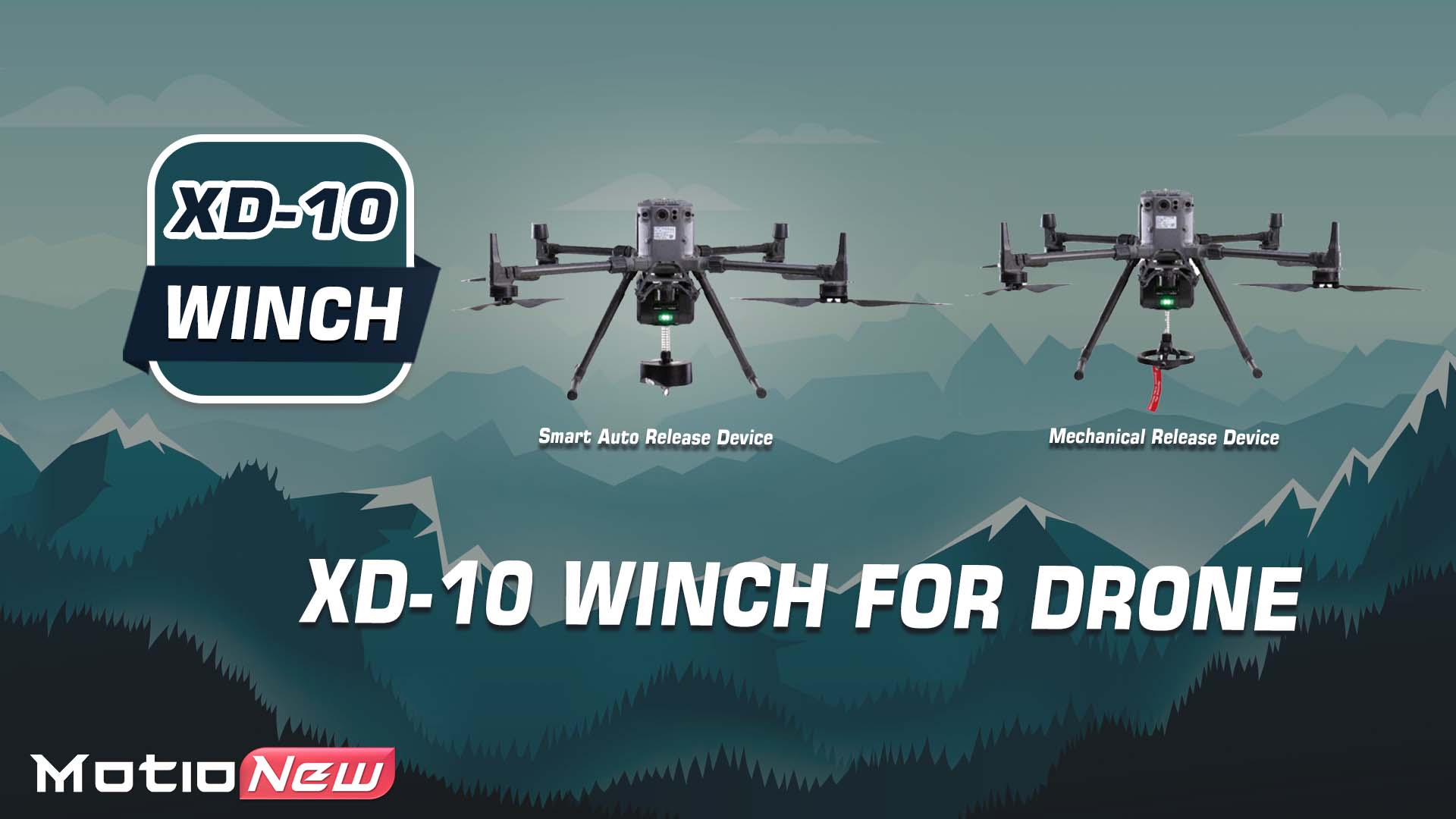

  • Smart Auto Release Device (Optional): 756 g

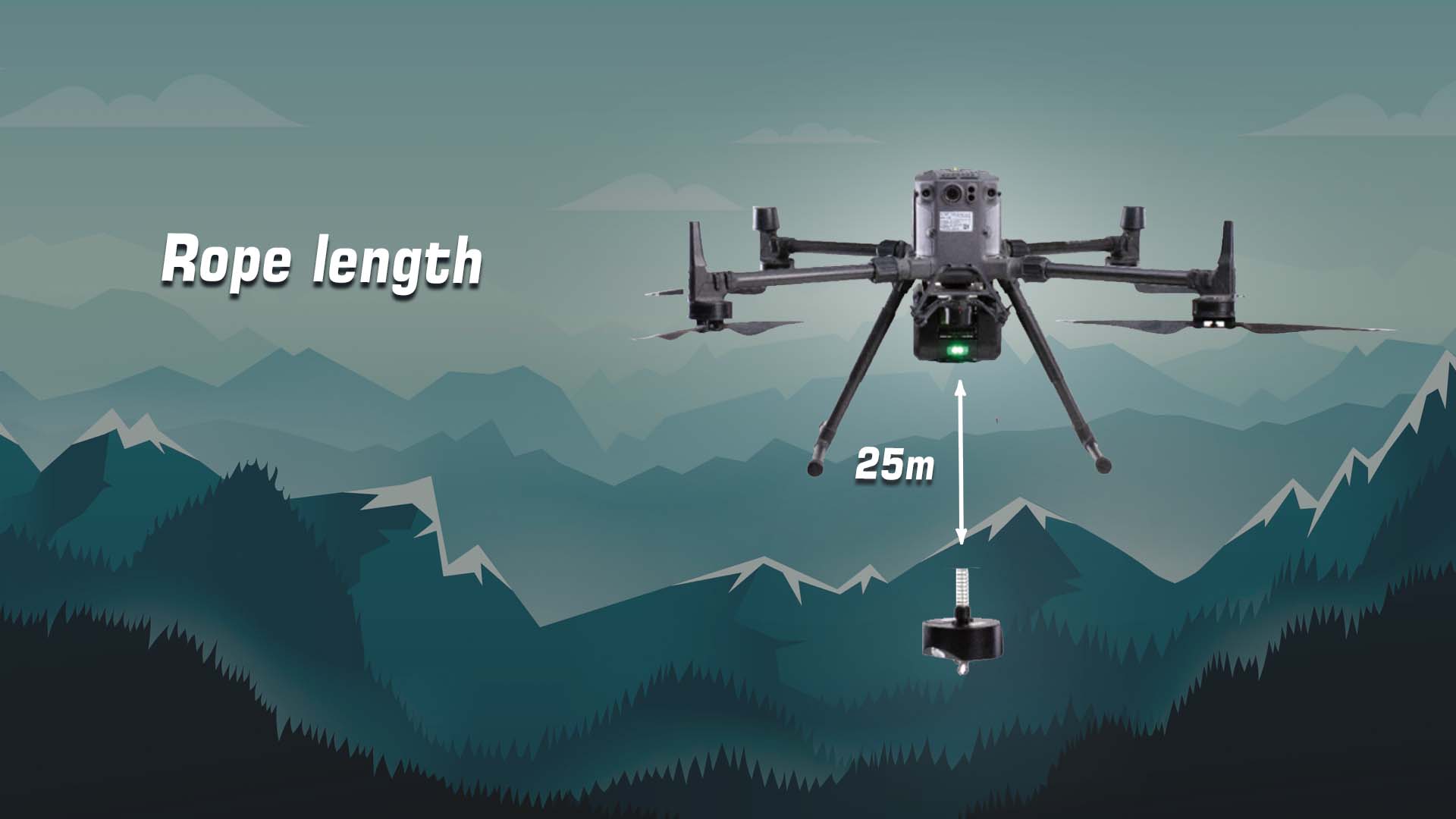

  • Rope Length: 25 m


๐Ÿš€ Performance Parameters

Parameter Value
Max Load Capacity 10 kg
Retraction Speed 0.1 โ€“ 0.6 m/s
Motor Speed 38 โ€“ 228 RPM

โšก Supply Voltage

  • Power Supply Mode: Battery powered (non-DCDC)

  • Operating Voltage Range: 22 โ€“ 56V

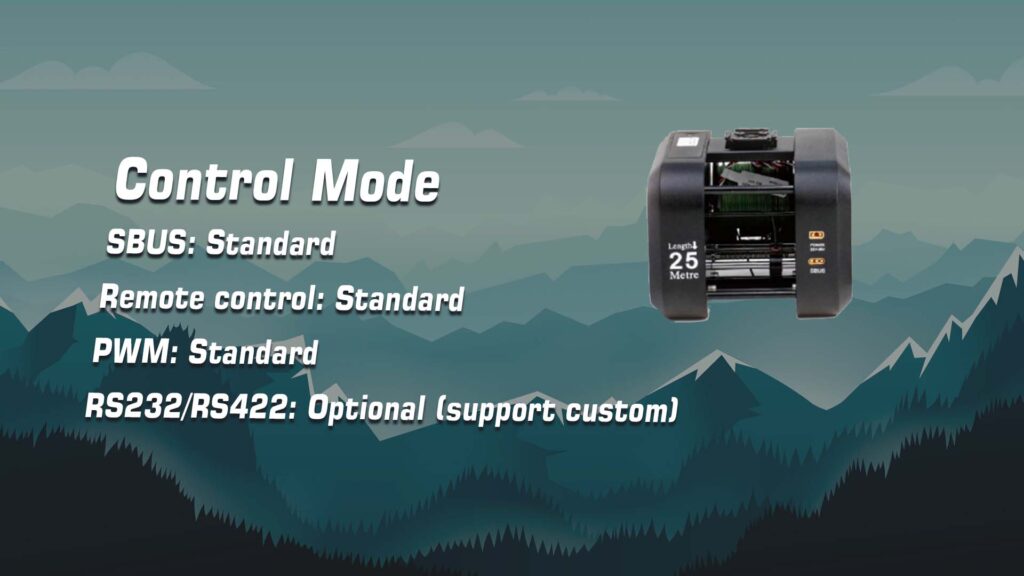

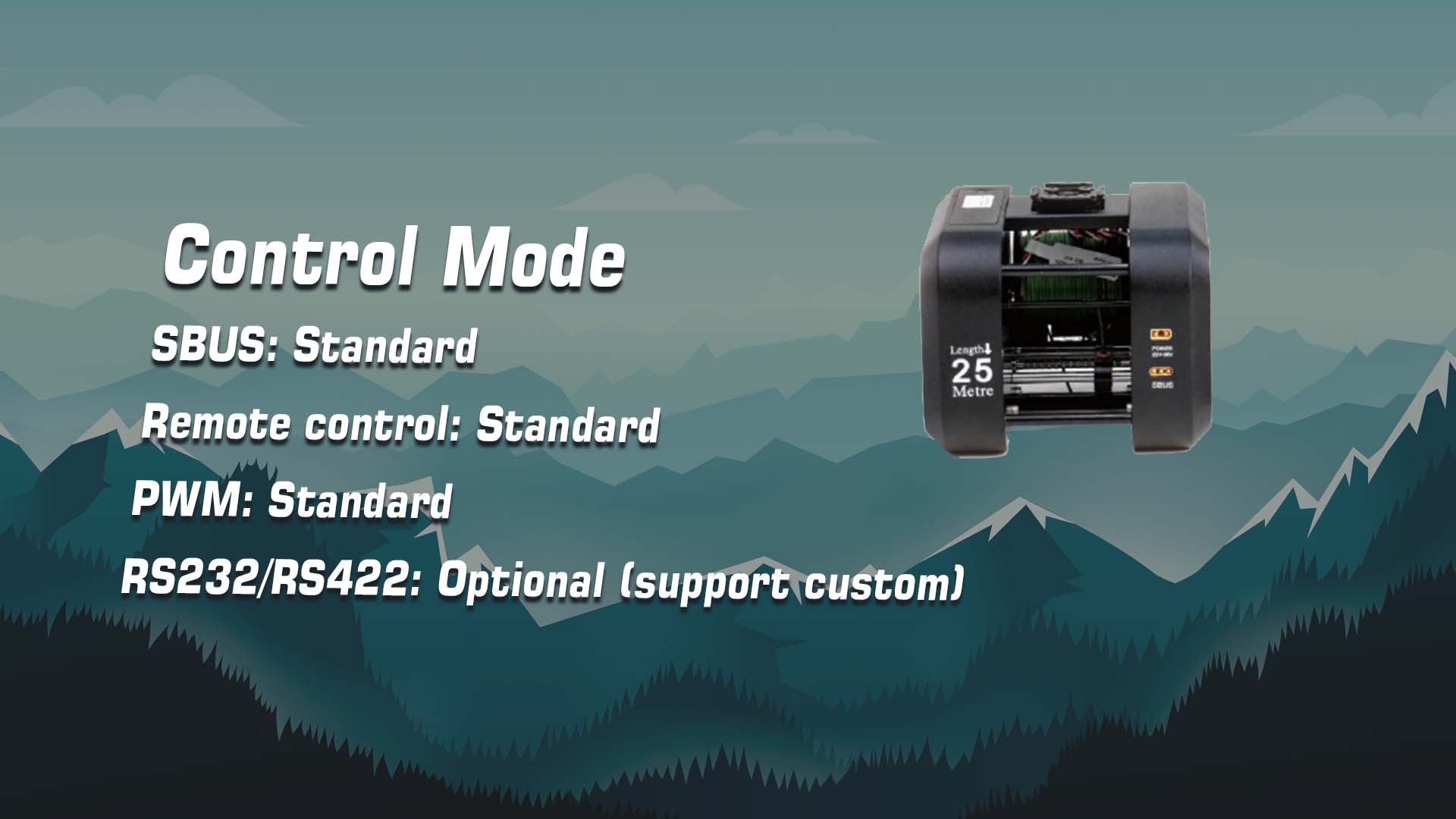

๐ŸŽฎ Control Modes

  • SBUS / PWM / Remote Control: Standard

  • RS232 / RS422: Optional (customizable)


๐Ÿง  Smart Functions

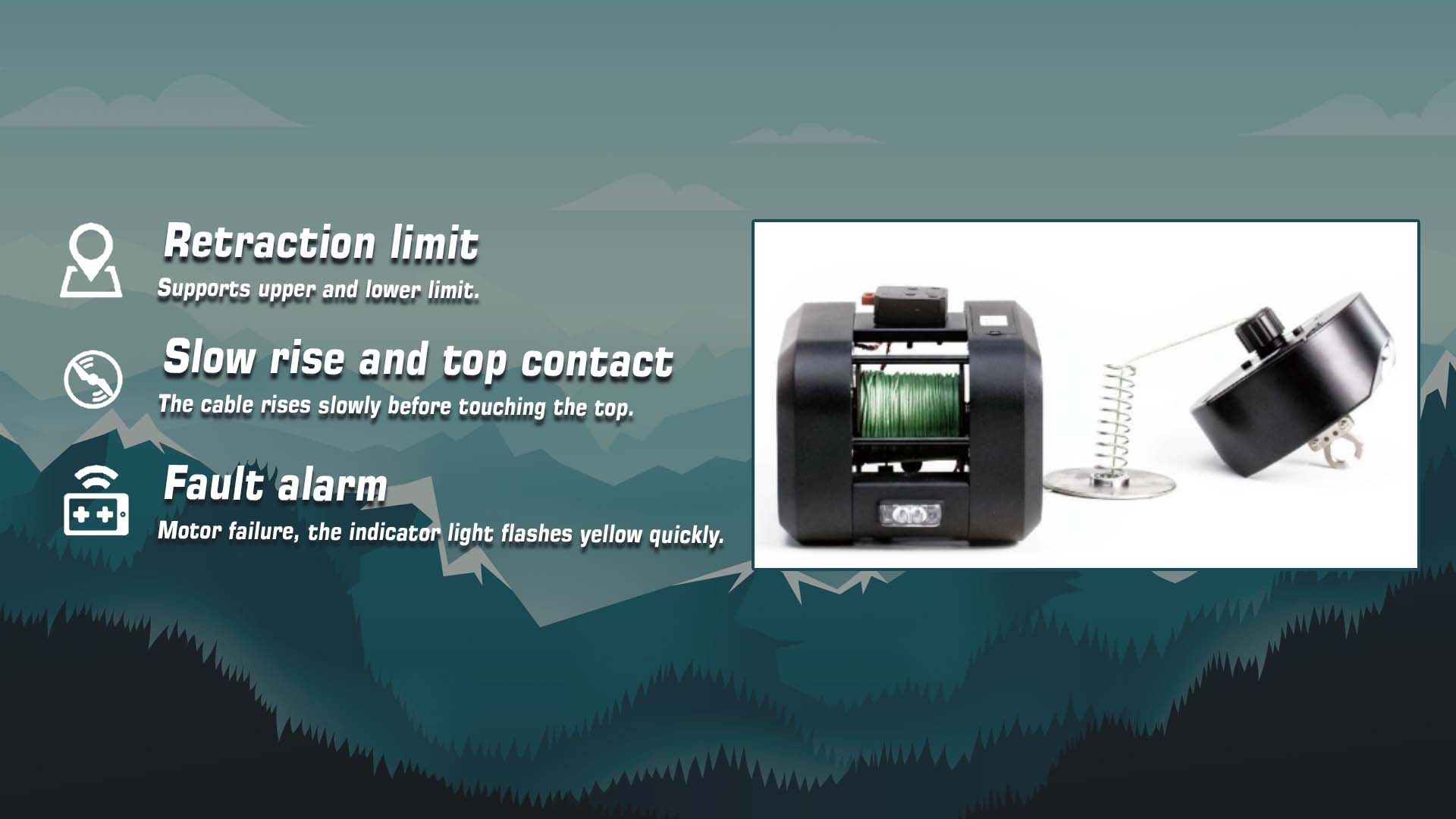

  • ๐ŸŽฏ Retraction Limit Detection (top & bottom)

  • ๐Ÿ›‘ One-Click Emergency Rope Cutoff

  • โซ Slow Rise + Top Protection

  • ๐Ÿšจ Fault Alarm for Motor Failures

  • ๐Ÿ”„ Auto Line Management

  • ๐Ÿ“ฆ One-Click Auto Release & Casting

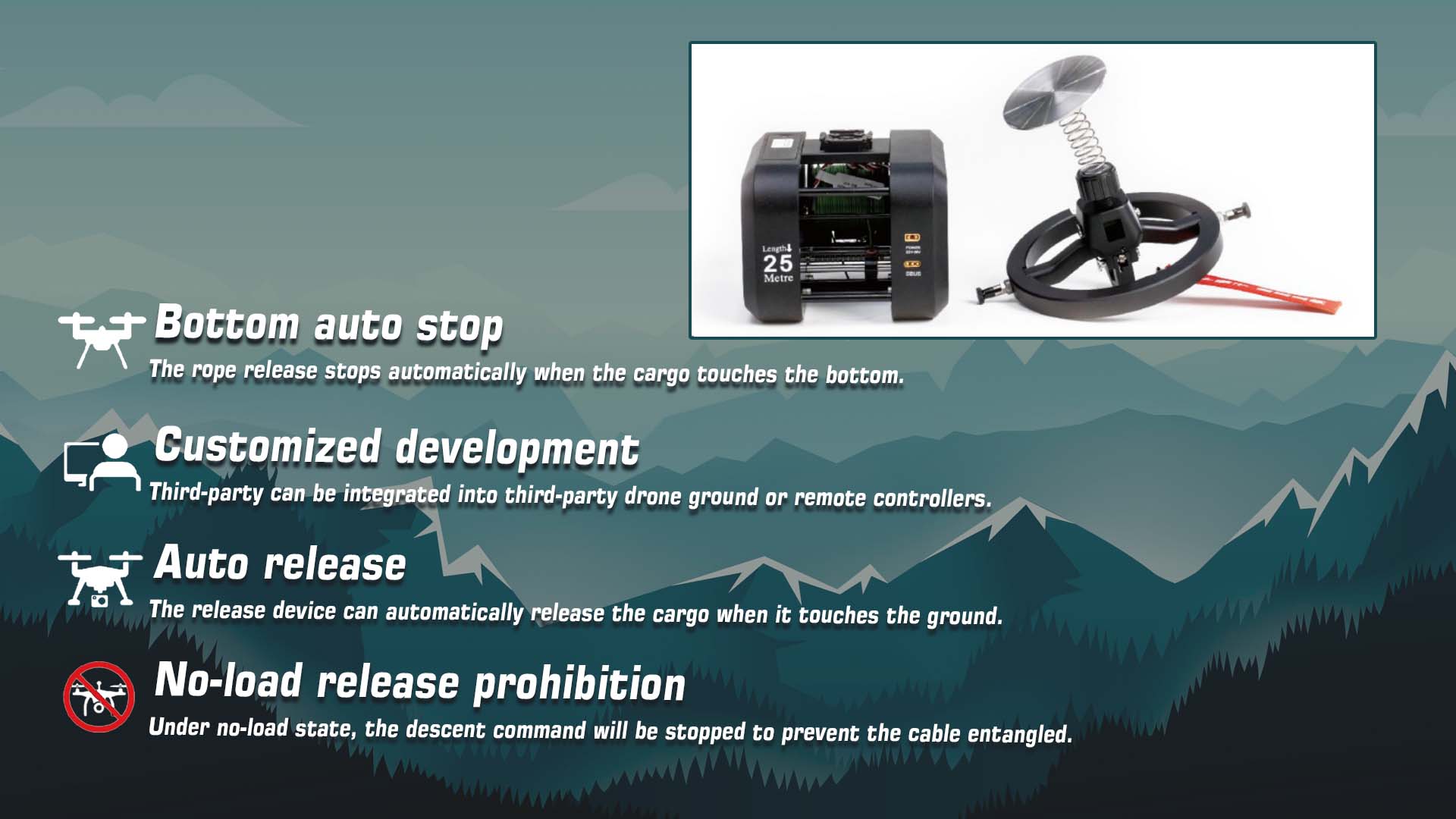

  • โ›” Auto Stop at Ground Contact

  • ๐Ÿ” Auto Ground Release (Smart Mode)

  • ๐Ÿ”Œ Power-Off Brake (safety brake during power failure)

  • ๐Ÿšซ No-Load Descent Block (cable entanglement prevention)

  • ๐Ÿ›  Custom Integration with Third-Party Controllers


๐Ÿš Best For

  • Sample retrieval drones

  • Environmental monitoring drops

  • Survey tool deployment

  • UAV light cargo delivery

  • Vertical inspection gear deployment


The XD-10 delivers versatile, compact, and intelligent winching for drones operating in low-payload scenarios. Its advanced safety features, automated release options, and lightweight profile make it a perfect match for modern UAVs with limited lifting capacity.



Xd 10. 1 - motionew - 15 Xd 10. 2 - motionew - 16 Xd 10. 4 - motionew - 17 Xd 10. 5 - motionew - 18 Xd 10. 6 - motionew - 19 Xd 10. 7 - motionew - 20 Xd 10. 8 - motionew - 21 Xd 10. 3 - motionew - 22

For a comprehensive reading of related products, please visit theย Motionewย website.

Specifications

Basic Parameters
Main Body Dimensions 173*123*142mm
Main Body Weight 1170g
Counterweight release device weight 283g
Smart Auto Release Device 765g (Optional)
Rope length 25m
Performance Parameters
Max. load weight 10kg
Retraction Speed 0.1~0.6m/s
Motor Speed 38-228RPM
Supply Voltage
Power Supply Mode Battery Powered
Power Supply Voltage 22-56v
Control Mode
SBUS Standard
Remote Control Standard
OWM Standard
RS232/RS422 Optional (Support Custom)
