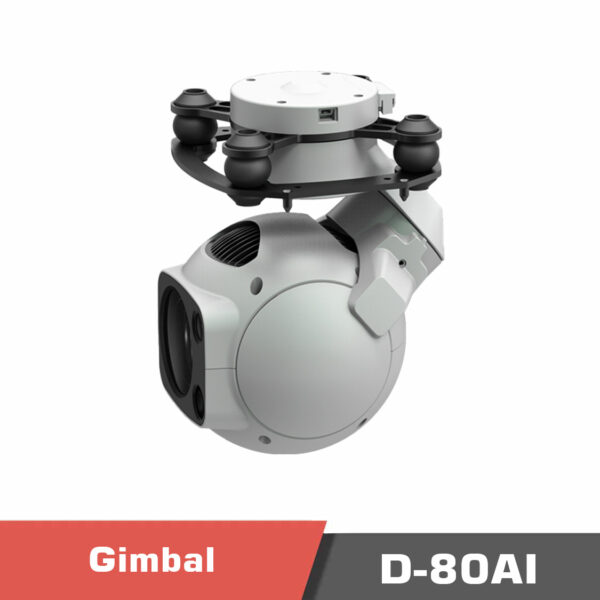

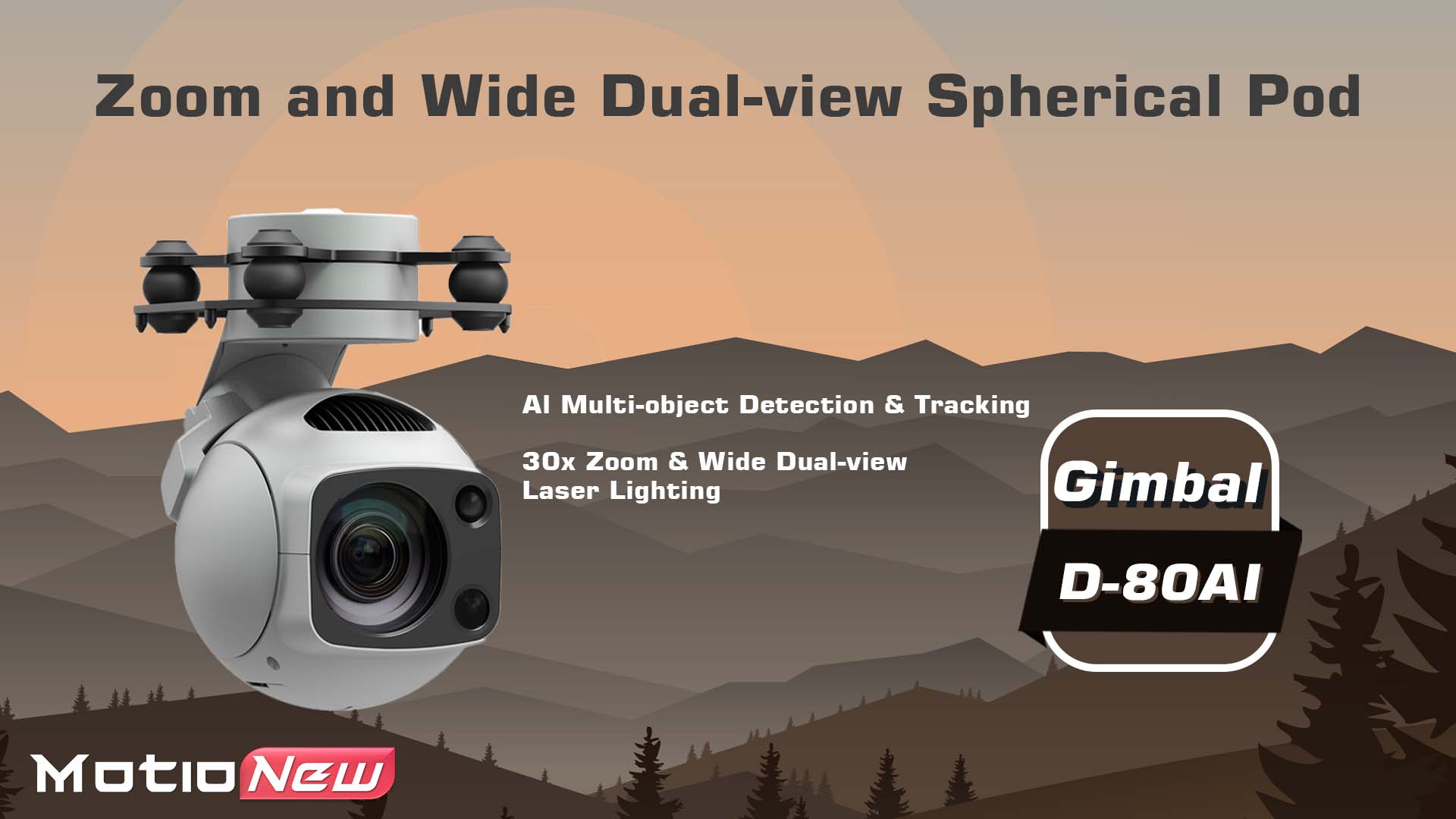

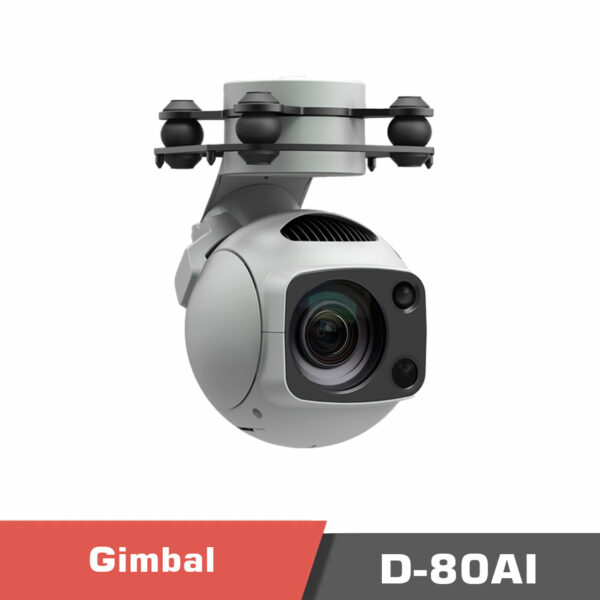

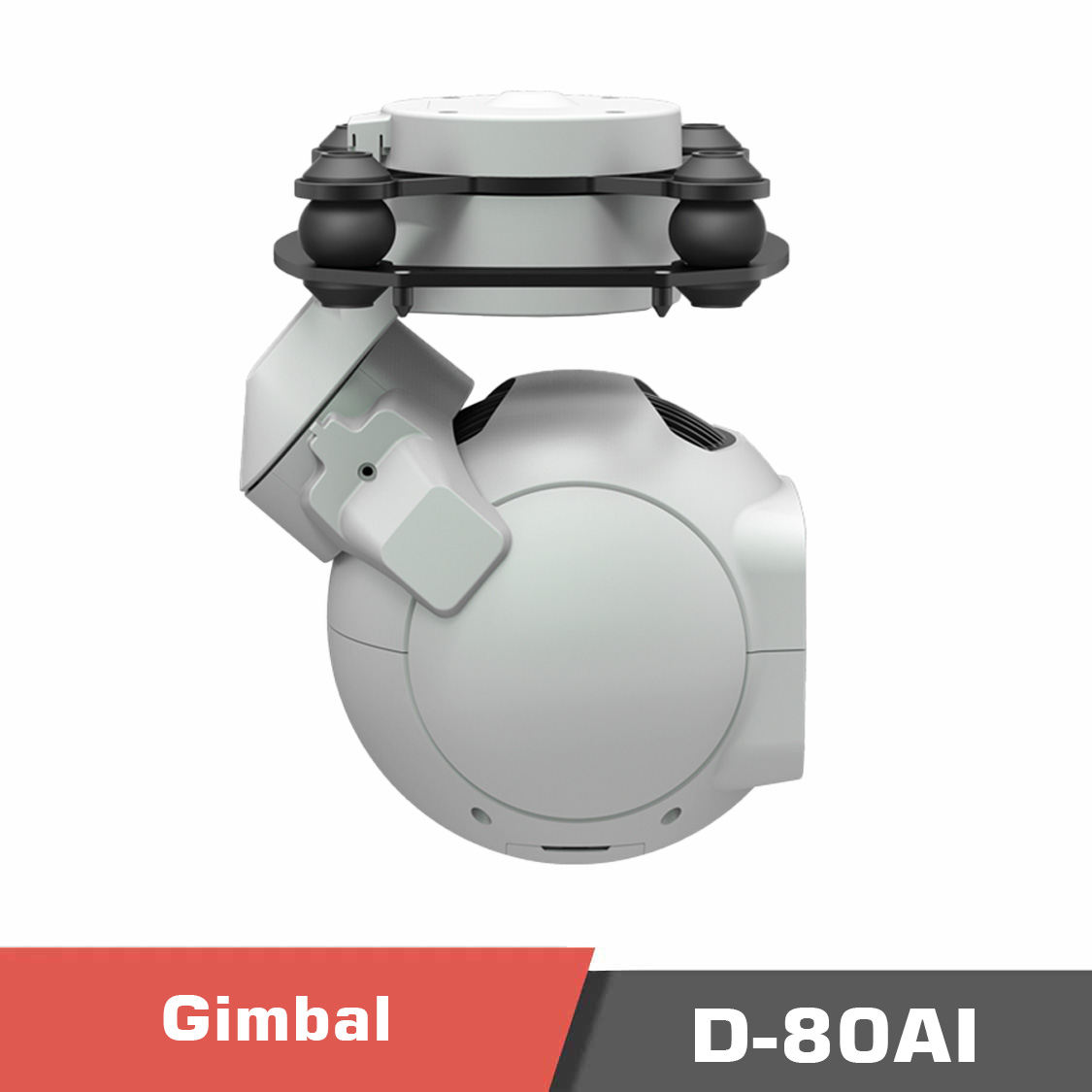

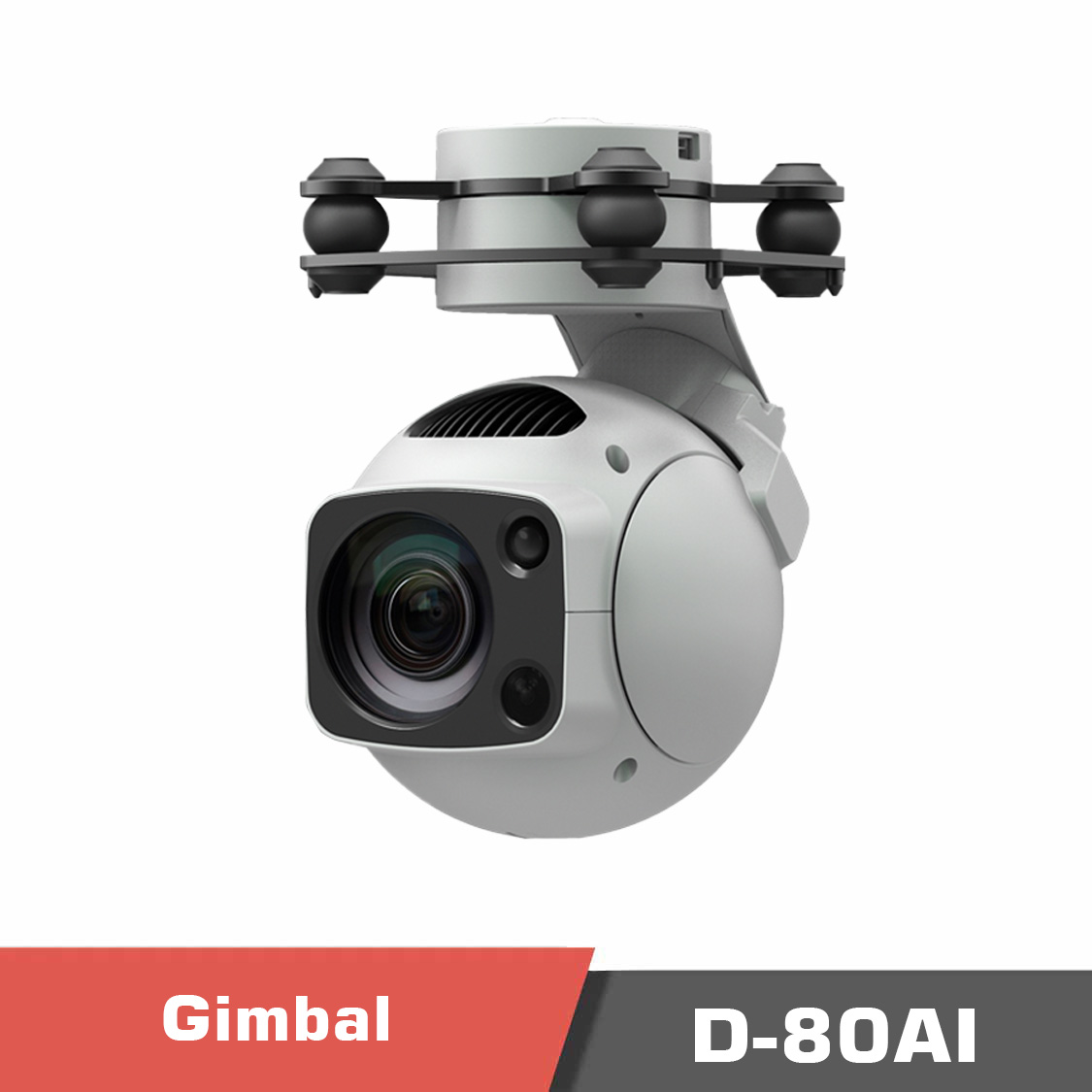

D-80AI Dual-view Spherical Pod Overview
The D-80AI Dual-view Spherical Pod features a high-precision 3-axis nonorthogonal gimbal, integrating both a wide-angle camera and a 30x zoom camera. Users can effortlessly switch from a broad situational view to a highly magnified zoomed-in view for detailed observation. Equipped with a laser lighting module, the D-80AI ensures clear imaging even in total darkness.

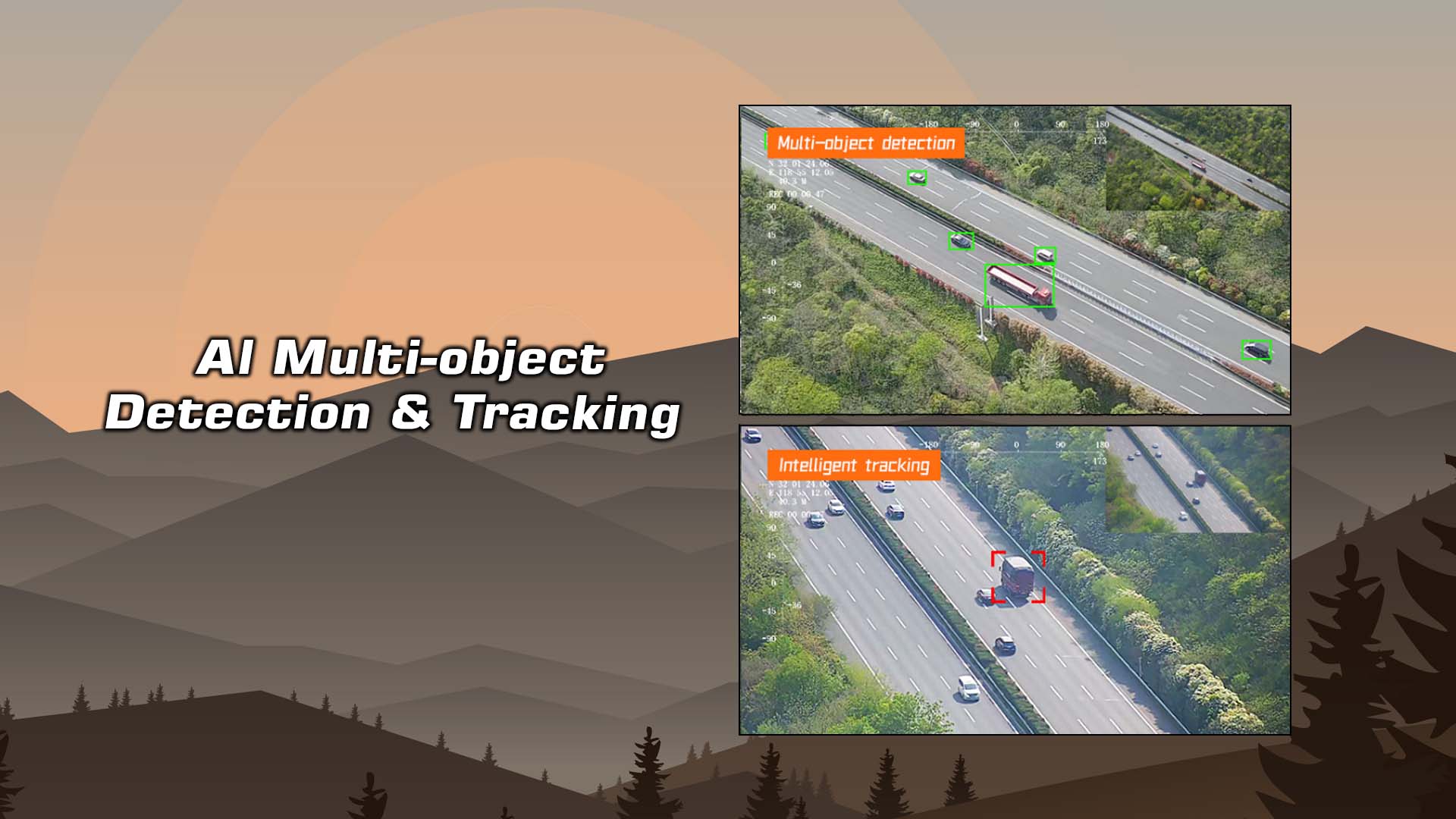

With AI-powered multi-object detection and tracking, the gimbal camera can intelligently recognize persons and vehicles within the frame and continuously track a selected target. Designed for versatility, the D-80AI supports tool-free mounting on various carriers, in both downward and upward orientations. Through the GCU and Dragonfly software, users can stream live footage and control the pod in real time from a computer.

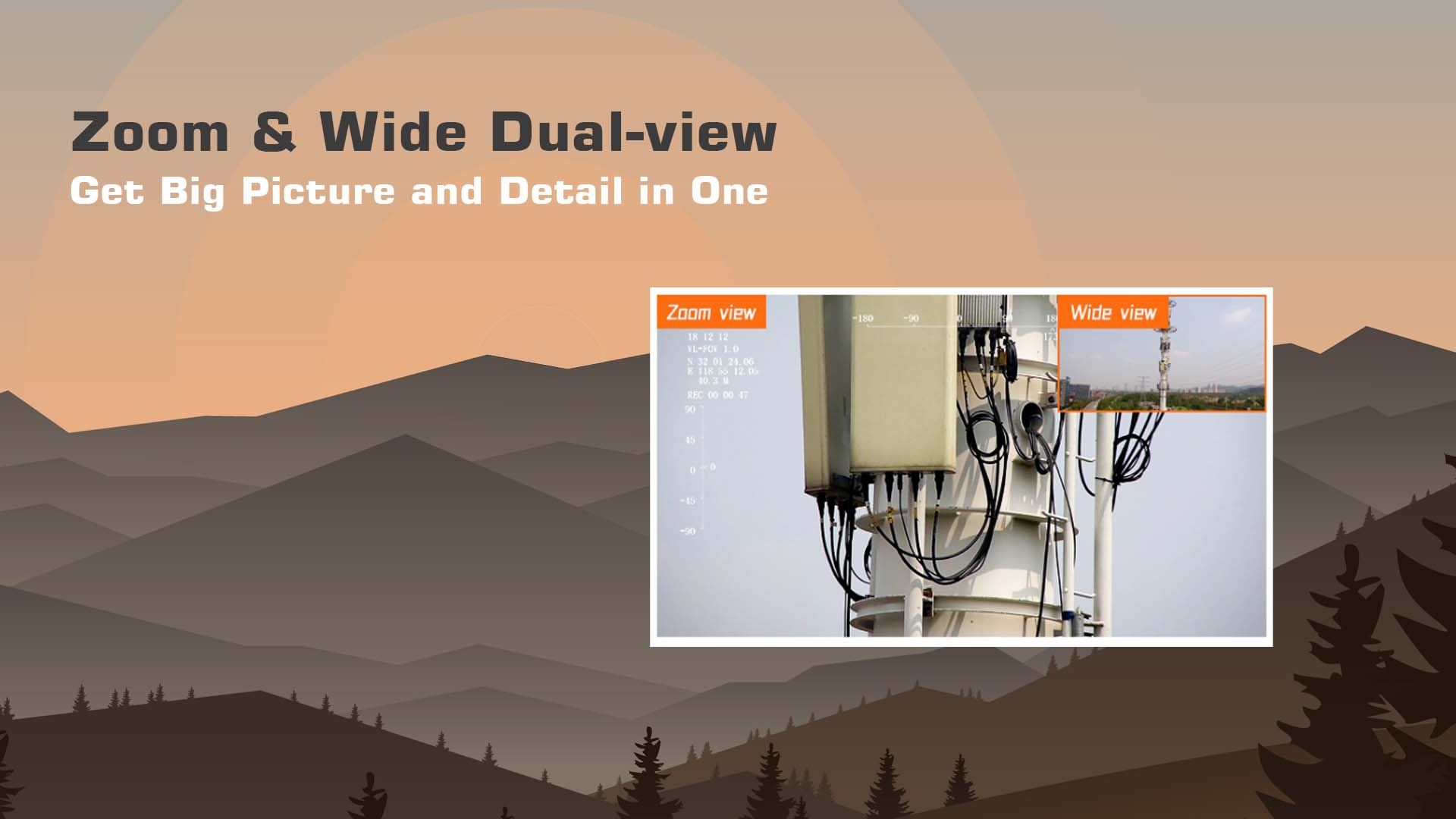

The D-80AI Dual-view Spherical Pod is an advanced imaging system equipped with AI-powered multi-object detection and tracking, allowing it to intelligently identify and continuously track persons and vehicles in real time. Featuring a combination of a wide-angle camera and a 30x hybrid zoom camera, it enables seamless switching between broad situational awareness and detailed close-up views.

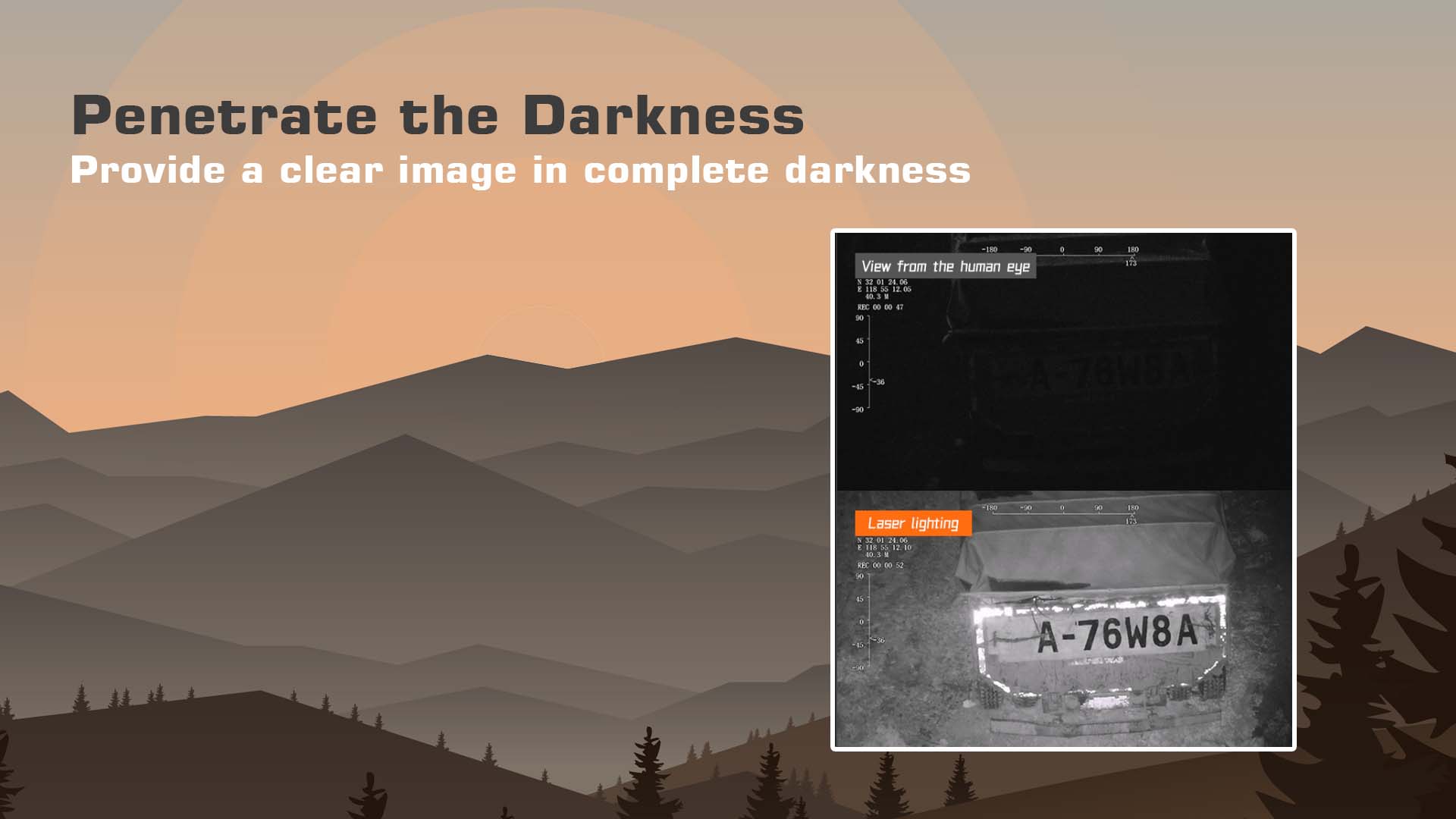

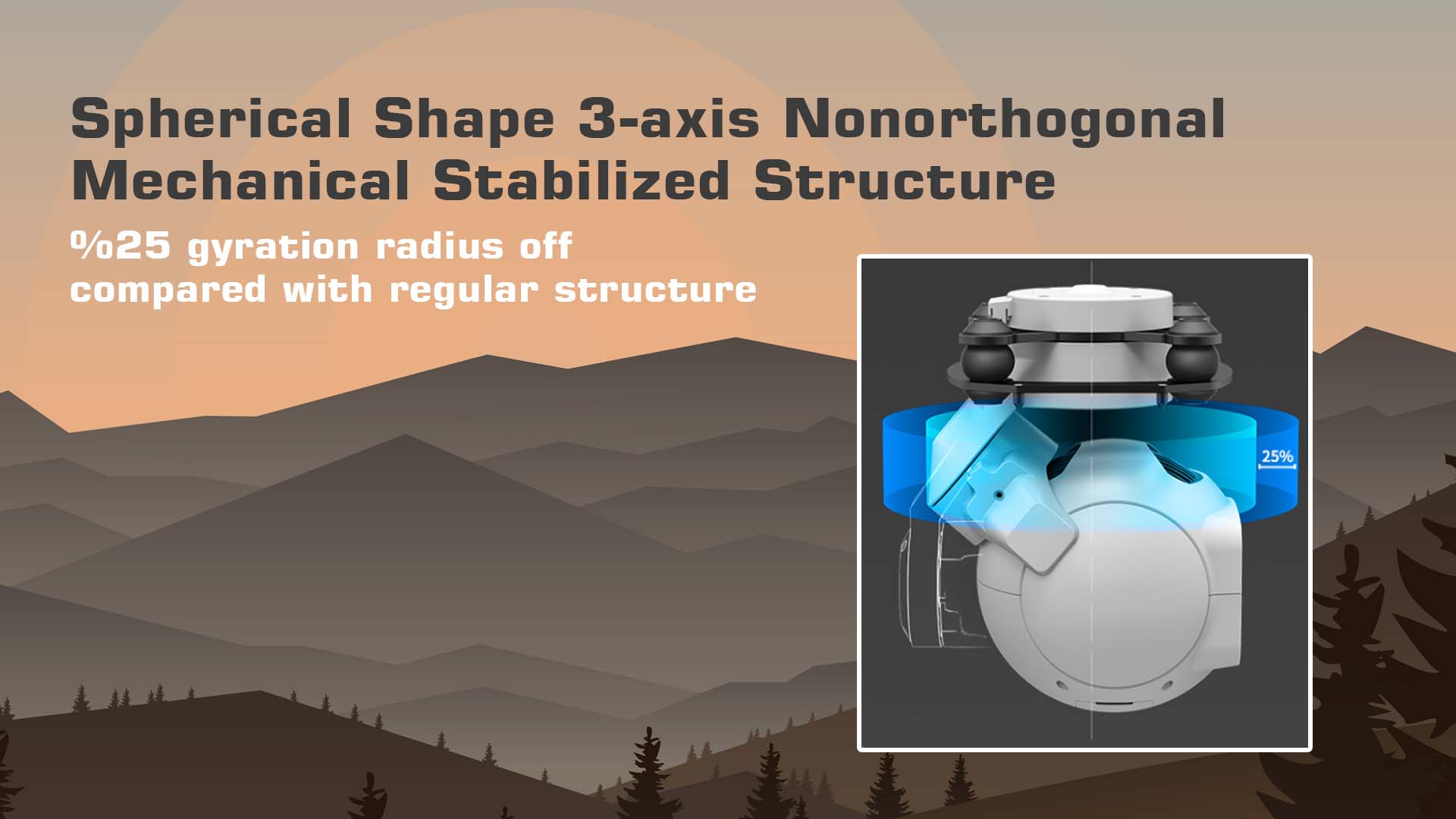

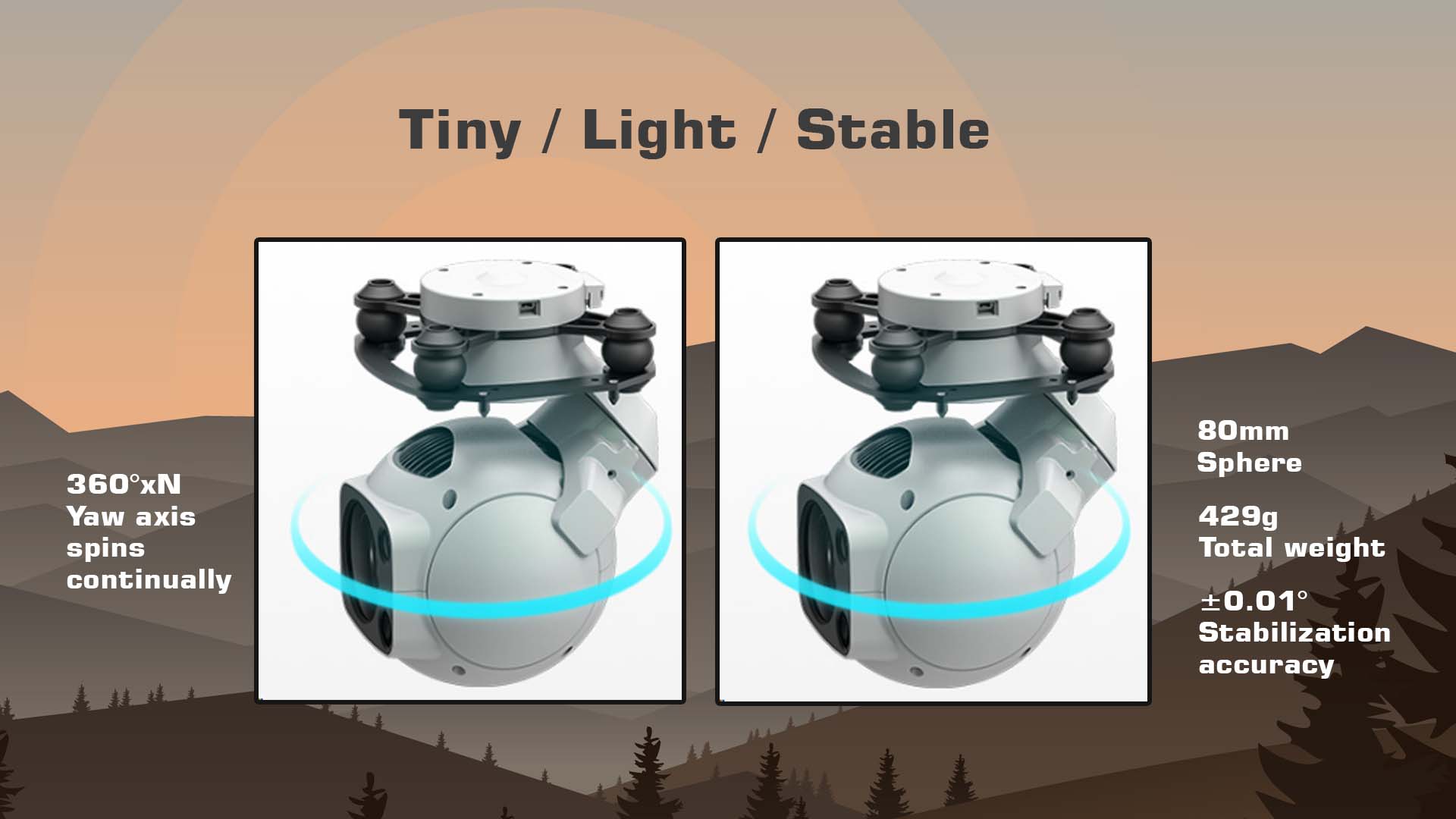

Its integrated laser lighting module ensures clear imaging even in complete darkness. The low-profile spherical design, combined with a 3-axis nonorthogonal mechanical stabilization structure, minimizes wind resistance and allows for continuous 360° yaw rotation.
Characteristics D-80AI Dual-view Spherical Pod

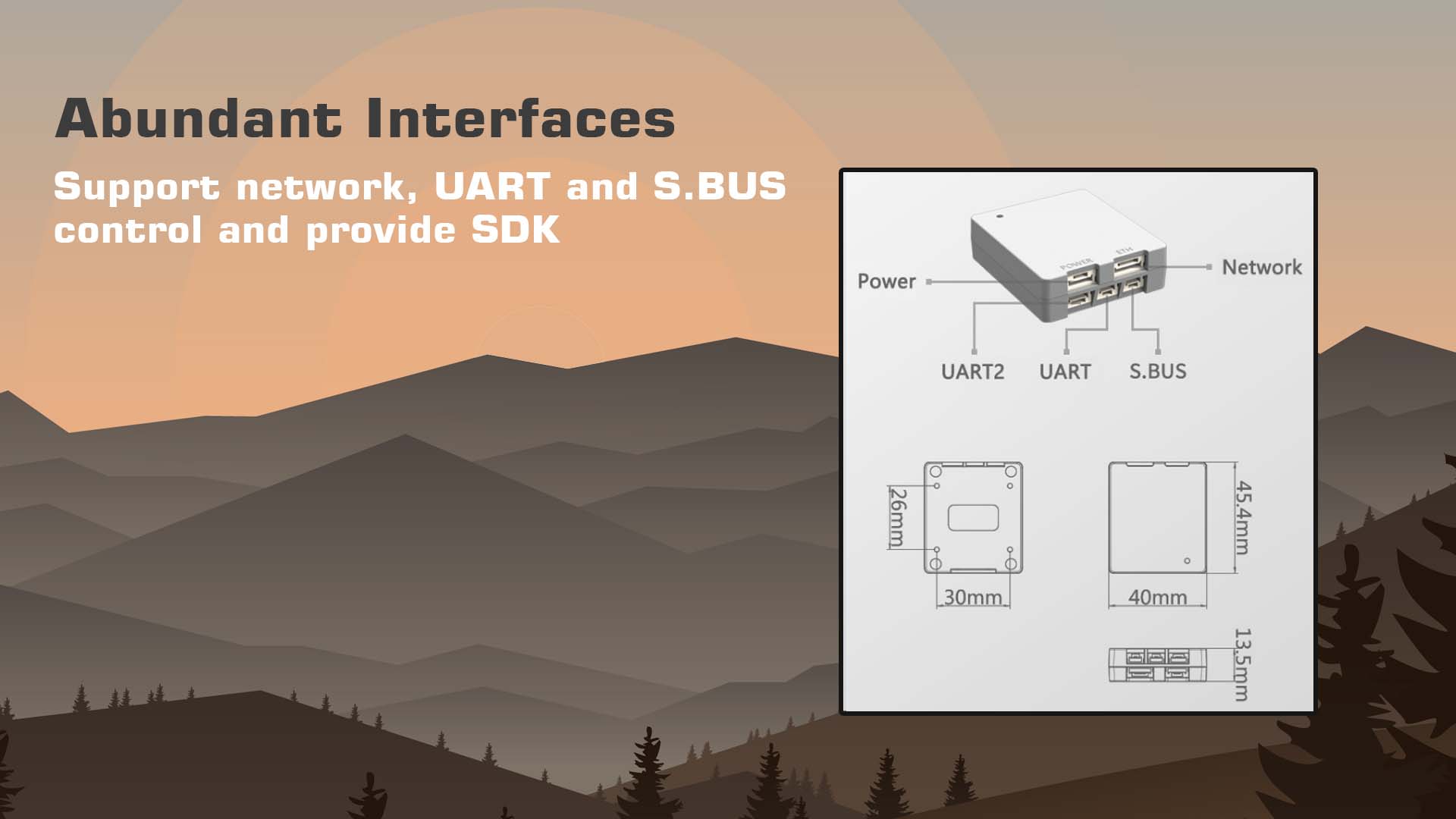

· With the GCU, the D-80AI supports network, UART and S.BUS control. The GCU supports both private protocol and MAVLink protocol.
· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the D-80AI provides a stabilization accuracy at ±0.01°.

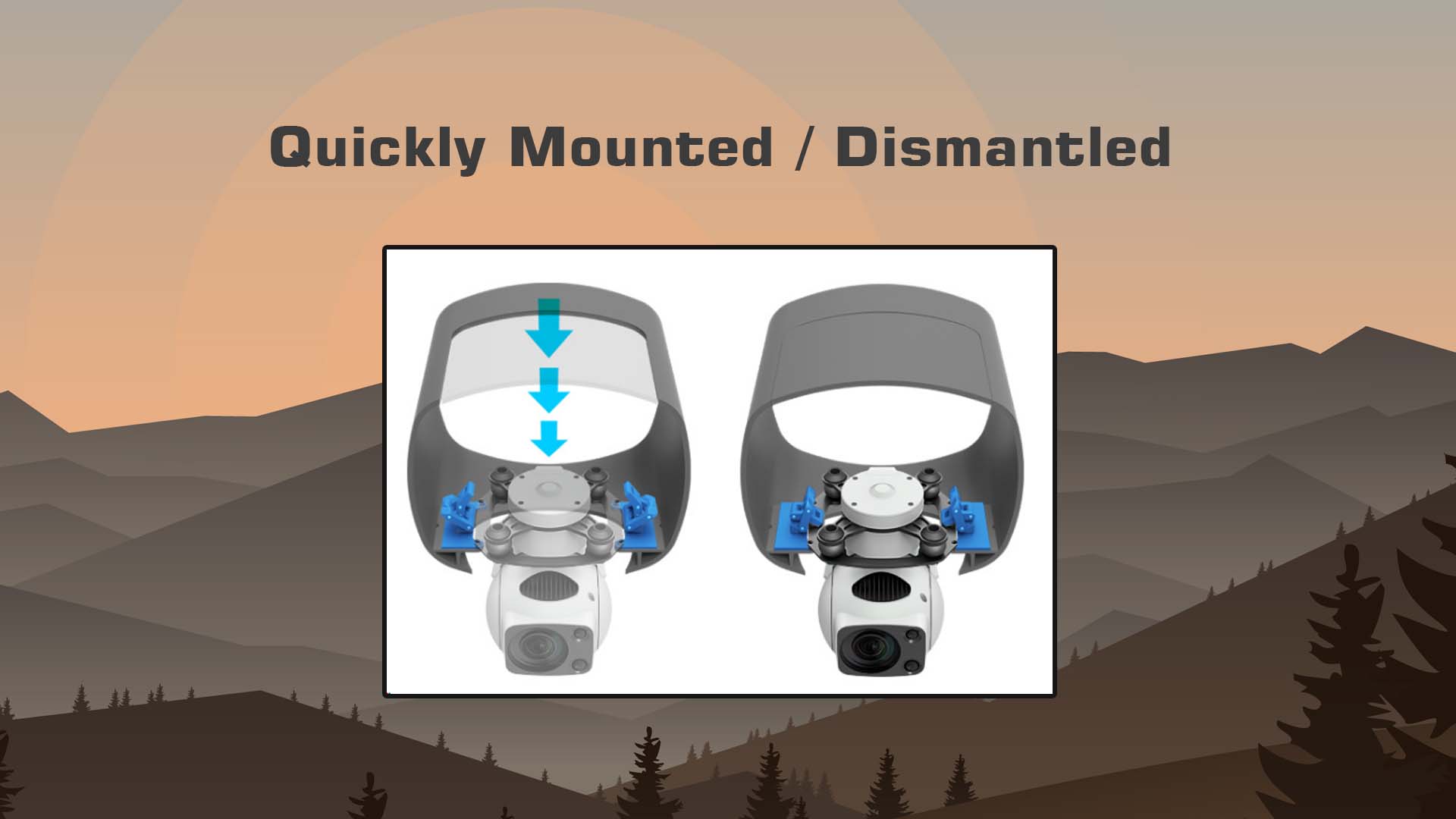

· Can be mounted onto multiple carriers, whether downward or upward.

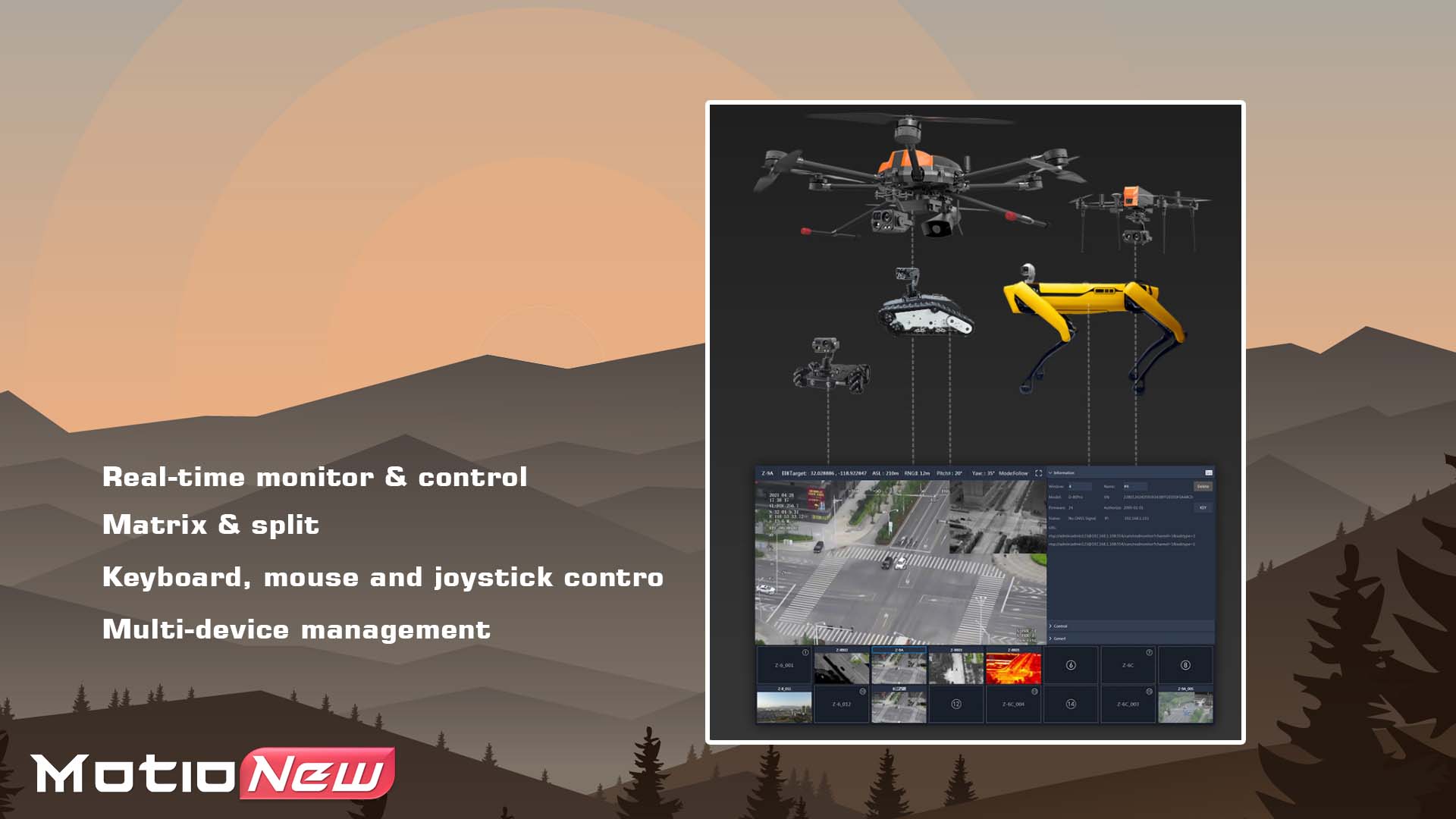

· With the GCU and the Dragonfly software, user can watch the image and control the pod without protocol ducking.

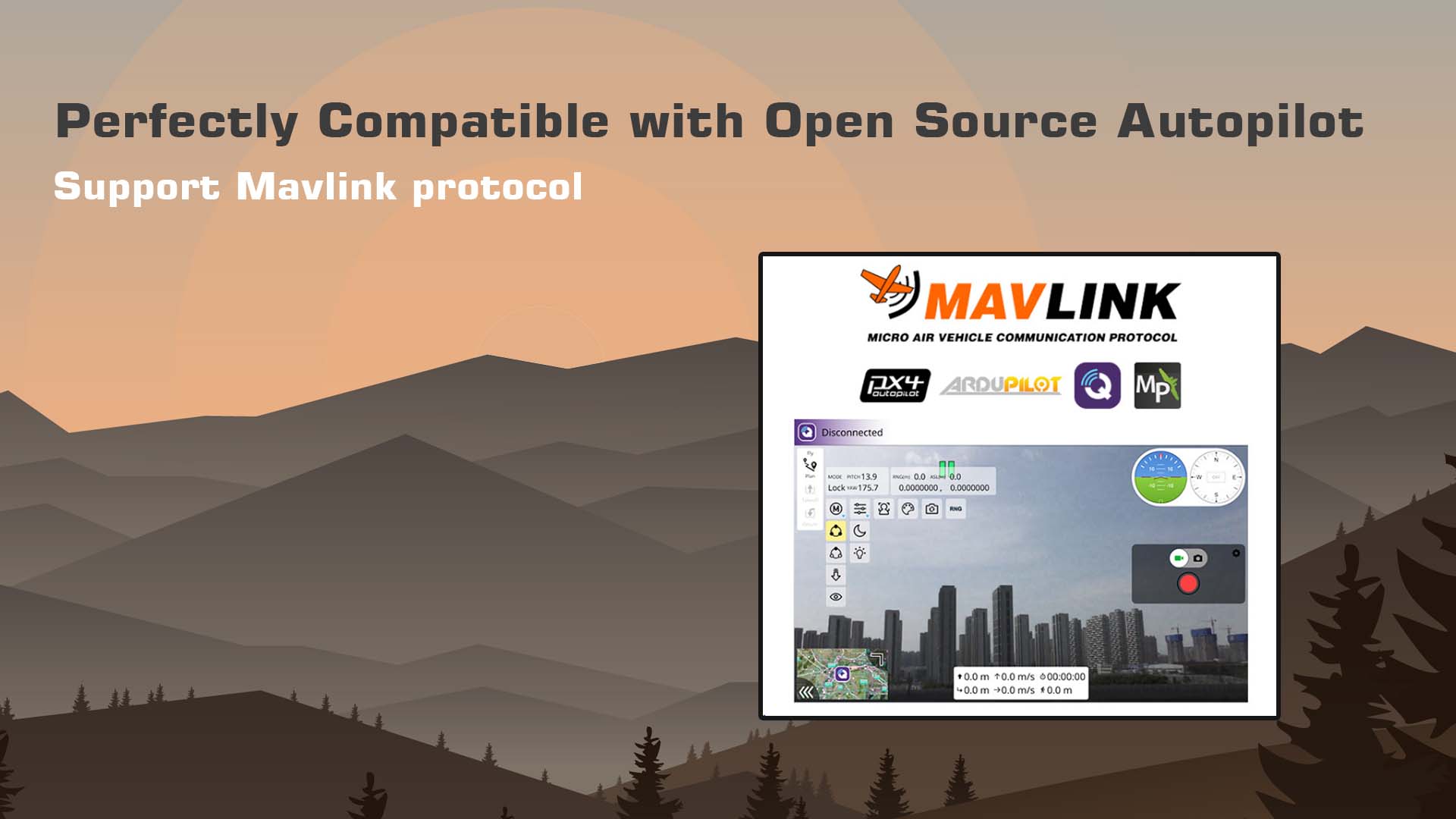

· With the customized QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.
· Screen supports overlaying OSD information such as latitude, longitude and altitude. Image supports shooting point coordinate EXIF save. Video stream supports SEI stacking.
· 14~53 VDC wide voltage input.
It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.
Gimbal Camera AI object Detection and Tracking Video
Overview of the D-80AI Dual-view Spherical Pod
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
General | |
Product Name | D-80AI |
Dimensions | Pod: 85.8 x 86 x 129.3mm |
GCU: 45.4 x 40 x 13.5mm | |
Weight | Pod: 429g |
GCU: 18.6g | |
Operating Voltage | 14 ~ 53 VDC |
Power | Pod: 6.7W (AVG, light off) / 55 W (Stall, light on) |
GCU: 1.8W | |
Mounting | Downward / Upward |
Gimbal | |
Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
Angular Accuracy | ±0.01° |
Controllable Range | Pitch: -157°~+80°, Yaw: ±360°constantly |
Max Controllable Speed | Pitch:±200°/s, Yaw: ±200°/s |
Zoom Camera | |
Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
Lens | Focal Length: 4.7~47mm |
HFOV: 61.3°~6.8° | |
VFOV: 36.9°~3.9° | |
DFOV: 68.4°~7.8° | |
Resolution | 1920 x 1080 |
Pixel Pitch | 2.9μm |
Optical Zoom Rate | 10x |
Equivalent Digital Zoom Rate | 3x |
Min Illumination | Night Vision off: 0.01Lux / F1.6 |
Night Vision on: 0.0015Lux / F1.6 | |
Object Detection Distance | |
EN62676-4:2015 | Johnson Criteria |
Person[1]: 709m Light vehicle[2]: 932m Large vehicle[3]: 1986m |
Person: 8103m Light vehicle: 24851m Large vehicle: 52943m |
Object Identification Distance | |
EN62676-4:2015 | Johnson Criteria |
Person: 142m Light vehicle: 187m Large vehicle: 397m |
Person: 2026m Light vehicle: 6213m Large vehicle: 13236m |
Object Verification Distance | |
EN62676-4:2015 | Johnson Criteria |
Person: 71m Light vehicle: 93m Large vehicle: 199m |
Person: 1013m Light vehicle: 3106m Large vehicle: 6618m |
Wide Camera | |
Image Sensor | 1/2.8”CMOS; Effective Pixels: 2.07M |
Lens | Focal Length: 2.4mm |
HFOV: 98.5° | |
VFOV: 44.3° | |
DFOV: 101.7° | |
Resolution | 1920 x 1080 |
Pixel Pitch | 2.9μm |
Laser Lighting Module | |
Wavelength | 850±10nm |
Laser Power | 0.8W |
Beam Angle | 8° |
Beam Diameter | 14m @ 100m |
Effective Illumination Distance | ≤200m |
Laser Safety | Class 3B(IEC 60825-1:2014) |
AI Multi-object Detection & Tracking | |
Object Size | 16×16 ~ 128×128 px |
Object Identification Delay | <40ms |
Tracking Speed | ±32 px / field |
Tracking Deviation Refresh Rate | 30Hz |
Tracking Deviation Output Delay | ≤5ms |
Image & Video | |
Image Format | JPEG |
Maximum Image Resolution | 1920 x 1080 |
EXIF | Shooting point coordinate |
Video Format | MP4 |
Maximum Video Resolution | 1080P@25fps |
Stream Encode Format | H.264,H.265 |
Stream Network Protocol | RTSP |
Storage | |
Supported SD Cards | Supports a Speed Class 10 MicroSD card with a capacity of up to 256GB |
Support File System | HDD-FAT32 |
Environment | |
Operating Temperature | -20℃~50℃ |
Storage Temperature | -40℃~60℃ |
Operating Humidity | ≤85%RH (Non-condensing) |
Product contents
Please contact us for more information.
You must be logged in to post a review.
Gimbal Control Method |
SBUS ,UART |
---|---|
Number of Sensors |
2 Sensors |
EO Sensor Lens |
10x Zoom |
EO Sensor resolution |
1920×1080 |
Laser Range Finder |
200m |
AI Object Tracking |
Yes |
Gimbal Weight |
429g |
Gimbal Dimensions |
85.8x86x129.3mm |
