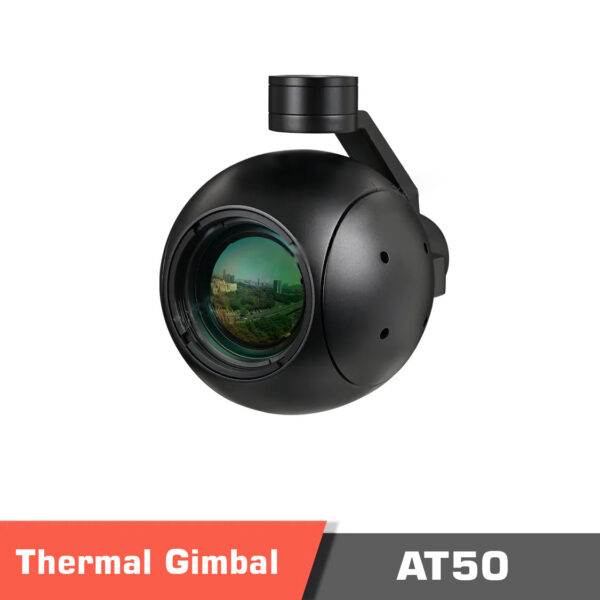

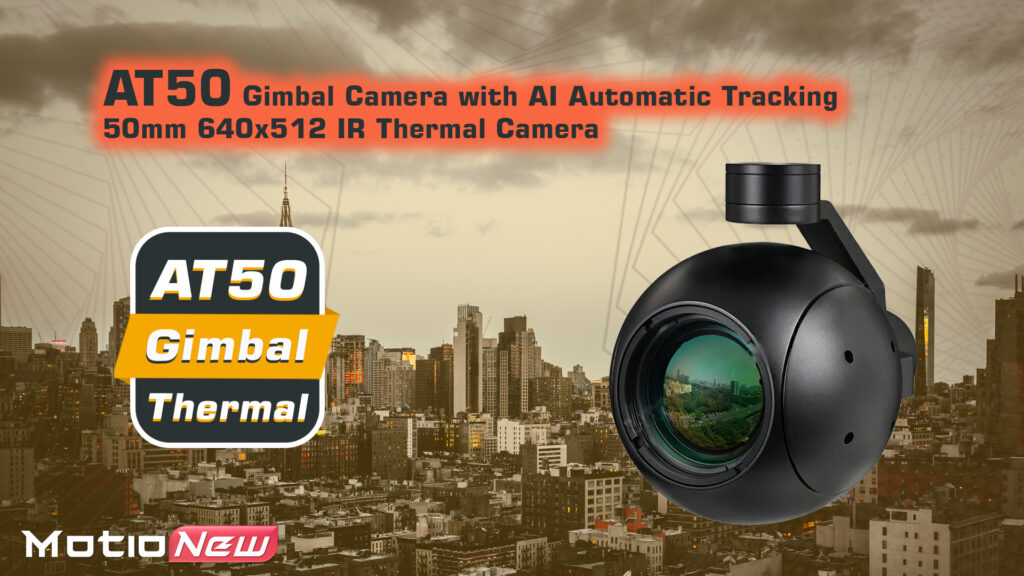

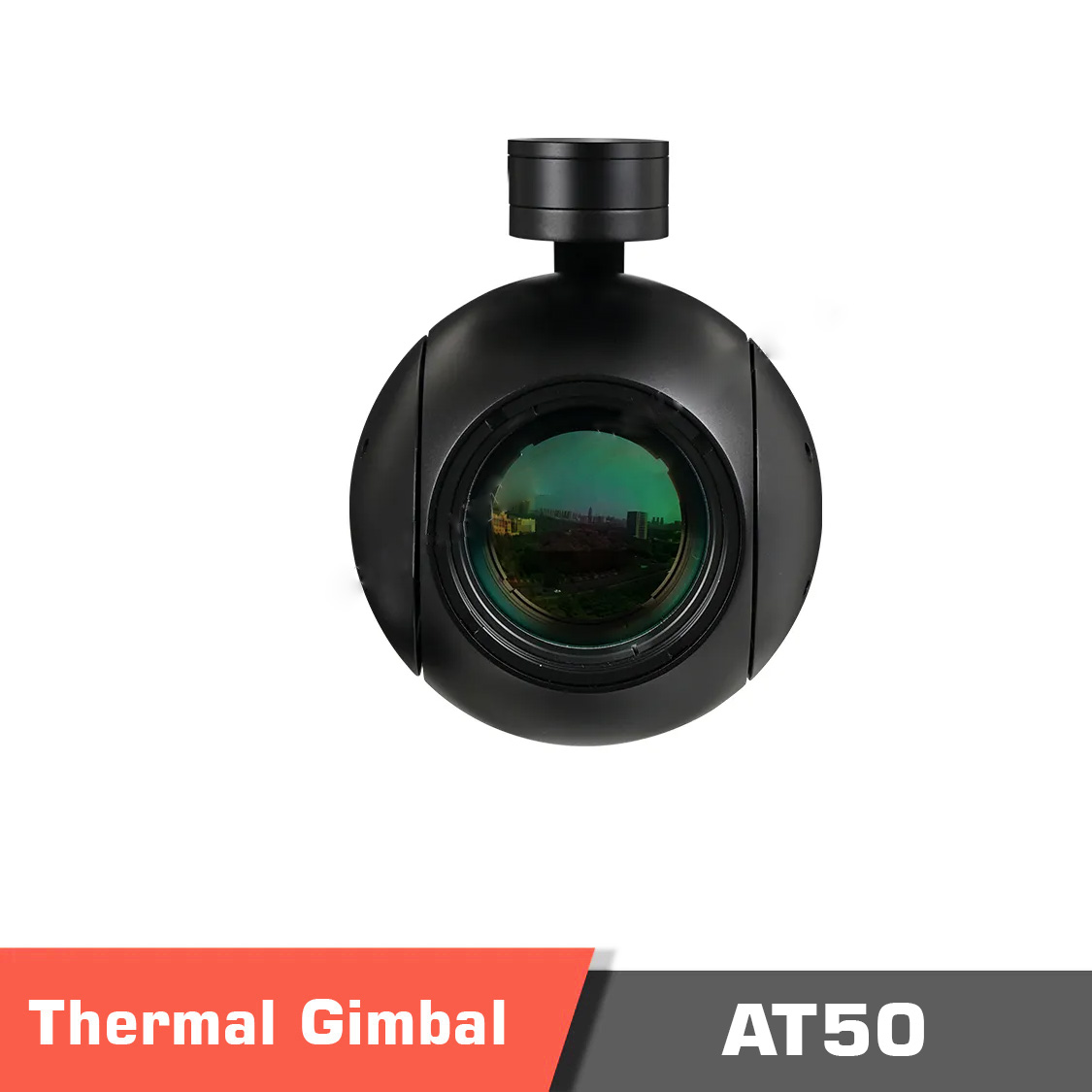

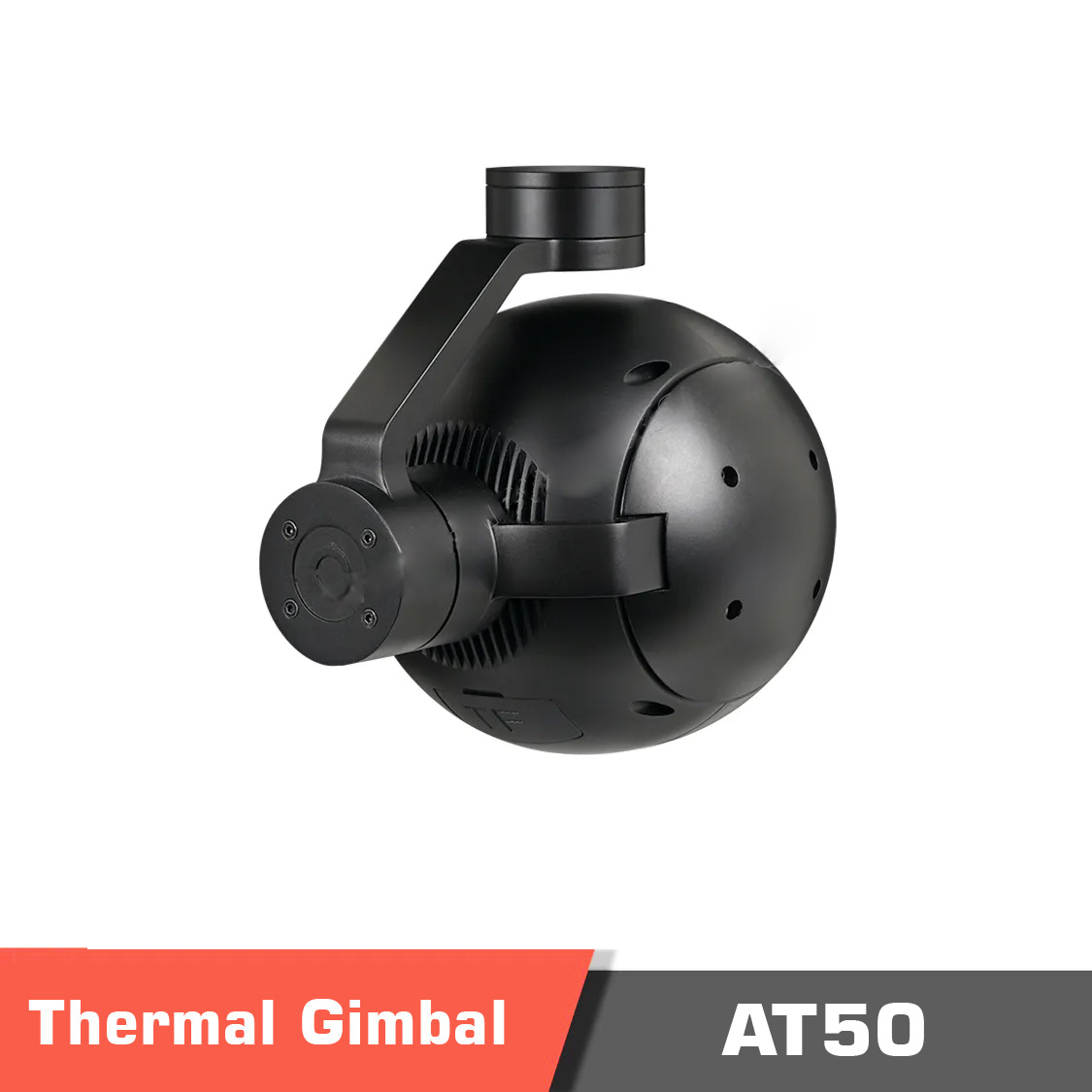

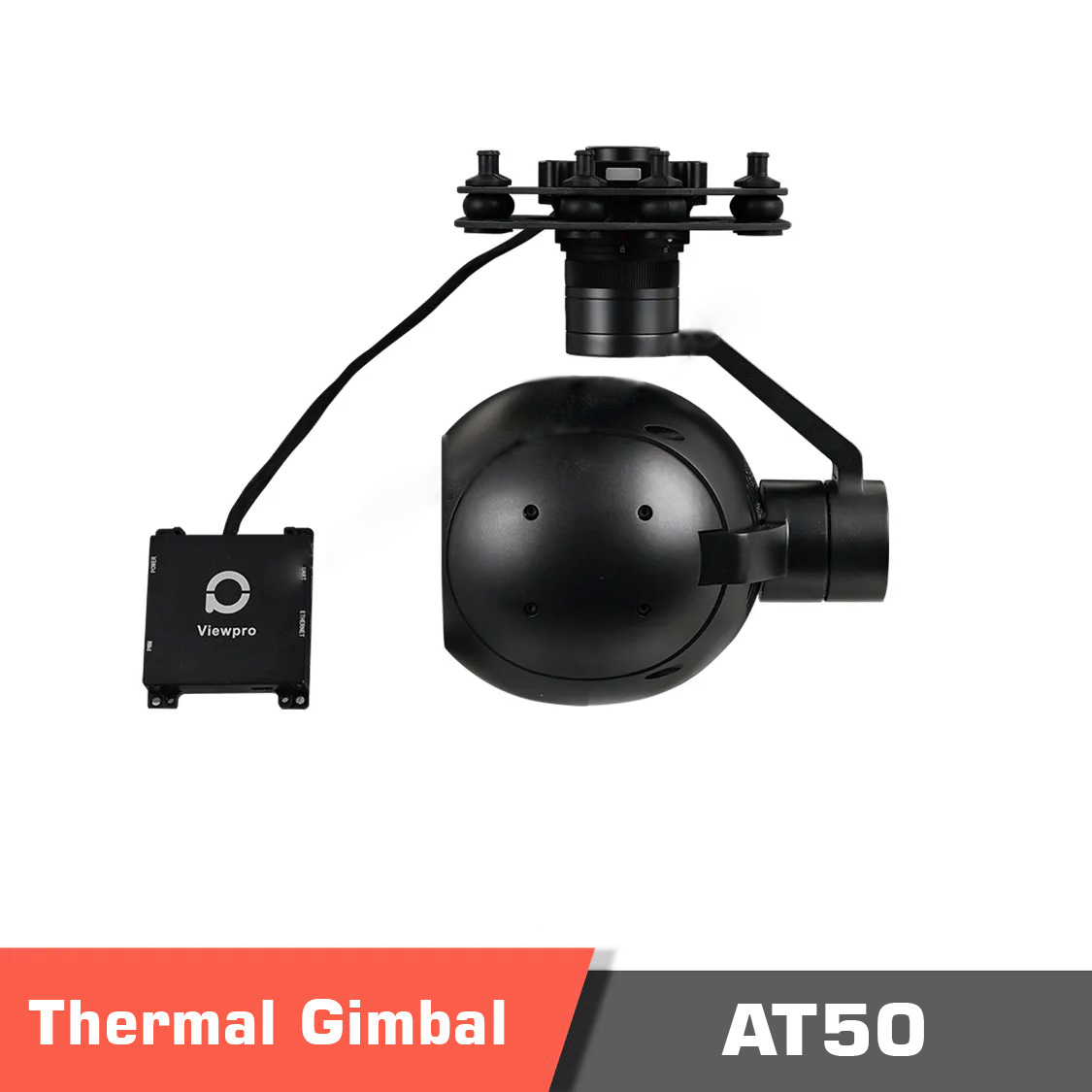

AT50 Gimbal Camera, 50mm 640×512 IR Thermal with AI Automatic Tracking

AT50 Gimbal Camera Specifications

The AT50 gimbal camera is designed with robust hardware parameters that ensure optimal performance and reliability. It operates with a working voltage range from 4S to 6S. The Camera Gimbal Drone is engineered to function effectively in diverse environments, can withstand temperatures from -20℃ to +60℃, and is rated IP44 for protection against dust and water splashes. The output options include micro HDMI (1080P at 30fps/60fps) and IP (RTSP/UDP 720p/1080p at 30fps), making it versatile for various applications.

Hardware Parameters of AT50

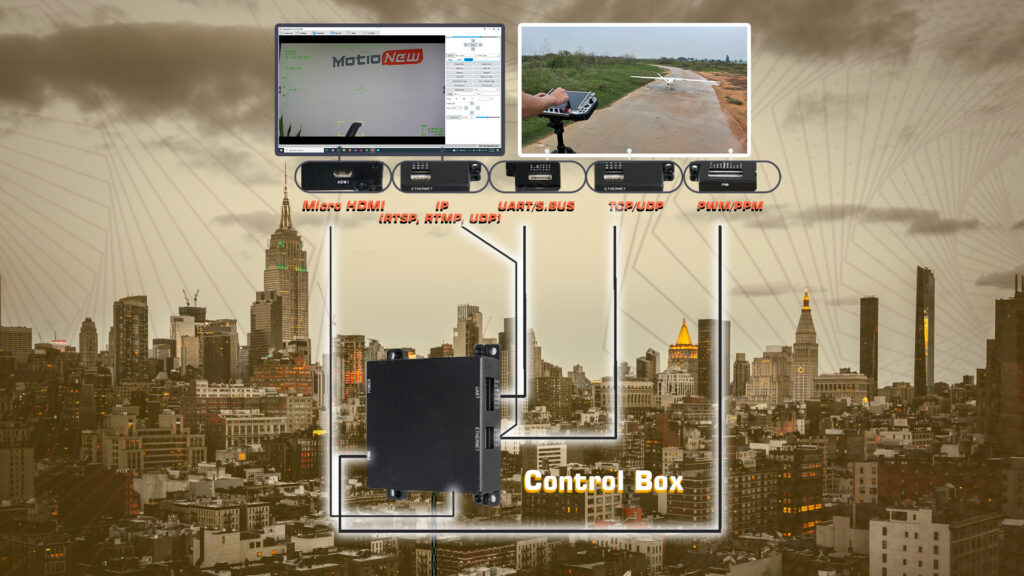

For storage, the AT50 gimbal camera accommodates TF cards up to 128GB, formatted in class 10, FAT32, or exFAT, ensuring ample space for media. Photos are saved in JPG format at 1920×1080 resolution, while videos are stored in MP4 format at 1080P 30fps. The device also supports online card reading via HTTP for easy access to stored images. Control methods are flexible, including PWM, TTL, S.BUS, TCP (IP output), and UDP (IP output version). Additionally, the AT50 features geotagging capabilities, displaying time and GPS coordinates in the picture EXIF data, providing valuable context for each capture.

Mechanical and Controllable Range

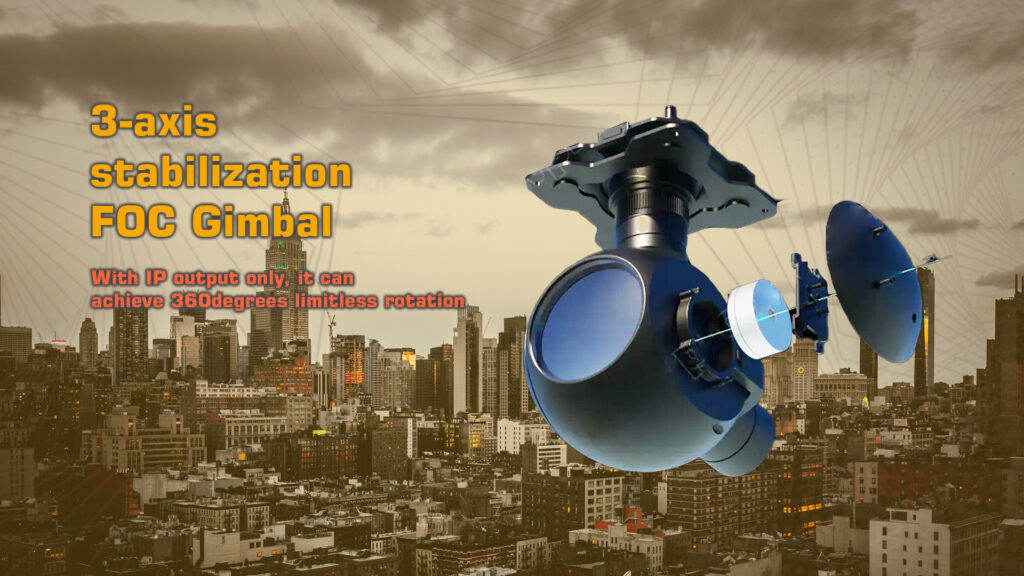

The AT50 gimbal camera is engineered with advanced gimbal specifications to deliver superior stabilization and control. Its mechanical range offers extensive flexibility, with pitch/tilt angles spanning from -40° to 100°, roll angles up to ±70°, and yaw/pan angles of ±300° or an unlimited ±360° in the IP output version. This wide range of motion ensures that users can capture smooth and stable footage from various angles, making it ideal for dynamic shooting environments.

In terms of controllable range, the AT50 gimbal camera allows precise adjustments with pitch/tilt angles from -35° to 95° and yaw/pan angles of ±290° or an unlimited ±360° in the IP output version. This precise control is complemented by the gimbal’s remarkable vibration angle stability, maintaining an accuracy of ±0.02° for both pitch/roll and yaw. This high level of precision ensures that the AT50 can provide sharp and clear images, even in challenging conditions, making it a reliable choice for professional videography and photography.

AI Performance

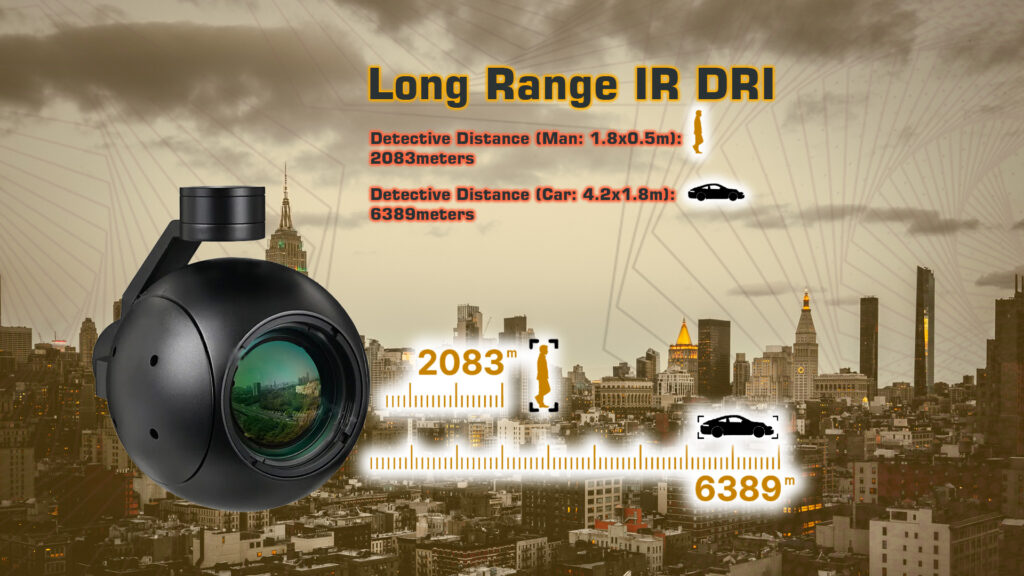

The AT50 gimbal camera is equipped with advanced AI performance capabilities designed to enhance its detection and monitoring efficiency. This camera can simultaneously detect and track up to 10 targets, specifically focusing on cars and humans, which makes it highly suitable for surveillance and security applications. With a minimum contrast ratio of 5% and the ability to detect targets as small as 5×5 pixels, the AT50 ensures accurate identification even in challenging visual conditions.

The AI performance of the AT50 gimbal camera is further highlighted by its impressive car detection rate of ≥85%, ensuring that vehicles within the frame are reliably identified. Additionally, it maintains a low false alarm rate of ≤10%, reducing the likelihood of incorrect alerts and enhancing the reliability of the detection system. These features make the AT50 gimbal camera a robust and dependable tool for applications that require precise and efficient AI-driven object detection and tracking.

Dimensions and Weights

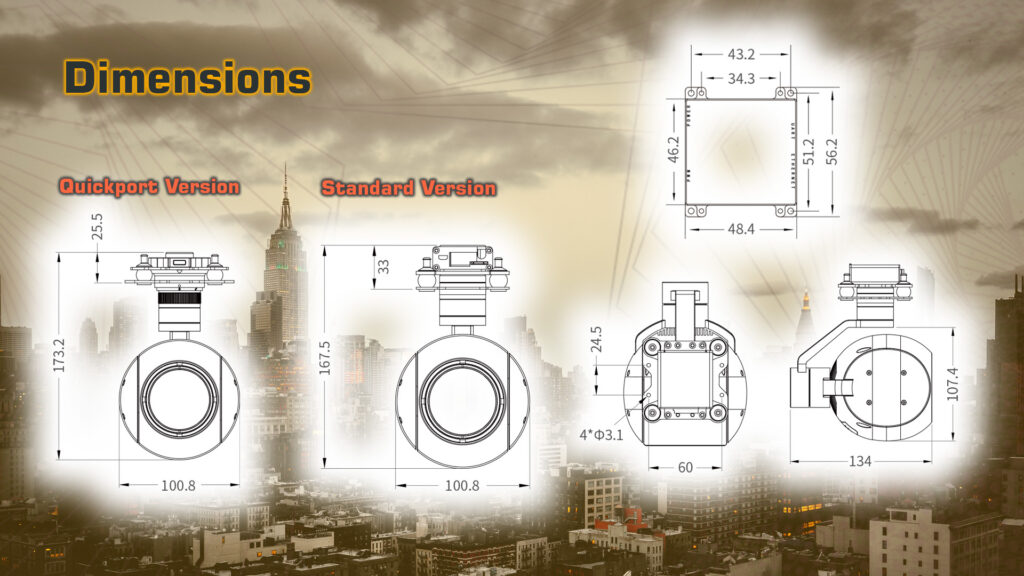

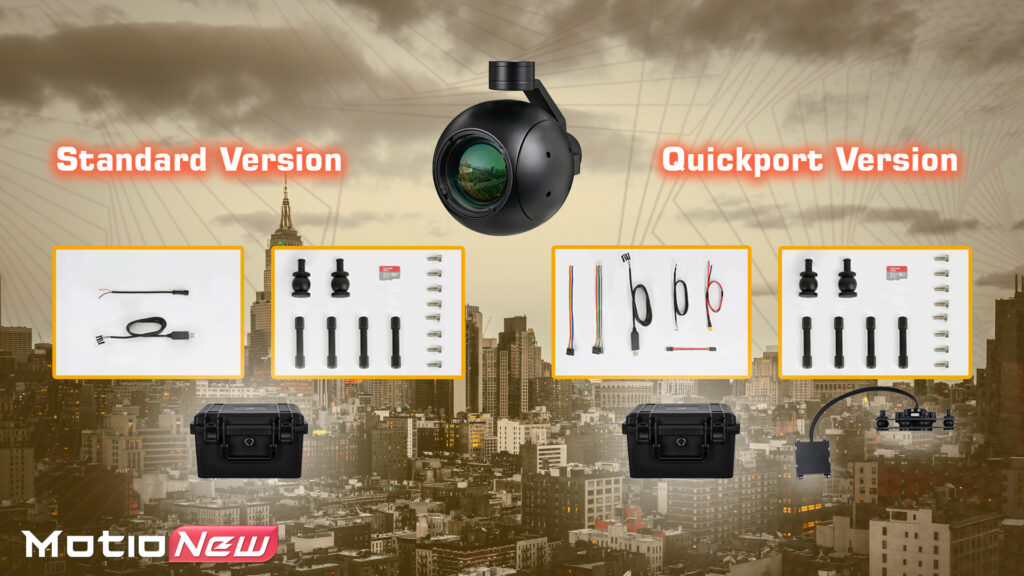

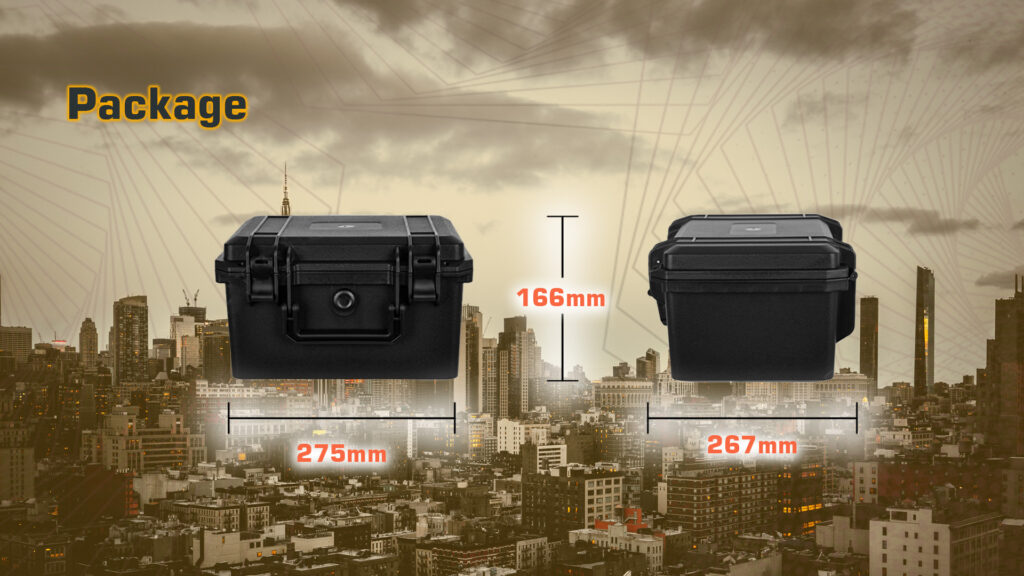

The AT50 gimbal camera comes well-packaged to ensure safe delivery and ease of setup. The net weight of the viewport version is 860g, with product measurements of 134×100.8×167.5mm for the standard version and 134×100.8×173.2mm for the viewport version. The gross weight of the package is 1969g, with overall package dimensions of 350x300x250mm, ensuring the product is secure and compact for transport.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – AT50 Gimbal Camera

1. What type of sensor does the AT50 use?

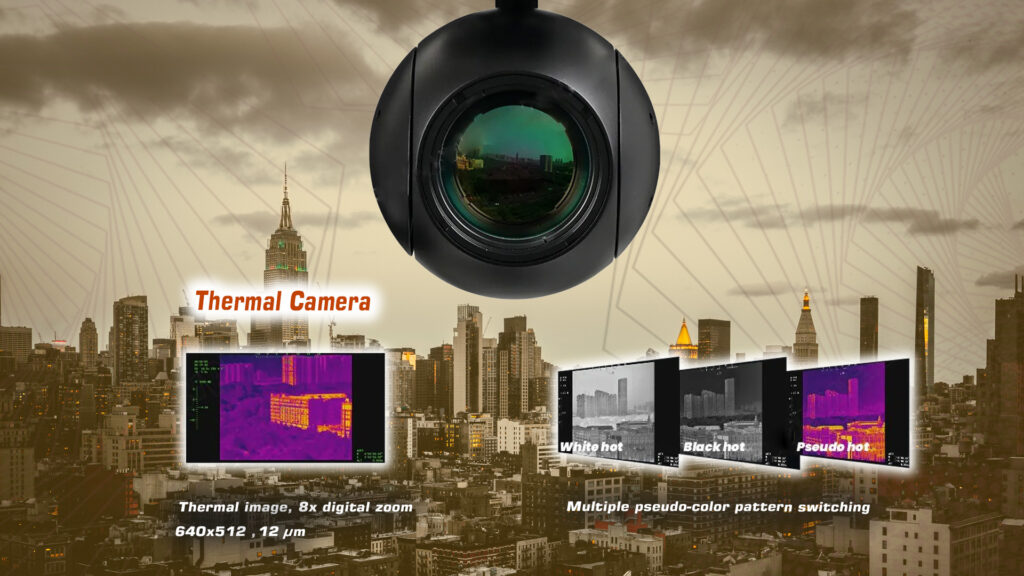

The AT50 integrates a 640×512 resolution thermal infrared sensor with a 50mm lens, designed for long-range thermal imaging with AI-based automatic tracking capabilities.

2. What stabilization and control system does it use?
It features a precision 3-axis gimbal with pitch angles from -40° to +100°, roll ±70°, and yaw ±300°, ensuring smooth and stable imaging.

3. What output and storage options are available?
The gimbal supports micro HDMI (1080P @ 30/60fps) and IP (RTSP/UDP up to 1080P @ 30fps). Storage is supported via TF cards up to 128GB, saving images in JPG and video in MP4 format.

4. What payment methods are supported for purchasing the AT50?
Payments can be made using major credit cards, PayPal, and international bank transfers.

5. Is OEM customization available for enterprise customers?
Yes. OEM services are available for bulk orders and specialized applications requiring tailored thermal imaging payloads.

6. Are technical documents and manuals included with the product?
Yes. Buyers receive datasheets, integration manuals, and operational guides to support installation and field use.
