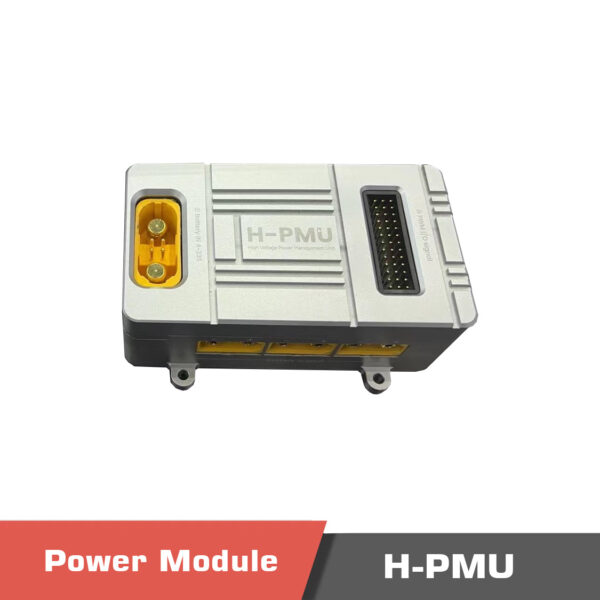

CUAV H-PMU, High Voltage Power Management Unit PMU

CUAV H-PMU, is High Voltage Power Management Unit PMU and the latest product from CUAV. It supports up to 100v high voltage as input and has a maximum instantaneous current detection of 500A. CUAV H-PMU uses non-contact bus current measurement technology. The output is configurable using software and supports 24v/12v @ 15A and 8.2v/7.4v @ 20A voltage outputs. There are 6 XT90 output interfaces with quick installation without the need to weld the wires.

CUAV H-PMU High Voltage Power Management Unit – FAQ

1. What is the main function and design of the CUAV H-PMU?
The CUAV H-PMU is a high-voltage power management unit designed for large UAVs. It supports up to 100V input voltage and provides precise current and voltage monitoring using non-contact bus measurement technology.

2. What are the output specifications and supported voltages?
It offers configurable outputs of 24V/12V at 15A and 8.2V/7.4V at 20A, allowing flexible power delivery for various onboard systems.

3. What current capacity and protection features does the H-PMU provide?
The system supports up to 500A of instantaneous current detection and includes over-current and short-circuit protection to ensure stable and safe operation.

4. What are the available purchasing and delivery options for the CUAV H-PMU?
It is sold as a standalone power module, featuring six XT90 output interfaces for quick installation without soldering. Motionew provides global shipping with tracking and estimated delivery times displayed during checkout.

5. Does Motionew offer OEM and bulk purchasing for this model?
Yes. OEM and bulk purchase programs are available for UAV manufacturers and integrators. Buyers can request customized output configurations, cabling, and quantity-based pricing through Motionew’s sales department.

6. What documentation and support resources are provided?
Technical specifications, wiring guides, and setup documentation are available in the product documentation section. Firmware updates and technical support are offered through CUAV and Motionew’s engineering support teams.
