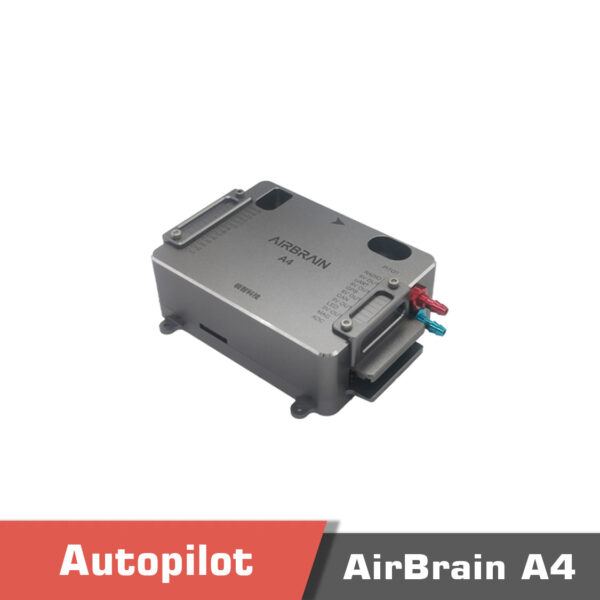

Airbrain A4 AUTOPILOT for Fixed-Wing and VTOL | Engine Control Support | Triple Redundancy IMU sensor

Original price was: 4850.00 $.Current price is: 4750.00 $.

(1 customer review)
PayPal
Visa
Master

Description

Youtube player

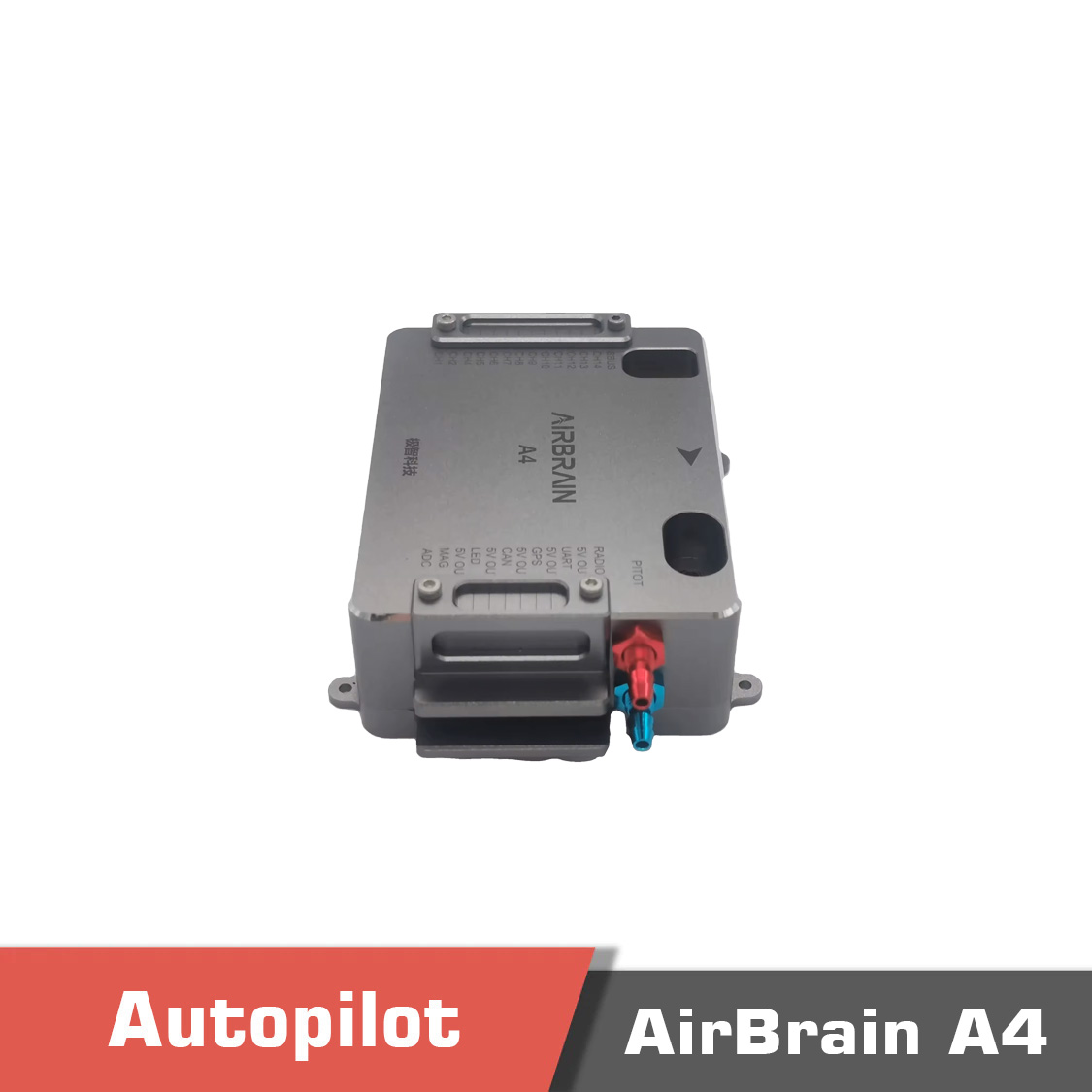

Overview of Airbrain A4 AUTOPILOT

The A-series Airbrain Autopilot is expertly engineered for fixed-wing unmanned aircraft, supporting hand-launch, runway takeoff, and VTOL capabilities. Paired with a user-friendly ground station featuring an embedded simulator, it allows users to master operations quickly without formal training. The autopilot employs an adaptive sensor calibration algorithm, removing the need for manual calibration. Its redundant sensor design ensures robust safety protection mechanisms. This versatile system is ideal for applications in security, inspection, and aerial surveying.

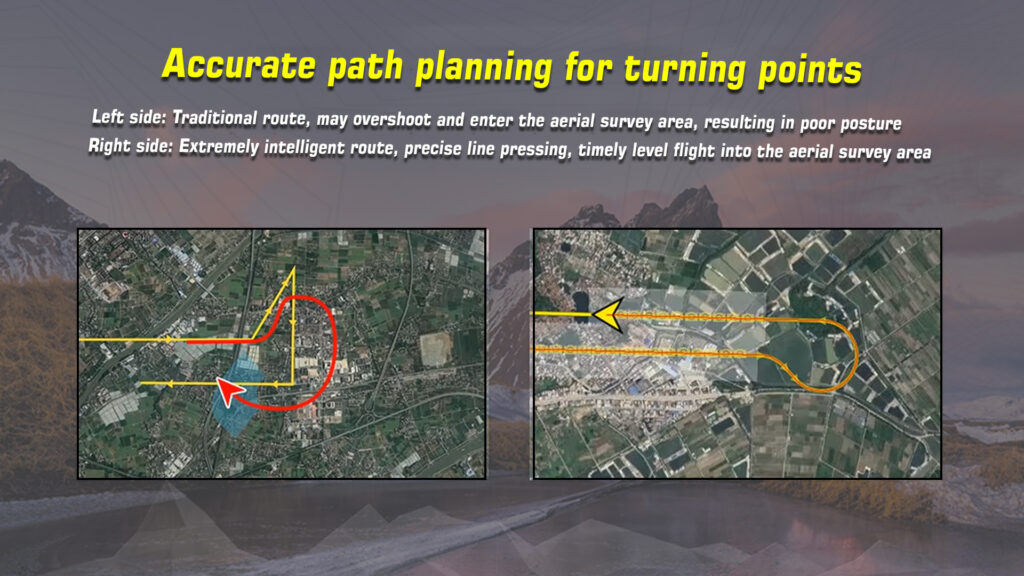

User-friendly Mission Planning

The ground station software features a clean, intuitive interface that ensures ease of use, even for beginners. With just a few simple mission parameters, the system can intelligently generate diverse mission plans tailored to the terrain, meeting a wide array of application requirements effortlessly.

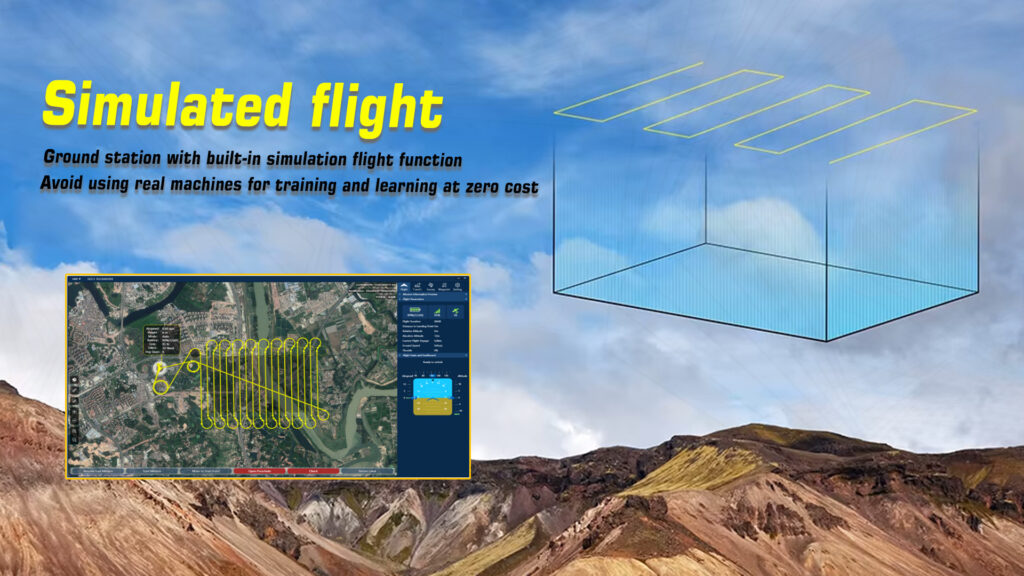

Embedded Simulation Flight

The ground station is equipped with an integrated simulation system, removing the necessity for extra hardware. Users can simulate the complete drone operation process, including takeoff, landing, mission execution, and emergency procedures, all at zero cost. This feature greatly lowers training expenses while enhancing training efficiency.

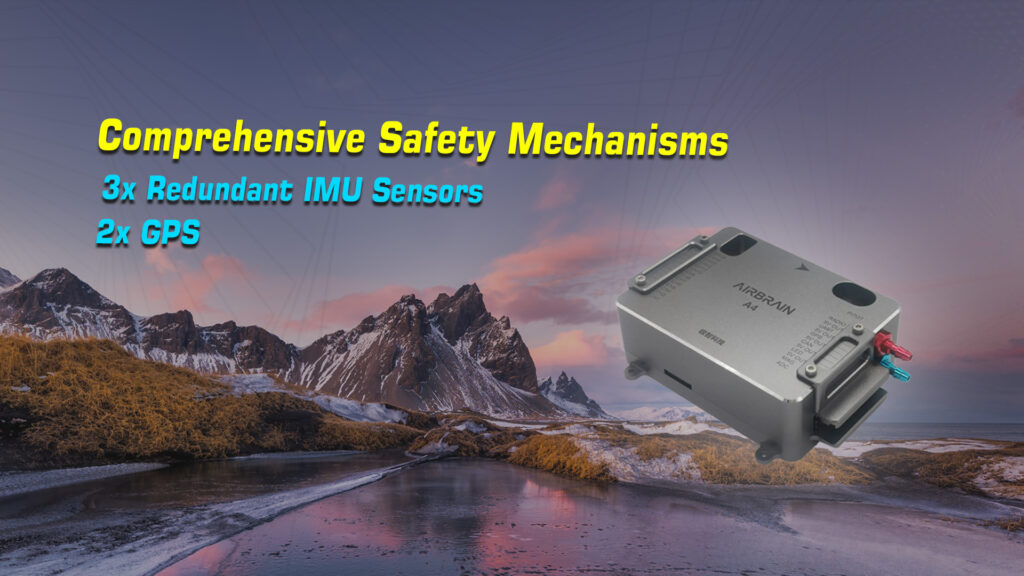

Comprehensive Safety Mechanisms

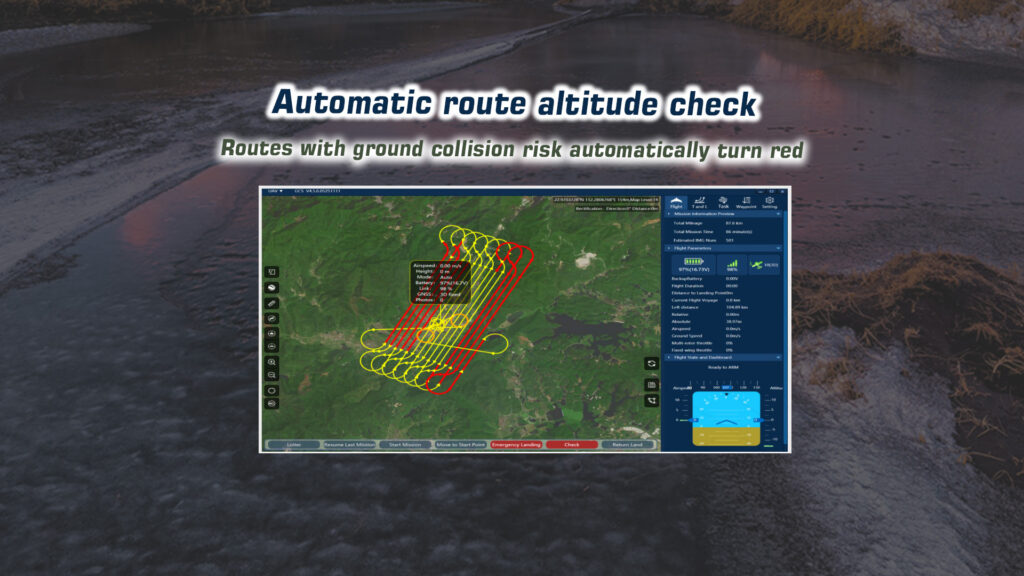

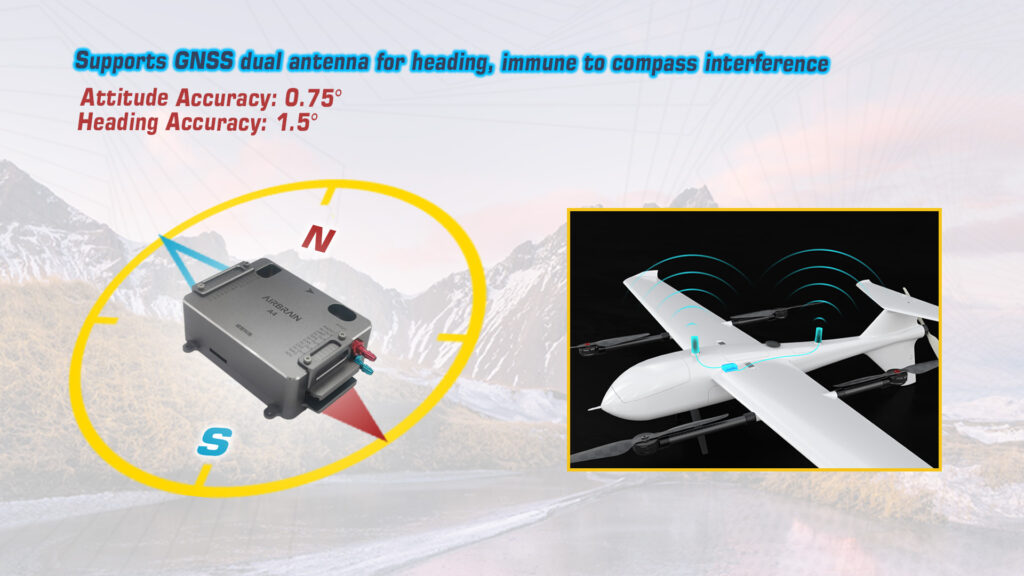

The system incorporates triple-redundant IMUs and dual GPS modules, ensuring robust and reliable performance. It also supports GNSS dual-antenna configuration for accurate heading, immune to compass interference. Additionally, automatic altitude checks for flight routes further enhance safety.

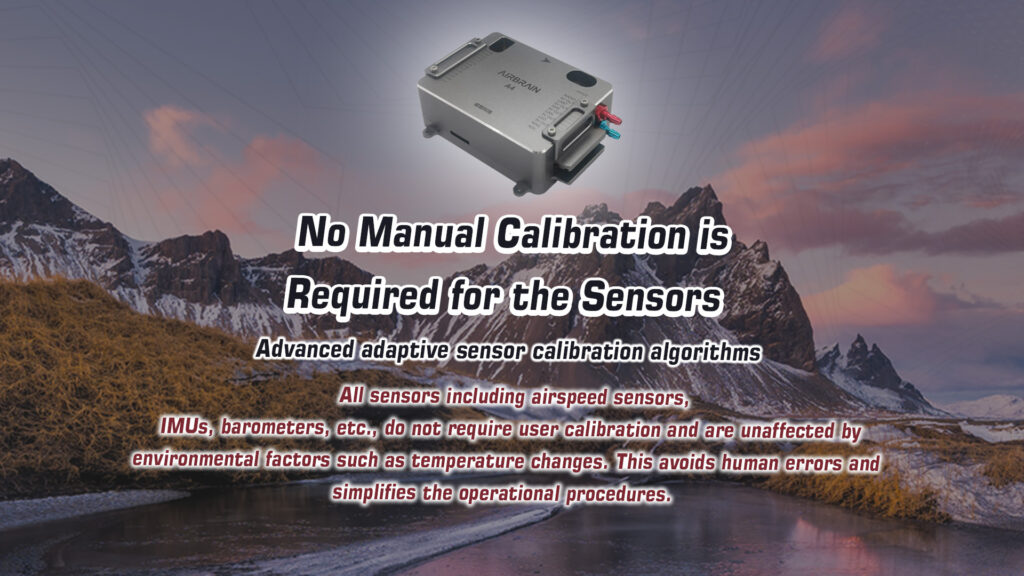

No Manual Sensor Calibration Required

With advanced adaptive sensor calibration algorithms, all sensors, including airspeed sensors, IMUs, and barometers, automatically adjust without requiring user calibration. These sensors remain unaffected by environmental factors like temperature changes, minimizing human error and streamlining operational procedures.

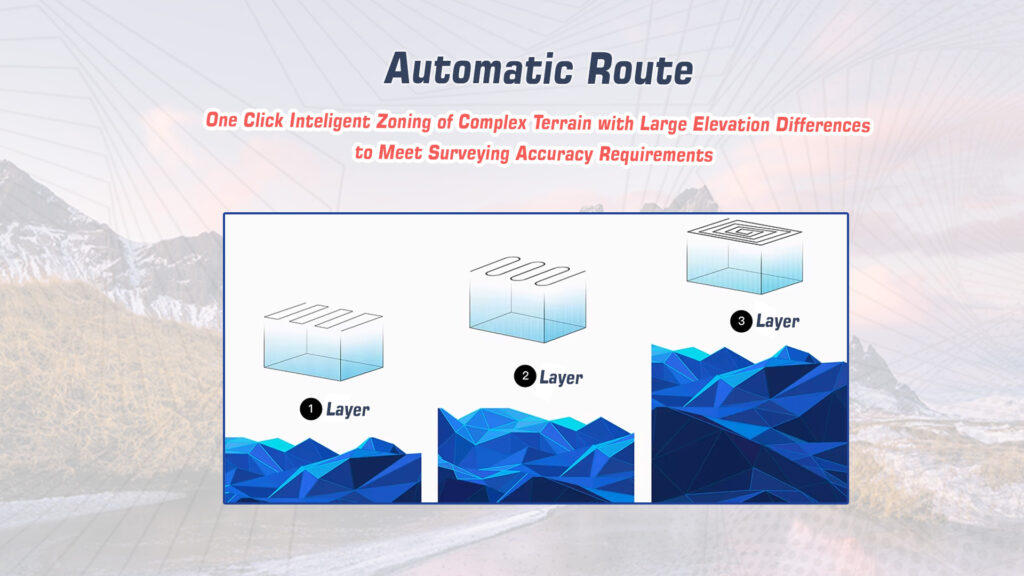

Airbrain Autopilot – Multi-Area Mission Planning

For regions with substantial elevation variations, the system enables multi-area mission planning within a single flight. This allows for segmented data collection based on distinct elevation reference planes, effectively meeting indoor and complex terrain requirements.

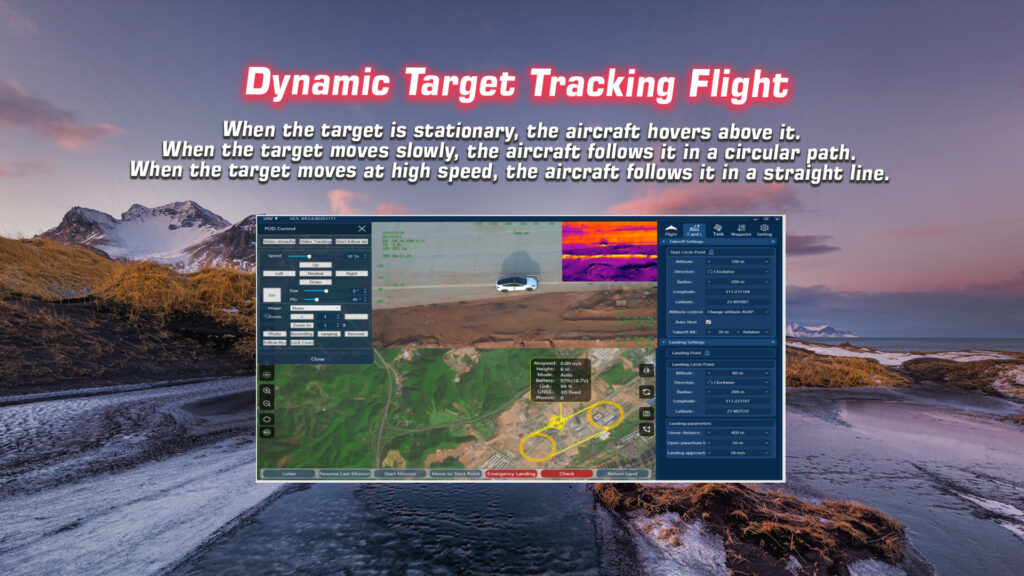

Dynamic Target Tracking Flight

Airbrain Autopilot offers dynamic tracking capabilities tailored to the speed of moving targets. When the target remains stationary, the aircraft hovers above it. For slow-moving targets, the system guides the aircraft to follow in a circular orbit. When the target accelerates, the aircraft seamlessly switches to straight-line tracking to maintain an accurate pursuit.

Airbraina4. 1 - airbrain a4 autopilot - motionew - 4 Airbraina4. 2 - airbrain a4 autopilot - motionew - 5 Airbraina4. 3 - airbrain a4 autopilot - motionew - 6 Airbraina4. 4 - airbrain a4 autopilot - motionew - 7 Airbraina4. 5 - airbrain a4 autopilot - motionew - 8 Airbraina4. 6 - airbrain a4 autopilot - motionew - 9 Airbraina4. 7 - airbrain a4 autopilot - motionew - 10 Airbraina4. 8 - airbrain a4 autopilot - motionew - 11 Airbraina4. 9 - airbrain a4 autopilot - motionew - 12 Airbraina4. 10 - airbrain a4 autopilot - motionew - 13 Airbraina4. 11 - airbrain a4 autopilot - motionew - 14 Airbraina4. 12 - airbrain a4 autopilot - motionew - 15 Airbraina4. 13 - airbrain a4 autopilot - motionew - 16 Airbraina4. 14 - airbrain a4 autopilot - motionew - 17 Airbraina4. 15 - airbrain a4 autopilot - motionew - 18





If you have any questions regarding our products, use the Motionew Contact us page to consult our engineering team.



Specifications

Product Parameter

Autopilot A3 A3PRO A4
IMU Sensors 1 3 3
Number of GPS 1 2 2
Component Grade Industrial Grade Industrial Grade Military Grade
Operating Temperature -20~50ยฐC -20~50ยฐC -40~65ยฐC
Optronics POD Support ร— โˆš โˆš
Tracking Flight Support ร— โˆš โˆš
Engine Control Support ร— ร— โˆš
Three-axis Gimbal Control Support ร— โˆš โˆš

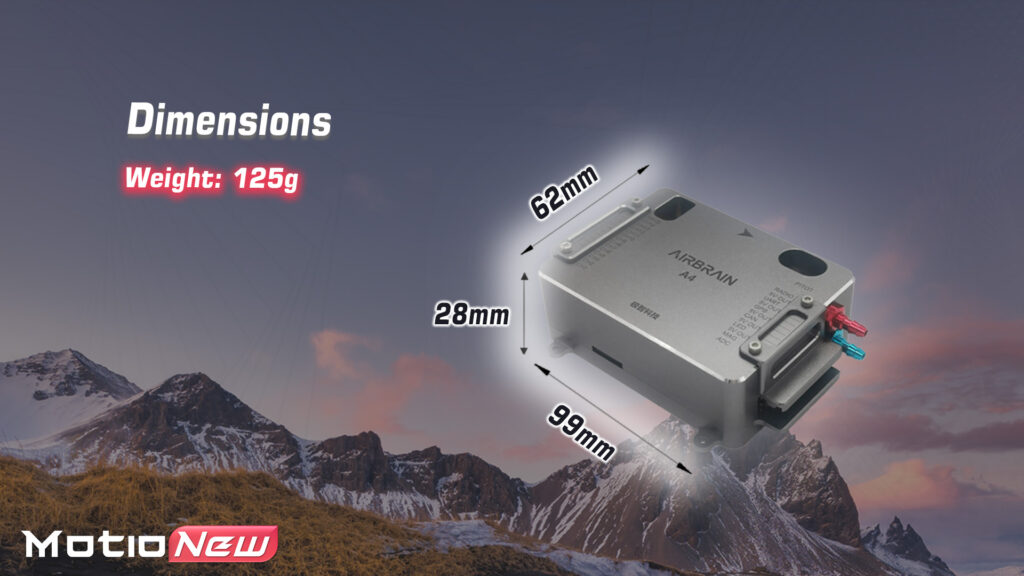

Dimensions 82x62x19mm 82x62x19mm 99x62x28mm
Weight 90g 90g 125g
Airspeed Measurement Method Dynamic Pressure Dynamic Pressure Dynamic Pressure
&Static Pressure
Power Consumption ๏ผœ2W ๏ผœ2W ๏ผœ3W
Attitude Accuracy 1ยฐ 1ยฐ 0.75ยฐ
Heading Accuracy 2ยฐ 2ยฐ 1.5ยฐ
Gyroscope Measurement Rangeย ย  ยฑ450ยฐ/S ยฑ450ยฐ/Sย  ยฑ500ยฐ/S
Accelerometer Measurement Range ยฑ6gย ย  ยฑ6g ยฑ8
Positioning Accuracy (Non-RTK)ย  2.5mย ย  1.5m 1.5m
Velocity Measurement Accuracyย ย  0.1m/s 0.1m/sย  0.1m/s
Altitude Measurement Rangeย  -500~10000mย  -500~10000mย  -500~10000m

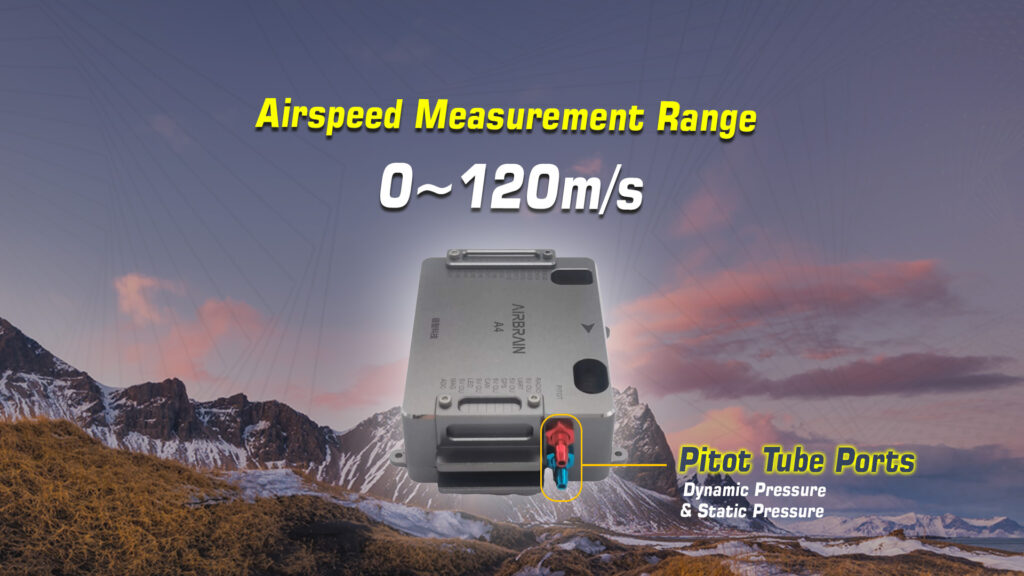

Airspeed Measurement Rangeย ย  0~40m/sย  0~40m/s 0~120m/s

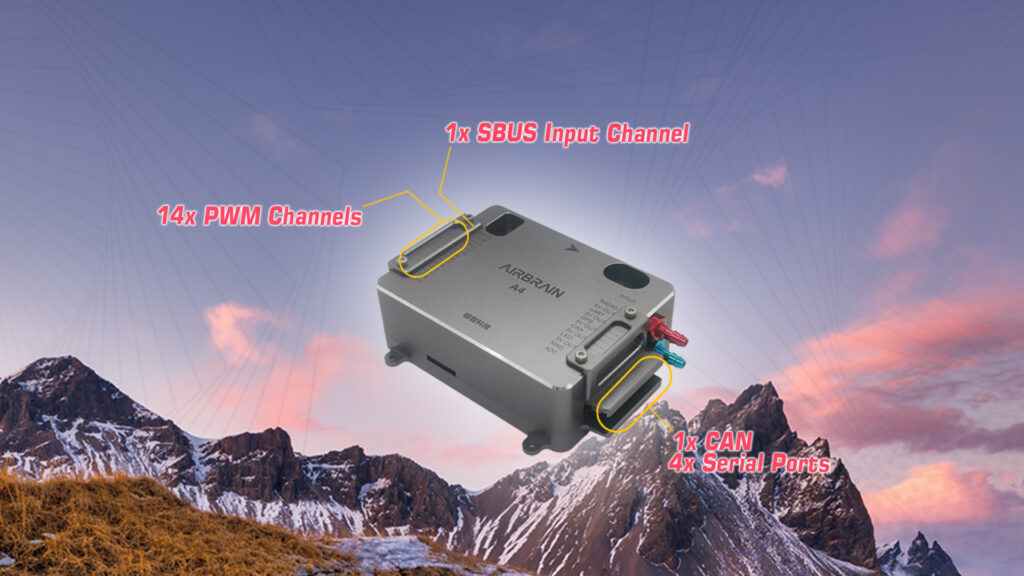

PWM Channelsย ย  14ย  14 14
SBUS Input Channels 1 1 1
Servo Update Frequencyย ย  50~200Hzย  50~200Hz 50~200Hz
Voltage Monitoring Channels 2 2 2
Voltage Input Rangeย  ย  0~54V 0~54V 0~62V
CAN Communication Interfaceย ย  0 1 1
Serial Ports 3 4 4
Engine RPM Monitoring Channelsย  0 0 1
Engine RPM Monitoring Rangeย  0 0ย  0~20000RPM



Product contents

Pleaseย contact usย for more information.

Documents

Click here to download AirbrainA4 Autopilot datasheet
