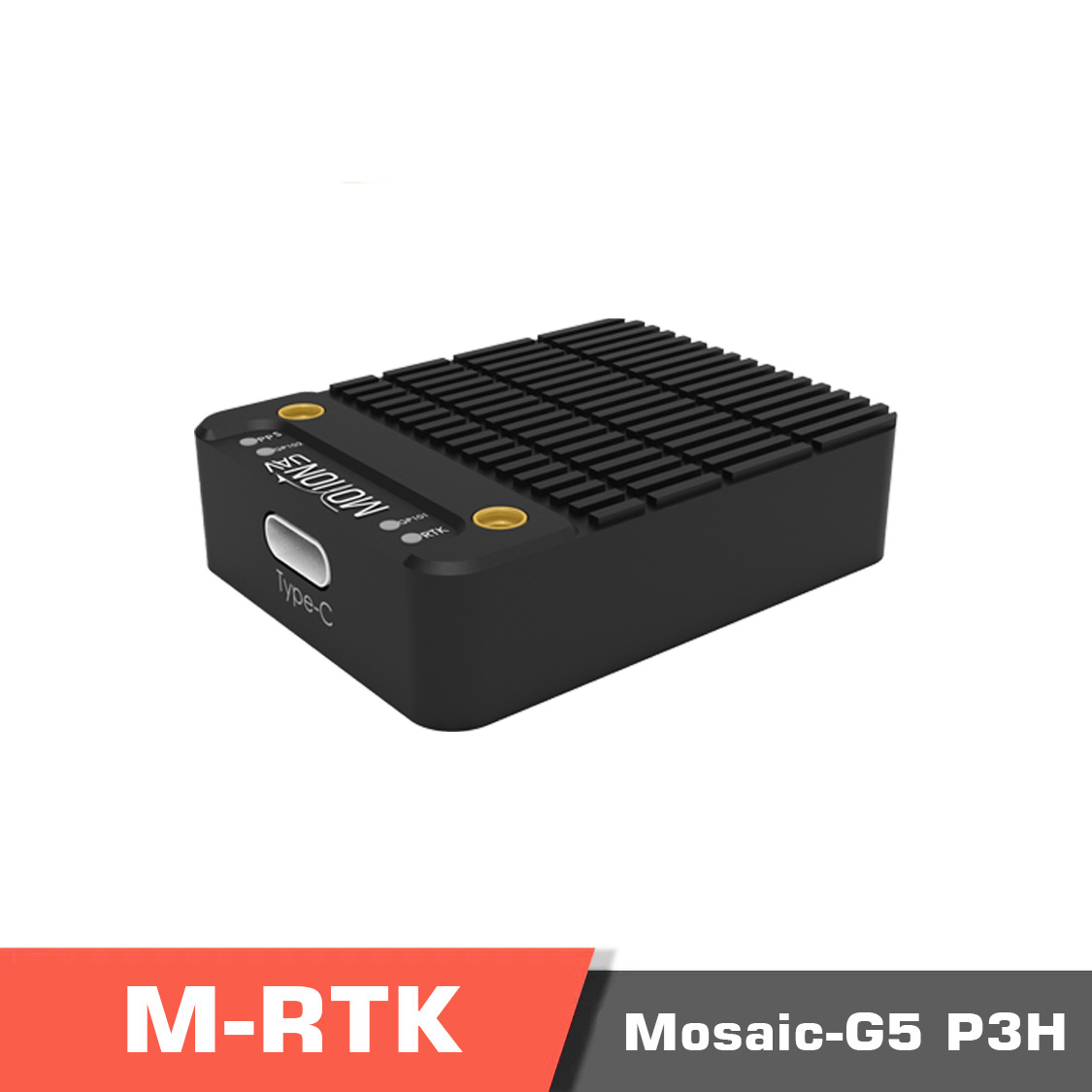

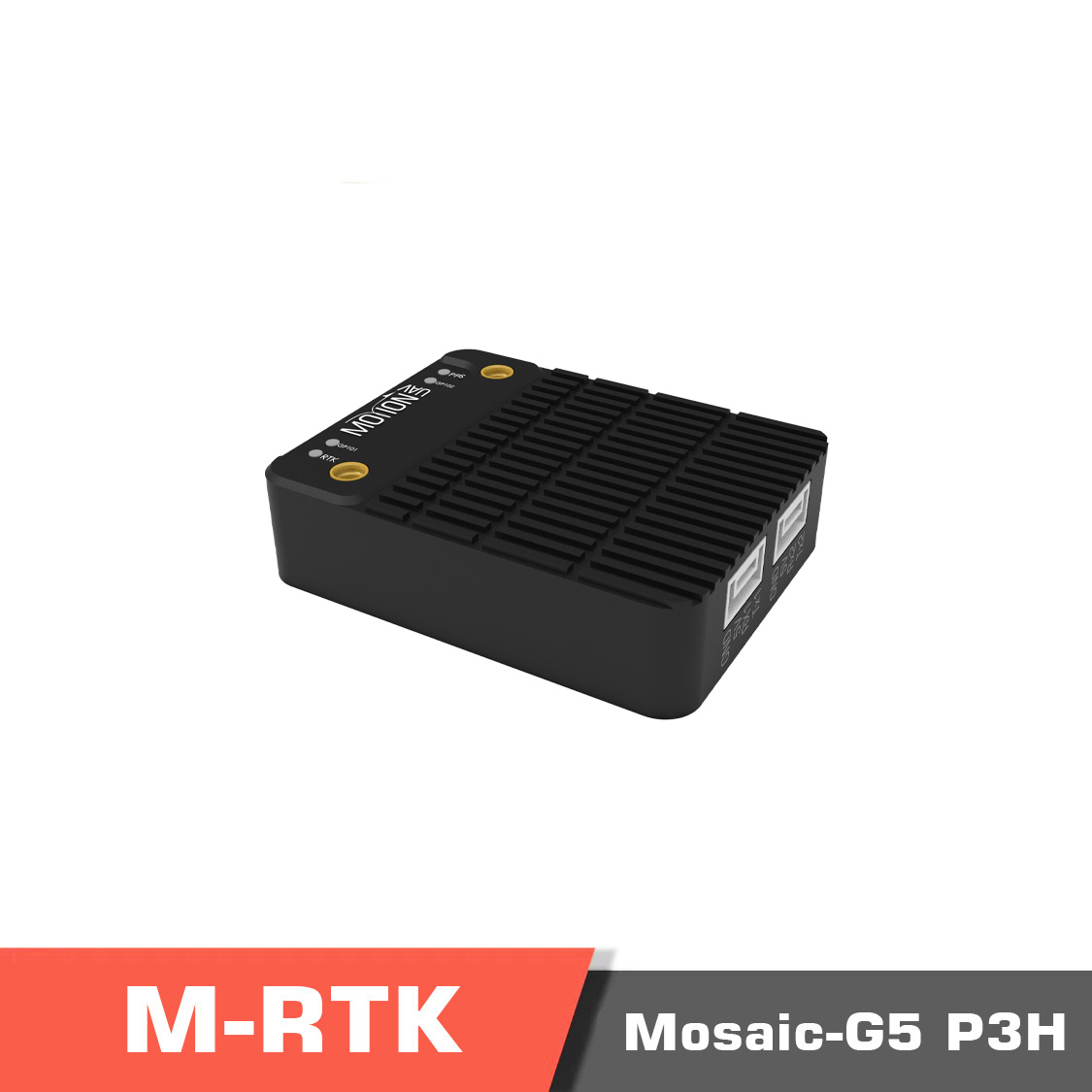

MotionUAV M-RTK Mosaic-G5 P3H

Name: MotionUAV M-RTK Mosaic-G5 P3H
SKU: 1005003417948278-1-2-1-5-1-1
Price: 879.00 USD
Availability: InStock

879.00 $

Payment Methods:

Description

Specifications

Supported Modes	Base Station / Rover

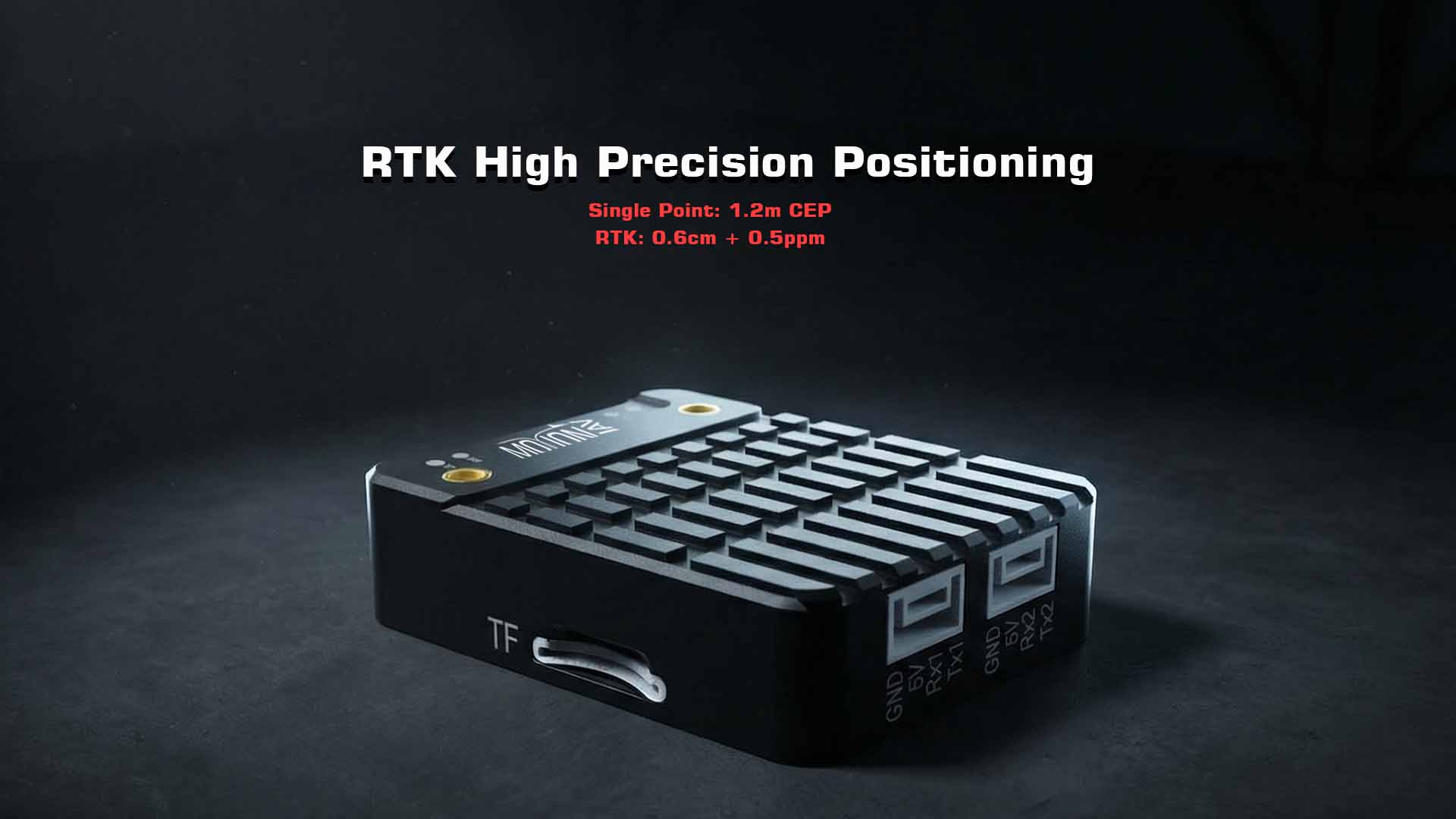

Positioning Accuracy	Single Point: 1.2 m CEP / RTK: 0.6 cm + 0.5 ppm
Velocity Accuracy	0.03 m/s

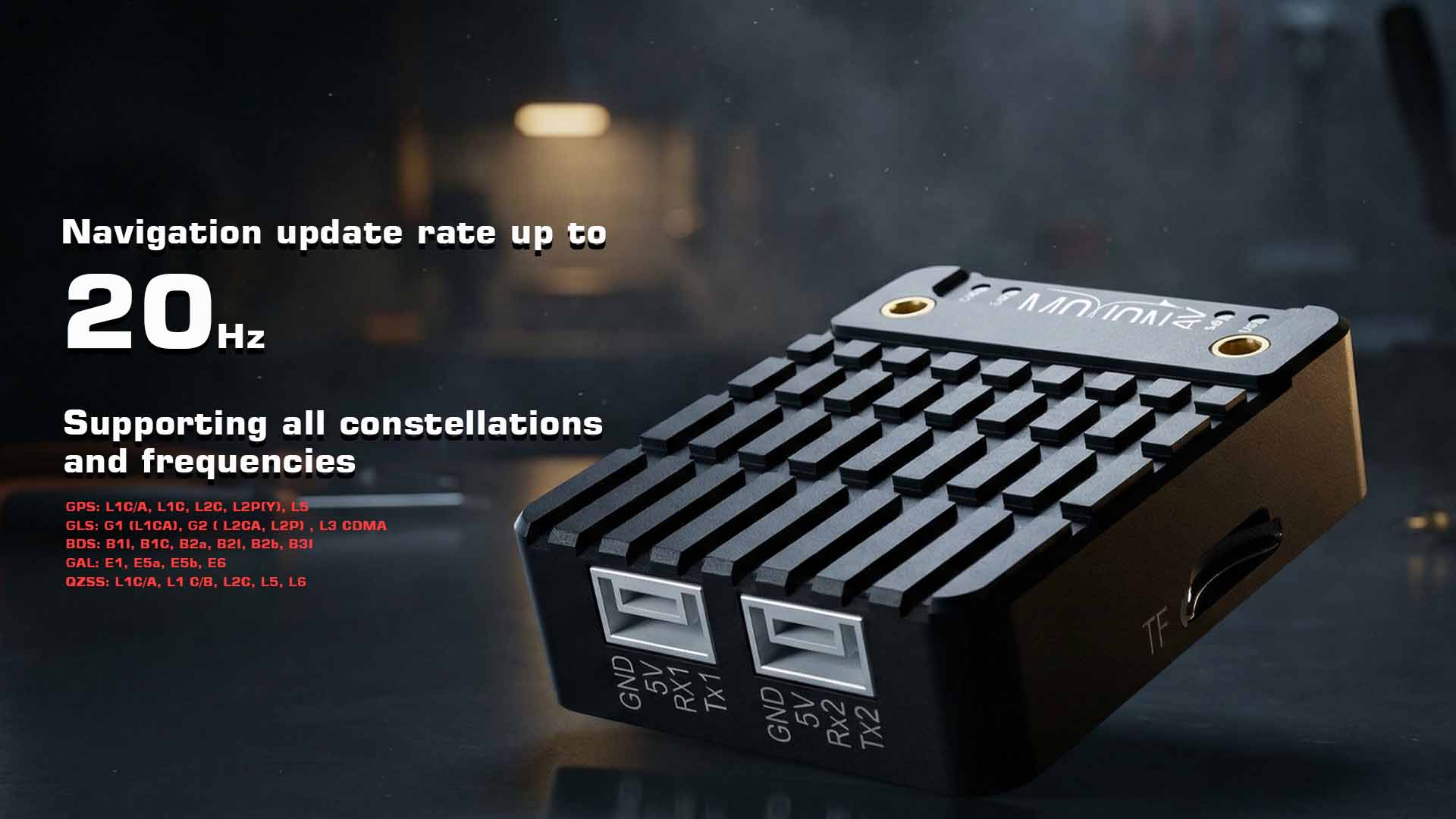

Navigation Update Rate	Up to 20 Hz

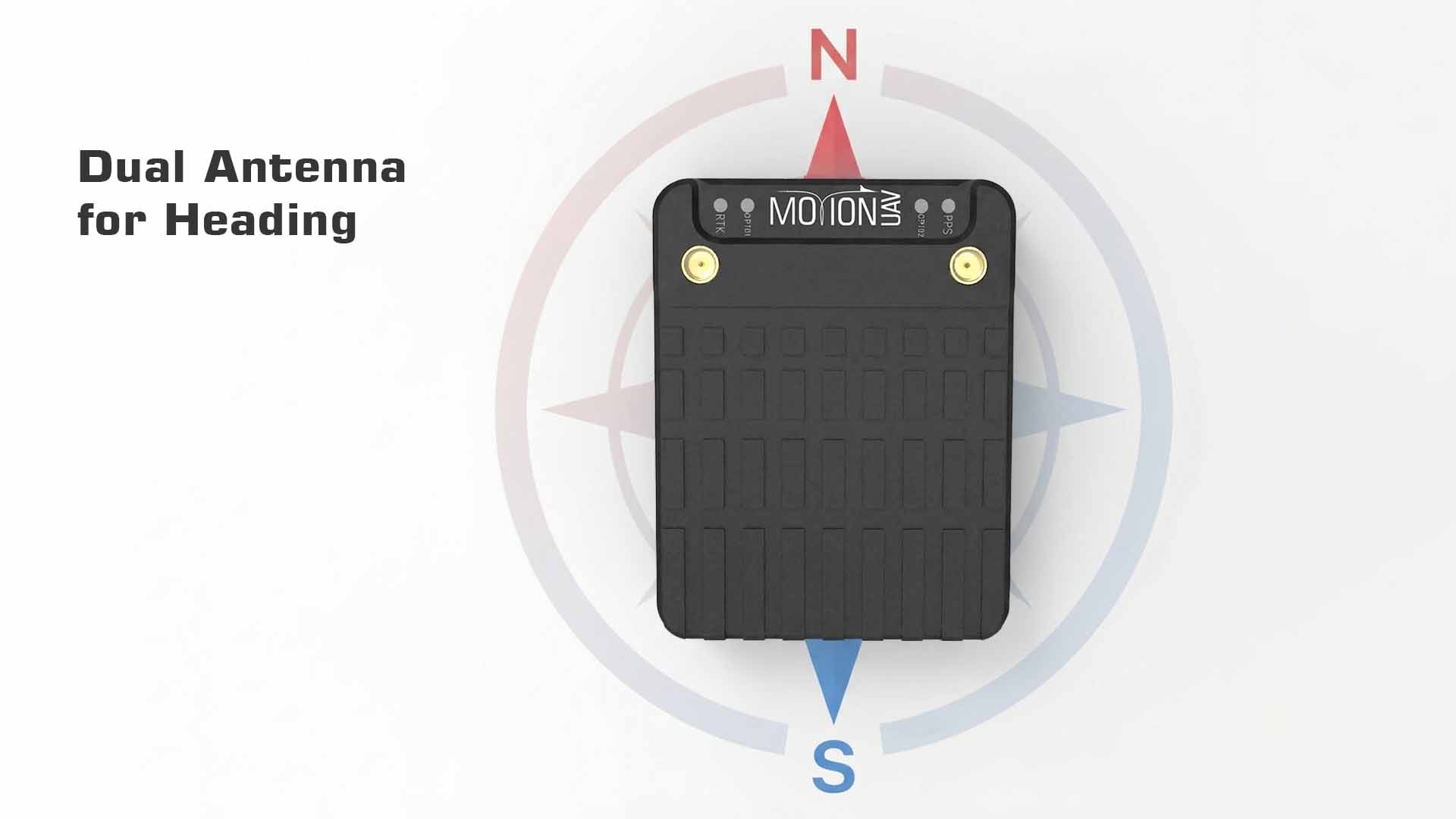

Antenna	Dual Antenna (for heading)

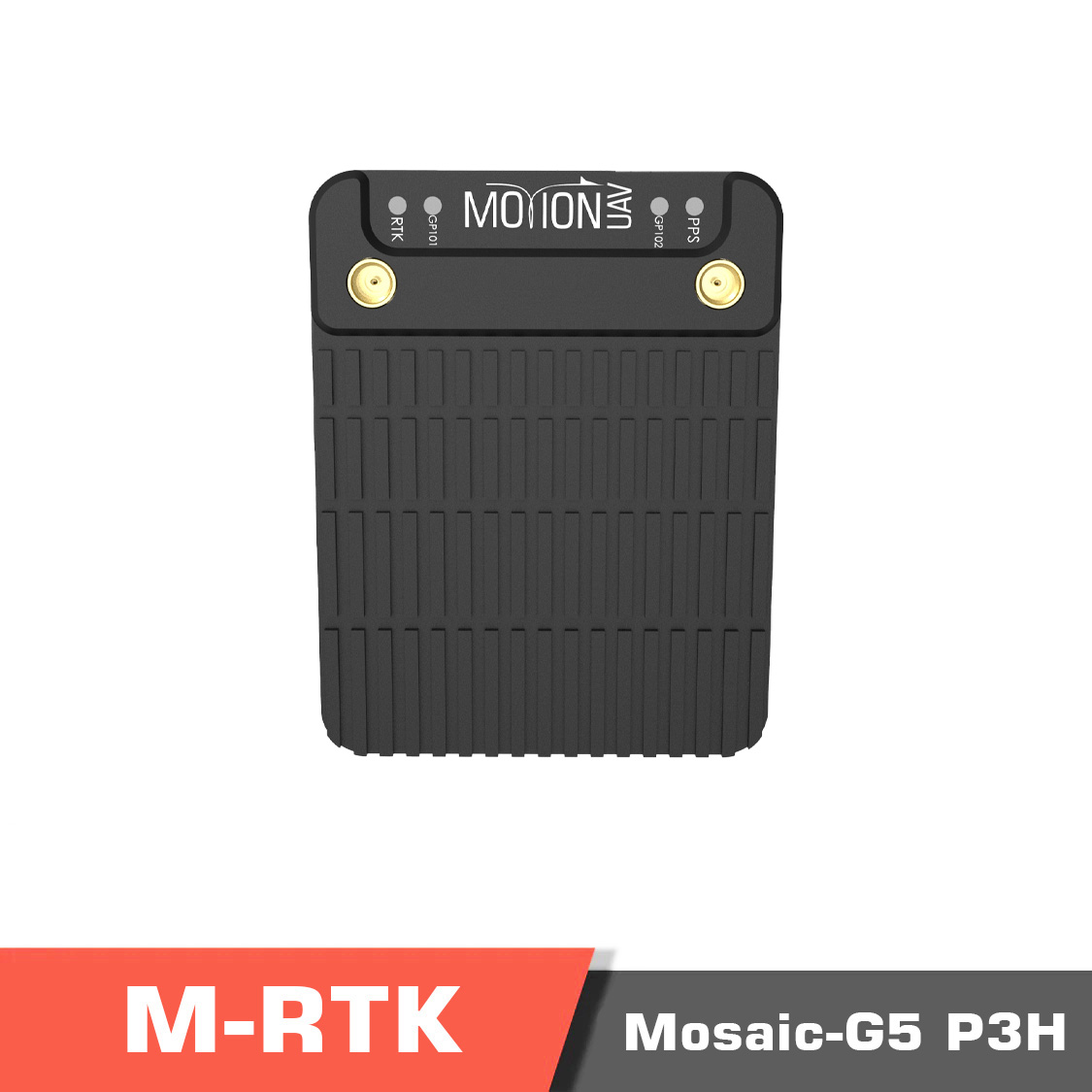

Antenna Ports	2 × MMCX connectors
Interfaces	Dual UART Port
UART Pinout (as labeled)	UART1: GND, 5V, RX1, TX1 / UART2: GND, 5V, RX2, TX2

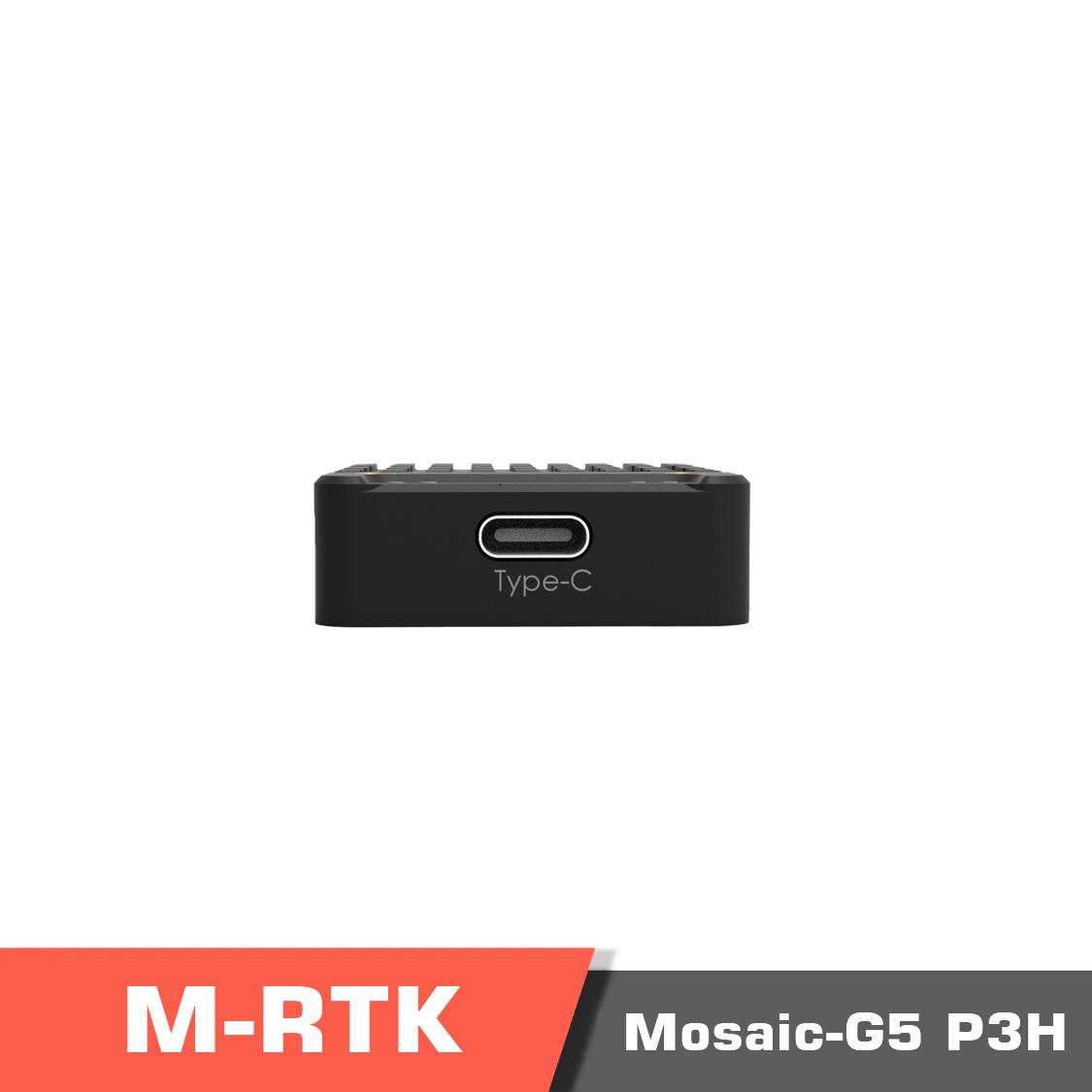

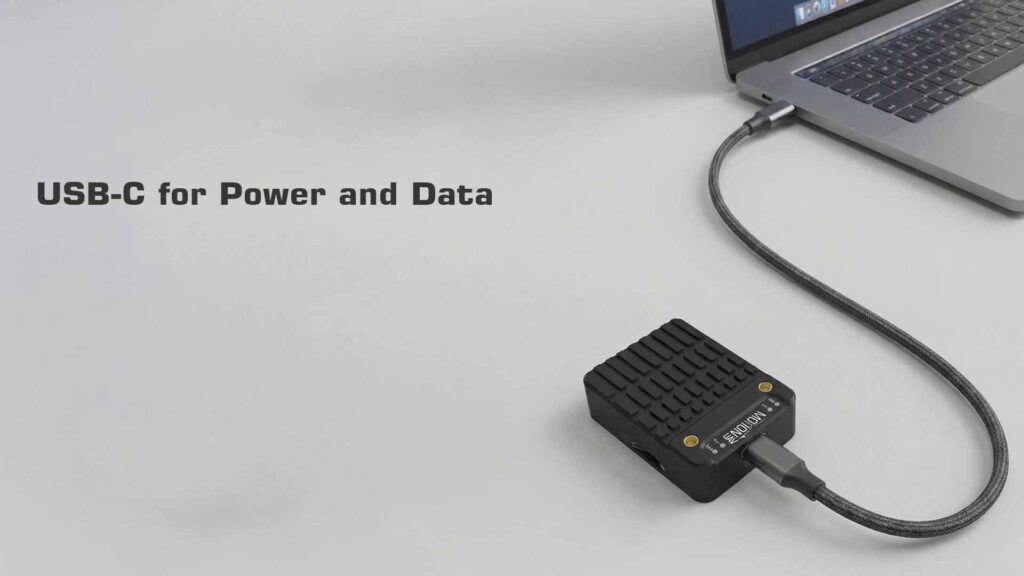

USB	USB-C for power and data

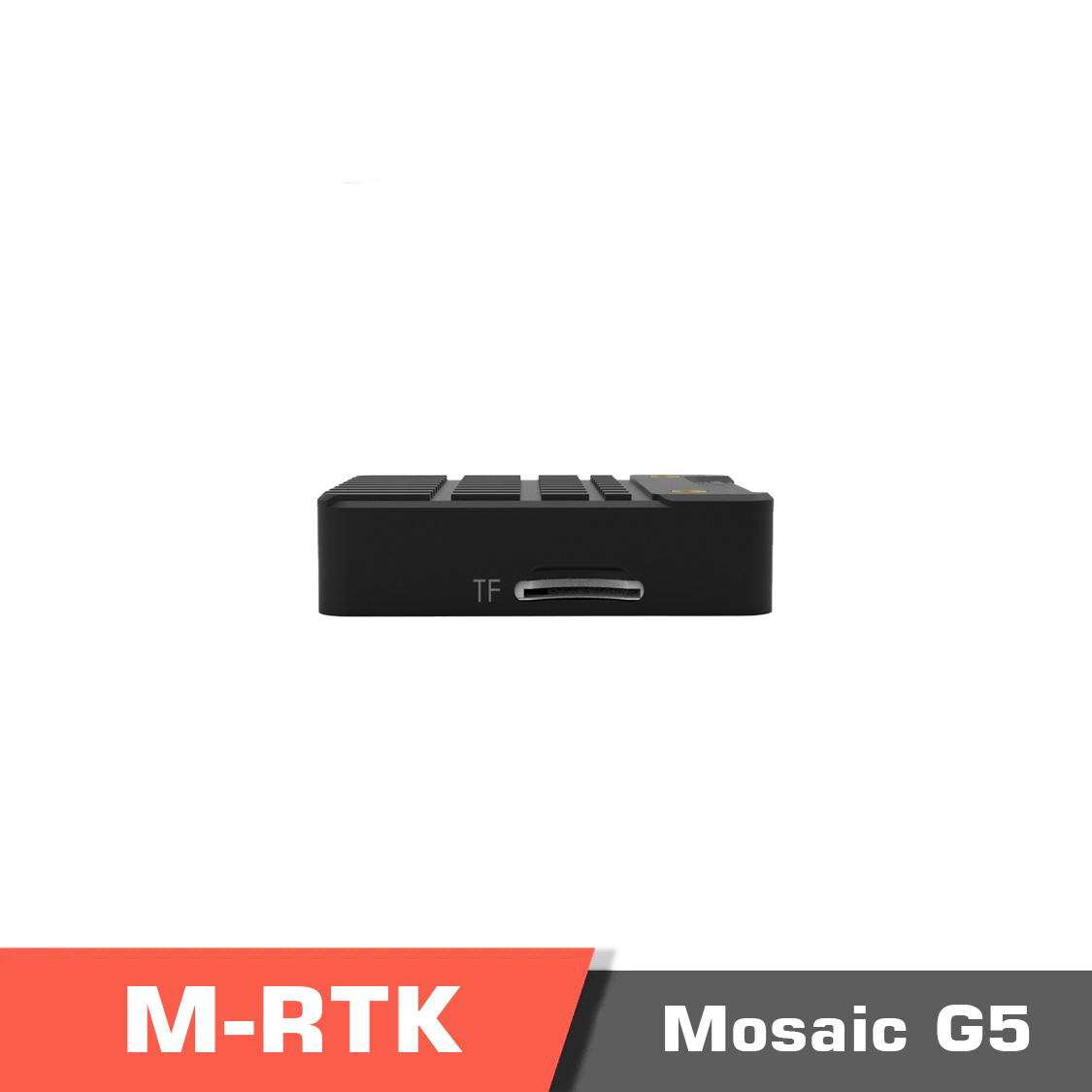

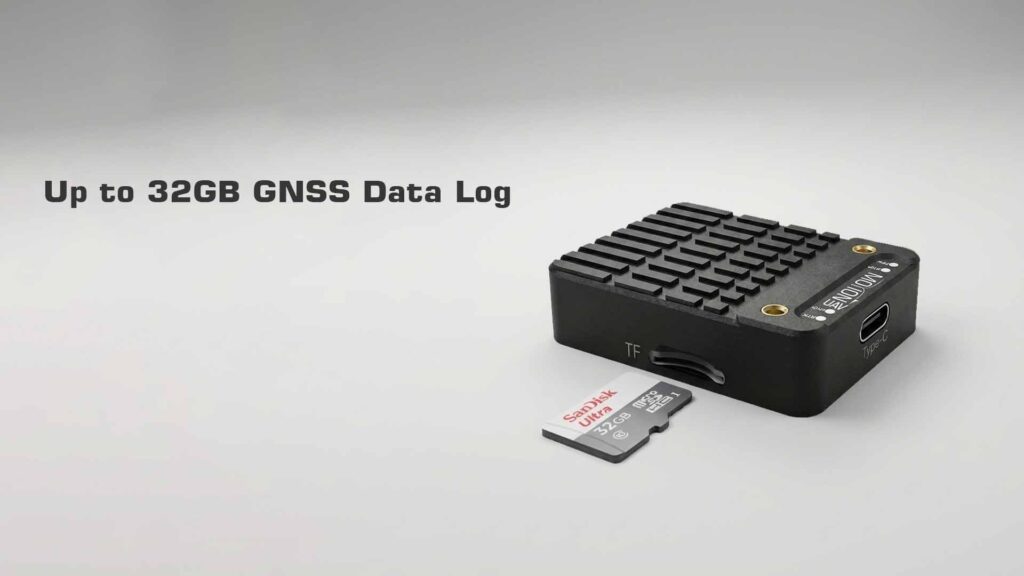

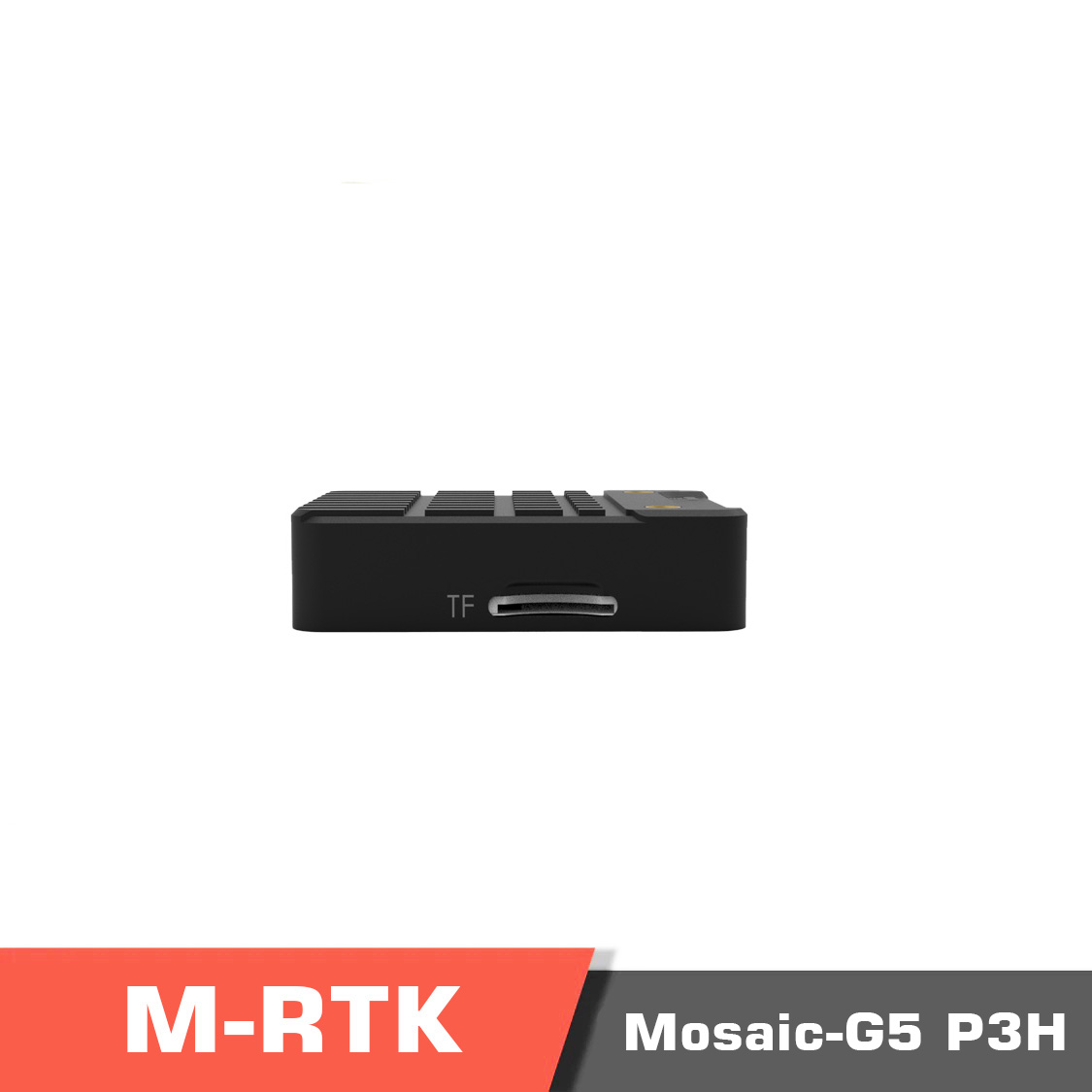

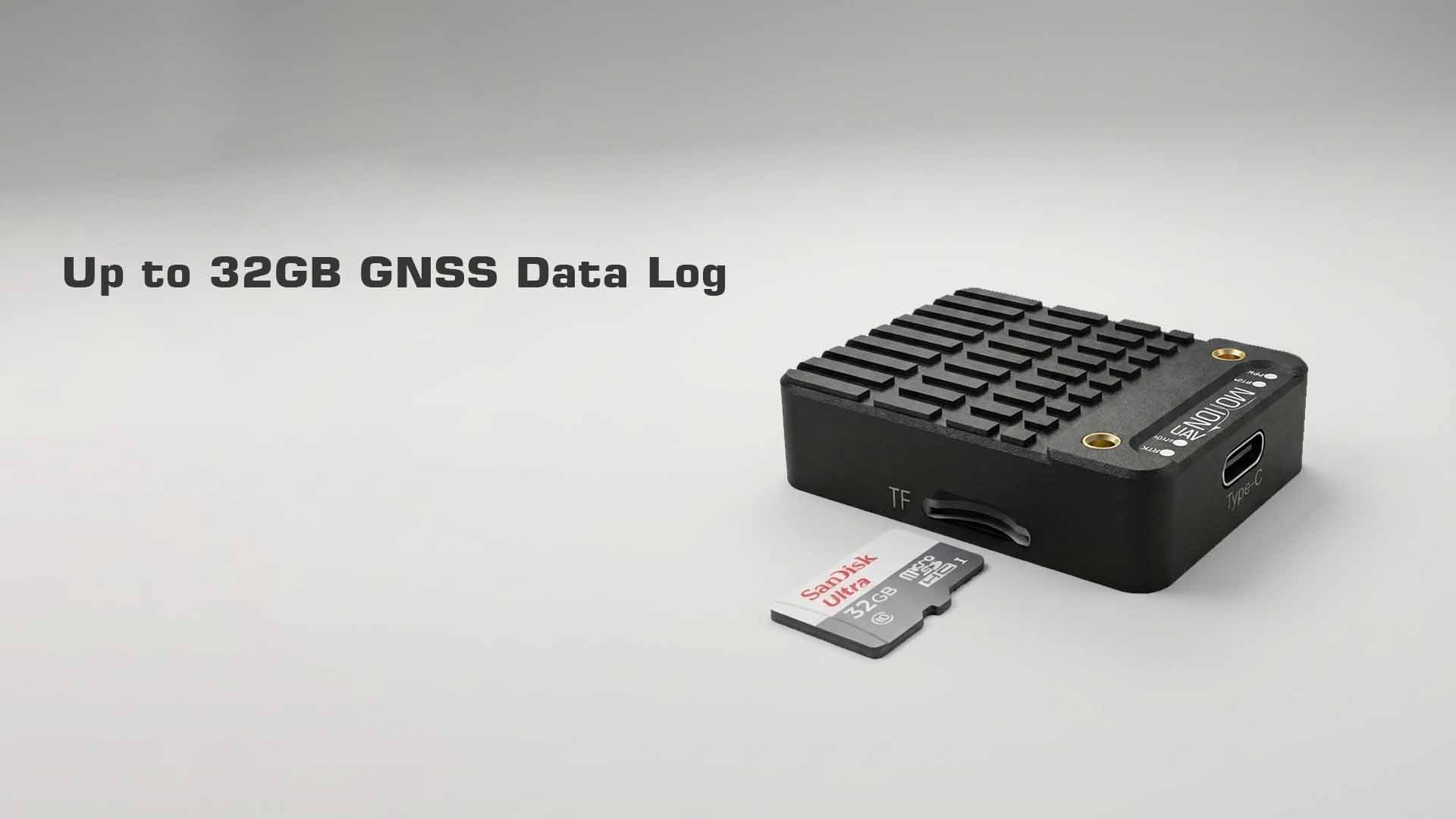

Storage	GNSS data log up to 32 GB (TF / microSD)
Output Protocols	NMEA, SBF, RTCM
Constellations	GPS, GLS (GLONASS), BDS (BeiDou), GAL (Galileo), QZSS
Frequencies — GPS	L1C/A, L1C, L2C, L2P(Y), L5
Frequencies — GLONASS	G1 (L1CA), G2 (L2CA, L2P), L3 CDMA
Frequencies — BeiDou	B1I, B1C, B2a, B2I, B2b, B3I
Frequencies — Galileo	E1, E5a, E5b, E6
Frequencies — QZSS	L1C/A, L1C/B, L2C, L5, L6

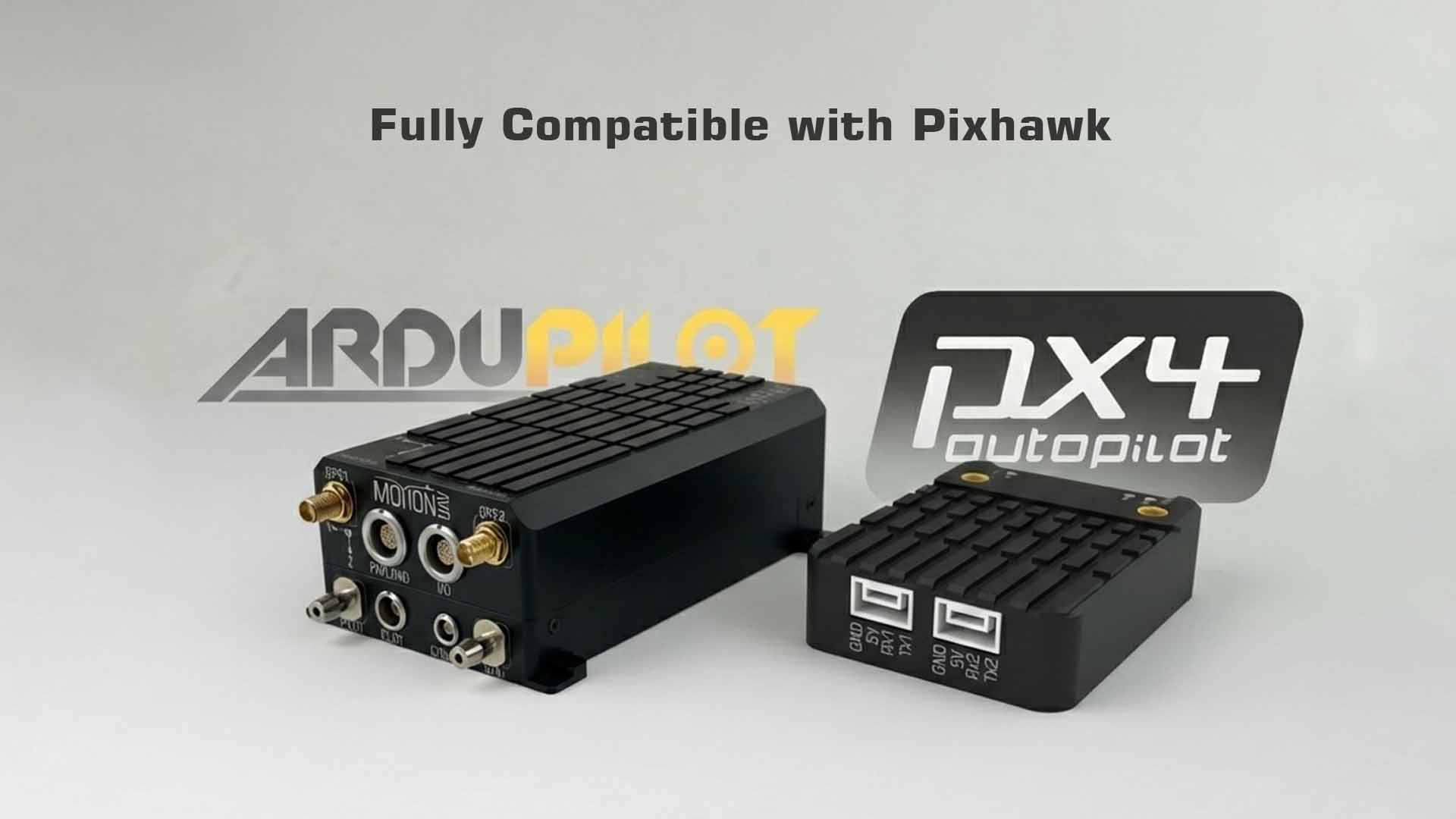

Compatibility	Pixhawk, ArduPilot, PX4 Autopilot

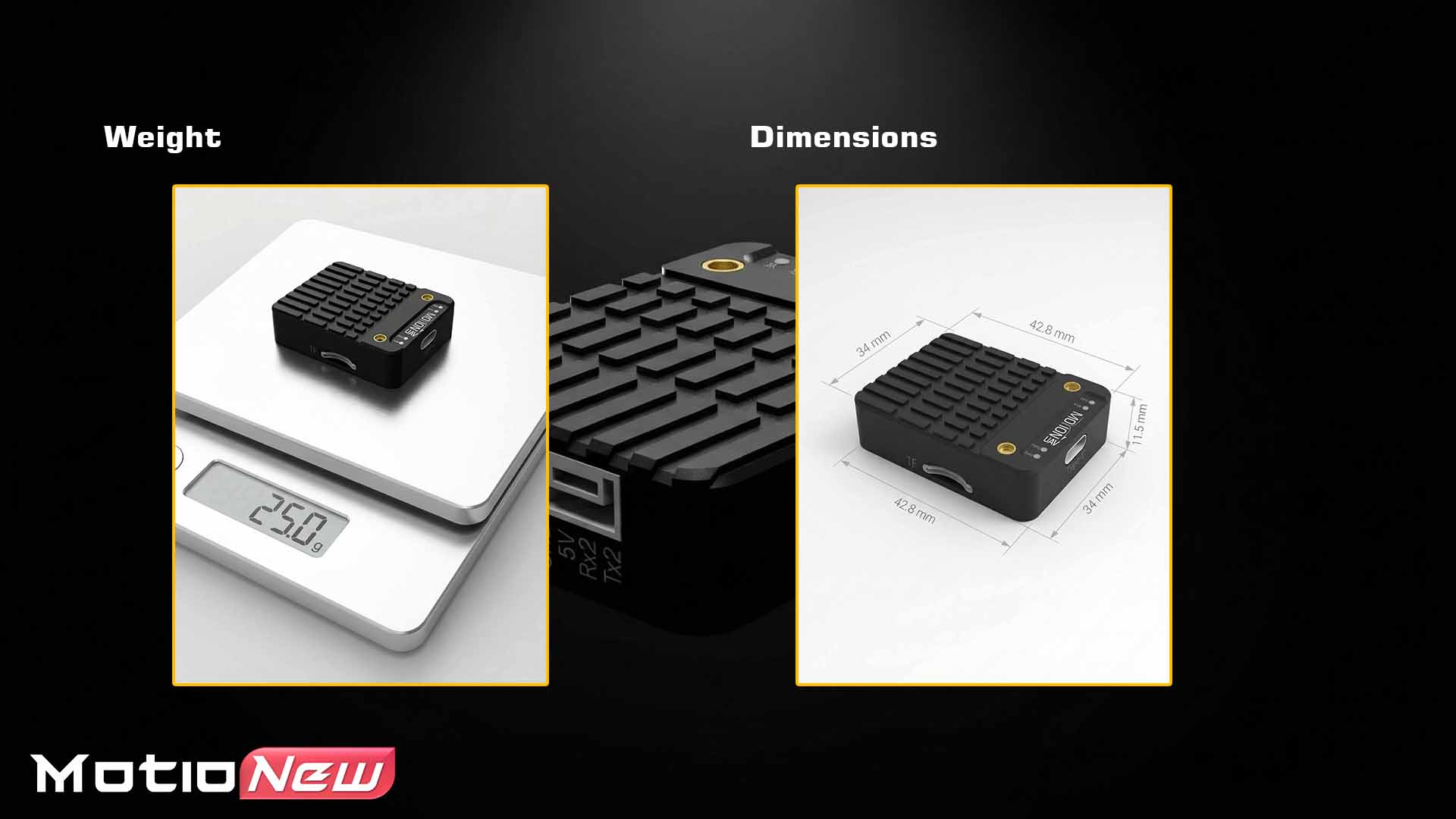

Dimensions (L × W × H)	42.8 × 34 × 11.5 mm
Weight	25.0 g

Documents

Please contact us for more information.

Product contents

Please contact us for more information.

Reviews

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

There are no reviews yet.

Be the first to review “MotionUAV M-RTK Mosaic-G5 P3H”

You must be logged in to post a review.

RTK Positioning Accuracy	0.6 cm + 0.5 ppm
Heading Capability	Dual Antenna
Navigation Update Rate	Up to 20 Hz
Constellations + Frequencies	GPS/GLONASS/BeiDou/Galileo/QZSS + Multi-band (L1/L2/L5 etc.)
Compatibility + I/O	Pixhawk/ArduPilot/PX4 + NMEA/SBF/RTCM + Dual UART + USB-C
