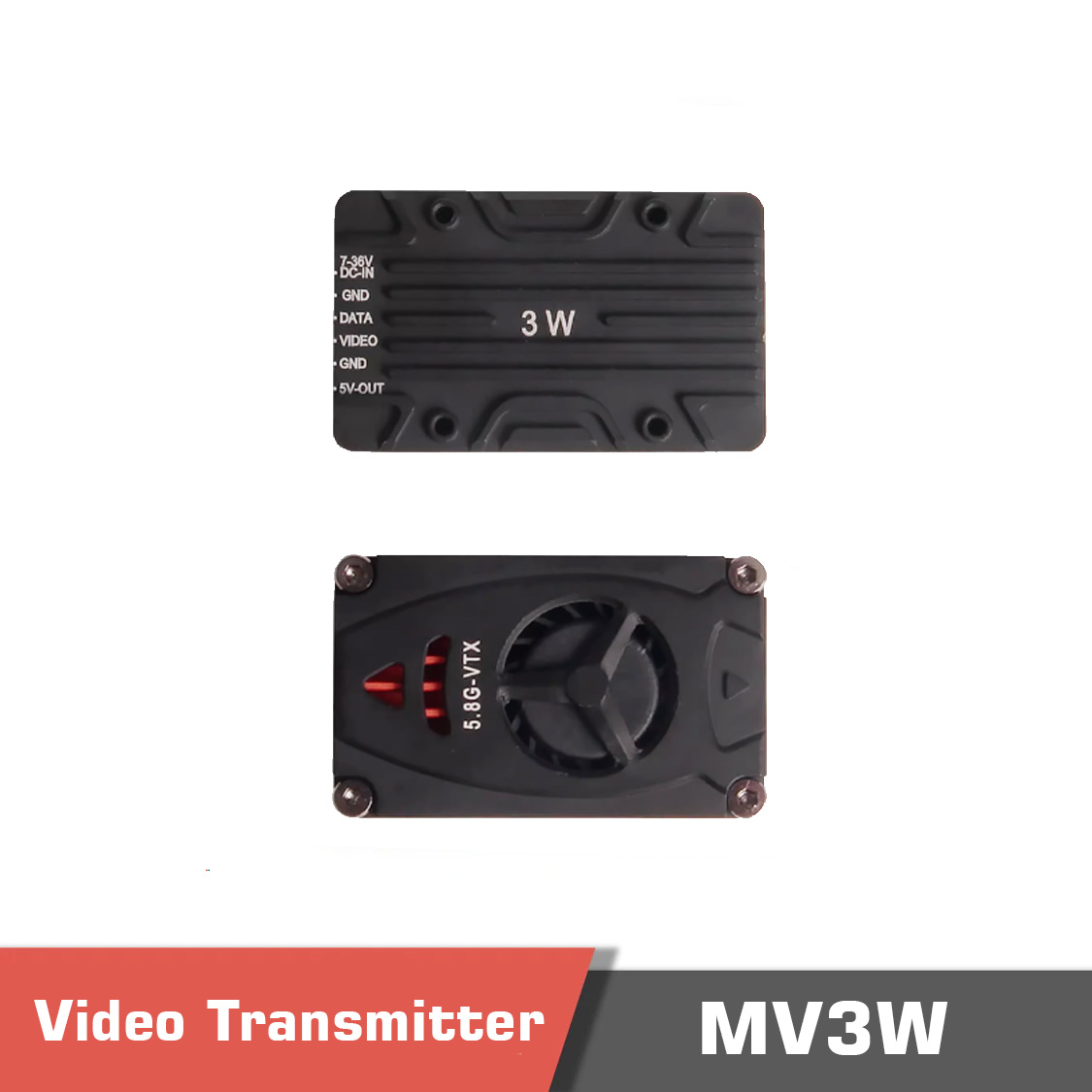

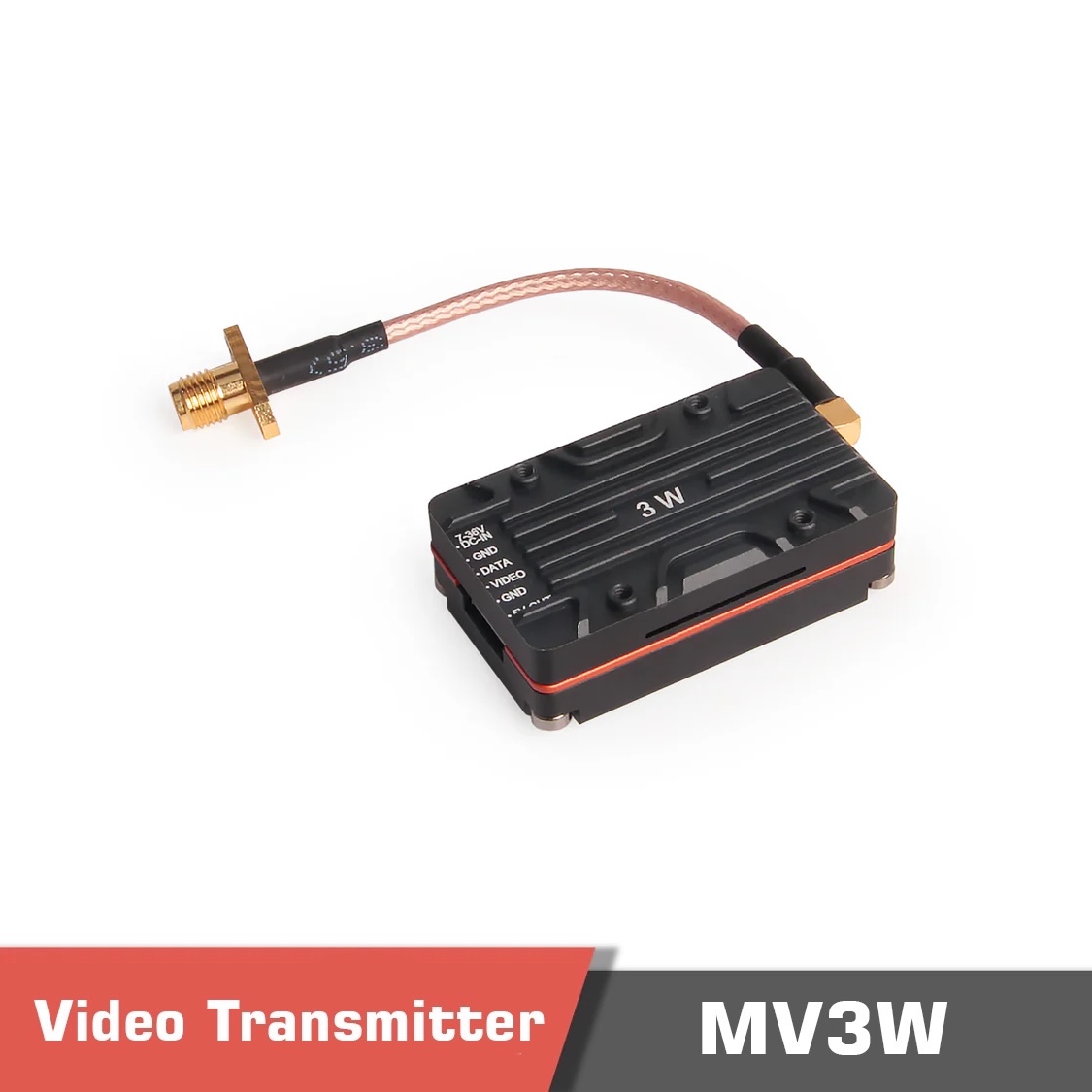

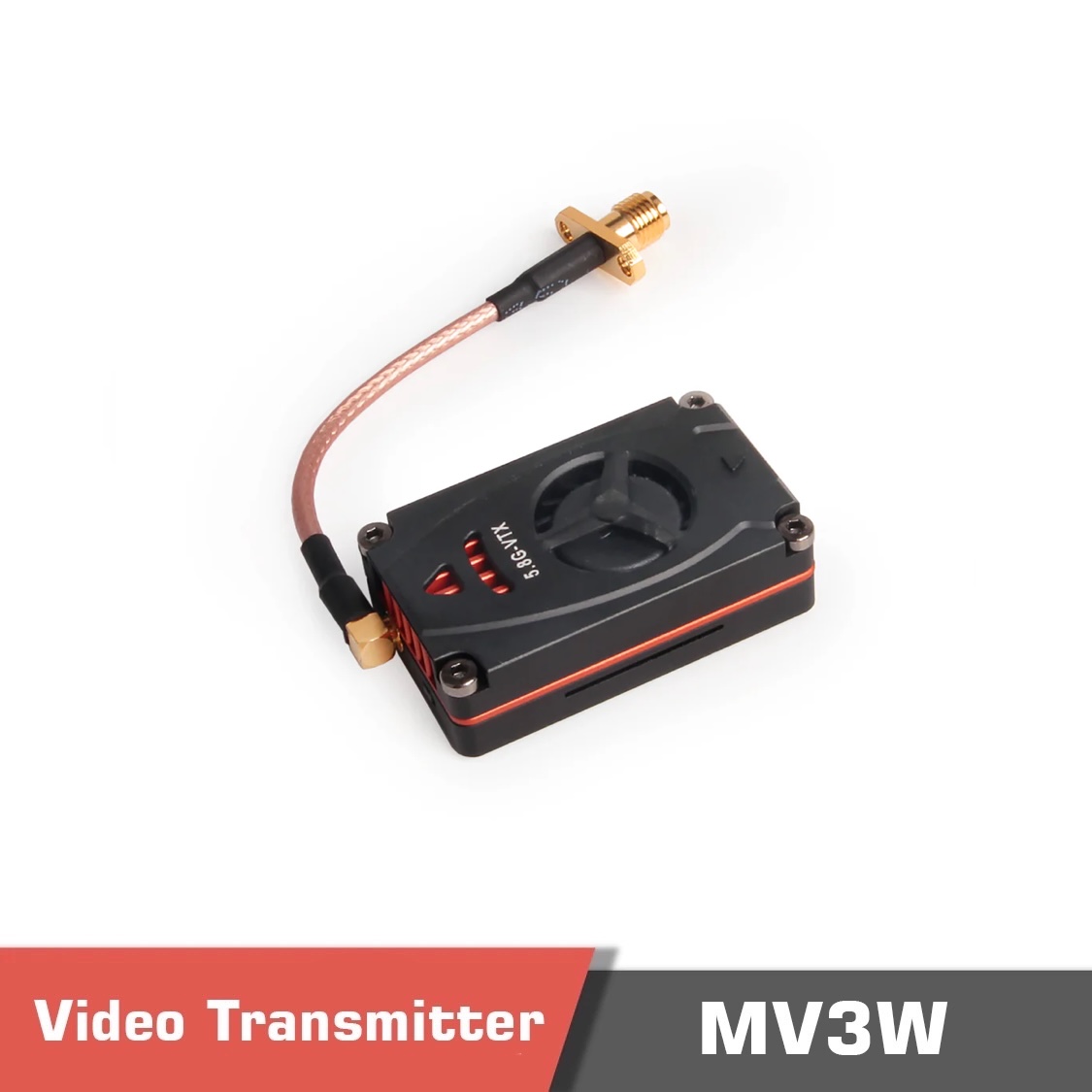

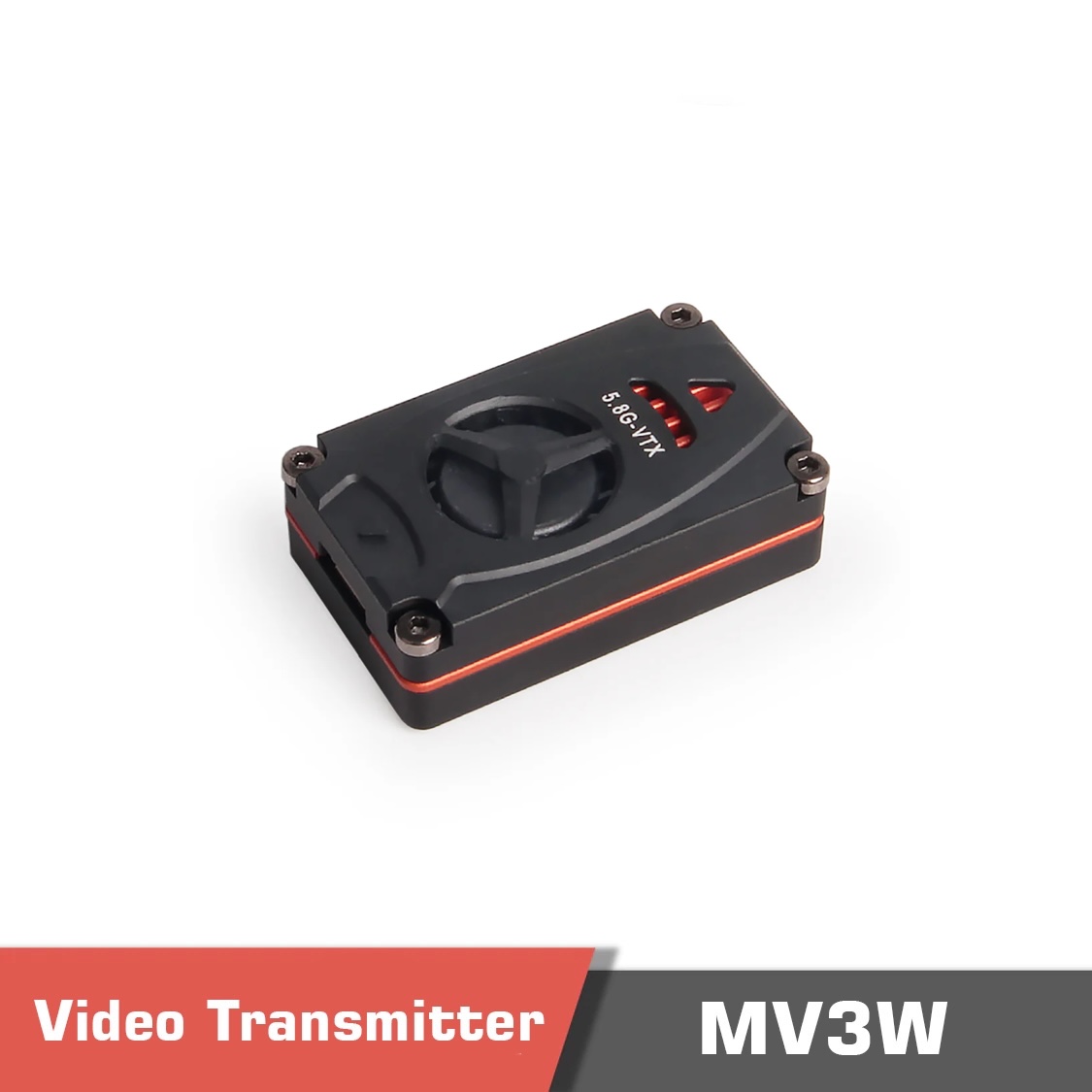

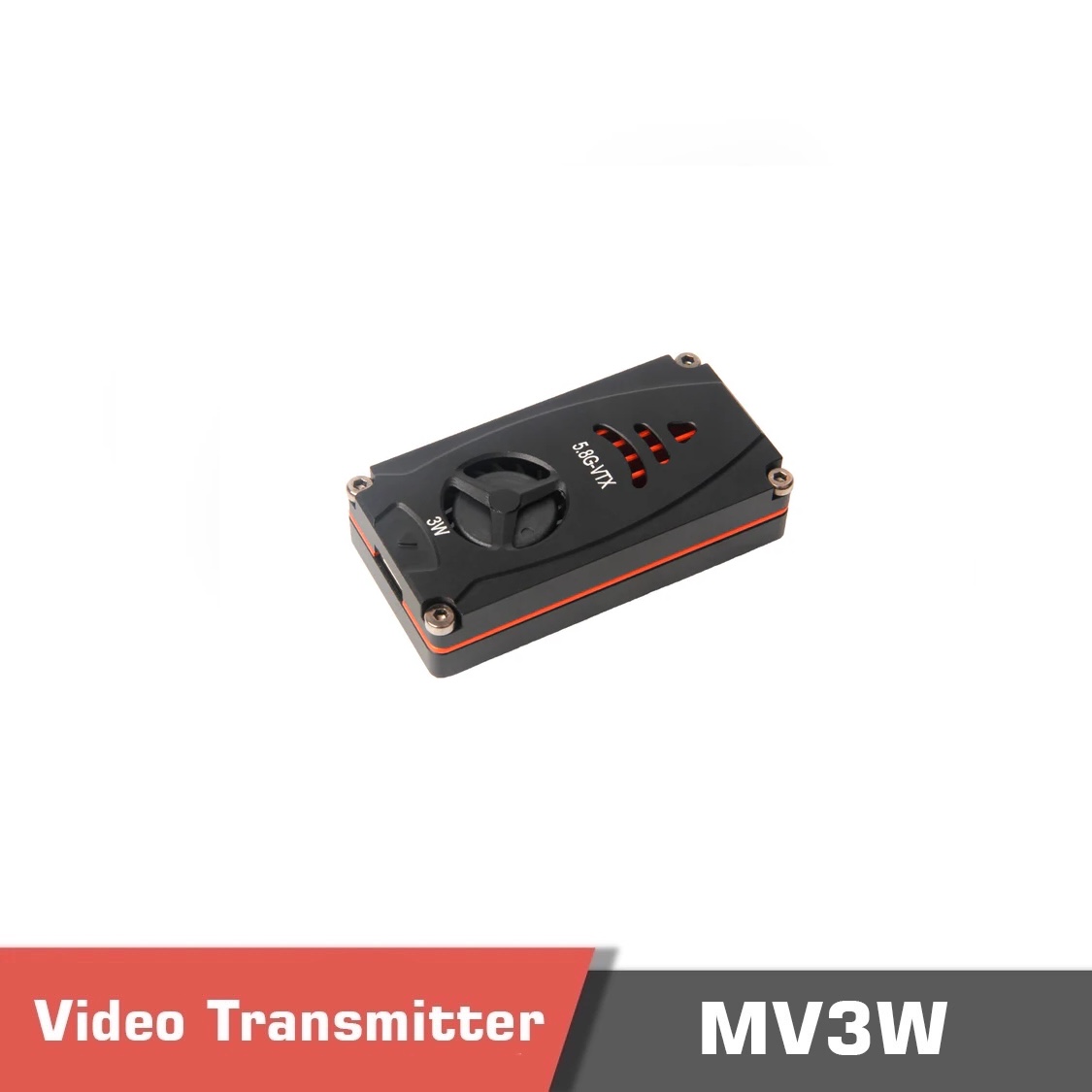

Video transmitter MV3W VTX, 3W 5.8GHz videolink

59.00 $

PayPal
Visa
Master

Description

Indicator Light Description

  • Power light (Green)
    • Blink once per sequence – 25mW
    • 2 per sequence – 1.6W
    • 3 per sequence – 2W
    • 4 per sequence – 2.5W
    • 5 per sequence – 3W
  • Frequency indicator light (Blue)
    • Binary indicator. No lights means CH1, all lights means CH7
  • Frequency band lights (Red)
    • Blink once per sequence – Band A
    • 2 per sequence – Band B
    • 3 per sequence – Band E
    • 4 per sequence – Band F
    • 5 per sequence – Band R

Function Button Operation Instructions

  • To switch frequencyย – Short press the button to switch channel.
  • To switch the frequency bandย – Press and hold the button for 2 seconds to enter band changing mode. Short press the button to change the frequency band once enter the band changing mode.
  • To switch powerย – Press and hold the button for 6 seconds to enter power changing mode. Short press the button to switch the power level. Green LED blinking times for each blinking sequence indicate the power level (25mW/1.6W/2W/2.5W/3W).
  • Once finish configuration, wait 8 seconds for it to save the settings.

Frequency Table

2.5WFrequencyTable - MotioNew - 12





For a comprehensive reading of related products, please visit theย Motionewย website.

Specifications

Frequency 5.8G
5 bands: A, B, E, F, R
Transmission Channel: 37
Operating mode Key button, Smart Audio
Transmission power Switchable: PIT, 25mW, 3000mW
Antenna connector MMCX
Power input 7-36VDC
Current consumption 1.3A/12VDC @ 3000mW
RF impedance 50ฮฉ
Inputvideo impedance 75ฮฉ
Input video amplitude CVBS 0.8~1.2VP-P
Video format NTSC/PAL

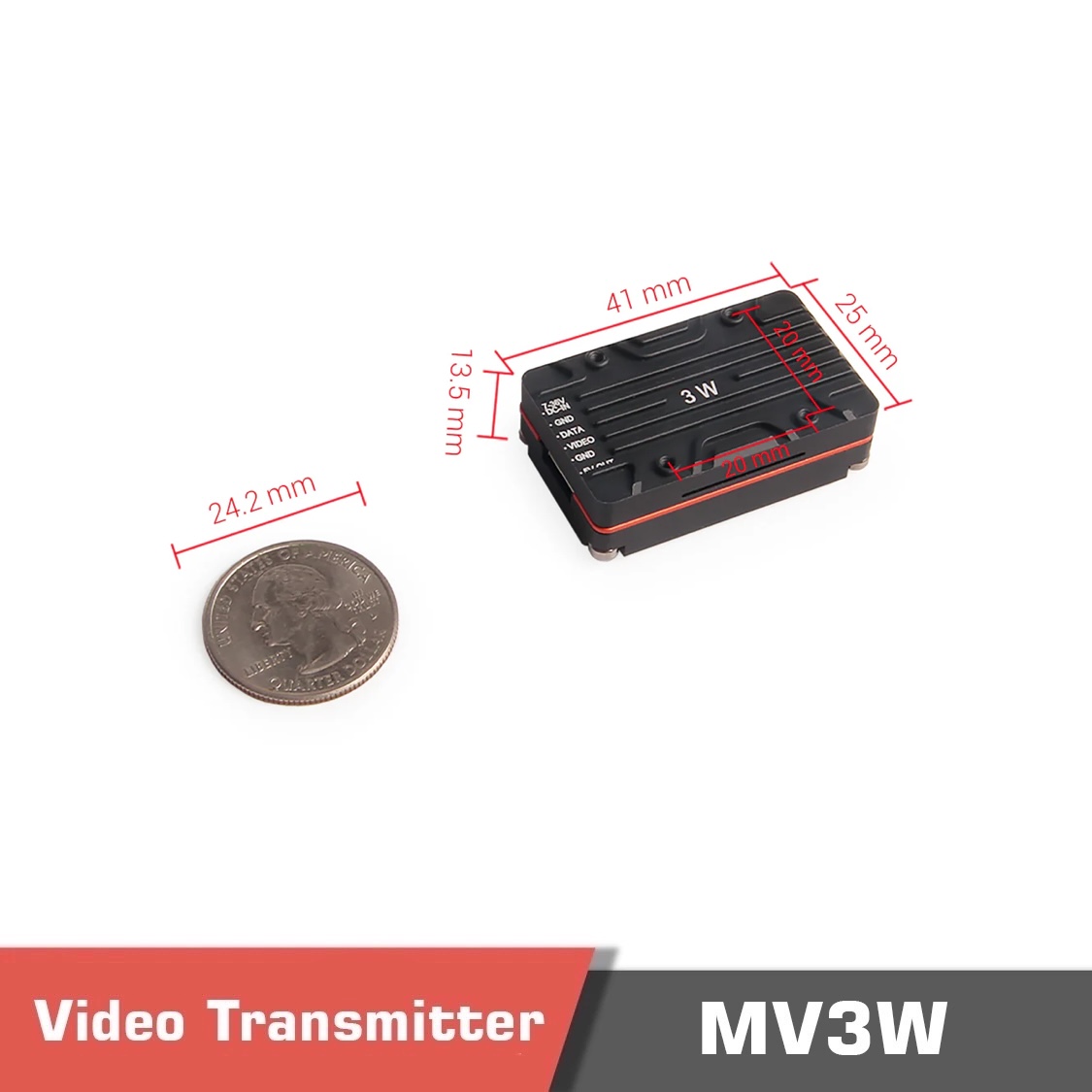

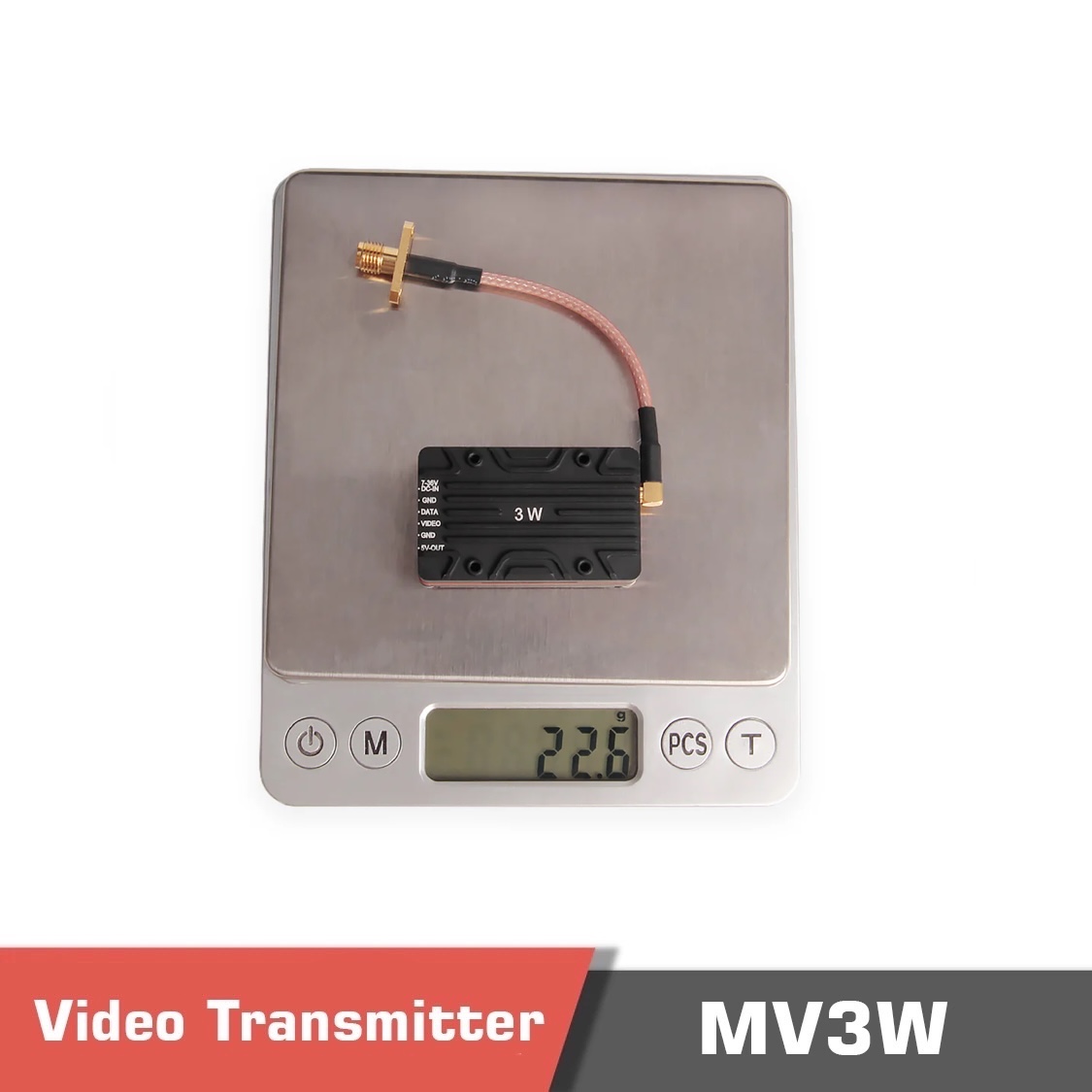

Dimension(L*W*H) v1: 40.8 x 24.8 x 13.3mm

v2: 53.79 x 27.8 x 13.5 mm



Documents

Product contents

Package Includes:

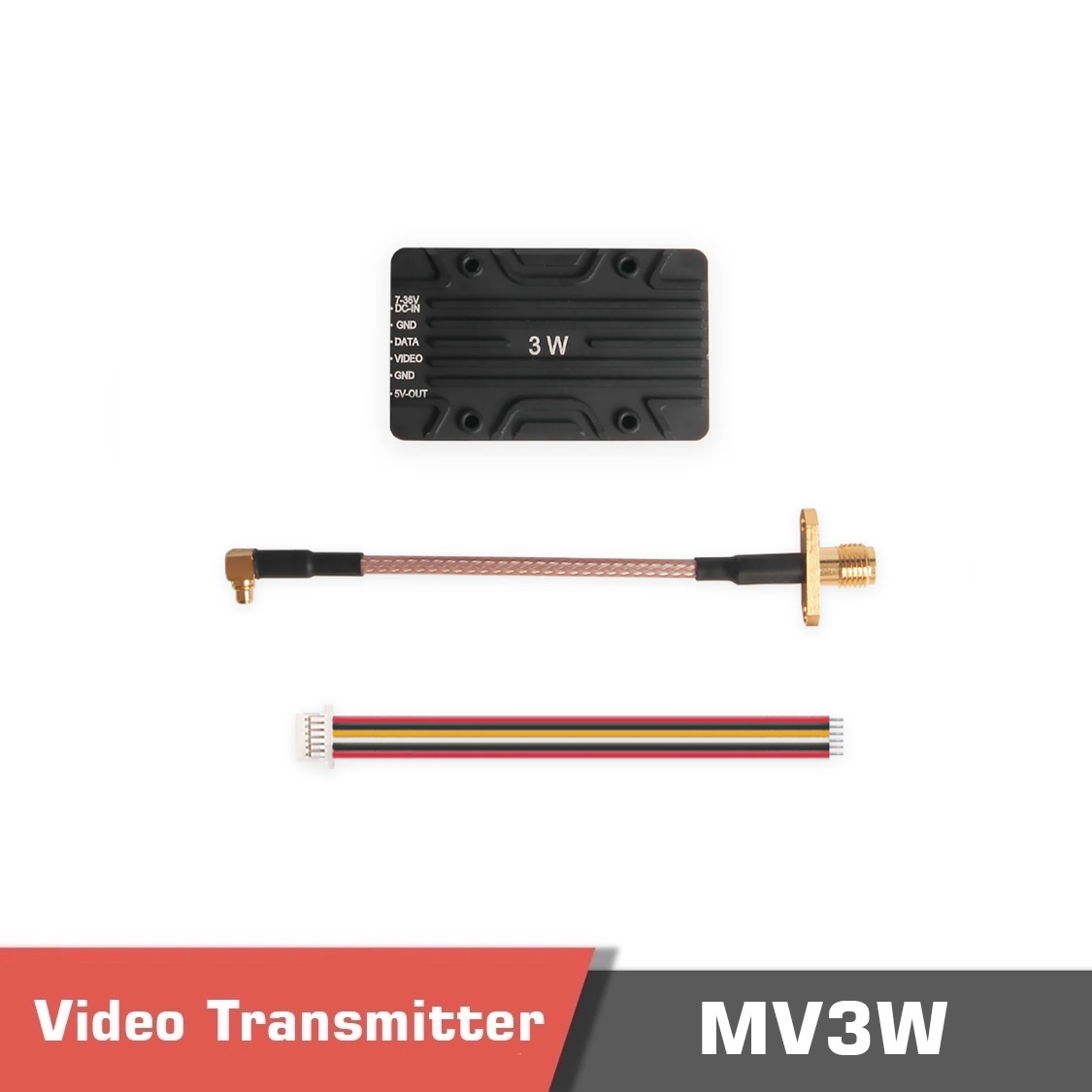

  • 5.8G 3000mW VTx *1
  • 80mm SMA–MMCX Cable *1
  • 70mm 6pin JST SH wire *1

Reviews

There are no reviews yet.

Be the first to review “Video transmitter MV3W VTX, 3W 5.8GHz videolink”

Your email address will not be published. Required fields are marked *

13 + 9 =
