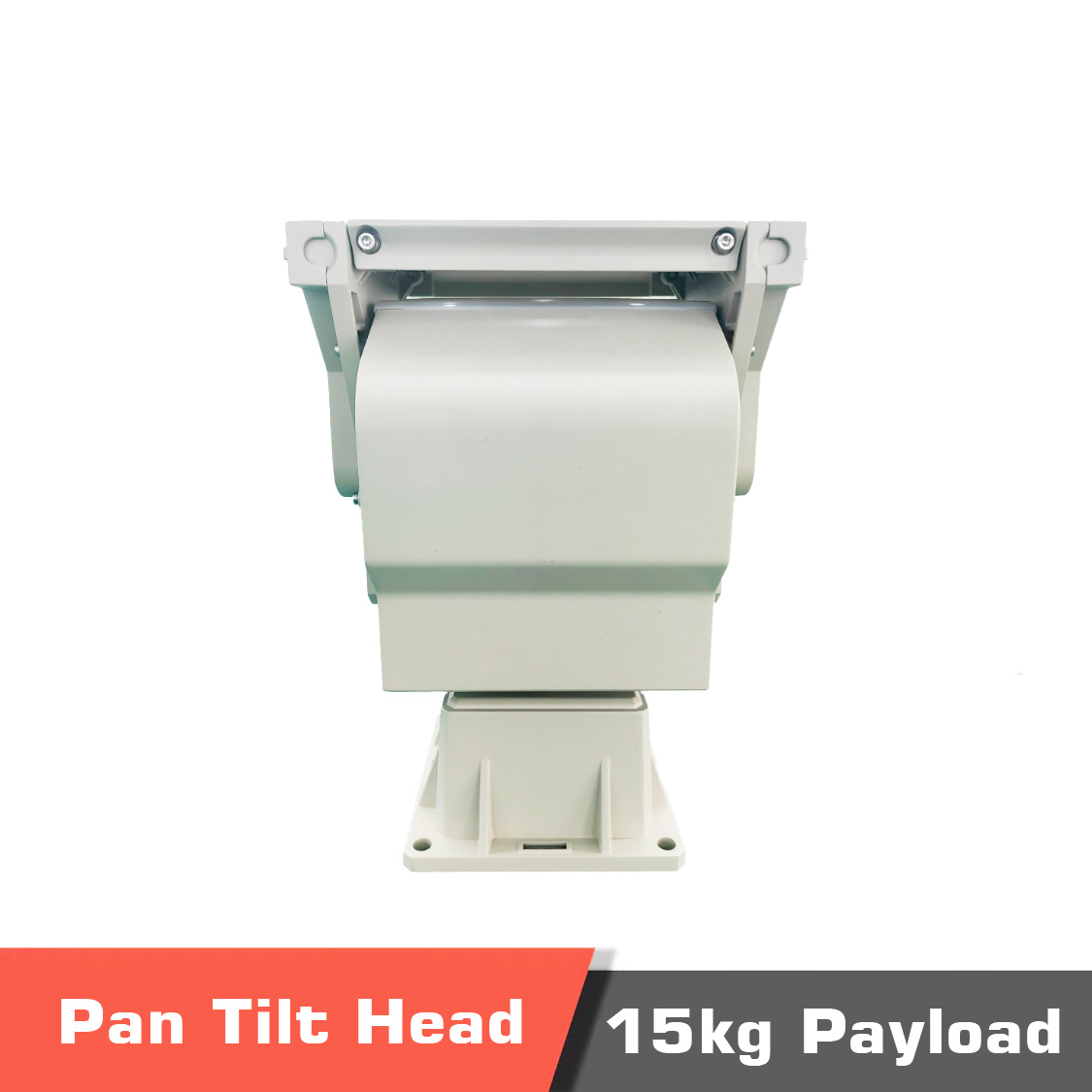

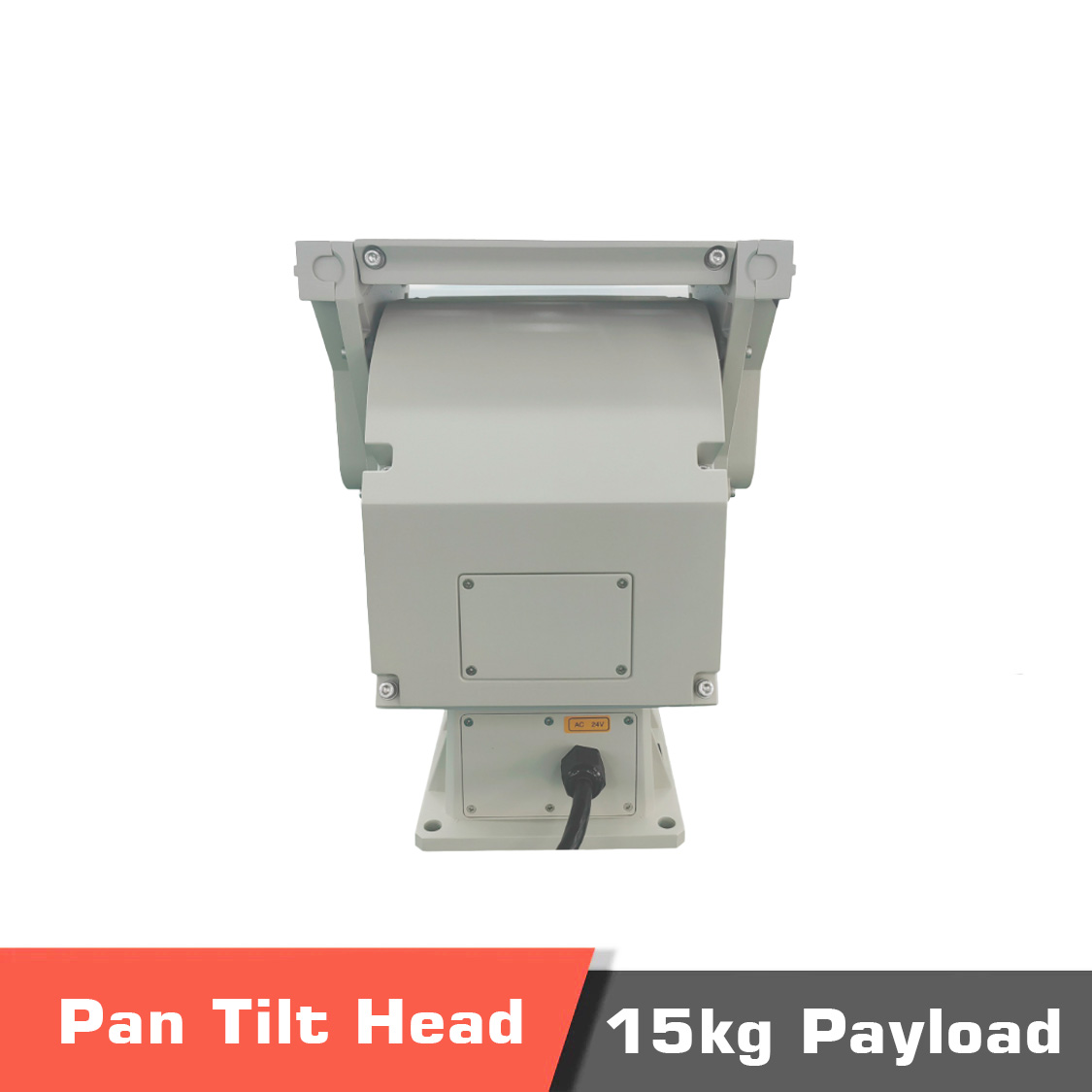

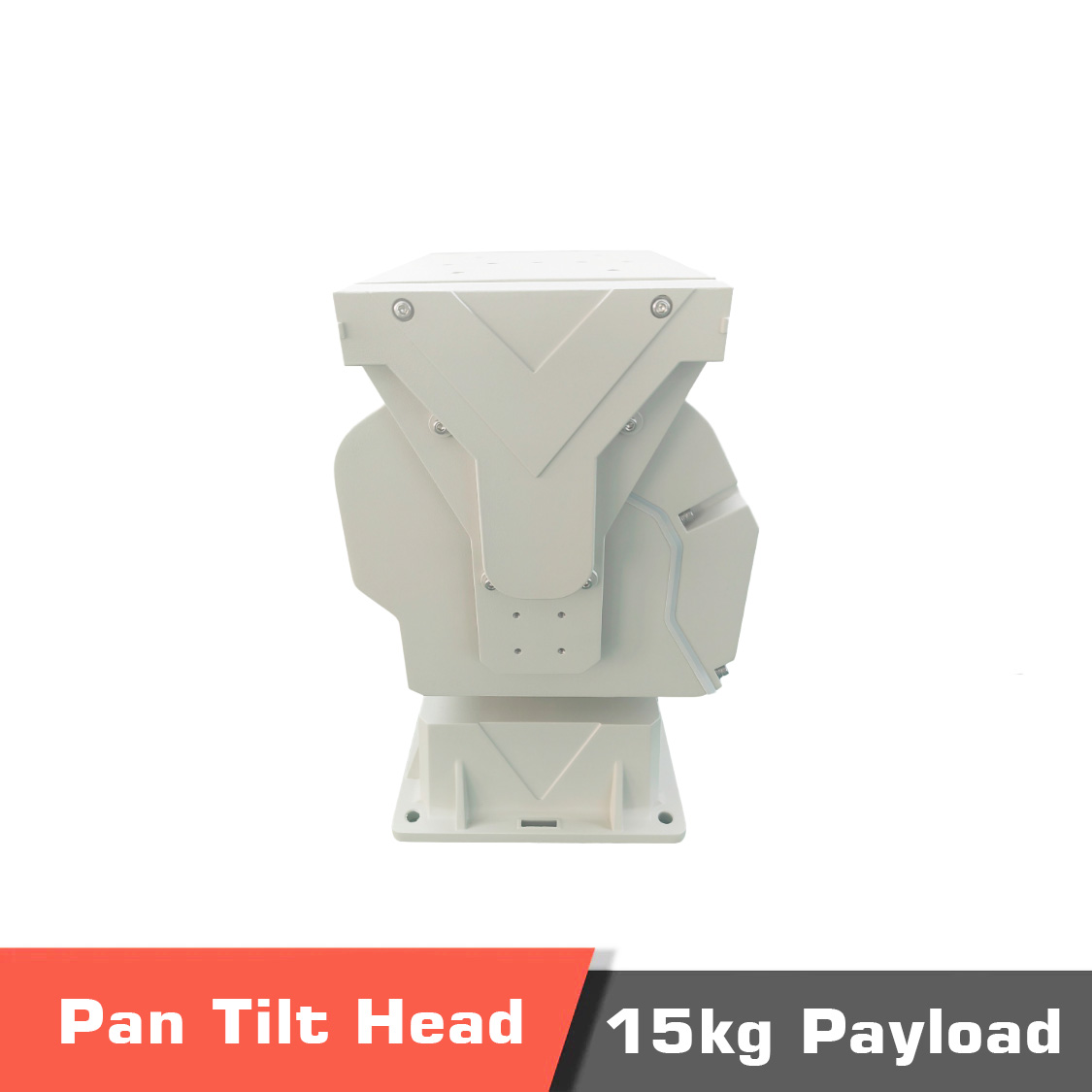

Pan Tilt servo with 15kg max payload, suitable for automatic antenna tracker (AAT)
Payment Methods:
Description

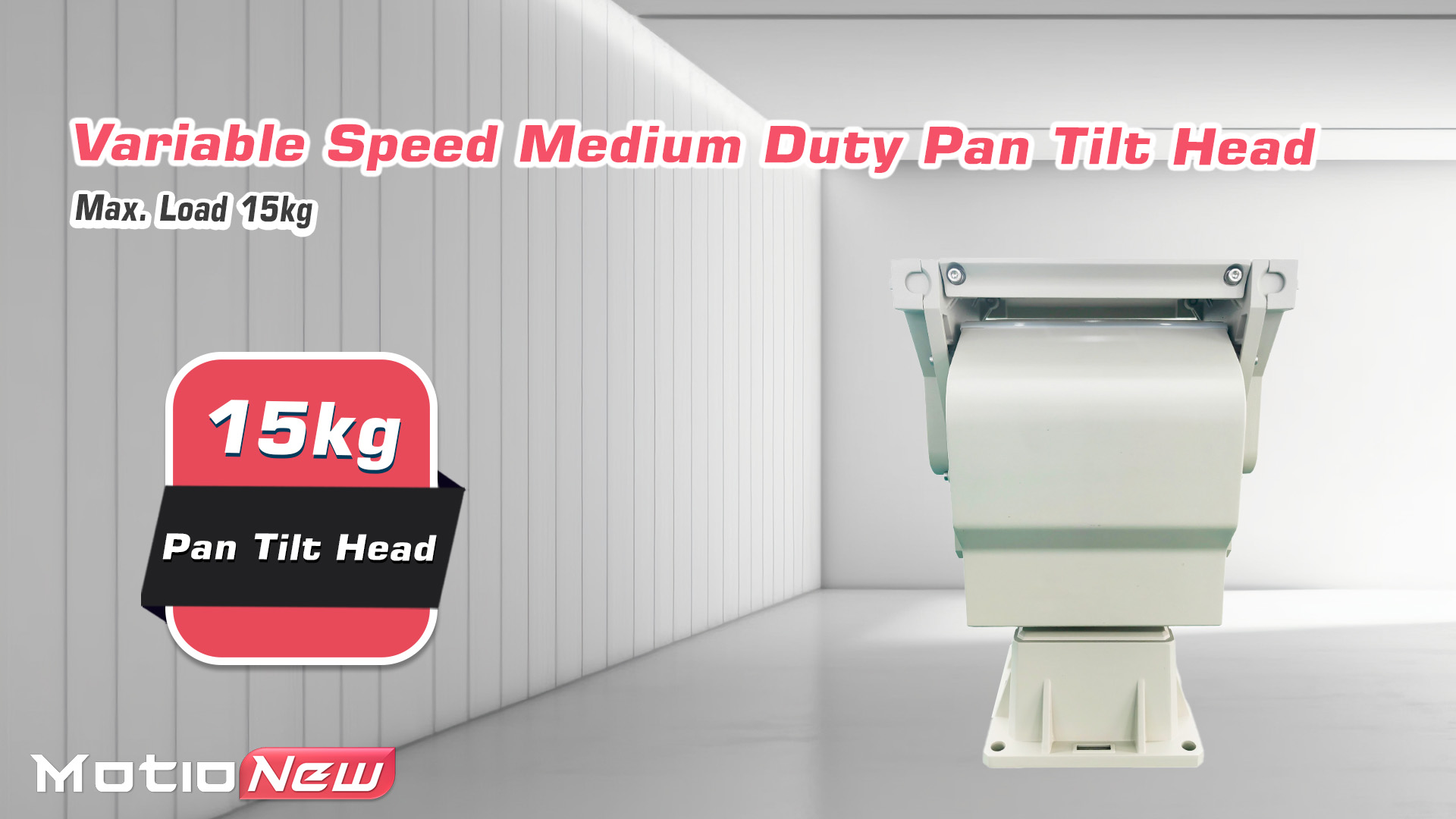

This Pan tilt head is capable of driving a load with up to 15kg weight. It is suitable for designing a automatic antenna tracker (AAT) and is able to carry large weight antenna.

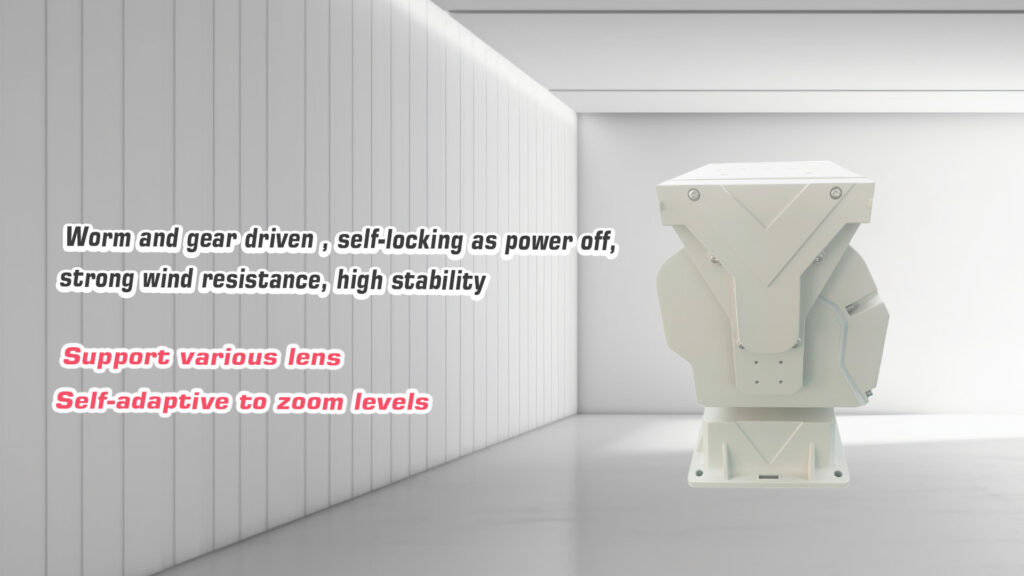

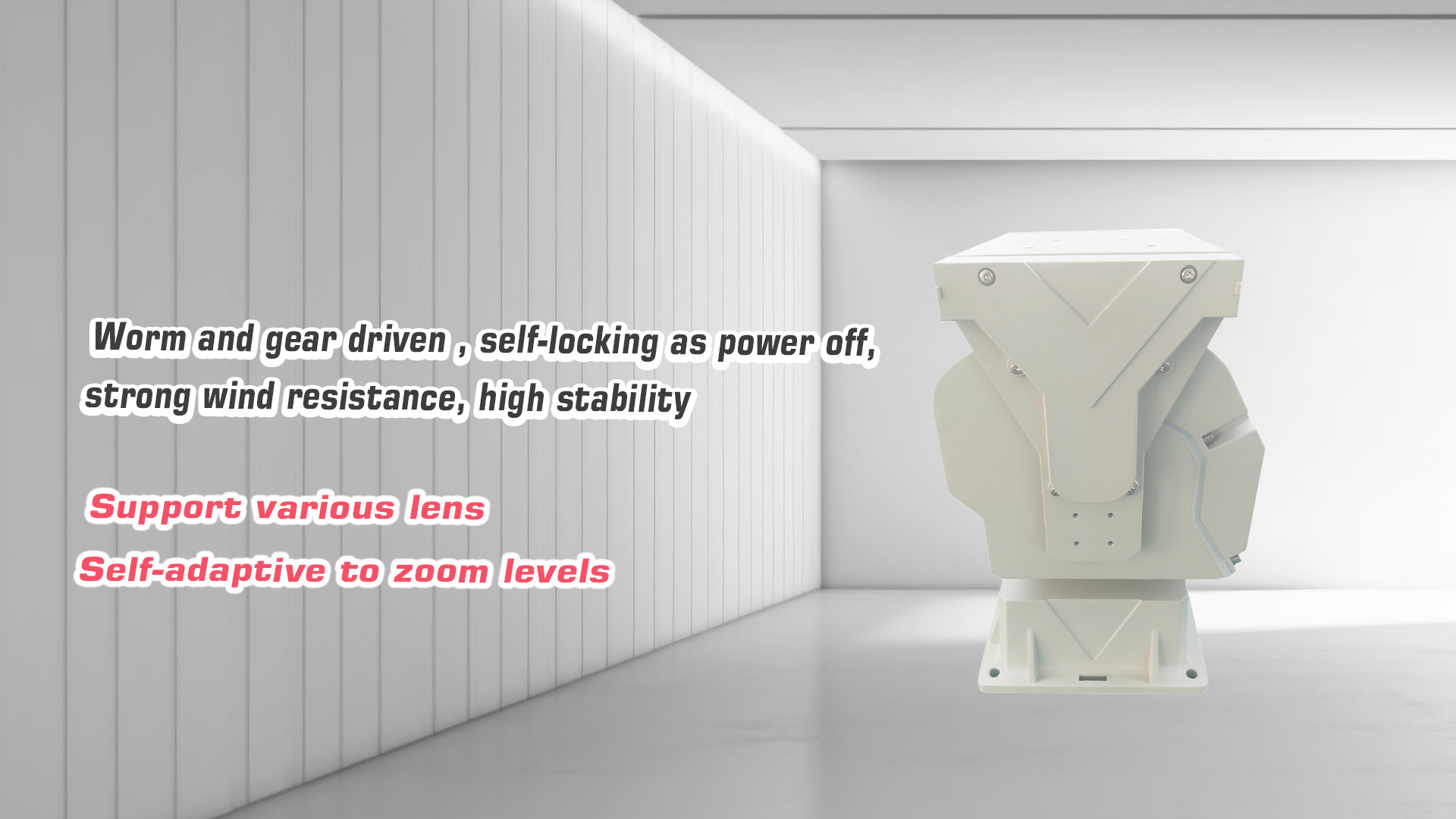

- Worm and gear driven, self-locking as power off, strong wind resistance, high stability
- Support various lens, zoom self-adaptive

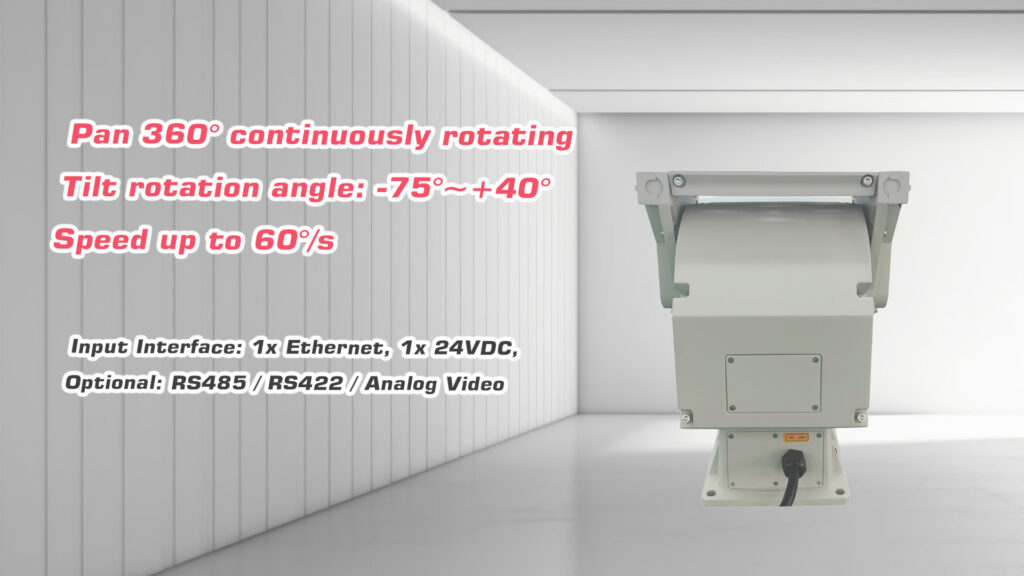

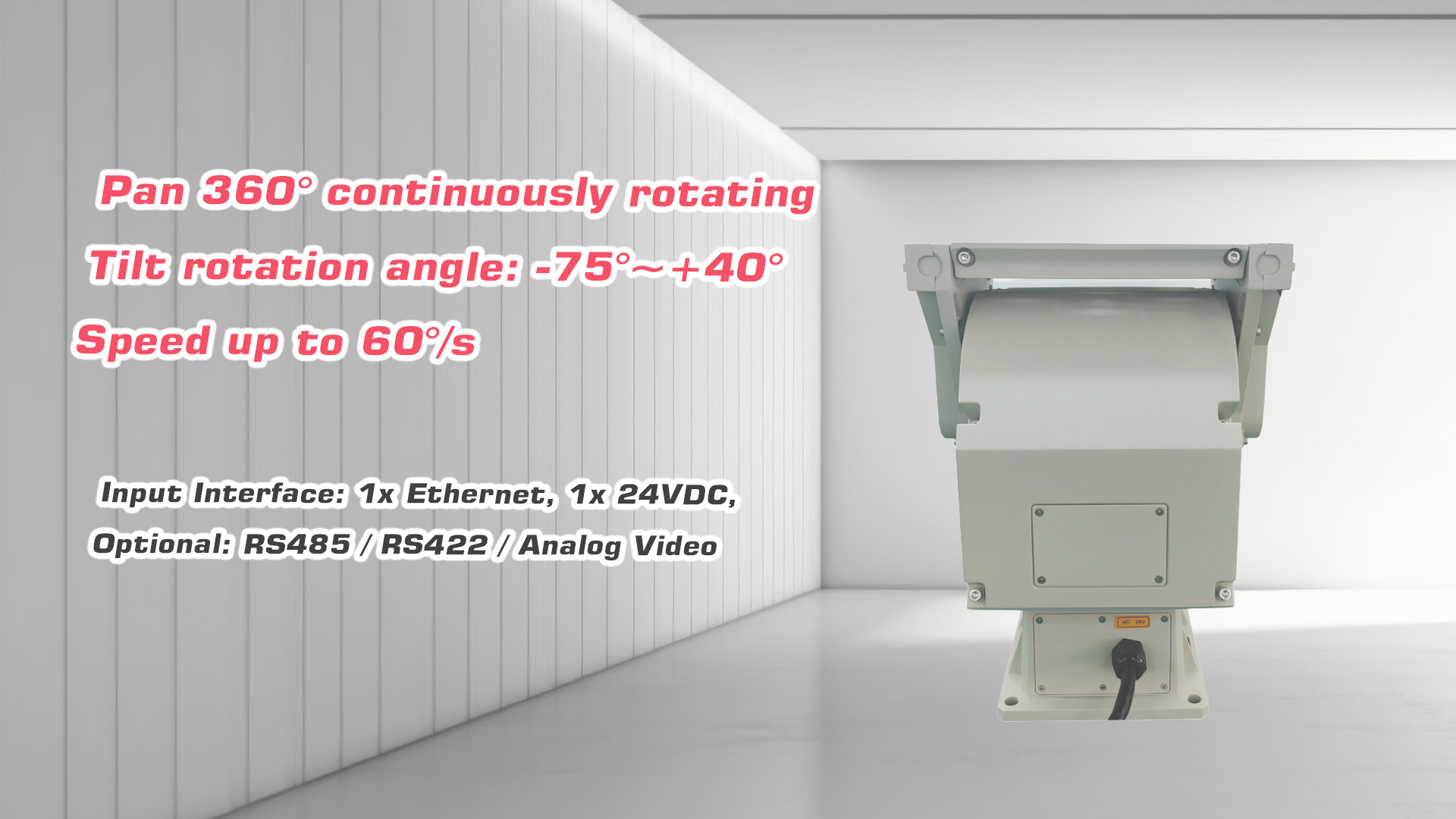

- Pan 360˚continuously rotating, Speed up to 60°/s
- High positioning accuracy ±0.1°
- Max. Load 15kg
- IP66
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Max. load | 15kg |
| Load Mode | Top load |
| Driving | Worm and gear driving |
| Pan Rotation Angle | 360° continuous |
| Tilt Rotation Angle | ﹣75°～+40° |
| Pan Speed | 0.01°~60°/s |
| Tilt Speed | 0.01°~30°/s |
| Preset Position | 200 |
| Presetting Precision | ±0.1° |
| PTZ Speed Adaptive | Support |
| Auto Scan | support |
| Auto Cruise | support |
| Keep Watch | Support, one preset or one auto cruise or one auto scan can be set |
| Power Failure Memory | Support, recover to PTZ satus before power failure |
| Communication Interface | RS485 |
| Protocol | Pelco D |
| Baud Rate | 2400/4800/9600/19200 bps optional |
| Angle Query Return | RS485, angle return by query command / RS422, angle real-time return ( optional) |
| System | |
| Input Voltage | 24VDC±10% |
| Consumption Power | ≤90W |
| Input Interface | 10/100M Ethernet * 1； 24VDC * 1 ； Optional: RS485 / RS422 / Analog video |
| Working Temperature | ﹣35°C～﹢65°C |
| Humidity | ＜90%RH |
| Anti-lighting | Power: 2000V (line to ground 2000 V, line to line 1000V) , Video signal: 1000V (line to ground 1000 V, line to line 500V) |
| Salt Spray Resistance | PH 6.5 〜7.2, continuous spraying 48 hours without surface change |
| Waterproof | IP66 |
| Material | Aluminum alloy |

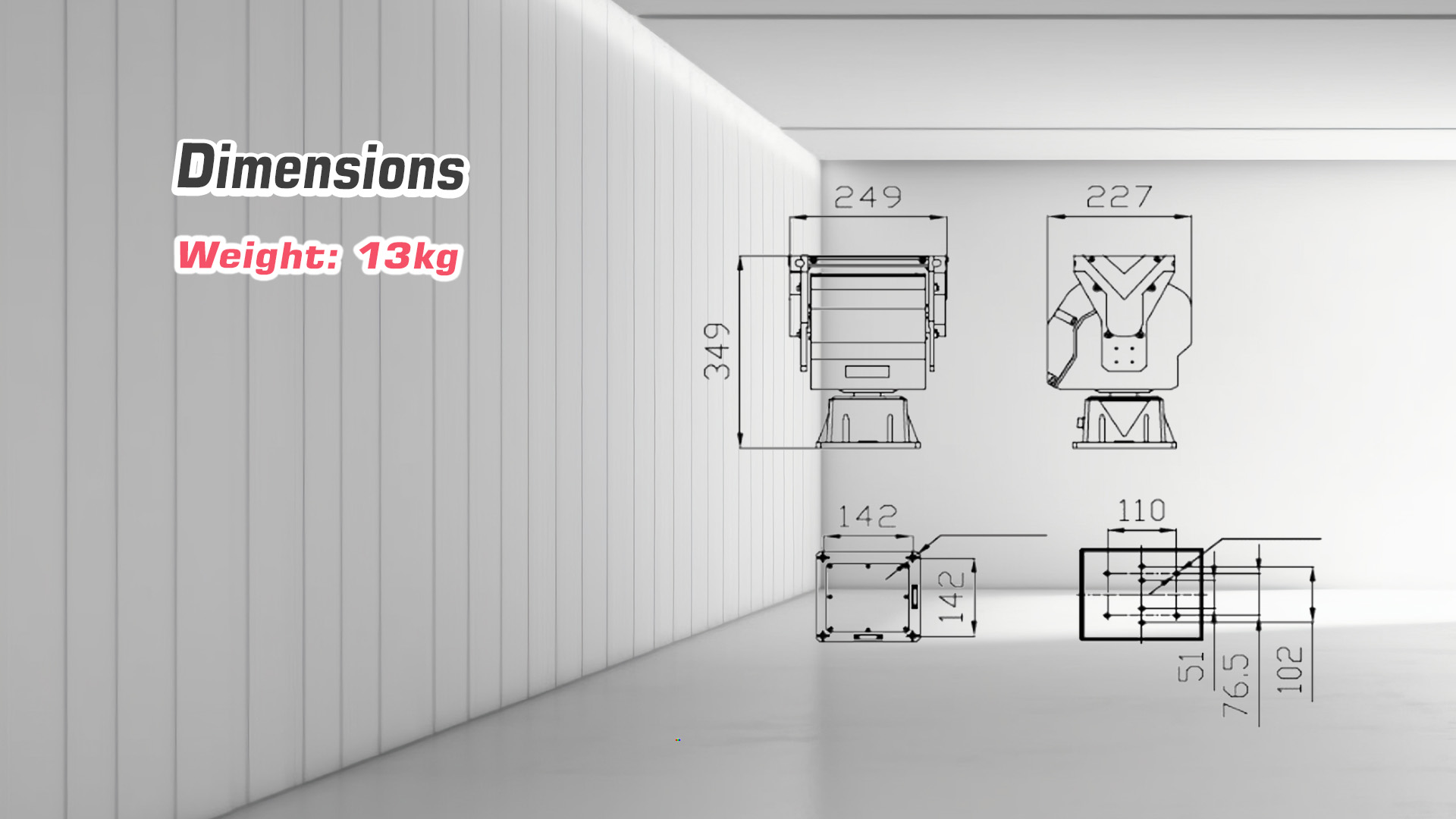

| Weight | ≤13kg |
Documents
Documents
Click Here To Download Pan Tilt servo with 15kg max payload, suitable for automatic antenna tracker (AAT) Manual
Product contents
Product contents
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Model |
With RF Slip Ring ,Without RF Slip Ring |
|---|
