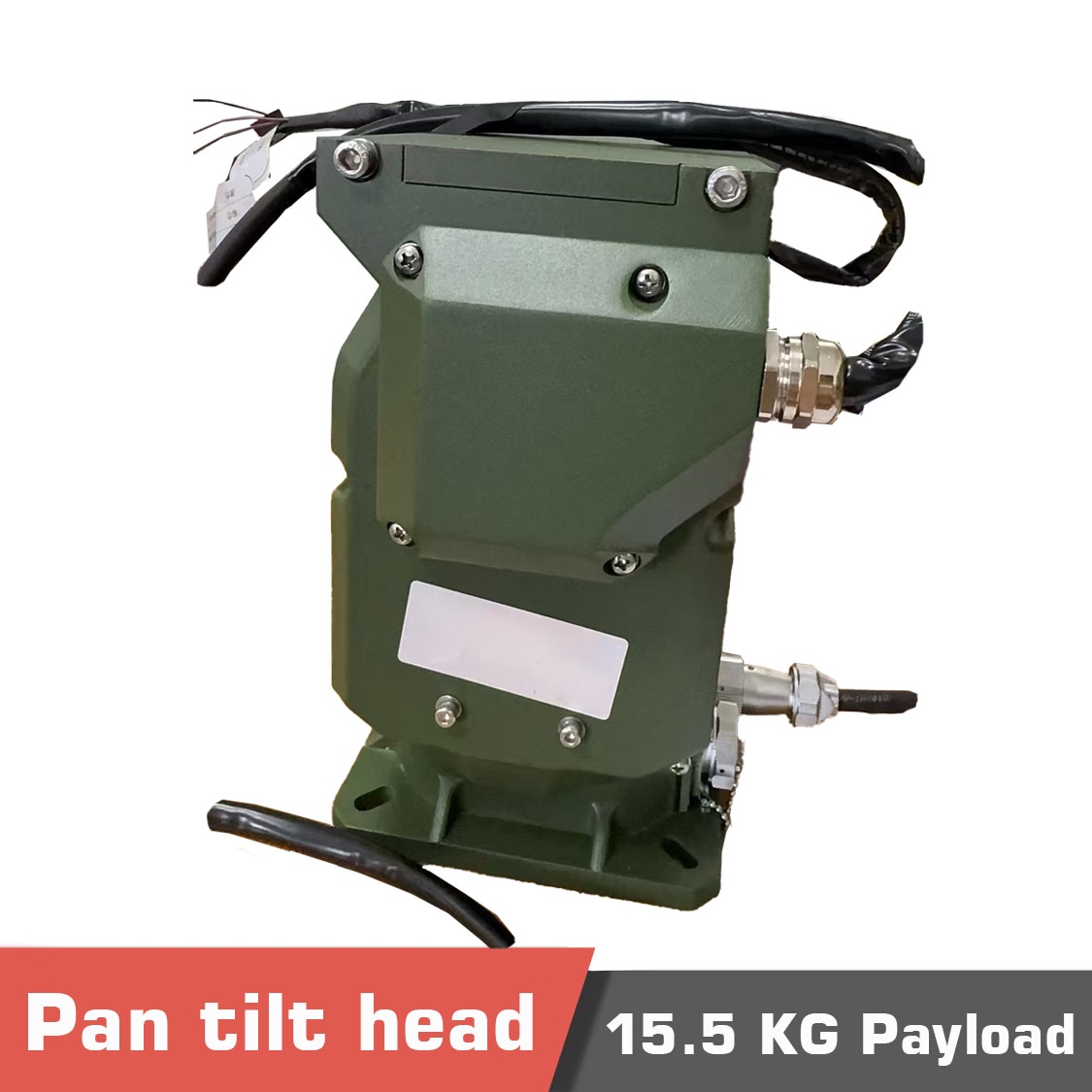

Pan Tilt servo with 15.5kg max payload, suitable for automatic antenna tracker (AAT)

2200.00 $

PayPal
Visa
Master

Description

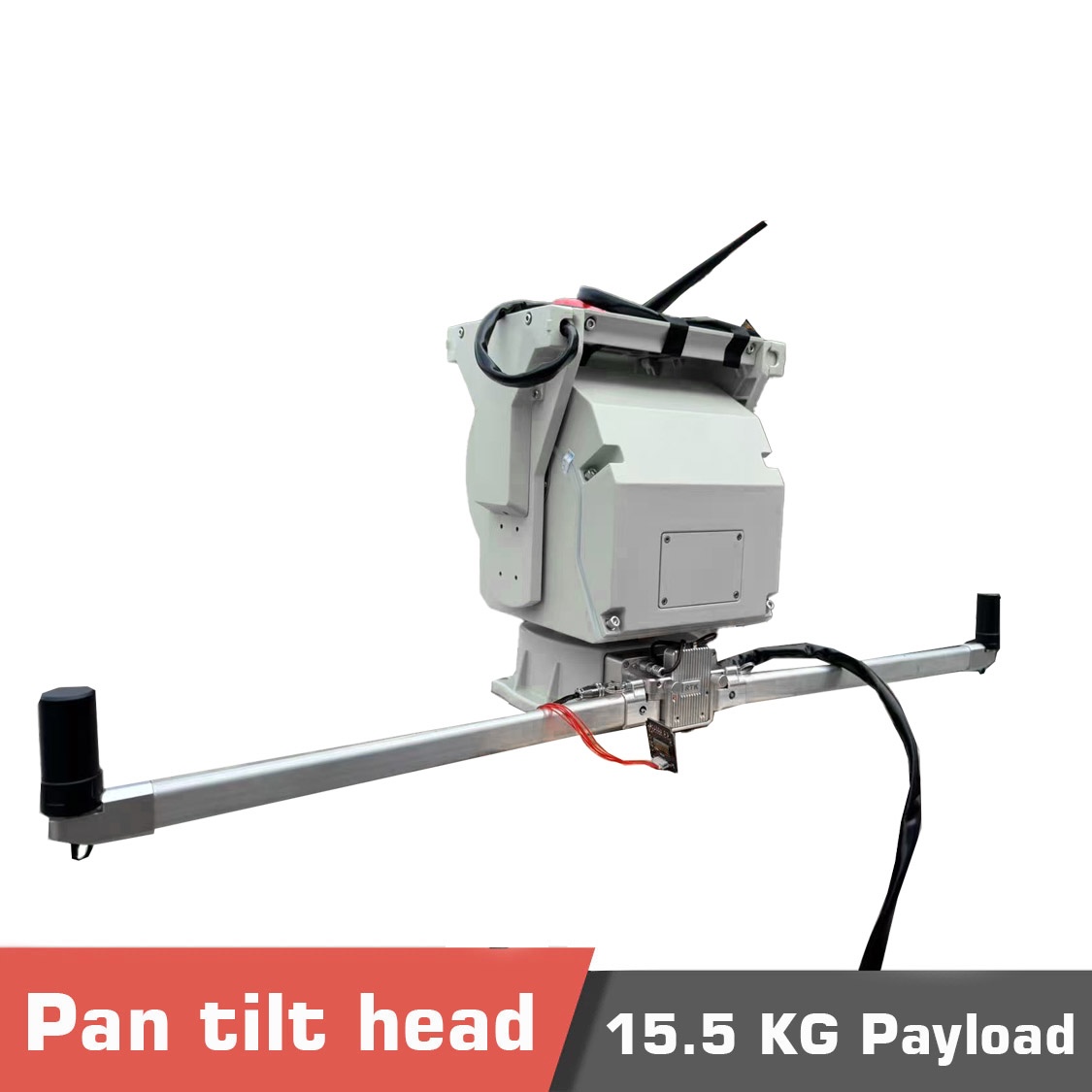

MNATT135-C Intelligent Antenna Tracker – 15.5kg Payload Capacity, RTK GPS, 360° Yaw

The MNATT135-C is a high-performance, intelligent automatic antenna tracker (AAT) designed for UAV ground stations, mobile command units, and long-range communication systems. With robust precision control, full rotation, and compatibility with major autopilot protocols, it delivers unmatched reliability and accuracy in dynamic environments.

Equipped with integrated RTK GPS, the MNATT135-C ensures consistent tracking performance even when the ground unit is in motion, making it ideal for eVTOL testing, BVLOS missions, and vehicle-mounted operations.

🚀 Key Features

  • Full 360° Yaw and 90° Pitch Coverage for unrestricted tracking angles

  • 🌐 Supports MAVLink, NMEA, and Multiple Autopilot Protocols for wide compatibility

  • 📡 High Payload Capacity – up to 15.5 kg for large directional antennas and videolinks

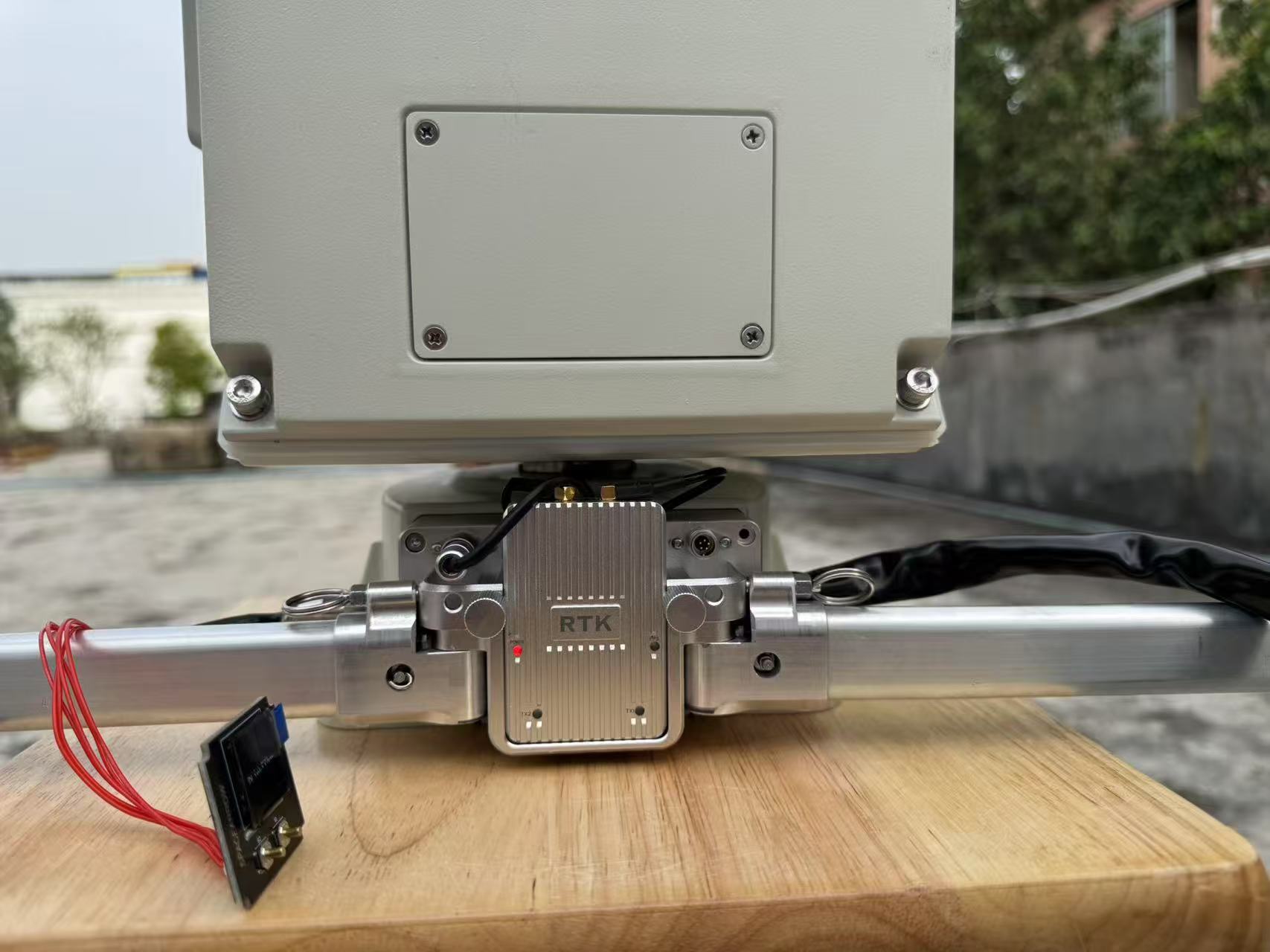

  • 🌍 RTK GPS Integrated for accurate position correction and dynamic movement tracking

  • 🛠️ IP66 Rugged Design built for harsh outdoor deployment

  • 🏎️ High-Speed Tracking – 60°/s yaw and 30°/s pitch for fast aerial targets

  • ❄️ Extreme Temperature Tolerance from -35°C to +65°C


🛰️ Applications

  • UAV & eVTOL Ground Control Stations

  • Long-Range Video/Data Transmission

  • Mobile Vehicle-Mounted Command Units

  • Scientific Balloon or Satellite Tracking

  • Field Test Stations for Aerospace Communication

Engineered for mission-critical tracking, the MNATT135-C antenna tracker offers unbeatable precision, power delivery, and protocol flexibility—all packed into a rugged, IP66-rated unit built for the toughest environments.



antenna tracker MNATT135 C.1 - Pan tilt - MotioNew - 6 antenna tracker MNATT135 C.2 - Pan tilt - MotioNew - 7 antenna tracker MNATT135 C.3 - Pan tilt - MotioNew - 8 antenna tracker MNATT135 C.4 - Pan tilt - MotioNew - 9 antenna tracker MNATT135 C.5 - Pan tilt - MotioNew - 10 antenna tracker MNATT135 C.6 - Pan tilt - MotioNew - 11

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Model  MNATT135-C
Input Voltage DC24v (Power from the bottom of the tracker)
Power Consumption <90W
Output Power <48W (To power from the rotating part of the tracker)
Yaw Rotation Limit 0°~360° unlimited
Pitch Rotation Limit 0°~90°
Max Speed of Yaw 60°/s
Max Speed of Pitch 30°/s
Mechanical Yaw Precision 0.1°
Mechanical Pitch Precision 0.1°
Protection Class IP66
Operating Temperature -35°~65°C
Dimension L*W*H: 249x230x305mm (Antenna not included)
Weight 13kg
Max Payload 15.5kg
Support Protocol MAVLink 1.0, MAVLink 2.0, NMEA0813, and 8+ different Autopilot Protocols
Local RTK GPS Included
Tracking when Moving Ability Yes

Documents

Please click here to download AAT 15kg datasheet

Product contents

Please contact us for more information.
