Adler M32 VTOL UAV

VTOL UAVs are the new generation of UAVs which do not need a runway for takeoff and landing. This feature makes them suitable for operation in harsh and inaccessible environments. Adler M32 is the new generation of its predecessors Voron M35 and M25 VTOLs. Compared to the Voron M35, Adler M32 has a smaller wingspan (3.2m compared to 3.5m), while achieving almost the same performance. Smaller wingspan makes it easier to operate and carry. The airframe has an aerodynamic design and weighs only 6.5kg, while it can carry up to 5kg of payload — can be categorized under heavy payload drones, with a maximum takeoff weight of 24kg.

3 - m32 vtol uav, long endurance, heavy payload, fixedwing uav, surveying drone, v-tail, v-tail drone, cargo drone, mapping drone, detachable load, detachable payload, large payload, spacious payload, wind resistant, fixed-wing uav, curved winglets - motionew - 1

Adler M32 has a novel motor and propeller installation. Downward-facing propellers provide a much more lift force compared to conventional designs. The upward curved winglets prevent the negative lift on the wings. This long endurance drone can fly 3.8hours with a 1.2kg payload (4.2hours without payload).

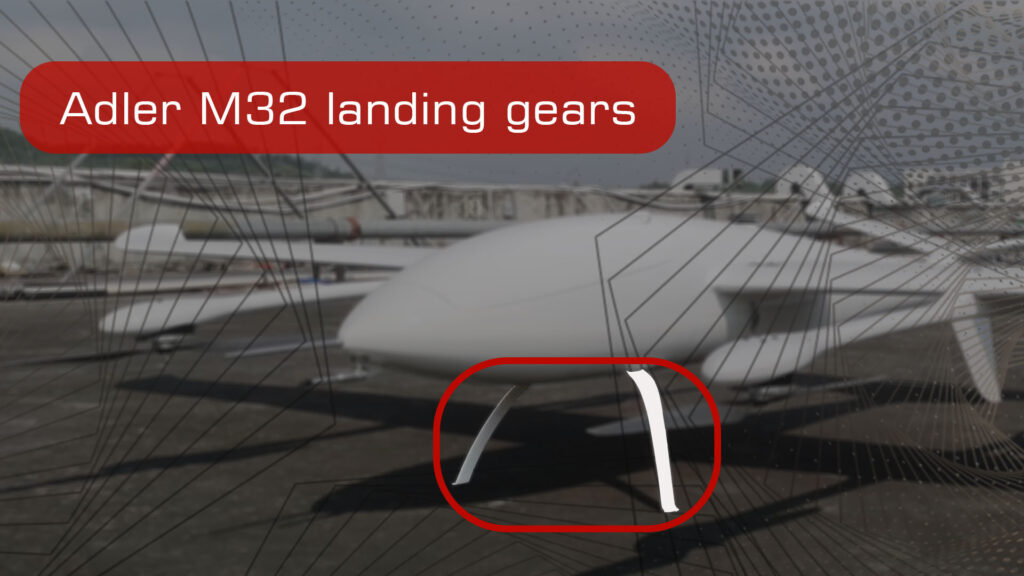

One thing that we did not like about the Voron M35 design was the placement of the landing gears. Putting the landing gears on the wings makes it almost impossible to assemble the drone single-handedly. However, the landing gears of Adler M32 are positioned under the main body, and a single person can easily assemble the drone in a few minutes. In a more compact design, its vertical tail acts also as a landing gear.

M32 landing - m32 vtol uav, long endurance, heavy payload, fixedwing uav, surveying drone, v-tail, v-tail drone, cargo drone, mapping drone, detachable load, detachable payload, large payload, spacious payload, wind resistant, fixed-wing uav, curved winglets - motionew - 2

The tail is detachable itself, leading to a smaller carrying box, and uses connectors instead of wires for the rear motor and servos wires signals. The tail is installed in place with a small lock. The wings and v-tail surfaces follow the same design pattern. The signal wires go through connectors to be connected to the main body and the flight controller and are fastened using small locks. The v-tail design is a more efficient choice compared to t-tail and inverted t-tail drones.

M32 detail - m32 vtol uav, long endurance, heavy payload, fixedwing uav, surveying drone, v-tail, v-tail drone, cargo drone, mapping drone, detachable load, detachable payload, large payload, spacious payload, wind resistant, fixed-wing uav, curved winglets - motionew - 3

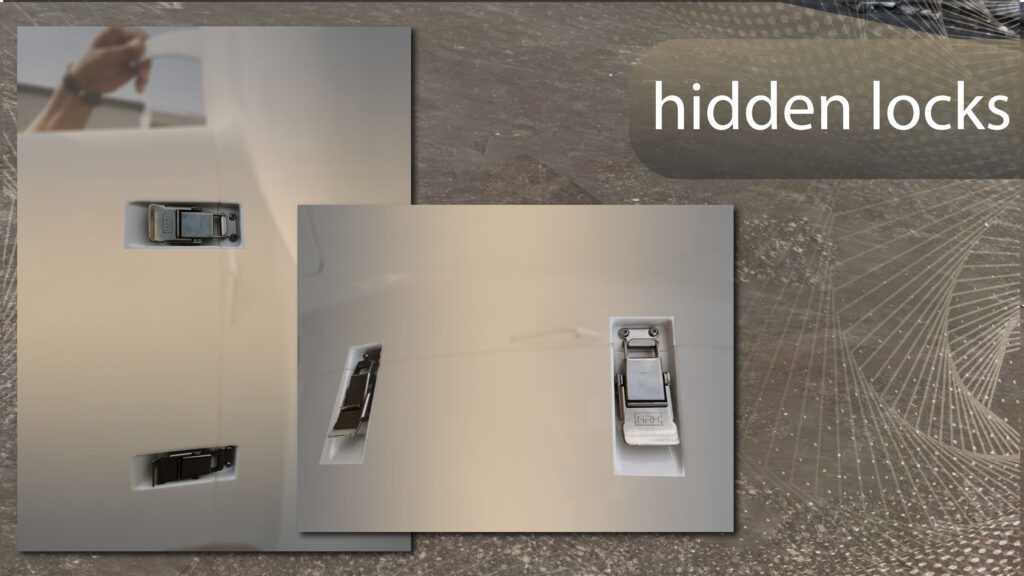

More importantly, the locks are designed with a step-down placement to have no impact on the flow of air to not create any drag.

M32 locks - m32 vtol uav, long endurance, heavy payload, fixedwing uav, surveying drone, v-tail, v-tail drone, cargo drone, mapping drone, detachable load, detachable payload, large payload, spacious payload, wind resistant, fixed-wing uav, curved winglets - motionew - 4

With a large and spacious payload compartment, there are lots of space for installing and carrying your desired payload based on your mission. The load space is detachable, which means you can easily replace your payload in between consecutive missions.

M32 4 - m32 vtol uav, long endurance, heavy payload, fixedwing uav, surveying drone, v-tail, v-tail drone, cargo drone, mapping drone, detachable load, detachable payload, large payload, spacious payload, wind resistant, fixed-wing uav, curved winglets - motionew - 5

Here are a few parameters of Adler M32 VTOL UAV:

Main Parameters
Wingspan3200mm
Length1260mm
Belly to Ground190mm
Battery Cabin300x200x140mm
MaterialCarbon fiber + glass fiber + Kevlar + PVC
Airframe Weight6.45kg
MTOW24kg
Max Payload5kg
Suggested Load1.2kg
Flight Time228min with 1.2kg payload
Max Cruising Speed26m/s
Stall Speed17m/s
Max Flight Altitude4500m
Max Wind Resistance Level12m/s
Battery (Recommended)4x 6S 30000mAH HED Li-ion
Working Temperature -20℃~60℃
IP GradeIP45
Package Chargeable Size1800x680x500mm(Contains the wheel)
Package weight45kg

Here is a comparison table between Adler M32, and its predecessors Voron M35 and M25 VTOL UAVs.



Adler M32

M32 1 - vtol drone,long endurance,fixed-wing uav,v-tail,detachable load,detachable payload,cargo drone,mapping drone,surveying drone,wind resistance,fixedwing uav,v-tail drone - motionew - 2

Voron M35

M35 1 - vtol drone,long endurance,fixedwing uav,t-tail,t-tail drone,cargo drone,wind resistance,detachable load,detachable payload,mapping drone,surveying drone,fixed-wing uav - motionew - 3

M25

M25 1 - vtol drone,long endurance,fixedwing uav,t-tail,t-tail drone,cargo drone,wind resistance,detachable load,detachable payload,mapping drone,surveying drone,fixed-wing uav - motionew - 3

Wingspan3200mm3500mm2500mm
Length1260mm1880mm1260mm
Belly to Ground190mm195mm160mm
Battery Cabin30x20x14cm30x20x15cm
26x15x9cm
Airframe Weight6.45kg8kg3.2kg
MTOW24kg33kg13.5kg
Max. Payload5kg10kg3kg
Flight Time228min with 1.2kg payload150min with 5kg payload, 70min with 10kg payload
4hrs without payload, 3.5hrs with 1.2kg payload
Max. Cruising Speed26m/s30m/s27m/s
Max. Wind Resistance 12m/s16m/s14m/s
