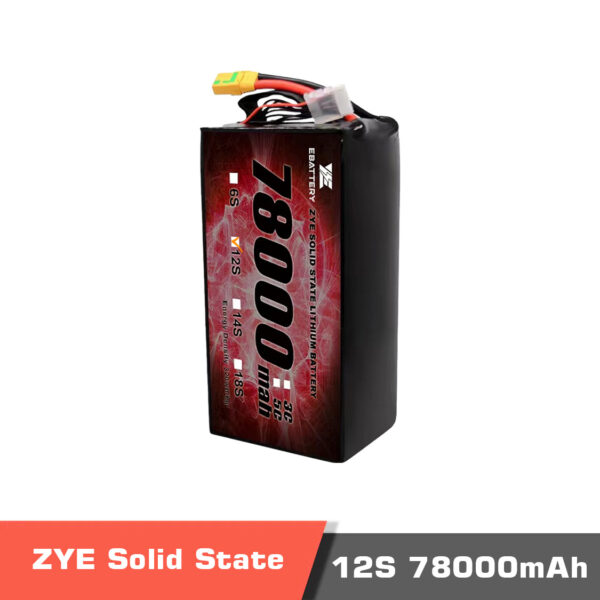

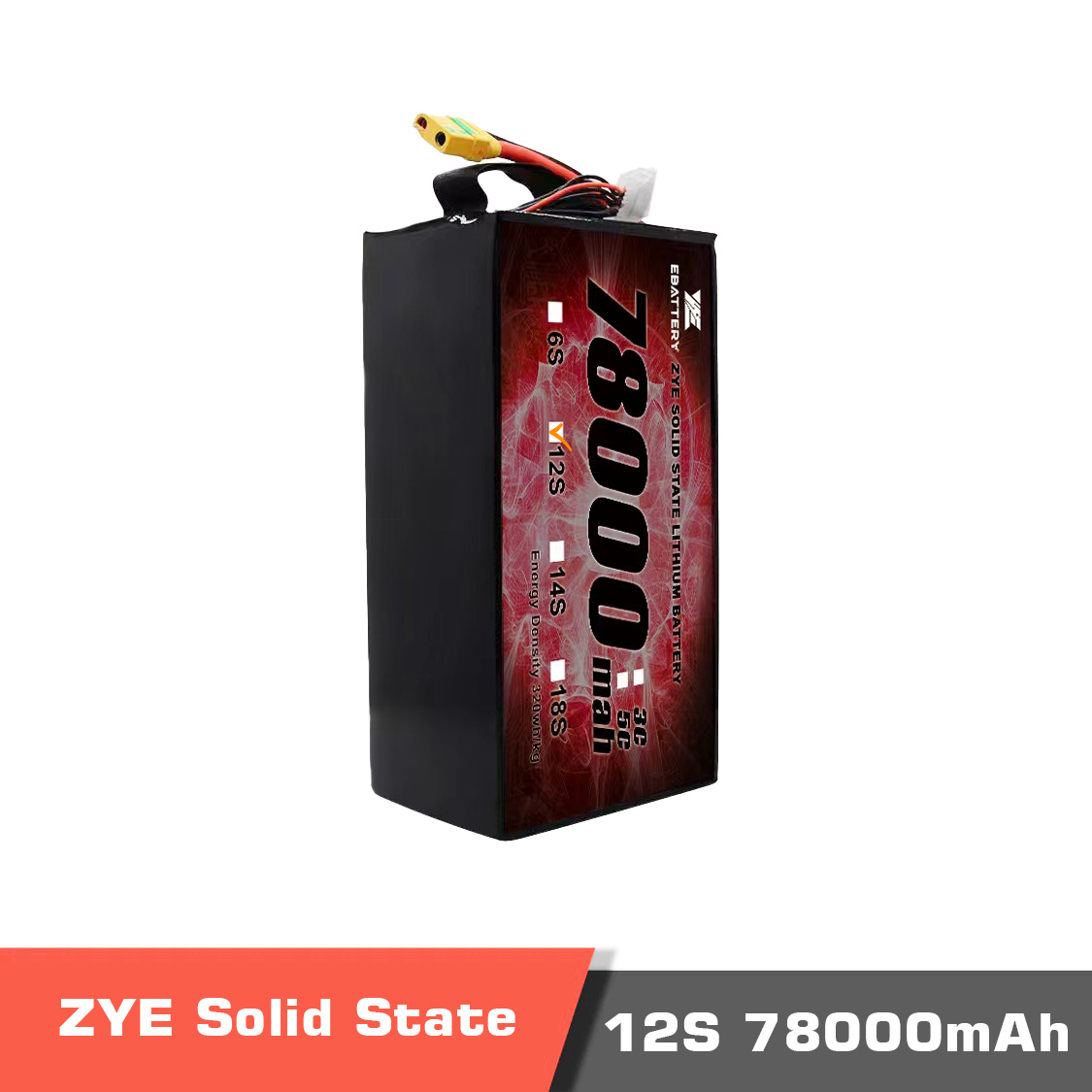

ZYE Power Ultra HV battery 12s 78000mAh-Semi Solid-State Battery
2,135.00 $
Out of stock
Out of stock
Payment Methods:
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
Important Note: Due to the pure battery shipping limitations you need to get confirmation first. Please contact us before placing the order.
General Specifications
ZYE Power Ultra HV battery 12S 78000mAh Ultra HV semi solid-state battery is only 11.56kg, with 320Wh/kg energy density. The continuous discharge rate is 3C (234A) and the peak discharge rate is 5C (390A).
The ZYE Power Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 12s 78000mAh
Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 12s 78000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
Specifications
Specifications
| Voltage | Nominal: 47.4V, Full: 53.4V |
| Cell Voltage | 4.45v/cell |
| Capacity | 78000mAh |
| Continuous Discharge Rate | 3C (234A) |
| Max./Peak Discharge Rate | 5C (390A) |
| Energy | 320 Wh/kg |
| Size | 365x105x146mm |
| Weight | 11.56kg |
Product contents
Product contents
1x Ultra Solid-state Battery 12s 78000mAh
Documents
Documents
Please contact us for more information.
Reviews
1 review for ZYE Power Ultra HV battery 12s 78000mAh-Semi Solid-State Battery
Clear filtersYou must be logged in to post a review.
| Battery Type |
ULiHV |
|---|---|
| Battery cells |
12S |
| Battery Nominal Voltage |
47.4V |
| Battery Full Voltage |
4.45v |
| Battery Weight |
11560 |
| Battery Dimensions |
365x105x146mm |
| Battery Energy Density |
320 Wh/kg |
| Battery Max Peak C rate |
5C (390A) |
| Battery Continuous C rate |
3C |
