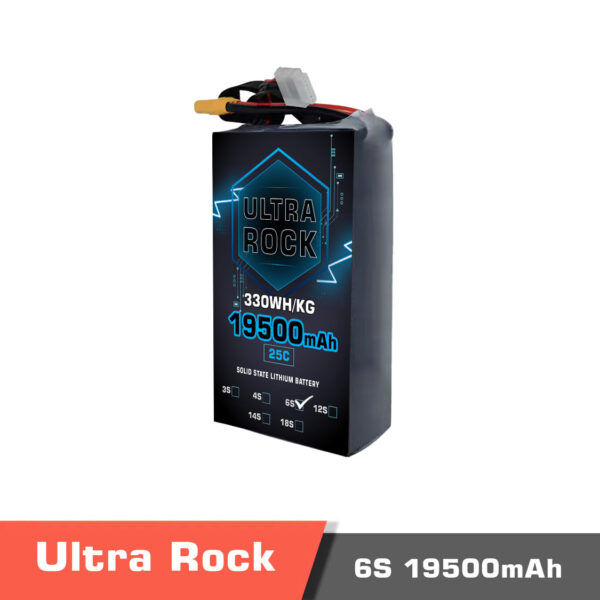

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 6s 19500mAh 330Wh/kg Energy Density 25C discharge Rate

235.00 $

Payment Methods:

Payment methods - ultra hv battery 6s 19500mah 330wh/kg energy density 25c discharge rate - motionew - 2
Description

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **


General Specifications

Ultra HV battery 6S 19500mAh Ultra HV semi solid-state battery is only 1.4kg, with 330Wh/kg pack energy density, and Standard Current discharge rate is 5C, Continuous current discharge rate is 15C and Peak current discharge rate is 25C.

The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.

Advantages of battery 6s 19500mAh

Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 6s 19500mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

Semi solid-state battery | model ultra rock ultra hv battery 6s 19500mah 330wh/kg energy density 25c discharge rate Specifications of semi solid-state battery | model ultra rock ultra hv battery 6s 19500mah 330wh/kg energy density 25c discharge rate Main features of semi solid-state battery | model ultra rock ultra hv battery 6s 19500mah 330wh/kg energy density 25c discharge rate

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – Ultra Rock Semi Solid-State 6S 19,500mAh Battery

1. What is this battery used for?
This semi solid-state HV battery is designed for UAVs, VTOL platforms, and robotics requiring lightweight construction, high endurance, and safe high-voltage power. Its higher discharge capability makes it suitable for professional drone missions.

2. What are the main technical specifications?

  • Voltage: 6S (2.7–4.45V per cell)

  • Capacity: 19,500mAh

  • Energy Density: 330 Wh/kg

  • Weight: 1.4 kg

  • Discharge Rate: 5C standard, 15C continuous, 25C peak

  • Chemistry: Semi solid-state Li-ion (Ultra HV type)
    This setup ensures high current output, thermal stability, and resilience against shocks, improving UAV endurance and safety.

3. Which systems are compatible with this battery?
It is suitable for professional UAVs, VTOL drones, multirotors, and robotics that operate with 6S HV packs. Connector type can be customized to match system requirements.

4. Is OEM or bulk purchasing available?
Yes. Motionew provides OEM customization, bulk procurement, and global logistics support for UAV manufacturers, enterprise drone operators, and research institutes.

5. What documentation and certifications are provided?
Each battery comes with MSDS, UN38.3, RoHS, and DGM certificates, ensuring compliance with international safety and customs regulations. Integration guidelines and technical support are also available.

6. What are the B2B payment and invoicing options?
Motionew accepts international wire transfers, provides official business invoices, and offers flexible net payment terms for verified enterprise customers.

Specifications

Specifications

Voltage Nominal: 23.7V, Full: 26.7v
Cell Voltage 4.45v/cell
Capacity 19500mAh
Standard Discharge Rate 5C
Continuous Discharge Rate 15C
Max.Discharge 25C
Energy 330Wh/kg
Size 235*75*53mm
Weight 1415g
Product contents

Product contents

1x Ultra Rock Solid-state Battery 6s 19500mAh

Documents

Documents

All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.

Please contact us for more information.



Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 6s 19500mAh 330Wh/kg Energy Density 25C discharge Rate”

Specification:

Battery cells

6S

Battery Dimensions

235*75*53mm

Battery Continuous C rate

15C

Battery Energy Density

330Wh/kg

Battery Max Peak C rate

25C

Battery Type

ULiHV

Battery Weight

1415

Battery Nominal Voltage

3.95

Battery Full Voltage

4.45v

Battery Capacity

19500mAh
