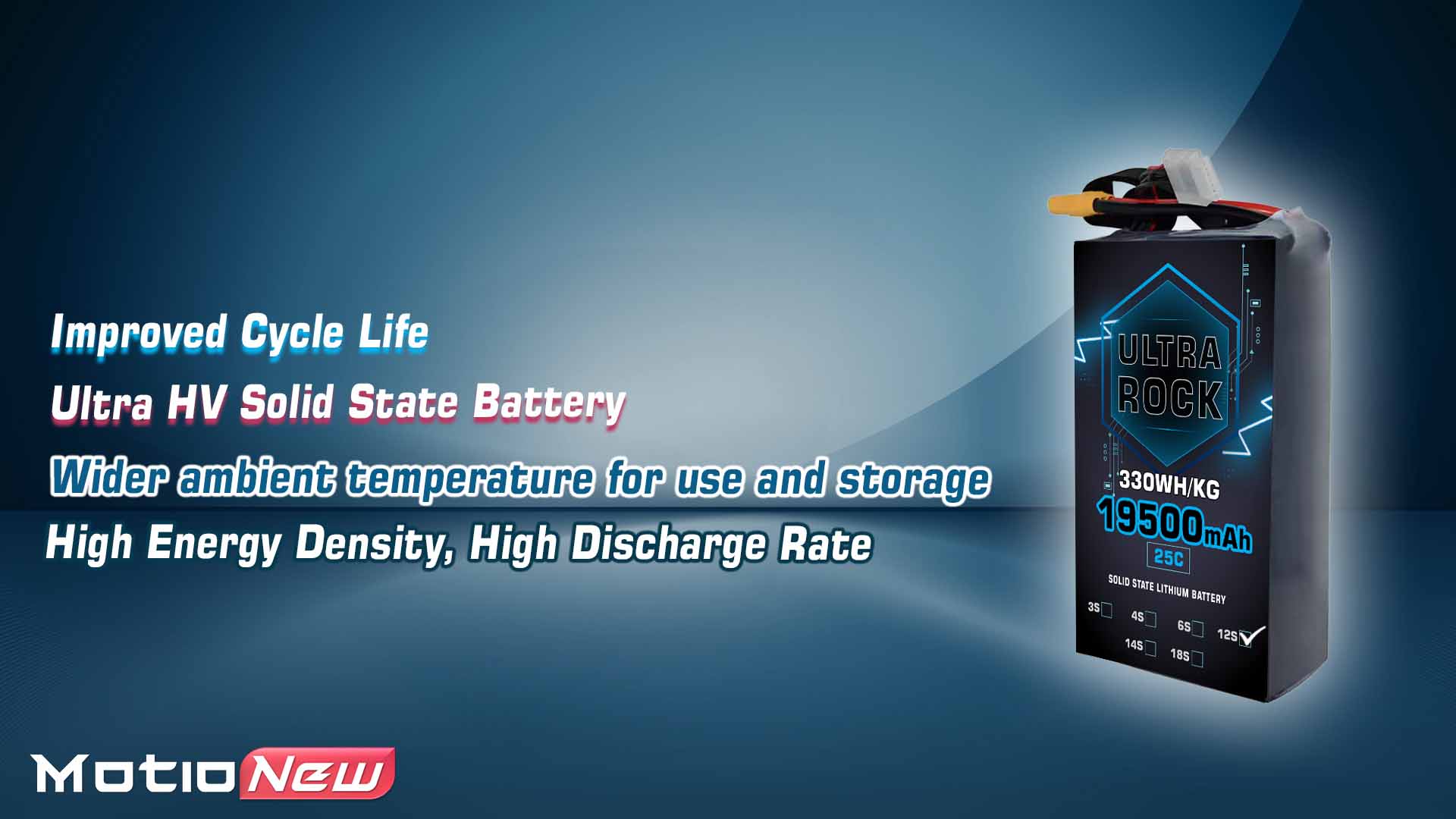

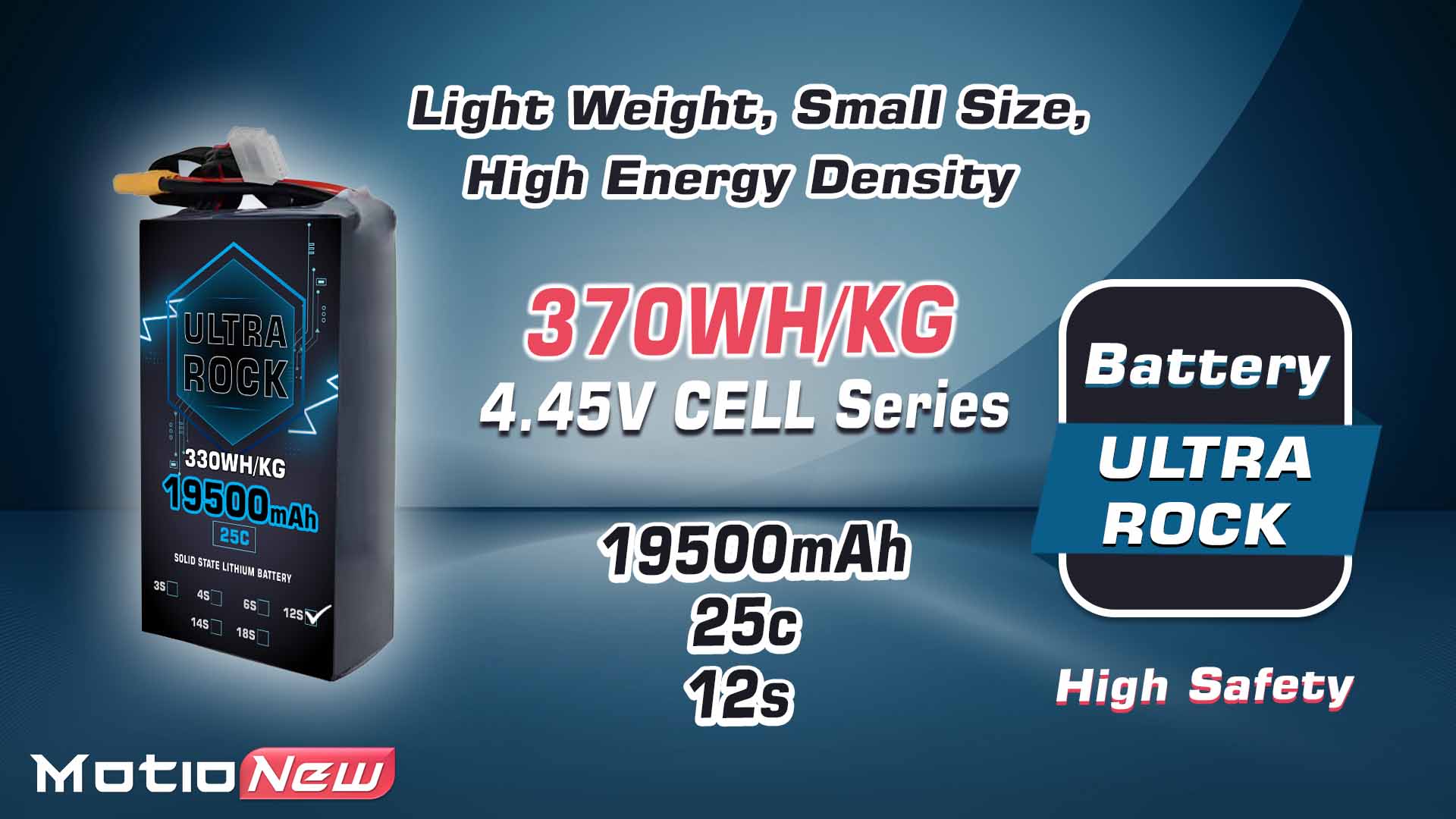

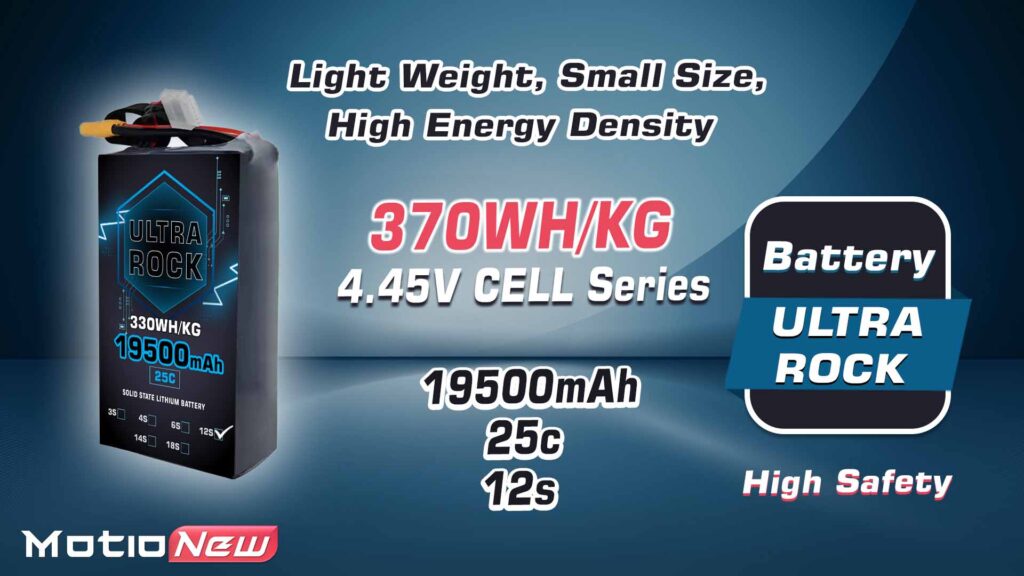

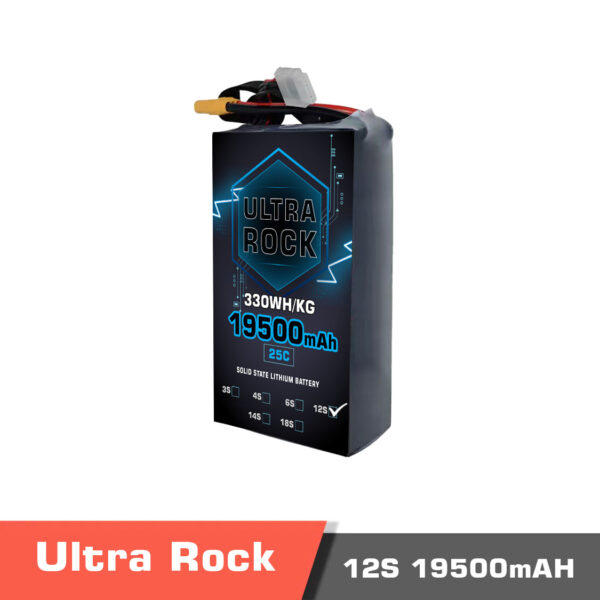

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 19500mAh 330Wh/kg Energy Density 25C discharge Rate

Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.

** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **

General Specifications

Compared to traditional semi solid-state li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.

Battery 12s 19500mAh applications

Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.

Notice: Please do not assemble the battery privately,Parallel charging for two packs of batteries maybe lead to short circuit or ignition.If no otherwise specified, an interval rest time is 30min between charging and discharging.

For a comprehensive reading of related products, please visit the Motionew website.

FAQ – Ultra Rock Semi Solid-State 12S 19,500mAh Battery

1. What is this battery used for?
This semi solid-state HV battery is designed for large UAVs, VTOL drones, and robotics requiring lightweight construction, high endurance, and safe high-current delivery. It increases drone flight time while ensuring resilience under demanding conditions.

2. What are the main technical specifications?

• Voltage: 12S (2.7–4.45V per cell)

• Capacity: 19,500mAh

• Energy Density: 330 Wh/kg

• Weight: 2.8 kg

• Discharge Rate: 5C standard, 15C continuous, 25C peak

• Chemistry: Ultra HV semi solid-state Li-ion
  This design offers strong discharge capability, thermal safety, and durability against shocks compared to conventional Li-ion packs.

3. Which systems are compatible with this battery?
It is compatible with large UAVs, VTOL platforms, industrial drones, and robotics requiring 12S HV packs. Connector type can be specified to match system requirements.

4. Is OEM or bulk purchasing available?
Yes. Motionew offers OEM customization, bulk order supply, and international logistics for UAV manufacturers, enterprise drone operators, and research institutions.

5. What documentation and certifications are provided?
Each battery is delivered with MSDS, UN38.3, RoHS, and DGM certificates, ensuring compliance with international shipping and customs. Integration and handling support are also included.

6. What are the B2B payment and invoicing options?
Motionew accepts international wire transfers, issues formal commercial invoices, and provides flexible payment terms for verified enterprise customers.
