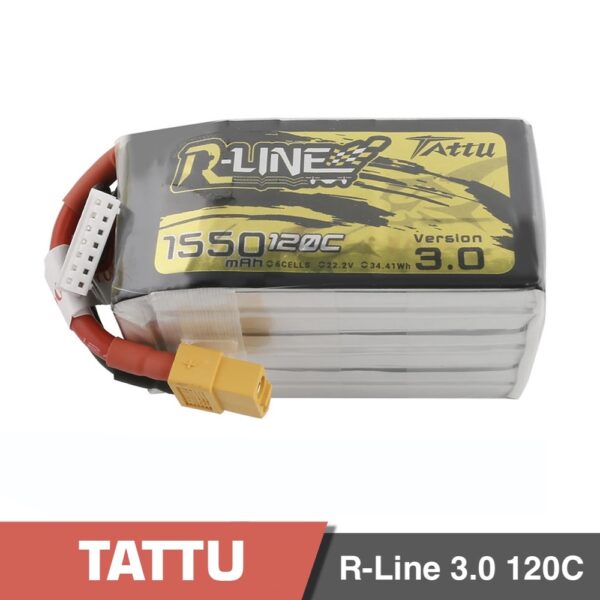

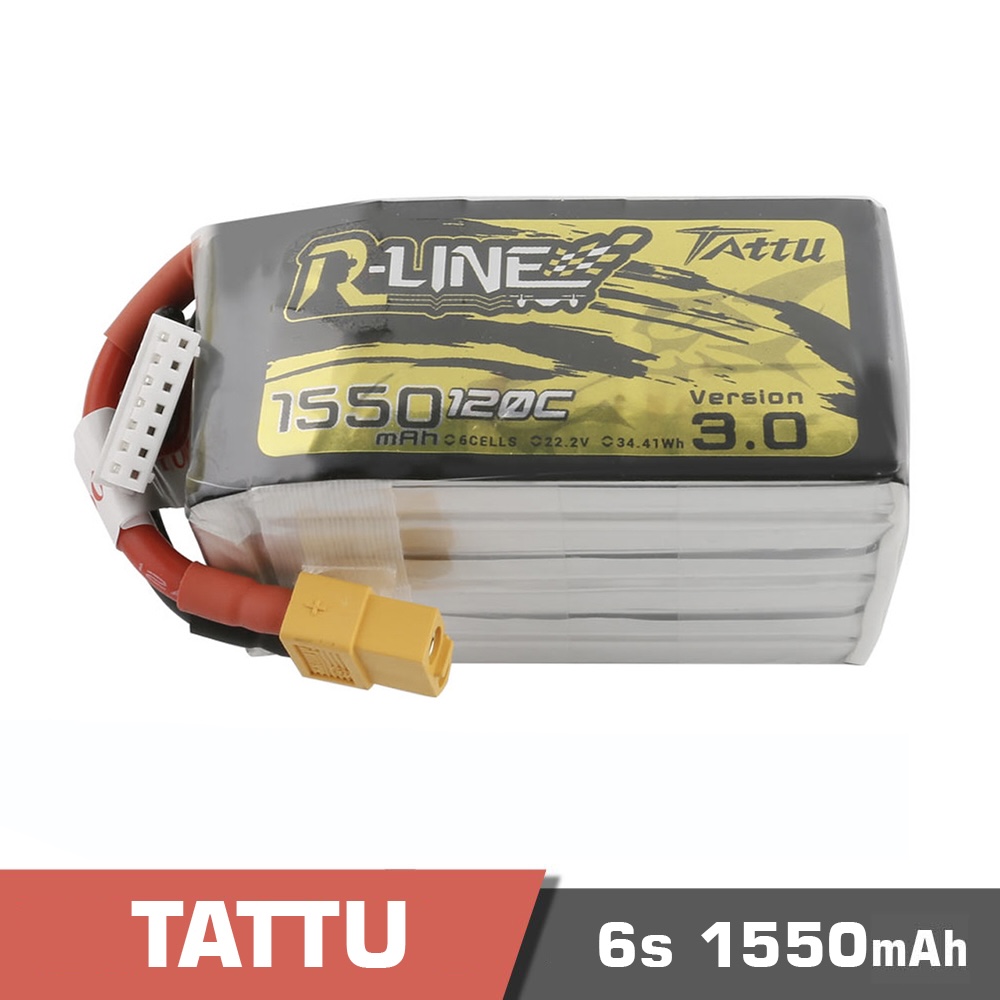

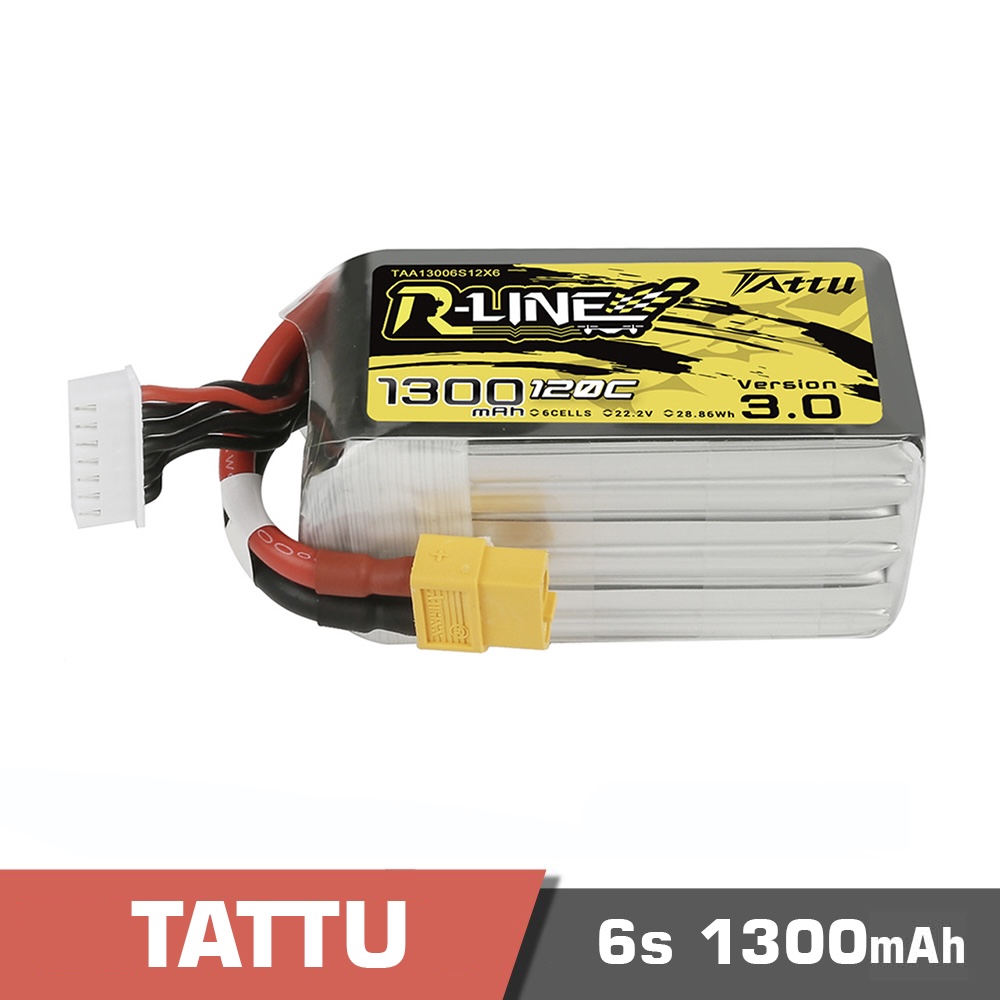

Battery Lipo 6S 120C Tattu R-line 3 1300&1550mAh Specifications
| Capacity | 1300mAh/1550mAh |
| Voltage | 22.2V |
| Max Continuous Discharge | 120C |
| Dimensions | 75*36*38 mm/79*36*45 mm |
| Weight | 210g/253g |
| Balance Plug | JST-XHR |
| Discharge Plug | XT60 |
FAQ
-
What are the key specifications of this battery?
This battery comes in two variants: 1300mAh (210g, 75×36×38mm) and 1550mAh (253g, 79×36×45mm). Both are 6S LiPo packs with a nominal voltage of 22.2V, a maximum voltage of 25.2V, and a 120C continuous discharge rating. -
How does this LiPo battery differ from conventional UAV batteries?
It is specifically designed for FPV racing and freestyle drones, offering extremely high discharge capability (120C) for rapid current draw. Compared to conventional LiPo batteries, it delivers more burst power, less voltage sag, and improved reliability under aggressive maneuvers. -
What certifications are available for this battery?
The battery can be shipped with MSDS and UN38.3 certifications to ensure compliance with international safety and shipping standards. -
What payment methods are accepted?
MotioNew supports secure international payment methods, including credit cards, PayPal, and bank transfers. -
Can this battery be ordered with OEM customization?
Yes, OEM customization is available, particularly for connector types (XT60, XT30, etc.) and other project-specific requirements. Customers should specify their needs during ordering. -
What documentation is provided with the purchase?
The purchase includes essential safety and shipping documents such as MSDS and UN38.3. Additional technical files can be provided on request.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
6S |
|---|---|
| Battery Capacity |
1550mAh |
| Battery Energy Density |
136Wh/kg ,167Wh/kg |
| Battery Type |
LiPo |
| Battery Weight |
210g/253g |
| Battery Dimensions |
75*36*38 mm/79*36*45 mm |
| Battery Continuous C rate |
120c |
| Battery Nominal Voltage |
3.7v |
