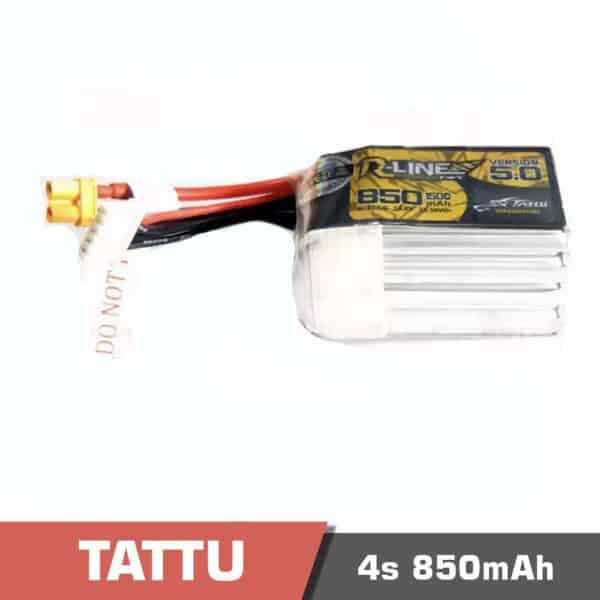

Battery Lipo 4s 850mAh 150C Tattu – R-LINE 5.0 Specifications
| Capacity | 850mAh |
| Voltage | 14.8v |
| Max Continuous Discharge | 150C |
| Weight | 102g |
| Dimensions | 30.5*31*60mm |
| Balance Plug | JST-XHR |
| Discharge Plug | XT30 |
FAQ
-
What are the key specifications of the Tattu R-Line 5.0 4S 850mAh 150C LiPo battery?
This battery has a capacity of 850mAh, 14.8V nominal voltage, 150C continuous discharge rate, a weight of 102g, and dimensions of 30.5×31×60mm. It comes with a JST-XHR balance plug and an XT30 discharge connector. -
For which applications is this battery most suitable?
It is designed for FPV racing drones that require extremely high discharge capability, compact size, and lightweight design for competitive performance. -
How does the 150C discharge rating benefit FPV performance?
The 150C rating ensures extremely high current output with minimal voltage sag, providing fast throttle response, strong acceleration, and stable performance during aggressive racing maneuvers. -
What payment methods can I use?
MotioNew supports PayPal, Visa, MasterCard, and other secure payment methods. -
Does MotioNew offer OEM or wholesale purchasing?
Yes. OEM customization and wholesale purchasing options are available. Customers can contact the sales team for tailored solutions and volume discounts. -
Are datasheets and technical documents provided?
Yes. Supporting datasheets and technical documentation are available in the Documents section of the product page.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
4S |
|---|---|
| Battery Capacity |
850mAh |
| Battery Energy Density |
185wh/kg |
| Battery Dimensions |
30.5*31*60mm |
| Battery Continuous C rate |
150C |
| Battery Type |
LiPo |
| Battery Weight |
102g |
| Battery Nominal Voltage |
3.7v |
| Battery Full Voltage |
4.2v |
