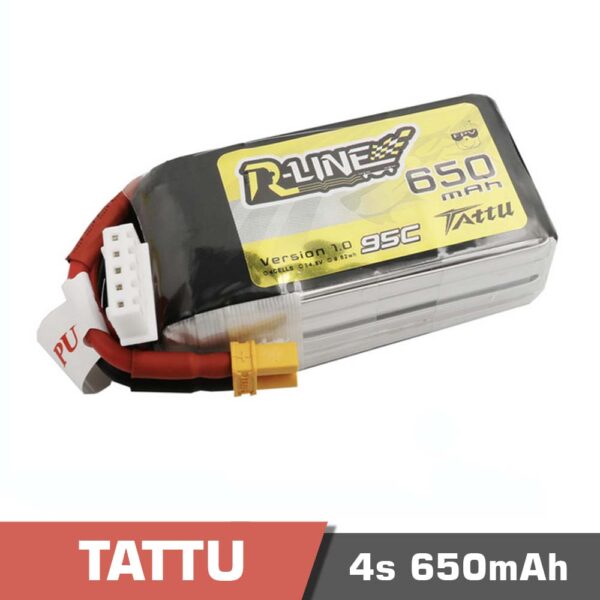

Battery Lipo 4s 650mAh 95C Tattu R-Line Specifications
| Capacity | 650mAh |
| Voltage | 14.8V |
| Max Continuous Discharge | 95C (61.75A) |
| Max Burst Discharge | 190C (123.5A) |
| Weight | 78g |
| Dimensions | 23*31*59mm |
| Balance Plug | JST-XHR |
| Discharge Plug | XT30U-F |
FAQ
-
What are the key specifications of the Tattu R-Line 4S 650mAh 95C LiPo battery?
This battery has a capacity of 650mAh, 14.8V nominal voltage, 95C continuous discharge rate (61.75A), 190C burst rate (123.5A), a weight of 78g, and dimensions of 23×31×59mm. It comes with a JST-XHR balance plug and an XT30U-F discharge connector. -
For which applications is this battery most suitable?
It is designed for FPV racing drones and micro UAVs that require lightweight design and very high discharge performance for short but demanding flights. -
How does the 95C/190C discharge rating improve FPV performance?
The 95C continuous discharge supports powerful and stable current delivery, while the 190C burst provides extra current for aggressive maneuvers and rapid throttle response. -
What payment methods can I use?
MotioNew accepts PayPal, Visa, MasterCard, and other secure online payment methods. -
Does MotioNew offer OEM or wholesale purchasing?
Yes. OEM branding and bulk purchasing options are available. Customers can contact the sales team for customization and volume discounts. -
Are datasheets and technical documents provided?
Yes. Technical datasheets and other supporting documentation are available in the Documents section of the product page.
Documents
Product contents
You must be logged in to post a review.
| Battery cells |
4S |
|---|---|
| Battery Capacity |
650mAh |
| Battery Energy Density |
123Wh/kg |
| Battery Dimensions |
23*31*59mm |
| Battery Continuous C rate |
95c |
| Battery Max Peak C rate |
190C |
| Battery Type |
LiPo |
| Battery Weight |
78g |
| Battery Nominal Voltage |
3.7v |
| Battery Full Voltage |
4.2v |
