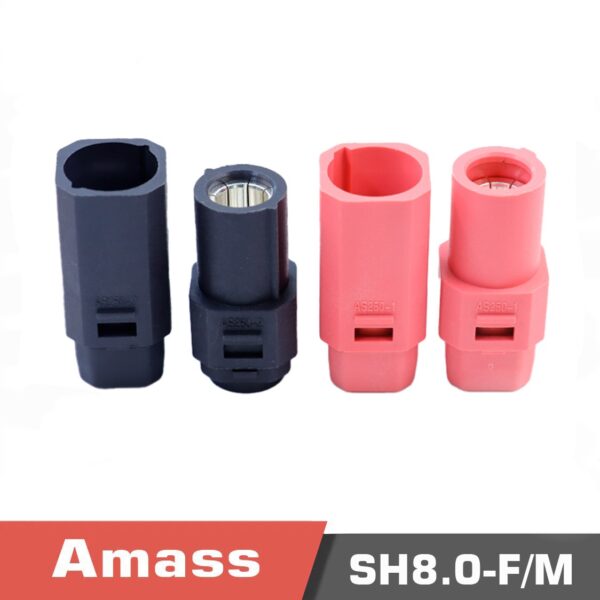

Amass AS250 SH8.0-M/F silver-plated 8mm anti-reverse plug high current lithium battery connector pack of 5 pieces
11.25 $ – 21.60 $
Payment Methods:
Description
Amass AS250 SH8.0-M/F Specifications
The Amass AS250 connectors, model SH8.0/AS250, from the brand Amass, are high-performance electrical connectors designed for reliable power transmission. These connectors are available in different color-coded variants for easy identification and sorting.

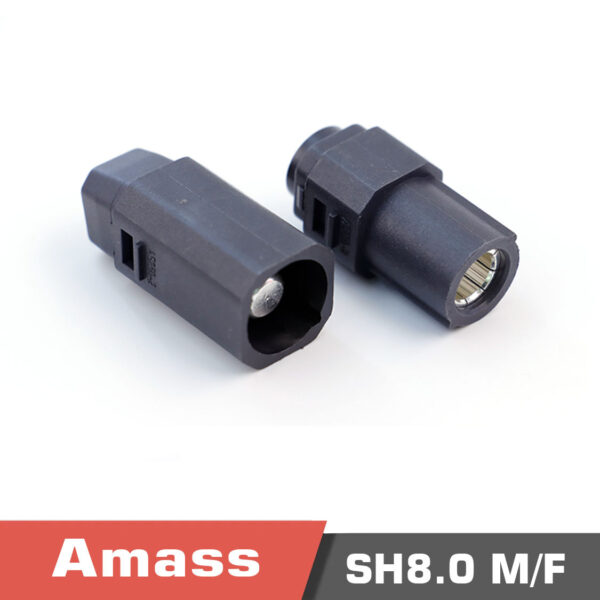

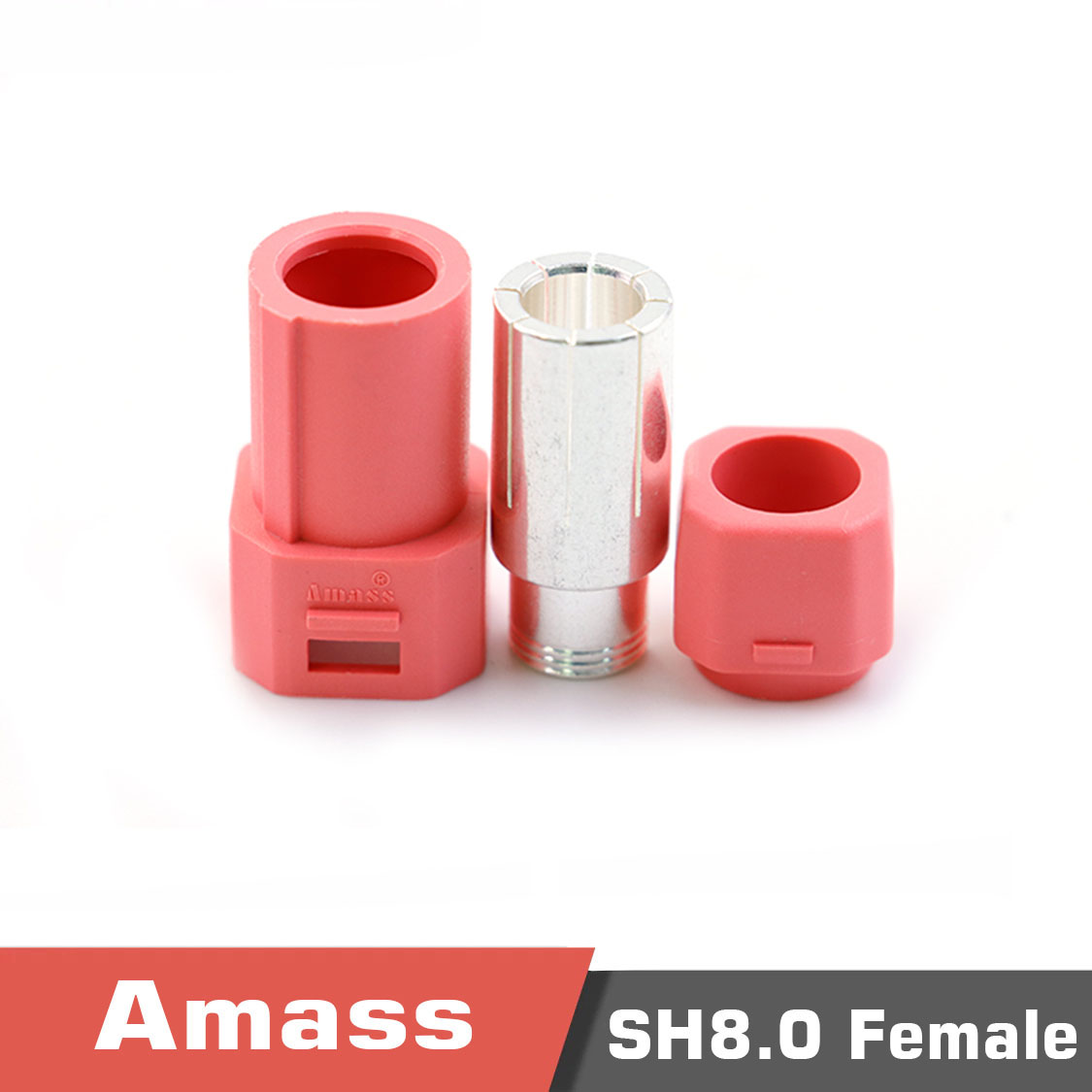

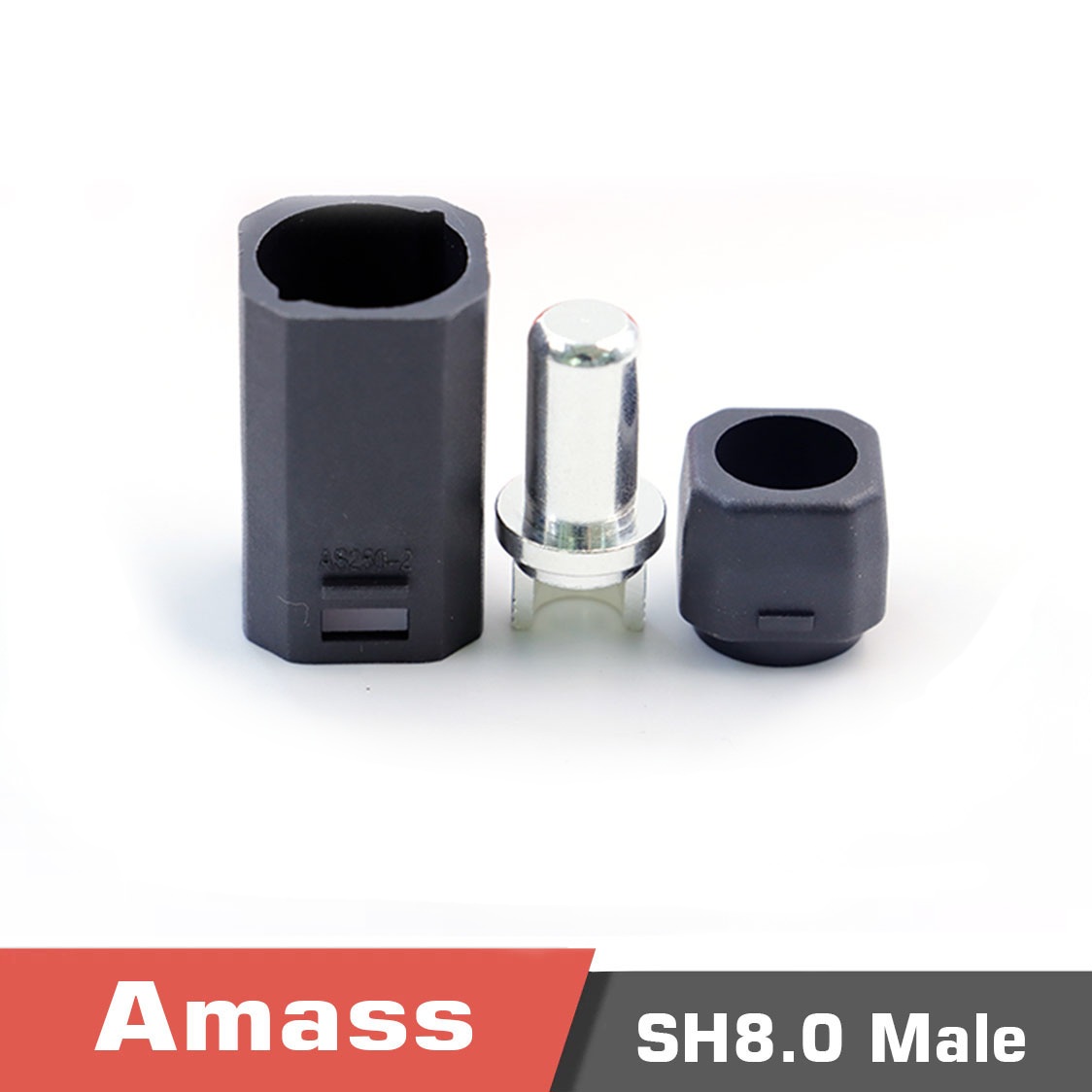

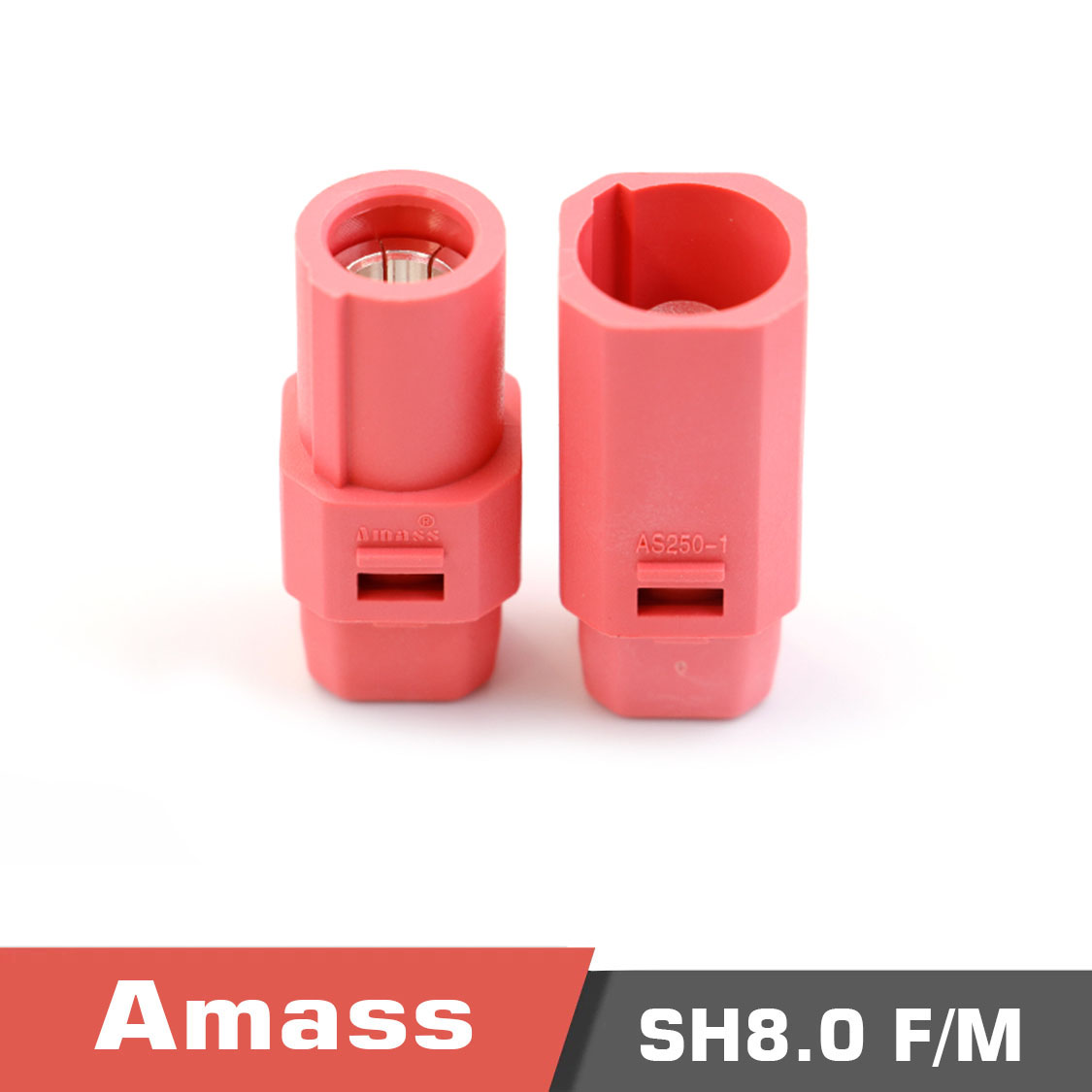

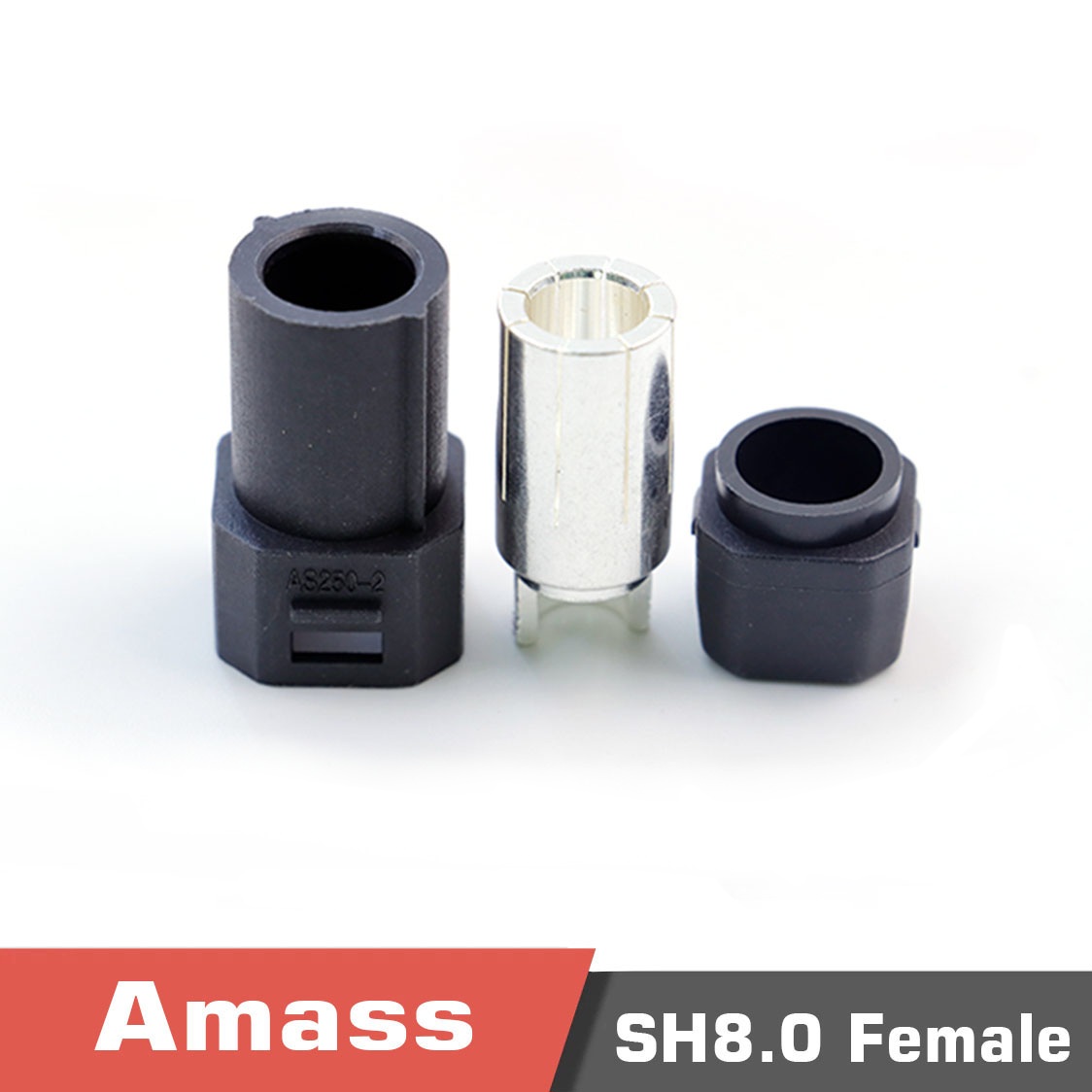

The black series includes the SH8.0-MSB (male), SH8.0-FSB (female), and SH8.0-.SB (male and female set), while the red series consists of the SH8.0-MSR (male), SH8.0-FSR (female), and SH8.0-.SR (male and female set). These connectors ensure secure and stable connections, making them ideal for high-current applications in various electrical and industrial setups.
If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.
Specifications
Specifications
| Specifications |
|||
| Material | Specifications | Plating | Coating thickness |
| metal parts | QSn4-4-4 | S:Silver-plated(Ag) | 1µm |
| Material | Specifications | Color | Flame retardant grade |
| Plastic case | PA66 | R=Red;B=Black | UL94-V0 |
| Characteristics table | ||
| Electrical properties | characteristic | Test method |
| Withstand voltage | DC 500V | UL1977 |
| Rated current | 100A 6# | UL1977 |
| Contact resistance | 0.10mΩ | GB/T5095.2 |
| Insulation resistance | 2000MΩ | GB/T5095.2 |
| Instantaneous current | 150A 6# | &A 1min < 80°C |
| Temperature rise | 100A 4h<60°C 6# | UL1977 |
| Creepage distance | / | GB/T2900 |
| Mechanical properties | Standard | characteristic |
| insertion force | GB/T5095.8 | 5kg-8kg |
| Pullout force | GB/T5095.8 | 54kg-7kg |
| plug and unplug life | GB/T5095.1 | 100 times |
| Protection level | GB/T4208 | IP40 |
| Environmental performance | Standard | characteristic |
| Use temperature | GB/T 2423.3 | -20°C to 120°C |
| salt spray | GB/T 2423.17 | 48h |
| Wiring recommendations | ||
| AWG | Temperature rise 60°C | Temperature rise 85°C |
| 6# | 100A | 125A |
Product contents
Product contents
Please contact us for more information.
Documents
Reviews
You must be logged in to post a review.
| Connector Models |
AS250 SH8.0 Male Red ,AS250 SH8.0 Male Black ,AS250 SH8.0 Female Red ,AS250 SH8.0 Female Black ,AS250 SH8.0 Male and Female Red ,AS250 SH8.0 Male and Female Black |
|---|
