Amass AS150-M/F anti-ignition plug 7mm gold-plated plug aircraft model car model drone plant protection pack of 5 pieces

Name: Amass AS150-M/F anti-ignition plug 7mm gold-plated plug aircraft model car model drone plant protection pack of 5 pieces - MotioNew
SKU: 1005004235700404-2-1-1-1-1-2-1-2-1-1-1-1-1-1-1-1-1-1-1-2-1-1-1-2-1-1-1-1-1-1-1-1-1-1-1-1-1-2-2-2-2-1-1

Add to compare

Add to wishlist

Payment Methods:

Description

Amass AS150-M/F Specifications

The Amass AS150 connectors are high-performance electrical connectors designed to ensure reliable power transmission. Manufactured by Amass, these connectors feature a rated current of 70A and can withstand voltages up to 500V DC. With a low contact resistance of ≤0.2mΩ, they support an instantaneous current of 150A, making them suitable for high-power applications.

The Amass AS150 connectors are designed for use with a recommended 6AWG wire gauge and offer a service life of up to 1000 mating cycles. Built to withstand extreme conditions, they operate within a temperature range of -20°C to 120°C and meet the V2 flame retardant grade for safety. Constructed with a PA outer shell and gold-plated copper pinhole parts, the AS150 connectors provide durability, efficiency, and long-lasting performance.

If you have any questions regarding our products, use the Motionew Contact us to consult our engineering team.

Specifications

Electrical Characteristics
Rated Current	70A
Withstand Voltage	500V DC
Contact resistance	≤0.2mΩ
Instantaneous Current	150A
Recommended wire gauge	6AWG
Service Life	1000 times
Environmental resistance
Working temperature	-20°C to 120°C
Flame retardant grade	V2
Material
Outer shell	PA
Pinhole parts	gold plated copper

Product contents

Please contact us for more information.

Documents

Please contact us for more information.

Reviews

Rated 0 out of 5

0 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Amass AS150-M/F anti-ignition plug 7mm gold-plated plug aircraft model car model drone plant protection pack of 5 pieces”

You must be logged in to post a review.

Specification:

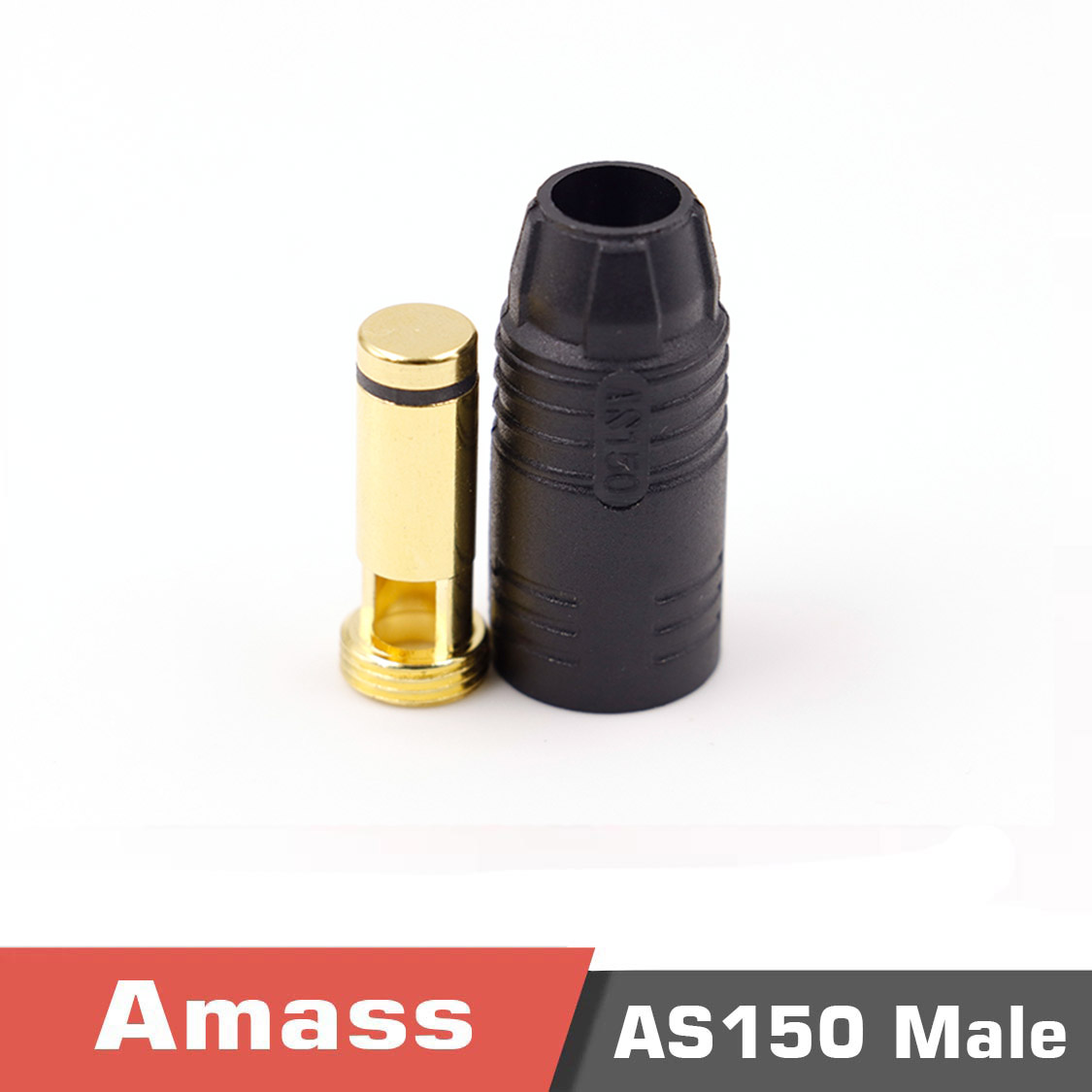

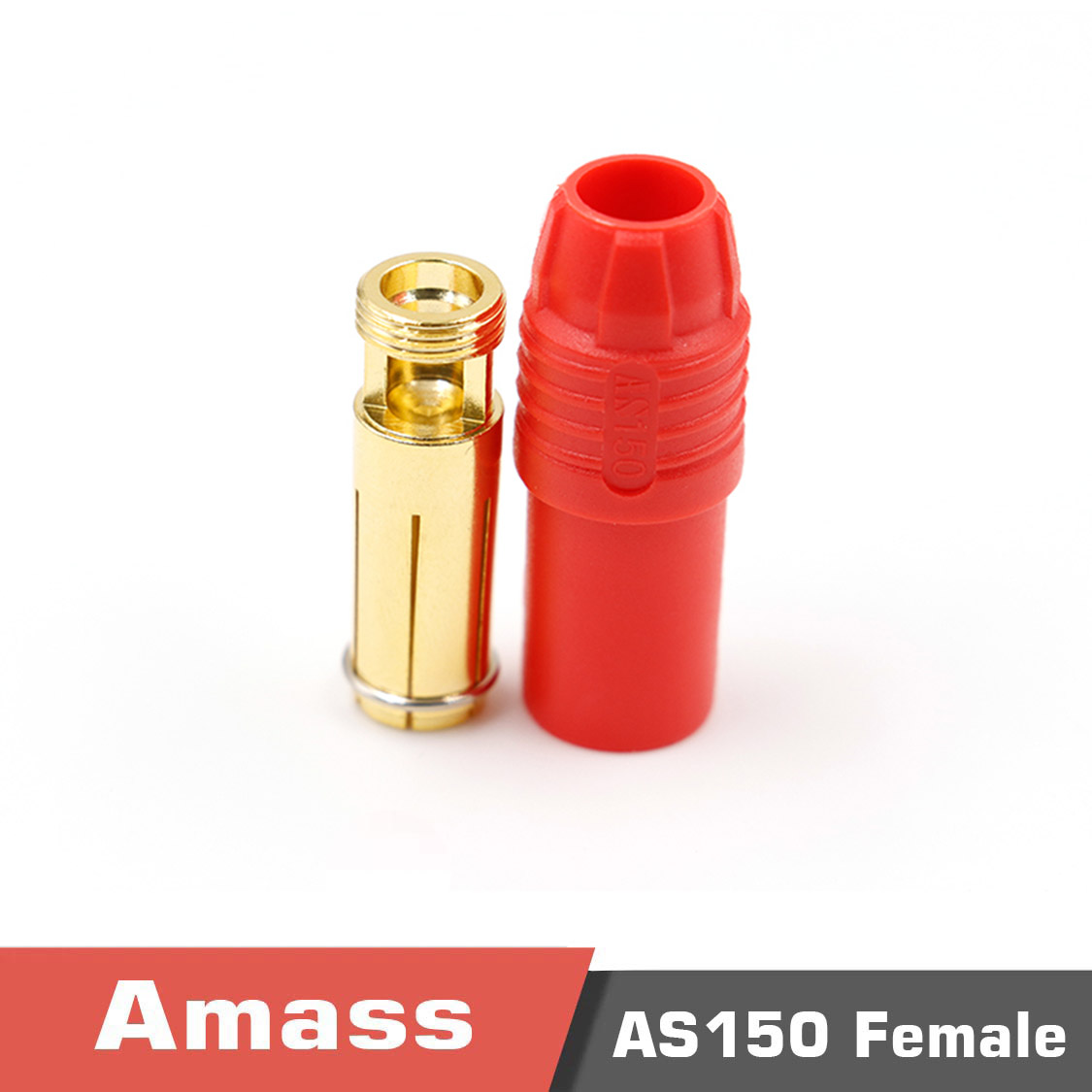

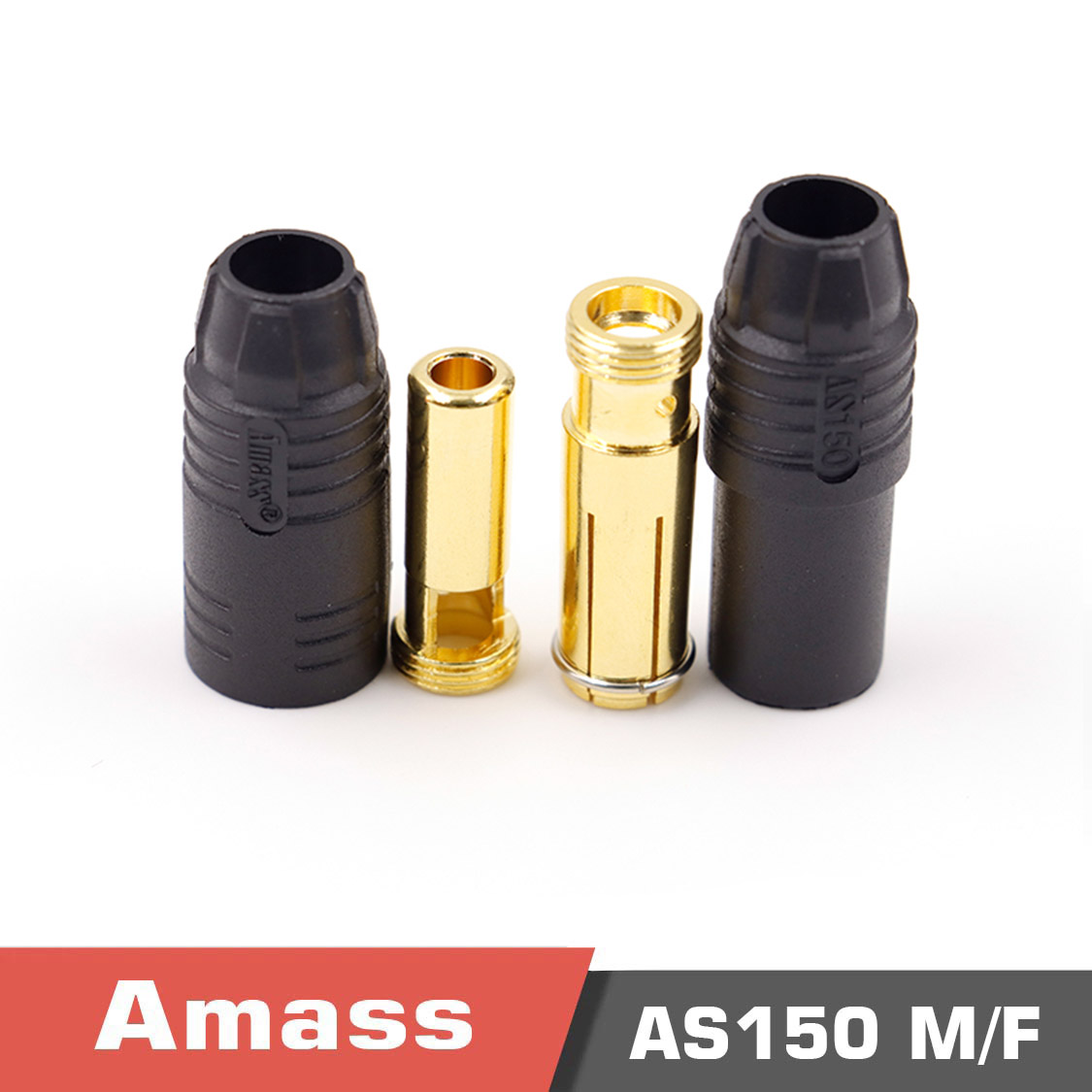

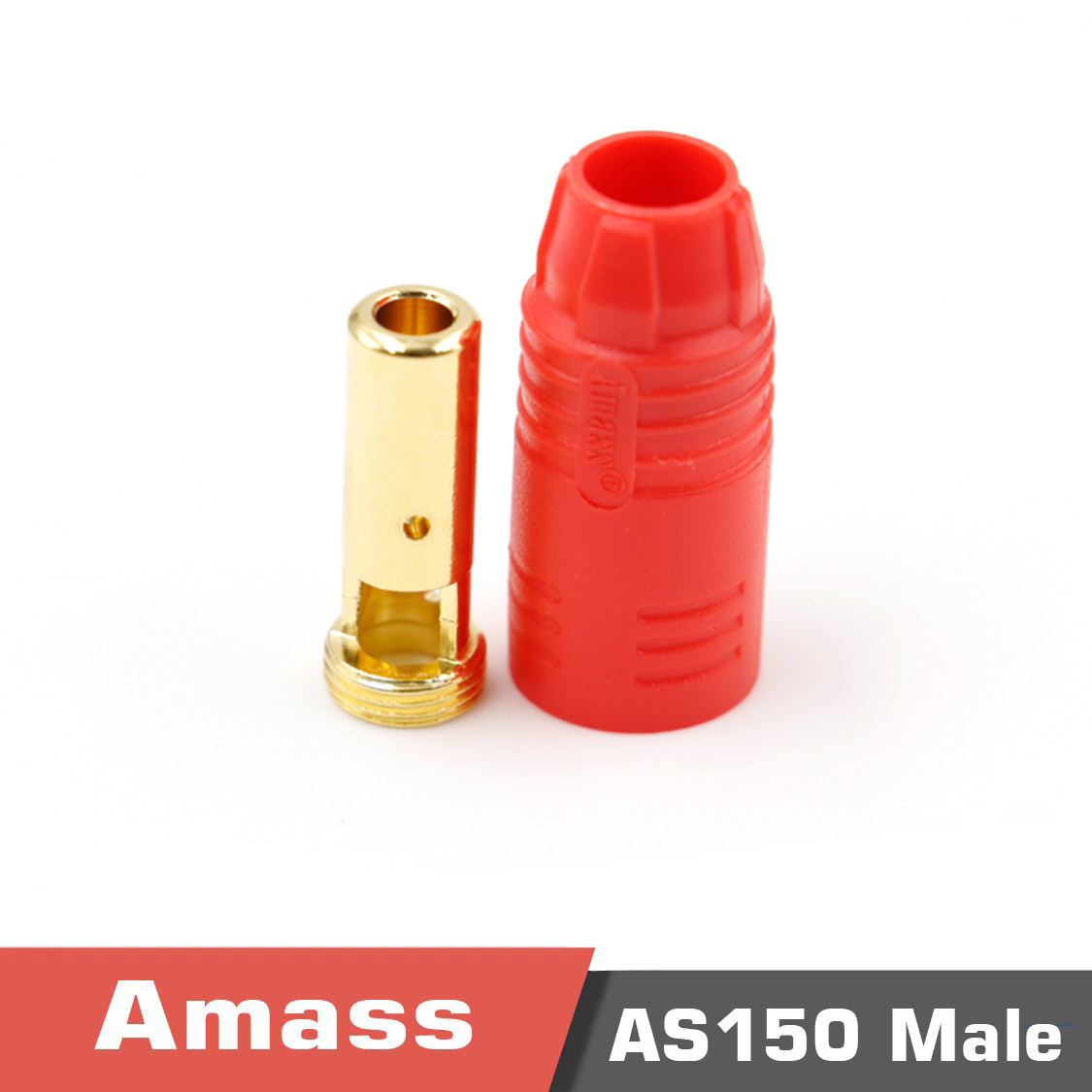

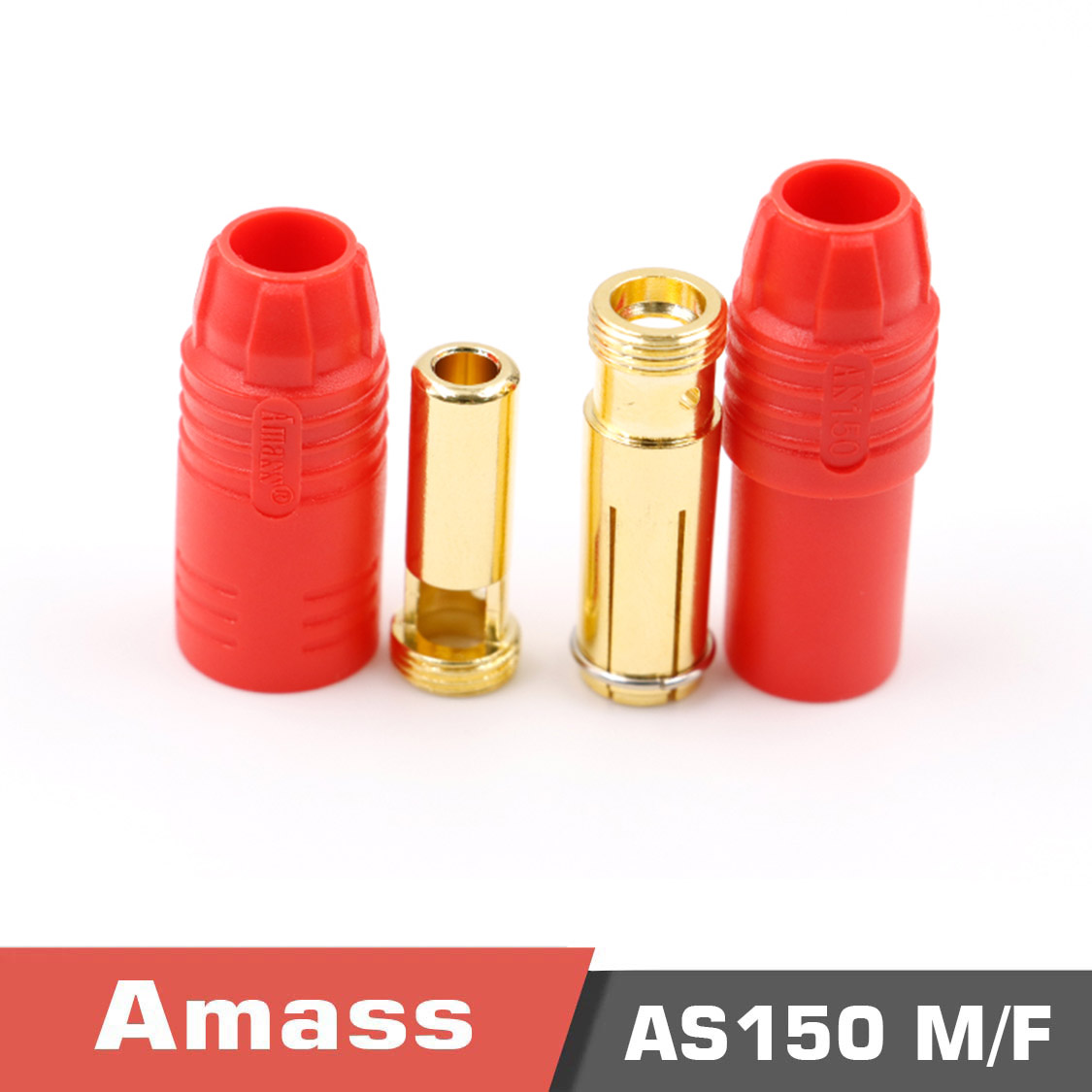

Connector Models	AS150 Male Red (anti-spark) , AS150 Male Red (not spark-proof) , AS150 Female Red , AS150 Male and Female Red (anti-spark) , AS150 Male and Female Red (not spark-proof) , AS150 Male Black (anti-spark) , AS150 Male Black (not spark-proof) , AS150 Female black , AS150 Male and Female black (anti-spark) , AS150 Male and Female black (not spark-proof)
