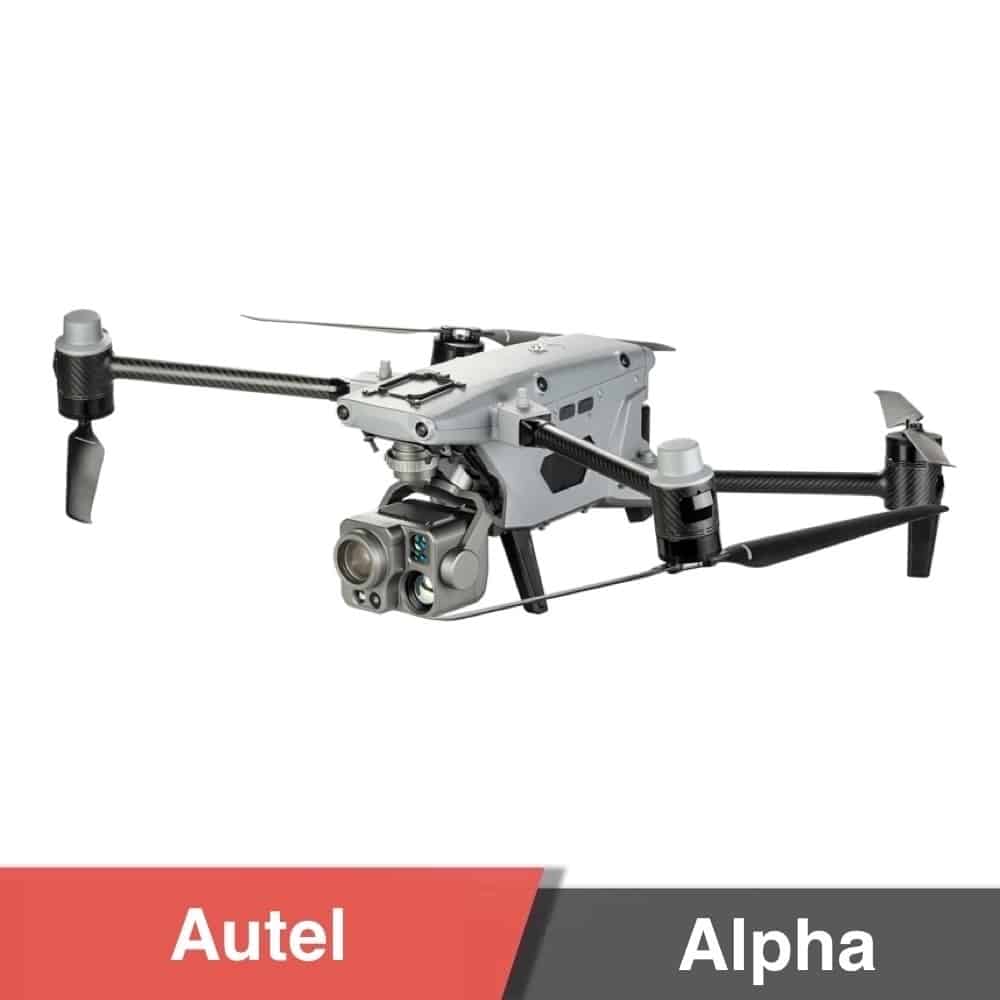

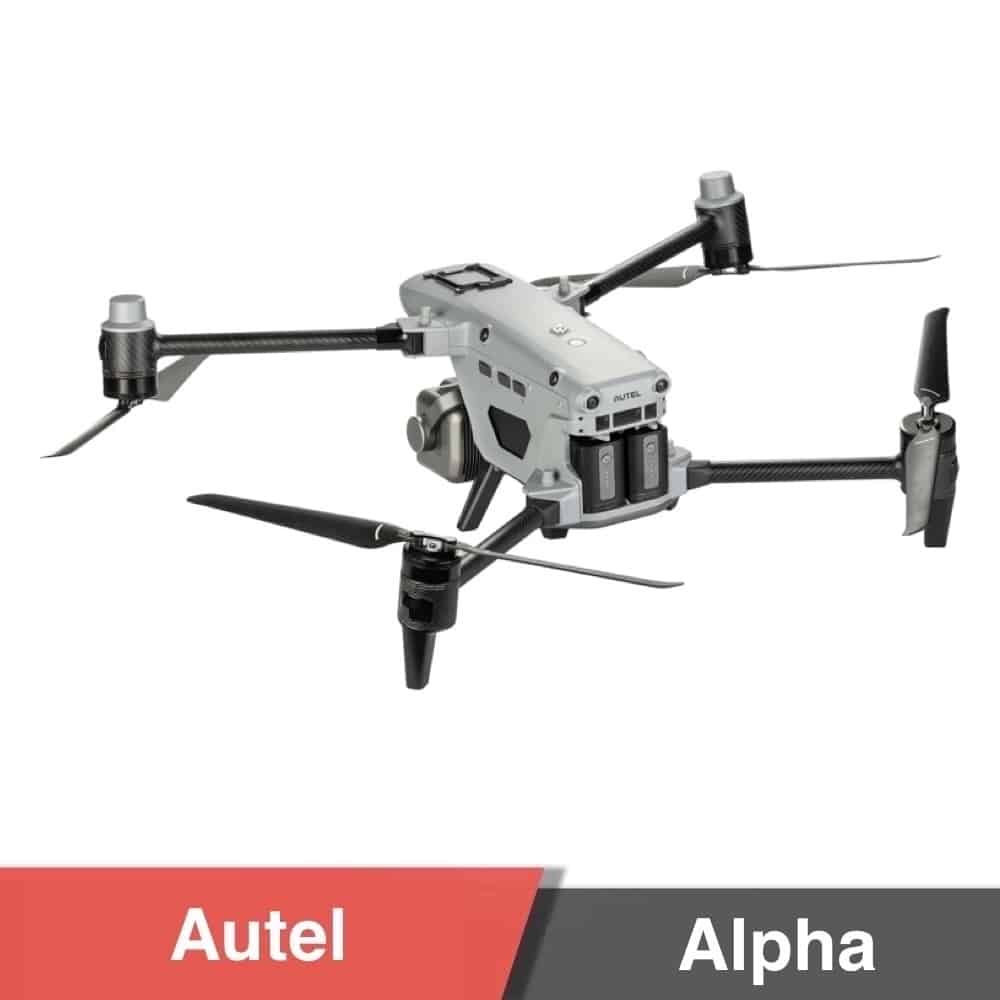

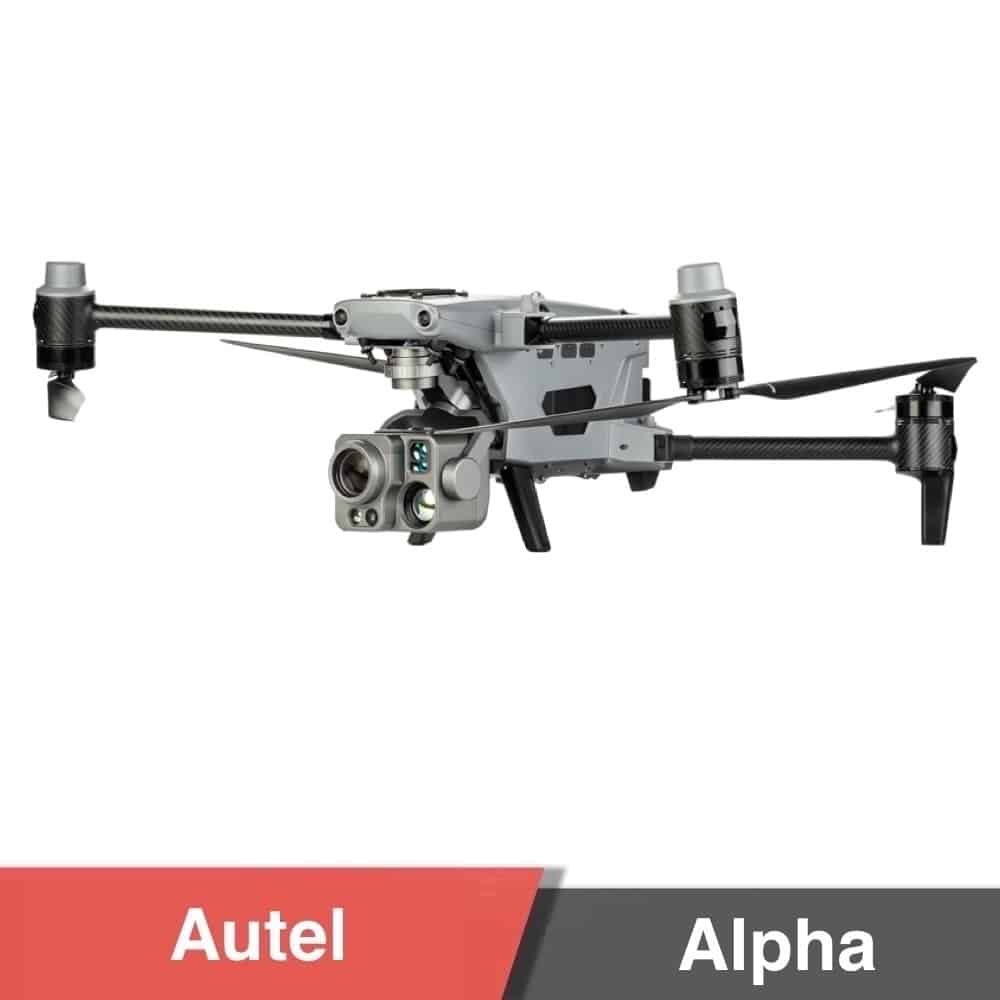

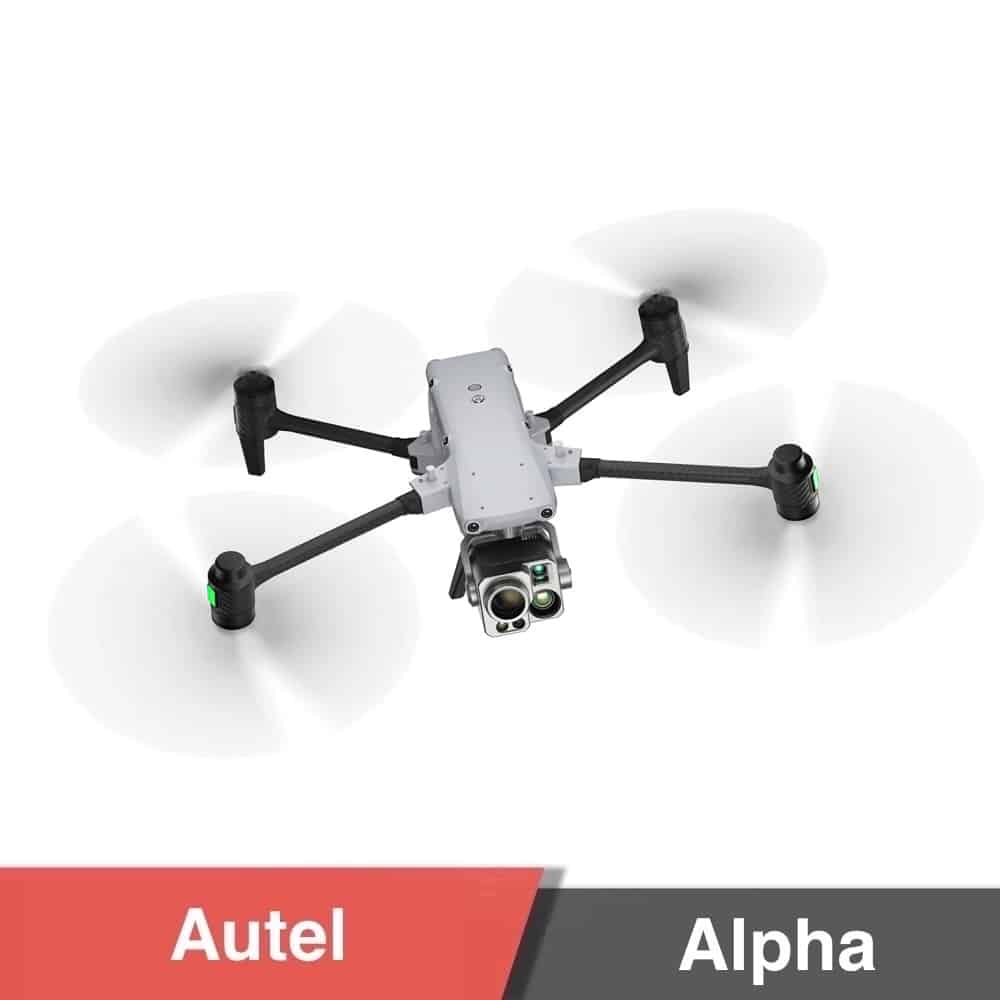

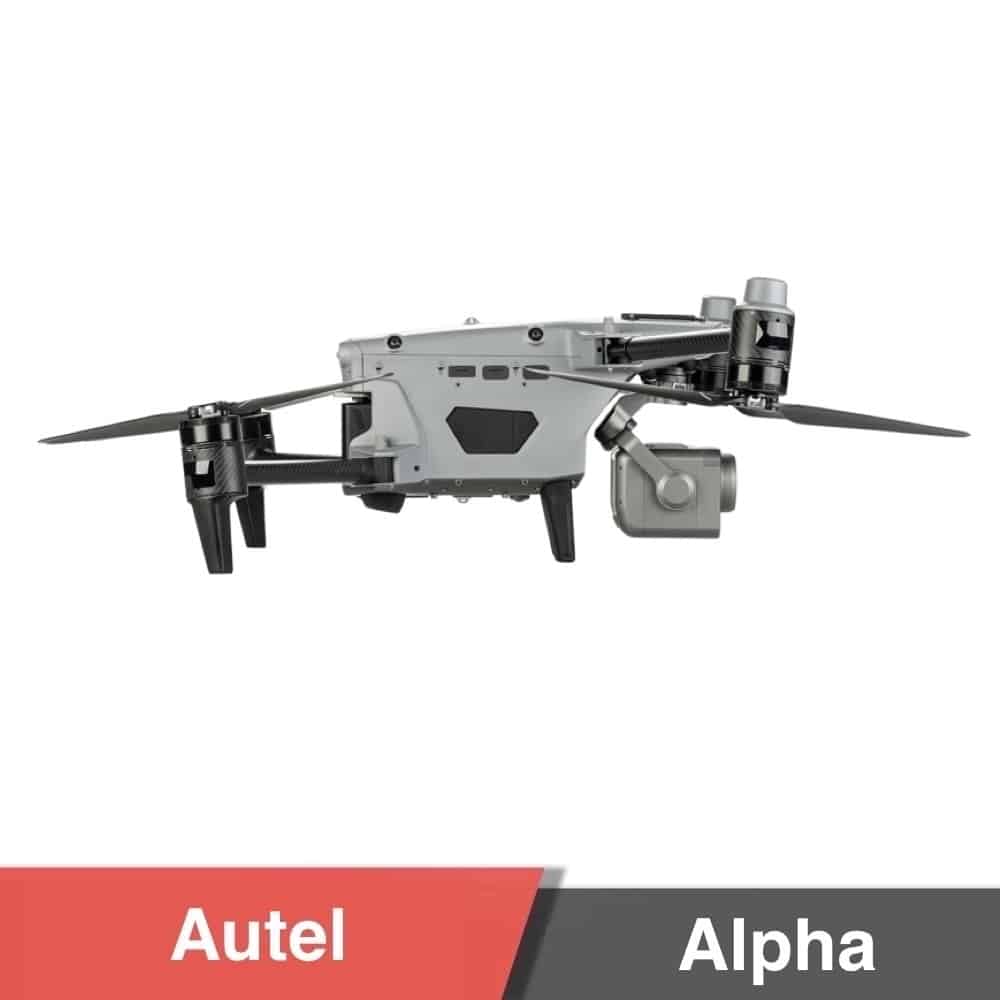

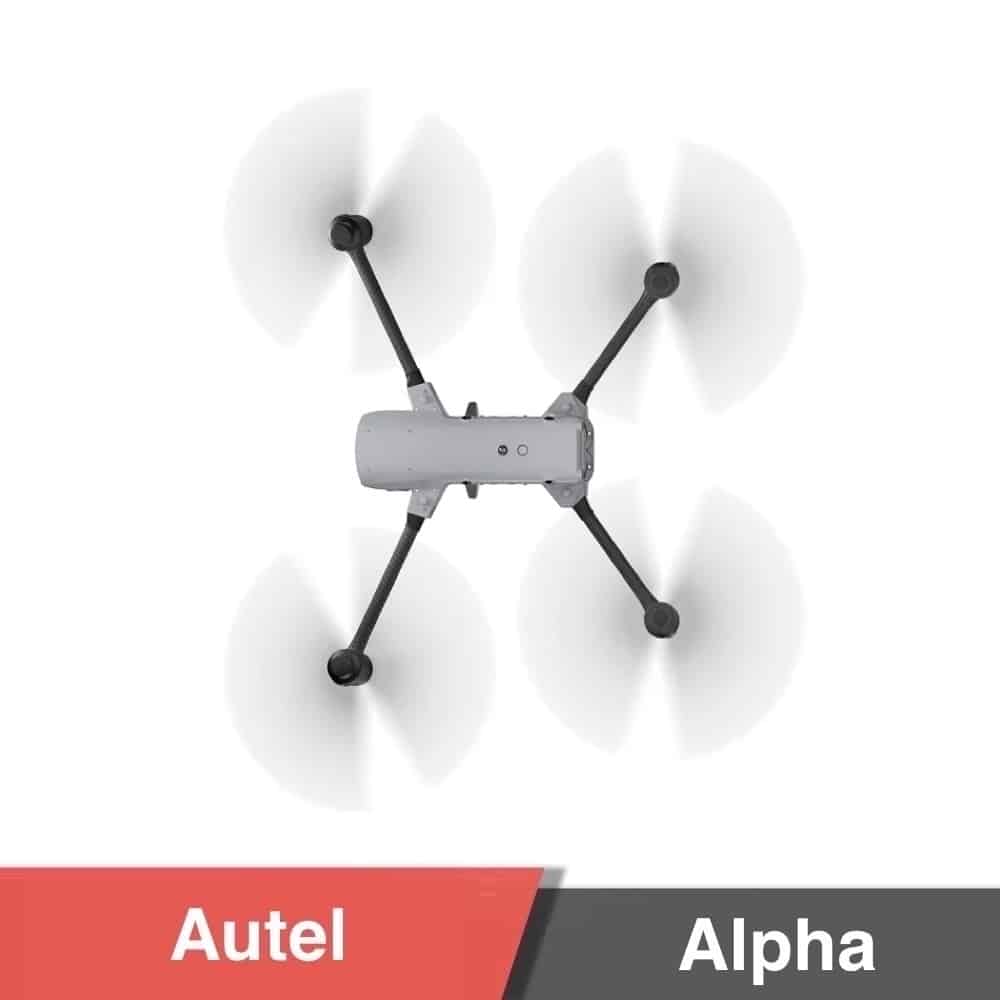

Autel Alpha

Specifications

• Aircraft

  Autel Alpha Empty Weight	5535 g (Smart battery, propellers included and gimbal excluded)
  Autel Alpha Weight	6480 g (Smart battery, gimbal and propellers included)
  Autel Alpha Maximum Take-Off Mass (MTOM)	8400 g
  Fuselage Dimensions	1205×980×278 mm (unfolded, incl. propellers) 780×568×278 mm(unfolded, excl. propellers) 455×263×248 mm (folded, excl. propellers)
  Diagonal Wheelbase	Diagonal: 814 mm
  Maximum Ascent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 6 m/s Ludicrous: 15 m/s
  Maximum Descent Speed	Slow: 2.5 m/s Smooth: 3 m/s Standard: 5 m/s Ludicrous: 10m/s
  Maximum Horizontal Flight Speed (Windless Near Sea Level)	Slow: 3 m/s Smooth: 10 m/s Standard: 15 m/s (forward & backward), 10 m/s (sidewards) Ludicrous: 25 m/s (forward & backward & sidewards)
  Maximum Service Ceiling Above Sea Level	4500 meters
  Maximum Flight Altitude	800 meters (Altitude limit in the App)
  Maximum Flight Time (Windless, Speed: 10.5 m/s)	40 minutes
  Maximum Range	30 km (with carbon fiber propeller) 27.5km (with injection molded propeller)
  Maximum Hovering Time (Windless)	38 minutes
  Maximum Wind Speed Resistance	12 m/s
  Maximum Tilt Angle	Slow: 10° Smooth: 30° Standard: 30° Ludicrous: 36°
  Maximum Angular Velocity	Pitch axis: 300°/s Heading axis: 120°/s
  Operating Temperature	-20℃ to 50℃

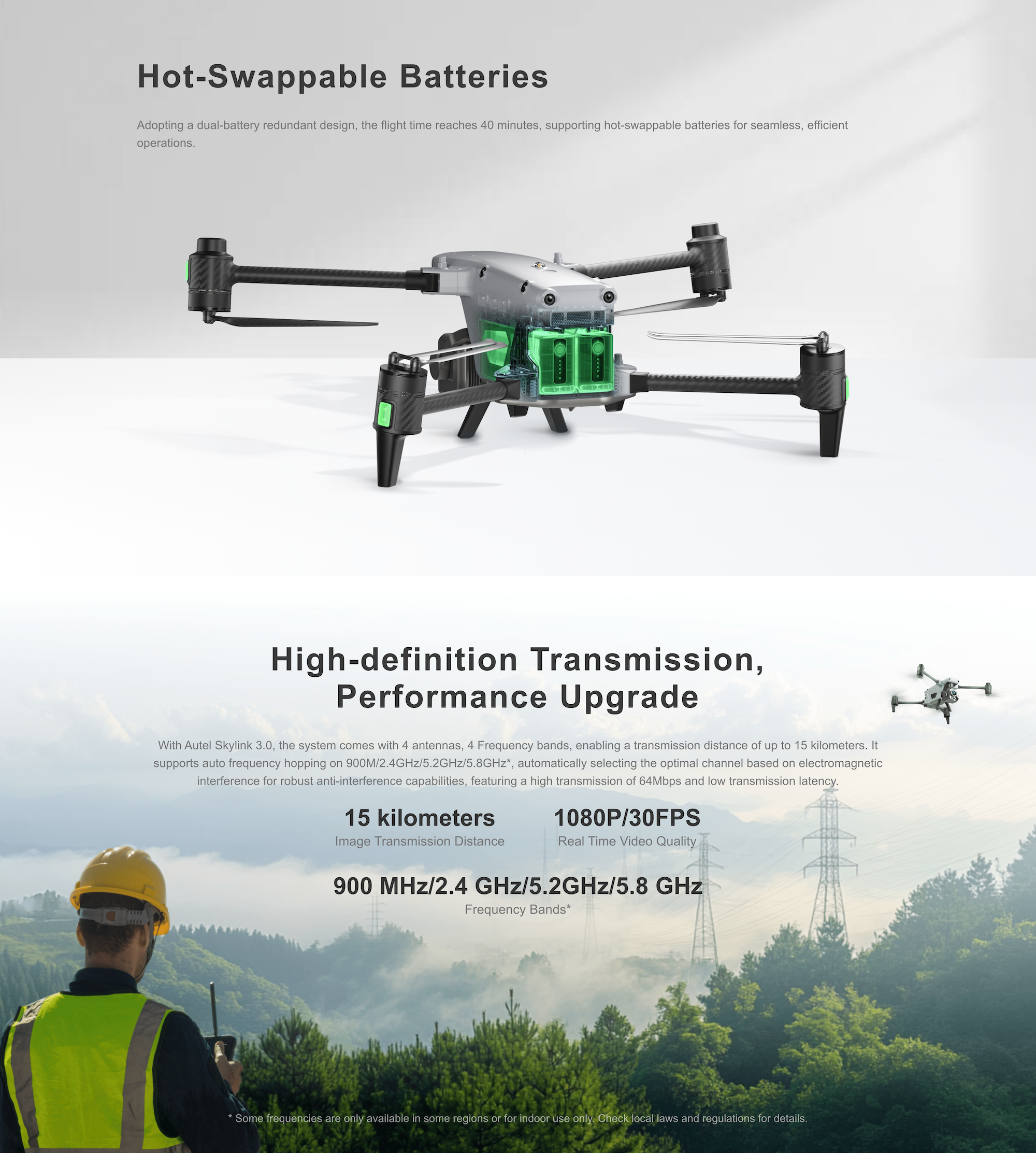

  Hot-swappable Batteries	Supported
  IP Rating	IP55
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Hovering Accuracy	Vertically ±0.1 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX) Horizontally ±0.15 m (when visual positioning works normally) ±0.3 m (when GNSS works normally) ±0.1 m (when RTK FIX)



• Image Transmission

  Operating Frequency	900M: 902 – 928 MHz* 2.4G: 2.400 – 2.476GHz**, 2.400 – 2.4835 GHz 5.2G: 5.15 – 5.25 GHz***, 5.17 – 5.25 GHz**** 5.8G: 5.725 – 5.829GHz**, 5.725 – 5.850GHz * Only applicable to FCC and ISED regions. **Only applicable to SRRC regions. *** Only applicable to FCC, CE (except Germany), and UKCA regions. **** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15km CE: 8km
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm (FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm(CE/SRRC/UKCA) 5.2G: ≤30dBm(FCC); ≤23 dBm(CE/UKCA) 5.8G: ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)

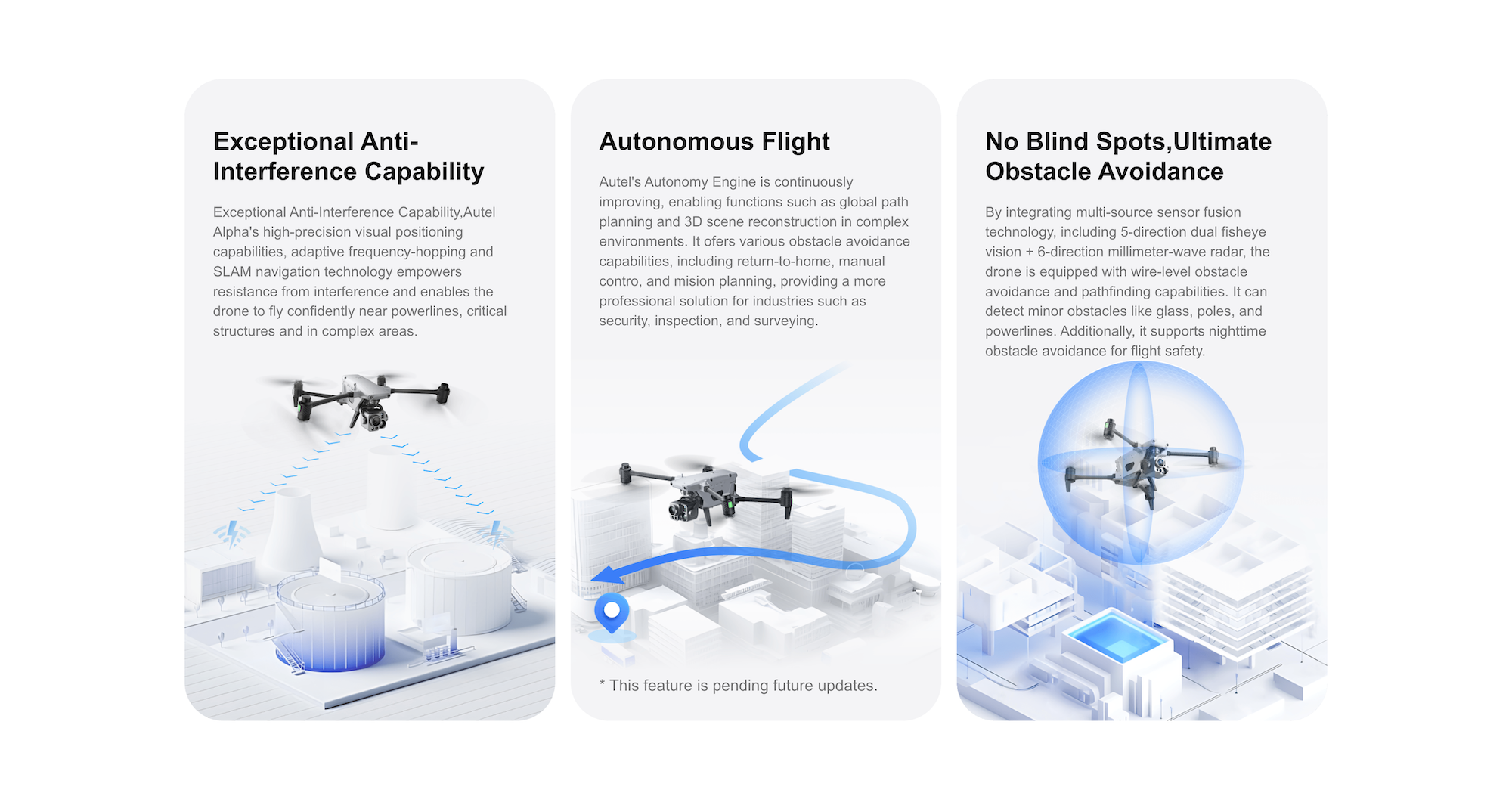

• Visual Sensing System

  Sensing Range	Forward: 0.2 – 31 m Backward: 0.2 – 26 m Sidewards: 0.5 – 45 m Upward: 0.2 – 45 m Downward: 0.2 – 45 m
  FOV	Forward & Backward: 90°(H), 90°(V) Sidewards: 90°(H), 90°(V) Upward: 90°(H), 90°(V) Downward: 90°(H), 90°(V)
  Operating Environment	Forward, backward, sidewards, and upward: The surface has rich textures, under a sufficient lighting environment (>15 lux). Downwards: The surface is a diffuse material with a reflectivity >20% (walls, trees, humans, etc.), under a sufficient lighting environment (>15 lux).



• Millimeter-wave Radar Sensing System

  Operating Frequency	60G: 60 – 64GHz 24G: 24.0 – 24.25GHz
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G： ≤20mW(SRRC)
  Sensing Range	60G radar: Upward: 0.3 – 20 m Downward: 0.15 – 40 m Forward & Backward: 0.3 – 30 m Sidewards: 0.3 – 30 m 24G radar: Downward: 0.8 – 20 m
  FOV	Horizontal (6dB): ±35°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz))
  Operating Environment	60G millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 6 directions. Its obstacle avoidance distance varies with the obstacle’s ability to reflect electromagnetic waves and its surface size. 24G millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 20 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 10 meters.
  Aircraft Version Limitations*	In order to comply with the regulations of the country or region where the target market is located, aircraft bottom millimeter-wave radars in some markets use the 24G frequency band, and the five directions of front, rear, left, right, and top use the 60G frequency band. Among them, the 24G version of the aircraft has turned off the 60G radar function in the five directions of front, rear, left, right, and top in the flight control software before leaving the factory, and only turned on the bottom 24G radar for assisted landing. The 24G version of the aircraft only supports visual obstacle avoidance under good lighting conditions and does not support the millimeter-wave radar obstacle avoidance function at night.



• Wi-Fi

  Wi-Fi Protocol	802.11a/b/g/n/ac/ax
  Wi-Fi Operating Frequency	2.4G: 2.400 – 2.476GHz*, 2.400 – 2.4835 GHz 5.2G: 5.15-5.25GHz**, 5.17-5.25GHz*** 5.8G: 5.725 – 5.829GHz*, 5.725 – 5.850 GHz *Only applicable to SRRC regions. ** Only applicable to FCC, CE (except Germany), and UKCA regions. *** Only applicable to Germany. Note: Some frequencies are only available in some regions or for indoor use only. Check local laws and regulations for details.
  Wi-Fi Transmitter Power (EIRP)	2.4G: ≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.2G: ≤30dBm (FCC); ≤23dBm (CE/UKCA) 5.8G： ≤30dBm (FCC/ISED/SRRC); ≤14dBm (CE/UKCA)

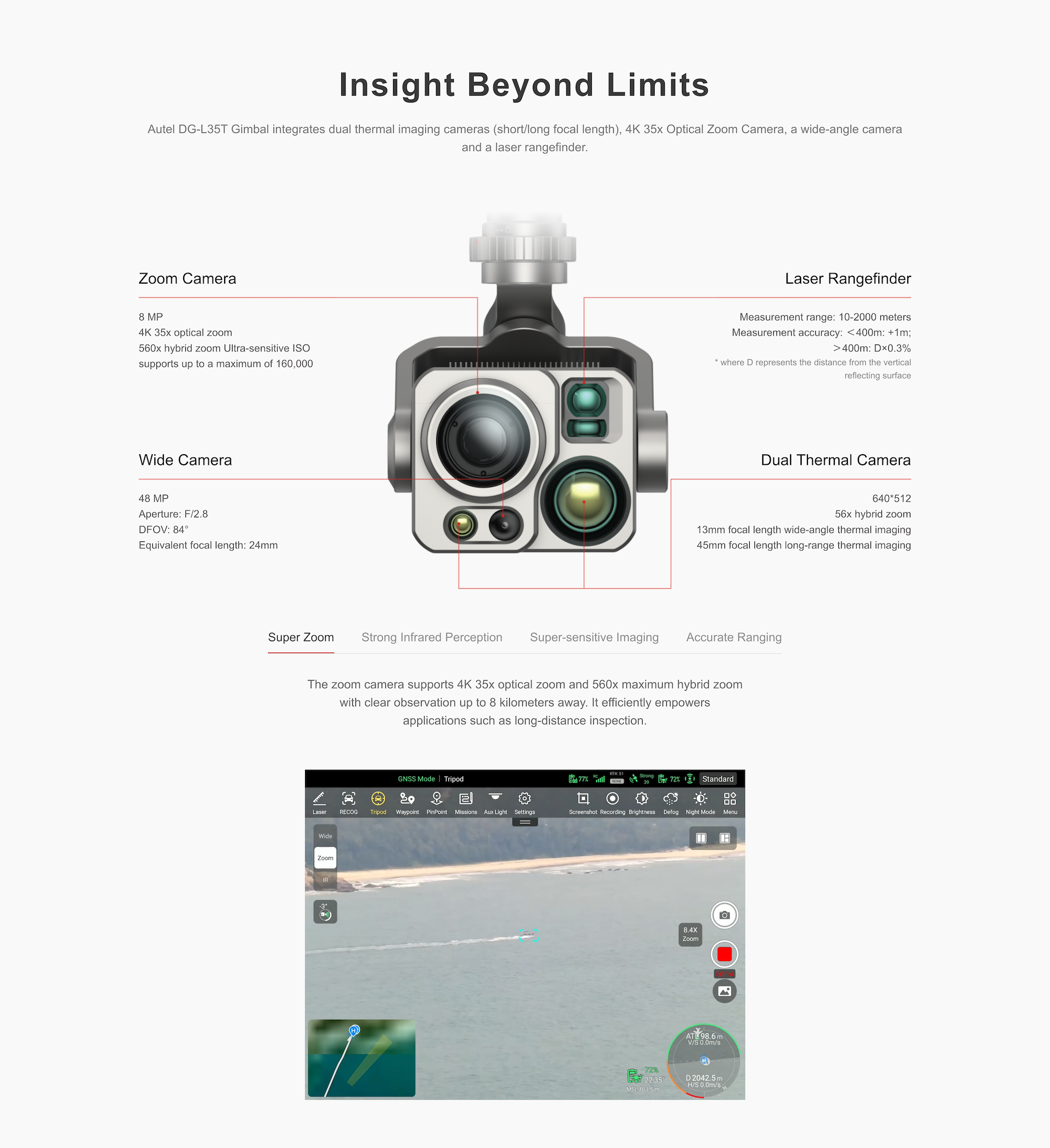

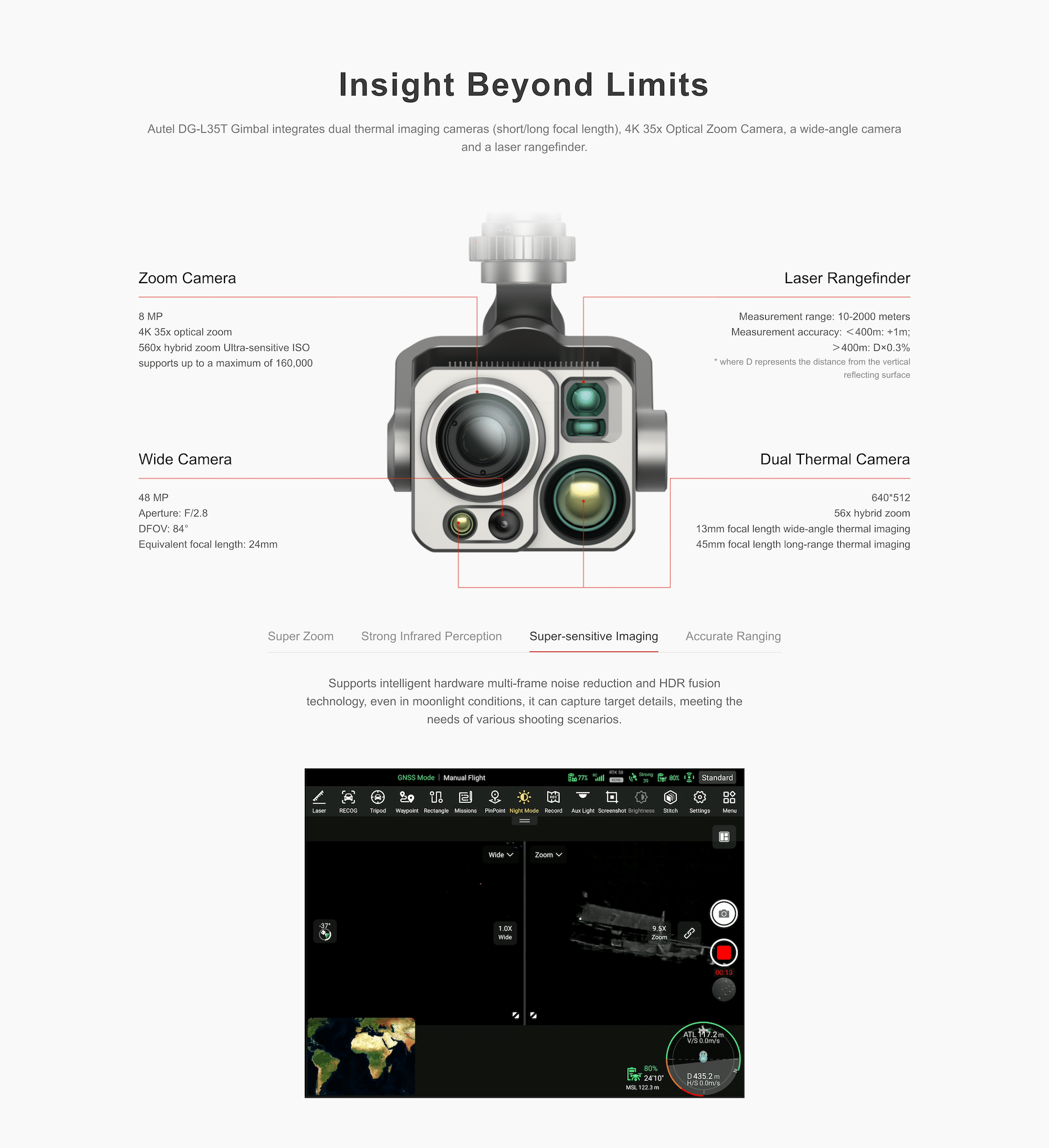

• DG-L35T Gimbal Technical Specifications

  Dimension	144.7×133.3×158.4 mm
  Weight	920g
  IP Rating	IP55
  Installation	Detachable (E-shape design)
  Operating Temperature	-20℃ to +50℃
  Storage Temperature	-30℃ to +70℃
  Data Storage	Support microSD
  Max. Expandable Memory	256GB
  Recommended Memory Card List	UHS-I Speed Class U3 or V30, minimum write speed 30MB/s
  Mechanical Ranger	Pitch: -135° to 45° Roll: -60° to 60° Yaw: -90° to 90°
  Controllable Range	Pitch: -90° to 30°
  Stable system	3-axis mechanical gimbal (pitch, yaw, roll)
  Max Control Speed (pitch)	100°/s
  Angular Vibration Range	＜0.005°



• Zoom Camera

  Image Sensor	1/1.8″ CMOS. Effective pixels: 8M
  Lens	Focal length: 7.1 – 171.95 mm±5% 35 mm equivalent focal length: 34.7 – 838 mm Aperture: f/1.61(Wide)- f/5.19(Tele)±5% Focusing distance: 10 m ~ ∞
  ISO Range	Normal mode ISO100 – ISO25600 Super Night ISO100 – ISO160000
  Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
  Exposure Compensation	±3.0 (1/3 increments)
  Digital Zoom	1.4 – 35x continuous optical zoom, 35-560x digital zoom
  IR-CUT	Default Setting: Auto – Disabled during daytime, activated during nighttime. Manual Activation: Turn on IR-CUT – Display in Black and White. Manual Deactivation: Turn off IR-CUT – Display in Color.
  Max Photo Resolution	3840×2160
  Photo Format	JPG
  Photo Taking Mode	Auto
  Video Resolution	3840×2160 30P
  Video Format	MP4
  Max Bit Rate	30Mbps
  Supported File Systems	exFAT/Fat32



• Wide Angle Camera

  Image Sensor	1/2″ CMOS. Effective pixels: 48M
  Lens	Focal length: 4.49 mm Equivalent focal length: 24 mm Aperture: f/2.8
  ISO Range	Auto: ISO100 – ISO3200
  Shutter Speed	Photo: 0.5s ~ 1/8000s Video: 1/30s ~ 1/8000s
  Photo Size	4000×3000
  Photo Format	JPG
  Photo Taking Mode	Auto
  Video Resolution	4000×3000 25P
  Video Format	MP4
  Max Bit Rate	30Mbps
  Supported File Systems	exFAT/Fat32

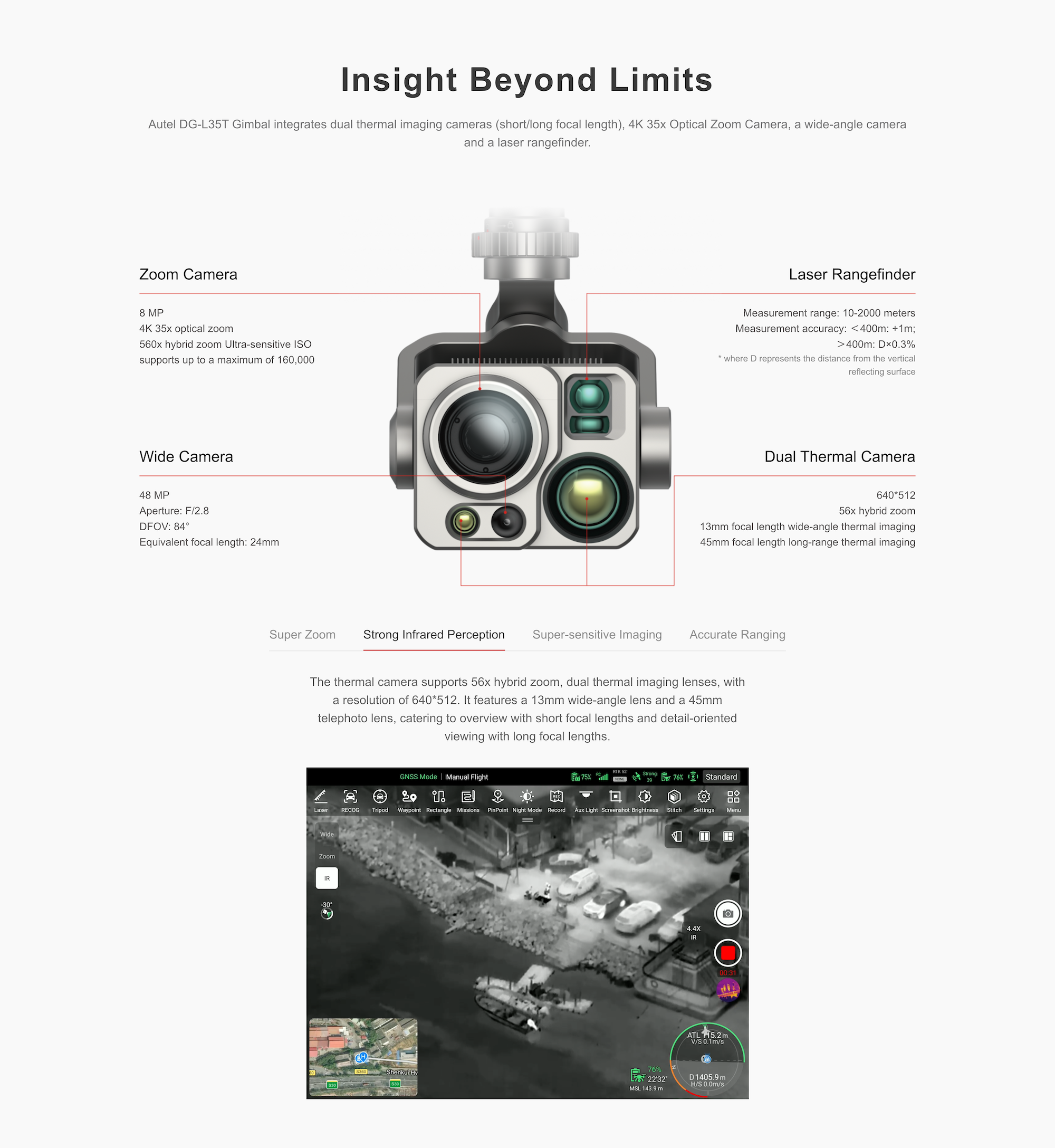

• Infrared Thermal Imaging Camera 1

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 42° Focal length: 13 mm Aperture: f/1.2 Focusing distance: 6 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 – 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	5-meter distance test in a windless laboratory environment at 25°C: ±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	5 m
  Digital Zoom	1-3.5x wide angle digital zoom
  Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Photo Taking Mode	Auto
  Video Resolution	640×512@25FPS
  Video Format	MP4



• Infrared Thermal Imaging Camera 2

  Image Sensor	Uncooled VOx Microbolometer
  Lens	FOV: 12.3° Focal length: 45 mm Aperture: f/1.2 Focusing distance: 35 m ~ ∞
  Sensitivity	≤50mK@f/1.0, 25°C
  Pixel Pitch	12um
  Wavelength	8 – 14um
  Radiometric Measurement Method	Center measurement/Pot measurement/Rectangular measurement
  Radiometric Temperature Range	-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
  Radiometric Measurement Accuracy	35-meter distance test in a windless laboratory environment at 25°C: ±5°C or reading ±5% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
  Accurate Temperature Measurement Distance	35 m
  Digital Zoom	3.5-56x tele digital zoom
  Temperature Alert	High and low temperature alarm thresholds, Reporting coordinates and temperature values
  Palette	White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot
  Photo Size	640×512
  Photo Format	JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)
  Photo Taking Mode	Auto
  Video Resolution	640×512@25FPS
  Video Format	MP4

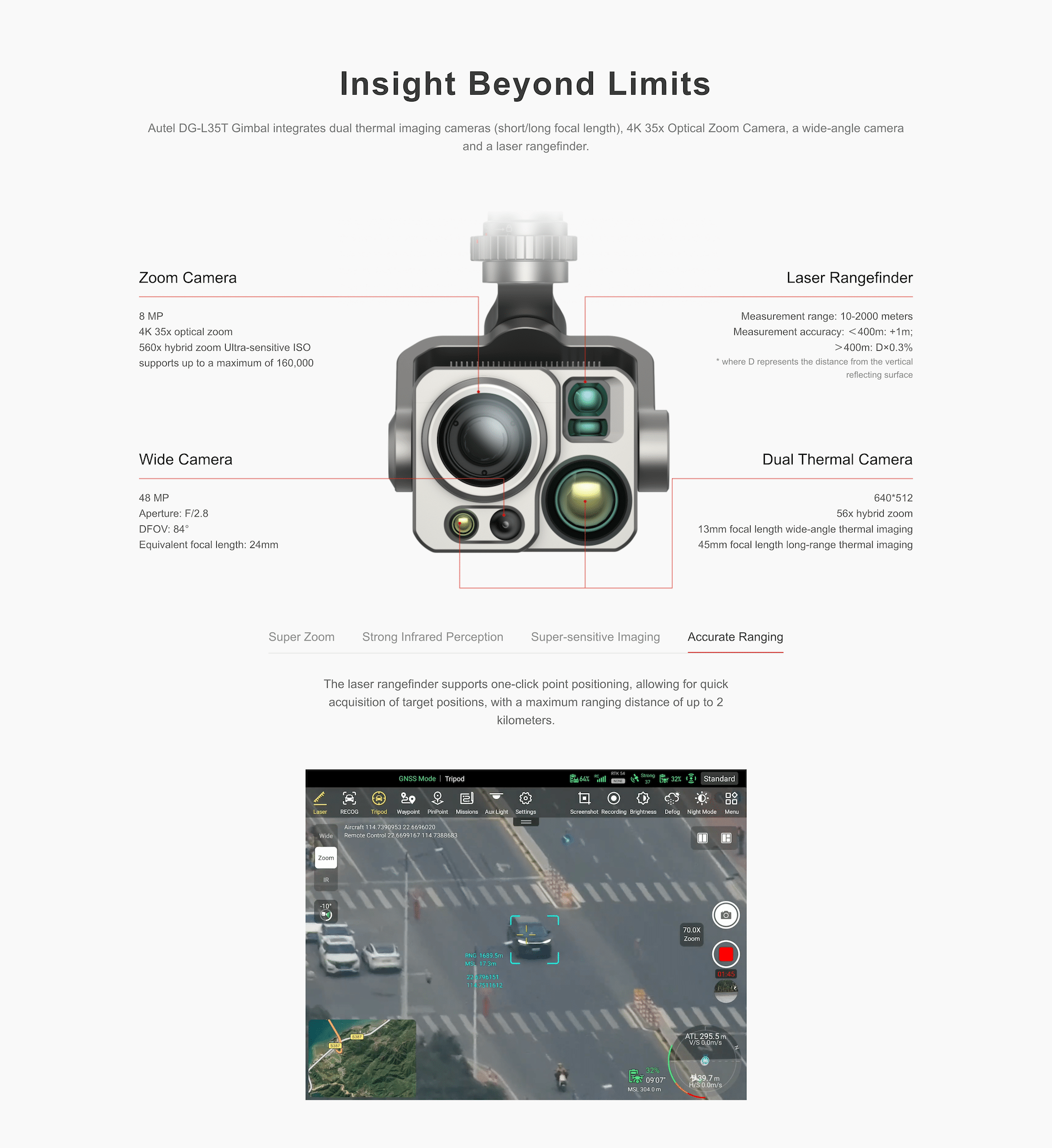

• Laser Rangefinder

  Wavelength	905 nm
  Measurement Accuracy	＜400m: +1m, >400m: D×0.3% where D is the distance to a vertical reflecting plane
  Measuring Range	10 – 2000 m

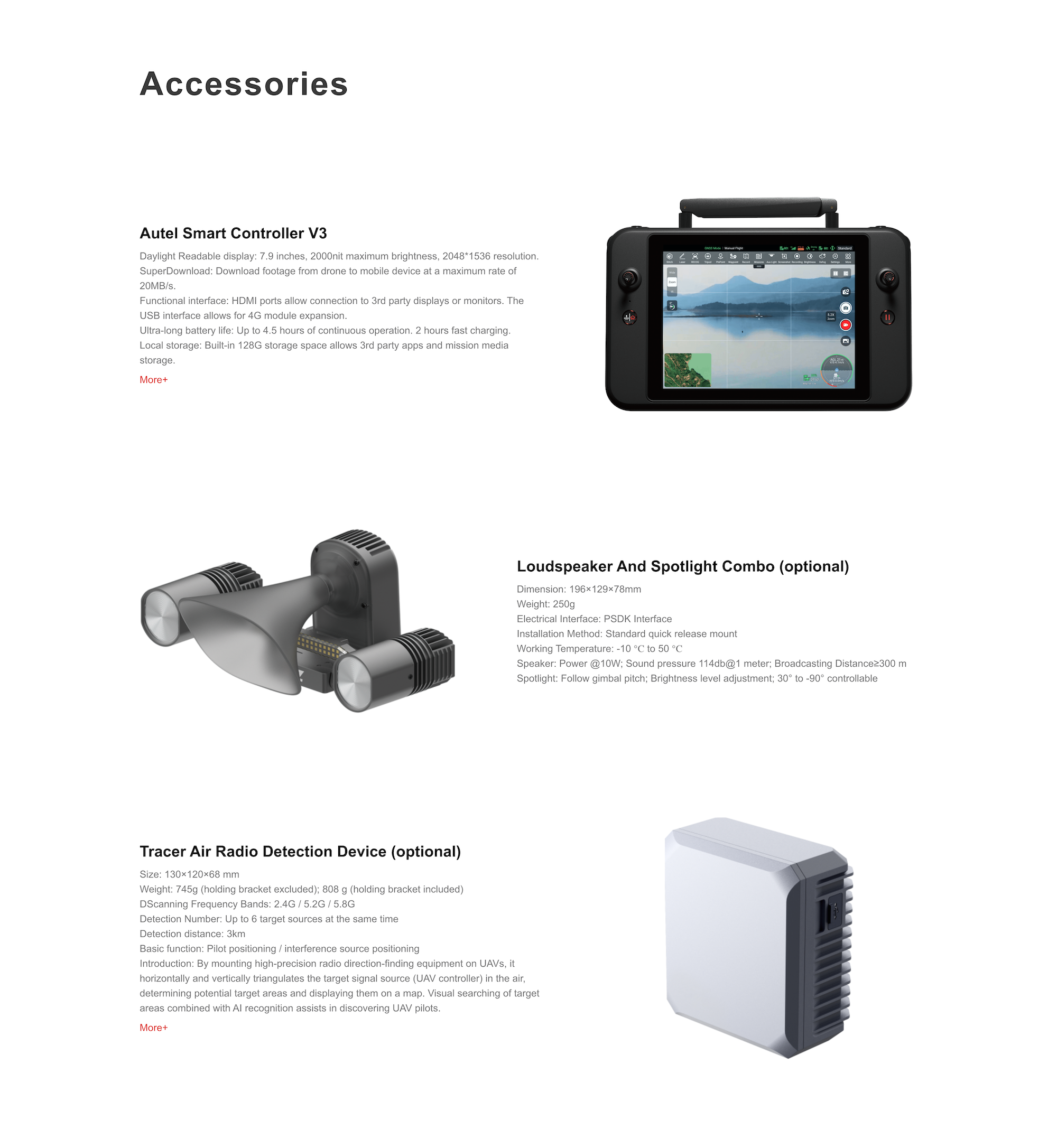

• Autel Smart Controller V3

  Dimensions	269×189×87 mm (antennas folded horizontally) 269×189×173 mm (antennas folded vertically) 269×302×87 mm (antennas unfolded horizontally)
  Weight	1194 g (protective case excluded) 1365 g (protective case included)
  Operating Temperature	-20℃ to 40℃
  Storage Temperature	+15℃ ~ +25℃ (within a year) 0℃ ~ +30℃ (within three months) -20℃ ~ +45℃ (within a month)
  Protection Rating	IP43
  Internal Storage	128GB
  microSD Extension	Not supported
  Operating System	Based on Android 11
  Application Installation	Supports the installation of third-party Android apps
  Video Performance	4K@24FPS H.264/H.265 video smooth play
  HDMI	Outputs up to 1080P@60FPS video
  USB-C	Charging: supports PD/QC fast charging, up to 65W Data: USB3.1 Gen2
  USB-A	Charging: 5V/2A Data: USB2.0
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Wi-Fi Protocol	802.11a/b/g/n/ac Supports 2×2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.4G: 2.400–2.476GHz*, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz*, 5.725-5.850GHz *Only applies to SRRC region Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Wi-Fi Effective Isotropic Radiated Power (EIRP)	2.4G: ≤30dBm（FCC/ISED）; ≤20dBm（CE/SRRC/UKCA） 5.8G: ≤30dBm（FCC/ISED/SRRC）; ≤14dBm（CE/UKCA）
  Bluetooth	Bluetooth 5.0
  Bluetooth Operating Frequency	2.400 – 2.4835 GHz Note: Some regions have designated frequency ranges. Check local laws and regulations for details.
  Bluetooth Effective Isotropic Radiated Power (EIRP)	≤20dBm



• Controller Image Transmission

  Antenna	Dual antennas, 1T2R, detachable design
  Operating Frequency	900M: 902-928MHz* 2.4G: 2.400–2.476GHz**, 2.400–2.4835GHz 5.8G: 5.725-5.829GHz**, 5.725-5.850GHz * Only applicable to FCC and ISED regions. ** Only applicable to SRRC region. Note: Some frequencies are only applicable in some regions or only used in door. For details, please refer to local laws and regulations.
  Effective Isotropic Radiated Power (EIRP)	900M: ≤30dBm(FCC/ISED) 2.4G: ≤30dBm(FCC/ISED); ≤20dBm (CE/SRRC/UKCA) 5.8G: ≤30dBm(FCC/ISED/SRRC); ≤14dBm (CE/UKCA）
  Maximum Transmission Distance (Without Interference and Blocking)	FCC: 15 km CE/SRRC: 8 km



• Controller Display

  Type	TFT LCD
  Dimensions	7.9 inches
  Maximum Brightness	2000 nits
  Resolution	2048×1536
  Refresh Rate	60Hz
  Touch Control	Supports 10-point touch



• Controller Battery

  Battery Type	Li-Po 3S
  Rated Capacity	5800 mAh
  Voltage	11.55V
  Battery Energy	67 Wh
  Charging Time	About 120 minutes
  Battery Endurance	2.5 hours (Max brightness) 4.0 hours (50% brightness)
  Battery Replacement	Not supported



• Smart Battery

  Battery Dimension	200×76.8×50 mm
  Operating Temperature	-20℃ to 50℃
  Battery Type	LiPo 6S
  Rated Capacity	10000mAh
  Battery Energy	237Wh
  Voltage	23.7V
  Charging Voltage Limit	26.7V
  Rated Charging Power	180W
  Maximum Charging Power	260W
  Weight	995 g
  Battery Charge Temperature	+10℃ ~ +40℃* (When the battery temperature is below 10℃, the battery stops charging and activates self-heating. When the battery temperature is above +40℃, the battery stops charging.)
  Ideal Storage Temperature	+22℃ ~ +28℃
  Storage Temperature & Humidity	-10℃ ~ +30℃, 65±20%RH
