Gimbal Camera AI object detection and Tracking Video

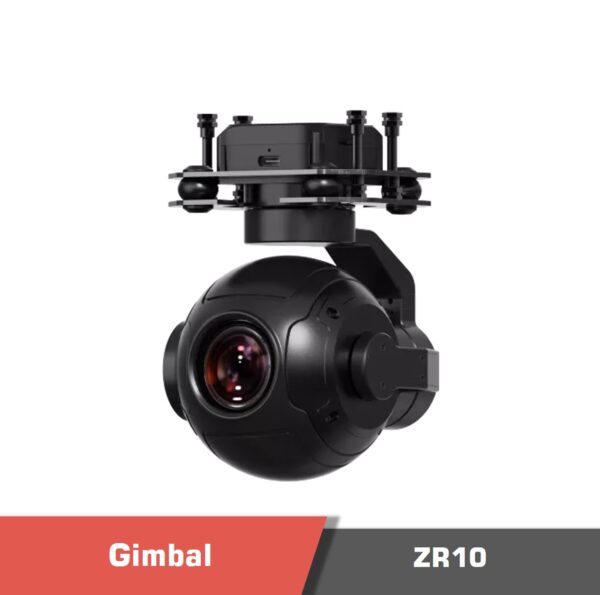

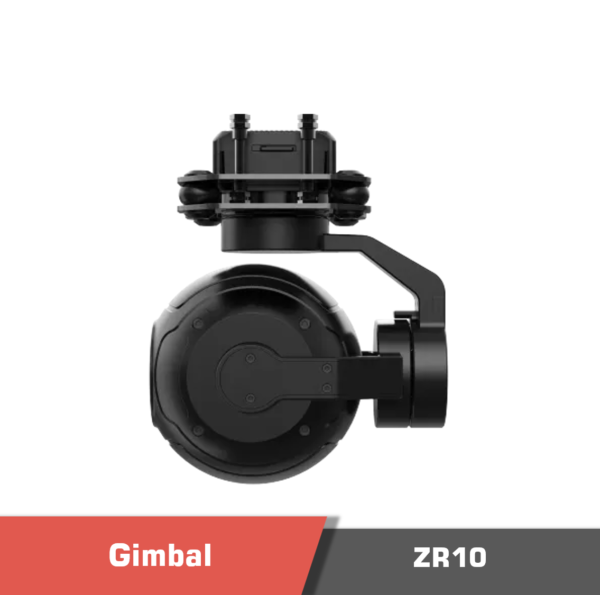

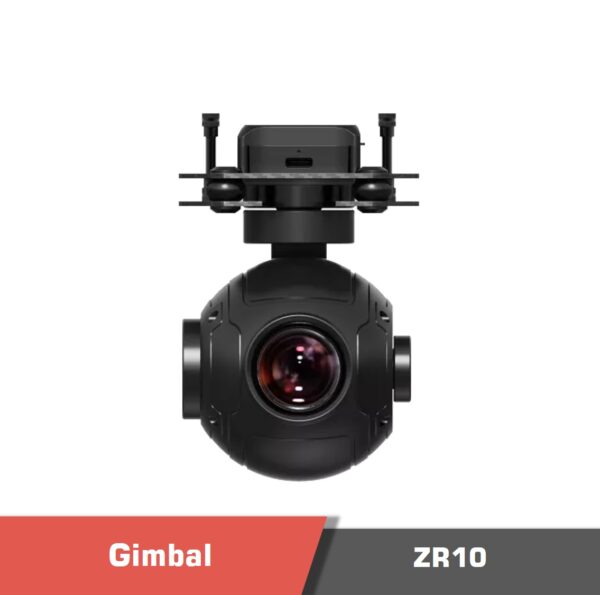

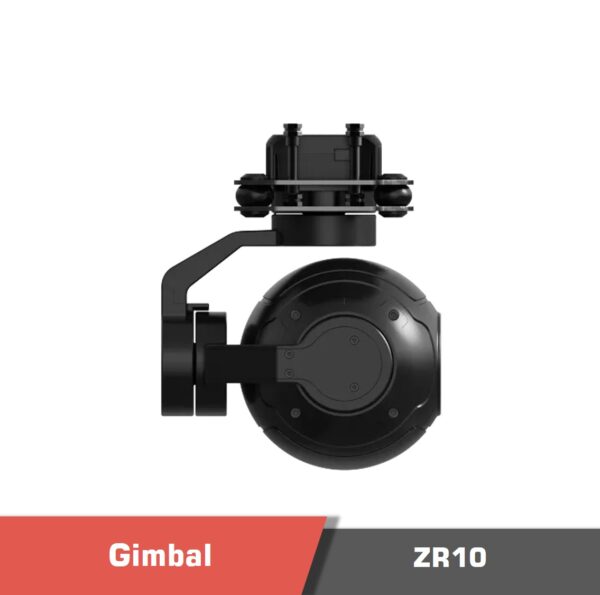

Gimbal ZR10 Overview

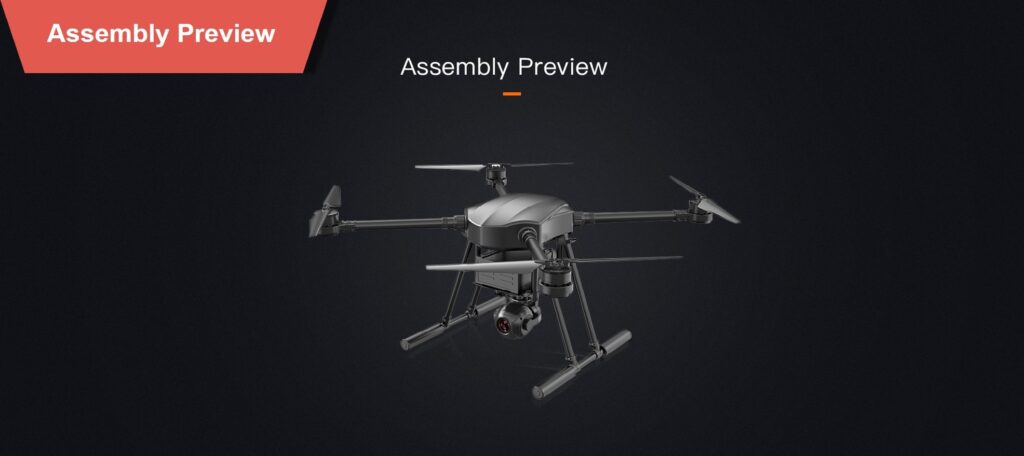

Gimbal ZR10 is a 3-axis gimbal camera with 30x Hybrid zoom (10x optical zoom and 3x digital zoom) and 2K QHD camera resolution. The 400Mbits CMOS sensor allows 2K video recording and photography, with a TF card support to store the recorded files onboard. It can be installed on small drone and and UAVs for real-time transmission of Camera gimbal drone video to the ground unit station.

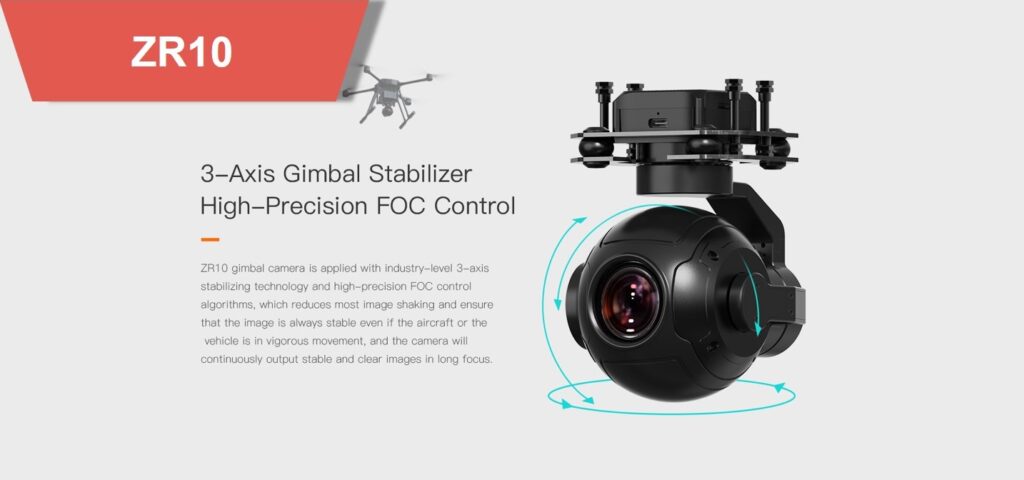

A high precision FOC control algorithm enables industry level 3-axis stabilizing technology.
Gimbal ZR10 features HDR features and can precisely capture details of highlights and shadows in dynamic scenes. The CMOS sensor is ultrasensitive starlight sensor and creates high quality images even in low light level environments.
This 3-axis gimbal camera can work with HD image transmission devices, desired for inspection missions including power plants, construction sites and more.
In case of emergency situations like fire control where the firefighters need help, gimbal ZR10 can give beyond the human capabilities sight of the scene. The 10x optical zoom capability allows fighters to see what is exactly happening in the see and take appropriate decisions.
Police forces can use the gimbal for monitoring traffic and crime scenes. Relaying real-time camera footage can help in detecting car collisions, and sending ambulance and emergency vehicles to the scene.
For a comprehensive reading of related products, please visit the Motionew website.
Simple FAQ (ZR10 Gimbal – Engineers & B2B Buyers)
1. What is the ZR10 Gimbal Camera used for?
The ZR10 is a compact zoom gimbal designed for drone-based surveillance, inspection, and observation applications that require high-quality visuals and stable control.
2. What are the main technical features of the ZR10?
It features a Full HD camera with 10x optical zoom, 3-axis stabilization, and support for HDMI and IP video output. Additional features include target tracking and picture-in-picture (PiP) functionality.
3. What UAV platforms are compatible with the ZR10?
The ZR10 supports PWM, S.BUS, and serial communication protocols, making it suitable for both multirotor and fixed-wing UAVs with lightweight to medium payload capacity.
Business & Operational FAQs
4. Is the ZR10 available for bulk orders or integration projects?
Yes, Motionew offers volume pricing and support for drone system integrators, enterprise fleets, and OEM partners.
5. What documentation and support is included with the gimbal?
All units ship with detailed user manuals, wiring diagrams, and remote integration support to ensure a smooth setup process.
6. What payment and invoicing options are available for B2B clients?
We accept international wire transfers, provide formal invoices, and offer flexible payment terms for qualified business customers.
Specifications
Overall | |
Model | ZR10 |

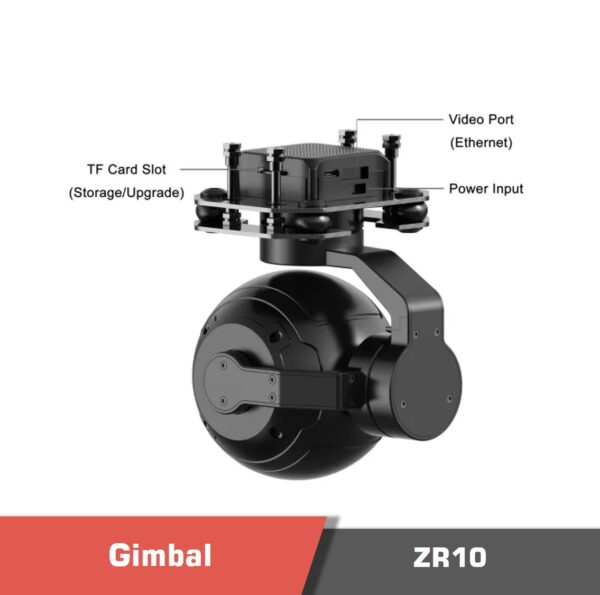

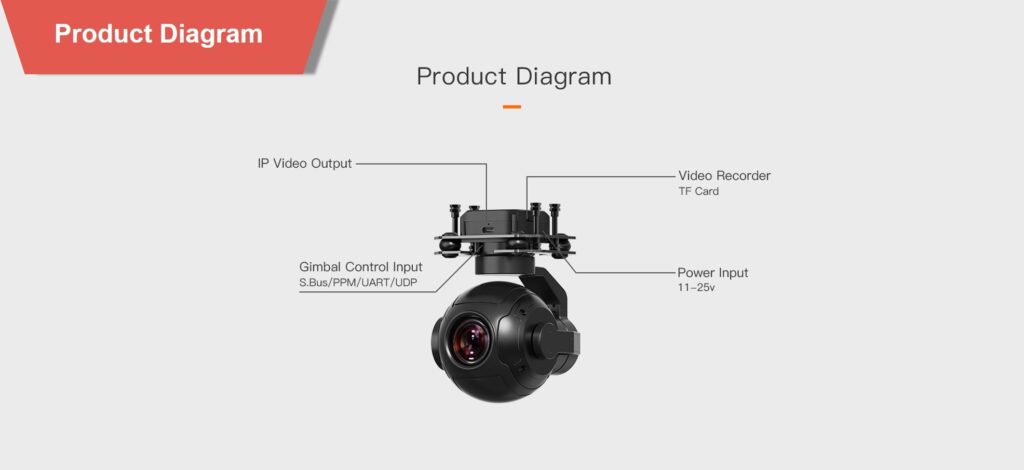

Video Output Port | Ethernet |
Control Signal Input Port | S.Bus / PPM / UART / UDP |
Working Voltage | 11 to 25.2 V |
Power Consumption | 3 W |
Working Temperature | -10 ~ 50 ℃ |
Waterproof Level | IP4X |
Dimension | 121x101x78 mm |
Weight | 381g |
Gimbal specifications | |
Angular Vibration Range | ±0.01° |
Controllable Pitch Angle | -90° to +25° |
Mechanical Pitch Angle | -135° to +45° |
Controllable Yaw Angle | -45° to +45° |
Mechanical Yaw Angle |
-90° to +90° |
Camera specifications | |
Lens | 10X Optical Zoom (30X Hybrid Zoom) |
Focal Length | 5.15±5% to 47.38±5% mm |
Minimum Focus Distance | 200mm |
Image Sensor | 1/2.7”-inch, 4 MP effective resoultion |
Aperture | F1.8 to F2.5 |
FOV | Diagonal 79.5°, Horizontal 71.5° |
TF Recording Resolution | 2K (2560*1440) @ 30 fps |
Video Storage Bitrate | 12 Mbps |
File Storage Format | FAT32 |
Image Format | JPEG |
Video Format | MP4 (Recorded in H265, *auto converted to MP4 after restart) |
Supported MicroSD Cards | MicroSD Class10, Max 128GB |
Still Photography Mode | Single |
Metering Mode | Evaluative metering |
Product contents
Bundle 1
1x ZR10 Gimbal
Bundle 2
1x ZR10 Gimbal
1x MK15

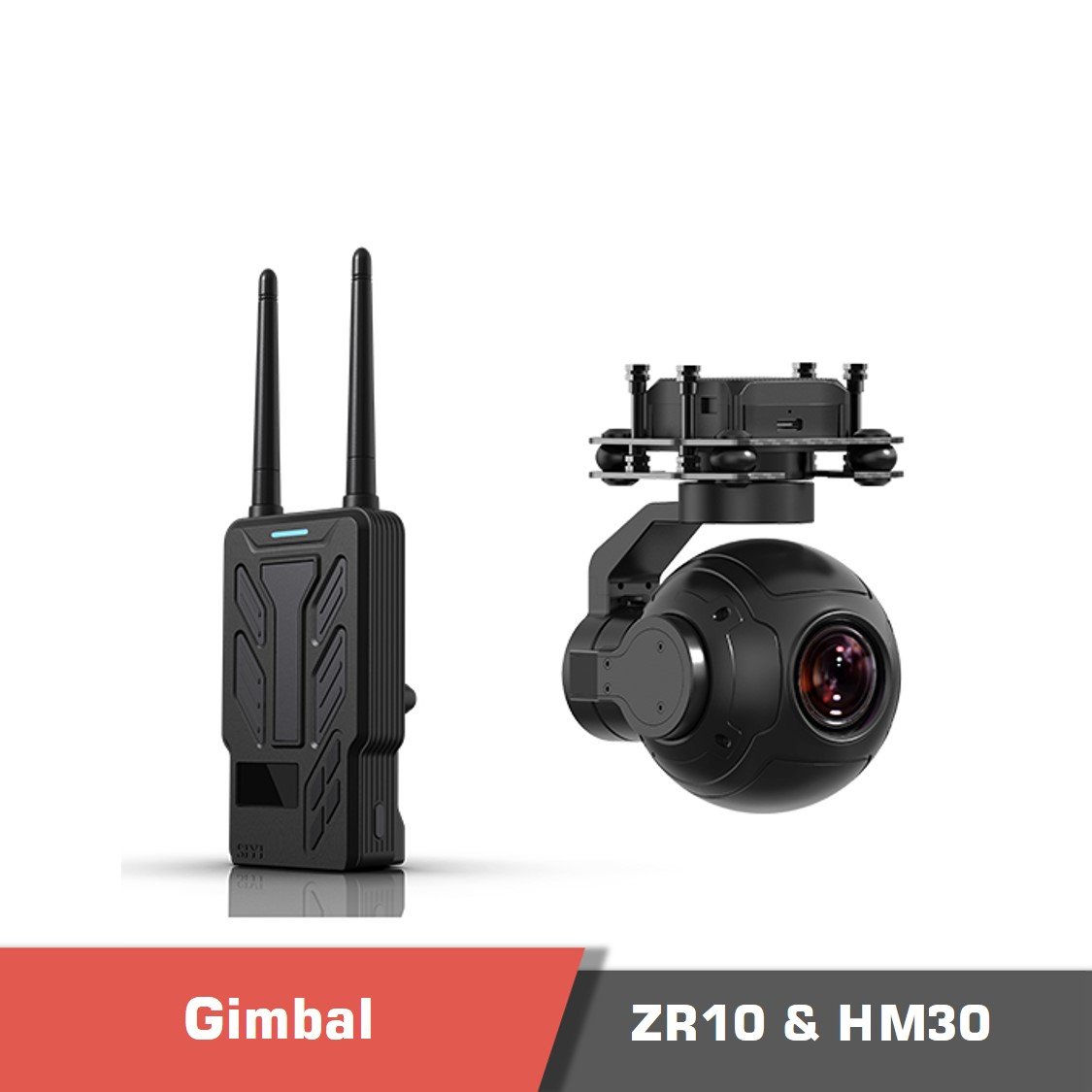

Bundle 3
1x ZR10 Gimbal
1x HM30
1 review for Gimbal ZR10, 30X Hybrid Zoom Camera
Clear filtersYou must be logged in to post a review.
Gimbal Control Method |
PPM ,SBUS ,UART ,UDP |
---|---|
Number of Sensors |
1 Sensor |
EO Sensor Lens |
10x Zoom |
EO Sensor resolution |
2560×1440 |
Gimbal Video Output |
Ethernet |
AI Object Tracking |
No |
Gimbal Weight |
381g |
Gimbal Dimensions |
121x101x78 mm |
