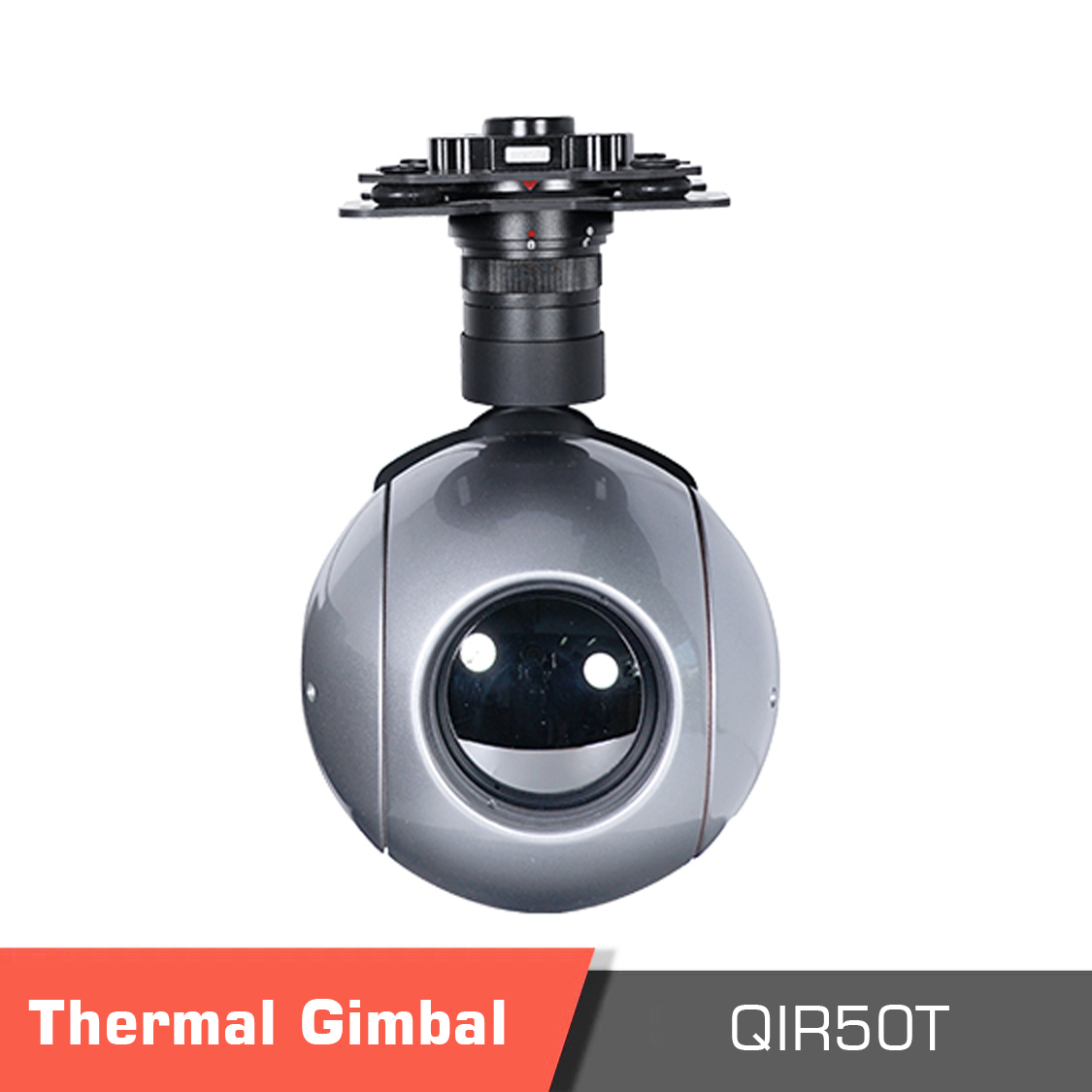

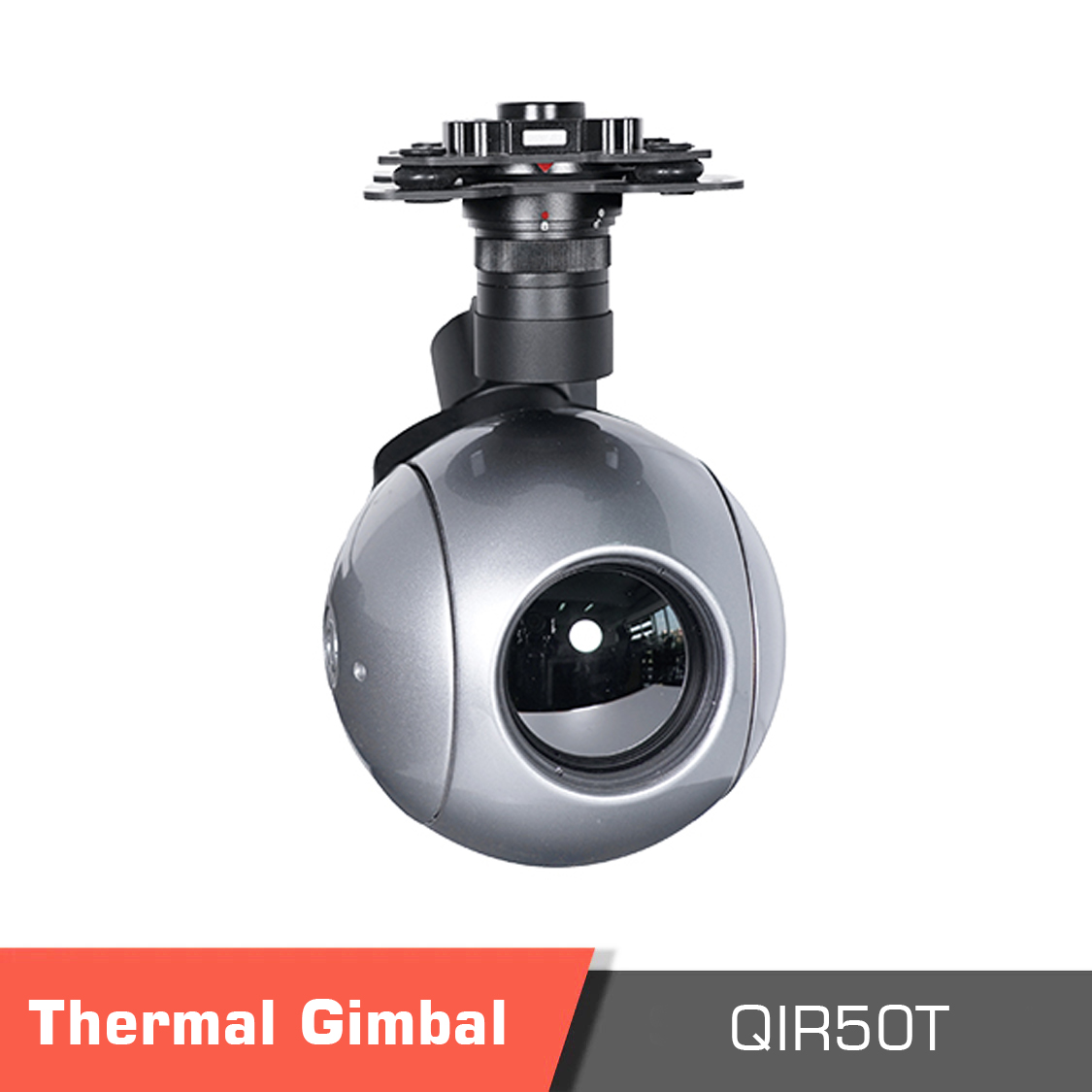

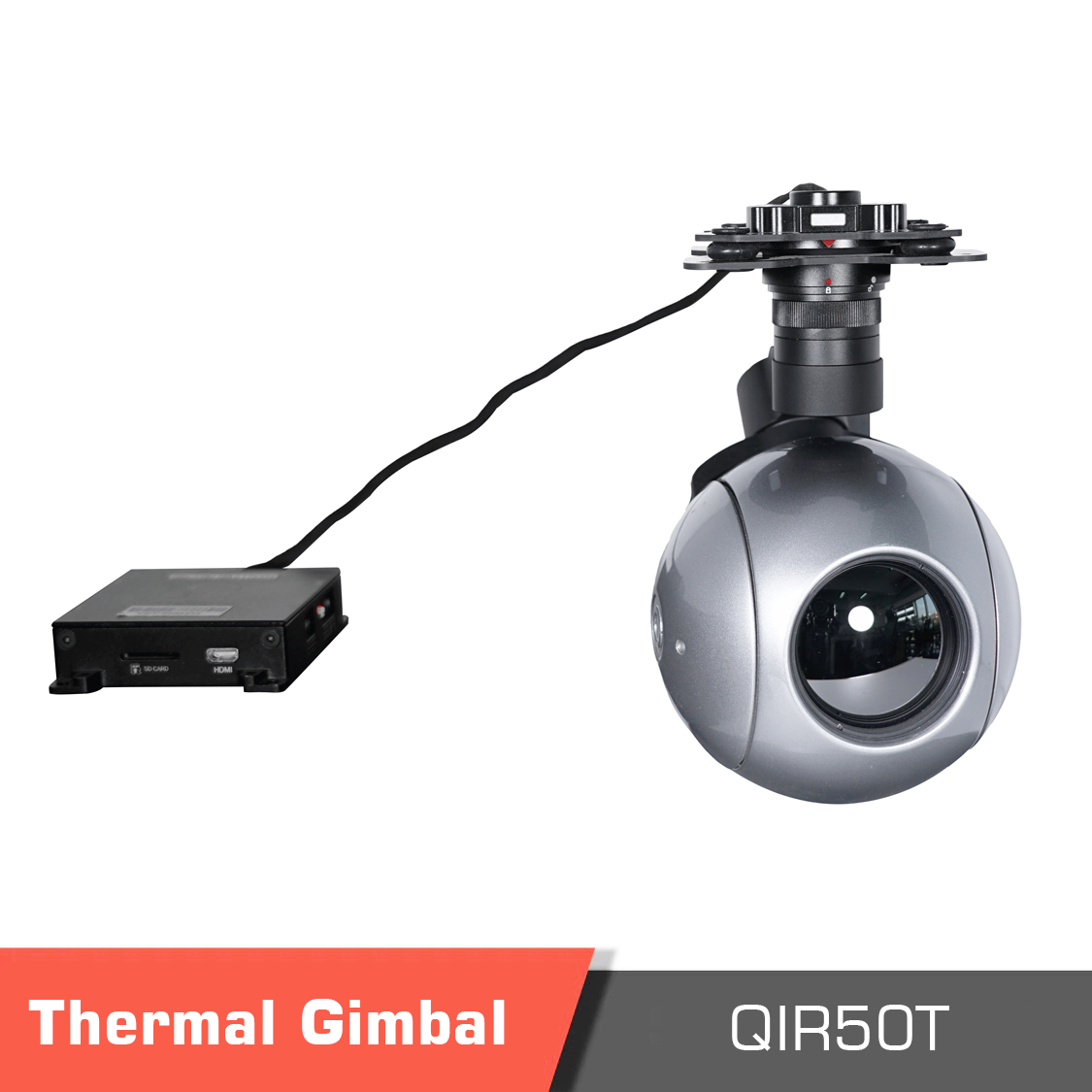

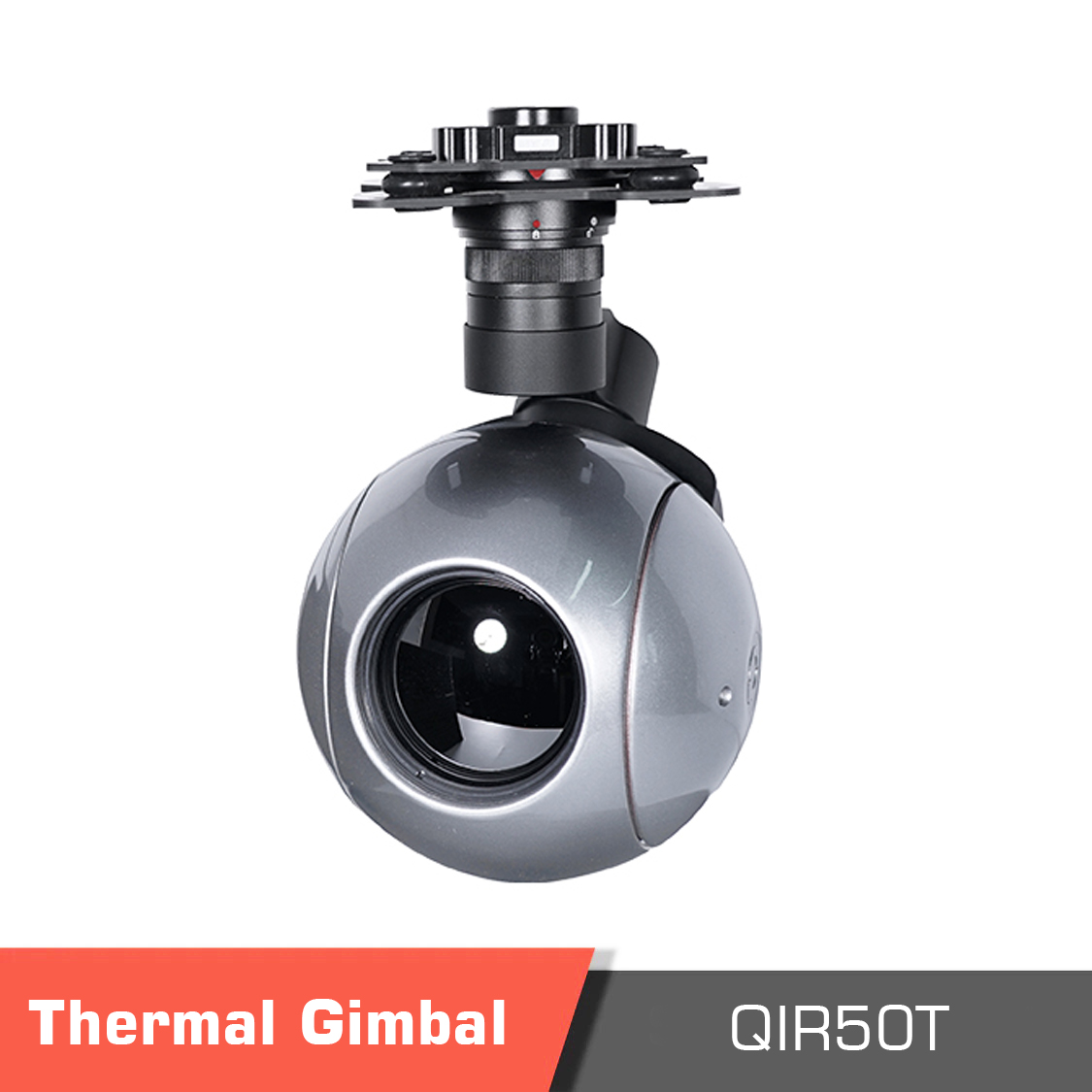

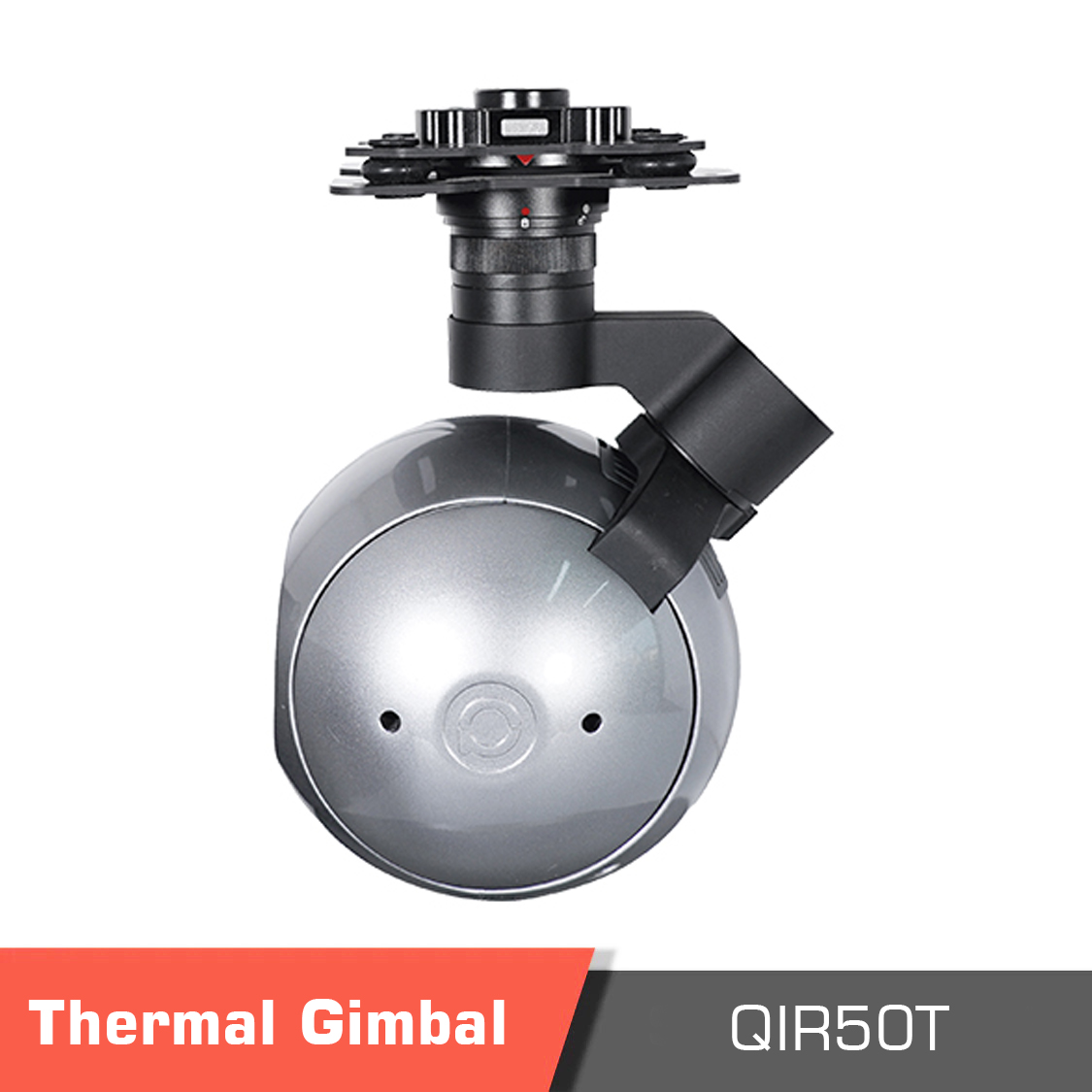

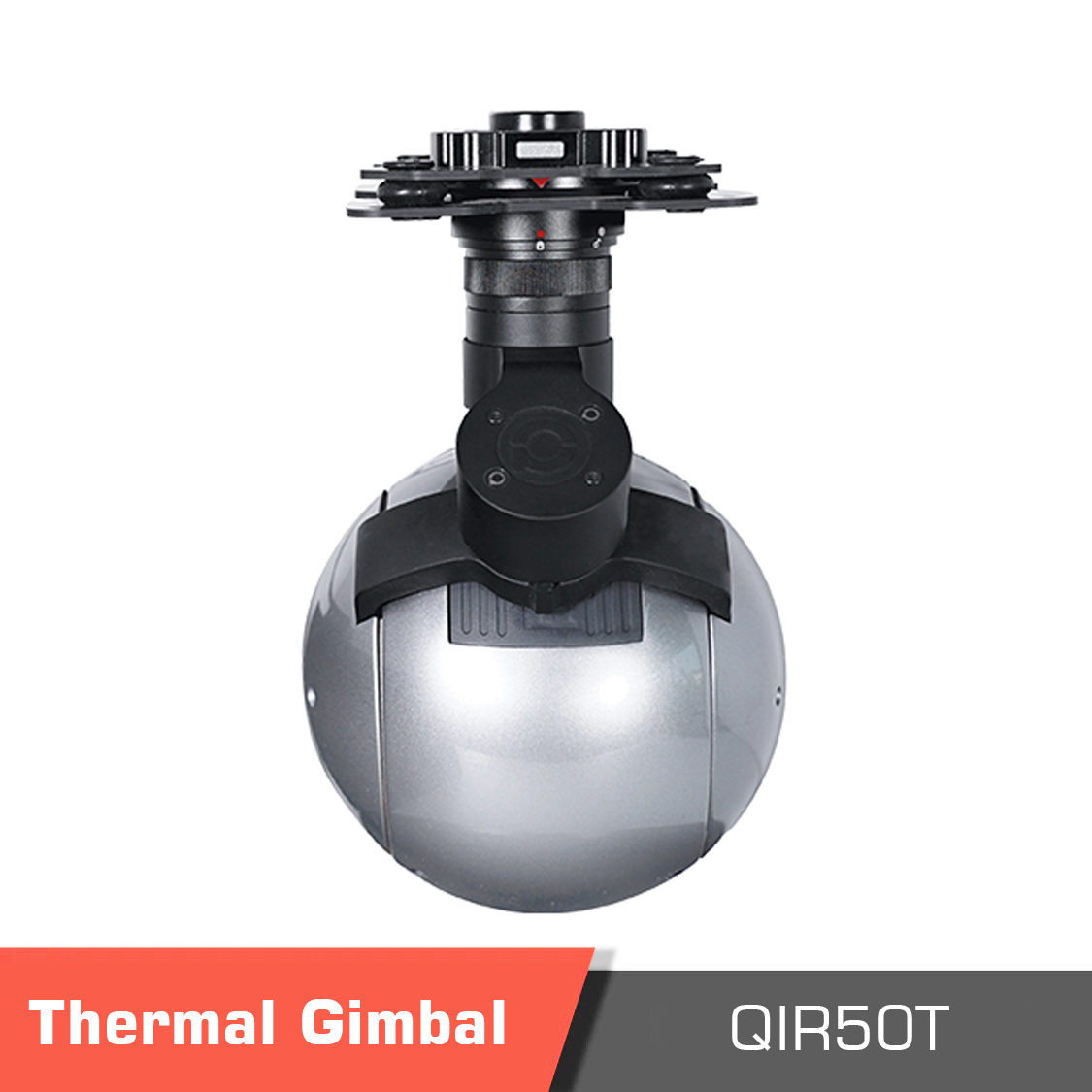

QIR50T 50mm Drone Thermal Gimbal Camera
Price range: 10,890.00 $ through 11,240.00 $
Payment Methods:
Description
Professional 3-axis High-precise FOC Program Video
QIR50T 50mm Drone Thermal Gimbal Camera Overview
The thermal imaging camera lens size of QIR50T is 50mm. It has just one infrared camera. There are 3 color palette to choose, white, iron red, pseudo color. QIR50T is a pinpoint-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts pinpoint-precision encoder in each motor. QIR50T supports PWM control, S.BUS control and serial command control, suitable for close range remote control or remote data command control.
The speed of QIR50T gimbal is adjustable, low speed mode is used for large zoom range, the control will be more accurate. Fast speed mode is used for small zooming range, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly.
Powerful 50mm Thermal Imager
Integrated French ULIX high-precision uncooled long wave (8 μm  ~14 μm ) with 50mm lens thermal image sensor, QIR50T  can record and transmit thermal image and visible images at the same time. See the unseen.  ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.
Multi Output Methods Optional
QIR50T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree endless pan.
Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable.
Application
QIR50TÂ is suitable for applications where you need a drone with camera and gimbal. Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
For a comprehensive reading of related products, please visit the Motionew website.
Simple FAQ (QIR50T Gimbal – Engineers & B2B Buyers)
1. What is the QIR50T Gimbal Camera used for?
The QIR50T is a long-range, multi-sensor UAV gimbal designed for thermal surveillance, search and rescue, industrial inspection, and border security in both day and night environments.
2. What are the core technical features of the QIR50T?
It integrates a 50mm 640×512 thermal camera, 30x optical zoom EO camera, and a laser rangefinder, all mounted on a 3-axis stabilized gimbal. It supports IP/HDMI video output, PiP, object tracking, and temperature measurement.
3. What UAV platforms are compatible with the QIR50T?
Compatible with multirotor and fixed-wing UAVs, the QIR50T supports PWM, S.BUS, and serial communication, making it suitable for drones with medium-to-heavy payload capacity.
Business & Operational FAQs
4. Is the QIR50T available for bulk or enterprise orders?
Yes, Motionew supports OEM integration, B2B pricing, and volume supply for drone manufacturers, government contractors, and security integrators.
5. What documentation and support are included?
The product comes with user manuals, detailed wiring diagrams, and access to remote technical support for configuration and integration.
6. What are the available payment and invoicing options for business clients?
Motionew accepts international wire transfers, provides formal invoicing, and offers flexible payment terms for verified B2B customers.
Specifications
Specifications
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 500mA @ 12V |
| Idle current | 400mA @ 12V |
| Power consumption | ≤ 3.85W |
| Working environment temp. | -20 ℃  ~ +50 ℃ |
| Output | micro HDMI(HD output 1080P 60fps) / IP |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS / TCP |
| Gimbal Spec | |
| Pitch/Tilt | ±90° |
| Roll | ±85° |
| Yaw/Pan | ±170°/360°*N(IP/SDI output version) |
| Vibration angle | Pitch/Roll: ±0.01°, Yaw ：±0.01° |
| One-key to center | √ |
| Thermal Imager Spec | |
| Lens size | 50mm |
| Horizontal FOV | 12.4° |
| Vertical FOV |  9.3° |
| Diagonal FOV | 15.5° |
| Detective Distance (Man: 1.8×0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8×0.5m) | 368 meters |
| Verified Distance (Man: 1.8×0.5m) | 184 meters |
| Detective Distance (Car: 4.2×1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1127 meters |
| Verified Distance (Car: 4.2×1.8m) | 564 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | thermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25 ℃ ) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 2x, 4x |
| Sync correct time | Yes |
| Thermometer type | Temperature bar (pseudo color display) max temp, min temp, FOV center temp (Optional) |
| Thermal Oject Tracking | |
| Update rate of deviation pixel | 25Hz |
| Output delay of deviation pixel | <3ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | ±48 ~ ±192 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| NW | 775g |
| Product meas. | 118.6*133.6*176mm |
Product contents
Product contents
1 Pcs of Gimbal + cable set
Documents
Reviews
1 review for QIR50T 50mm Drone Thermal Gimbal Camera
Clear filtersYou must be logged in to post a review.
| Bundle |
Quickport Version ,Standard Version |
|---|---|
| Gimbal Control Method |
Ethernet ,PWM ,SBUS ,UART |
| Number of Sensors |
1 Sensor |
| Thermal Sensor Lens |
50mm |
| Thermal Sensor resolution |
640×480 |
| Gimbal Video Output |
Ethernet ,HDMI ,SDI |
| AI Object Tracking |
No |
| Gimbal Weight |
775g |
| Gimbal Dimensions |
118.6×133.6x176mm |
