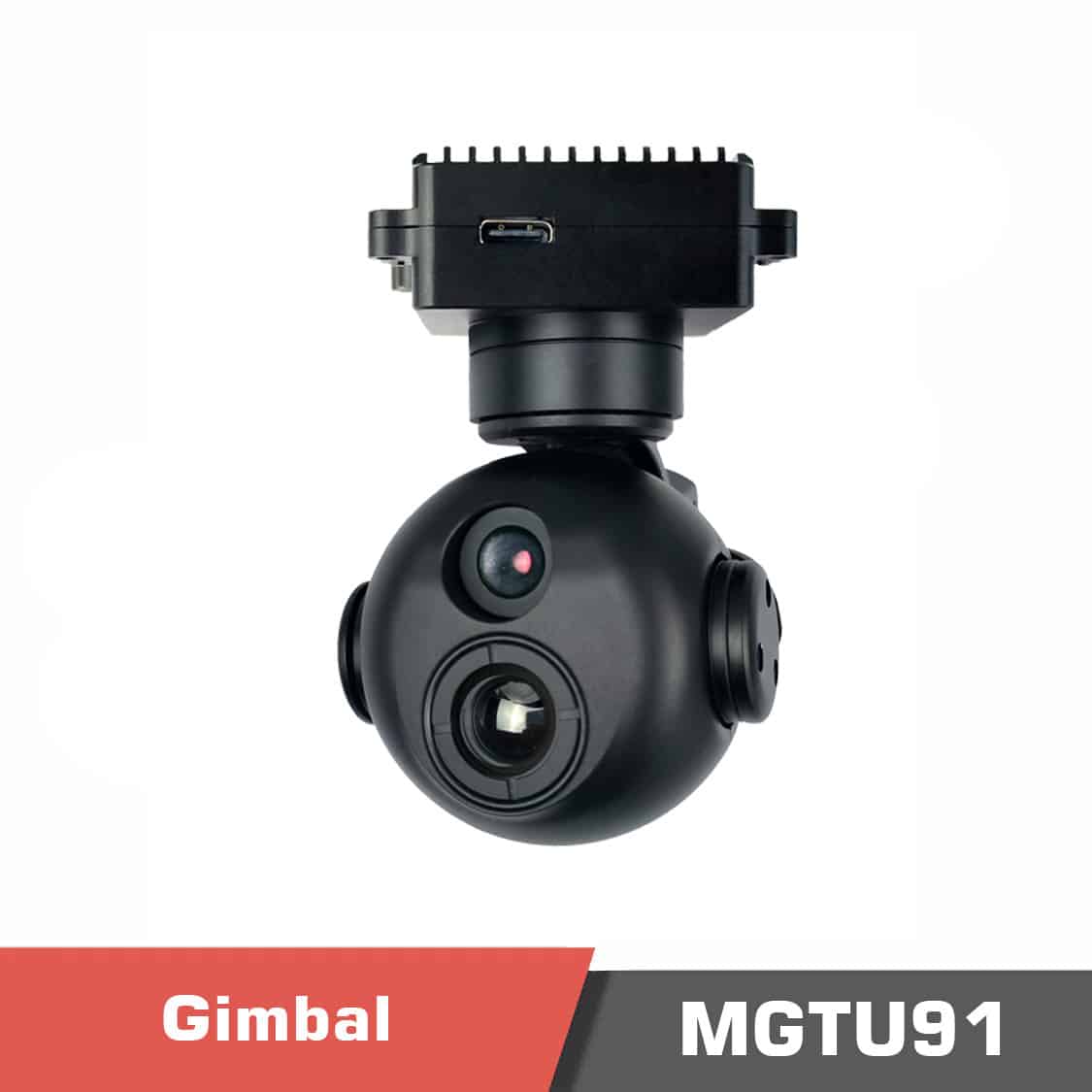

MGTU91 Small Gimbal Camera with 1080P Fixed Focus + 640×512 Thermal Imaging
2,970.00 $
Payment Methods:
MGTU91 IP Output Gimbal Camera — Precision Tracking with Dual Imaging
Take your aerial and security operations to the next level with the MGTU91 IP Output Gimbal Camera, a powerful dual-sensor system designed for professional UAVs and industrial monitoring. Engineered to deliver outstanding stabilization, clear visible and thermal imagery, and intelligent tracking, this gimbal camera ensures mission success in even the toughest conditions.
Advanced stabilization and wide-angle control
With a three-axis mechanical stabilization system, the MGTU91 offers an impressive control range:
-
Pitch: -40° to +100°
-
Yaw: -140° to +140°
-
Roll: -45° to +45°
The ultra-low jitter—just ±0.02° in pitch & roll and ±0.03° horizontally—ensures rock-solid imaging, crucial for inspection, surveillance, and search-and-rescue missions. The gimbal also features a one-click automatic return to initial position, making repositioning effortless.

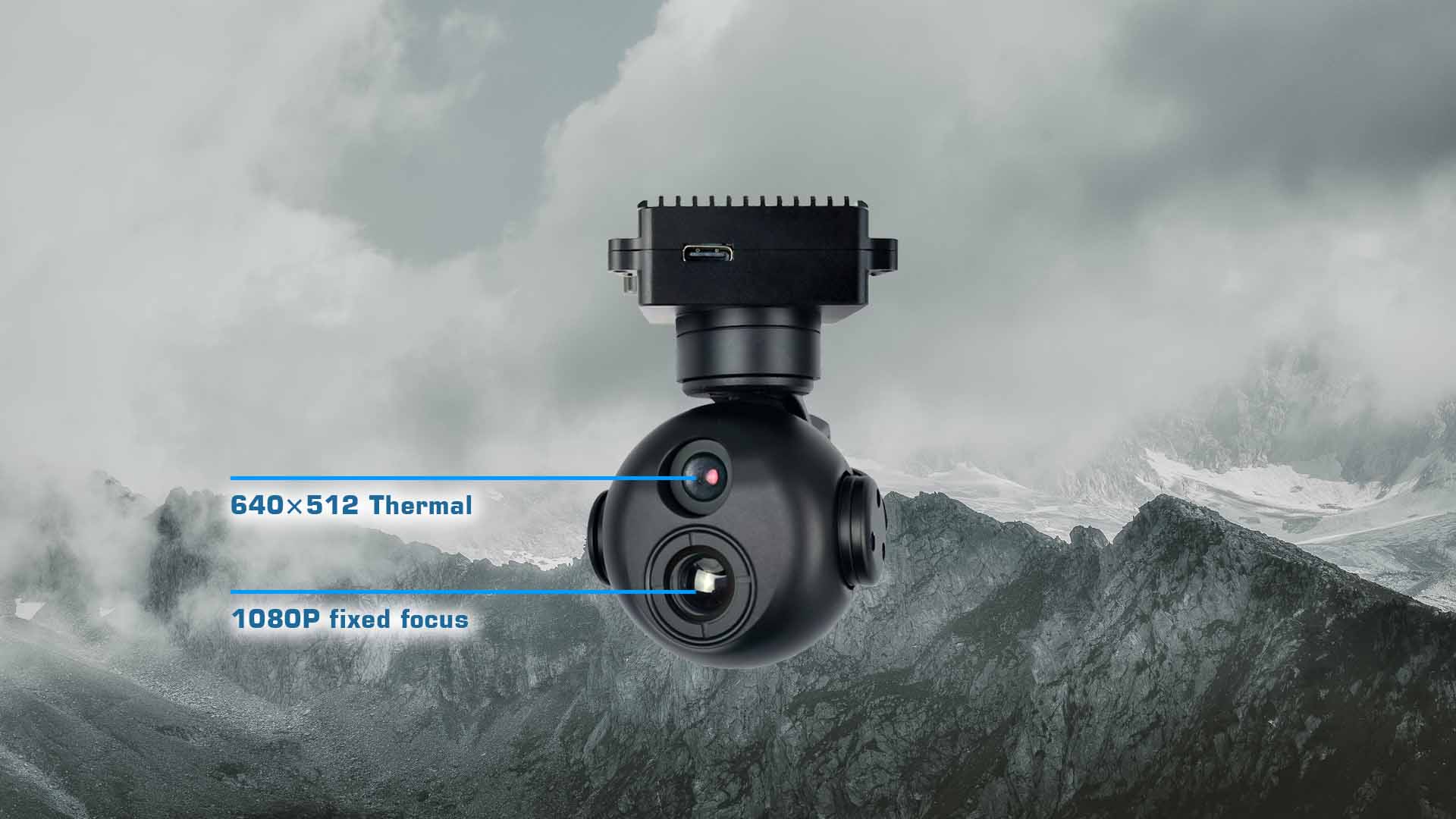

Powerful dual imaging: visible and thermal
This gimbal integrates a high-quality visible light camera equipped with a 1/2.8-inch 2MP wide dynamic range CMOS sensor, supporting 9x digital zoom and a 60° × 43° field of view. It outputs crisp 1080P HD video via network RTSP, with local TF card storage for backup recording.
For thermal needs, the MGTU91 utilizes a 640 × 512 uncooled focal plane microbolometer with 12μm pixel size, operating across an 8~14μm wavelength band. With heat sensitivity of ≤[email protected], it detects subtle temperature differences, ideal for power line checks, pipeline inspections, or perimeter monitoring. Its thermal FOV is 45.76° × 37.31°, and it supports optional full pixel temperature measurement for advanced diagnostics.
Smart tracking and AI detection
The MGTU91 excels in target detection and tracking, recognizing humans and vehicles across a broad range of sizes—from 16×16 pixels to 256×256 pixels—and simultaneously tracking up to 100 targets. Its memory holds targets for 2 seconds, while tracking speeds reach up to 50 pixels/frame, making it a reliable partner for dynamic scenes.
Flexible output & integration
Supporting both 1080P 30fps network streaming and 1080P 60fps Micro-D HDMI output, this gimbal camera integrates easily into diverse platforms. Control is versatile, with network IP, serial port, and S.BUS options to fit professional drone and ground system setups.
Built for demanding operations
Powered by DC 12V-26.2V and consuming a mere 5.5W, the MGTU91 combines efficiency with performance. The adjustable gimbal speed adapts automatically based on mode and zoom, giving you responsive control over both wide-area surveillance and pinpoint inspections.
Upgrade your UAV or security system with the MGTU91
Whether you’re deploying drones for industrial inspections, public safety monitoring, or infrastructure assessments, the MGTU91 IP Output Gimbal Camera delivers unmatched stability, intelligent tracking, and robust dual imaging. Experience precise control, superior image quality, and advanced analytics — all in a compact, field-ready package.
Order now and enhance your operational capabilities with industry-leading gimbal camera technology.
For a comprehensive reading of related products, please visit the Motionew website.
FAQ – MGTU91 Dual-Sensor Gimbal Camera
1. What sensors are integrated in the MGTU91?
The MGTU91 combines a 2MP visible-light camera (1080P, 9x digital zoom, wide dynamic range) with a 640×512 uncooled thermal imager (12μm pixel pitch, 8–14μm band, ≤50mK NETD).
2. What stabilization system does the gimbal use?
It features a 3-axis mechanical stabilization system with ultra-low jitter (±0.02° pitch/roll, ±0.03° yaw) and wide-angle control ranges: pitch -40° to +100°, yaw -140° to +140°, and roll -45° to +45°.
3. What advanced imaging and tracking functions are supported?
The MGTU91 supports full-pixel temperature measurement (optional), simultaneous visible and thermal output, AI-assisted human/vehicle detection, and multi-target tracking of up to 100 objects with speeds up to 50 pixels/frame.
4. What payment methods are accepted for this product?
Payments can be made using major credit cards, PayPal, and international bank transfers.
5. Is OEM customization available for enterprise or industrial users?
Yes. OEM services are available for bulk orders or projects requiring tailored dual-sensor imaging solutions.
6. Are technical documents and manuals included with the purchase?
Yes. Buyers receive datasheets, setup manuals, and integration guides to support installation and field operation.
Specifications
Working characteristics |
|
Voltage | DC 12V ~ 26.2V |
Power | Dynamic 5.5W |
Pitch Angle action range | -40° ~ +100° |
Yaw Angle action range | -140° ~ +140° |
Roll Angle action range | -45° ~ +45° |
Angle jitter (pitch & roll) | ±0.02° |
Horizontal angle jitter | ±0.03° |
One-click return function | One-click automatic quick return to initial position |
Gimbal speed adjustable | Speed adapts based on mode and visible light camera multiple |

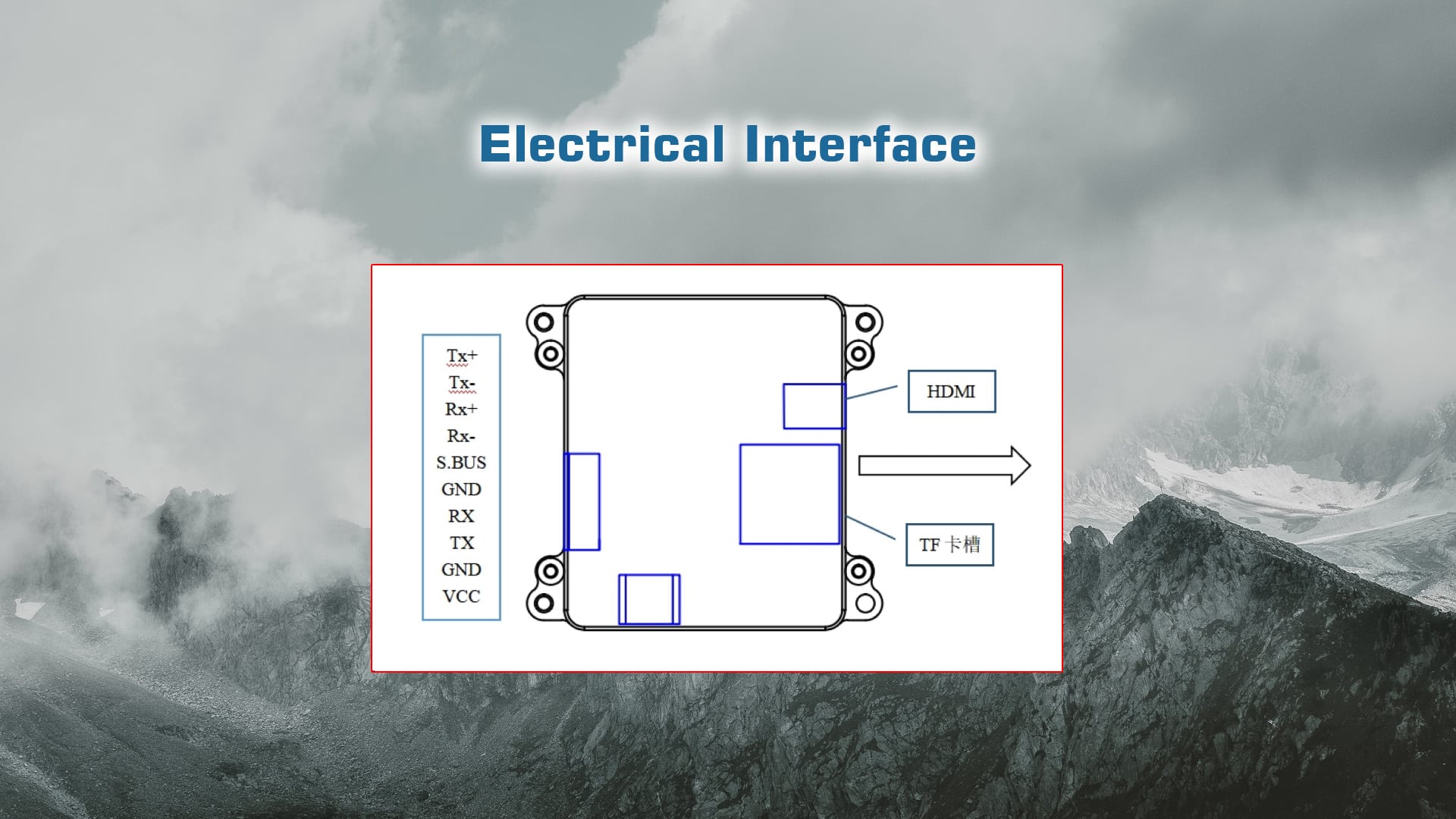

Control mode | Network IP, serial port, S.BUS control |
Network support mode | 1080P 30fps |
HDMI support mode | Micro-D HDMI 1080P 60fps |
Visible Light Camera |
|
CMOS size | 1/2.8 inch, 2MP WDR CMOS sensor |
Digital zoom | 9× digital zoom |
Video output | Network HD RTSP 1080P, video stream local TF storage |
Field of view (FOV) | 60° × 43° |
Thermal Imagery |
|
Resolution | 640 × 512 |
Pixel size | 12μm |
Type | Uncooled focal plane microbolometer |
Wavelength | 8 ~ 14μm |
Heat sensitivity (NETD) | ≤50mK @F1.0 |
Field of view (FOV) | 45.76° × 37.31° |
Measurement function | Global temperature measurement, optional full pixel temperature saving |
Target recognition & tracking |
|
Min tracking target size | 16 × 16 pixels |
Max tracking target size | 256 × 256 pixels |
Target memory time | 2 seconds |
Tracking speed | 50 pixels/frame max |
Simultaneous detection qty | 100 targets max |
Recognized categories | Human and Vehicle |
Min detection target size | 32 × 32 pixels |
Product contents
Please contact us for more information.
You must be logged in to post a review.
Gimbal Control Method |
Ethernet ,PPM ,SBUS ,UART |
---|---|
Number of Sensors |
5 sensors |
EO Sensor Lens |
10x Zoom |
EO Sensor resolution |
1920×1080 |
Thermal Sensor Lens |
13mm |
Thermal Sensor resolution |
640×512 |
Gimbal Video Output |
Ethernet |
AI Object Tracking |
No |
Laser Range Finder |
1500m |
Gimbal Weight |
650g |

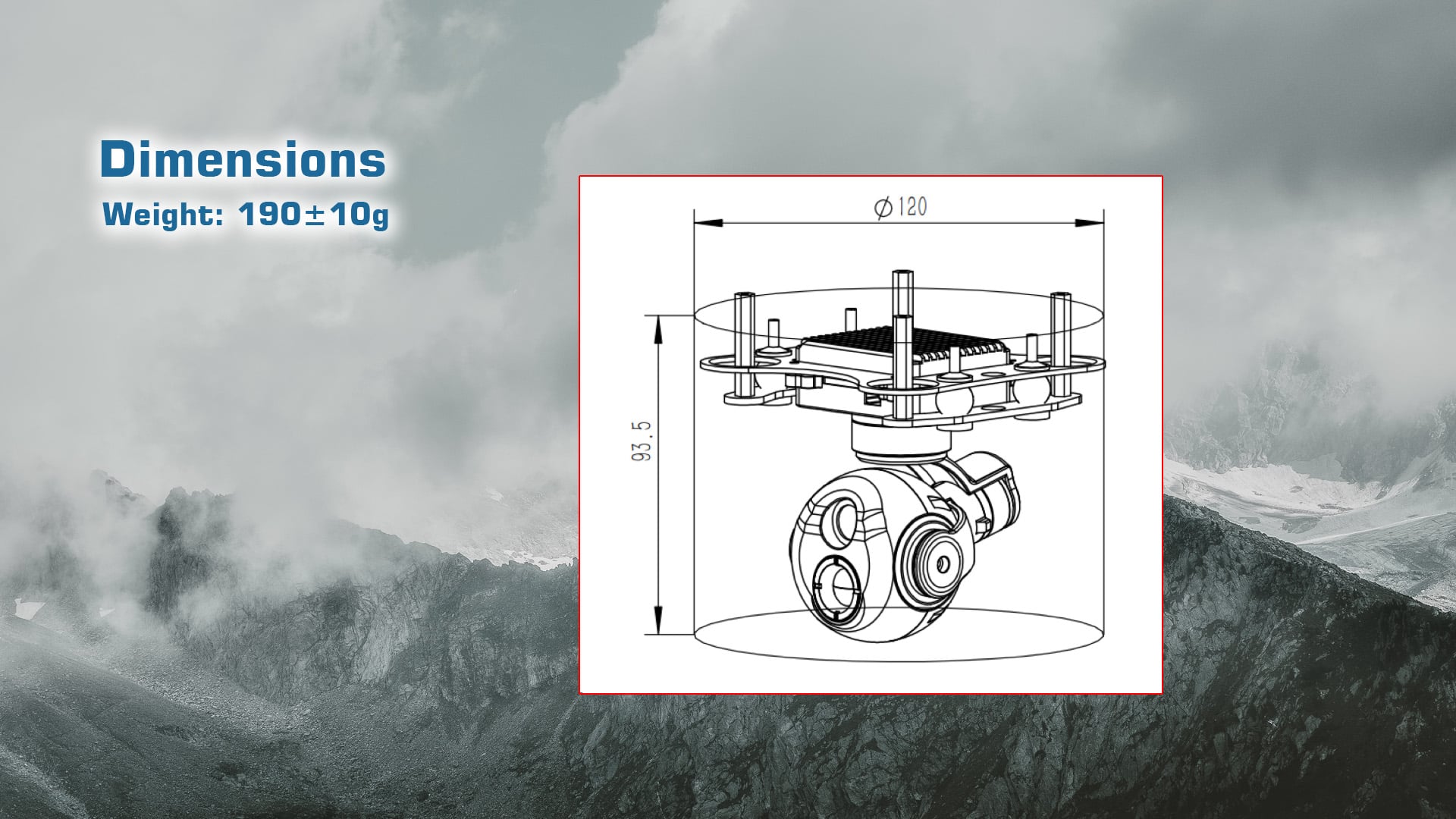

Gimbal Dimensions |
150x150x154mm |
