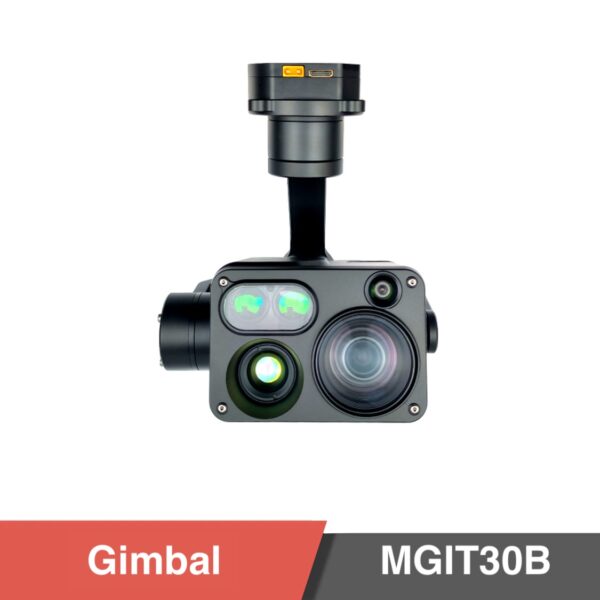

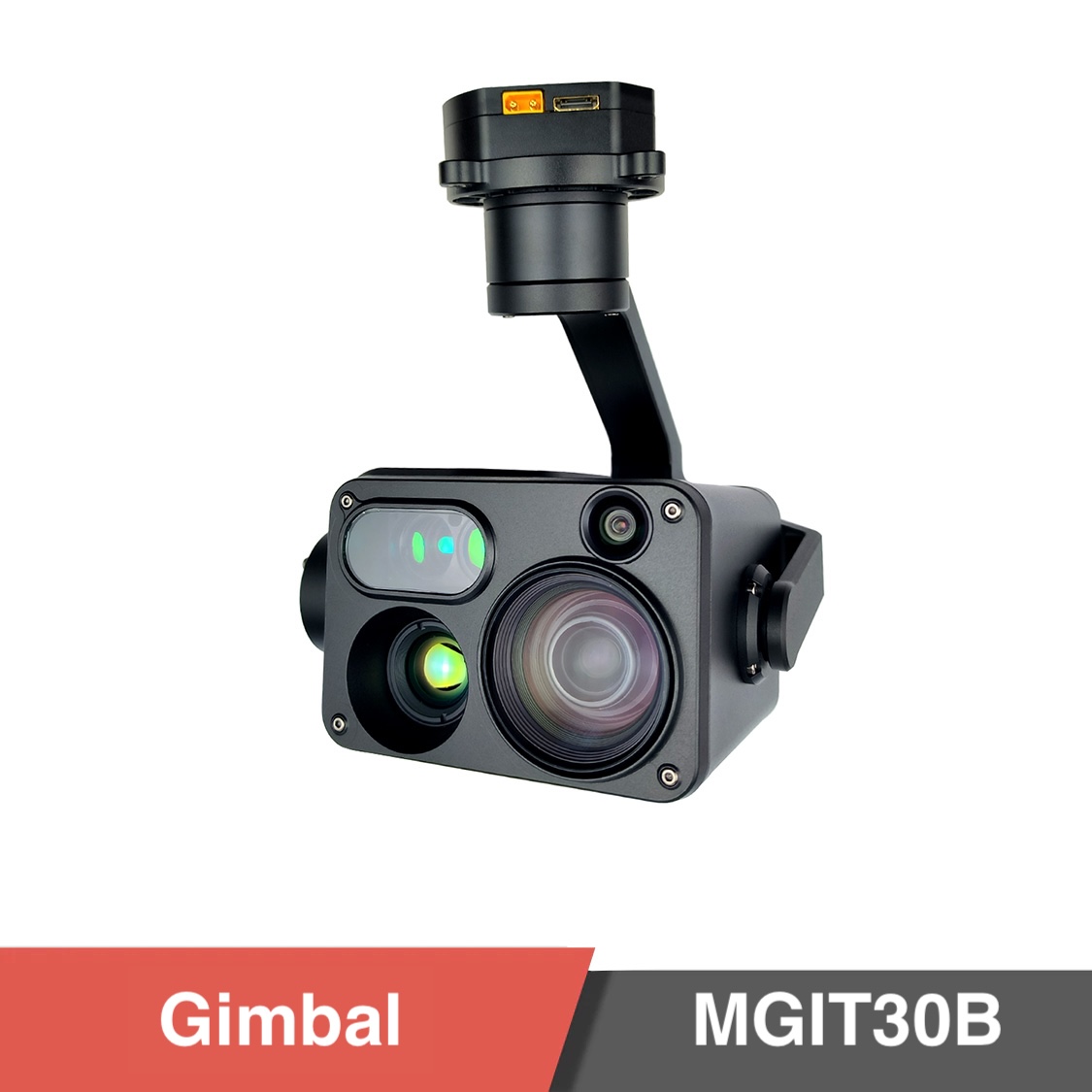

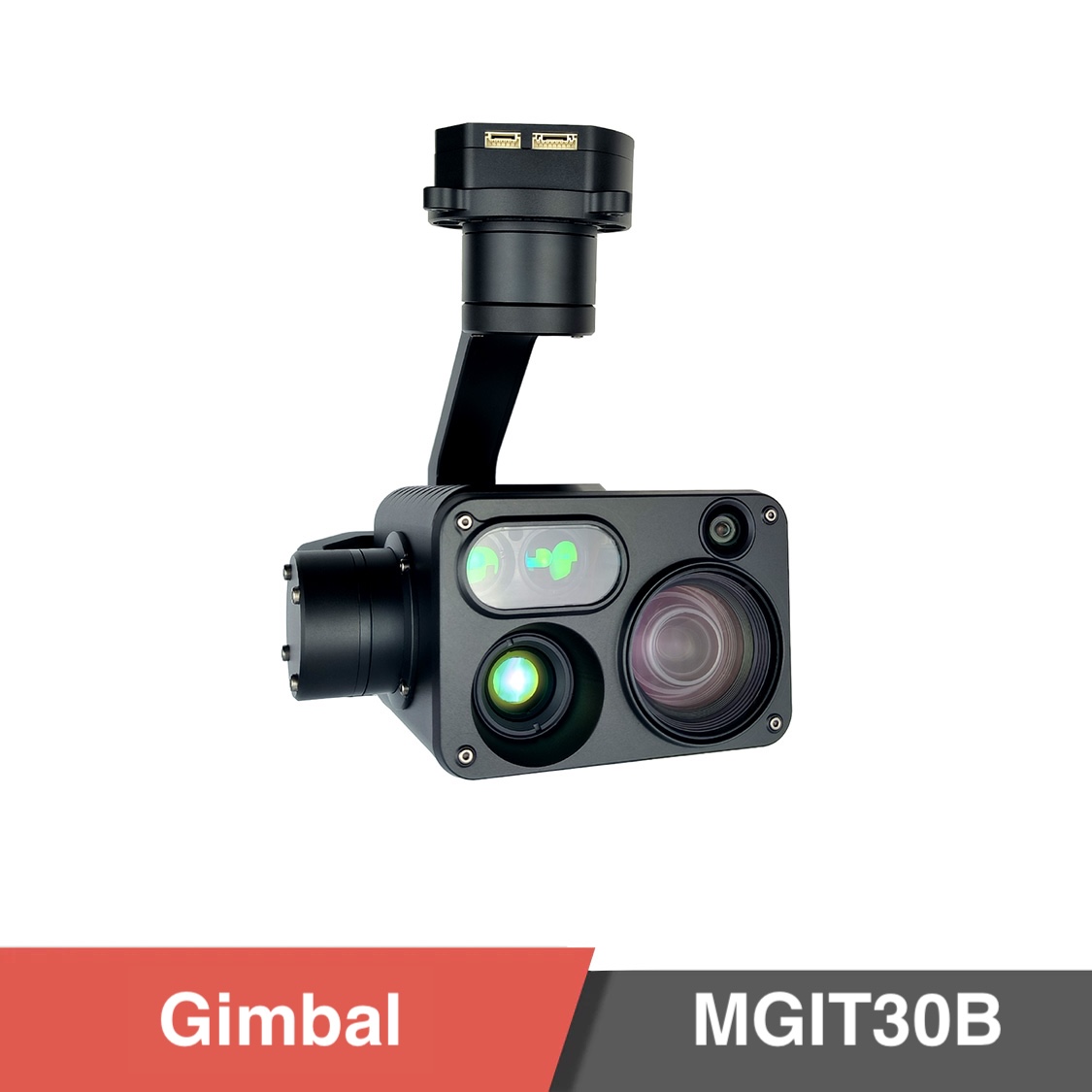

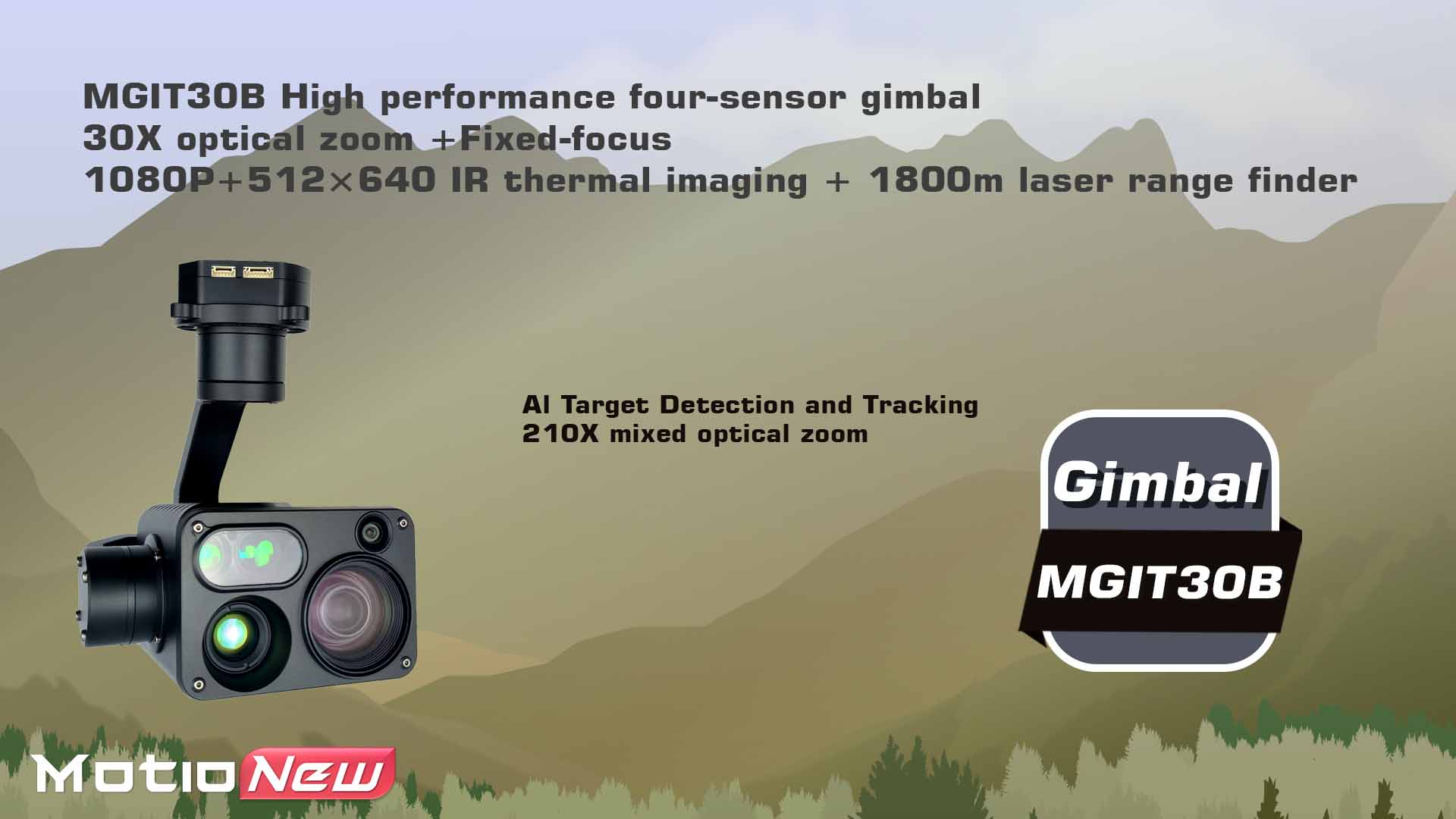

MGIT30B Gimbal Camera, Dual EO with 640×512 Thermal Sensor and 1800m Laser range finder

Description

MGIT30B Multi-Sensor Gimbal – EO/IR Camera + Laser Rangefinder with 30x Optical Zoom

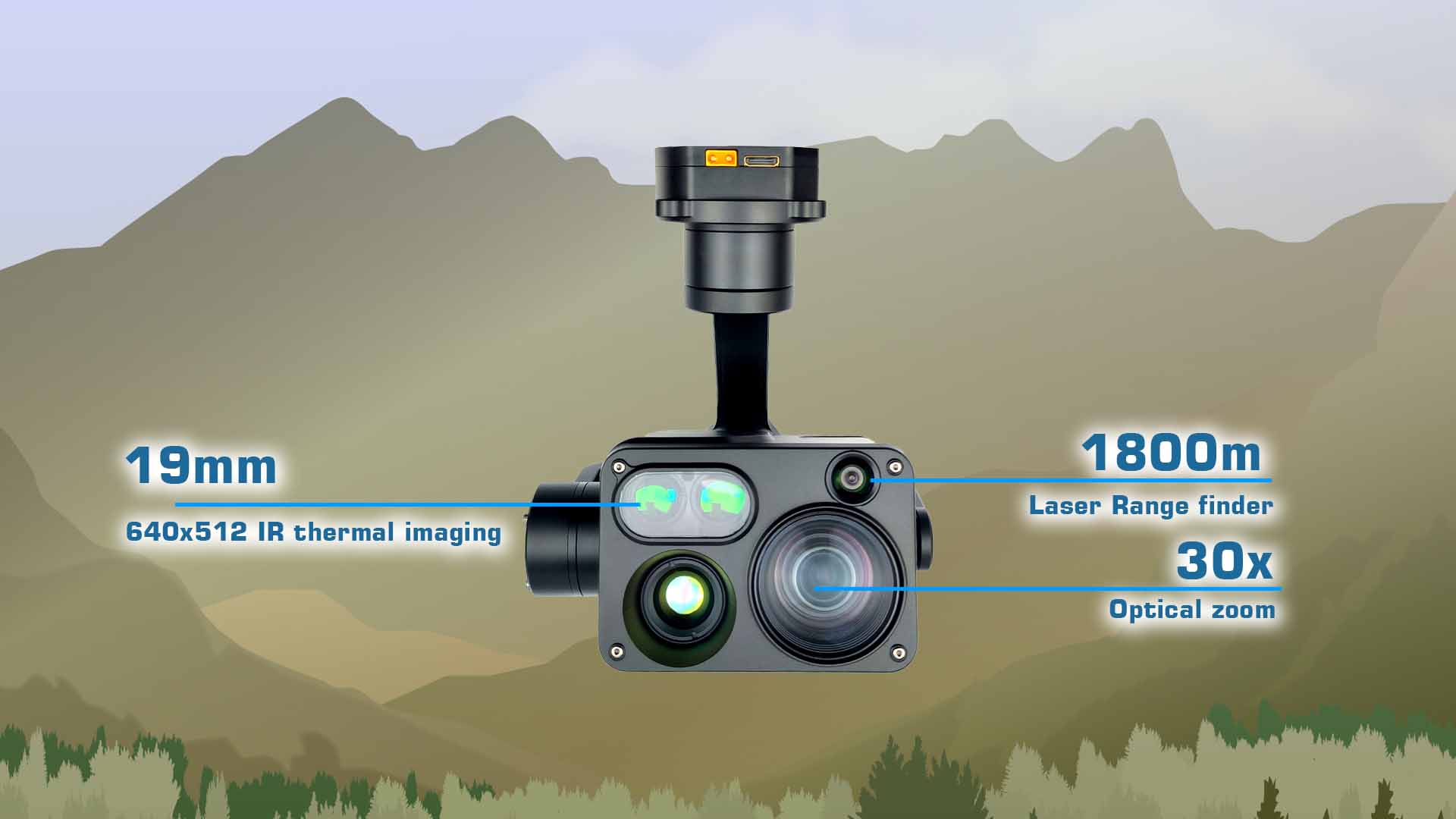

The MGIT30B is a compact, high-performance multi-sensor gimbal system built for UAV aerial applications requiring precise imaging, tracking, and rangefinding. Weighing under 1kg, it integrates a 30x optical zoom EO camera, 1080P fixed camera, infrared thermal imaging, and a 905nm laser rangefinder, all stabilized with a high-precision 3-axis PTZ gimbal.

With support for network IP and serial control, real-time RTSP streaming, and onboard video storage, the MGIT30B offers a powerful solution for search & rescue, surveillance, law enforcement, and industrial inspections.

---

📦 Hardware Specifications

• Voltage Input: DC 12V – 26.2V

• Power Consumption: <10W (Dynamic)

• Weight: 950g ± 20g

• Operating Temp: -10°C to +45°C

• Storage Temp: -20°C to +60°C

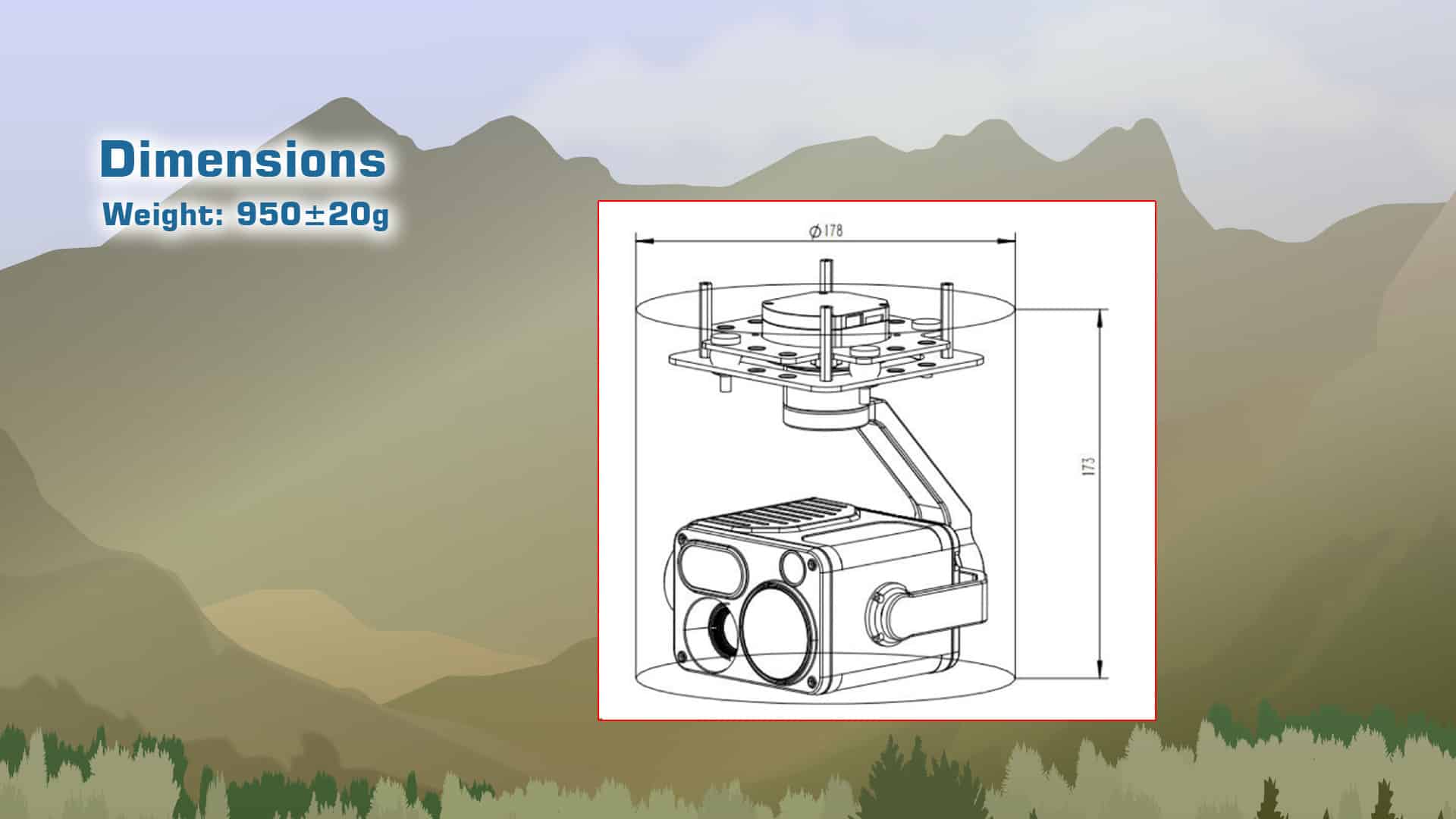

• Dimensions: Ø178mm × H173mm

• Application: Drone-based aerial imaging and tracking

---

🎯 3-Axis Gimbal PTZ System

• Roll Range: -45° to +45°

• Pitch Range: -30° to +120°

• Yaw Range: -280° to +280°

• Angular Jitter (Pitch/Roll): ±0.02°

• Horizontal Jitter: ±0.03°

• Speed-Adaptive Control: Auto adjustment based on zoom level and speed mode

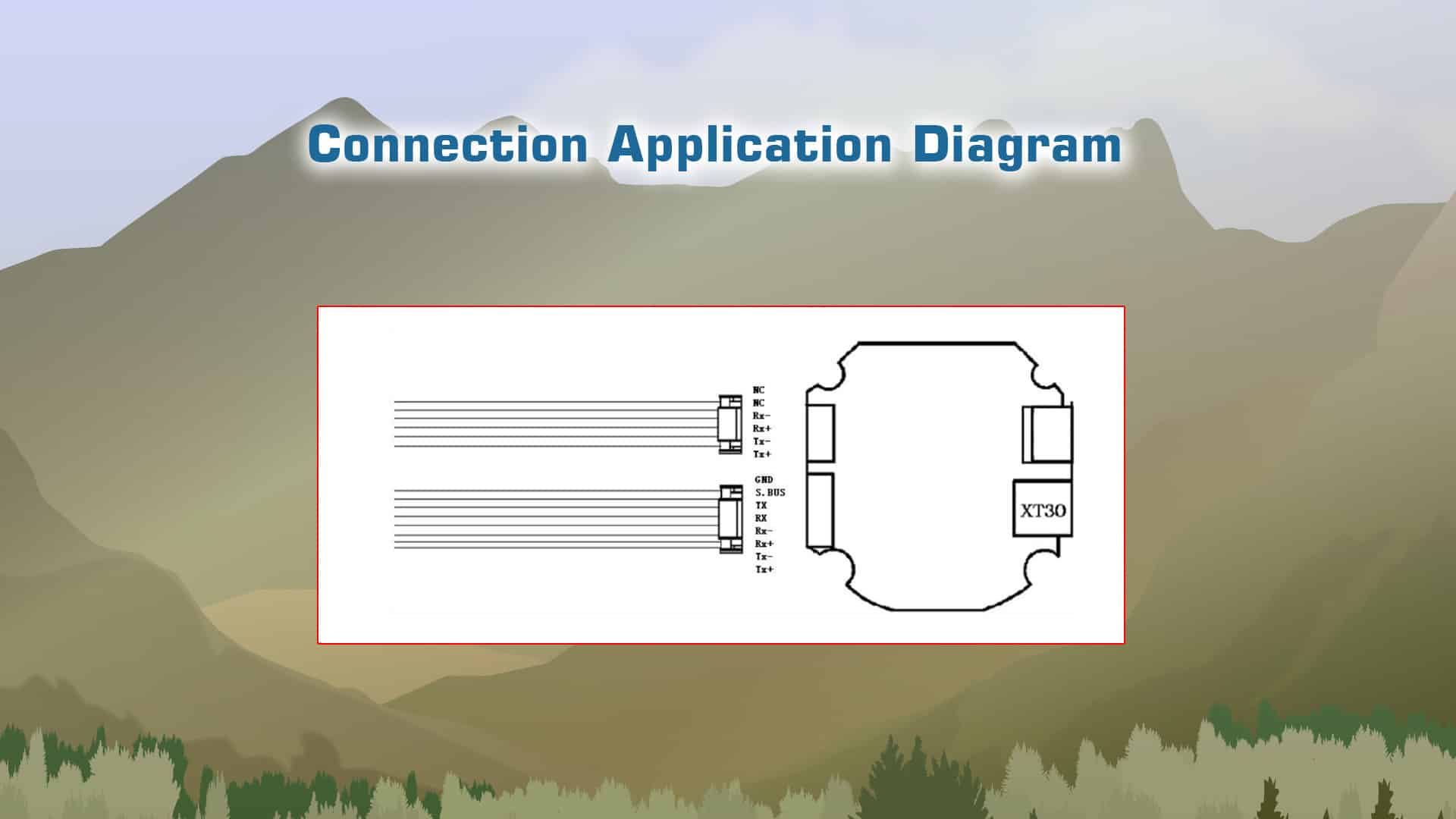

• Control Options: IP (Network), Serial, optional SBUS/PWM

• Return-to-Center: One-click quick return to original lock/follow mode

---

🔍 Electro-Optical Camera (Main – Zoom)

• Sensor: 1/2.8″ 8MP CMOS (wide dynamic)

• Optical Zoom: 30x (f=4.5–135mm ±5%)

• Auto Focus: <1s real-time focusing

• Video Output: 1080P RTSP streaming + onboard TF card recording

• FOV:

  • D: 67.8° (wide) ~ 2.77° (tele)

  • H: 59.8° ~ 2.34°

  • V: 40.5° ~ 1.48°

• Support Mode: 1080P @30fps

---

📷 Fixed EO Sensor (Secondary Camera)

• Sensor: 2MP CMOS

• Digital Zoom: 9x

• FOV: 94.6° × 86.6°

• Video Compression: H.264 / H.265

• Storage: Local TF card

• Output Mode: 1080P @30fps

---

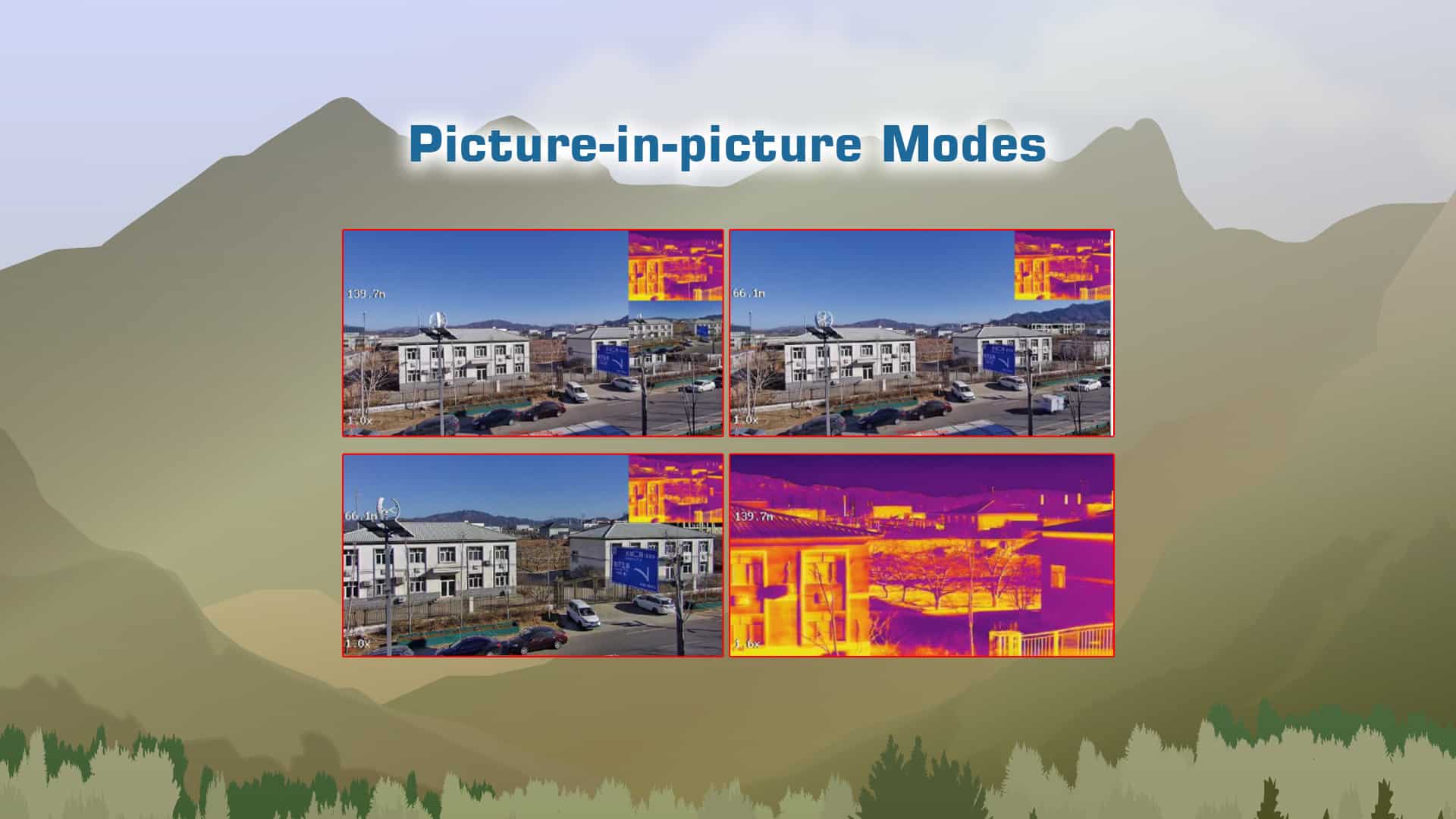

🌡️ Infrared Thermal Imaging

• Resolution: 640 × 512 pixels

• Pixel Pitch: 12μm

• Sensor Type: Uncooled focal plane microbolometer

• Wavelength Range: 8–14μm

• NETD: ≤50mK @ f/1.0

• FOV (19mm lens): 22.9° × 18.4°

• Temperature Measurement: Global + full-pixel optional recording

• Color Modes: Multiple pseudo-color palettes

---

📏 Laser Rangefinder

• Wavelength: 905nm (Class I eye-safe)

• Range: 5m to 1800m

• Accuracy:

  • Within 400m: ±1m

  • Beyond 400m: ±0.4%

• Resolution: 0.1m

---

🧠 Intelligent Target Recognition

• Supported Targets: People, vehicles

• Min Recognition Size: 32 × 32 pixels

• Target Size Range: 16 × 16 ~ 256 × 256 pixels

• Max Occlusion Time: 2 seconds

• Max Speed: 50 pixels/frame

• Max Targets: 100 tracked simultaneously

---

🚁 Ideal Applications

• Public safety and emergency response (firefighting, SAR)

• Tactical reconnaissance and surveillance

• Industrial inspection and maintenance

• Wildlife observation and tracking

• Long-range UAV navigation and security operations

---

MGIT30B is your all-in-one imaging solution for UAV systems requiring precise target tracking, robust zoom optics, thermal detection, and reliable distance measurement—all packed into a stabilized, lightweight, and intelligent payload system.
