Gimbal Camera| Model Q40TM-Pro | 40x EO Dual Sensors | Laser Range Finder + GPS-Based Targeting

PayPal
Visa
Master

Description

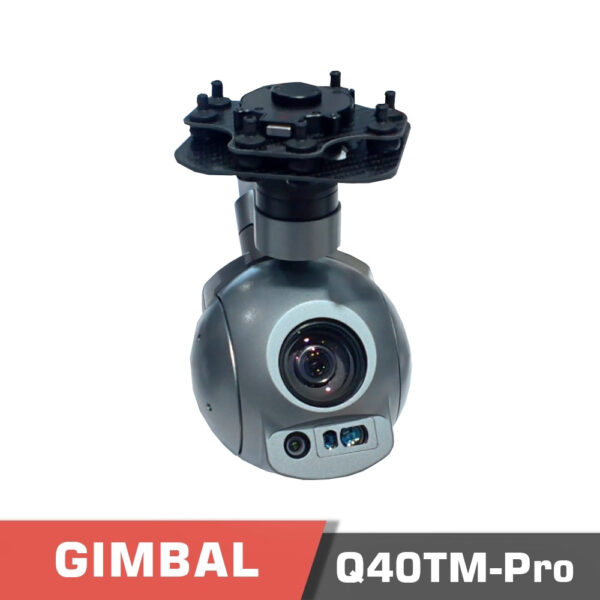

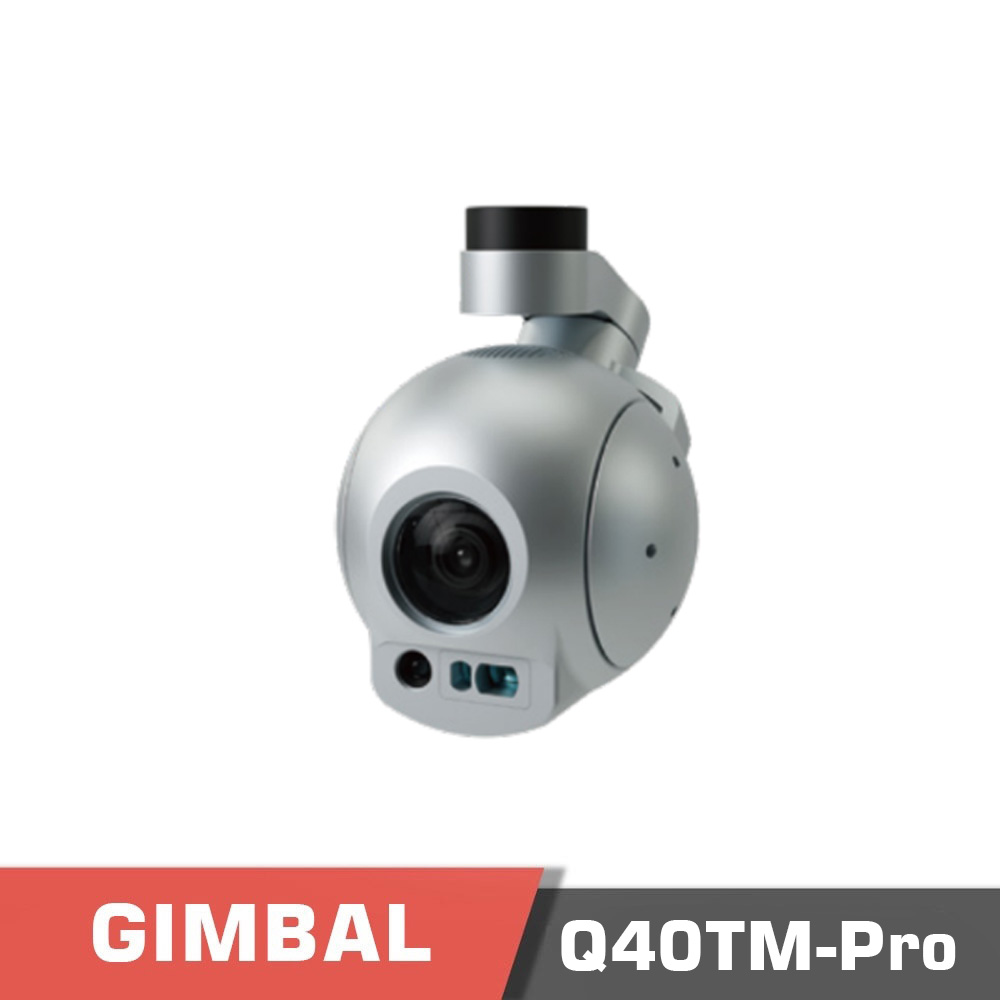

Q40TM Pro Gimbal Camera

40x EO Dual Sensors + LRF + GPS-Based Targeting

The Q40TM Pro is a precision-engineered gimbal payload designed for UAV missions requiring long-range zoom, real-time GPS coordinate calculation, and object tracking. With dual EO lenses, an integrated laser rangefinder (LRF), and onboard processing, it provides accurate target positioning at distances up to 2,000 meters.

Ideal for search and rescue, surveillance, security operations, and infrastructure inspection, the Q40TM Pro combines optical zoom, target locking, and coordinate reporting into one robust module.

ย Key Specifications

Feature Specification
Main Sensor 1/2.8″ CMOS, dual EO lenses
Zoom Lens 40x optical zoom, f=4.25โ€“170mm
Wide Lens 8mm prime lens, FOV 45ยฐ ร— 30ยฐ
Resolution 1920 ร— 1080 (1080p)
Total Pixels 2.13MP
Laser Rangefinder 3โ€“2000m measurement range
Object Tracking Supported (โœ“)
Working Voltage 4Sโ€“6S (14.8Vโ€“22.2V)
Output Interfaces 1080p micro HDMI / IP
Control Protocols PWM / S.BUS / UART / TCP / UDP
Local Storage SD card support up to 256GB
Weight 850g
Dimensions 118 ร— 134.8 ร— 198.7 mm

ย Highlights

  • 40x Optical Zoom: High-precision visual tracking from wide-angle to long-range views

  • Dual Lens System: Combine overview and detail recognition with prime + zoom lenses

  • Integrated LRF: Calculates GPS coordinates of tracked targets with laser accuracy

  • Real-Time Output: Supports streaming over IP and micro HDMI for live operations

  • Rugged, Lightweight Design: Suitable for medium to heavy UAV platforms in varied environments


ย Use Cases

  • Surveillance and reconnaissance

  • Target location and GPS coordinate reporting

  • Law enforcement or border patrol missions

  • Nighttime operations when paired with auxiliary lights

  • Line inspection and infrastructure surveying

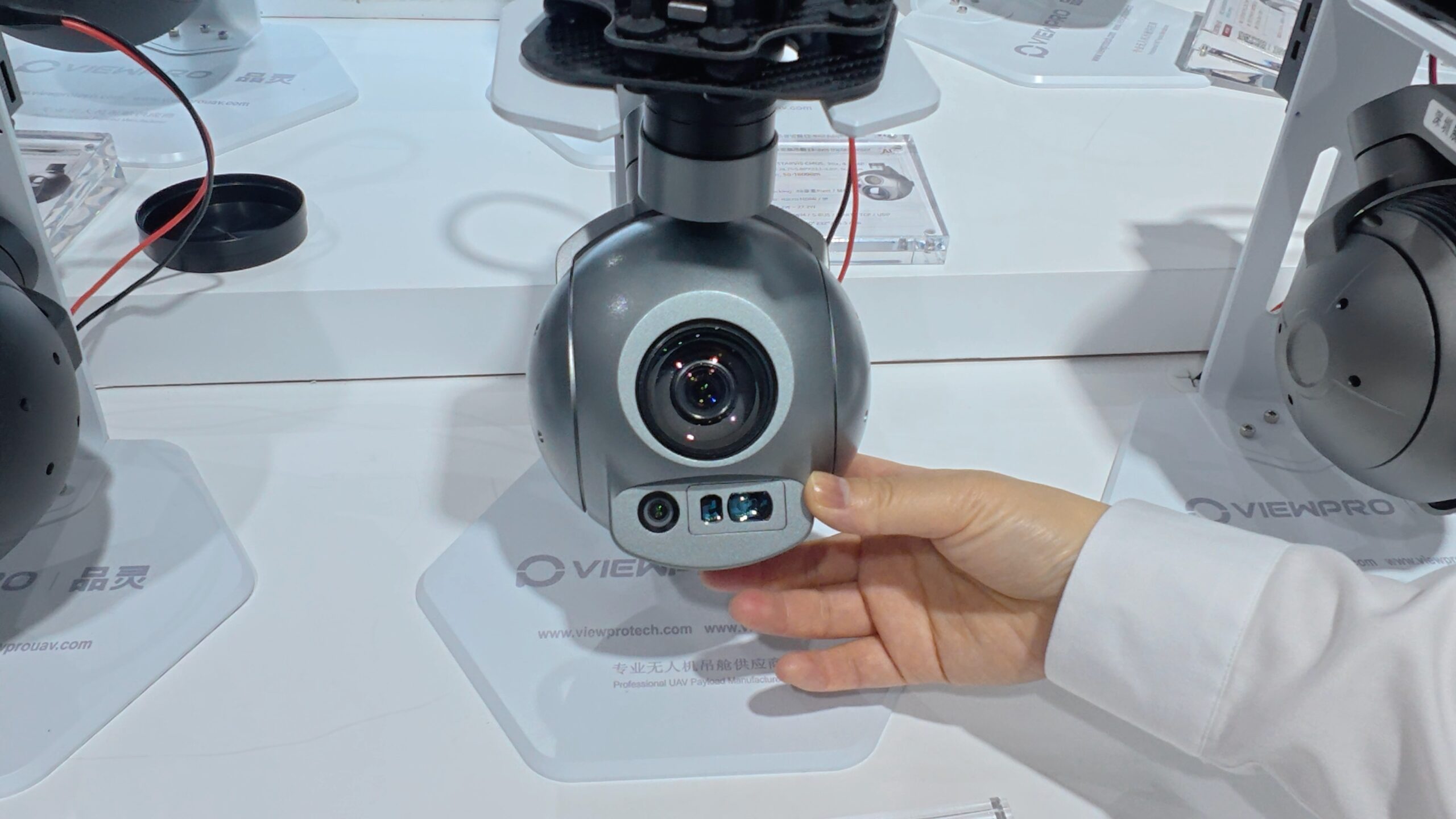

Q40tm pro gimbal camera

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Feature Specification
Main Sensor 1/2.8″ CMOS, dual EO lenses
Zoom Lens 40x optical zoom, f=4.25โ€“170mm
Wide Lens 8mm prime lens, FOV 45ยฐ ร— 30ยฐ
Resolution 1920 ร— 1080 (1080p)
Total Pixels 2.13MP
Laser Rangefinder 3โ€“2000m measurement range
Object Tracking Supported (โœ“)
Working Voltage 4Sโ€“6S (14.8Vโ€“22.2V)
Output Interfaces 1080p micro HDMI / IP
Control Protocols PWM / S.BUS / UART / TCP / UDP
Local Storage SD card support up to 256GB
Weight 850g
Dimensions 118 ร— 134.8 ร— 198.7 mm

Product contents

Please contact us for more information.

Documents

Please contact us for more information.
