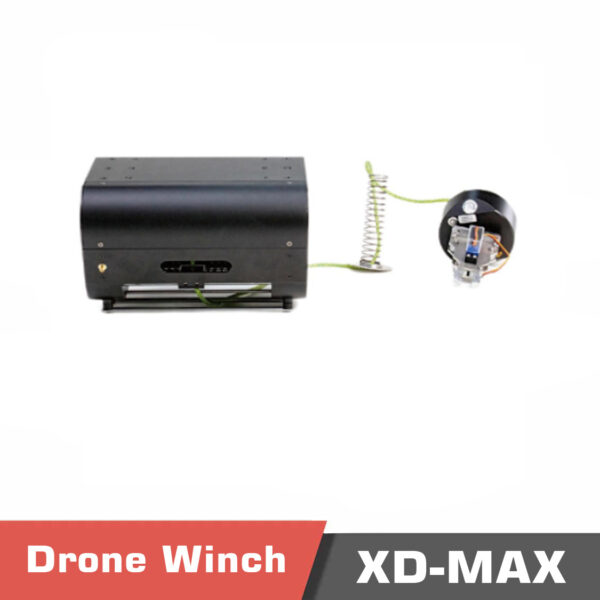

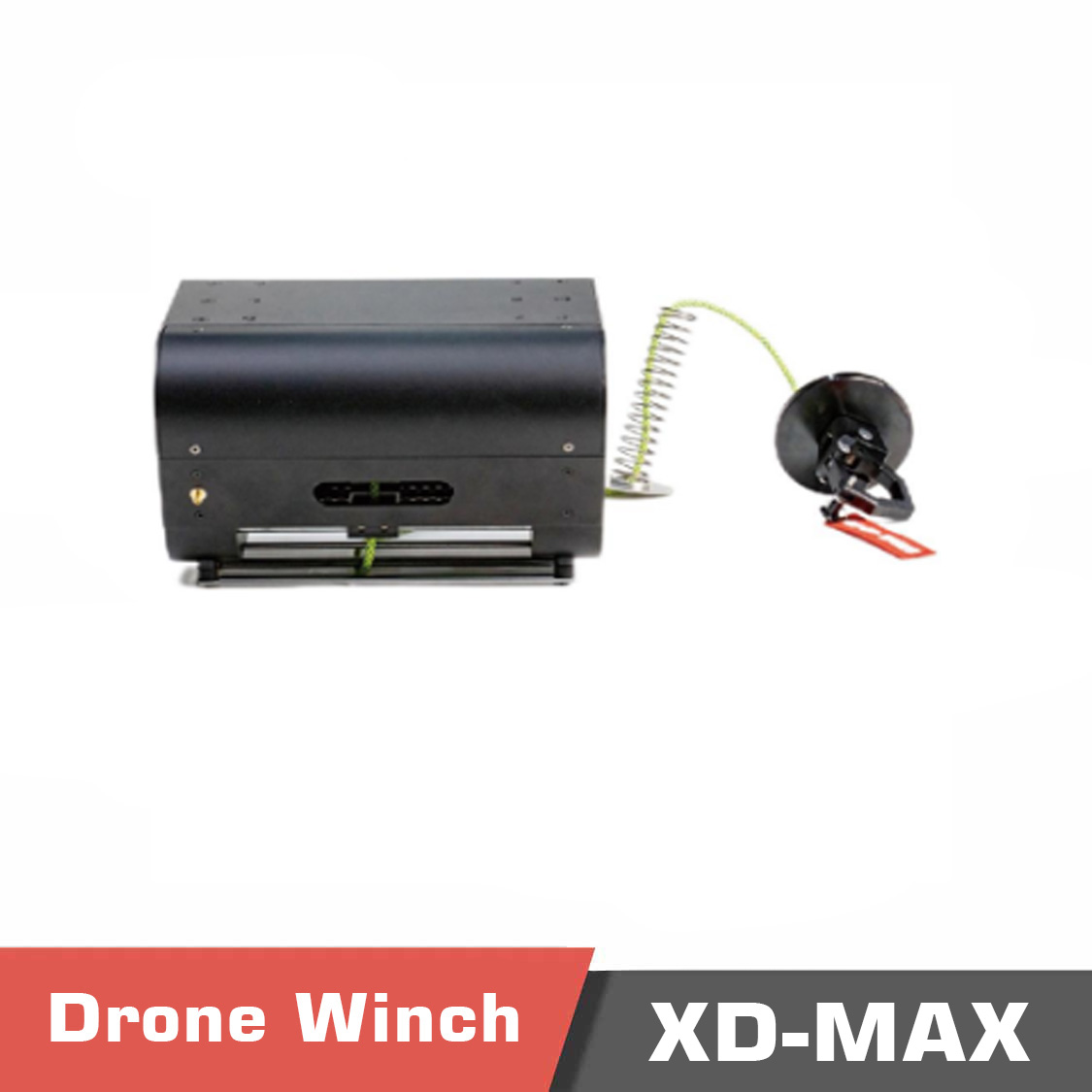

XD-MAX 150kg payload winch

11,210.00 $12,900.00 $

Payment Methods:

Payment methods - motionew - 15
Description

XD-MAX 150kg payload winch

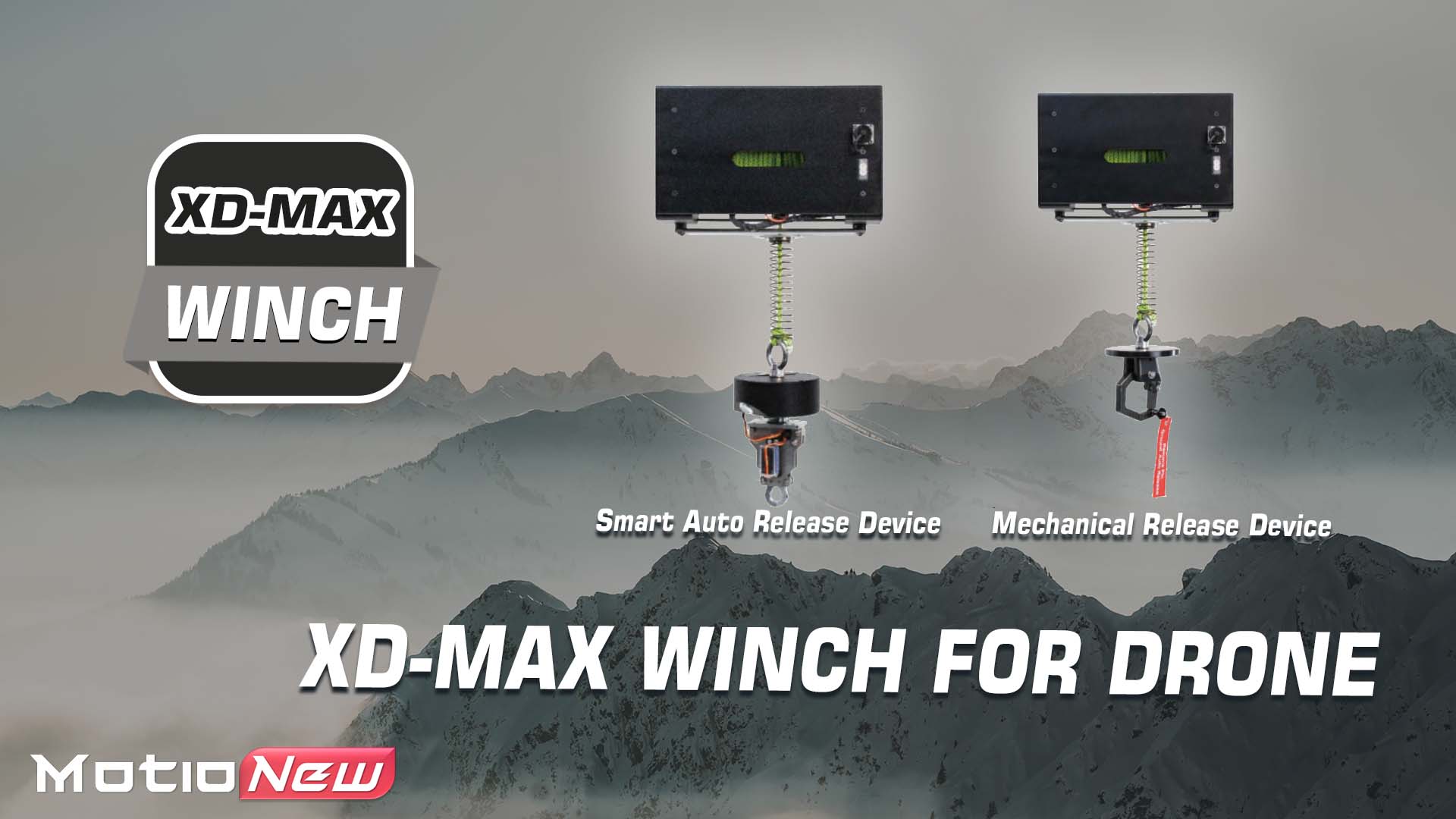

XD-MAX Drone Winch – 150kg Heavy-Lift Payload System with Smart Release Options

The XD-MAX Winch is a high-capacity, intelligent aerial delivery solution engineered for professional drones tasked with heavy-lift, logistics, and emergency drop operations. Featuring a 150kg maximum payload, 25-meter rope length, and both mechanical and smart auto-release devices, it offers unmatched safety, control, and operational precision.

Perfect for UAV applications in disaster relief, industrial logistics, urban transport, and remote payload drops, the XD-MAX supports custom control protocols and integrates easily with third-party flight systems.


📦 Basic Specifications

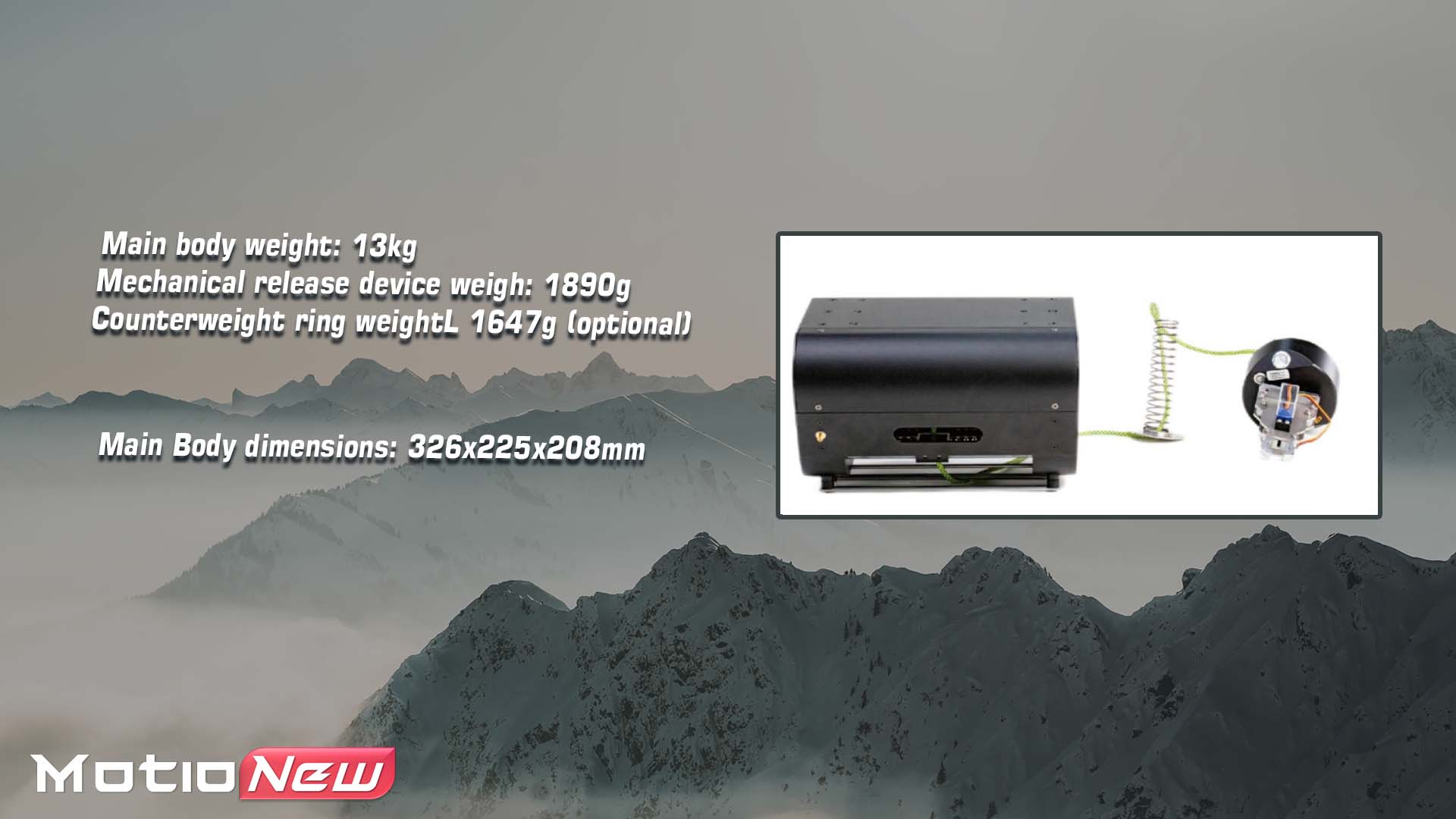

  • Main Body Dimensions: 326 × 225 × 208 mm

  • Main Body Weight: 13 kg

  • Rope Length: 25 m

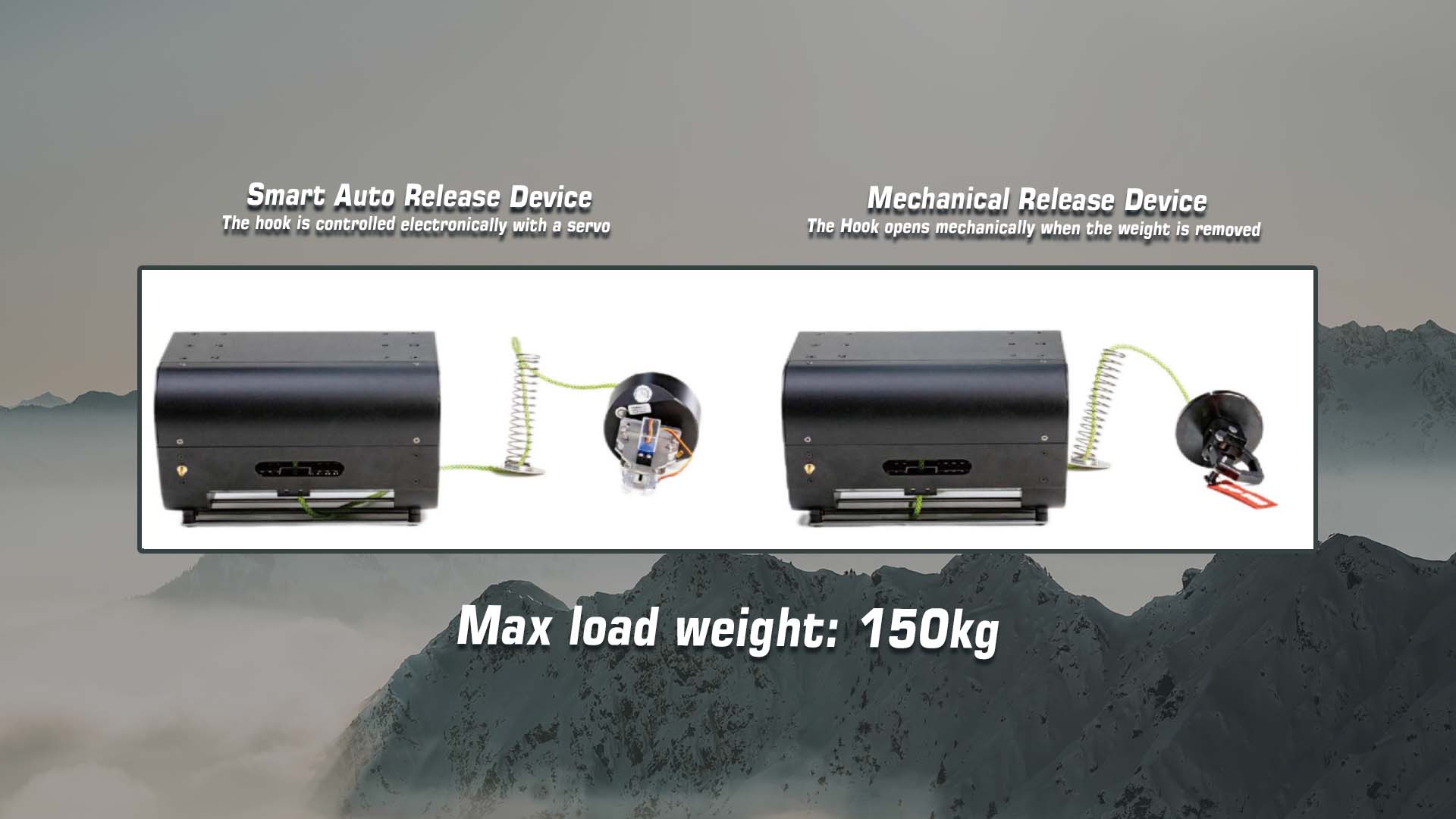

  • Mechanical Release Weight: 1890 g

  • Smart Auto Release (Optional): 1647 g


🚀 Performance Parameters

Parameter Value
Max Load Capacity 150 kg
Retraction Speed 0.1–0.4 m/s
Motor Speed 32–128 RPM
Power Supply Voltage 44–52V
Full Load Rated Power 400W
Hover Power < 20W
Power Mode Battery powered (non-DCDC)

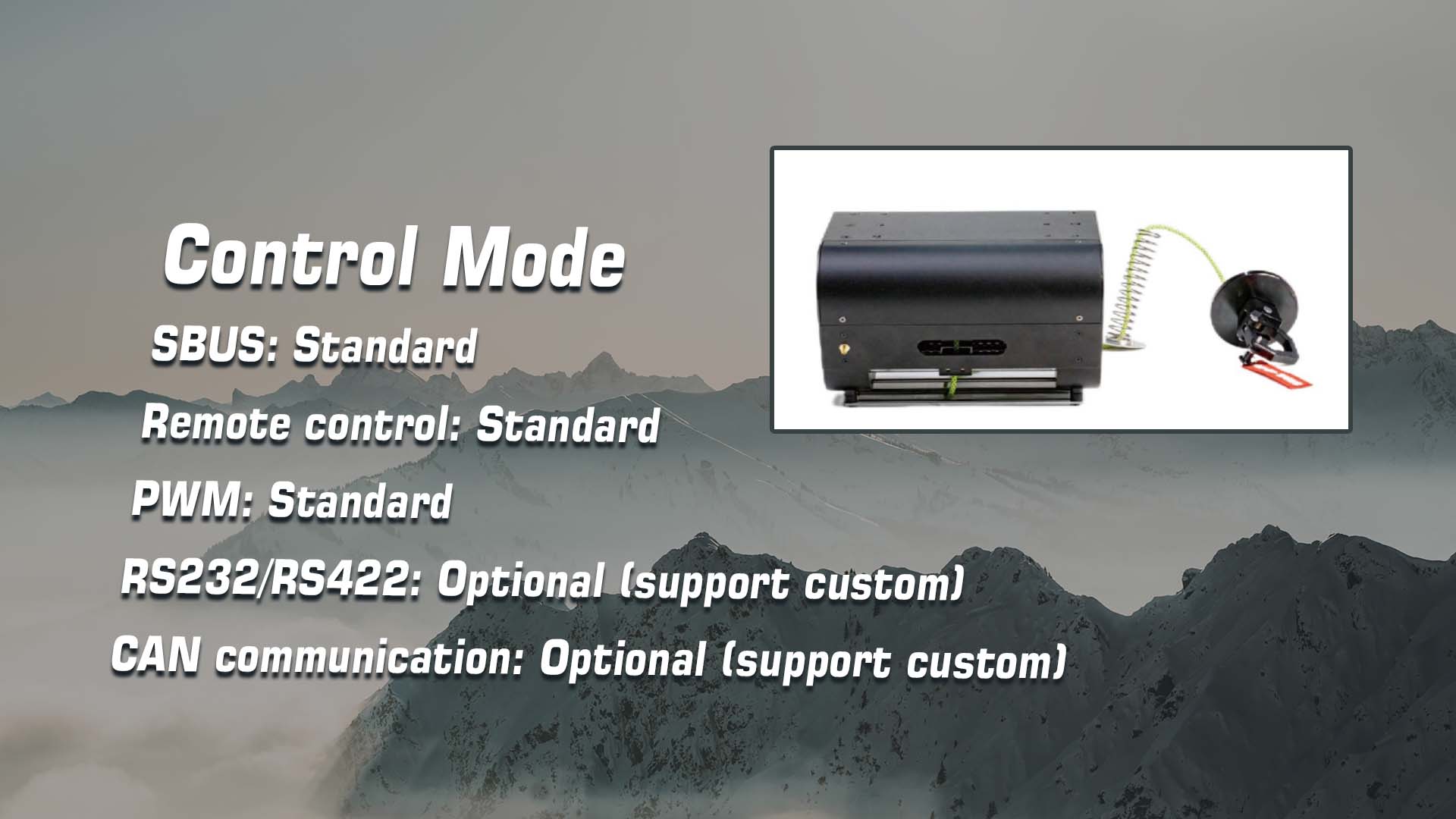

🎮 Control Interface

  • SBUS / PWM / Remote Control: Standard

  • RS232 / RS422: Optional (Custom Integration)

  • CAN Communication: Optional (Custom Integration)


🧠 Smart Auto Release Features

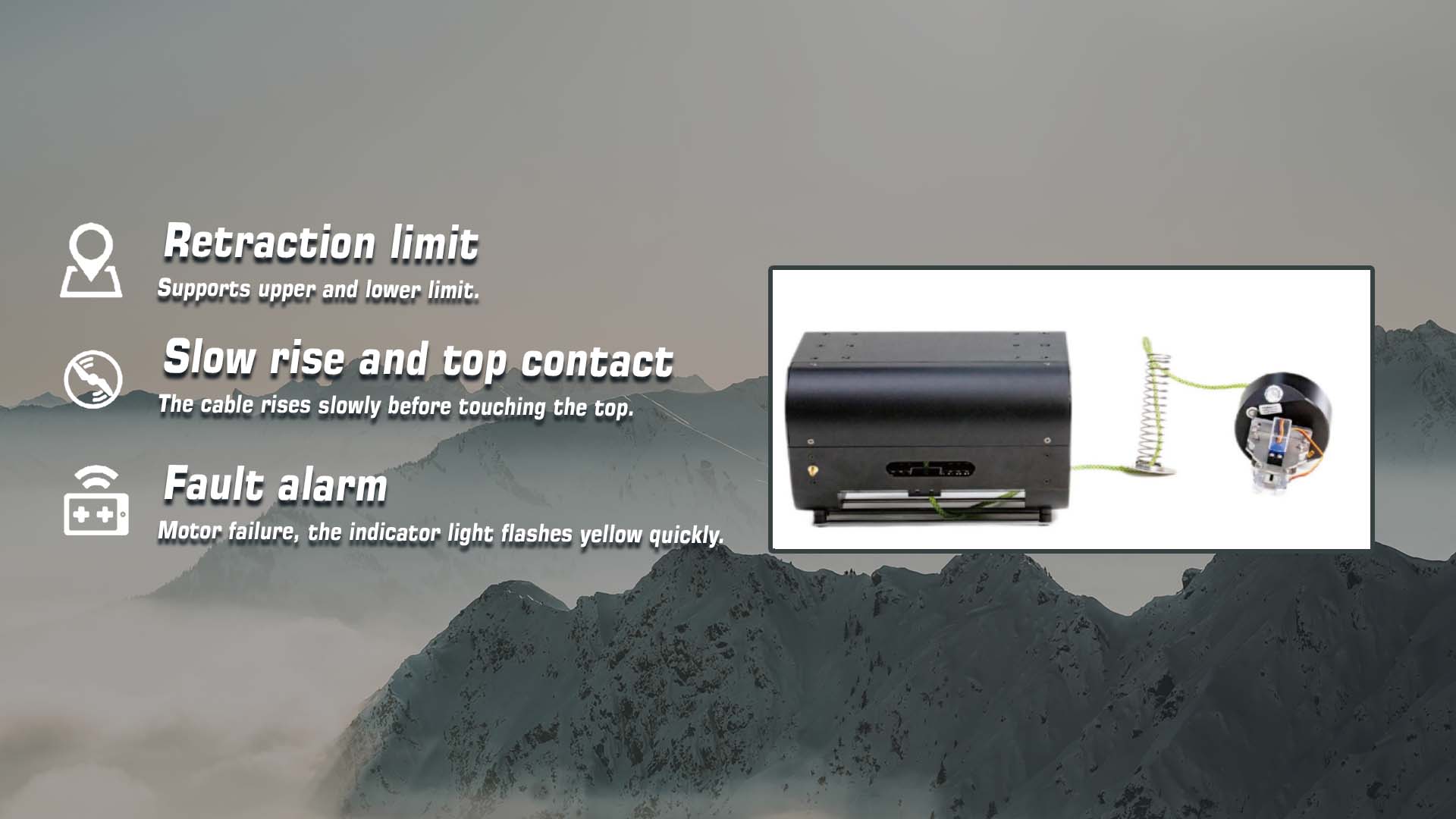

  • Retraction Limit: Supports top & bottom cable limits

  • Thrust Monitoring: Real-time cable tension detection

  • Automatic Line Management: Auto retraction/wiring

  • One-Click Fuse: Emergency cable breakage system

  • Soft Stop: Smooth deceleration near cable top

  • One-Click Release / Casting: Auto-release with fault detection

  • Fault Alarm: Yellow indicator for motor failure

  • Sway Detection: Real-time monitoring of swing dynamics

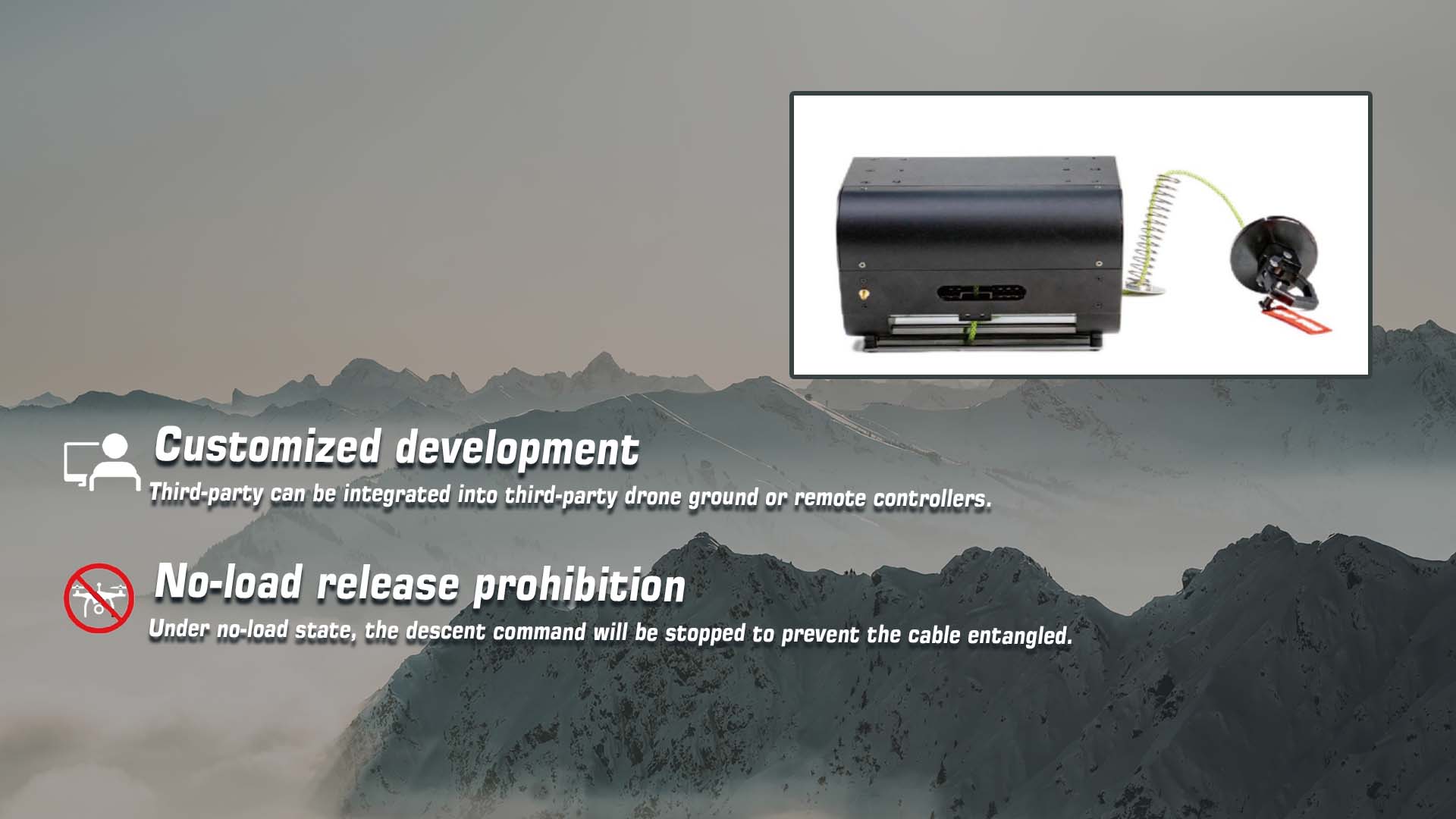

  • No Empty Load Drop: Safety lockout if no load is present

  • Power-Off Brake: Auto brake in case of power failure

  • Custom Development: API for third-party controller integration


🔧 Ideal Applications

  • UAV cargo delivery and aerial logistics

  • Emergency supply drops and disaster relief

  • Heavy equipment or sensor deployment

  • Urban aerial transportation trials

  • Survey, rescue, and medical transport drones


The XD-MAX winch system brings precision, power, and safety to aerial logistics, offering robust performance with smart automation. Its modular release options and open interface design make it the go-to solution for advanced UAV lifting missions.

Xd max. 1 - motionew - 4 Xd max. 2 - motionew - 5 Xd max. 3 - motionew - 6 Xd max. 4 - motionew - 7 Xd max. 5 - motionew - 8 Xd max. 6 - motionew - 9 Xd max. 7 - motionew - 10 Xd max. 8 - motionew - 11

For a comprehensive reading of related products, please visit the Motionew website.

Specifications

Specifications

Basic Parameters
Main Body Dimensions 326*225*208mm
Main Body Weight 13kg
Mechanical release device weight 1890g
Smart Auto Release Device 1647g (Optional)
Rope length 25m
Performance Parameters
Max. load weight 150kg
Retraction Speed 0.1~0.4m/s
Motor Speed 38-128RPM
Supply Voltage
Power Supply Mode Battery Powered
Power Supply Voltage 44-52v
Full load rated power 400W
Hover Power <20W
Control Mode
SBUS Standard
Remote Control Standard
OWM Standard
RS232/RS422 Optional (Support Custom)
CAN Communication Optional (Support Custom)
Product contents

Product contents

Please contact us for more information.

Documents

Documents

Please contact us for more information.

Reviews
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “XD-MAX 150kg payload winch”

Specification:

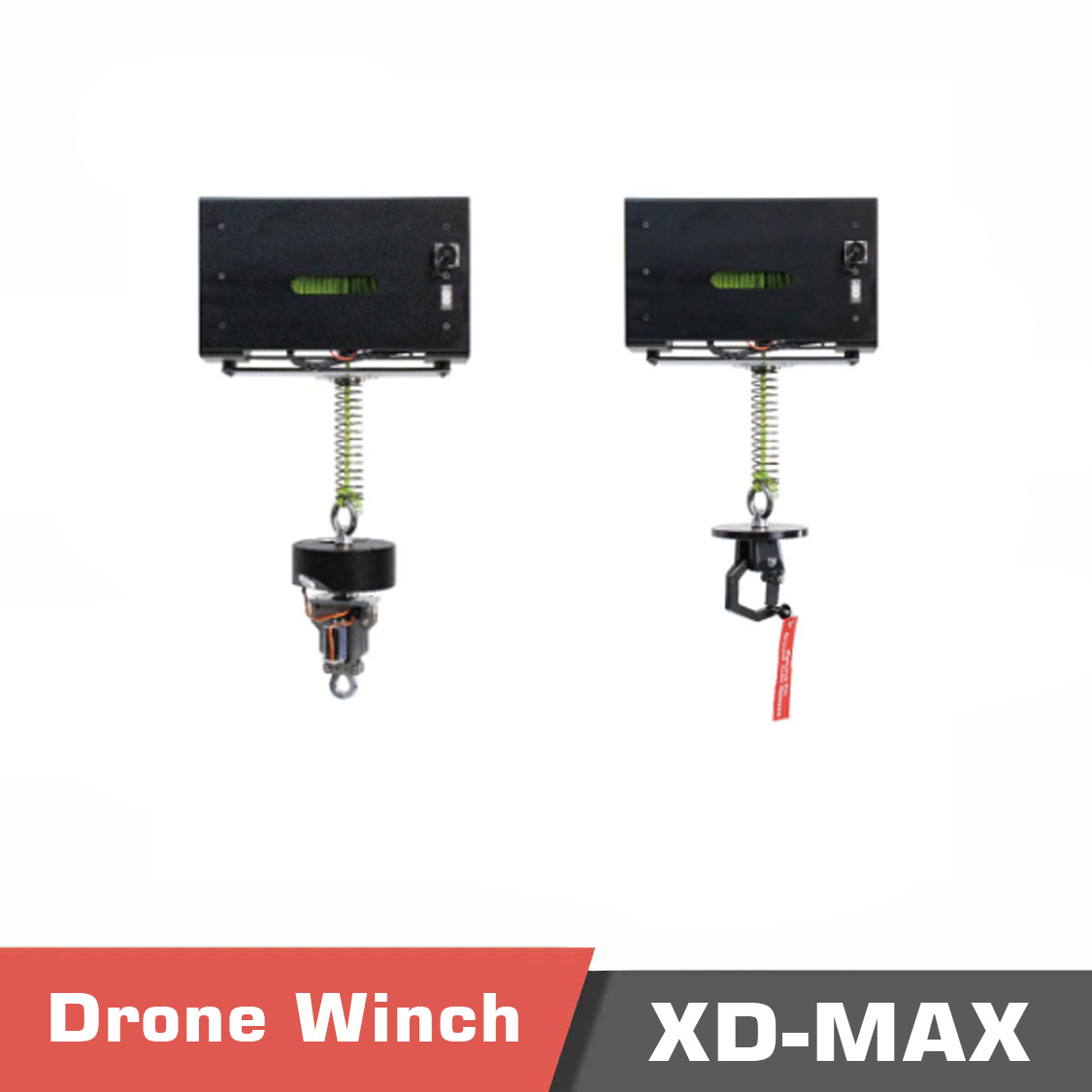

Version

Automatic Release

,

Mechanical Release
