Description

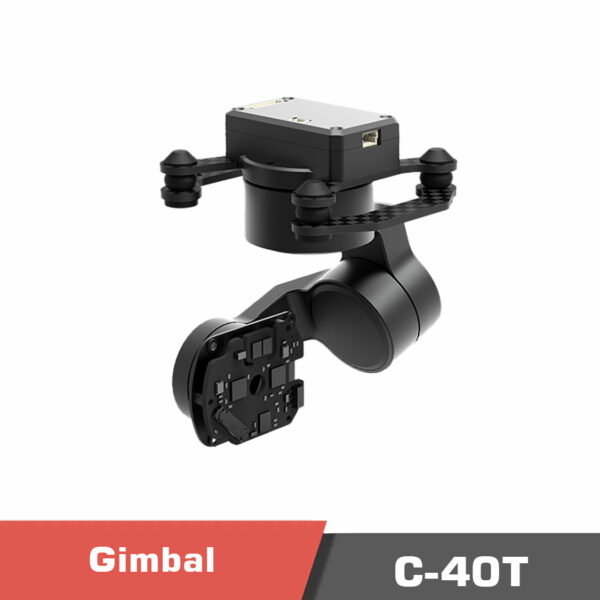

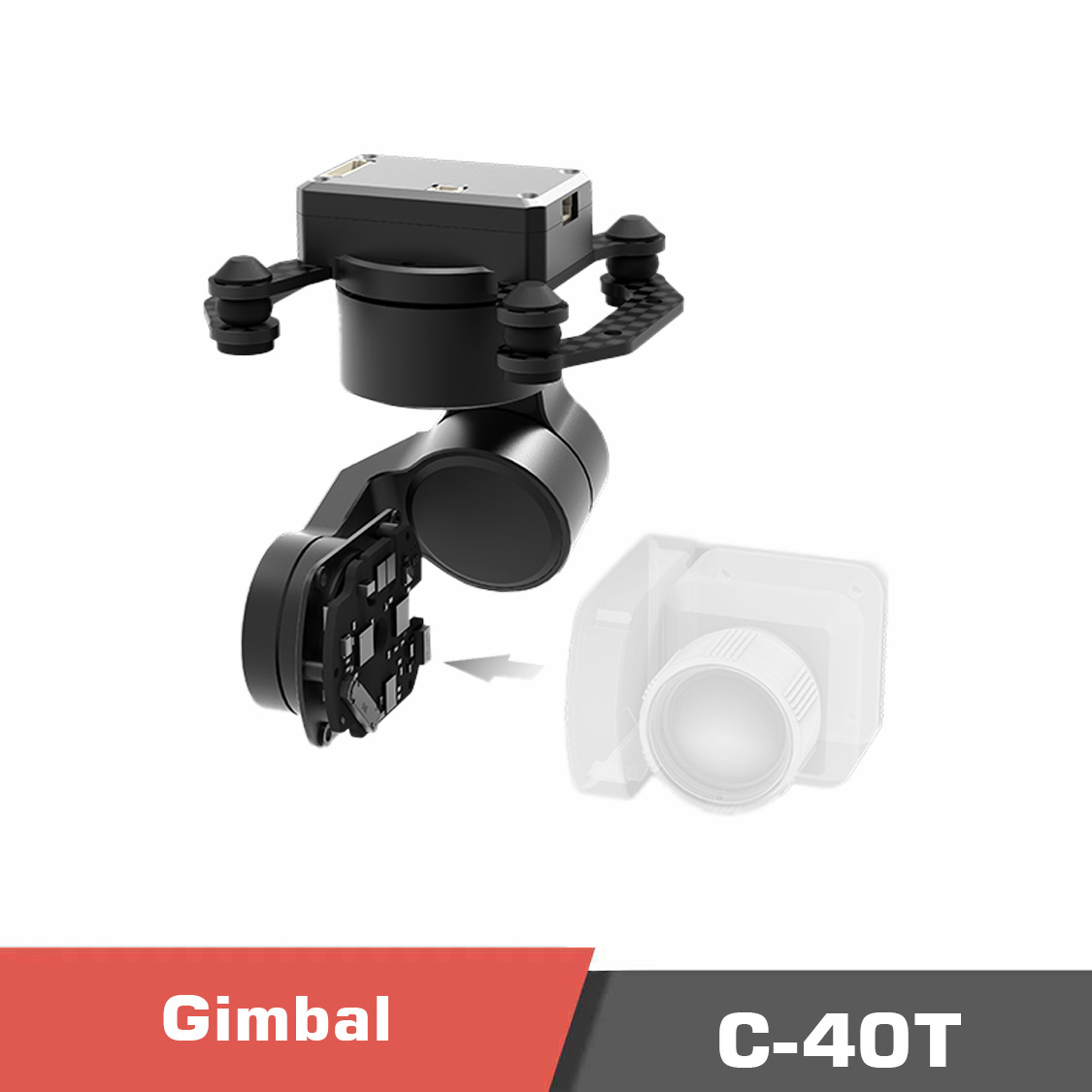

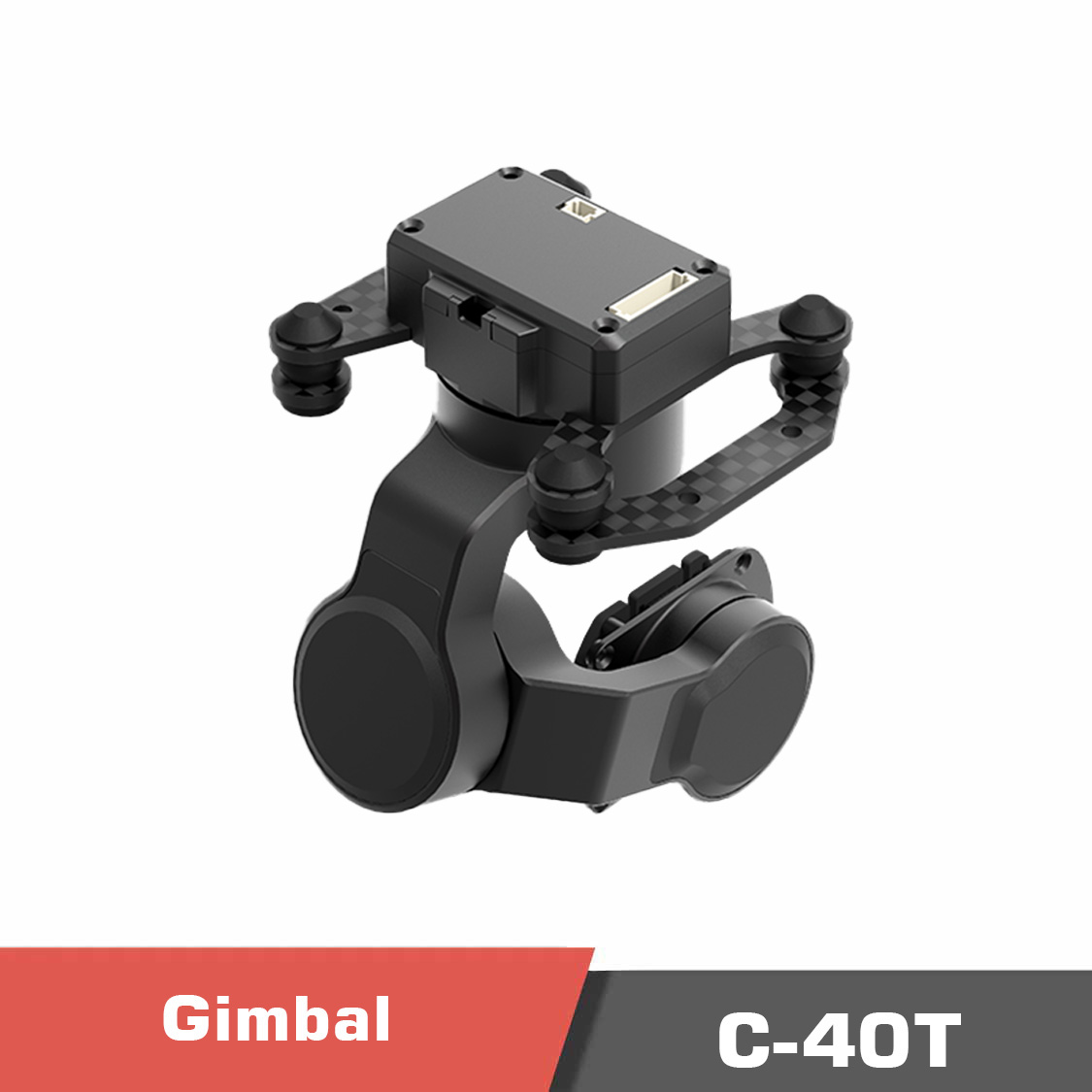

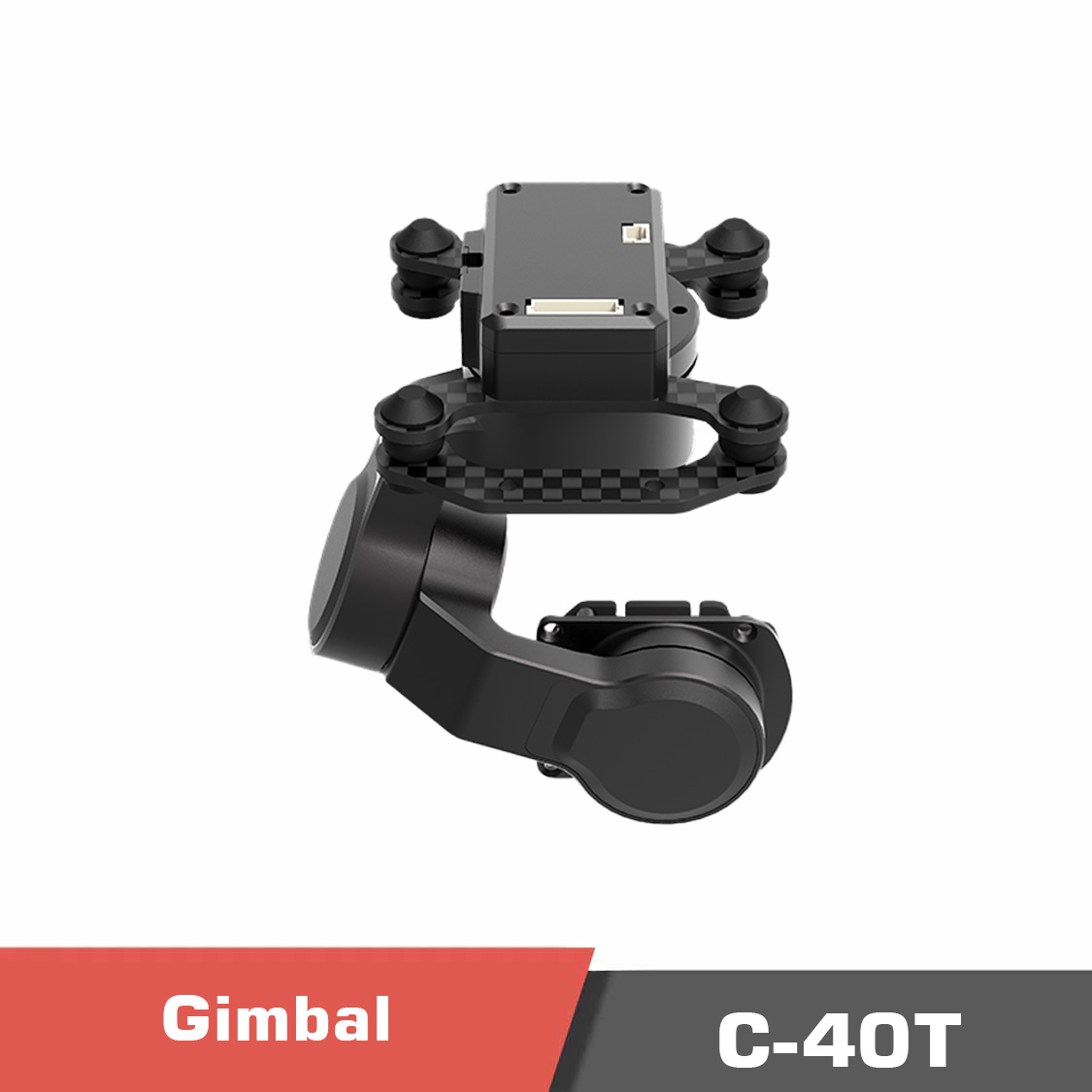

C-40T 3-axis Gimbal Overview
The C-40T 3-axis Gimbal supports a payload device weighing up to 40g. Featuring a 3-axis nonorthogonal mechanical stabilization structure and high-torque motors, the C-40T delivers exceptional stability, effectively countering vibrations and high-speed air impact. With Headtracker integration, it offers an immersive and high-quality first-person control experience, ensuring precise and responsive operation.

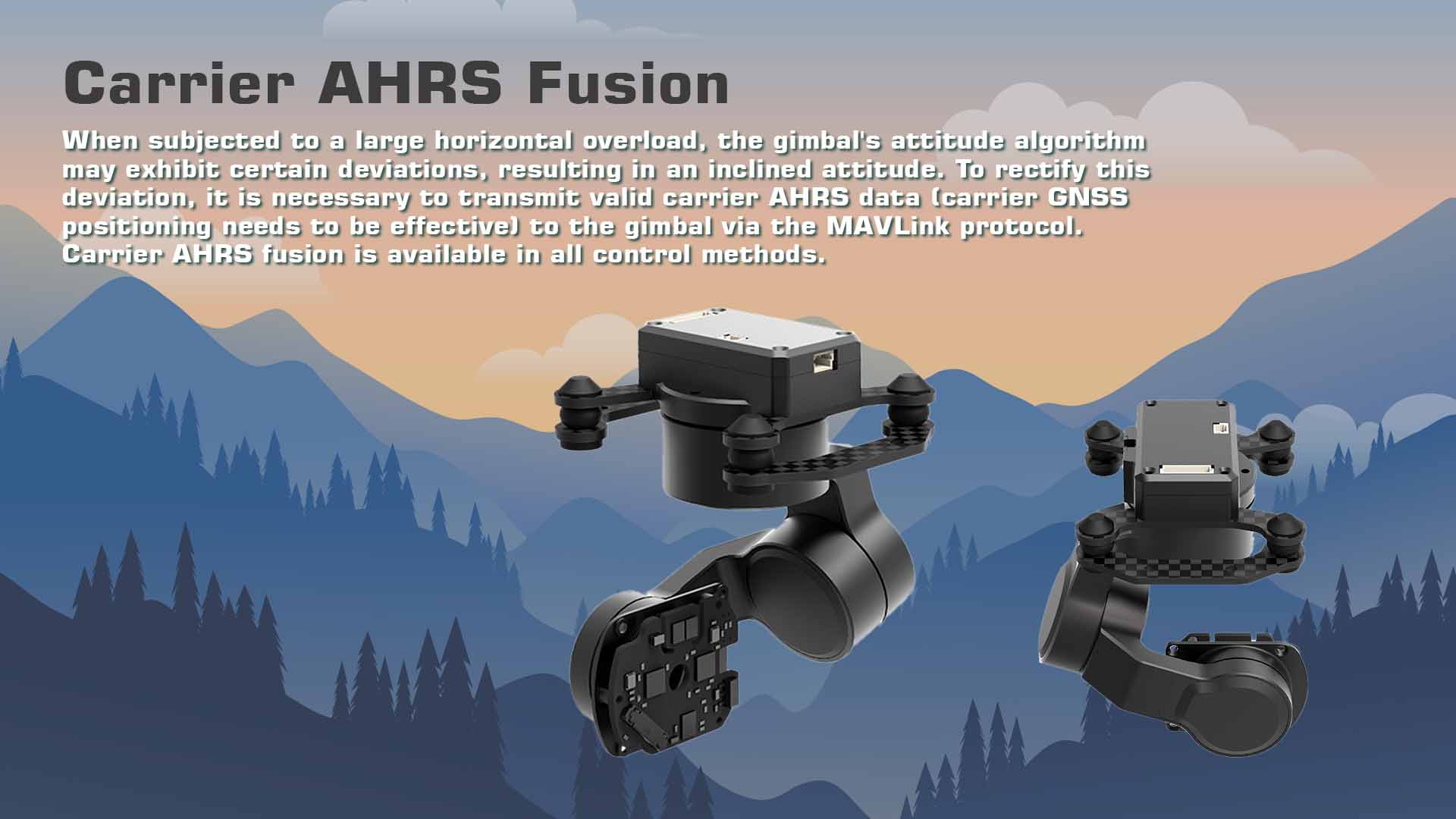

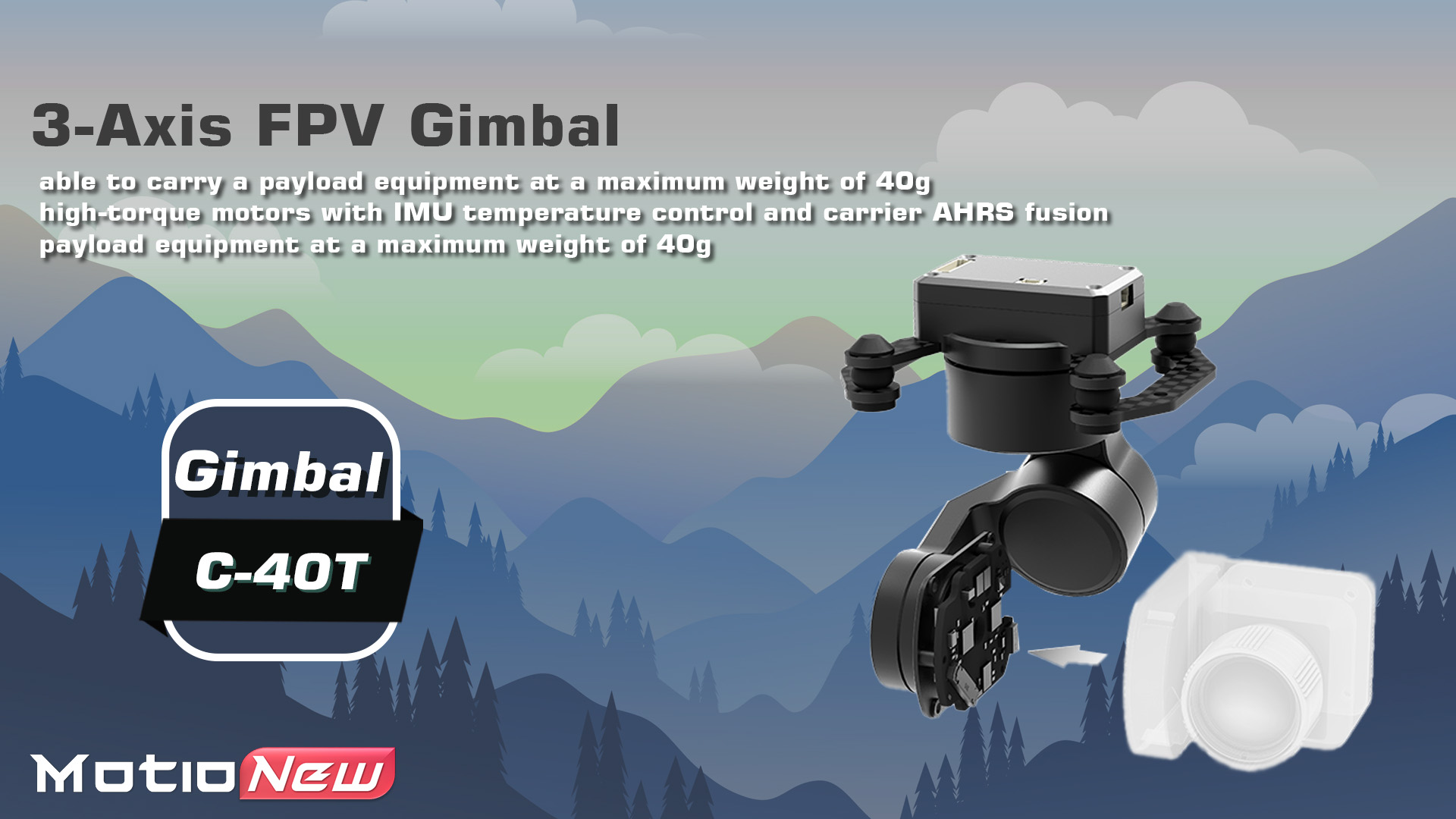

The C-40T 3-axis Gimbal features a robust 3-axis nonorthogonal mechanical stabilization structure, capable of carrying a payload device with a maximum weight of 40g. Equipped with high-torque motors, IMU temperature control, and carrier AHRS fusion, the C-40T achieves an impressive stabilization accuracy of ±0.005°.
With Headtracker support, it offers an immersive and high-quality first-person control experience. The gimbal is compatible with multiple control interfaces, including UART (private protocol & MAVLink), S.BUS, CRSF, and PWM. Designed for versatile mounting, it can be installed in both downward and upward orientations. Additionally, it operates within a wide voltage input range of 7.4~26.4 VDC, ensuring adaptability across various platforms.
It can be assembled on various types of unmanned aerial vehicles and other aviation carriers, as well as ships and vehicle carriers, so as to meet the requirements of sea and air use, making it an ideal camera gimbal drone solution.
For a comprehensive reading of related products, please visit the Motionew website.
Simple FAQ (C-40T – Engineers & B2B Buyers)
1. What is the C-40T Gimbal used for?
The C-40T is a dual-sensor 3-axis gimbal camera designed for UAVs in surveillance, search and rescue, powerline inspection, and security operations requiring EO and thermal imagery.
2. What are the key technical specifications of the C-40T?
It features a 4MP EO camera with 40x optical zoom and a 640×512 thermal imager with a 19mm lens. The gimbal includes IP video output, object tracking, temperature measurement, PiP mode, and supports stabilized 3-axis operation.
3. What drone platforms are compatible with the C-40T?
The C-40T is compatible with medium to heavy UAVs supporting PWM, S.BUS, and serial interfaces — suitable for multirotors and fixed-wing platforms.
Business & Operational FAQs
4. Can the C-40T be ordered in bulk or via OEM supply?
Yes. Motionew supports OEM supply, volume pricing, and technical guidance for drone manufacturers and system integrators.
5. Does the C-40T come with technical documentation and support?
Yes. It includes a full wiring diagram, user manual, and remote integration assistance provided by Motionew’s technical team.
6. What are the accepted payment methods and invoicing options for B2B clients?
Motionew accepts international wire transfers, provides formal business invoicing, and offers flexible payment terms for approved commercial buyers.
Specifications
Specifications
Specifications
| General | |
| Product Name | C-40T |

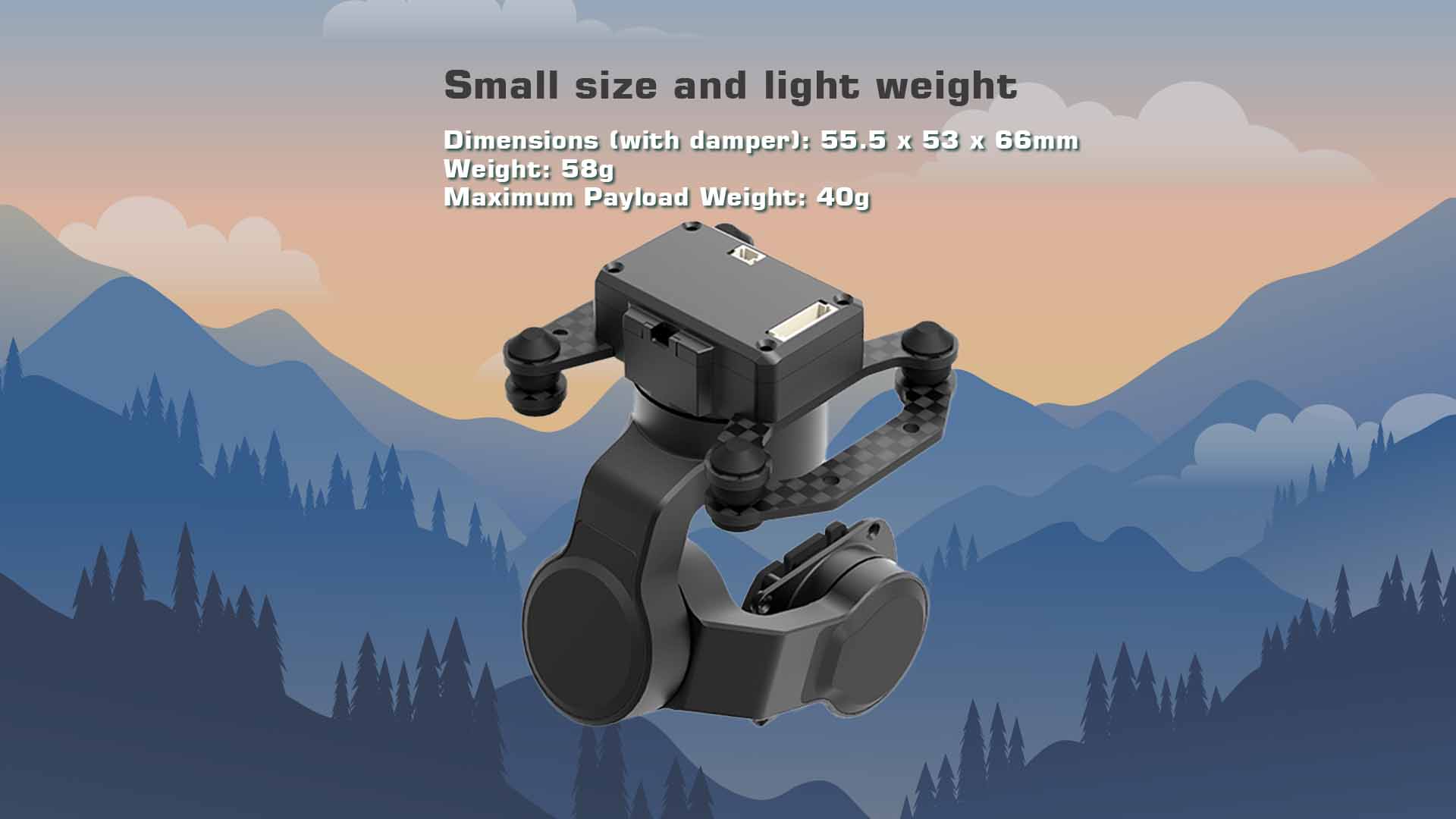

| Dimensions | 55.5 x 53 x 66mm |
| Weight | 58g |
| Operating Voltage | 7.4 ~ 26.4 VDC |
| Power | 3W (AVG) / 18W (Stall) |
| Mounting | Downward / Upward |

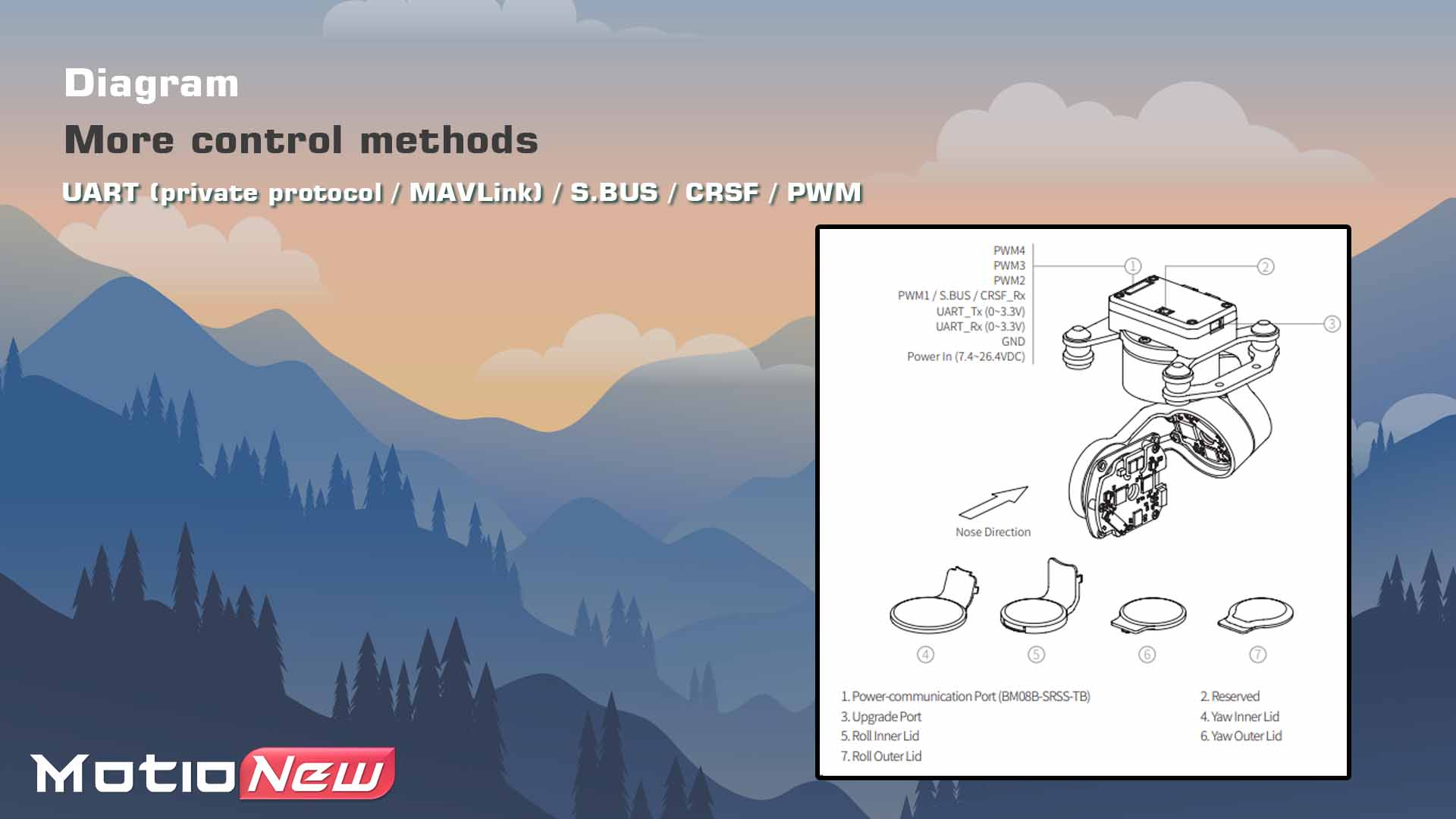

| Control Port | Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM |
| Wire-through Aperture | ϕ4.2mm |
| Gimbal | |
| Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.005° |
| Controllable Range | Pitch: -130°～+95°, Roll: ±45°, Yaw: ±145° |
| Max Rotation Speed | ±1500°/s |
| Payload | |
| Maximum Weight | 40g |
