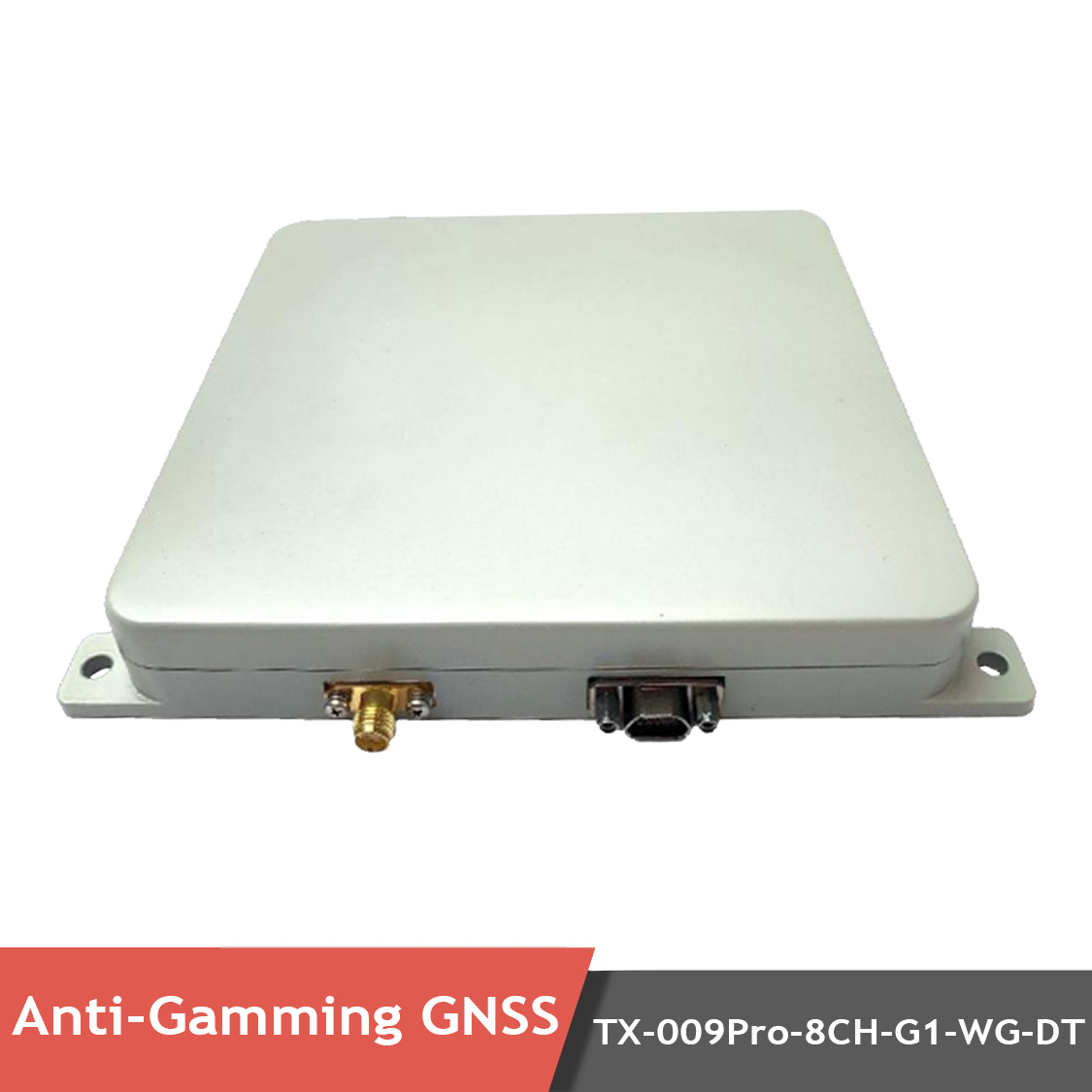

Anti-jamming GNSS, Three-frequency eight-channel anti-jamming terminal Model TX-009Pro-8CH-G1-WG-DT

Overview

The TX-009Pro-8CH-G1-WG-DT three-frequency eight-channel anti-jamming terminal is a next-generation GNSS solution developed for mission-critical applications requiring uncompromised signal integrity. Engineered for UAVs and autonomous platforms, it delivers superior multi-band reception and interference mitigation even in congested RF environments. Integrating an antenna array, anti-jamming components, and a receiver, it enhances PNT security by resisting disturbances and attacks, making it suitable for drones and unmanned vehicles.

As a member of the Anti-Jamming GNSS product family, this unit combines advanced digital phased array technology and tri-band support for unmatched positioning accuracy and system stability.

Three-frequency Precision and Signal Integrity

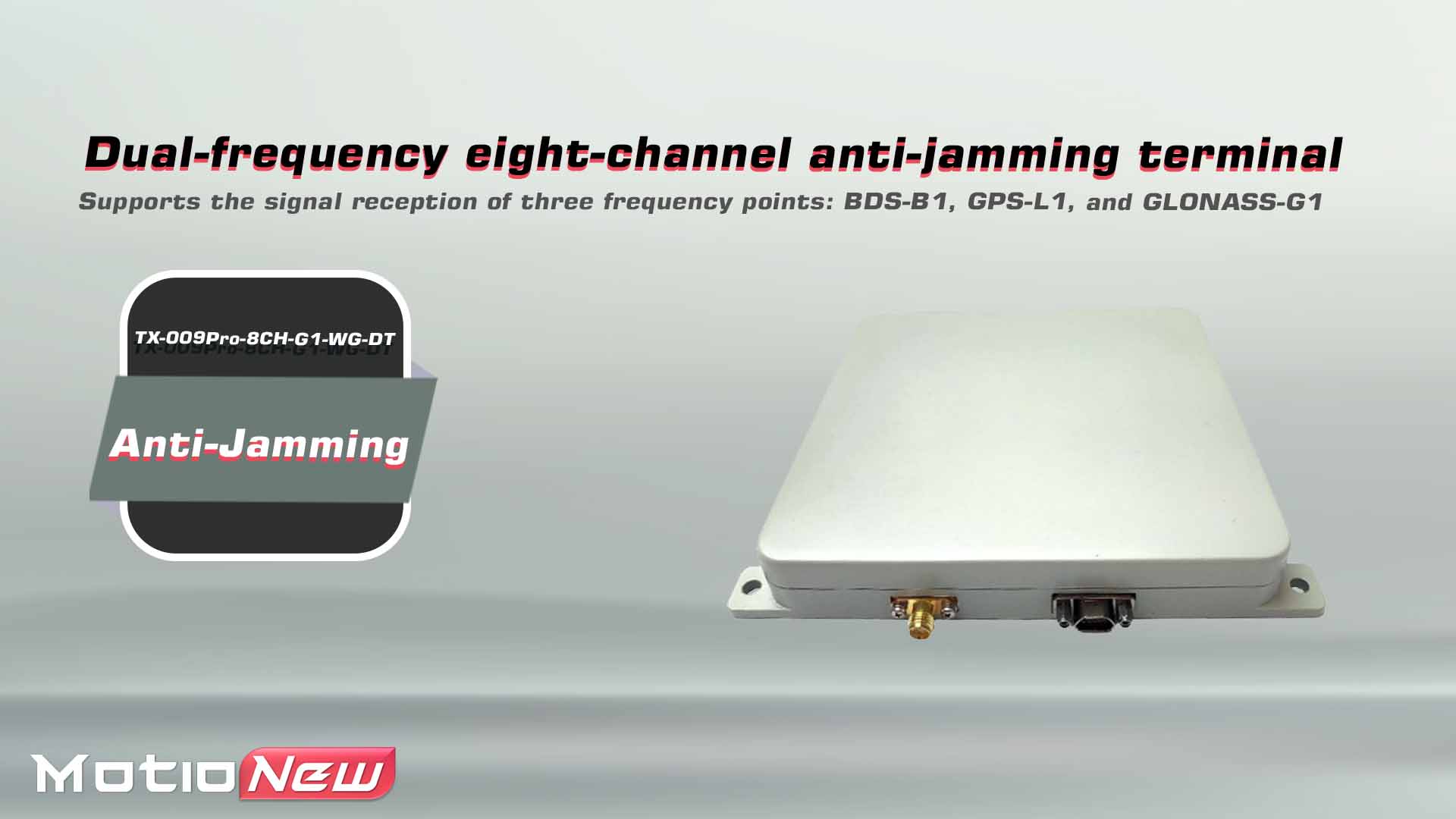

The TX-009Pro-8CH-G1-WG-DT operates across three GNSS frequency bands BDS-B1, GPS-L1, and GLONASS-G1. This tri-band capability enhances resilience against multipath effects and spoofing attempts while improving timing synchronization for high-precision navigation. It supports multi-constellation tracking systems, providing global coverage and redundancy.

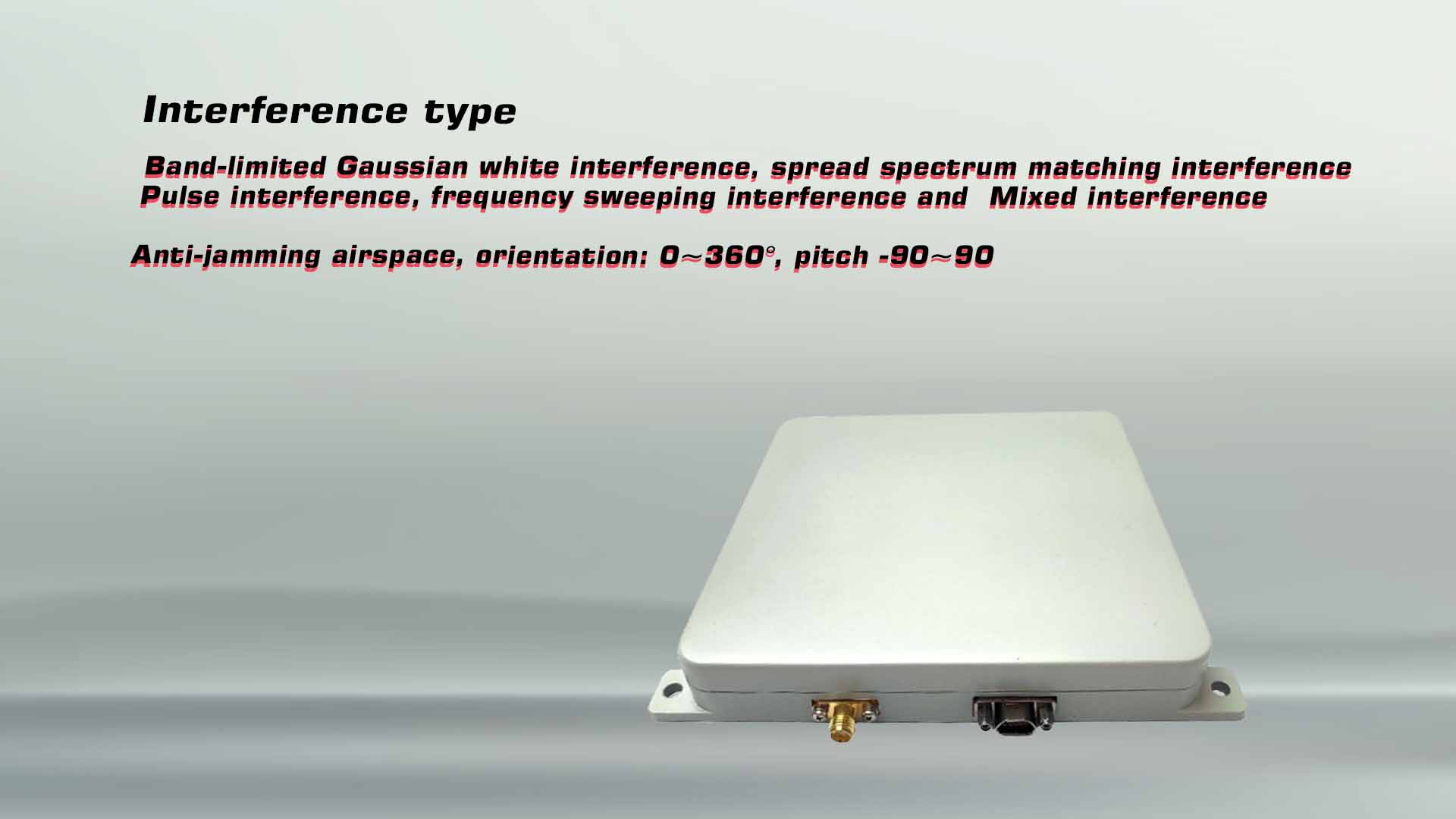

Its adaptive signal processing algorithms actively identify and suppress interference sources, ensuring steady tracking performance even under intentional jamming conditions. The multi-channel configuration allows the antenna to maintain stable signal reception, crucial for UAV navigation and autonomous driving systems.

Eight-channel Anti-interference Architecture

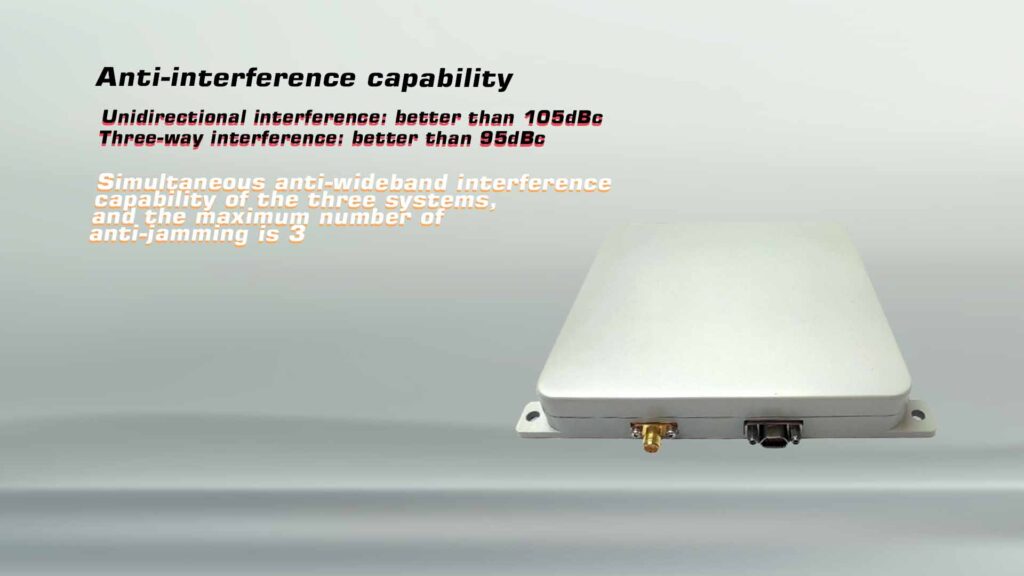

This advanced terminal integrates an eight-channel digital phased array (DPA) design that dynamically steers reception beams to prioritize authentic satellite signals. Each channel can independently suppress specific interference angles, offering up to 105 dB of jamming resistance. The result is stable positioning performance even in contested electronic interference environments.

The DPA system also enhances signal gain and reduces cross-channel noise, producing high-quality data streams for GNSS receivers. This level of spatial filtering is ideal for UAV operations, border surveillance, and precision agriculture requiring uninterrupted navigation.

Rugged and Compact Engineering

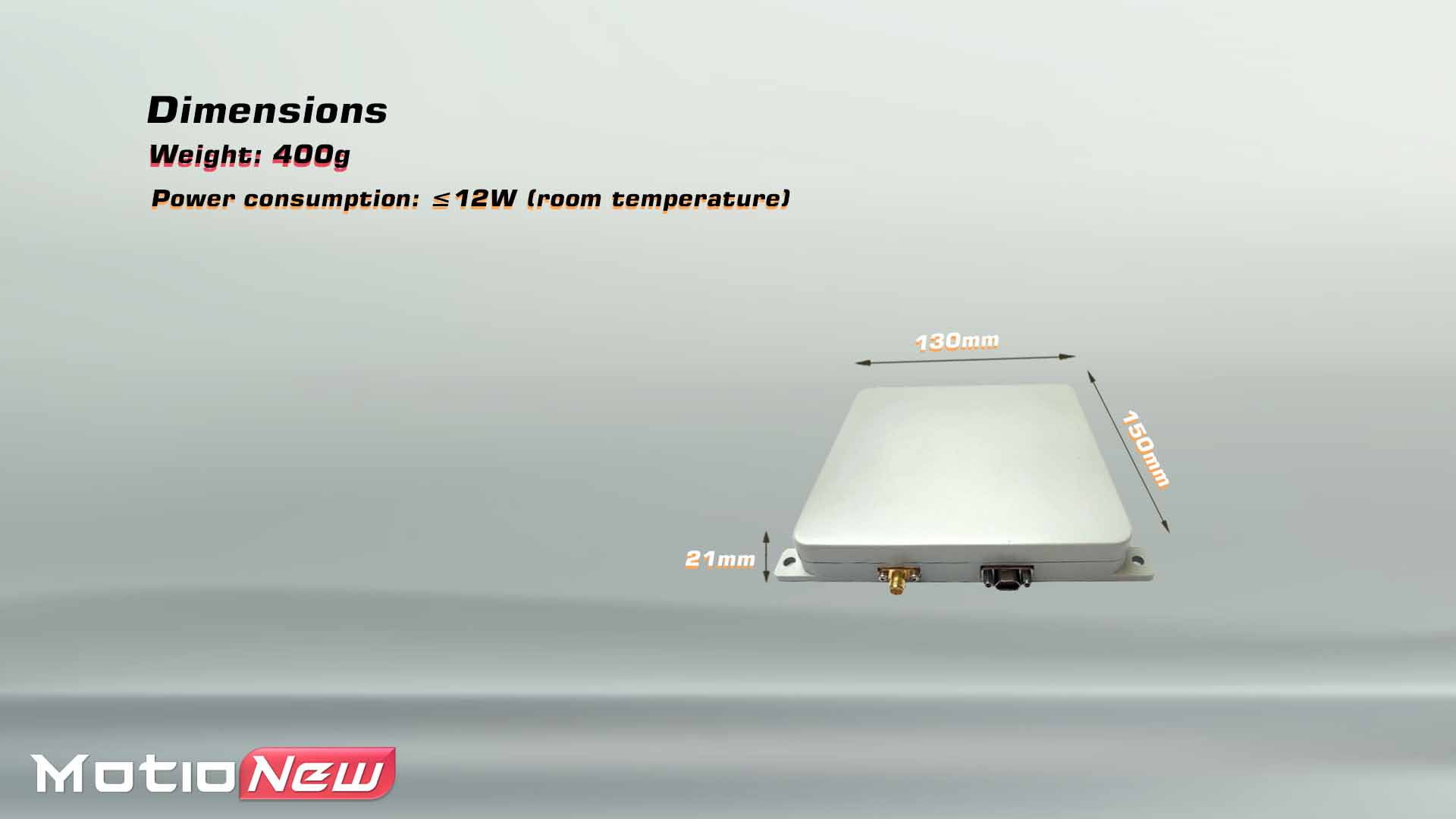

Designed for durability, the TX-009Pro-8CH-G1-WG-DT features a lightweight yet robust enclosure that withstands vibration, dust, and extreme temperatures. Its low-profile structure simplifies installation on both aerial and terrestrial platforms without compromising aerodynamic performance.

MotioNew engineers have tested its reliability across multiple system architectures, ensuring compatibility with standard flight controllers, RTK modules, and timing synchronization units. The result is a plug-and-play solution ready for complex mission profiles.

Integration and System Compatibility

The TX-009Pro-8CH-G1-WG-DT seamlessly integrates into UAVs, UGVs, and ground-based communication systems. MotioNew’s integration support covers hardware mounting, signal routing, and calibration to guarantee optimal performance. Whether used in precision agriculture, logistics, or mapping operations, this three-frequency terminal delivers consistent and reliable results.

For engineers seeking to expand system precision, MotioNew also offers compatible RTK base stations, GNSS receivers, and antenna splitters to enhance overall GNSS network performance.

Key Features

• Three-frequency GNSS reception BDS-B1, GPS-L1, and GLONASS-G1 for superior precision
• Eight-channel digital phased array (DPA) anti-jamming architecture
• Multi-constellation support
• Adaptive beamforming and interference suppression
• Rugged, lightweight design for UAV and land applications
• High rejection ratio for spoofing and electronic interference
• Stable operation under extreme temperature and vibration

Applications

• UAV and UGV navigation systems
• Precision agriculture and remote sensing
• Surveying, geodesy, and timing synchronization
• Critical infrastructure monitoring and control

Each of these applications benefits from the terminal’s exceptional interference resilience and triple-frequency accuracy, ensuring continuous and stable GNSS functionality.

MotioNew Engineering Expertise

MotioNew’s engineering team provides tailored integration and calibration support for the TX-009Pro-8CH-G1-WG-DT. With years of UAV system experience, our experts ensure your GNSS terminal performs flawlessly within your existing navigation framework.

Bulk and OEM clients can take advantage of MotioNew’s dedicated procurement and logistics services, ensuring quality control and fast turnaround for enterprise-scale deployments.

FAQs

Q1: What advantages does the TX-009Pro-8CH-G1-WG-DT offer over dual-frequency models?
The three-frequency support significantly enhances positioning accuracy, timing synchronization, and resistance to multipath errors, while its eight-channel DPA provides stronger interference suppression.

Q2: Is the TX-009Pro-8CH-G1-WG-DT compatible with existing UAV systems?
Yes. MotioNew offers full integration support to ensure smooth hardware and software compatibility with your flight controller.

Q3: Does MotioNew provide bulk pricing or wholesale supply?
Yes. MotioNew offers competitive pricing, dedicated account management, and batch testing for bulk and wholesale orders.
