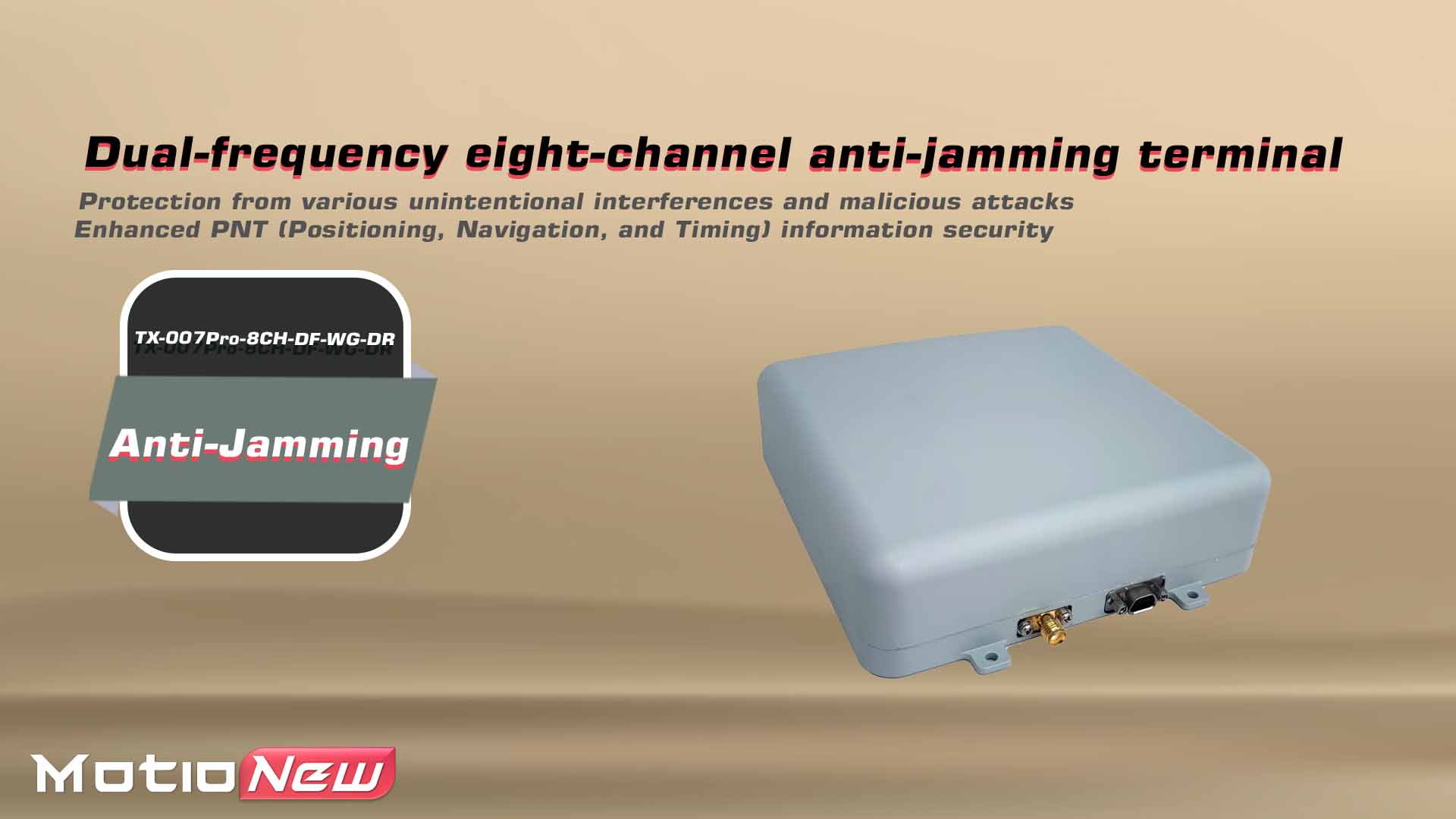

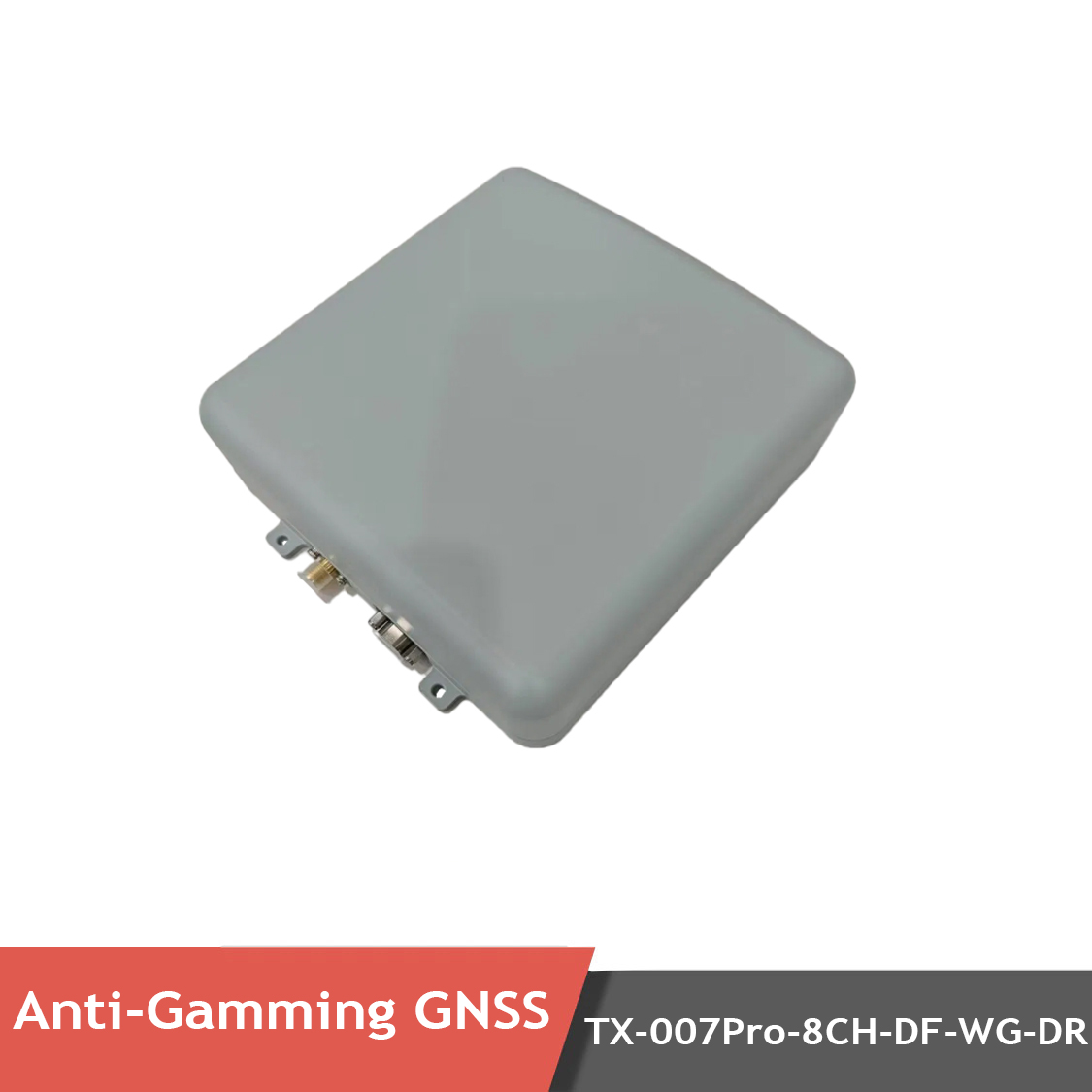

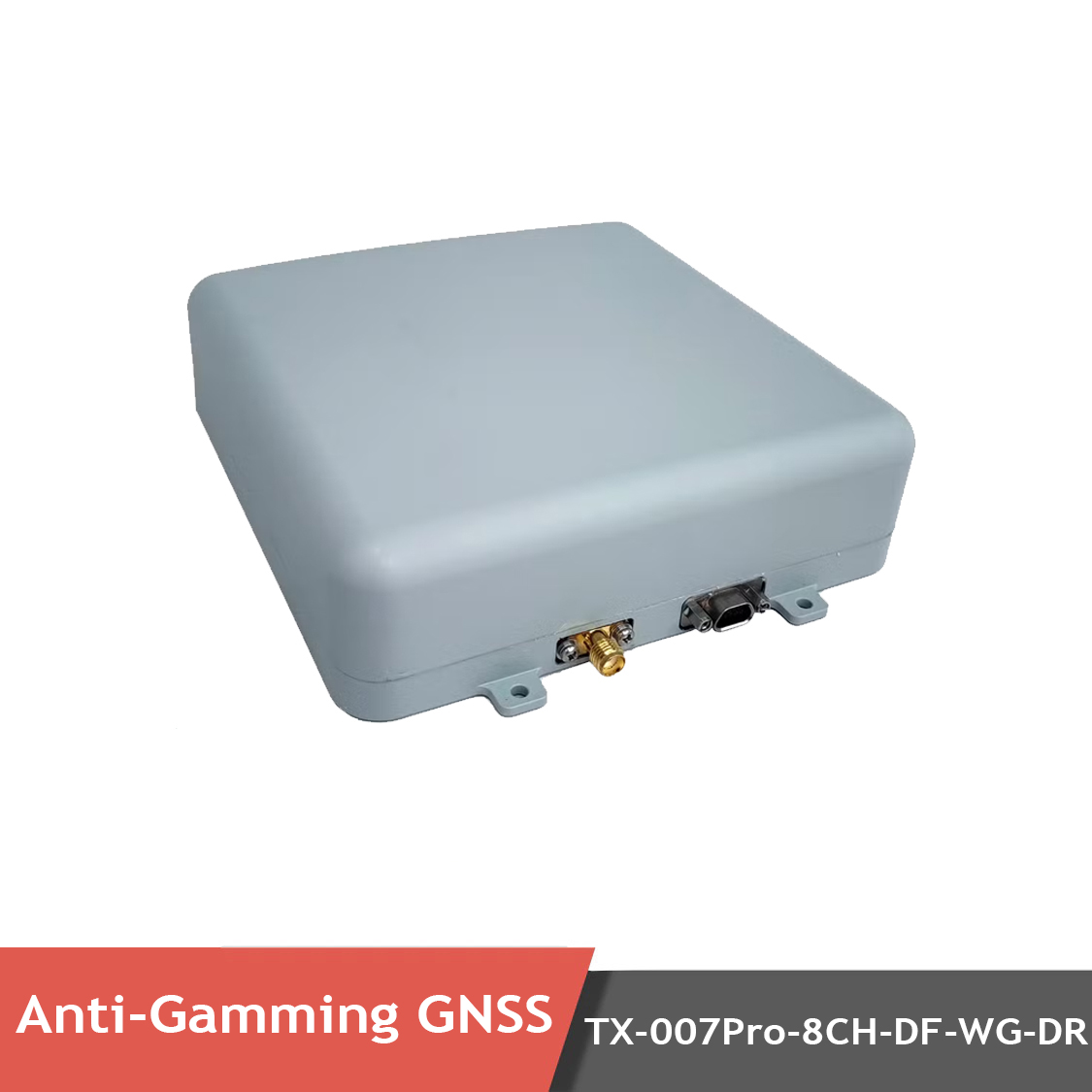

Anti-jamming GNSS, Dual-frequency Eight-channel Terminal Model TX-007Pro-8CH-DF-WG-DR

Overview

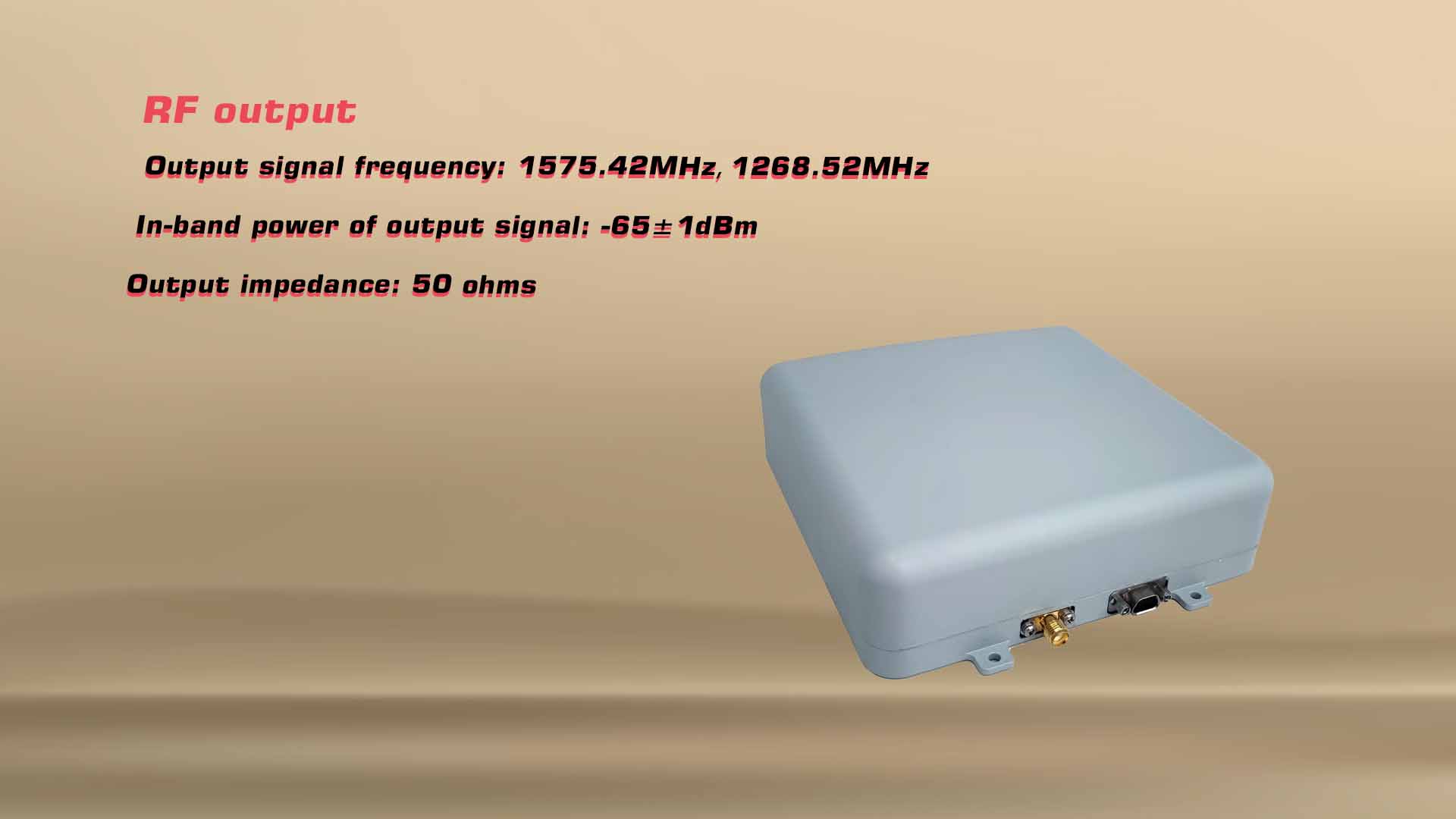

The TX-007Pro-8CH-DF-WG-DR dual-frequency eight-channel anti-jamming terminal is an advanced GNSS solution built to deliver robust, interference-resistant satellite navigation for UAVs, and industrial applications. Combining multi-channel adaptive interference suppression with high-precision dual-frequency operation, this terminal ensures continuous positioning accuracy even under severe electronic disturbance. It features a built-in navigation module (NMEA0183 output), serial/RF ports, software upgrade, self-inspection, and protections (overvoltage, reverse connection)

As part of the Anti-Jamming GNSS family, the TX-007Pro-8CH-DF-WG-DR integrates cutting-edge phased array signal processing and ruggedized engineering—making it ideal for modern UAV platforms and ground control systems demanding reliability, precision, and compact integration.

Dual-frequency Precision and Reliability

Operating across both B1 and L1 frequency bands, the TX-007Pro-8CH-DF-WG-DR enhances GNSS signal accuracy while mitigating multipath and interference errors. This dual-band reception supports multiple satellite constellations, ensuring uninterrupted operation worldwide.

The dual-frequency architecture provides superior timing synchronization and positional correction, offering engineers dependable performance even in high-noise or jamming-prone environments. Its adaptive signal filtering system intelligently adjusts to signal fluctuations, maintaining data stability across dynamic conditions.

Eight-channel Anti-jamming Architecture

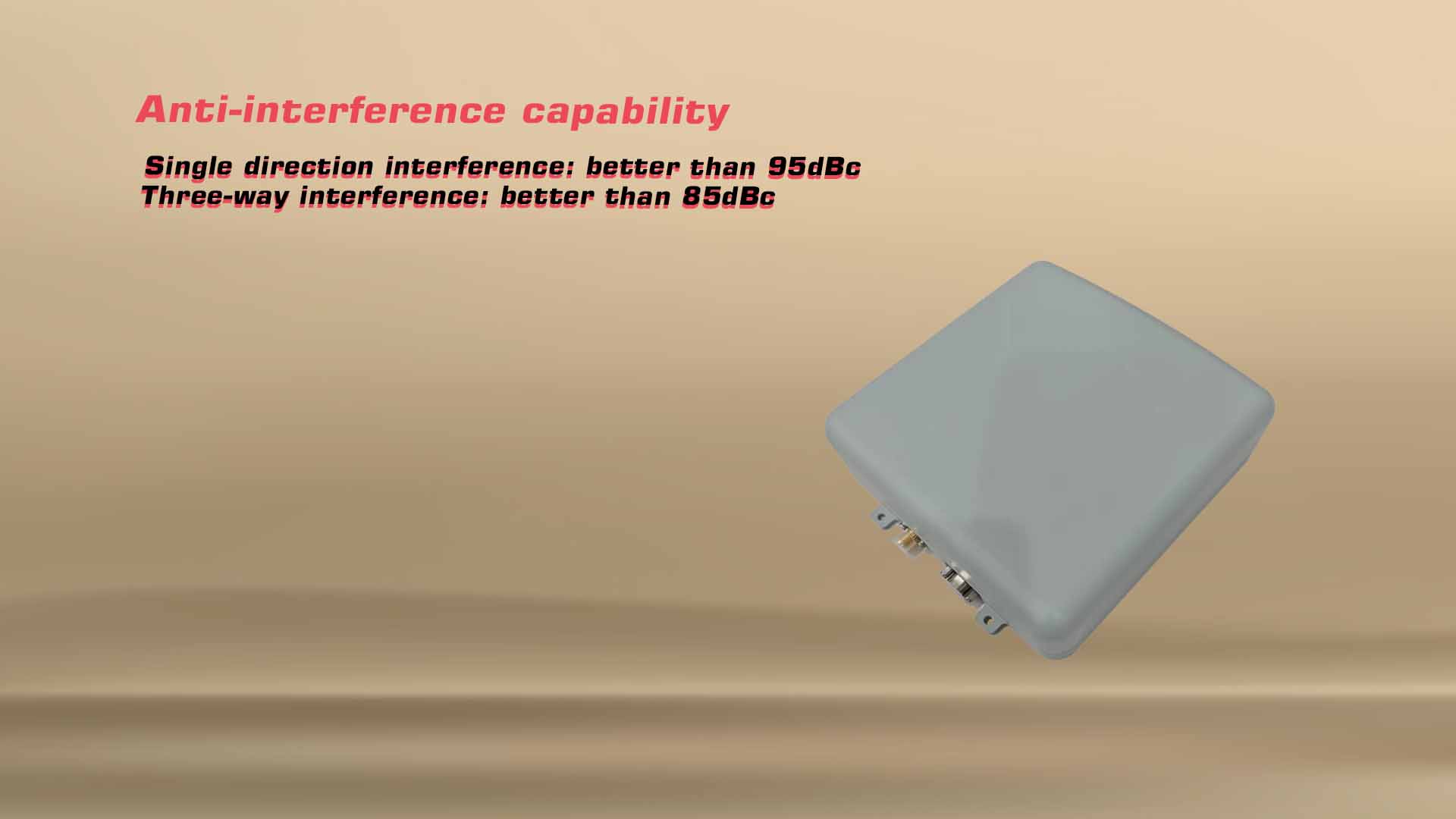

Equipped with an eight-channel digital phased array (DPA), the TX-007Pro-8CH-DF-WG-DR can detect, locate, and nullify multiple interference sources simultaneously. Each channel utilizes real-time beamforming and adaptive null-steering to isolate authentic GNSS signals from interference, providing up to 95 dB of jamming resistance.

This architecture ensures that even in dense electromagnetic environments, the terminal maintains continuous, high-precision GNSS operation. MotioNew engineers have verified the system’s compatibility across a wide range of UAV and timing applications.

Ruggedized Compact Design

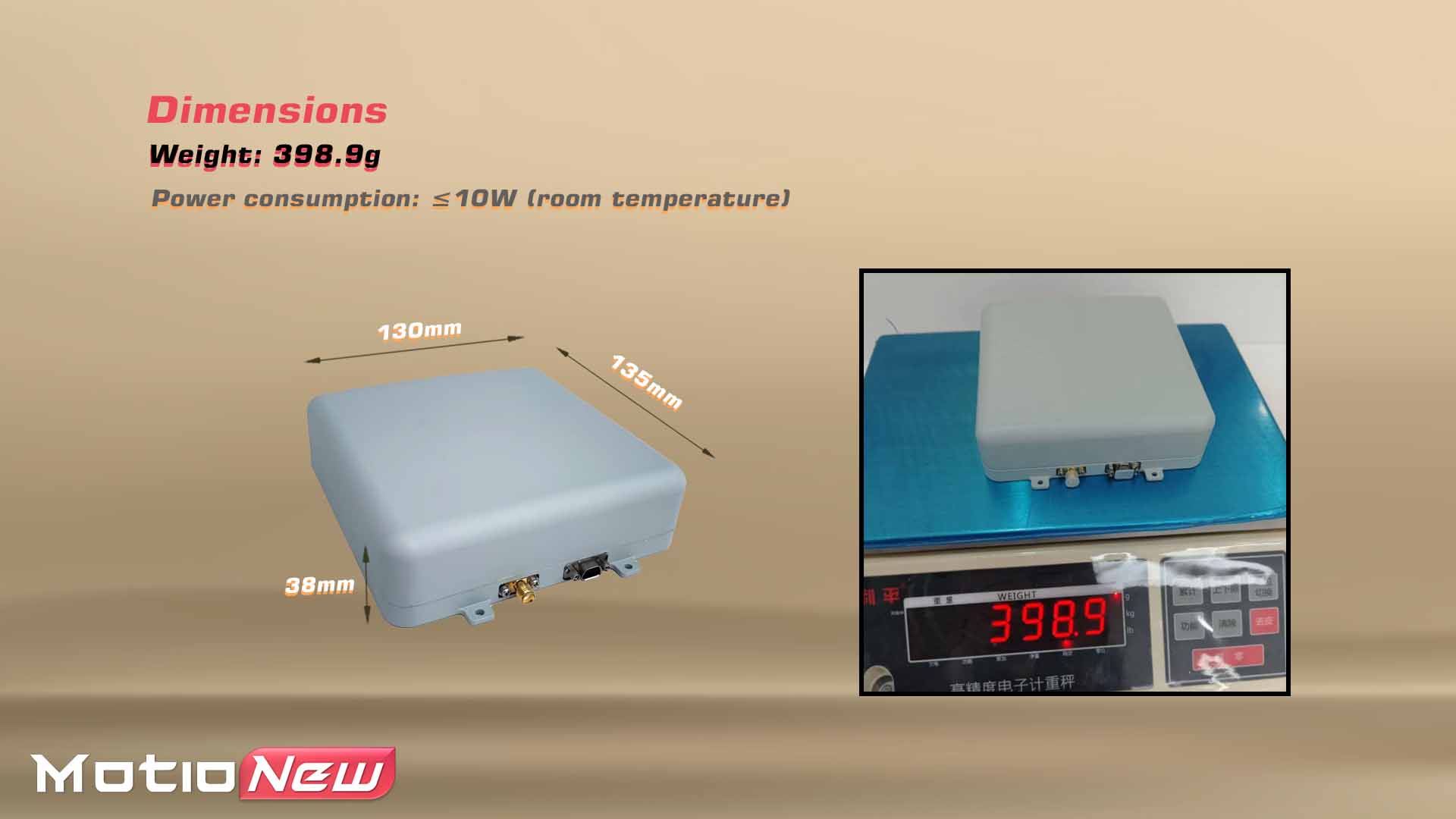

Despite its powerful capabilities, the TX-007Pro-8CH-DF-WG-DR features a lightweight, compact structure optimized for space-sensitive installations. Its ruggedized design ensures consistent performance under temperature extremes, mechanical vibration, and long-duration field operation.

Its low power consumption and minimal footprint simplify integration with compact UAV frames and embedded systems.

Integration and Compatibility

The TX-007Pro-8CH-DF-WG-DR is engineered for seamless integration into UAVs, UGVs, and ground control systems. MotioNew provides full engineering support for system calibration, antenna placement, and firmware configuration, ensuring optimal signal reception and navigation accuracy.

Its compatibility extends to RTK receivers, GNSS timing units, and advanced flight controllers. Users can pair it with MotioNew’s GNSS modules, RTK correction systems, and antenna accessories to achieve centimeter-level accuracy in dynamic applications.

Key Features

• Dual-frequency reception, processes BDS-B1/GPS-L1 signals with configurable secondary frequency (L2/L5)) for precise multi-constellation GNSS tracking
• Eight-channel digital phased array (DPA) for adaptive anti-jamming
• Real-time beamforming and null-steering interference suppression
• Multi-system support
• Rugged, lightweight structure for UAV
• Resistant to spoofing, multipath, and intentional jamming
• Compact, low-power design for embedded integration

Applications

• UAV and UGV navigation systems
• Precision agriculture and surveying
• Industrial automation and logistics
• Timing synchronization networks

These applications benefit from the TX-007Pro-8CH-DF-WG-DR’s exceptional anti-jamming capability and precise dual-frequency tracking, ensuring uninterrupted navigation and communication.

MotioNew Engineering and Procurement Support

MotioNew’s team of engineers provides end-to-end technical assistance, from pre-installation planning to field integration. Whether for individual systems or large-scale deployments, our experts ensure that every TX-007Pro-8CH-DF-WG-DR unit performs at optimal efficiency.

MotioNew also offers competitive bulk and wholesale pricing, OEM customization, and certified batch testing for enterprise clients. With technical validation and dependable logistics, the company guarantees quality and consistency for mission-critical operations.

FAQs

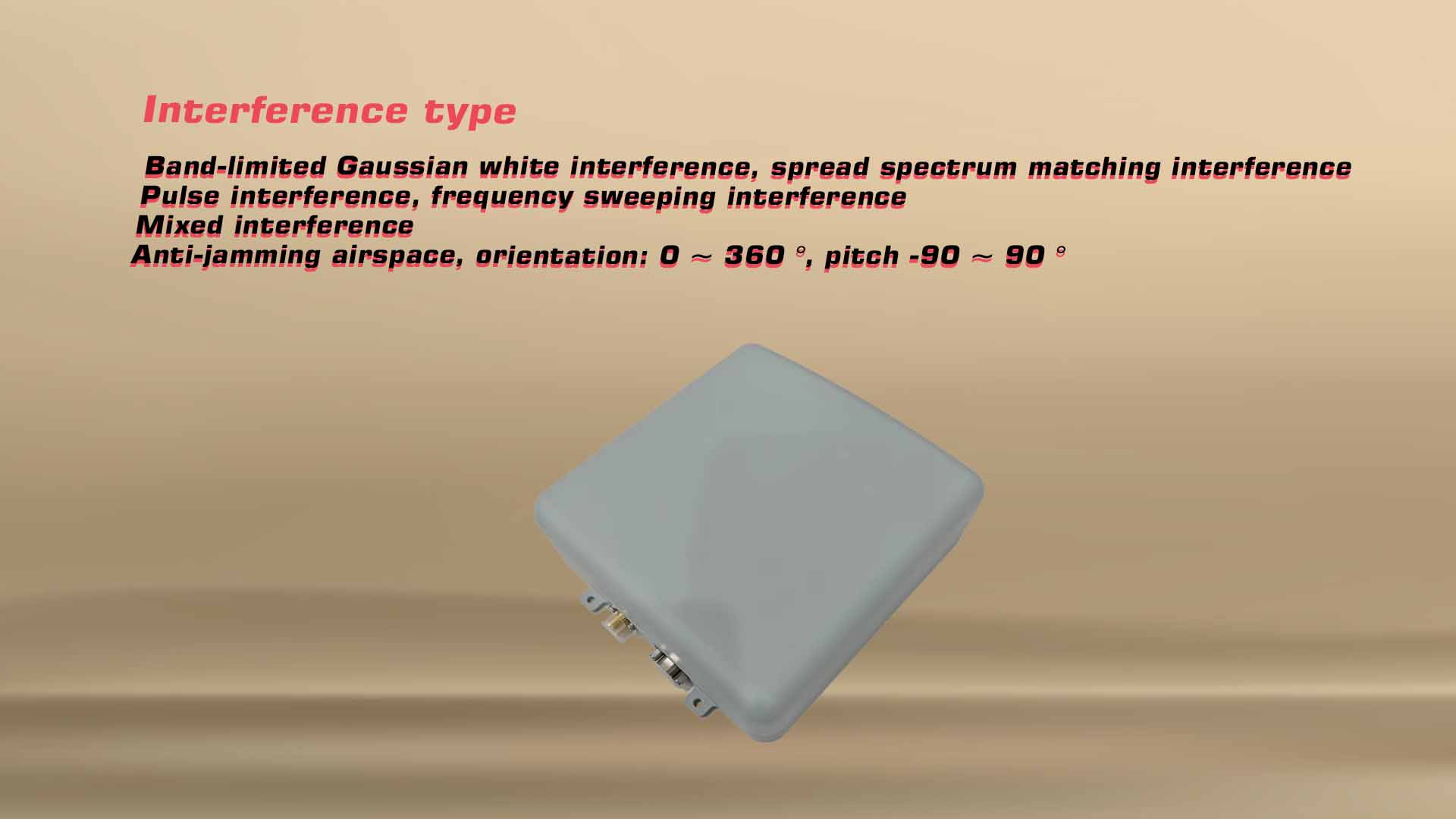

Q1: How does the TX-007Pro-8CH-DF-WG-DR handle multiple interference sources?
Its eight-channel DPA design allows simultaneous detection and suppression of multiple jamming signals, providing stable GNSS reception in high-interference environments.

Q2: Can this terminal be integrated with standard UAV flight controllers?
Yes. MotioNew provides configuration support to ensure seamless integration with flight controllers and GNSS receivers used in UAVs and ground systems.

Q3: Does MotioNew provide wholesale pricing and technical validation?
Yes. MotioNew offers bulk and wholesale options with technical inspection, documentation, and engineering assistance.

Q4: Can the TX-007Pro-8CH-DF-WG-DR be customized for specific frequencies or applications?
Absolutely. MotioNew provides OEM customization options, including frequency tuning and mechanical configuration adjustments.
