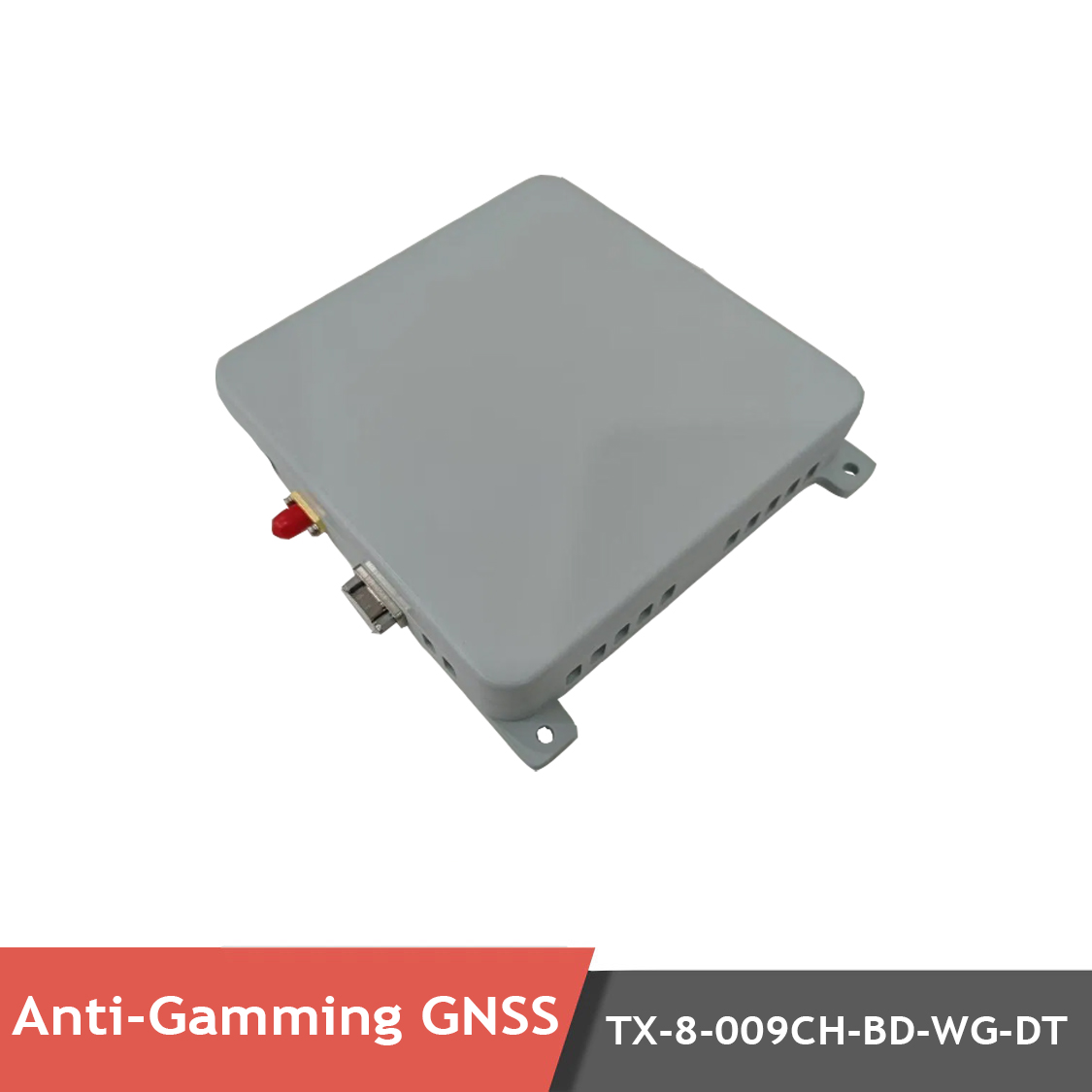

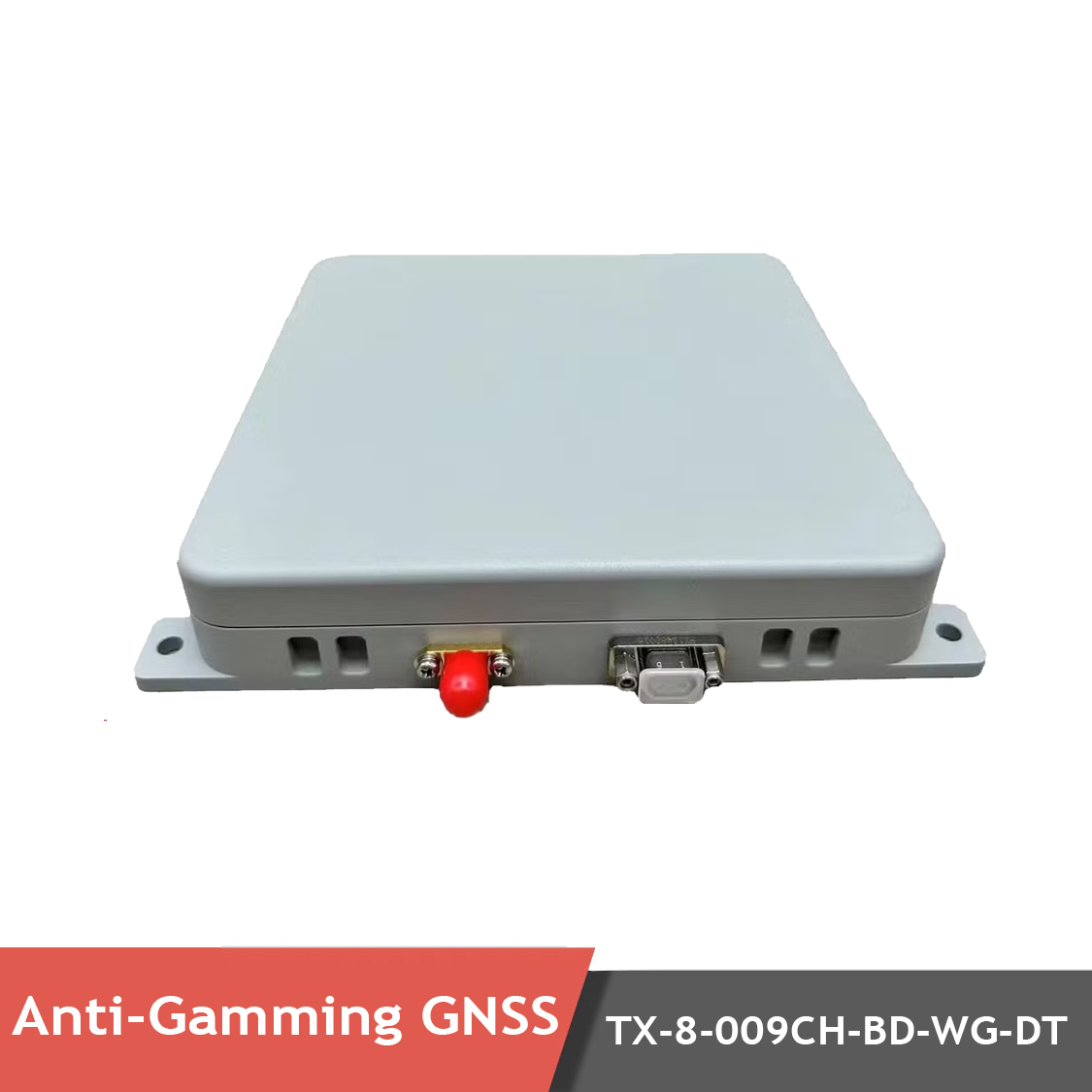

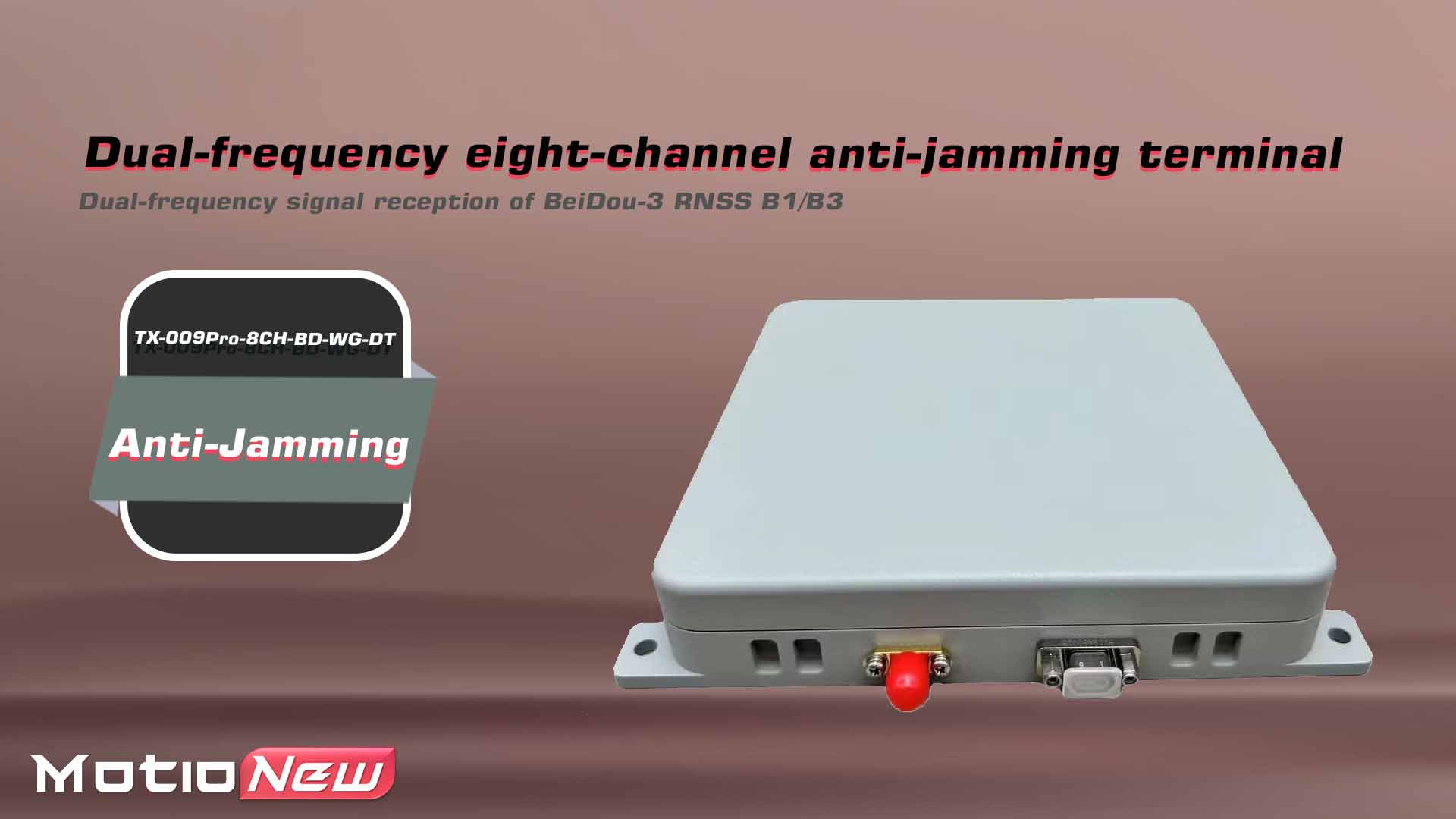

Anti-jamming GNSS, Dual-frequency eight-channel anti-jamming terminal TX-009Pro-8CH-BD-WG-DT

Overview

The TX-009Pro-8CH-BD-WG-DT dual-frequency eight-channel anti-jamming terminal represents the next evolution in high-performance GNSS antenna technology. Built for UAVs, and ground vehicles, this GPS module offers unparalleled interference suppression through advanced digital signal processing and multi-channel design. It ensures high reliability and accuracy in electromagnetic environments where signal integrity is often compromised. Integrating antenna arrays, anti-jamming components, and a receiver, it enhances PNT security by resisting interference and attacks, making it suitable for drones and unmanned vehicles.

As part of the modern Anti-Jamming GNSS family, the TX-009Pro-8CH-BD-WG-DT is engineered for precision navigation and timing synchronization, supporting multi-constellation systems.

Eight-channel Anti-jamming Performance

The TX-009Pro-8CH-BD-WG-DT sets itself apart with its powerful eight-channel interference suppression system. Each channel employs adaptive digital beamforming and null-steering algorithms to mitigate multiple jamming sources simultaneously. This design ensures consistent and stable GNSS signal reception even in the presence of complex or deliberate signal interference.

In dual-frequency operation, the terminal simultaneously processes BeiDou-2/3 (B1C, B3I) and GPS L1 (L1C/A) signals. This multi-band reception enhances positioning accuracy and ensures robust anti-spoofing protection, a crucial feature for UAVs and unmanned systems requiring dependable navigation data.

Robust Design for Harsh Environments

Developed for professional and industrial applications, the TX-009Pro-8CH-BD-WG-DT’s ruggedized structure provides resilience under high-vibration, dust, and temperature extremes. Its compact housing allows seamless integration on aerial platforms and ground vehicles where space is limited. The terminal’s durable build guarantees continuous operation in both industrial-grade and commercial-grade scenarios.

The advanced digital phased array (DPA) technology used in this unit provides enhanced spatial filtering, enabling it to distinguish between genuine GNSS signals and interference. This ensures precise navigation and stable performance even during RF congestion or hostile jamming attempts.

Integration and Compatibility

MotioNew’s engineering team ensures that the TX-009Pro-8CH-BD-WG-DT integrates smoothly into UAV systems, flight controllers, and GNSS-based timing modules. The terminal interfaces with various receiver architectures and supports flexible installation configurations.

Whether deployed for precision agriculture, surveying, or autonomous vehicle navigation, the TX-009Pro-8CH-BD-WG-DT enhances system reliability and performance. Engineers can leverage MotioNew’s technical support for configuration guidance, antenna placement optimization, and firmware tuning.

For users seeking enhanced positioning accuracy, MotioNew offers complementary RTK modules, GNSS receivers, and antenna accessories designed for multi-band synchronization.

Key Features

• Eight-channel adaptive anti-jamming architecture
• Dual-frequency operation BeiDou-2/3 (B1C, B3I) and GPS L1 (L1C/A) for enhanced positioning accuracy
• Multi-constellation support
• Advanced digital phased array (DPA) beamforming
• Rugged, lightweight design for UAV and ground applications
• High resistance to jamming, spoofing, and multipath interference

Applications

• Unmanned Aerial Vehicles (UAVs) and Ground Vehicles (UGVs)
• Surveying, mapping, and remote sensing
• Precision agriculture systems
• Industrial and infrastructure monitoring

These applications benefit from the TX-009Pro-8CH-BD-WG-DT’s precision and stability, particularly in contested or high-interference environments.

MotioNew Engineering Support

MotioNew provides comprehensive integration and configuration support for the TX-009Pro-8CH-BD-WG-DT. Our engineers assist in optimizing system layout, signal routing, and calibration for maximum performance. The company’s expertise in UAV integration ensures that every product functions reliably within complex multi-sensor platforms.

Bulk and enterprise buyers gain access to MotioNew’s verified testing, OEM customization options, and streamlined procurement process. This guarantees both quality and consistency across production units.

FAQs

Q1: How does the TX-009Pro-8CH-BD-WG-DT differ from other anti-jamming GPS antennas?
The TX-009Pro-8CH-BD-WG-DT features an eight-channel DPA system with dual-frequency support, enabling it to suppress multiple interference sources simultaneously. This makes it more resilient than standard single-channel or dual-channel solutions.

Q2: Can this antenna terminal integrate with existing UAV systems?
Yes. MotioNew engineers provide configuration and compatibility support to ensure that the TX-009Pro-8CH-BD-WG-DT integrates seamlessly with your existing flight controllers and GNSS receivers.

Q3: Does MotioNew support bulk orders and provide wholesale pricing?
Absolutely. MotioNew offers competitive pricing for bulk and wholesale orders, ensuring timely delivery and full technical support for integration and testing.

Buy From MotioNew, and Leave The Technical Worries Behind
