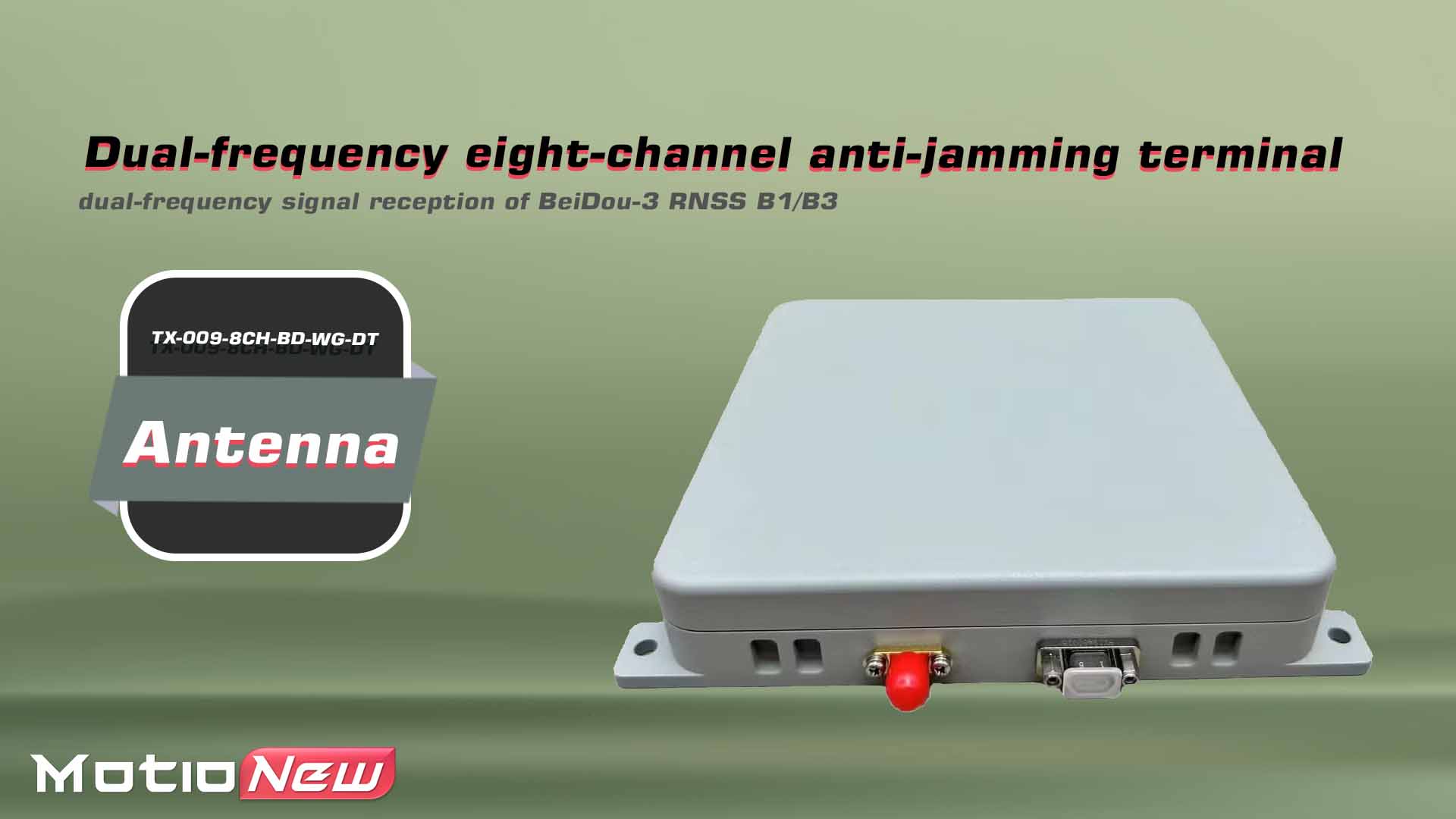

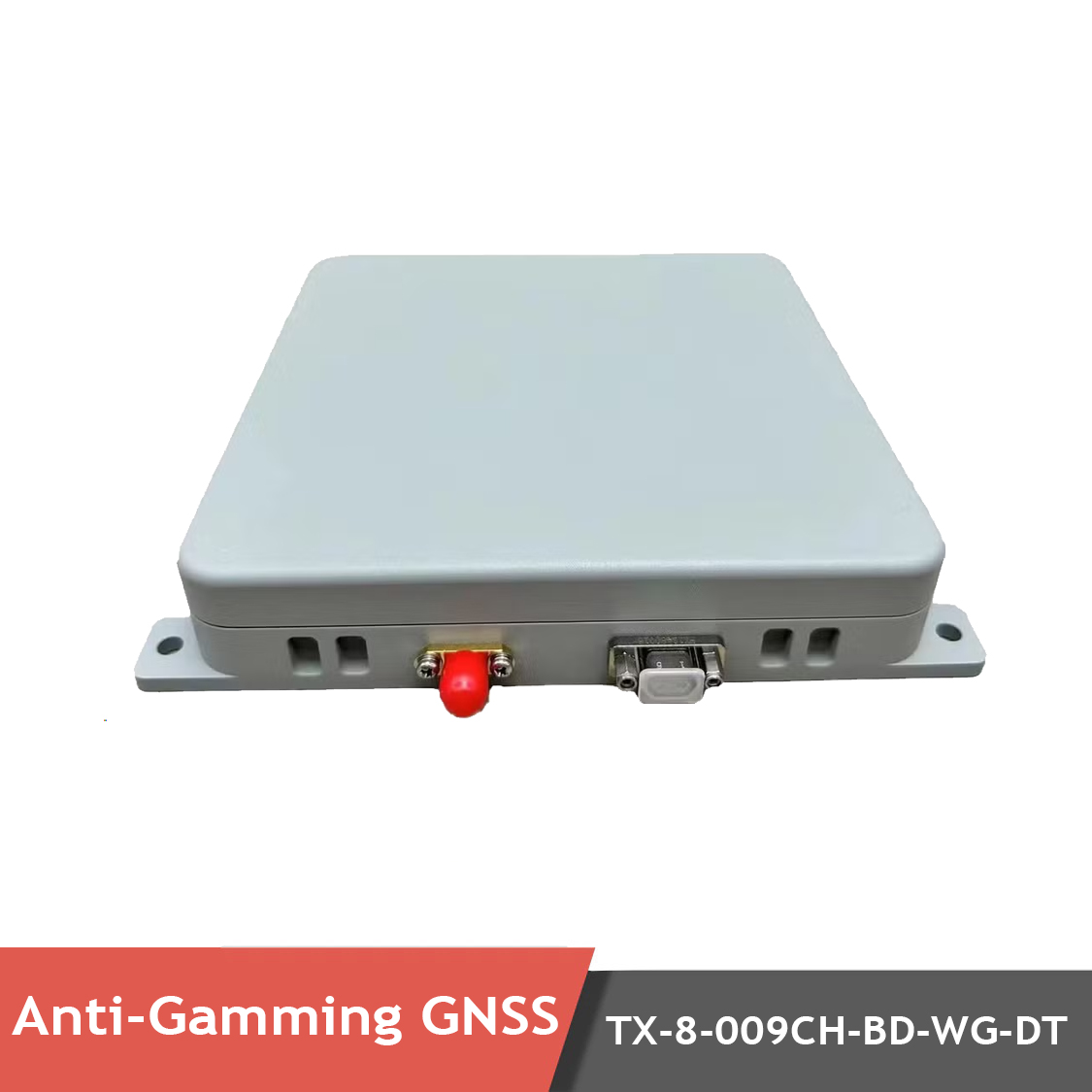

Anti-jamming GNSS, Dual-frequency eight-channel anti-jamming terminal Model TX-009-8CH-BD-WG-DT

Overview

The TX-009-8CH-BD-WG-DT dual-frequency eight-channel anti-jamming terminal is designed to deliver exceptional GNSS signal reliability and positioning accuracy in interference-prone environments. Engineered for UAVs and industrial applications, this advanced GPS terminal employs multi-channel beamforming and adaptive jamming suppression to maintain uninterrupted navigation and timing data. Integrating an antenna array, anti-jamming components, and a receiver, it enhances PNT security by blocking interference and attacks.

As a part of the Anti-Jamming GNSS lineup, the TX-009-8CH-BD-WG-DT combines innovative digital phased array technology with robust dual-frequency support, ensuring maximum signal fidelity and spatial accuracy.

Dual-frequency Accuracy and Multi-constellation Support

The TX-009-8CH-BD-WG-DT operates across BeiDou-2/3 (B1C, B3I), GPS L1 (L1C/A) frequency bands, delivering enhanced positioning precision through simultaneous multi-band reception. This design allows it to counteract multipath effects, minimize signal distortion, and provide consistent data integrity under complex electromagnetic interference conditions.

Supporting multiple constellations, the antenna guarantees wide coverage and redundancy, enabling seamless performance in both civilian and industrial-grade systems. The combination of dual-frequency reception and real-time interference rejection positions this terminal as a cornerstone for reliable GNSS navigation in demanding operations.

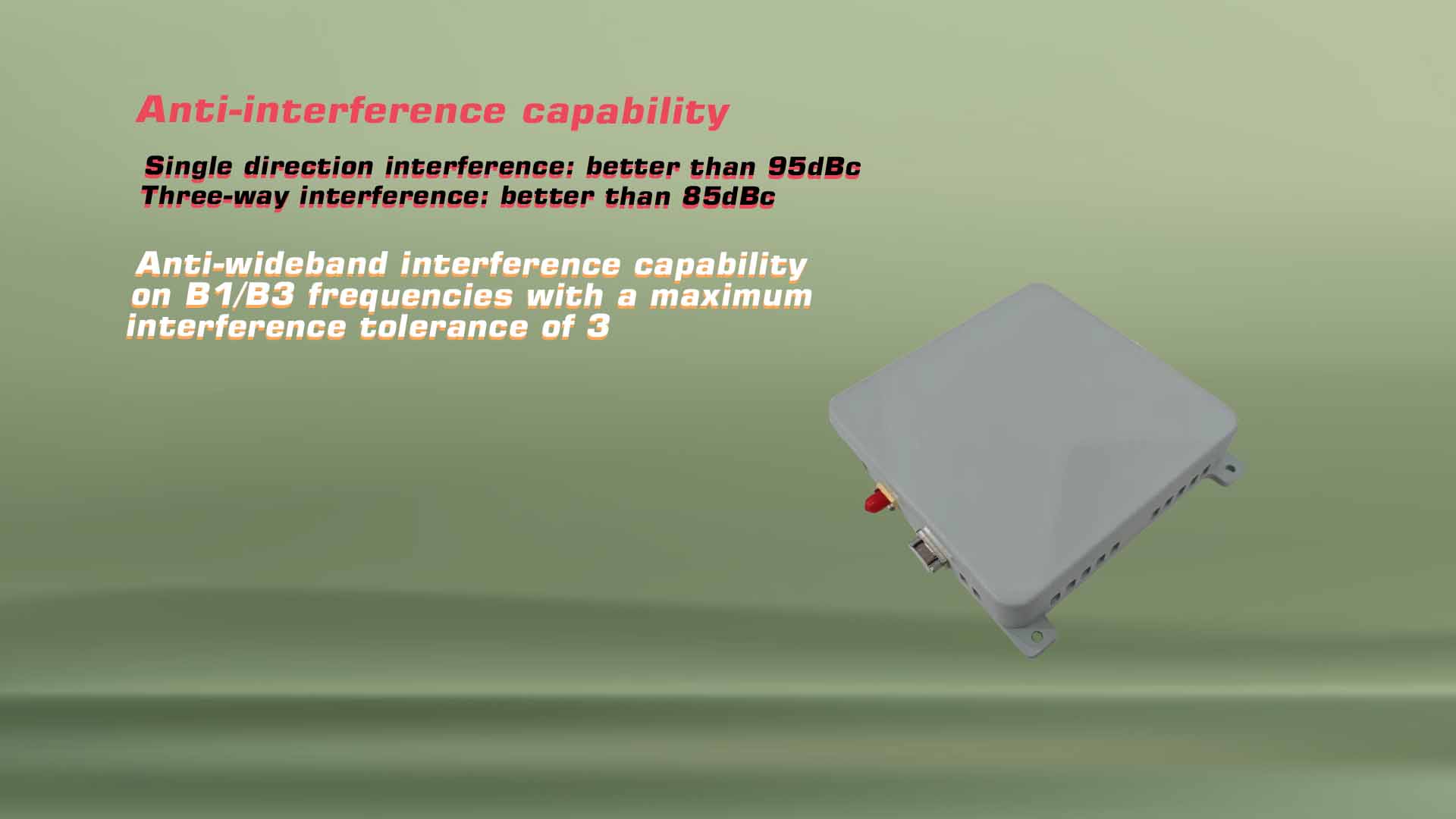

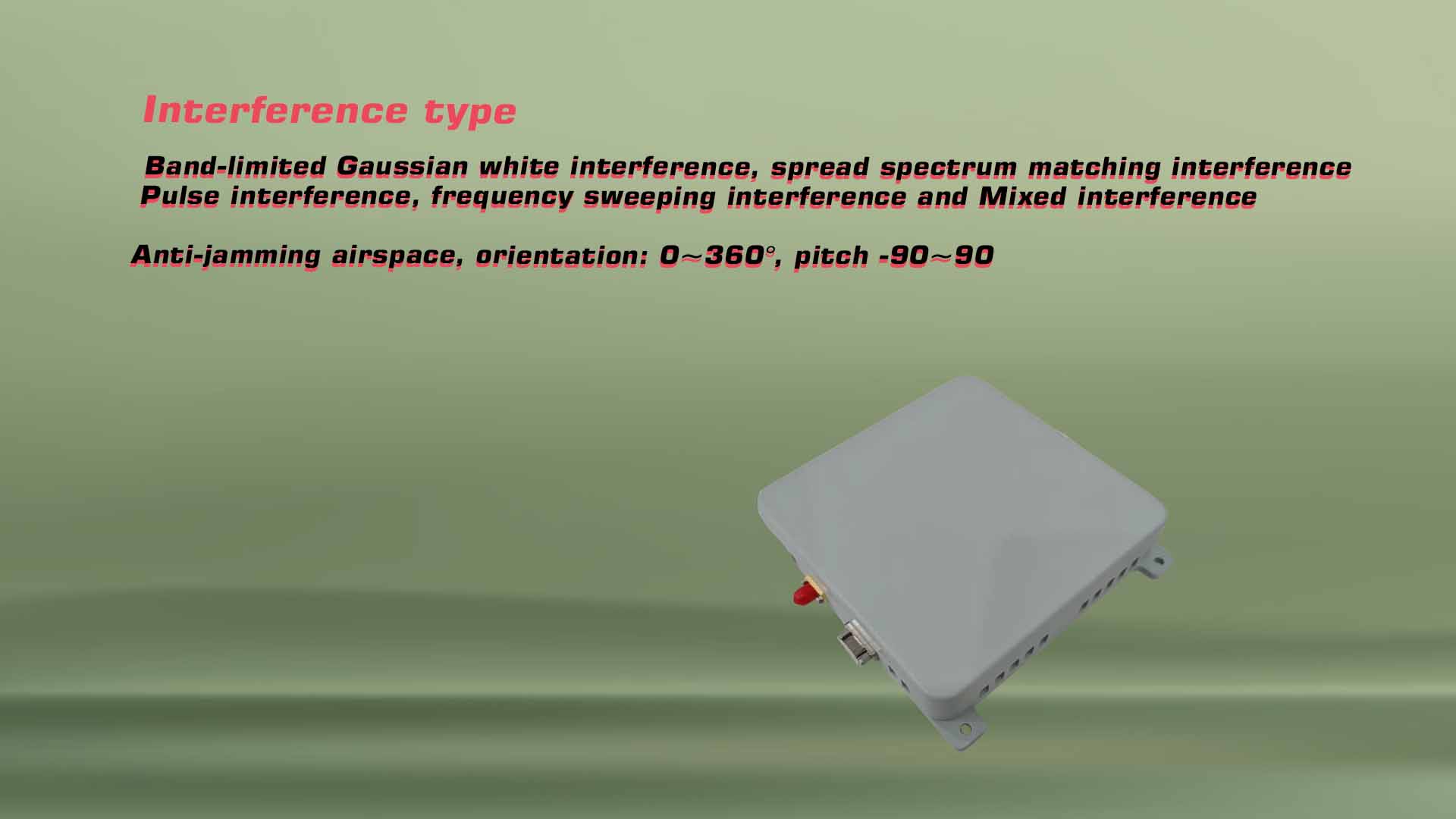

Eight-channel Anti-jamming System

This model integrates an eight-channel digital phased array (DPA) system capable of advanced adaptive beamforming. Each channel works independently to detect and suppress interference sources dynamically, providing up to 95 dB of interference rejection. The result is superior signal stability even when multiple jamming sources are active.

MotioNew engineers have optimized this architecture for UAV applications that require precise positional awareness, allowing consistent signal reception during flight. The TX-009-8CH-BD-WG-DT’s eight-channel design ensures wide-angle interference mitigation while maintaining accurate satellite tracking.

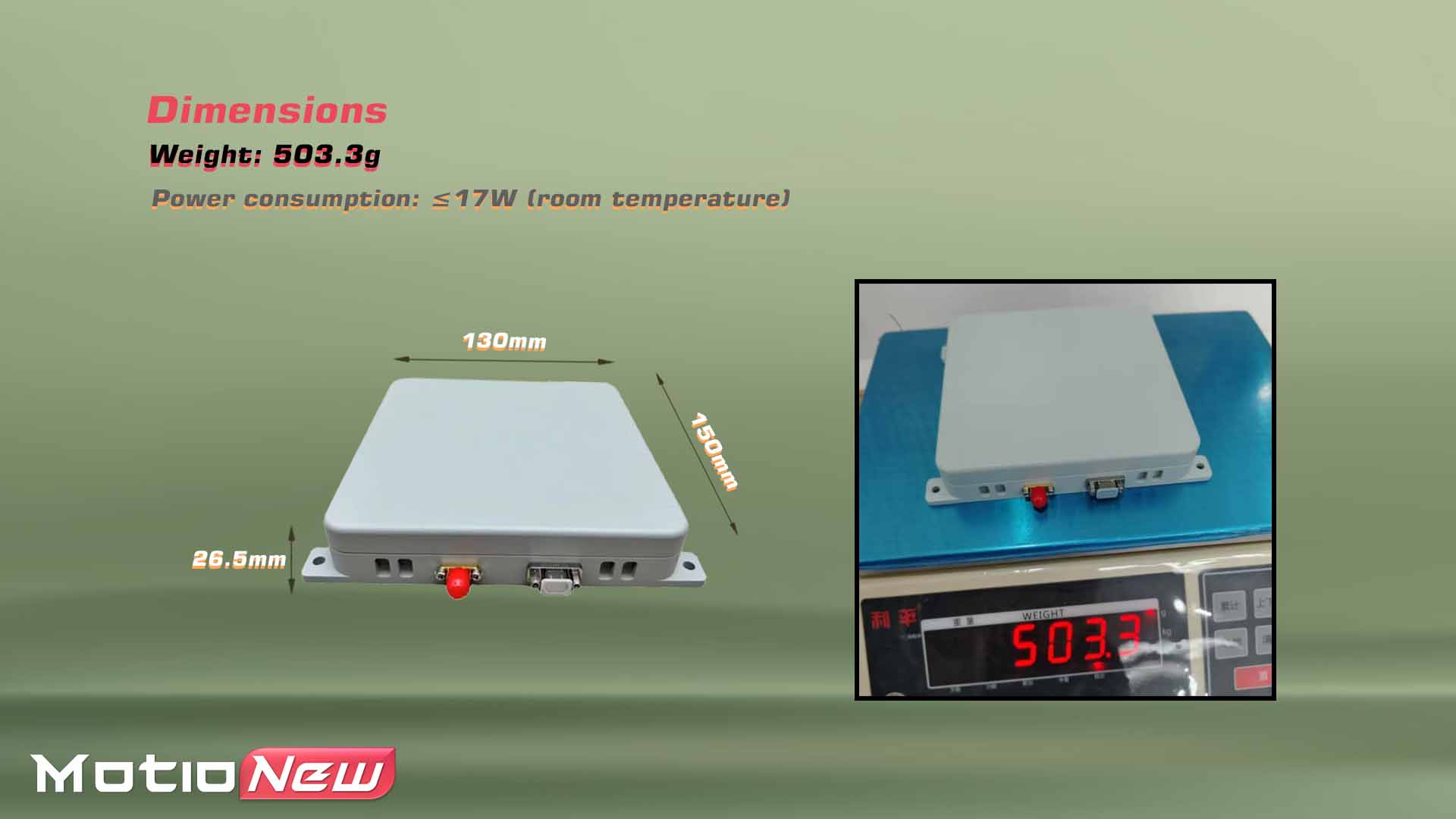

Ruggedized and Lightweight Construction

Built for reliability, the TX-009-8CH-BD-WG-DT features a durable yet lightweight housing that performs flawlessly under extreme vibration, temperature fluctuations, and humidity. Its compact footprint supports seamless integration into aerial or ground systems without adding excessive mass or drag.

MotioNew’s validation process confirms the terminal’s compatibility with advanced GNSS modules, flight controllers, and timing units, providing engineers a plug-and-play solution for mission-critical applications.

Integration and Compatibility

The TX-009-8CH-BD-WG-DT dual-frequency terminal is fully compatible with UAV and UGV navigation systems, timing devices, and control platforms. MotioNew’s engineering support covers calibration, wiring layout, and firmware configuration to ensure the antenna performs optimally in real-world conditions.

To enhance system performance, MotioNew also offers complementary RTK correction modules, GNSS receivers, and antenna cables, allowing integrators to achieve centimeter-level accuracy across diverse applications.

Key Features

• Dual-frequency operation BeiDou-2/3 (B1C, B3I), GPS L1 (L1C/A) for enhanced accuracy
• Eight-channel digital phased array (DPA) anti-jamming architecture
• Advanced beamforming and null-steering for interference mitigation
• Multi-constellation GNSS support
• Lightweight, rugged housing for UAV and ground operations
• Up to 95 dB interference rejection capability
• Stable operation under vibration and temperature extremes

Applications

• UAV and UGV navigation systems
• Surveying and geospatial mapping
• Precision agriculture and automation
• Critical infrastructure timing and monitoring

These applications benefit from the TX-009-8CH-BD-WG-DT’s precise navigation capabilities and robust interference suppression, ensuring reliability where signal stability is essential.

MotioNew Integration Expertise

MotioNew’s engineering team provides professional system integration and testing support, helping clients configure the TX-009-8CH-BD-WG-DT for optimal antenna performance. From pre-deployment evaluation to field calibration, our engineers ensure seamless hardware compatibility and top-tier performance.

Bulk and enterprise clients benefit from MotioNew’s streamlined procurement process, verified quality control, and comprehensive after-sales support. The company also offers customization options for specific GNSS frequency bands and mechanical configurations.

FAQs

Q1: What sets the TX-009-8CH-BD-WG-DT apart from other anti-jamming antennas?
The TX-009-8CH-BD-WG-DT features an eight-channel DPA system that provides superior interference rejection while maintaining precise signal tracking across dual frequencies.

Q2: Is it compatible with most UAV flight controllers?
Yes. MotioNew ensures the TX-009-8CH-BD-WG-DT integrates seamlessly with a wide range of UAV flight controllers and GNSS modules, providing full hardware and software support.

Q3: Does MotioNew provide bulk or wholesale pricing?
Yes. MotioNew offers competitive bulk and wholesale pricing with quality assurance and engineering assistance for large-scale deployments.
