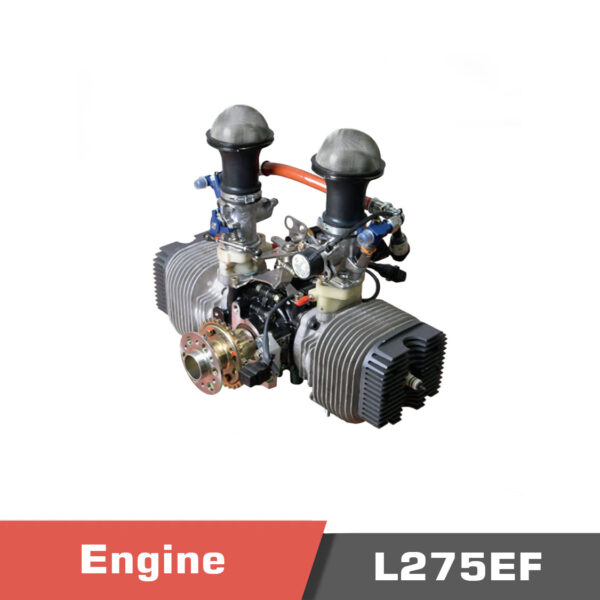

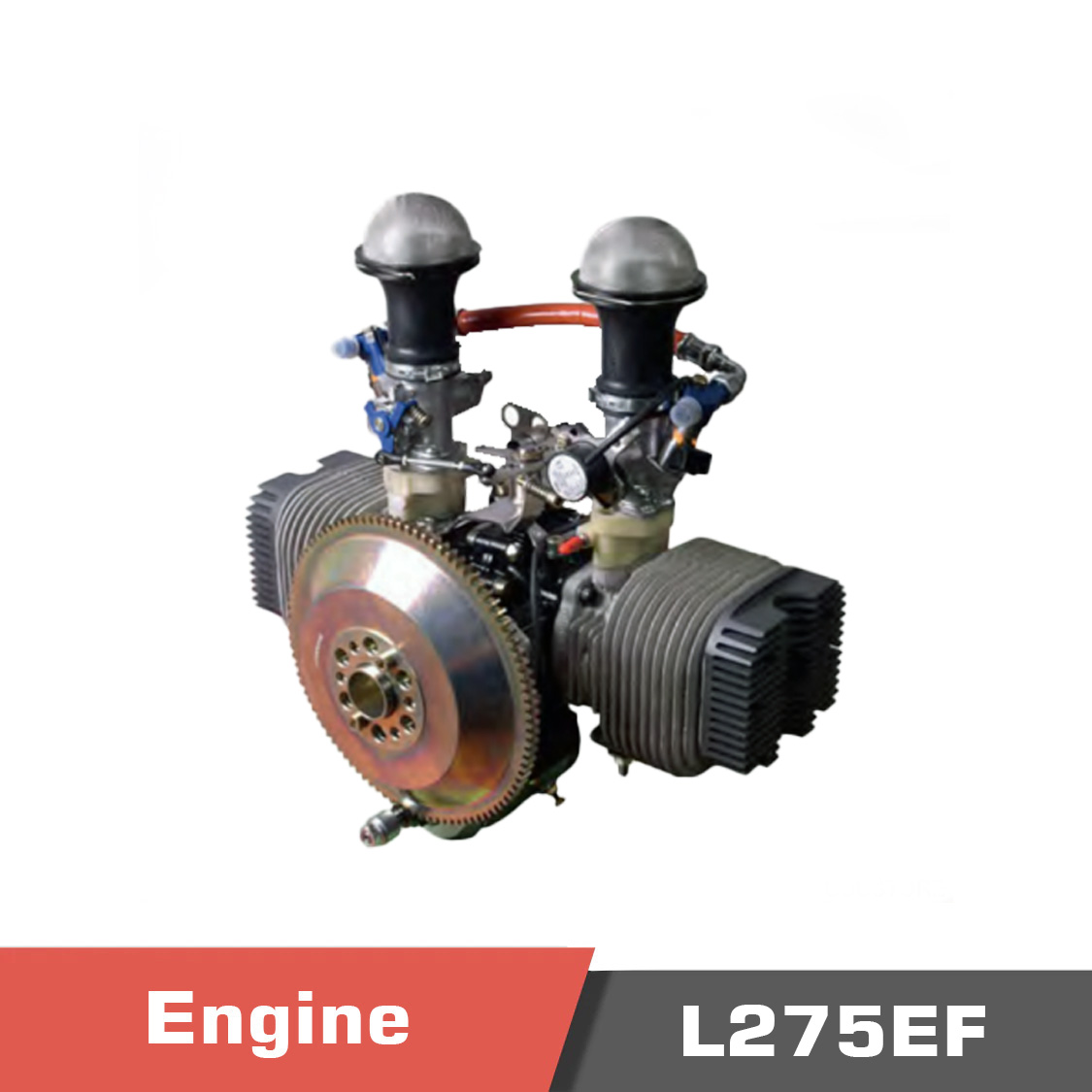

Limbach Engine L275EF | 24HP at 7500rpm

Name: Limbach Engine L275EF | 24HP at 7500rpm - MotioNew
SKU: 1005003866384297-1-1-1-2-1-2-1-2-2-2
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Price Inquiry

Add to compare

Add to wishlist

Payment Methods:

Description

Versatile and Efficient, The Advanced Design of the Limbach Engine L275EF

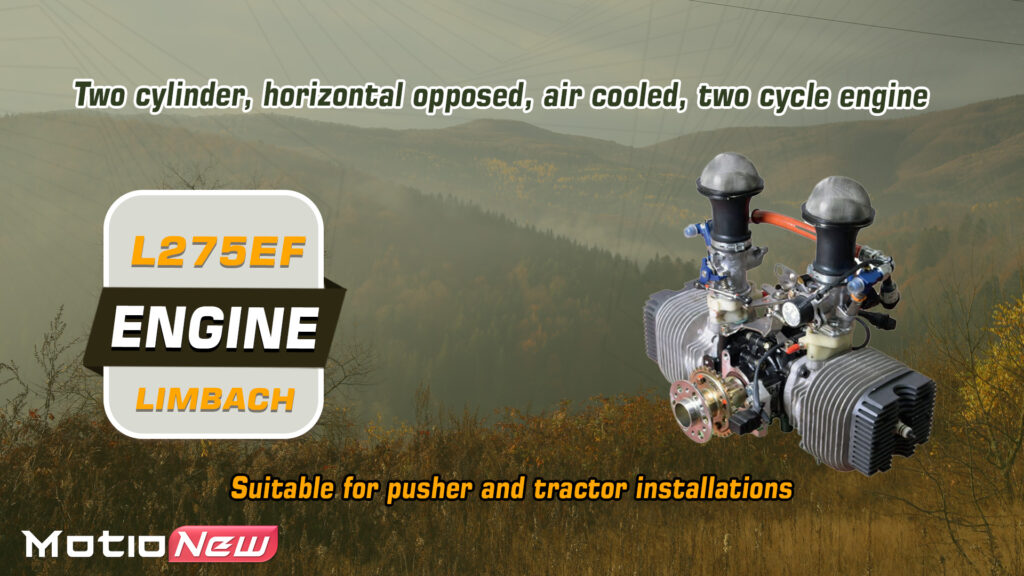

The Limbach Engine L275EF is a robust two-cylinder, horizontally opposed, air-cooled, two-cycle engine designed for both pusher and tractor installations. This UAV Engine features a fuel-saving electronic engine management system and utilizes mixture lubrication, ensuring optimal performance and efficiency. Its design makes it suitable for a variety of applications, delivering reliable power with advanced technology aimed at enhancing fuel economy and overall engine management.

The Limbach Engine L275EF Impressive Power and Efficiency

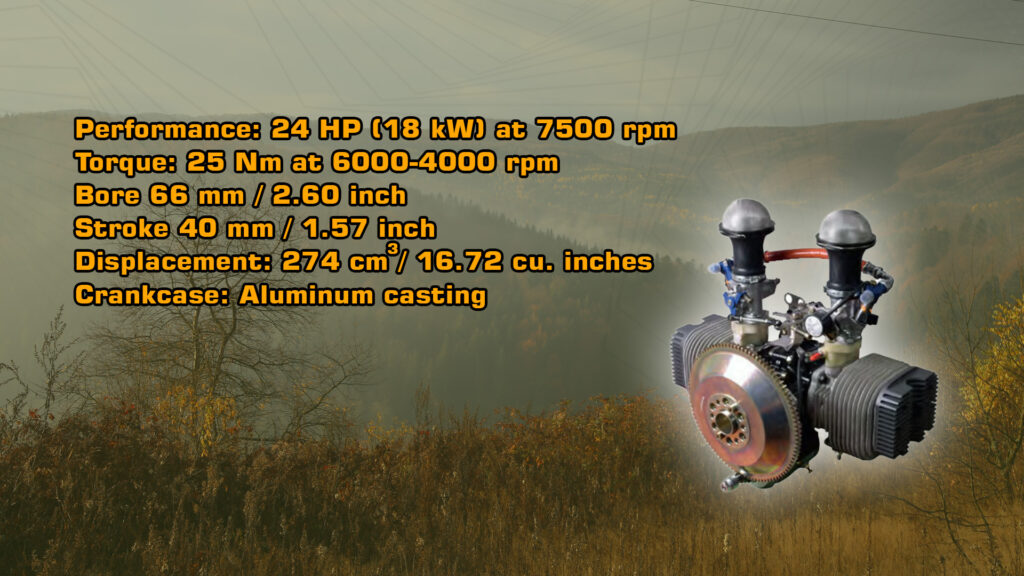

The Limbach Engine L275EF delivers impressive performance with an output of 18 kW (24 HP) at 7500 RPM, making it a powerful choice for various applications. It boasts a torque of 25 Nm within the 4000-6000 RPM range, ensuring strong and consistent power delivery.

The engine features a bore of 66 mm (2.60 inches) and a stroke of 40 mm (1.57 inches), contributing to its efficient and effective operation. These specifications highlight the engine’s capability to provide reliable performance while maintaining optimal efficiency and durability.

The Advanced Features of the Limbach Engine L275EF

The Limbach Engine L275EF features a displacement of 274 cm³ (16.72 cubic inches) and a lightweight design with a total weight of just 7 kg. Its crankcase is constructed from aluminum die-casting, ensuring durability and reduced weight. The crankshaft is drop-forged and designed as a one-piece unit, utilizing two split connecting rods with needle bearings for enhanced performance and reliability.

The pistons are made from casted aluminum alloy, offering excellent strength and thermal conductivity. Additionally, the cylinders are casted aluminum with a silicon carbide-coated barrel, providing superior wear resistance and efficiency. These parameters collectively contribute to the engine’s robust performance and long-lasting durability.

The Cutting-Edge Features of the Limbach Engine L257EF

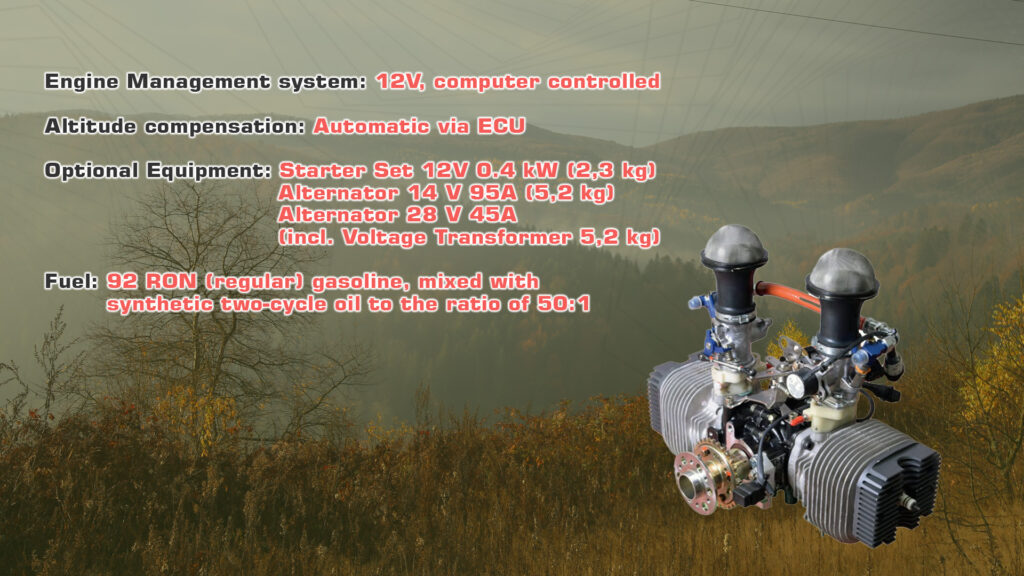

The Limbach Engine L257EF boasts a sophisticated ignition system that is ECU-controlled and variable, allowing for precise ignition timing and improved efficiency. Its engine management system is a computer-controlled 12V setup that ensures optimal performance under various conditions. The engine features automatic altitude compensation via the ECU, maintaining consistent performance even at varying altitudes.

It runs on 92 RON (regular) gasoline, mixed with synthetic two-cycle oil at a ratio of 50:1, which contributes to its reliability and efficiency while reducing the need for frequent maintenance. These advanced features make the Limbach Engine L275EF a high-performing and dependable choice for a range of applications.

Optional Equipment for the Limbach Engine L275EF

The Limbach Engine L275EF offers a range of optional equipment to enhance its functionality and adaptability. This includes a Starter Set with a 12V 0.4 kW starter motor, weighing 2.3 kg, which ensures reliable engine ignition. Additionally, there are two alternator options: a 14V 95A alternator weighing 5.2 kg, and a 28V 45A alternator that includes a voltage transformer, also weighing 5.2 kg. These optional components provide versatile power solutions, making the L275EF engine suitable for a variety of applications and ensuring consistent performance under different operational conditions.

For a comprehensive reading of related products, please visit the Motionew website..

Limbach Engine L275EF – FAQ

1. What are the main technical specifications of the L275EF engine?
The L275EF is a two-cylinder, horizontally opposed, air-cooled, two-stroke engine delivering 24 HP at 7500 RPM with 274 cm³ displacement and a total weight of 7 kg.

2. How does the engine’s management system enhance performance?
It features an electronic engine management system (ECU) for optimized fuel efficiency and mixture control, ensuring stable operation across RPM ranges.

3. What type of installation configurations are supported?
The L275EF supports both pusher and tractor configurations, making it adaptable for various UAV and light aircraft propulsion setups.

4. What are the available payment methods for purchase?
MotioNew accepts bank transfer, PayPal, and major credit cards for international orders.

5. Does MotioNew provide OEM or customization options for the L275EF?
Yes, OEM services are available, allowing integration with specific airframes, mounts, and power systems as per client requirements.

6. What documentation and certifications are supplied with the engine?
Each engine is shipped with technical manuals, installation guides, and quality assurance certificates, ensuring full compliance with aviation-grade standards.

Specifications

Specifications of Limbach Engine L275EF

Performance	24 HP (18 kW) at 7500 rpm
Torque	25 Nm at 4000-6000 rpm
Bore	66 mm / 2.60 inch
Stroke	40 mm / 1.57 inch
Displacement	274 cm3 / 16.72 cu. inches
Weight	7 kg
Crankcase	Aluminum die casted
Crankshaft	Drop forged, one piece utilizing 2 split connecting rods with needle bearings
Pistons	Casted aluminum alloy
Cylinders	Casted aluminum, silicon carbide coated barrel
Ignition System	Variable (ECU-controlled)
Engine Management system	12V, computer controlled
Altitude compensation	Automatic via ECU
Fuel	92 RON (regular) gasoline, mixed with synthetic two-cycle oil to the ratio of 50:1
Optional Equipment	Starter Set 12V 0.4 kW (2,3 kg) Alternator 14 V 95A (5,2 kg) Alternator 28 V 45A (incl. Voltage Transformer 5,2 kg)
