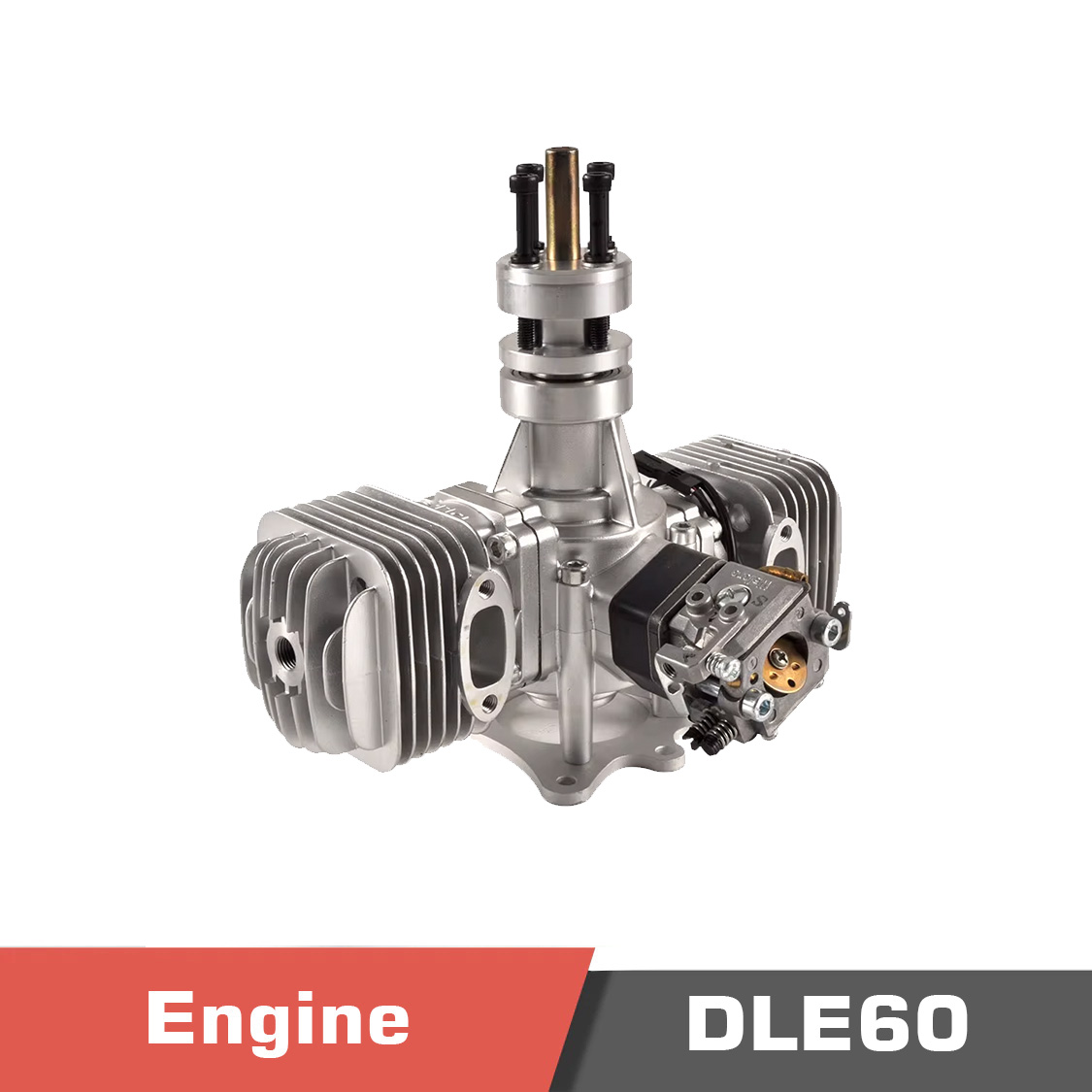

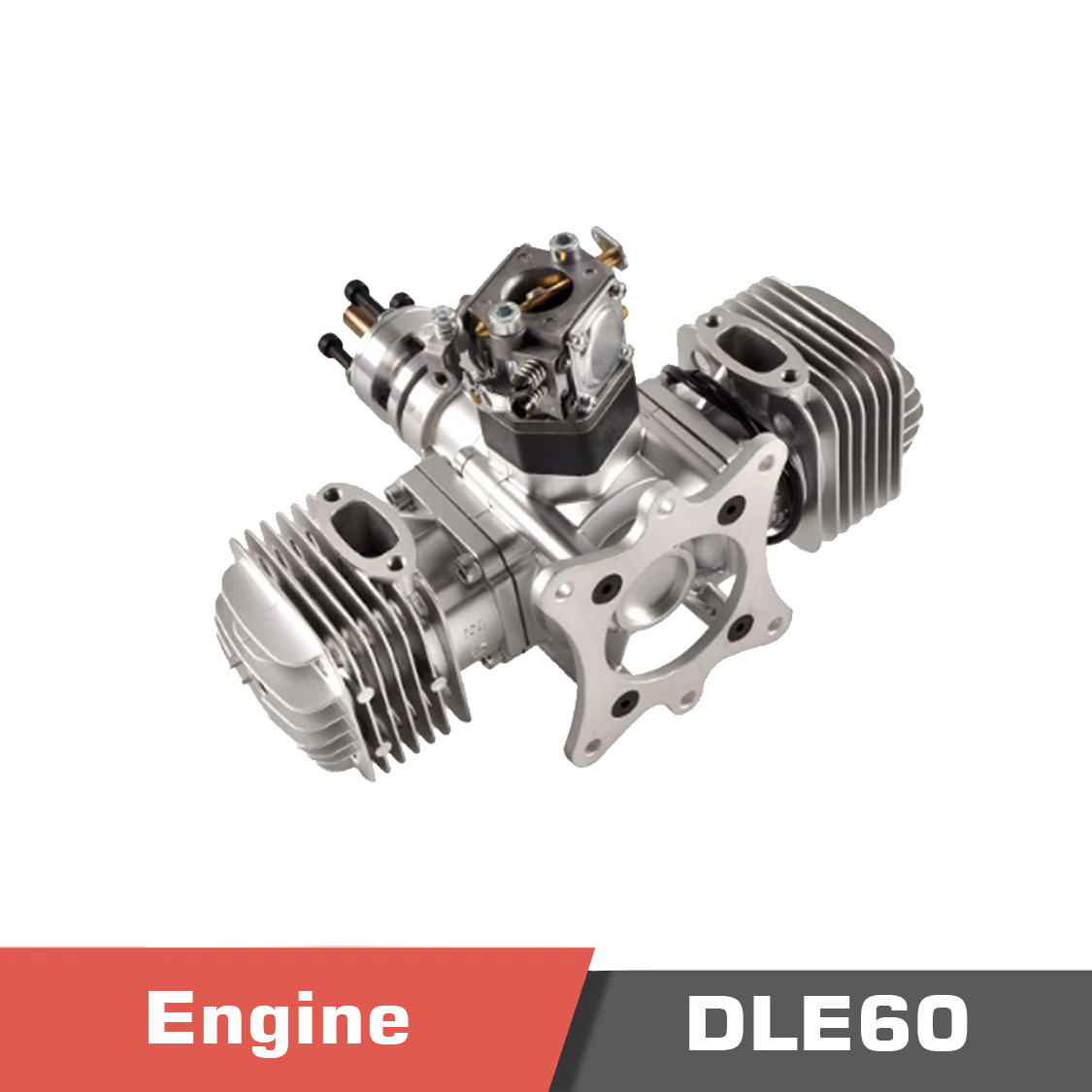

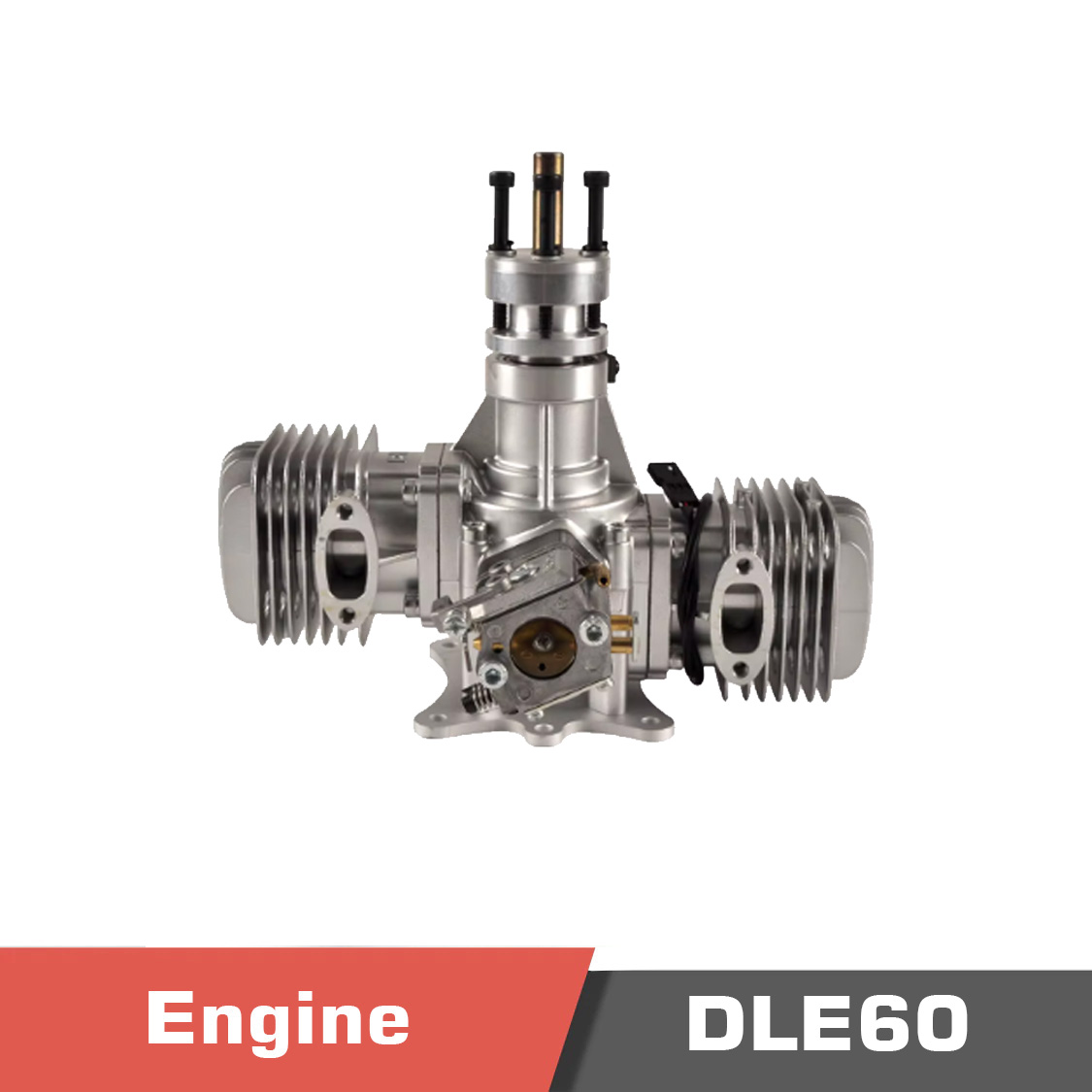

DLE60 Engine

Overview of DLE60 Engine

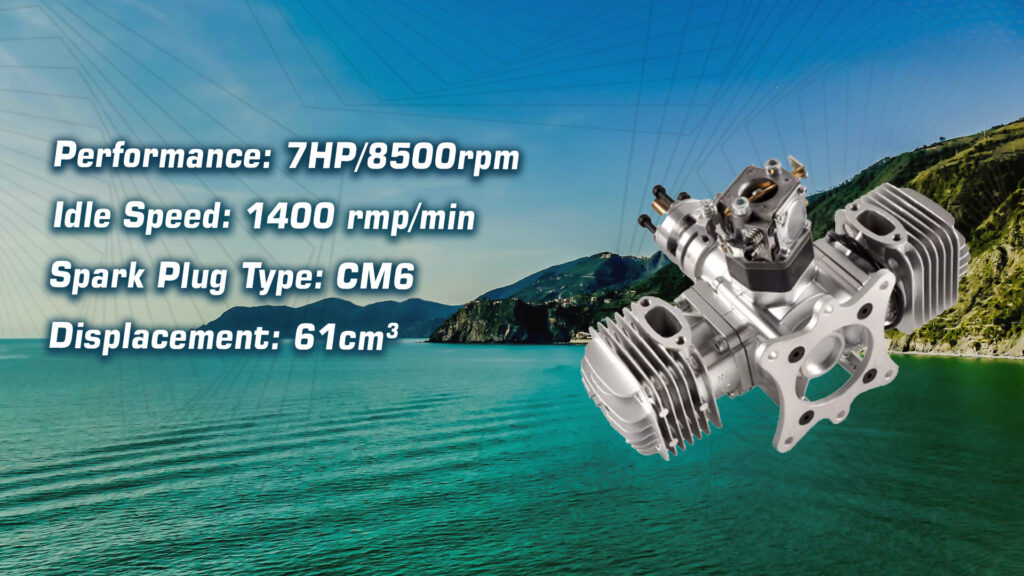

Introducing the DLE60 engine, a powerhouse designed for high-performance applications. With an impressive performance output of 7 horsepower at 8500 rpm, this UAV Engine delivers exceptional power and reliability for a variety of demanding tasks.

Performance Capabilities

The DLE60 Engine features an idle speed of 1400 rpm, ensuring smooth and stable operation at lower speeds. Its static thrust capabilities are notable, providing 15.2 kg at 100 meters altitude and 13.5 kg at 1800 meters altitude. This makes it an excellent choice for high-altitude performance.

Propellers for the DLE60 Engine

Recommended propellers for the DLE60 engine include sizes 22×10, 23×8, 23×10, 24×8, giving users flexibility in optimizing performance based on specific needs. The engine utilizes the NGK CM6 spark plug, renowned for its reliability and efficiency.

The Engine Operation

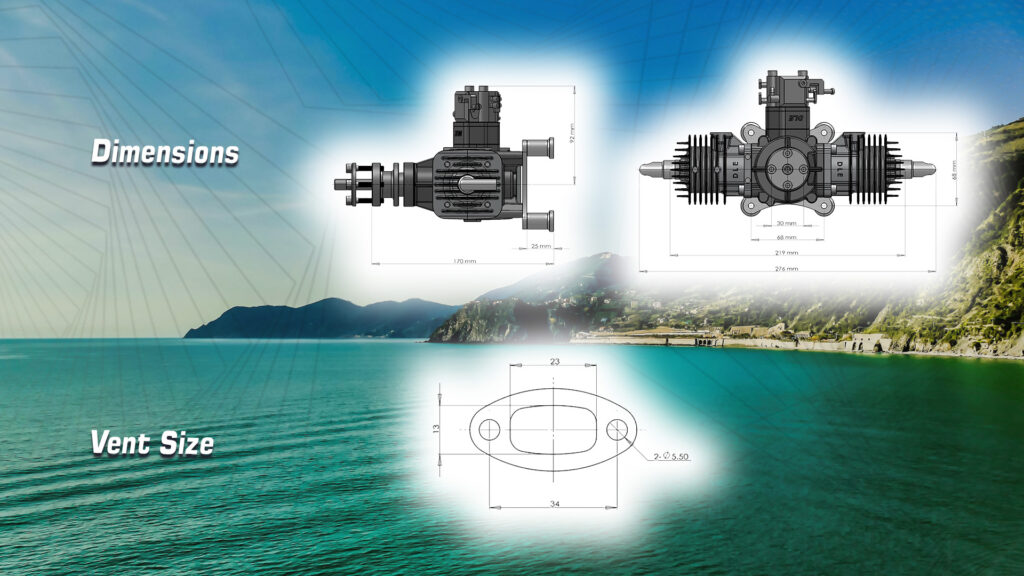

With a displacement of 61cm³ and dimensions of 36mm diameter by 30mm stroke, the DLE60 achieves a compression ratio of 7.6:1. The engine operates with a lubrication ratio of 30:1, ensuring optimal performance and longevity.

Weight of DLE60

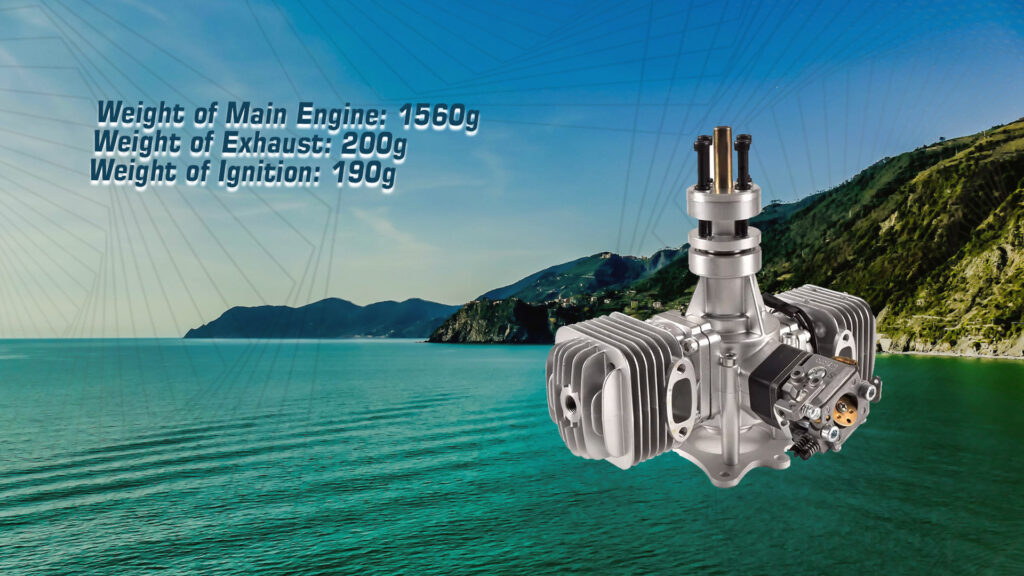

Weighing in at 1560 grams for the main engine, 200 grams for the exhaust, and 190 grams for the ignition system, the DLE60 is designed to be both powerful and lightweight. The ignition system operates on a voltage range of 4.8V to 8.4V, providing versatile and reliable power options.

Performance and Reliability

In summary, the DLE60 engine is a robust and efficient solution for high-performance needs, offering impressive power output, reliable operation at various altitudes, and compatibility with multiple propeller sizes. Whether for aviation, industrial, or other demanding applications, the DLE60 is engineered to deliver exceptional performance and reliability.

For a comprehensive reading of related products, please visit the Motionew website.

DLE60 Engine – FAQ

1. What are the main technical specifications of the DLE60 engine?

• Rated power: 7 horsepower at 8,500 rpm

• Idle speed: approximately 1,400 rpm

• Displacement: 61 cm³, with a bore × stroke of 36 mm × 30 mm

• Compression ratio: 7.6 : 1

• Lubrication (fuel mixture) ratio: 30 : 1

• Ignition system voltage range: 4.8 V to 8.4 V

• Engine weight: 1,560 g for the main unit, plus 200 g for the exhaust and 190 g for the ignition module

2. What performance can be expected (thrust, altitude)?

• Static thrust at 100 m altitude: 15.2 kg

• Static thrust at 1,800 m altitude: 13.5 kg

• The engine maintains reliable performance across moderate altitudes due to its design

3. Which propellers are recommended for use with the DLE60?
Recommended propeller sizes include 22×10, 23×8, 23×10, and 24×8 (diameter × pitch).
These choices allow balancing between thrust, efficiency, and operational RPM depending on payload and mission profile.

4. What ignition and operational considerations apply?
The engine uses the NGK CM6 spark plug, known for stable ignition performance.
Because of its two-stroke nature and power output, consistent fuel mixture, cooling, and maintenance are essential for longevity.

5. What purchasing options and pricing are listed?
On the product page, the DLE60 engine is listed at a unit price of USD 540.
Standard commercial payment methods (bank transfer, card, etc.) are accepted for orders.

6. What documentation, support, and export considerations accompany the engine?
The listing indicates that additional technical documentation is available upon request (you must contact the vendor).

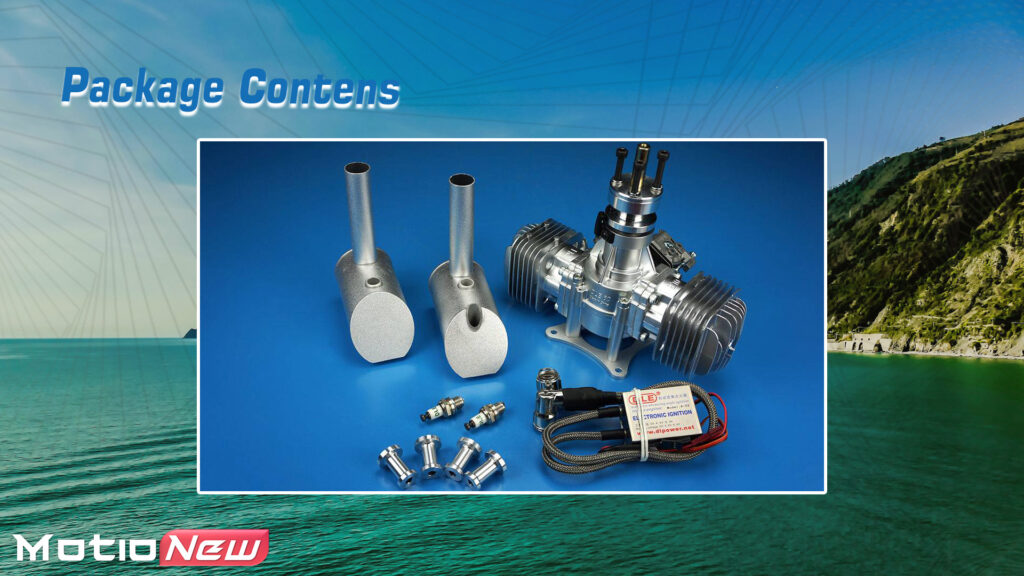

Included with delivery are the engine, exhaust, and ignition module, plus the essential specifications.
As with other UAV components, export and use are subject to regulatory compliance; the engine is intended for civilian and commercial applications, not military or prohibited uses.
