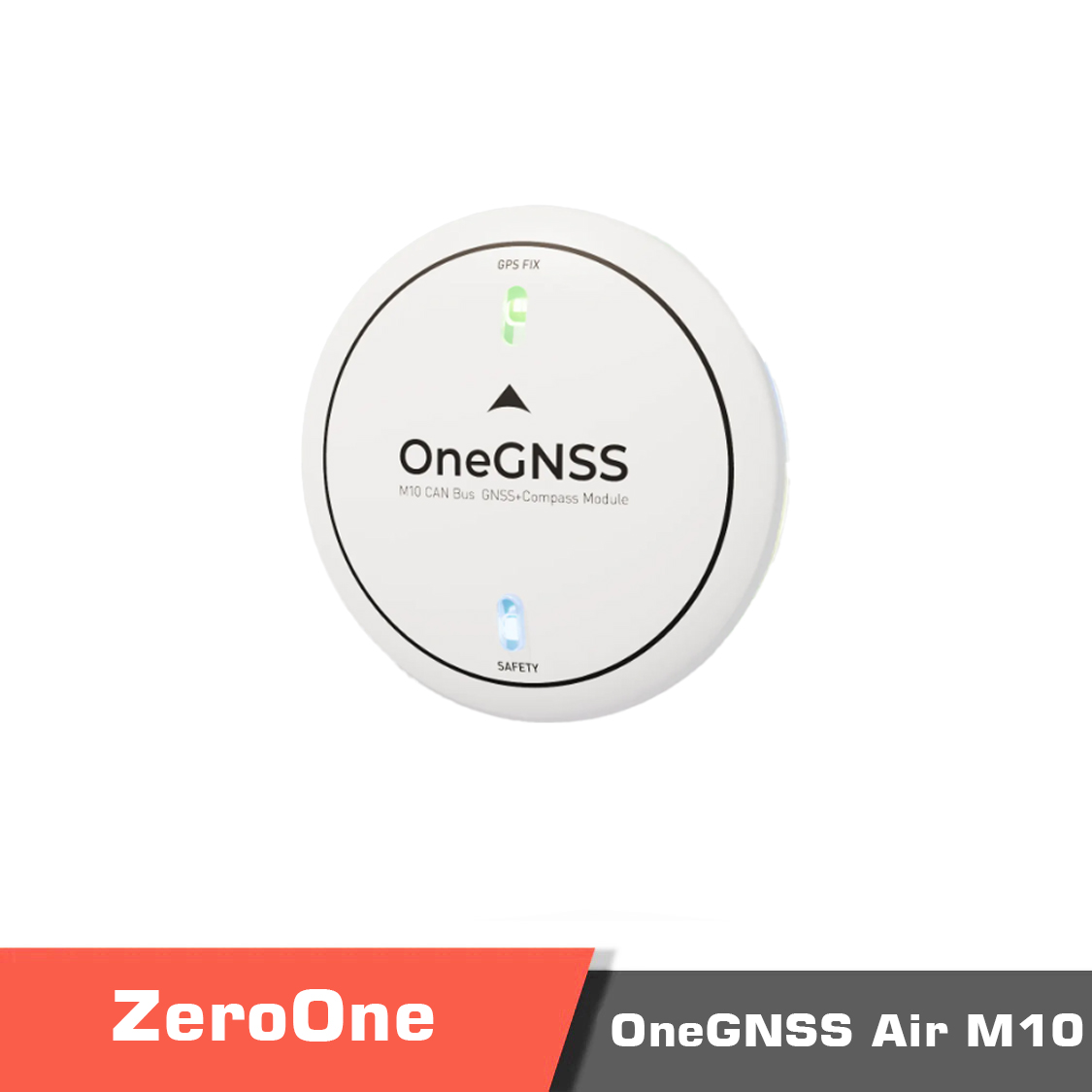

ZeroOne OneGNSS Air M10 GPS Module ublox M10 Four Star Reception

Advanced GNSS positioning designed for professional UAV systems

The ZeroOne OneGNSS Air M10 GPS Module is a high performance navigation solution developed for unmanned aerial vehicles that demand stable positioning, fast signal acquisition, and robust system integration. Built around the advanced u-blox M10 GNSS platform, this module delivers four star common reception performance while maintaining low power consumption and strong anti interference capability. It is designed for professional multirotor, VTOL, and fixed wing drone platforms operating in complex electromagnetic environments.

As UAV platforms evolve toward higher autonomy and tighter system integration, reliable GNSS data becomes critical. The OneGNSS Air M10 GPS Module addresses this need by combining multi constellation positioning, a high precision IST8310 electronic compass, and DroneCAN bus communication in a compact and installation friendly form factor.

Within the broader GPS Module ecosystem used in modern flight control systems, this product offers a balanced solution for engineers seeking performance, safety integration, and protocol compatibility.

View all GPS Options

ublox M10 architecture with four star common reception

At the core of the OneGNSS Air M10 GPS Module is the ublox M10 GNSS chipset, which supports simultaneous reception of multiple satellite constellations. The four star common reception design significantly improves positioning reliability, especially in environments with signal obstruction or multipath interference.

This architecture enables faster cold start times, stable positioning during aggressive flight maneuvers, and consistent navigation accuracy during long duration missions. For UAV platforms operating in urban, industrial, or mountainous regions, these characteristics directly translate into improved flight safety and mission success.

MotioNew engineers often recommend this GPS module for platforms that require dependable GNSS lock during frequent takeoff and landing cycles or dynamic mission profiles.

Integrated IST8310 high precision compass

The OneGNSS Air M10 GPS Module integrates the IST8310 electronic compass, which is widely recognized for its stability and low noise characteristics. This high precision magnetometer provides accurate heading data that complements GNSS positioning and enhances overall navigation performance.

When installed with proper magnetic isolation, the IST8310 compass supports consistent yaw estimation even in electrically noisy UAV frames. This is especially important for platforms using advanced flight controllers and autonomous navigation algorithms.

For systems built around a modern Flight controller platform, the integrated compass reduces wiring complexity while maintaining accurate sensor fusion performance.

Built in safety switch, LED indicator, and buzzer

To support professional UAV operations, the OneGNSS Air M10 GPS Module integrates a safety switch, LED status indicator, and buzzer directly on the module. This integrated design simplifies system layout and improves operational safety during pre flight checks and arming procedures.

The LED indicator provides clear visual feedback on GNSS status, system readiness, and communication state. The buzzer offers audible alerts that are useful during outdoor operations or in bright environments where visual indicators may be difficult to see. The safety switch enables controlled arming behavior, which is essential for compliance focused and industrial UAV applications.

DroneCAN bus communication for reliable data exchange

The OneGNSS Air M10 GPS Module supports the DroneCAN bus communication protocol, allowing reliable and deterministic data transmission between the GNSS module and the flight control system. DroneCAN is widely adopted in professional UAV architectures due to its robustness, fault tolerance, and scalability.

By using DroneCAN communication, the module reduces susceptibility to electromagnetic interference compared to traditional serial interfaces. It also supports advanced network diagnostics and redundancy strategies, which are valuable in safety critical UAV deployments.

This makes the module suitable for complex platforms such as Multirotor Drone systems with multiple CAN enabled peripherals or vtol drone platforms that require coordinated sensor communication.

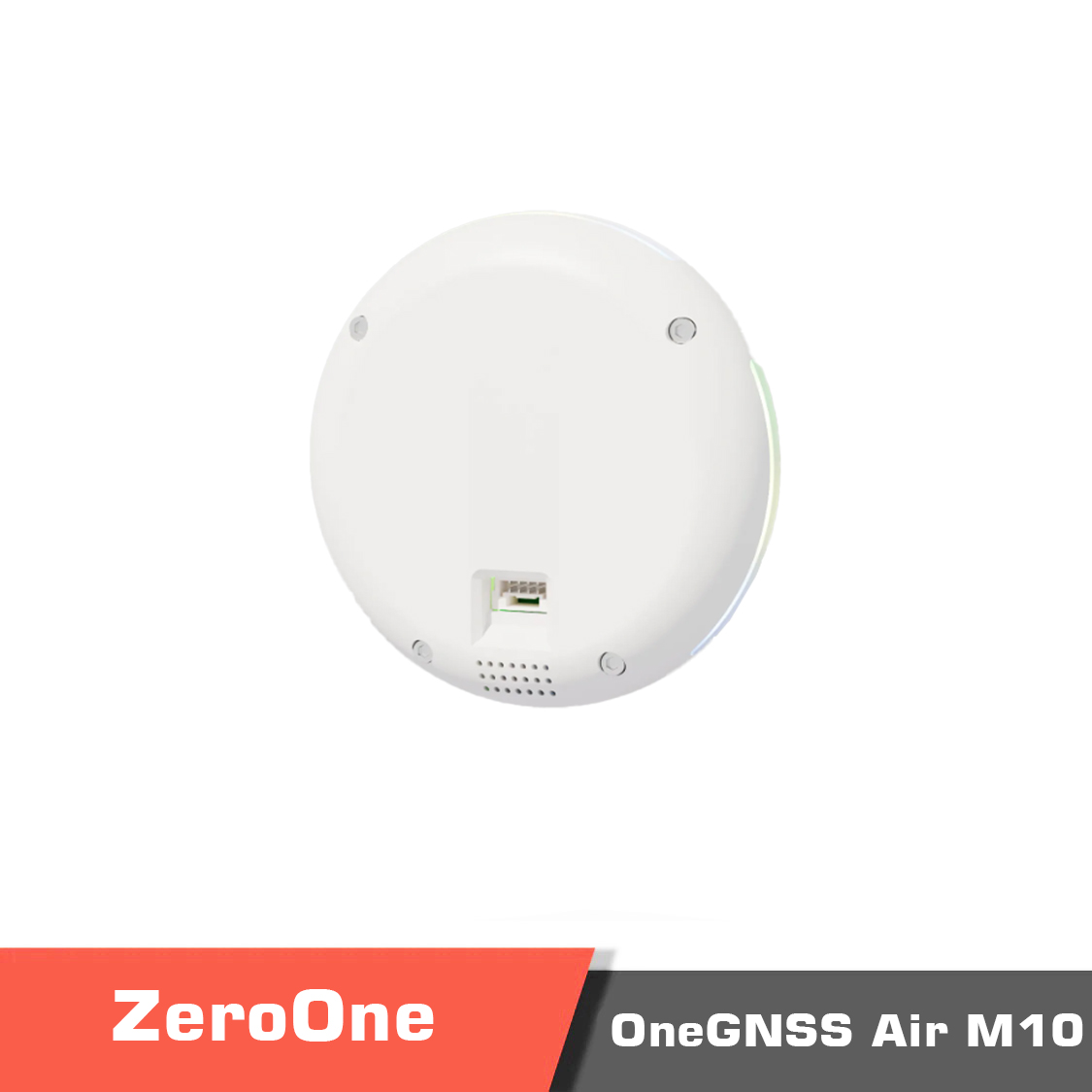

Mechanical design and installation considerations

The OneGNSS Air M10 GPS Module is designed with a compact and lightweight structure that supports flexible mounting options. Its form factor allows easy integration on top mounted GPS masts or internal avionics bays, depending on platform layout.

MotioNew engineers recommend installing the module with adequate separation from high current power lines and RF transmitters to maximize GNSS and compass performance. Proper orientation and vibration isolation further enhance positioning stability, especially on high thrust UAV platforms.

System compatibility and MotioNew integration support

This GPS module is compatible with a wide range of professional UAV flight controllers that support DroneCAN GNSS input. MotioNew provides technical guidance on firmware configuration, CAN node setup, and system level tuning to ensure optimal performance.

For B2B customers, MotioNew offers integration services that include component matching, wiring harness recommendations, and pre delivery validation. These services help reduce development time and minimize integration risks for UAV manufacturers and system integrators.

Typical application scenarios

The ZeroOne OneGNSS Air M10 GPS Module is well suited for:

• Industrial inspection drones operating in signal challenging environments
• Mapping and surveying UAVs requiring stable GNSS positioning
• VTOL and hybrid platforms with complex avionics architectures
• Autonomous UAV systems using DroneCAN based sensor networks

Its balanced combination of positioning performance, integrated safety features, and robust communication makes it a reliable choice for professional deployments.

FAQs

Is the ZeroOne OneGNSS Air M10 GPS Module suitable for DroneCAN based flight controllers?

Yes. This GPS module is designed specifically to support DroneCAN communication, making it compatible with many professional flight controllers. MotioNew engineers assist customers with configuration and system validation to ensure seamless integration.

How does the ublox M10 chipset improve UAV navigation performance?

The ublox M10 platform supports multi constellation reception and improved sensitivity, which results in faster satellite lock and more stable positioning. This is especially beneficial for UAVs operating in complex environments or during dynamic flight conditions.

Can MotioNew support bulk procurement for UAV manufacturing projects?

MotioNew supports bulk and wholesale orders for the OneGNSS Air M10 GPS Module. Our team provides pricing optimization, logistics coordination, and technical support tailored to B2B procurement needs.

Does MotioNew offer technical support for system integration and deployment?

Yes. MotioNew offers pre sales consultation, integration guidance, and post sales technical support. This includes assistance with firmware setup, CAN bus configuration, and compatibility verification for large scale UAV projects.
