Taking a look at the latest Airspeed Sensor by CUAV

Shenzhen UAS/UAV 2022 expo was held on August 10-12 in Shenzhen, China. Many companies around the world participated and demonstrated their newest line of products. CUAV leveraged the opportunity to reveal the first sights of its latest airspeed sensor, SKYE. Our team could get the first sight on this new sensor.

SKYE airspeed features a dual temperature control system, and intelligent de-icing technology. It is designed with waterproof material (suitable for flights in rainy days), and supports DroneCAN protocol for communication with the flight controller.

The SKYE has a integrated and compact design. The sensor is installed directly under the pitot, and eliminates the need for pitot tubes. It has a sliding mechanism for easier maintenance in case.

The temperature control system prevents freezing, and controls the temperature at the calibrated point of the sensor. The heating system is an integrated 32W system.

A drain hole inside the structure makes the system water proof and prevents damage to the internal parts.

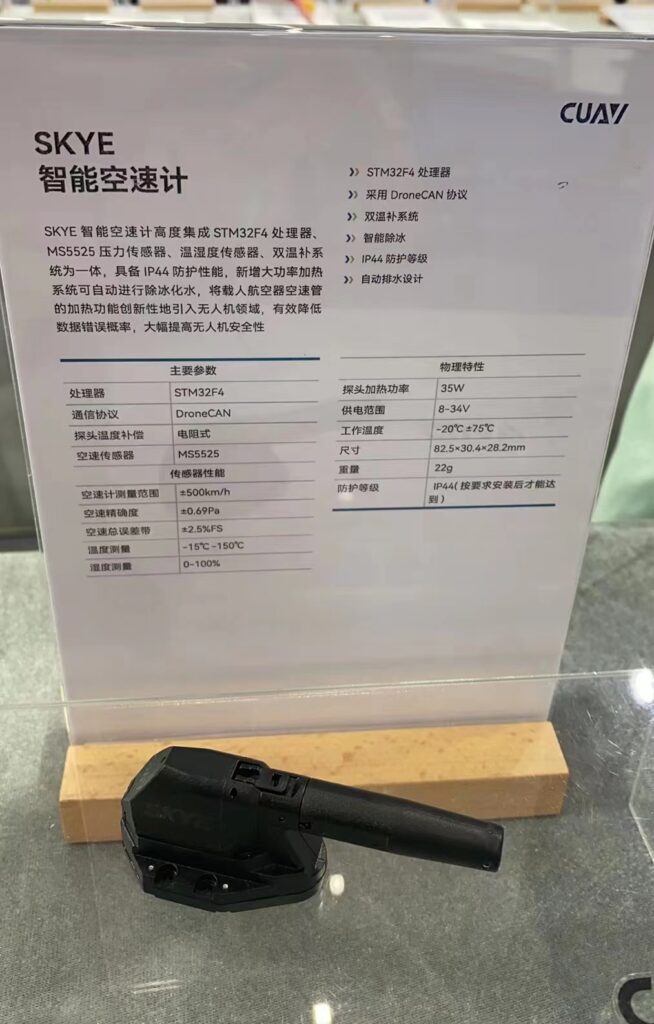

Here are some parameters of the sensor:

Main Parameters
ProcessorSTM32F4
ProtocolDroneCAN
Pitot tube temperature control typeResistance heating
Airspeed sensorMS5525
Sensor performance
Airspeed measurement range±500km/h
Airspeed accuracy±0.69Pa
Total Error Band±2.5%FS
Temperature measurement range-15℃-150℃
Humidity measurement range0-100%
Pysical characteristics
Pitot tube heating power35W
DC INDefault 12-36V
Operating Temperature-20℃±75℃

You can take a look at a few more pictures from SKYE heated pitot airspeed taken by our team in the 2022 Shenzhen UAS/UAV expo.

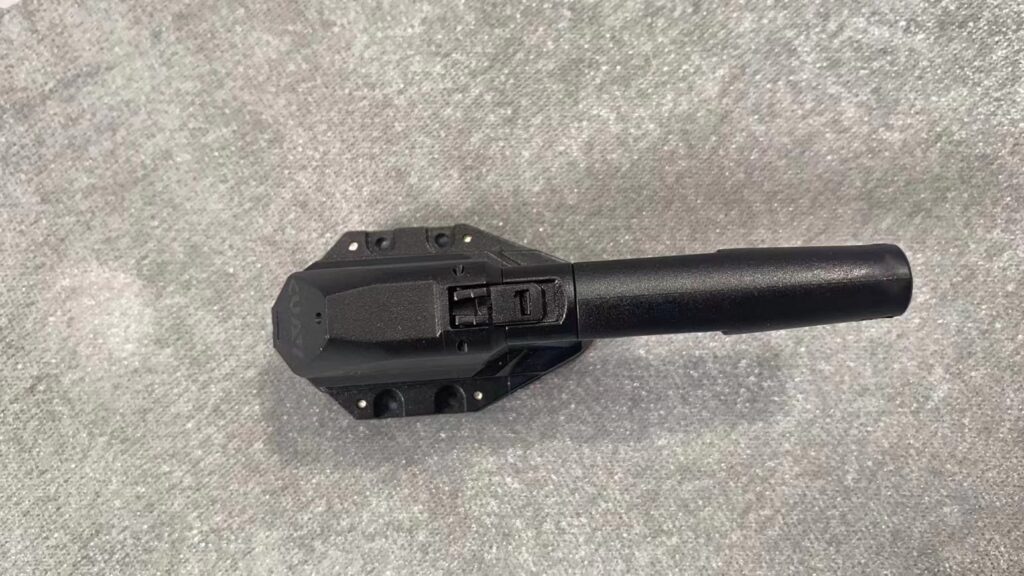

Skye1 - airspeed sensor, cuav, shenzhen uas/uav expo, shenzhen expo, hot pitot tube, skye airspeed - motionew - 1

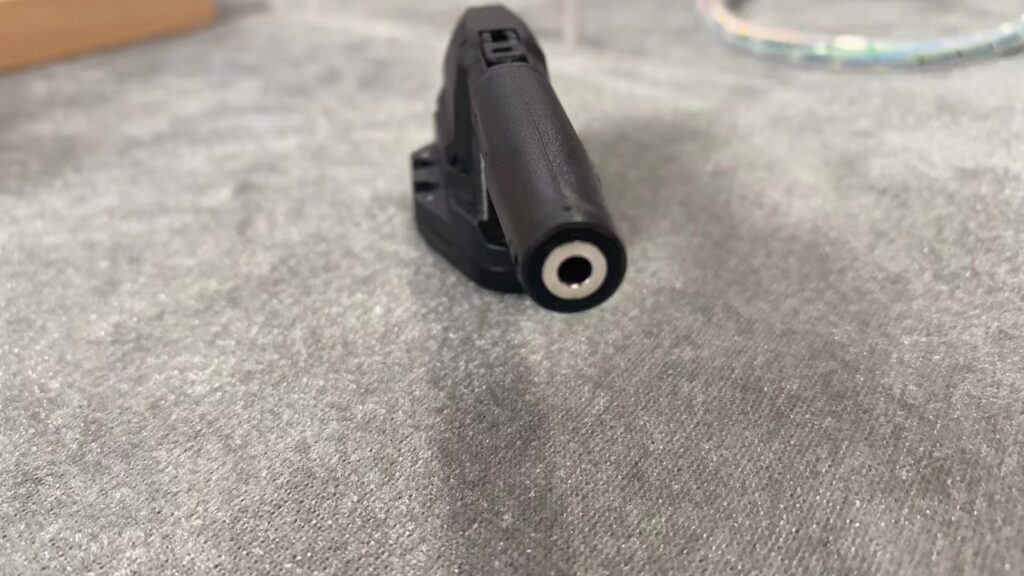

Skye2 - airspeed sensor, cuav, shenzhen uas/uav expo, shenzhen expo, hot pitot tube, skye airspeed - motionew - 2

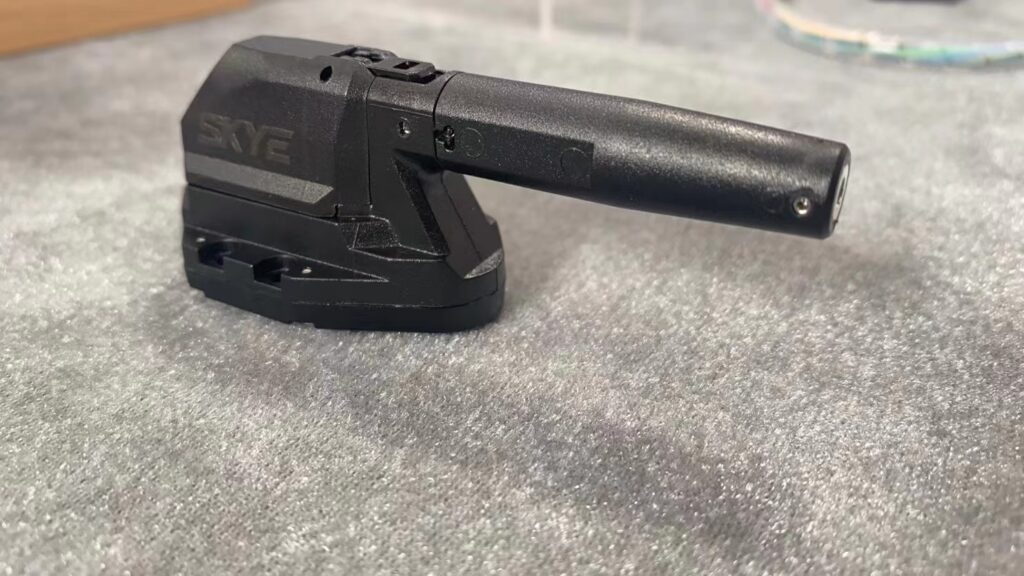

Skye3 - airspeed sensor, cuav, shenzhen uas/uav expo, shenzhen expo, hot pitot tube, skye airspeed - motionew - 3

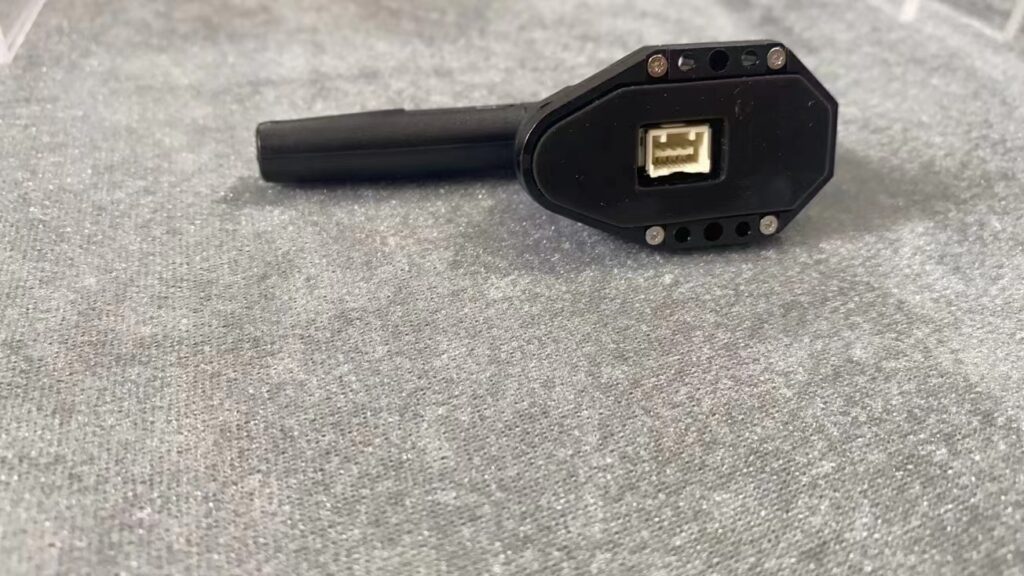

Skye5 - airspeed sensor, cuav, shenzhen uas/uav expo, shenzhen expo, hot pitot tube, skye airspeed - motionew - 4
Airspeed sensor

Visit the Motionew Online Shop to view our entire product line to see the latest product and more products similar to this new Airspeed Sensor.

Stay tuned for more pictures from Shenzhen expo.
