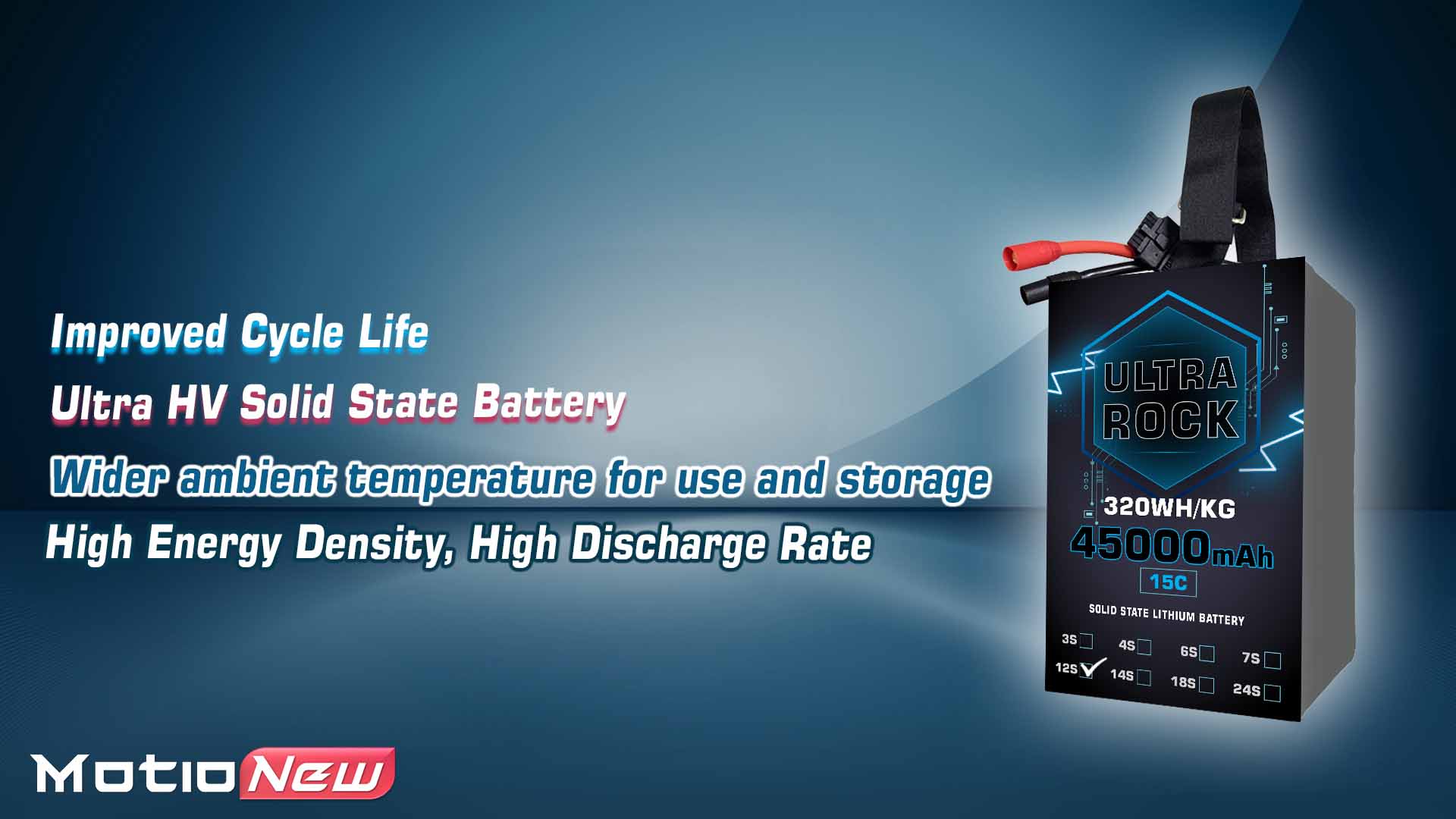

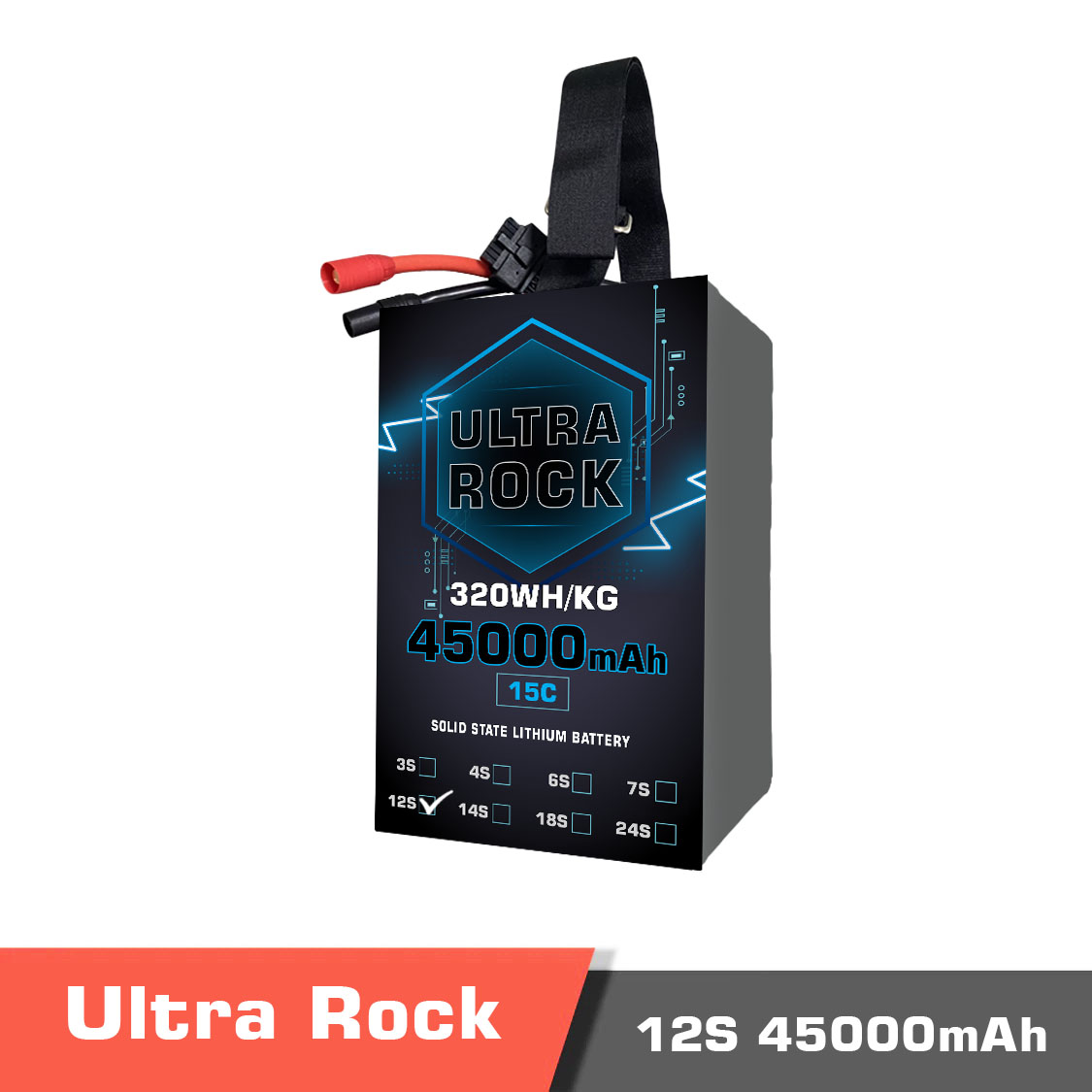

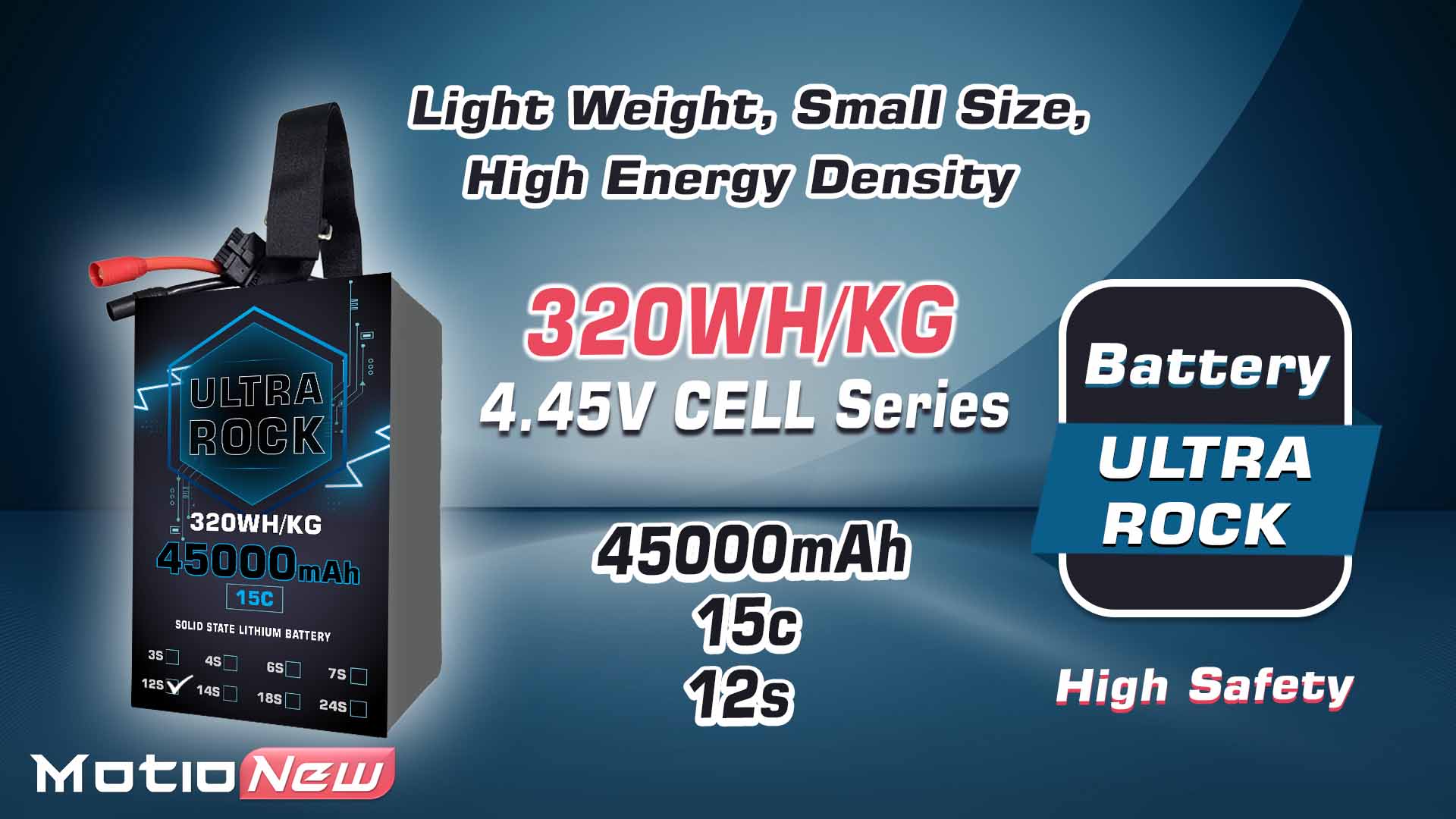

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 45000mAh 320Wh/kg Energy Density 15C discharge Rate
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **
semi-solid state battery products
General Specifications
Ultra HV battery 12S 45000mAh Ultra HV semi solid-state battery is only 6.6kg, with 320Wh/kg pack energy density, and Standard Current discharge rate is 5C, Continuous current discharge rate is 7C and Peak current discharge rate is 15C.
The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 12s 45000mAh
Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 12s 45000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
FAQ
1. What are the main specifications of this battery?
The 12S 45000mAh Ultra Rock Ultra HV battery weighs 6.6 kg and provides an energy density of 320 Wh/kg. It supports 5C standard discharge, 7C continuous discharge, and 15C peak discharge, with up to 25C maximum discharge rate under certain conditions.
2. What is the operating voltage range of the cells?
Each cell operates between 2.7V and 4.45V, ensuring efficient and stable energy delivery throughout its discharge cycle.
3. How does this battery improve over traditional Li-ion models?
It offers higher energy density, lighter weight, longer UAV endurance time, better heat management under load, and improved shock resistance compared to conventional Li-ion packs.
4. What payment methods are available?
Payments can be made via credit/debit cards, PayPal, and international bank transfers.
5. Is OEM customization available for this model?
Yes. OEM customization includes connector type selection, capacity adjustments, and special configurations tailored to UAV or industrial needs.
6. Are certification documents provided with the shipment?
Yes. Shipments include all required documentation: MSDS, UN38.3, RoHS, and DGM certificates, ensuring compliance with shipping and customs regulations.
Specifications
Specifications
| Voltage | Nominal: 47.4V, Full: 53.4V |
| Cell Voltage | 4.45v/cell |
| Capacity | 45000mAh |
| Standard Discharge Rate | 5C |
| Continuous Discharge Rate | 7C |
| Max./Peak Discharge Rate | 15C |
| Energy | 320Wh/kg |
| Size | 235*115*130mm |
| Weight | 6.6kg |
Product contents
Product contents
1x Ultra High Voltage Solid-state Battery 12s 45000mAh
Documents
Documents
All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Battery cells |
12S |
|---|---|
| Battery Capacity |
45000mAh |
| Battery Energy Density |
320 Wh/kg |
| Battery Dimensions |
235*115*130mm |
| Battery Continuous C rate |
5C |
| Battery Max Peak C rate |
15C |
| Battery Type |
ULiHV |
| Battery Weight |
6600g |
| Battery Nominal Voltage |
3.95 |
| Battery Full Voltage |
4.45v |
