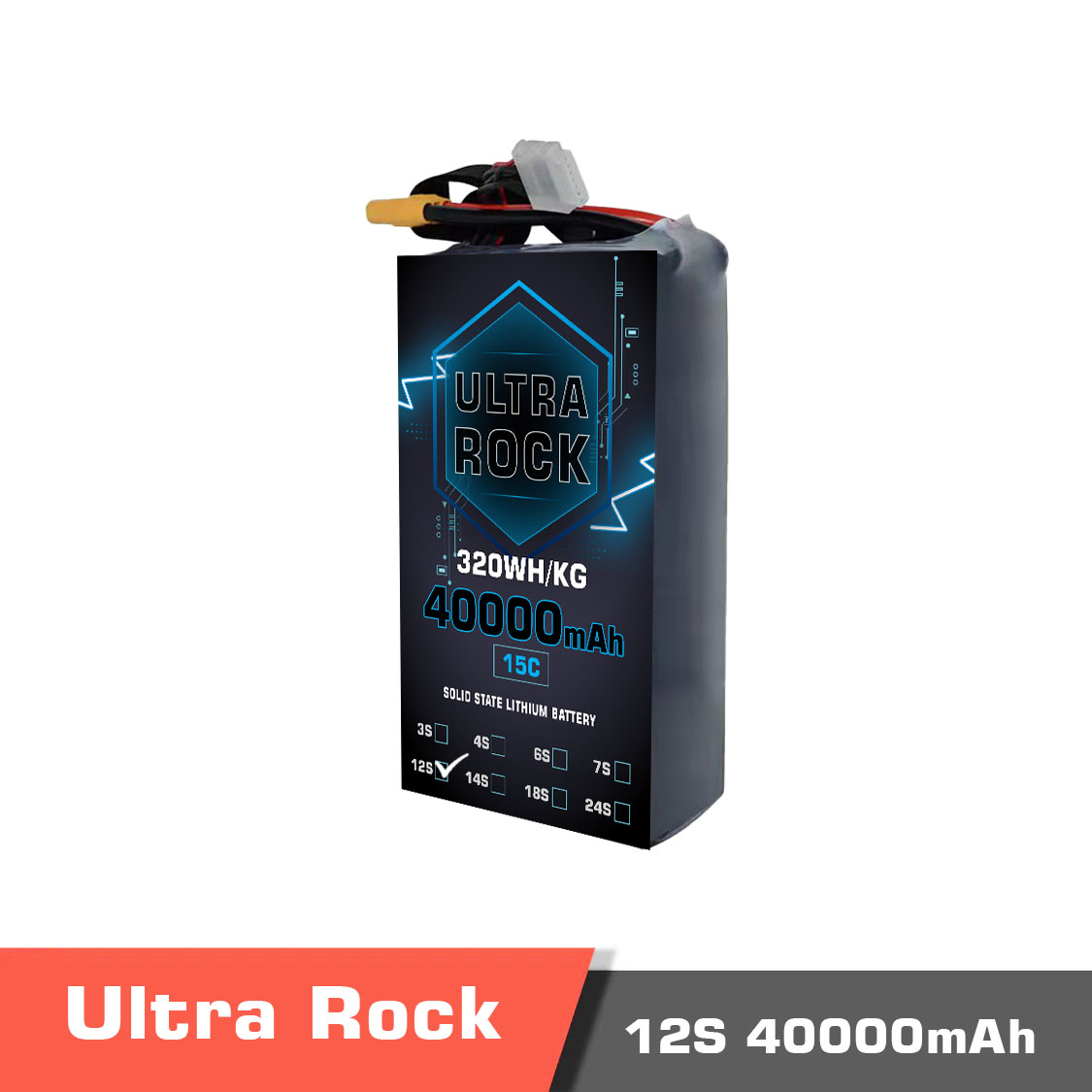

Semi Solid-State Battery | Model Ultra Rock Ultra HV battery 12s 40000mAh 320Wh/kg Energy Density 15C discharge Rate
Description
Please inform us about the connector type that best meets your needs.
We offer a wide range of batteries in various sizes and models, though some are not yet publicly listed. Please feel free to send us a message if your required model is not listed.
** All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available. **
semi-solid state battery products
General Specifications
Ultra HV battery 12S 40000mAh Ultra HV semi solid-state battery is only 6kg, with 320Wh/kg pack energy density, and Standard Current discharge rate is 5C, Continuous current discharge rate is 7C and Peak current discharge rate is 15C.
The Ultra Rock Ultra HV Semi Solid-State battery is a Semi Solid-state Li-ion battery series that has a higher discharge current and higher cell voltage compared to a normal solid-state Li-ion battery. The discharge interval of each battery cell is from 2.7v to 4.45v and the discharge rate can be up to 25C.
Advantages of battery 12s 40000mAh
Compared to traditional semi solid-state Li-ion batteries, the Ultra HV Solid-state Li-ion battery has a lightweight and higher energy density. The drone endurance time will be increased by using this model of batteries. In contrast to normal Li-ion batteries, solid-state batteries do not heat during usage even when a high current is being drawn from the battery. They are more resilient to shocks and hits.
Battery 12s 40000mAh applications
Ultra HV Solid-state Li-ion battery is suitable for most UAVs or other electrical equipment that requires a long endurance time: Agriculture drones, Industrial multi-copters, VTOLs, Robots, Surface ships, etc.
For a comprehensive reading of related products, please visit the Motionew website.
FAQ
1. What are the main specifications of this battery?
This battery has a 12S configuration, 40000mAh capacity, and weighs 6 kg. It delivers an energy density of 320 Wh/kg with 5C standard discharge, 7C continuous discharge, and 15C peak discharge. Under certain conditions, it can reach 25C maximum discharge.
2. What is the operating voltage range of the cells?
Each cell operates between 2.7V and 4.45V, maintaining stable voltage output across the cycle.
3. What advantages does this battery provide over conventional Li-ion models?
The Ultra Rock Ultra HV series offers lighter weight, higher energy density, extended UAV endurance, reduced heating during high current loads, and improved shock resistance.
4. What payment methods are available?
Payments can be made via credit/debit cards, PayPal, and international bank transfers.
5. Can OEM customization be requested?
Yes. Buyers can request different connector types, customized capacities, and tailored configurations to match UAV or industrial requirements.
6. Are compliance documents included with the shipment?
Yes. All required certifications are included: MSDS, UN38.3, RoHS, and DGM reports, ensuring international shipping compliance.
Specifications
Specifications
| Voltage | Nominal: 47.4V, Full: 53.4V |
| Cell Voltage | 4.45v/cell |
| Capacity | 40000mAh |
| Standard Discharge Rate | 5C |
| Continuous Discharge Rate | 7C |
| Max./Peak Discharge Rate | 15C |
| Energy | 320Wh/kg |
| Size | 235*115*118mm |
| Weight | 6kg |
Product contents
Product contents
1x Ultra High Voltage Solid-state Battery 12s 40000mAh
Documents
Documents
All certificates and reports required for shipping and customs clearance including MSDS, UN38.3, RoHS, and DGM are available.
Please contact us for more information.
Reviews
You must be logged in to post a review.
| Battery cells |
12S |
|---|---|
| Battery Capacity |
40000mAh |
| Battery Energy Density |
320 Wh/kg |
| Battery Continuous C rate |
5C |
| Battery Dimensions |
235*115*118mm |
| Battery Max Peak C rate |
15C |
| Battery Weight |
6000g |
| Battery Type |
ULiHV |
| Battery Nominal Voltage |
3.95 |
| Battery Full Voltage |
4.45v |
